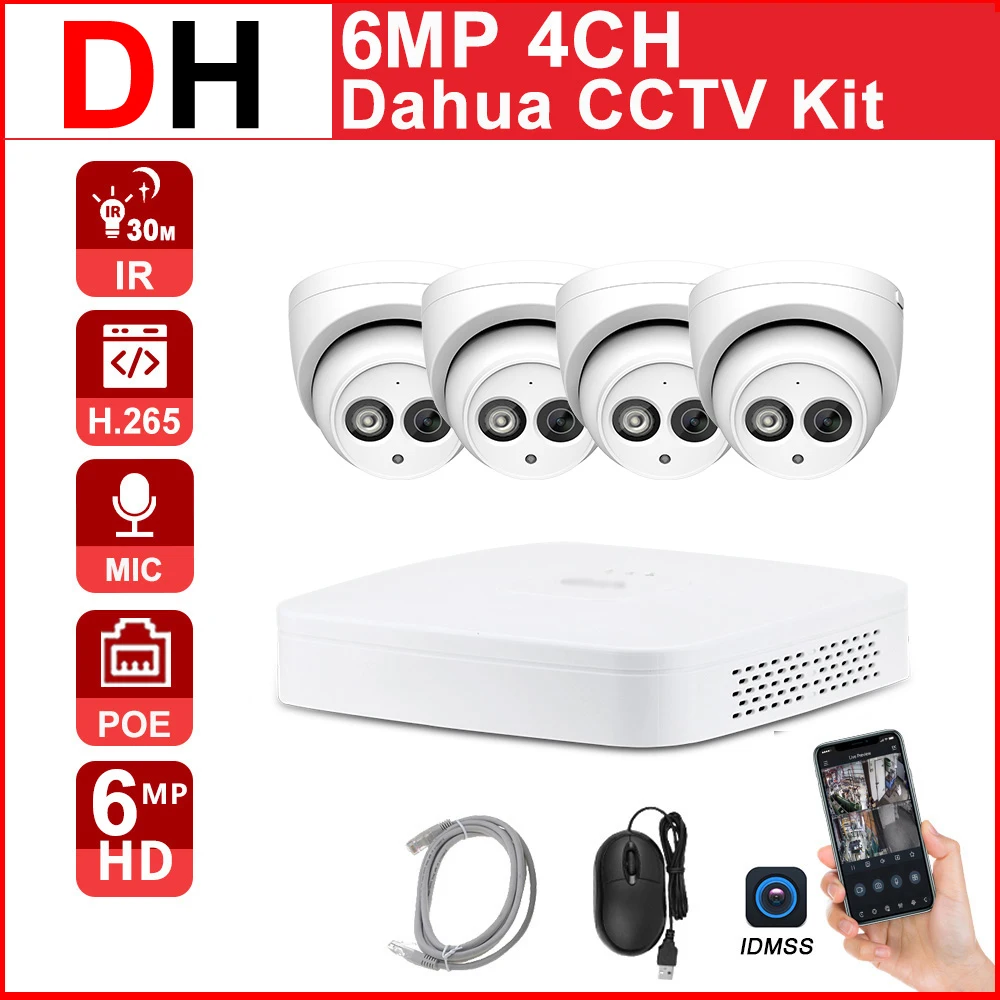

Камера видеонаблюдения DH HD 6 МП встроенный микрофон | Безопасность и защита

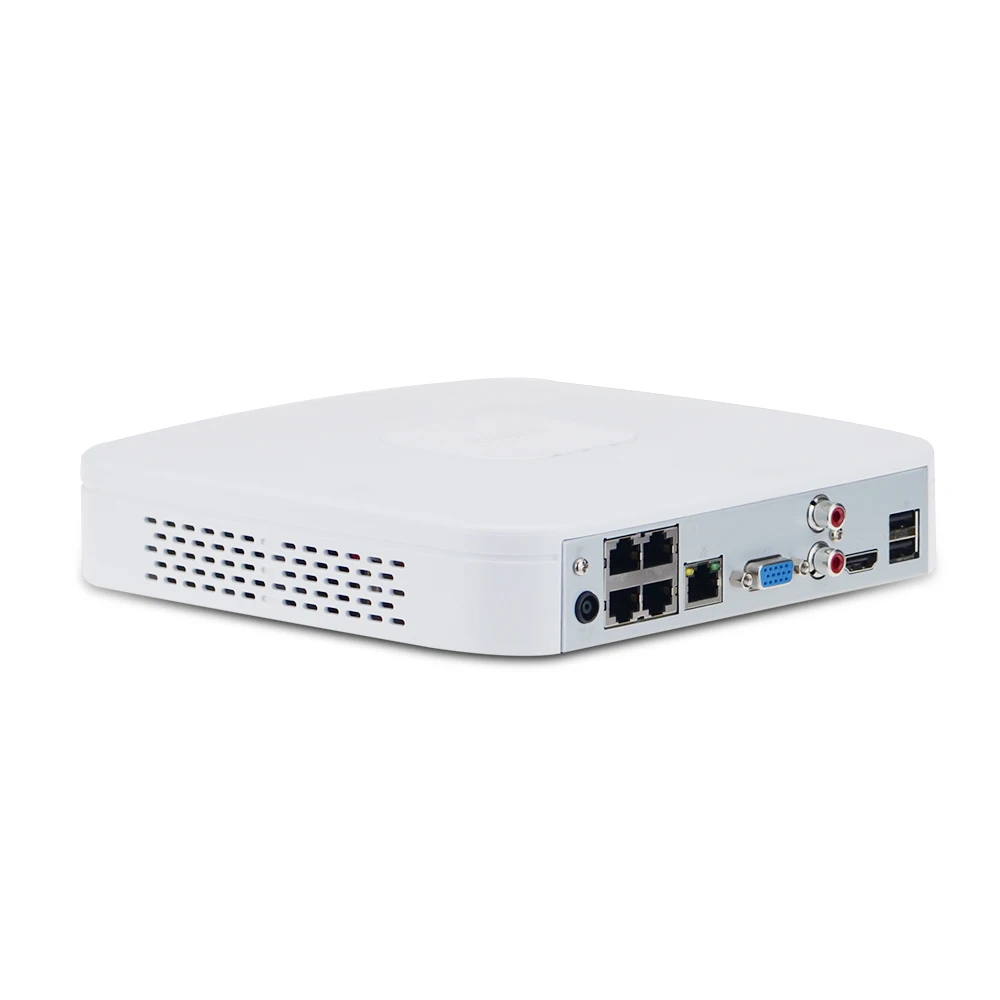

NVR4104-P-4KS2

4 Channel Smart 1U 4PoE 4K&H.265 Lite Network Video Recorder
> Smart H.265+/H.265/Smart H.264+/H.264
> Max 80Mbps Incoming Bandwidth
> Up to 8MP Resolution for Preview and Playback
> Up to2ch@4K/8ch@1080Pdecoding

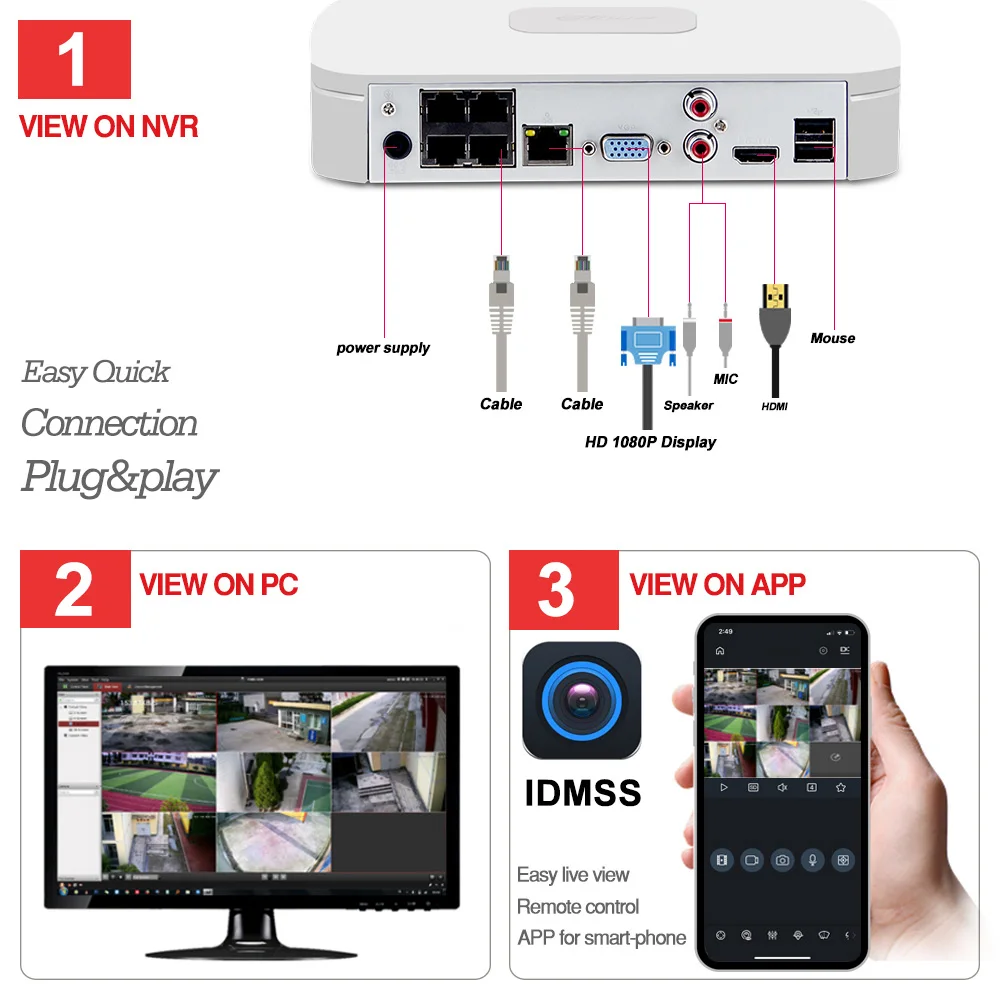

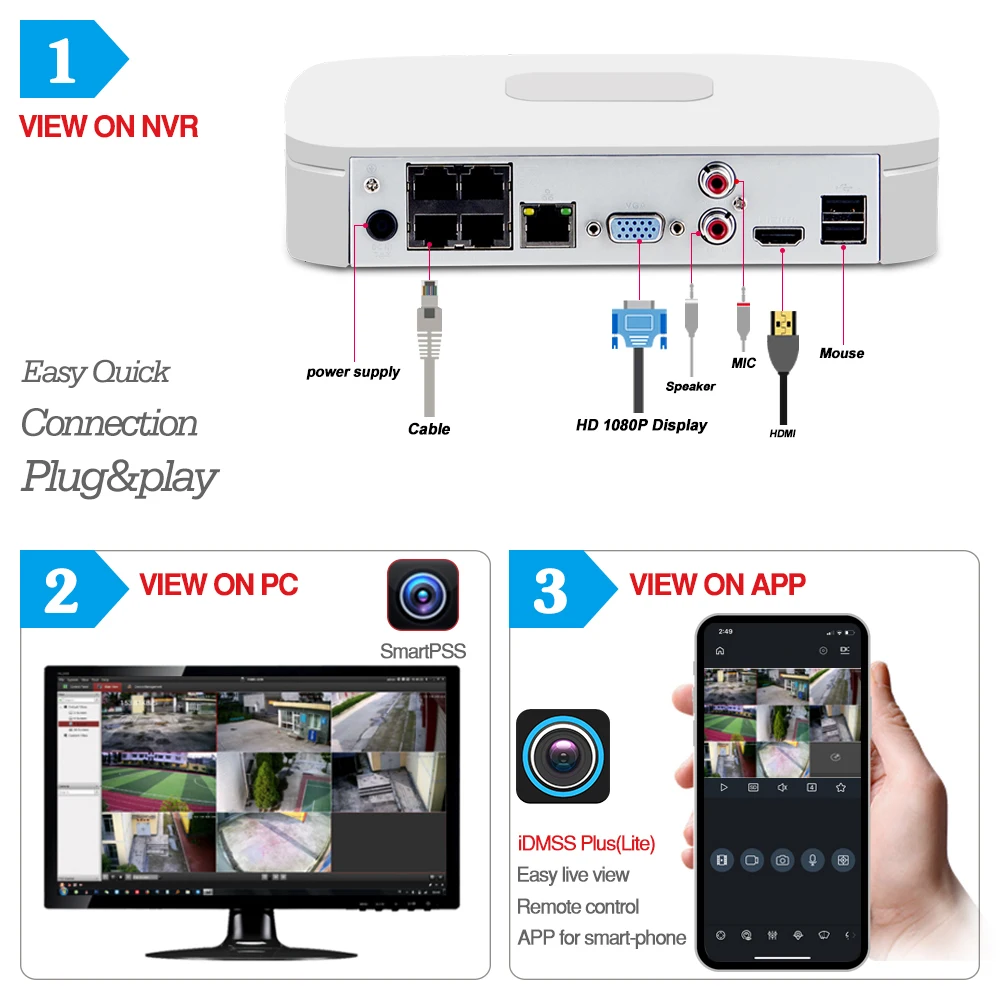

> HDMI/VGA simultaneous video output
> Support IPC UPnP, 8PoE ports

Support View it by APP(remote view)

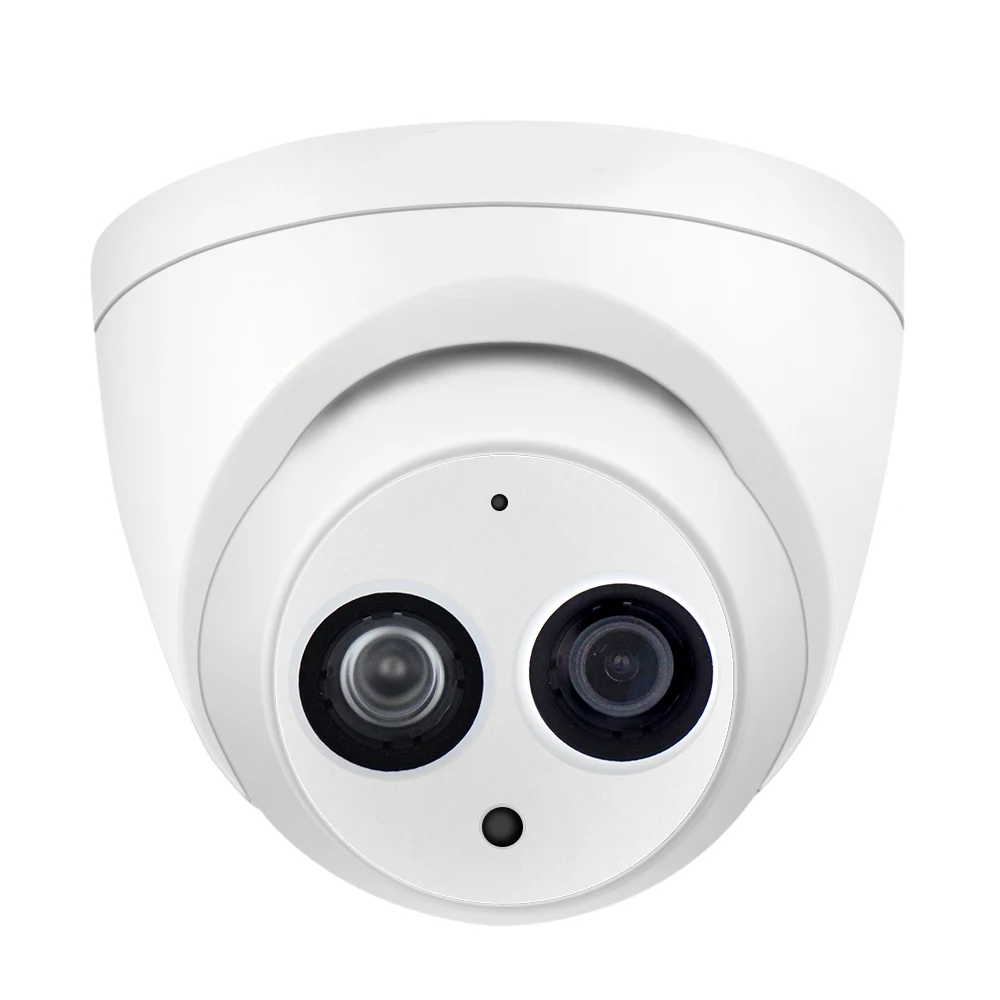

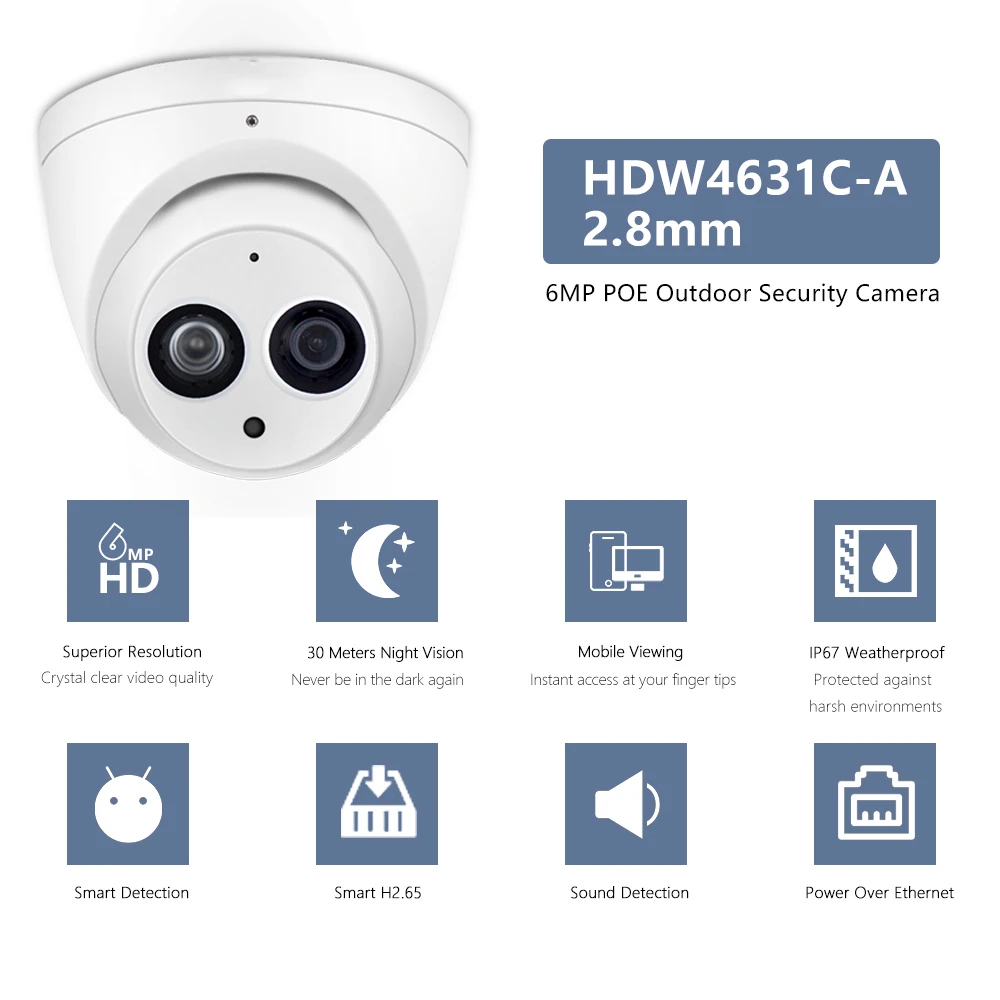

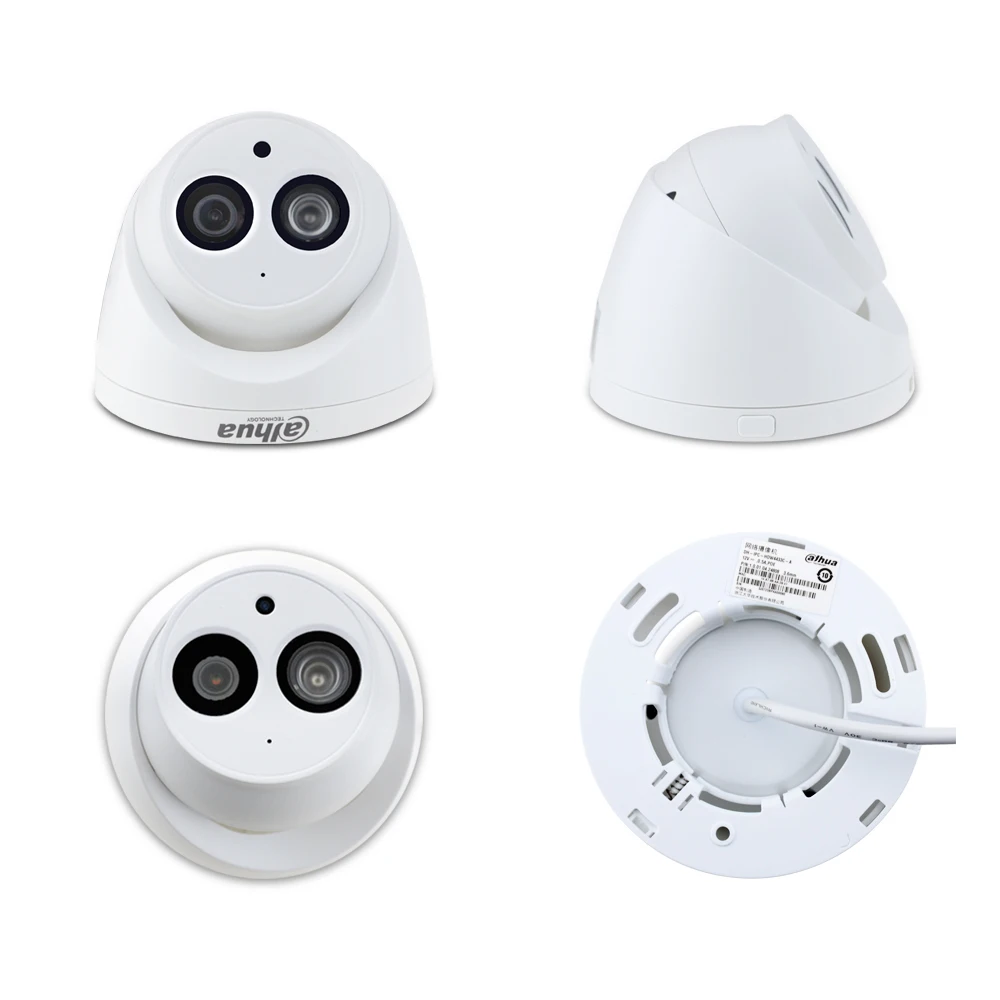

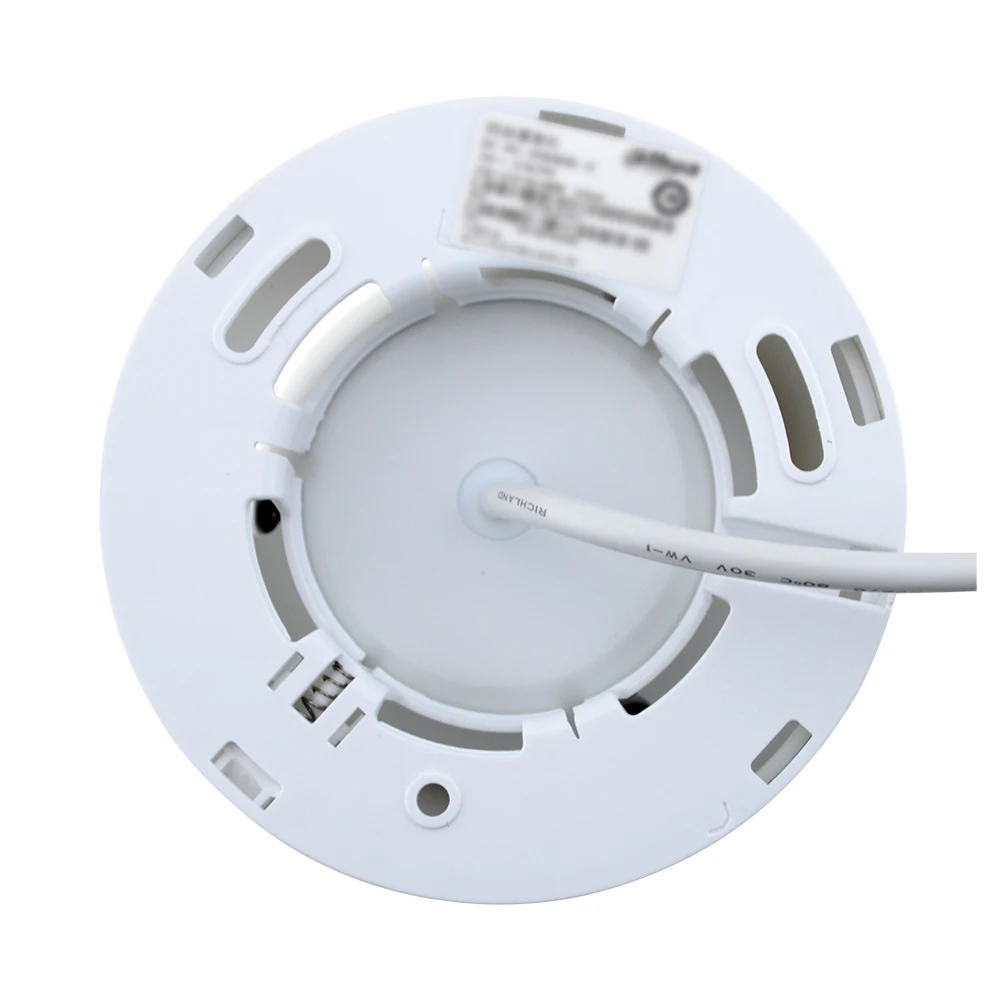

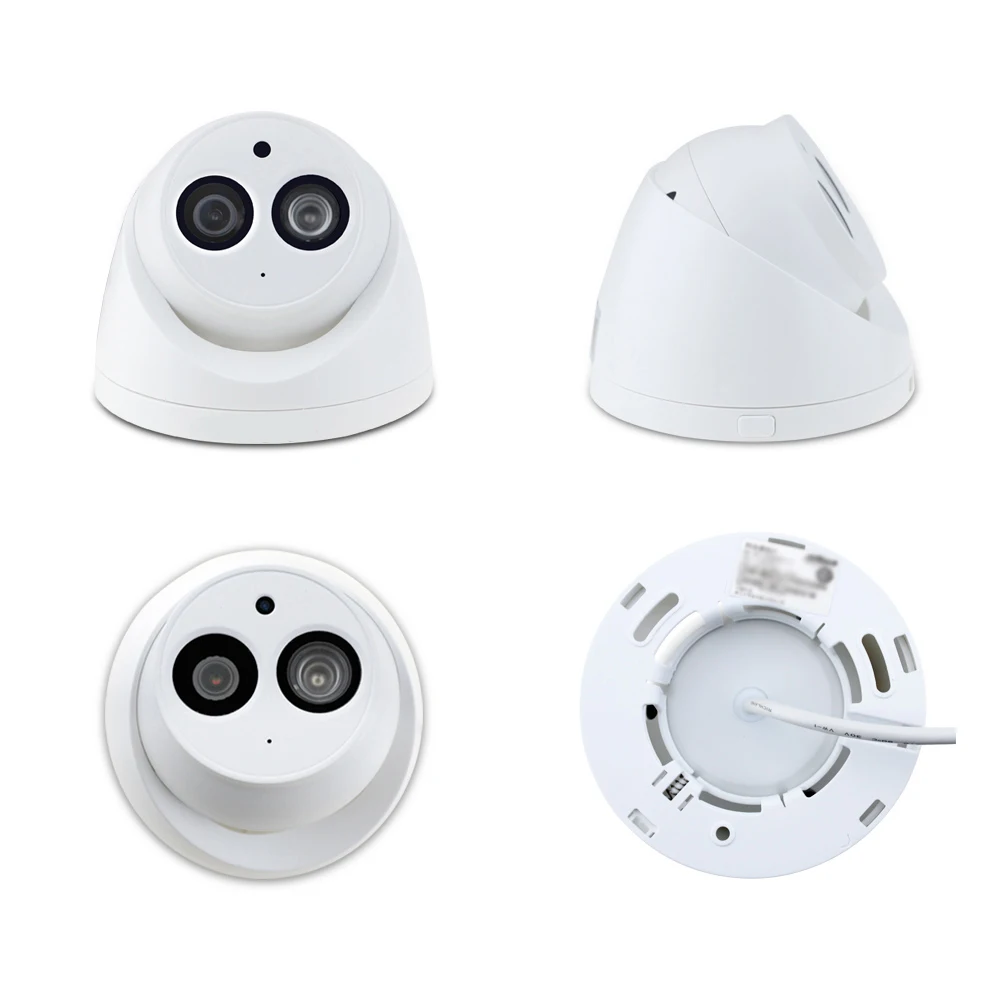

Model-IPC-HDW4631C-A

1.Camera
Image Sensor : 1/2.9” 6Megapixel progressive scan CMOS
Effective Pixels : 3072(H) x 2048(V)
Scanning System : Progressive
Electronic Shutter Speed : Auto/Manual, 1/3~1/100000s
Minimum Illumination : 0.002Lux( Color),0.0002( black/white),0Lux(IR on)
S/N Ratio : More than 56dB
IR Distance : Distance up to 50m
IR On/Off Control : Auto/ Manual

2.Lens
Lens Type : Fixed
Mount Type : Board-in
Focal Length : 2.8mm (3.6mm 6mm optional)
Max. Aperture : F2.5/F2.2/F2.0
Angle of View : 2.8mm : H :  99° V :  69.4° 3.6mm : H :  70° V :  48° 6mm : H :  47.34° V :  33.75°
Focus Control : Fixed
Close Focus Distance : 0.8m (1.2m,3.9m)

3.Intelligence

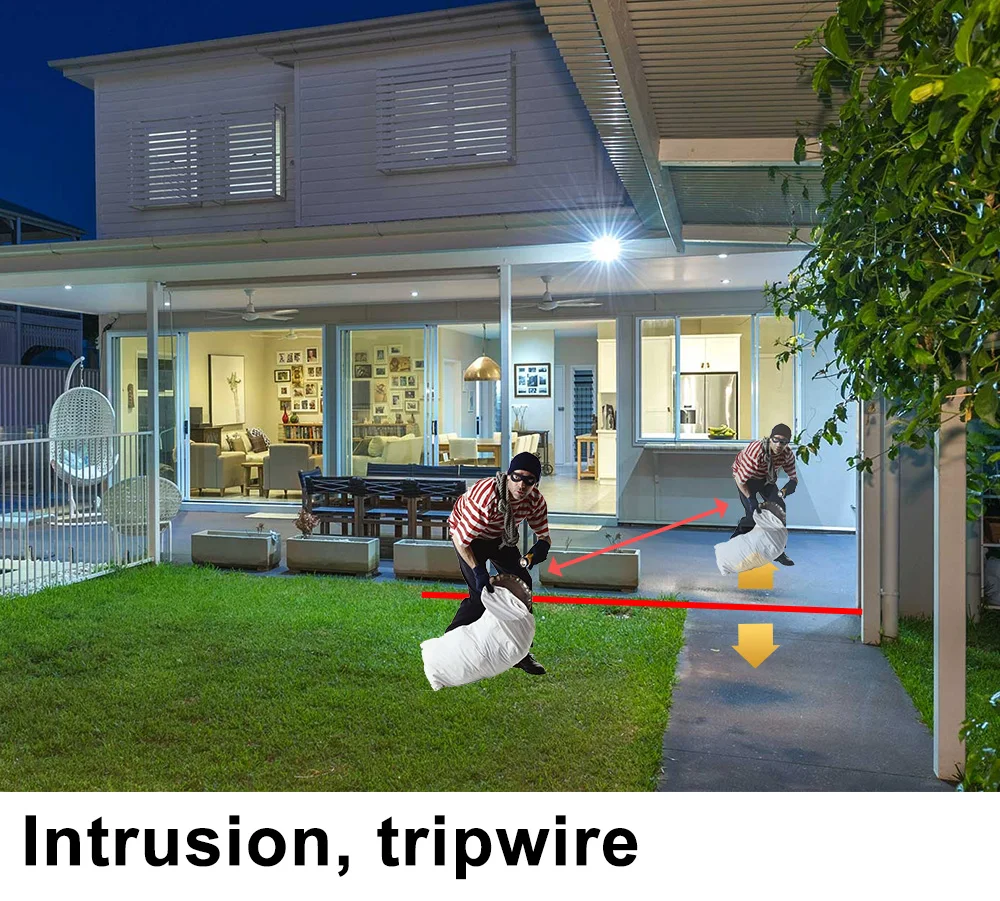

IVS : Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions : Face Detection

4.Video
Compression : H.265/H.264/MJPEG
Streaming Capability : 3 Streams
Resolution : 6M(3072×2048)/5M(3072x1728)/ 5M(2592×1944)/ 4M(2688×1520)/ 3M(2048x1536)/ 3M(2304×1296)/ 1080P(1920×1080)/1.3M(1280x960)/ 720P(1280×720)/ D1(704×576/704×480)/CIF(352×288/352×240)
Frame Rate : "Main Stream :  6M(1~20fps)/4M(1~25fps);
Sub Stream : D1(1~25fps);
Third Stream : 1080P(1~24fps)"
Bit Rate : 73Kbps～10240Kbps
Day/Night : Auto(ICR) / Color / B/W
BLC Mode : BLC / HLC / WDR(120dB)
White Balance : Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control : Auto/Manual
Noise Reduction : 3D DNR
Motion Detetion : Off / On (4 Zone, Rectangle)
Region of Interest : Off / On (4 Zone)
Mirror : Off / On
Privacy Masking : Off / On (4 Area, Rectangle)

5.Audio
Compression : G.711a/ G.711Mu/ AAC/ G.726

6.Network
Ethernet : RJ-45 (10/100Base-T)
Protocol : HTTP;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;SNMP;QoS;UPnP;NTP
Interoperability : ONVIF, PSIA, CGI;
Max. User Access : 20 Users
Edge Storage : NAS Local PC for instant recording
Web Viewer : IE, Chrome, Firefox, Safari
Management Software : Smart PSS, DSS, Easy4ip
Smart Phone : IOS, Android

7.Interface
Video Interface : N/A
Audio Interface : Built-in Mic
RS485 : N/A
Alarm : N/A

8.Electrical
Power Supply : DC12V, PoE (802.3af)(Class 0)
Power Consumption :

9.Environmental
Operating Conditions : -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions :  -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

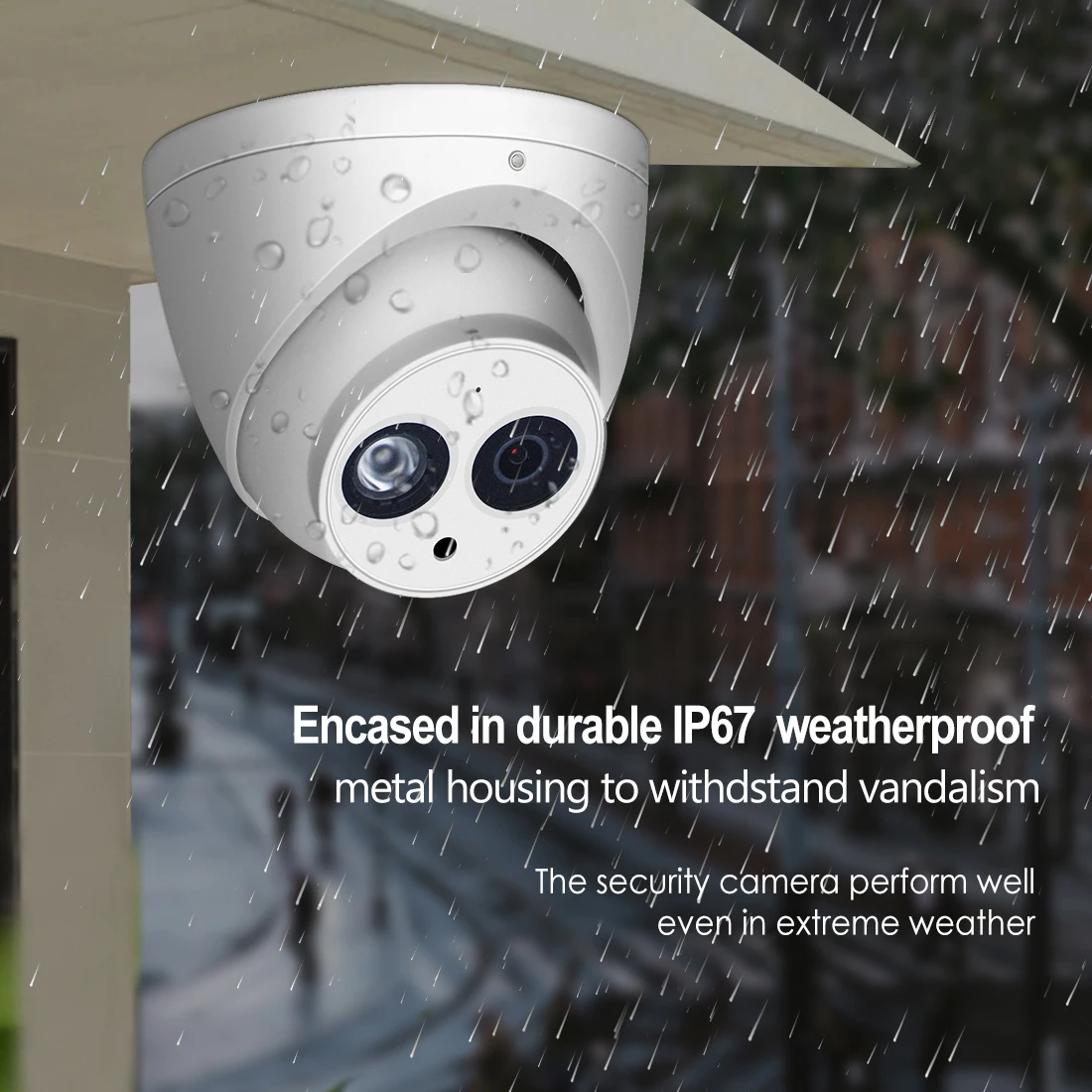

Ingress Protection : IP67

10.Construction
Casing : Metal
Dimensions : Φ106mm×93.7mm (4.17”×3.69”)
Net Weight : 0.47Kg (1.04lb)
Gross Weight : 0.65Kg (1.43lb)

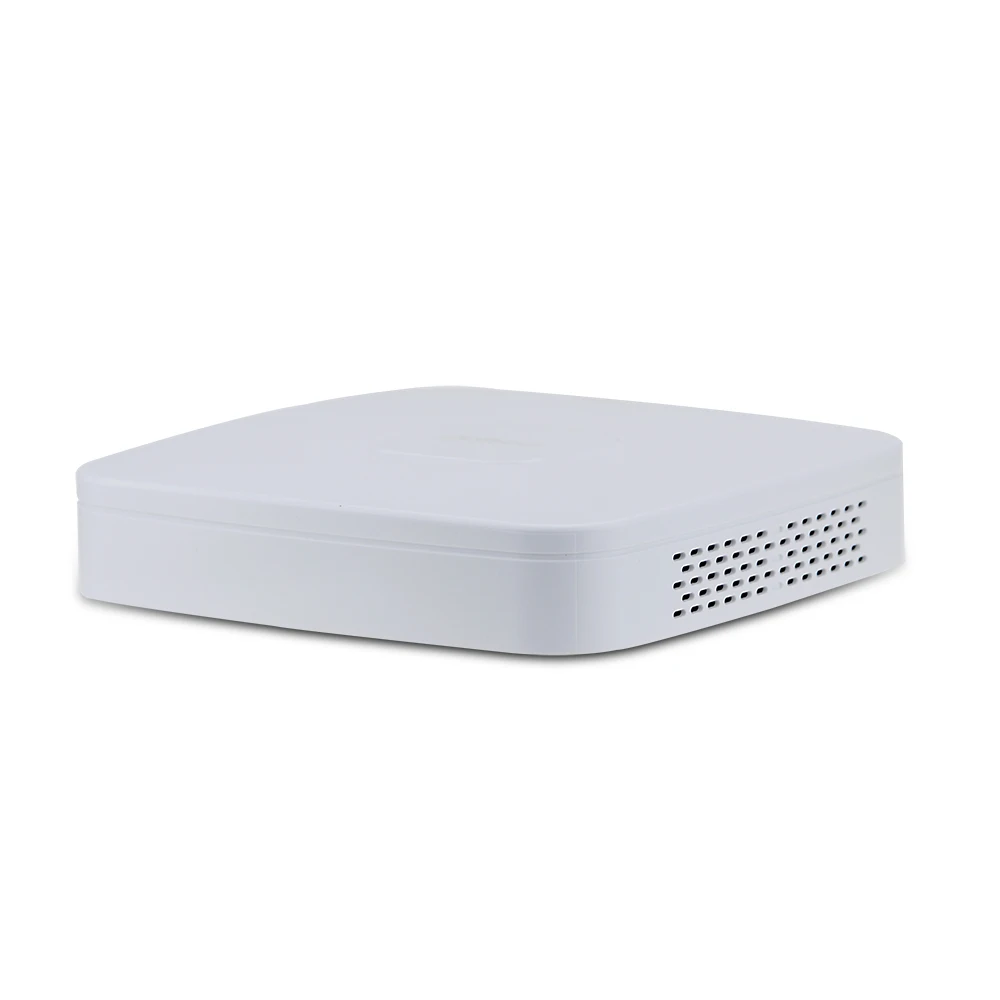

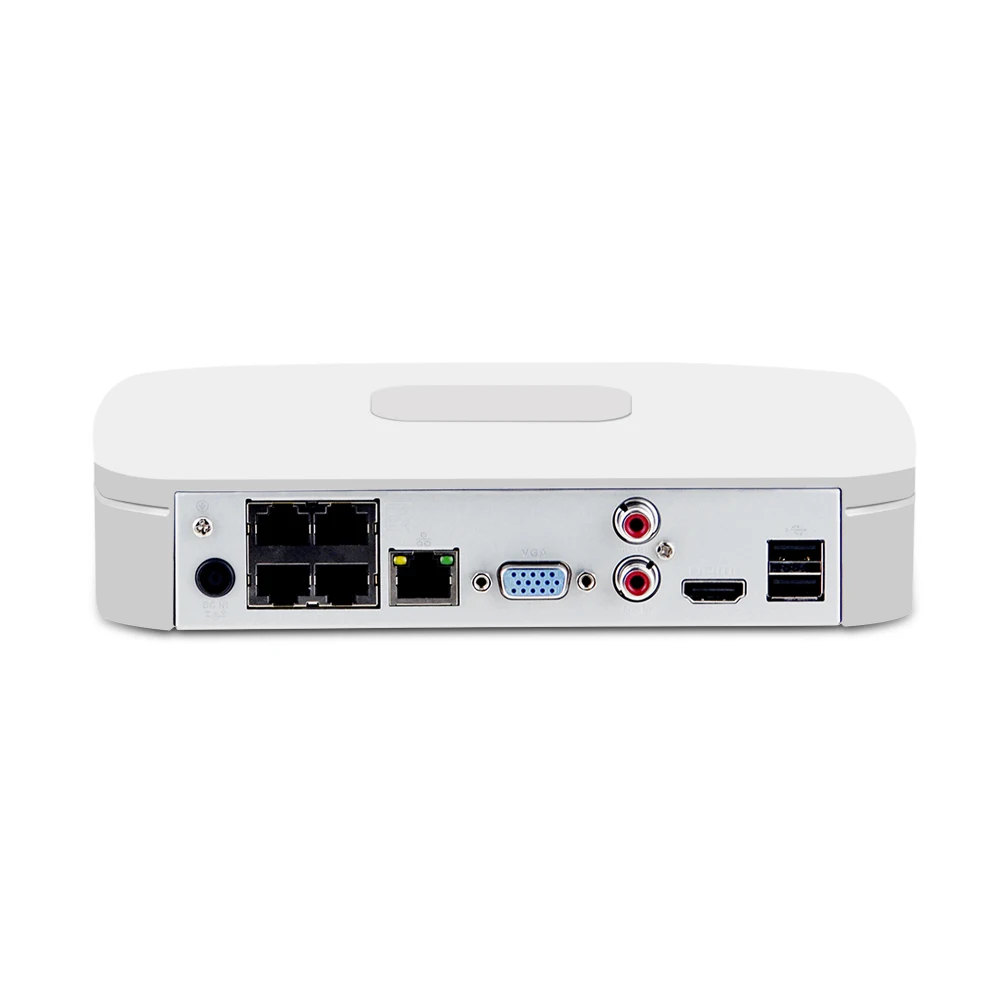

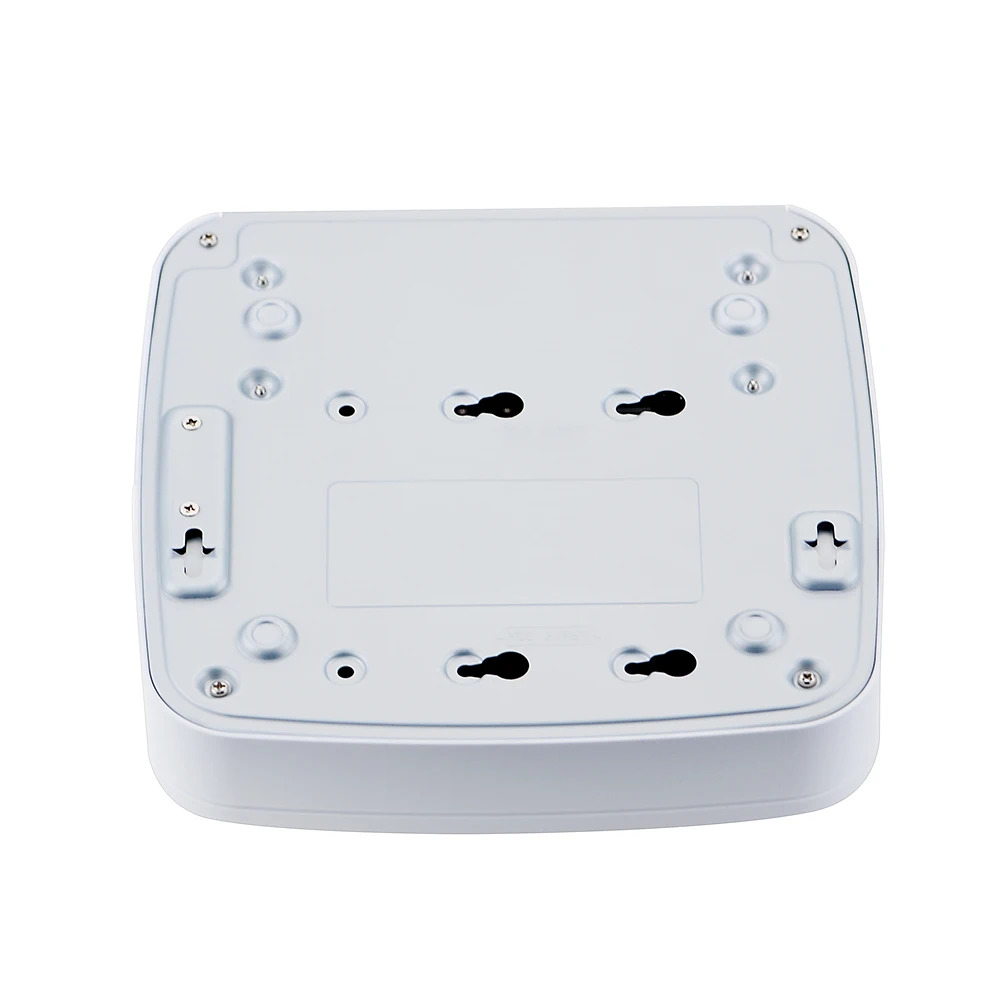

NVR4104-P-4KS2

System(NVR4104-P-4KS2)Main ProcessorQuad-core embedded processorOperating SystemEmbedded LINUXAduio and VideoIP Camera Input4 ChannelTwo-way Talk1 Channel Input, 1 Channel Output, RCADisplayInterface1 HDMI, 1 VGAResolutionHDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720VGA: 1920×1080, 1280×1024, 1280×720Decoding Capacity2ch@4K(30fps)/8ch@1080P(30fps)Multi-screen Display4CH: 1/4OSDCamera title, Time, Camera lock, Motion detection, RecordingRecordingCompressionSmart H.265+/H.265/Smart H.264+/H.264Resolution8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc.Record Rate80MbpsBit Rate16Kbps ~ 20Mbps Per ChannelRecord ModeManual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), StopRecord Interval1 ~ 120 min (default: 60 min), Pre-record:1 ~ 30 sec, Post-record: 10 ~ 300 secVideo Detection and AlarmTrigger EventsRecording, PTZ, Tour, Video Push, Email, Snapshot, Buzzer and Screen TipsVideo DetectionMotion Detection, MD Zones: 396 (22 × 18),Video Loss and TamperingAlarm inputN/AAlarm outputN/APlayback and BackupPlayback4CH: 1/4Search Mode(accurate to second), Smart searchPlayback FunctionPlay, Pause, Stop, Rewind, Fast play, Slow Play,Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital ZoomBackup ModeUSB Device/NetworkThird-party SupportThird-party SupportArecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet and moreNetworkInterface1 RJ-45 Port (10/100Mbps)Ethernet Port1 Independent 100Mbps Ethernet PortPoE4 Ports(IEEE802.3at/af)Network FunctionHTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter,  DDNS, FTP, SNMP, IP Search (Support IP camera, DVR, NVS, etc.)Max. User Access128 usersSmart PhoneiPhone, iPad, AndroidInteroperabilityONVIF 2.4, SDK, CGIStorageInternal HDD1 SATA III Port, Up to 6 TB capacity for each HDDHDD ModeSingleAuxiliary InterfaceUSB2 ports(1 Rear USB2.0, 1 Front USB2.0)RS232N/ARS485N/AElectricalPower SupplyDC48V/1.5APower ConsumptionNVR: <7.5W (Without HDD)PoE: Max 25.5W for single port, 50W in totalEnvironmentalOperating Conditions-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpaStorage Conditions-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RHConstructionDimensionsSmart 1U, 204.6mm×204.6mm×45.6mm(8.1" x 8.1" x 1.8")Net Weight0.45kg (0.99 lb) (without HDD)Gross Weight1.5kg(3.31 lb)(without HDD)CertificationsCEEN55032, EN55024, EN50130-4, EN60950-1FCCPart 15 Subpart B, ANSI C63.4-2014ULUL60950-1
