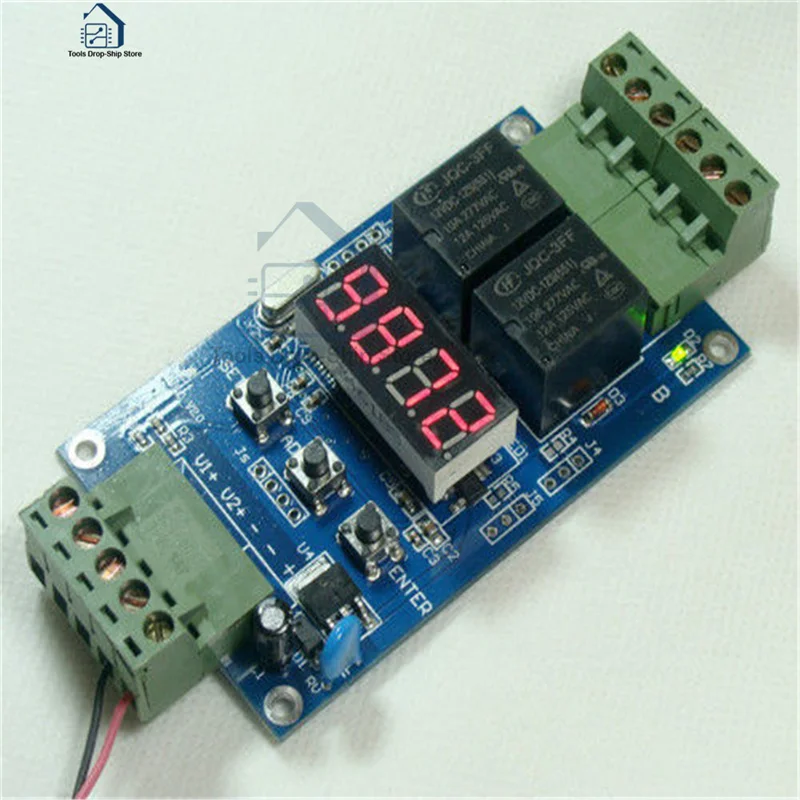

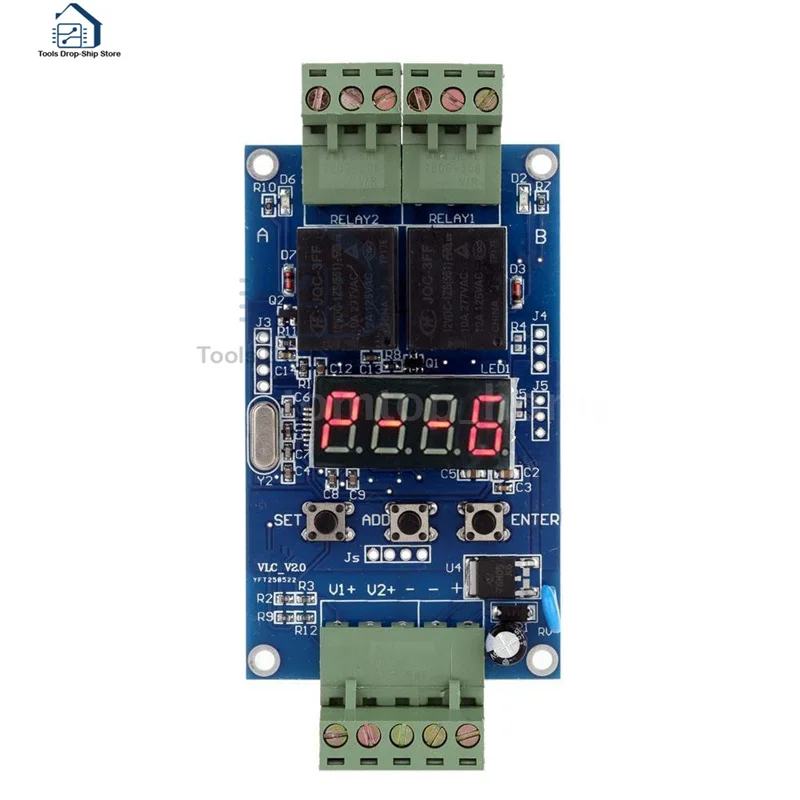

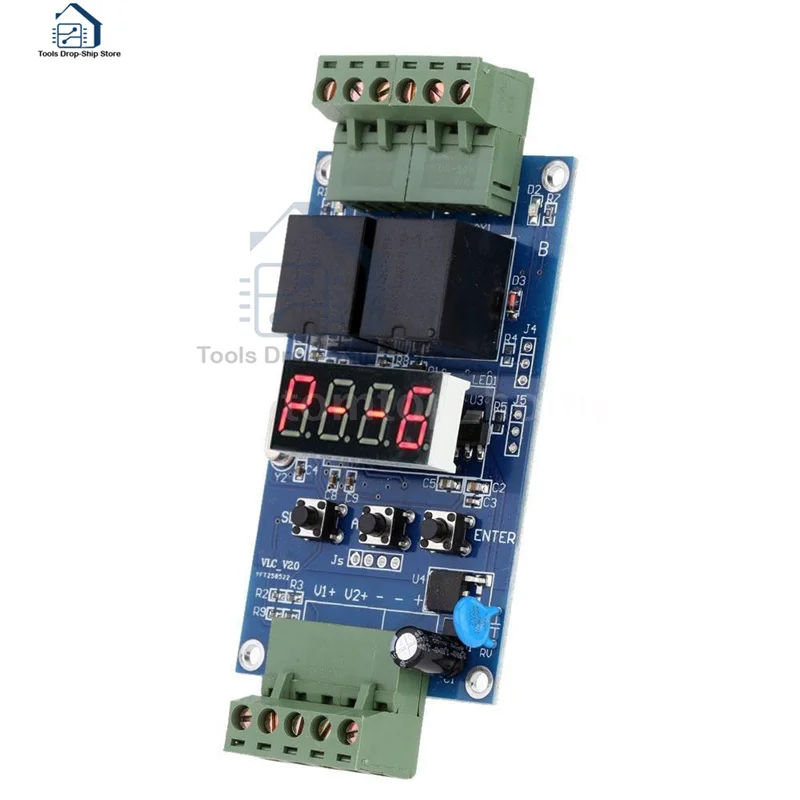

12V Dual Programmable Time Relay Module Relay PLC Board Cycle Delay Timer Module 2 Voltage Detection Control VLC3.0

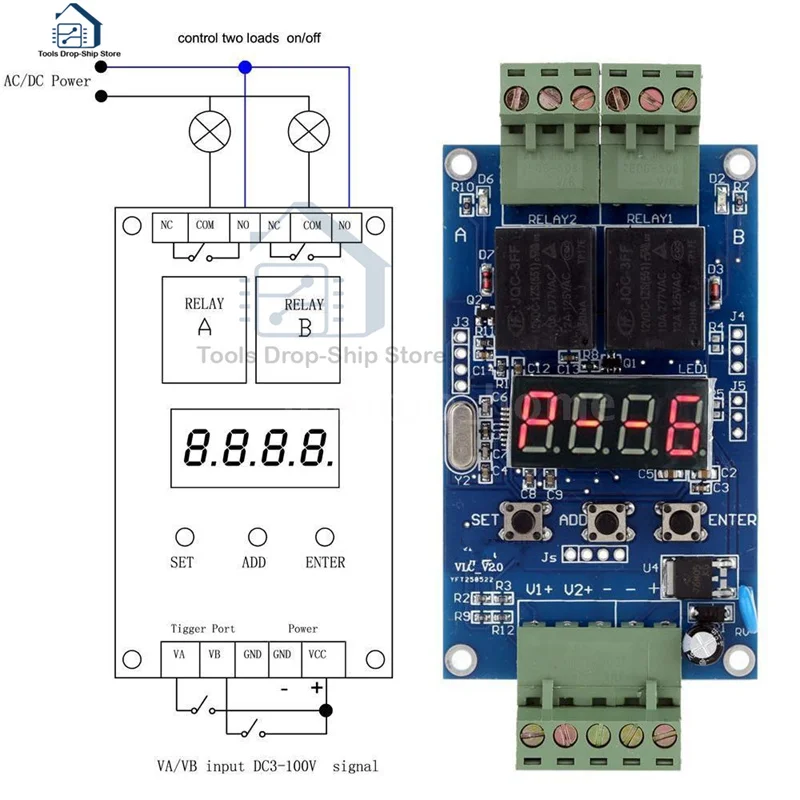

1. VLC-3.0 controller can set 30 groups of time (steps), in each step, the relay switch state can be set to on/off. You can use external input voltage signal or switch to achieve various control modes. The controller can be used to control the linkage of two solenoid valves (to control pneumatic equipment), motor reversal, and intermittent operation of dual loads, etc.

feature:

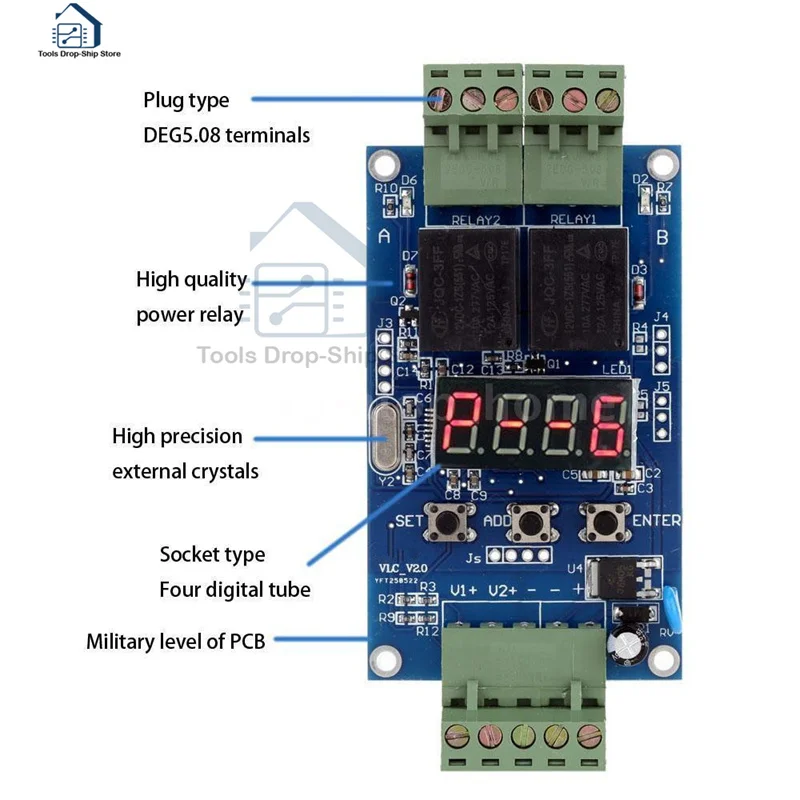

1. Digital LED display, set by three buttons, easy to use. High-performance microcontroller, high process stability, digital display can be automatically turned off, the smallest.

2. The working current is 7mA / 12V.

3. With reverse power protection, surge current impact. Each group of relays has common and normally open, normally closed contacts, two groups of conversion.

4. 30 groups of setting time, range: 0.1-9999 minutes adjustable, the total number of cycles can be adjusted between 0-9999. The high level signal triggers the transmission, or forces the relay to close/release. All settings can be saved.

Product specifications:

1. Time range: 0.1-9999 minutes

2. Cycle: 0-9999 times

3. Working power supply: DC 10~16V

4. Coil voltage: DC 12V

5. Two sets of conversion (normally open and normally closed)

6. Contact load: 10A / 277V AC or 10A / 30V DC

7. DC contact resistance: ≤100mΩ (1A 6V DC)

8. Mechanical durability: 10 million

9. Electrical durability:> 100,000 (10A-250VAC)

10. Normal working current: 18mA / 12V, when the display is off, the minimum current: 7mA / 11.12V, double relays in time working current: 80mA / 12V

12. Working temperature: -40-85°C

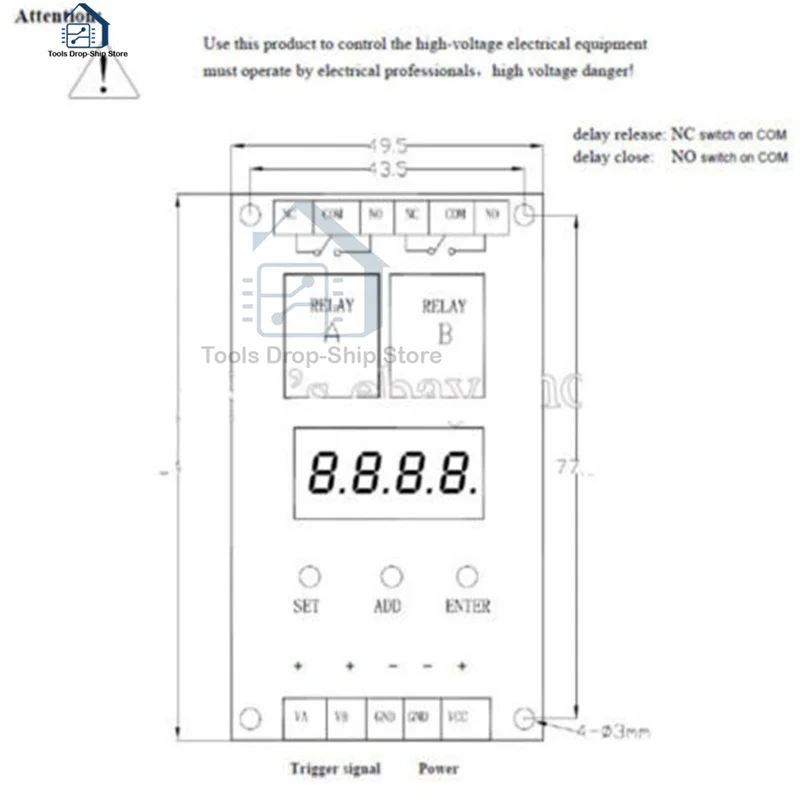

13. Size: 107 * 48 * 17mm / 4.21 * 1.89 * 0.67 inches

14. Weight: 55g / 1.95oz

Package list:

1 * Relay module
