SATA PCI e Adapter 6 Ports SATA 3.0 to PCI Express x4 Expansion Card SATA3.0 PCIe PCI-e SATA Controller for HDD ASMedia ASM1064

Description:

Product specifications:

Comply with Serial ATA 3.0 specification, backwards compatibility SATA2.0 SATA1.0

Comply with PCI-Express v3.0 specification, backwards compatibility PCI-Express v2.0 1.0.

Support communication speed of 6.0 Gbps, 3.0 Gbps and 1.5 Gbps

Gen1i, gen1x, gen2i, gen2m, gen2x and gen3i are supported.

Supports 4 SATA

Support AHCI1.0 mode

Native command queue (NCQ) is supported

Support FIS switching based on port multiplier switch or command.

Support hot plug and hot plug.

SATA6G, 3G and 1.5G compatible hard disk drives

Bus interface: PCI-Express x1 slot

Expansion interface: 4 SATA3.0 interfaces

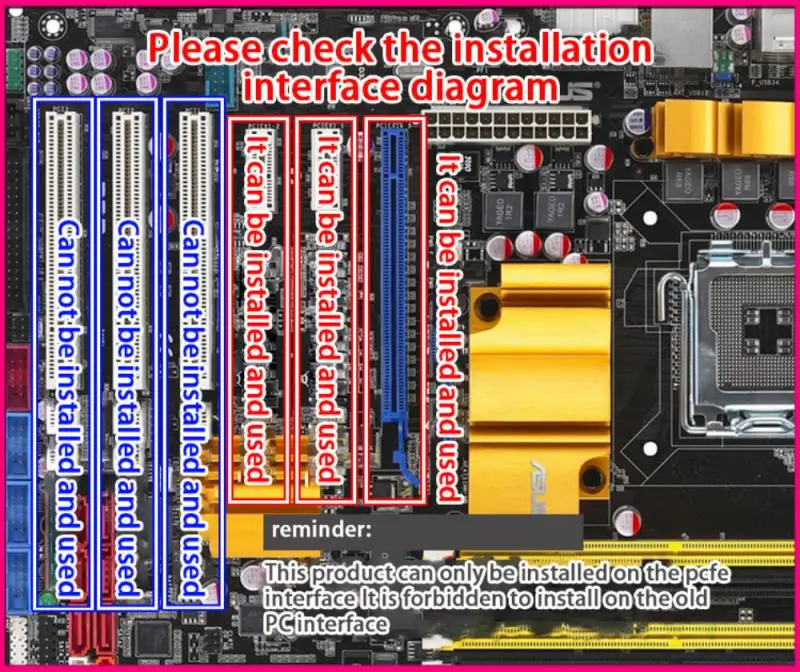

System requirements: have an available PCI Express X1 slot and support PCI-EX2X8X16 at the same time

Operating system: Windows10/8/linux

PCIE to SATA3.0 adapter is used as follows:

I. connection conditions and solutions of system disk and PCIE to SATA3.0 adapter card:

1. the SATA interface mode from PCIE to SATA3.0 is AHCI mode. if you want to insert the system disk on our card, the premise is that your system disk must be installed in AHCI mode when installing the system on the motherboard, otherwise, the system cannot be started through our card adapter card.

2. If it is determined that the SATA interface installation system with the system disk inserted into the motherboard is AHCI mode, you can directly insert the hard disk into our card, and then enter the BIOS of the motherboard to set the system disk as the first boot.

3. The above two conditions are met. If it still cannot be started or restarted repeatedly, it may be caused by the conflict between the hard disk interface of the motherboard and our adapter card. The solution is to enter the BIOS of the motherboard and set the hard disk interface option of the motherboard to Disabled. Save the restart before starting the system.

II. Connection conditions and solutions of ordinary disk and PCIE to SATA3.0:

1. when the system disk is inserted on the motherboard and the ordinary disk is inserted on the PCIE-to-SATA3.0 card, it is only necessary to detect the adapter card information and the ordinary disk model when starting.

2. If 1 condition holds, the system still cannot be started, then to enter the BIOS of the motherboard, set the system disk as the first boot.

III. Connection between system disk and ordinary disk and PCIE to SATA3.0 and its solution:

1. premise, if the system with the original motherboard installed on the system disk is AHCI model test, it can be realized by the following methods. if the system is installed in IDE mode, it can only be reinstalled through PCIE to SATA3.0.

2, 1 After the conditions are met, if you cannot start, you need to enter the BIOS of the motherboard and set the system disk as the first boot.

3. If all the conditions in 1.2 are met, it still cannot be started, so it may be the conflict of the integrated SATA interface. Please enter the motherboard BIOS and set SATA to Disabled

Specifications:

Product: adapter card

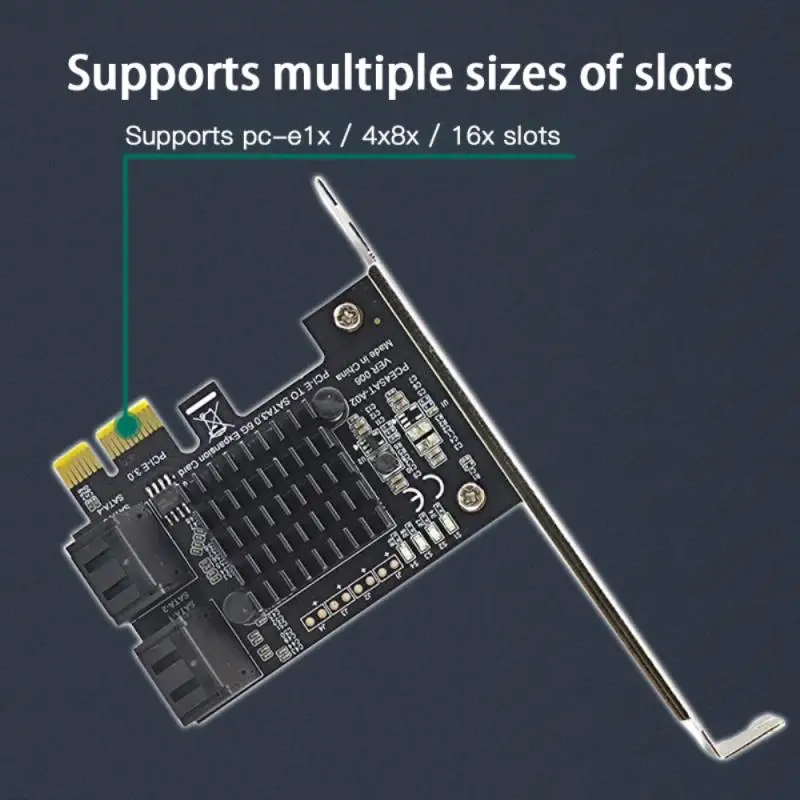

Interface: PCI-E 1X (compatible with 1X,4X,8X,16X)

PCB color: black gold plate

Interface rate: 6Gbps

2U small chassis: supported with half-height baffle

Master control chip: ASMedia ASM1064

System support: WIN8 WIN10 LINUX

Package Included:

SATA3.0 expansion card *1
