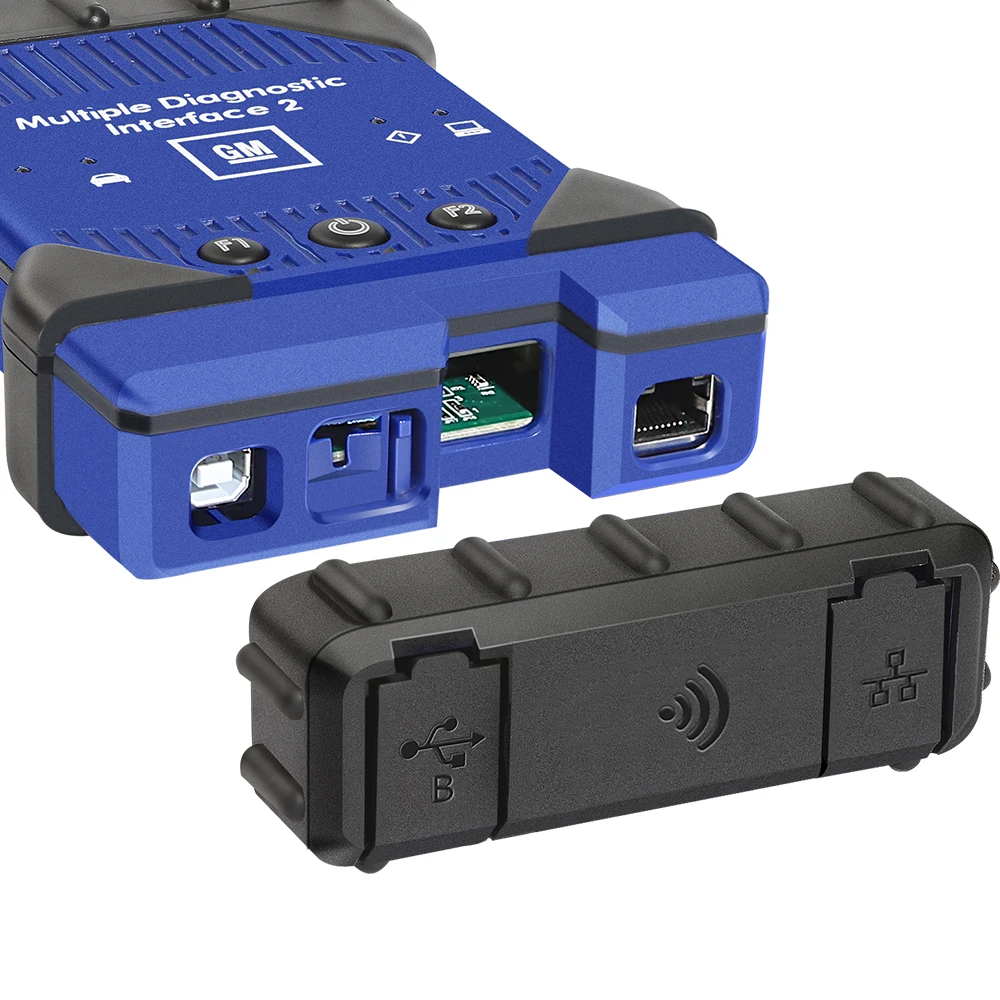

WIFI GM MDI 2 Multiple Diagnostic Interface with V2021.4 GDS2 Tech2Win Software Sata HDD for Vauxhall Opel Buick and Chevrolet

This package equals GM MDI2 (SP163-E) and V2021.4 GDS2 Software HDD (SP163-S1).

GM MDI 2 is the Multi Diagnostics Interface works as the high-quality
Vauxhall/Opel dealer diagnostic interface, used with Global TIS, GDS 2,
Tech2Win software on a new laptop.

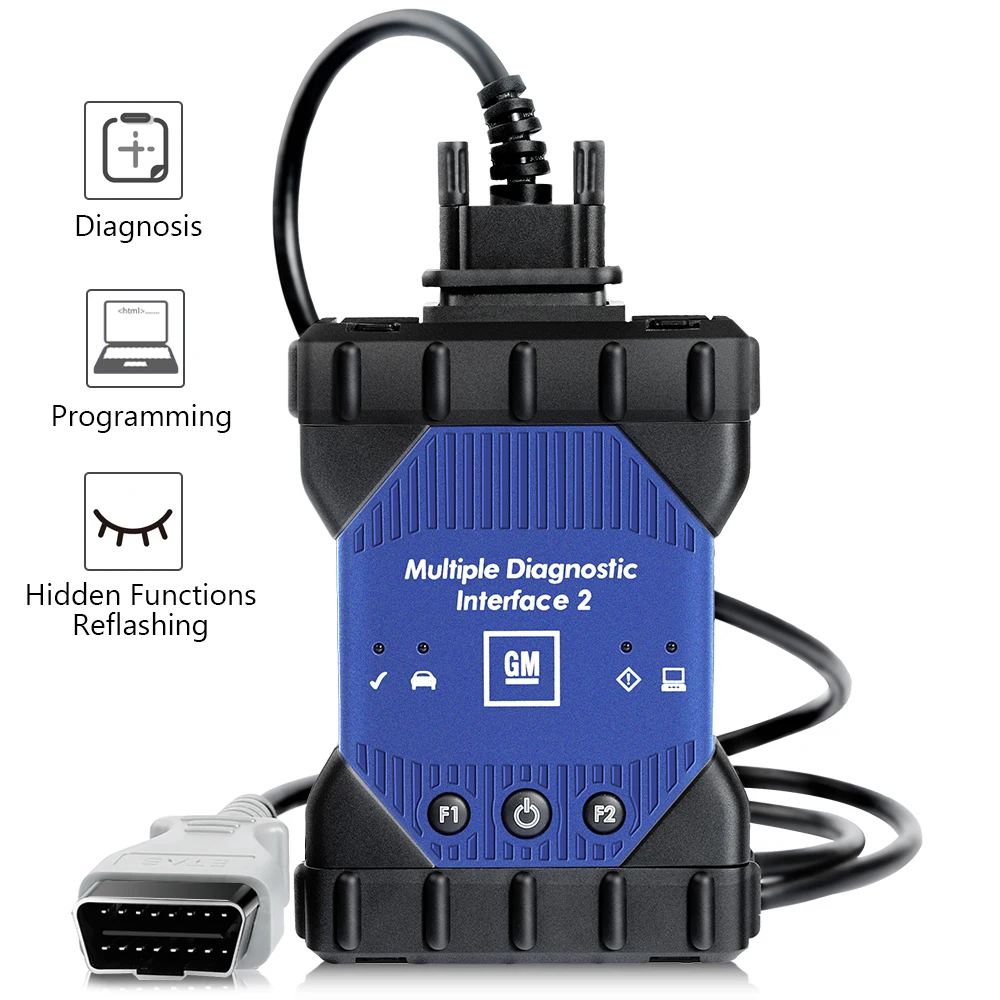

GM MDI 2  Scanner Highlights:

* Automatic vehicle recognition
* DTC reading and removal
* Complete list of live data streaming for all main ECU
* Recordable / playback of live data
* New software flash for existing ECU to fix drivability issues
* Programming and installation of new ECU (PCM, ABS, Instrument cluster, air bag, fuel pumps etc.,)
* Programming new keys
* Setting / removing speed limiters
* J2534 pass thru offering ECU re-flash and diagnostics for other
vehicle manufacturers, when subscribed to their specified software
* More dealer specific functions

The J2534 Configuration Application

The Multiple Diagnostic Interface (MDI) is a J2534 device that connects
between your computer and the vehicle’s J1962 DLC connector for
pass-thru programming of the vehicle's ECU. The J2534 Configuration
Application is installed onto your PC at the same time as the MDI
Manager software allowing you to control how your TIS 2 Web application
will connect to an MDI. In addition, this application provides API
Monitoring controls to aid in investigating problems encountered while
using any J2534 devices (including the MDI).

To launch the J2534 Configuration Application from SPS, press the "configuration" button on the Diagnostic settings screen.

Engine Compartment

Check Engine Compartment for components which may be loose; kinked or
pinched vacuum hoses or electrical connections, and for any other
missing or disconnected components.

Check to assure that hoses and electrical wires are properly routed to
provide sufficient clearance with adjacent moving or hot parts.

Observe the movement or freedom of movement of linkage, valves and other components.

Check for unusual noises within the engine compartment.

Visually inspect for seepage and leaks at hoses and pipe connections, seals, gaskets and plugs.

Tighten clamps and connectors as necessary.

Check power steering gear, lines and hoses for leaks and clearance with
adjacent panels, moving or hot parts. Tighten clamps and connectors as
necessary.

Test engine coolant protection.

Check all fluid levels; engine oil, transmission oil, power steering oil, battery, brake, and cooling system.

Add inspection items as needed

Check throttle linkage for freedom at wide open and closed throttle.

Check tension on all belts.

Body–Accessories

Check operation of all interior and exterior lights;

Road Test

Road test on a route with road conditions permitting the proper evaluation of squeaks and rattles.

During this test, check the following items for proper operation and function;

Under Vehicle:

Visually inspect vehicle undercarriage for looseness, missing components
and line routing and clipping, and fluid leaks. – Tighten clamps,
couplings and connectors as necessary.

Data transfer and Electronic Control Unit (ECU) reprogramming

Shop network communications (LAN and WLAN)

Future expandability, including diagnostic applications

What protocols does the GM MDI 2 support?

For immediate use — At present, vehicles have two buses on the 16 pin
connector (high speed and low speed GMLAN). The GM MDI communicates
using all of the existing GM protocols, the same as the GM Tech2:

- UART
- Class 2
- KWP2000
- GMLAN (CAN)

Beginning with the 2008 model year vehicles, Pass-Thru will be the only
programming method available. (Remote will continue to be available for
previous vehicle

GM MDI GDS2 GM MDI gds tech2 win software Sata HDD for Vauxhall Opel/Buick and Chevrolet

System: Win7 64bit
Software Version: V2021.4
Update time: GM Global V2021.4
Supports GM vehicles till 2021

Used for: Both China GM MDI USB version and GM MDI scanner wifi version
Easy to use: Insert the HDD with GM MDI gds2 software
into your computer; the software can be used directly with the GM MDI
scanner, which doesn't need activation by users.

GM MDI Multiple Diagnostic Interface scanner will provides the full
dealer level diagnostics and programming for all Vauxhall / Opel 16 pin
vehicles from 1996 to 2020. The GM MDI diagnosticsoftware gds2 can be
installed on 2.5' SATA HDD,  with the Win7 Operation System.

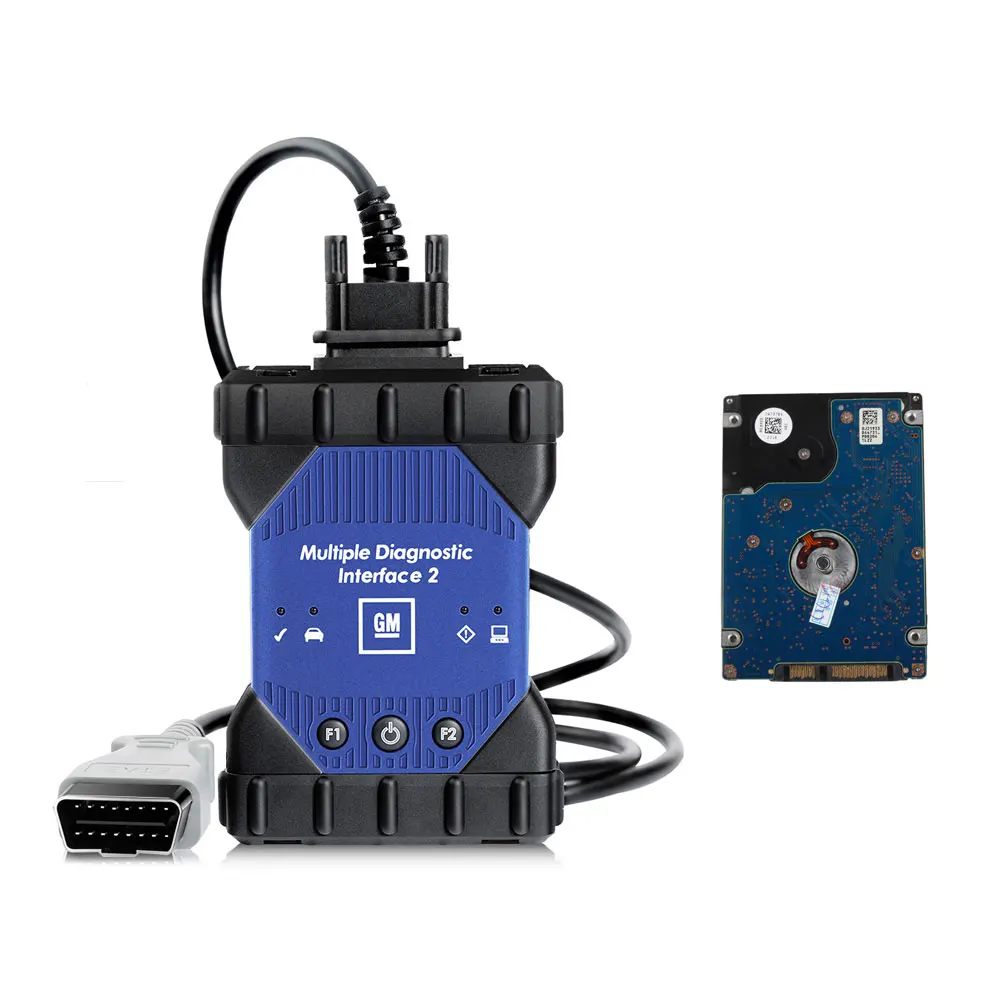

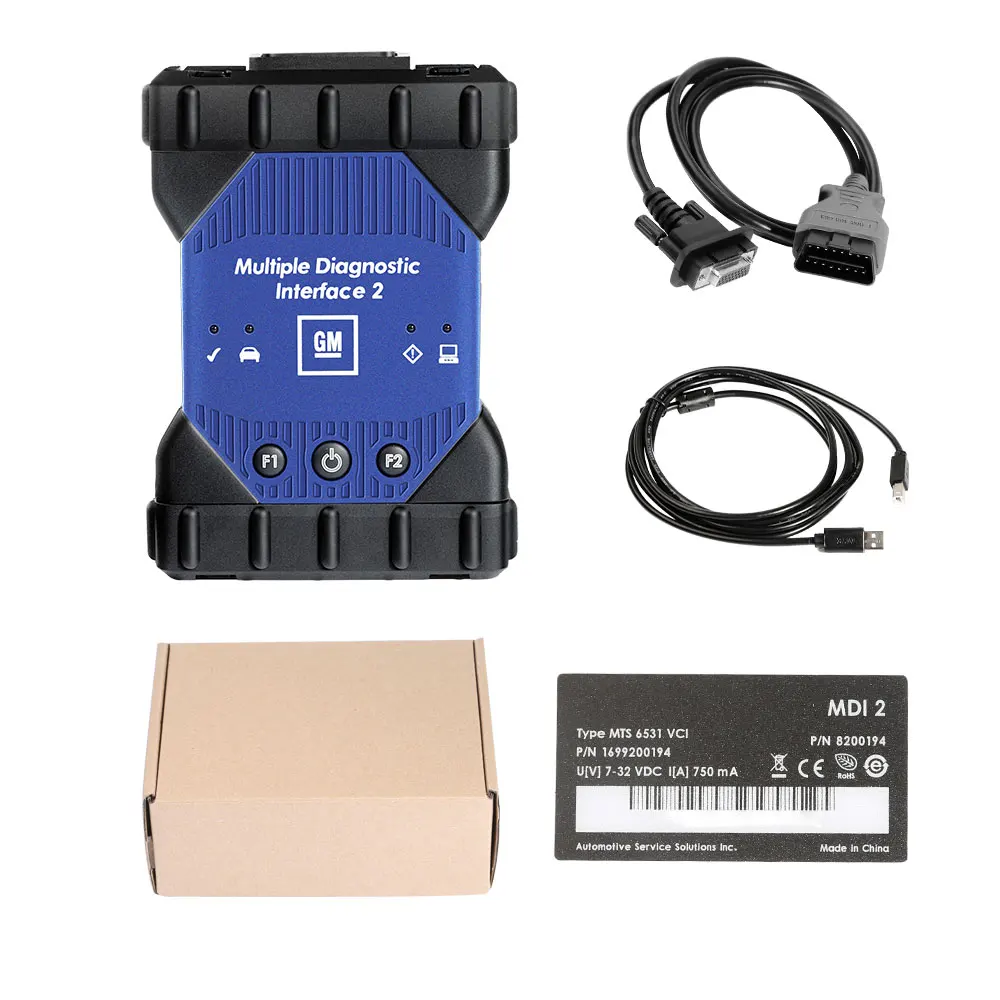

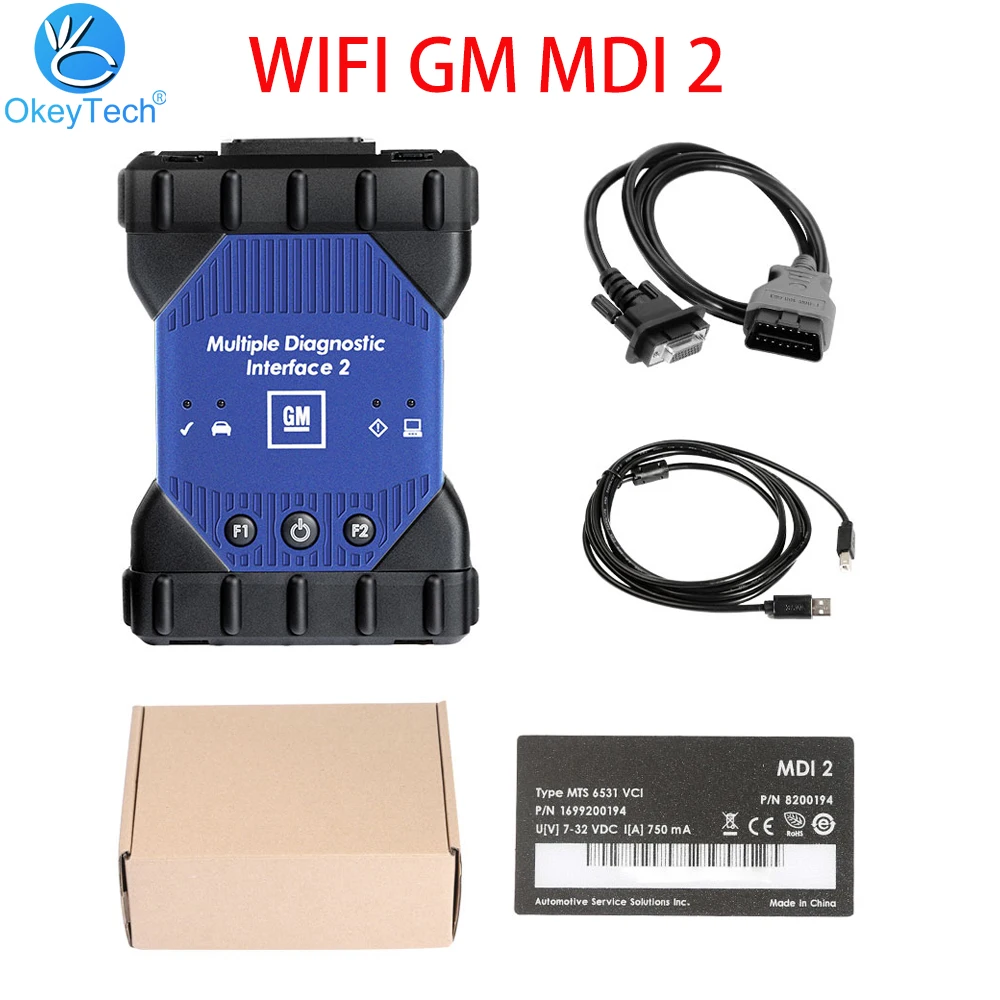

  1pc x GM MDI2 Main Unit
1pc x DLC Cable SAE J1962
1pc x 10-ft USB A to USB B Cable
1pc x Ethernet Cable
1pc x 500GB GM MDI 2.5" SATA HDD (As you choose)
