Features

Inverter is a converter that converts DC power (battery, storage battery) to specify voltage and frequency, usually 220V 50Hz. It is composed of inverter bridge, control logic and filter circuit.

The most common waveforms on the market are modified sine waves and pure sine waves. Base on different waveforms, the scope of application of the inverter is also different.

Modified sine wave inverter suitable for charging mobile phones, laptops, TVs, camera, CD players, various chargers, car refrigerators, game consoles, DVD players and power tools etc..

Pure sine wave inverter suitable for all equipment suits for modified sine wave, also can use with precision instruments that require stable power supply.

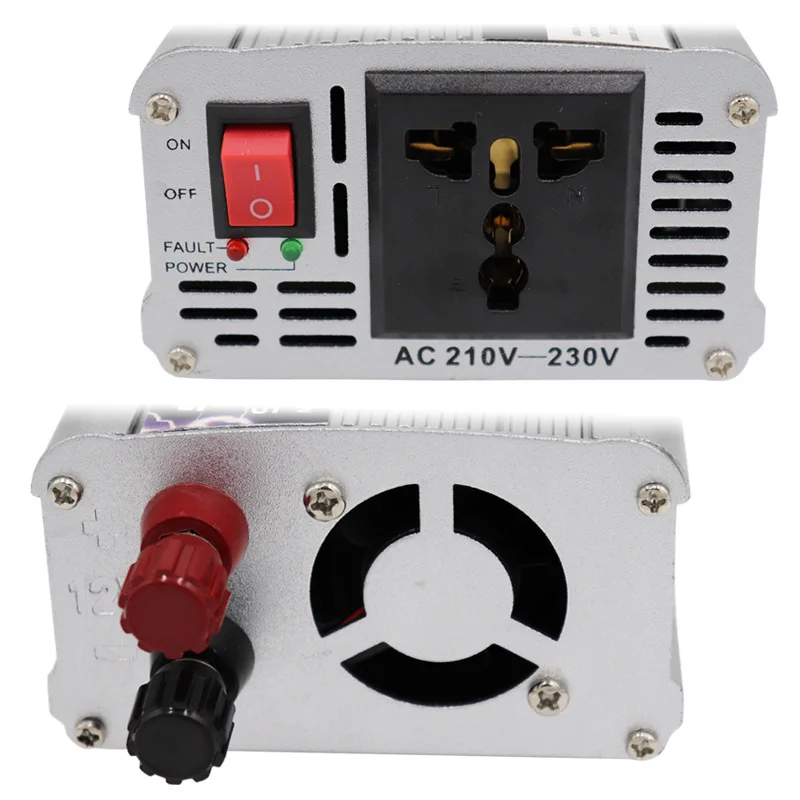

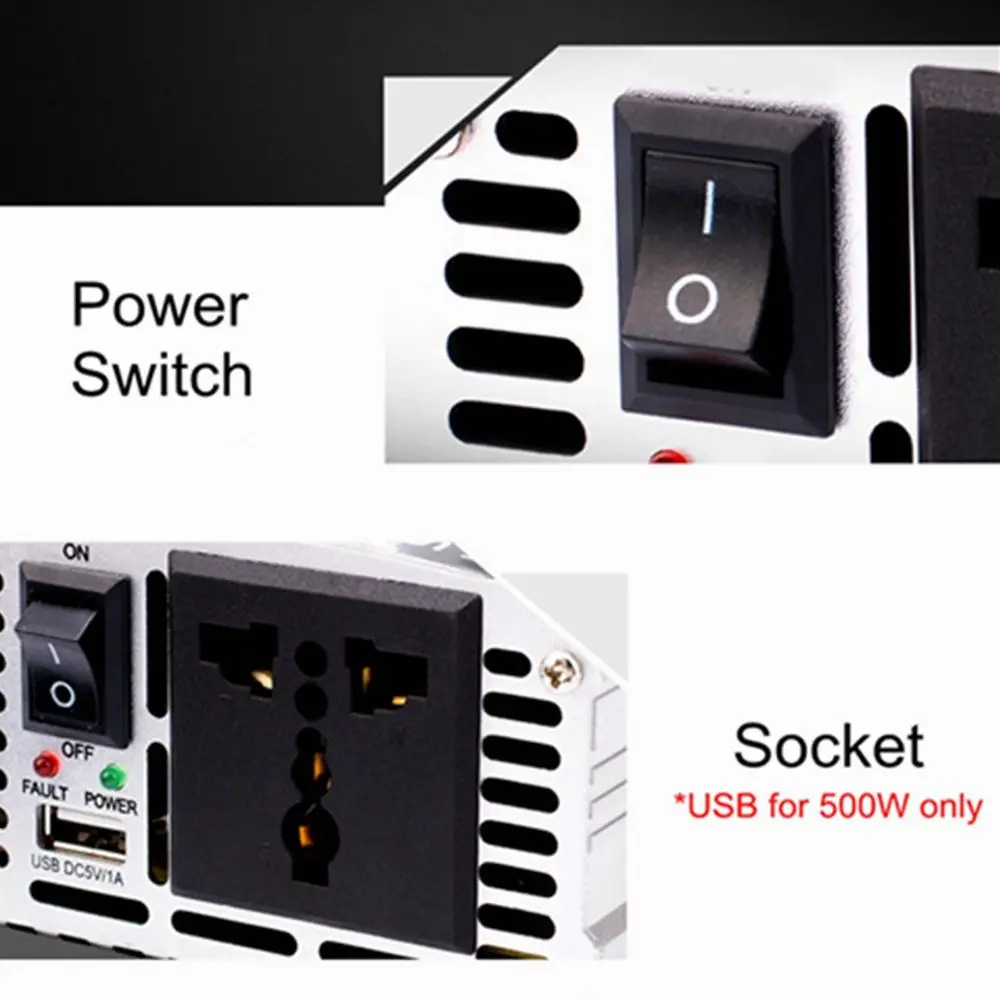

-Inverter design with universal socket, suits for different kind of plug.

-SAA500W designed with USB port, can charge phone/tablet/power bank directly. ( USB cable not included )

-300W best selling PET flexible solar panel optional, well protect packing, stable performance. Extra free accessories if order multiple panels, more details below.

Inverter Parameter

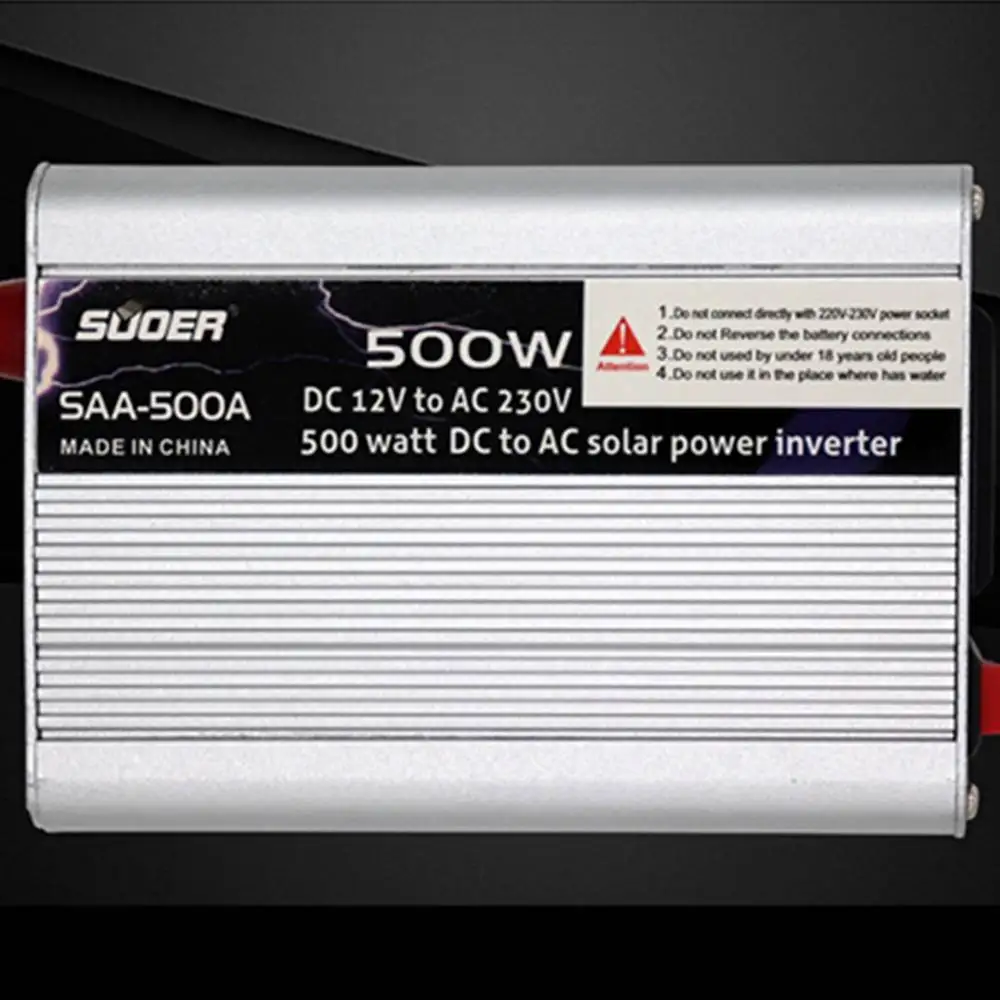

*Model: SAA500W
Reted Power: 300W
Peak Power: 500W

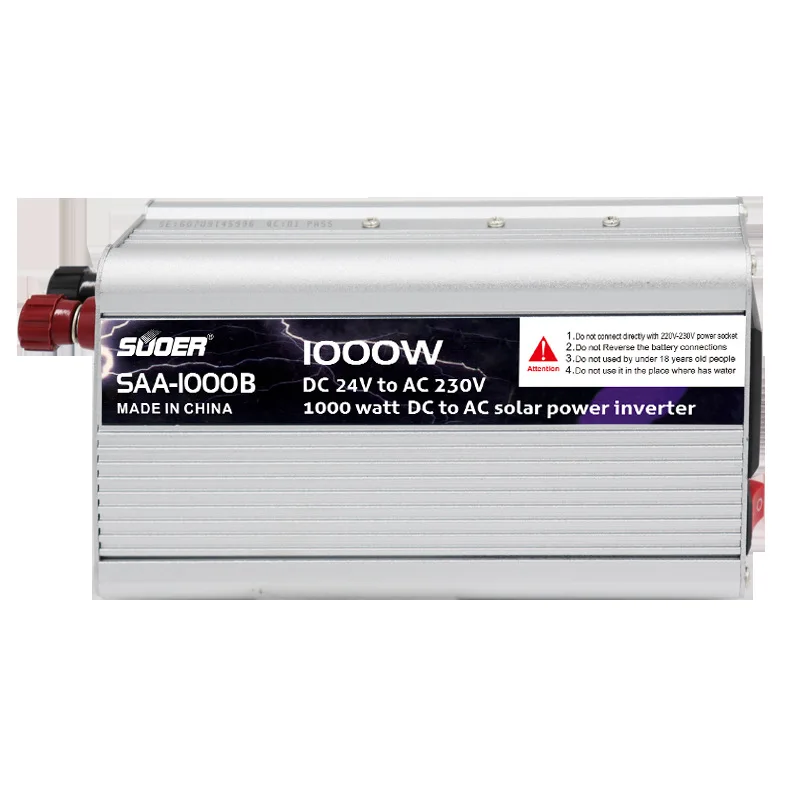

*Model: SAA1000W
Reted Power: 600-700W
Peak Power: 1000W
*Model: SAA1500W
Reted Power: 900-1000W
Peak Power: 1500W
Material: Aluminium Alloy
Waveform: Modified Sine Wave
Output Frequency: 50Hz
Input Voltage: 12V
Output Voltage: 220V±10%
No-Load Current: ＜0.3A

Solar Panel Parameter
Maximum Power: 300W
Maximum Power Voltage: 18V
Open-Circuit Voltage: 21.5V

Work Environment: -40℃ to 65℃
Solar Cells: 36pcs
Efficiency: 22%
Weight: 2.8KG
Dimensions: 1200*540*2mm
Diode: By-Pass Diode Inside Connection Box

Inverter Packing List
SAA500W/SAA1000W/SAA1500W Solar Inverter*1
Alligator Clip*1
Packing*1

Solar Panel Packing List( optional, check carefully what you order )

300W PET Solar Panel*1/2

M4 Connector*1/2

Packing*1

Extra Accessories↓↓↓↓↓↓↓↓↓

Order 1 panel, sent with 10A controller
Order 2 panels, sent with 20A controller
Order 3 panels, sent with 30A controller
Order 4 panels and more, sent with 30A controller and extra accessories pack
(10A Controller+Extension Cord+Parallel Connection+Alligator Clip)

Note For Inverter
1. Do not connect directly with 220-230V socket. Do not reverse the battery connections.

2. Do not used by under 18 years old people. Do not use it in the place where has water.

3. Do not use equipment with a power greater than the rated power of the inverter.

4. The inverter is suitable for different electrical appliances, but even if the power of different types of electrical appliances is the same, the inverter power that needs to be used is also different.

5. Inductive load device needs starting current much larger (about 3-7 times) than the current to maintain normal operation when starting up. ( If you don’t know which model and wattage inverter to choose, please contact us. )

6. When using the car, the load should not be greater than 150W, otherwise the car insurance will be burned out.

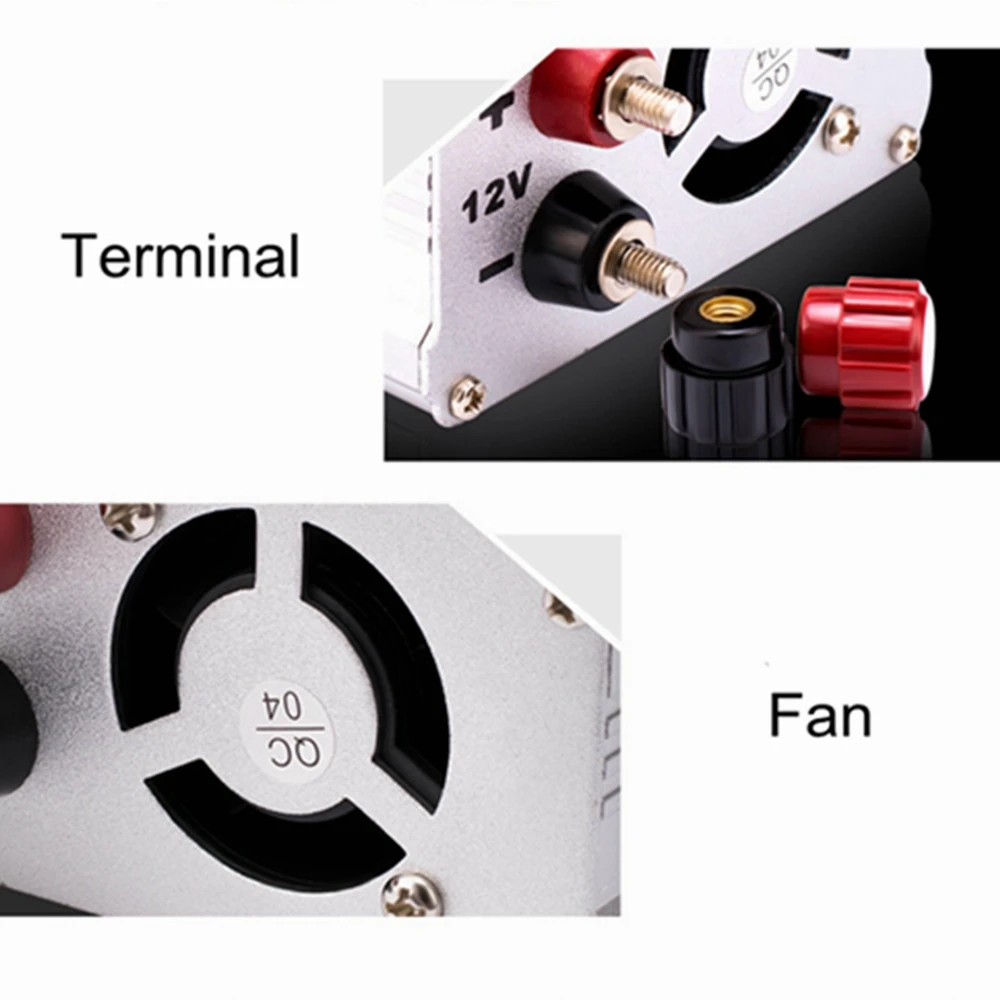

7. Product is designed with a cooling fan, but there needs to be enough space around the inverter for heat dissipation while using.

Note For Solar Panels
1. Please don't scratch the surface of the panel with a sharps object. Do not modify the PCB circuit unless you are professional. We have no responsible for any a result from this.
2. Make sure the solar panel exposed to direct sunlight to ensure the best charging efficiency while charging. Best working time: 9:00-17:00 ( Cloudless Weather ).
3. Product deigned to extend battery life and emergency usage. Please choose other higher current products if you want a faster charging speed.
4. Product deigned with daily water proofing, please don't exposed the charger in rainny day for too long.

5. Extra accessories like controller and accessories pack, will sent from CN warehouse, if you order in other warehouse, pls wait a bit longer for the controller. Thank you for your cooperation.

6. Quantity order and controller/accessories might sent separately, please be advised.

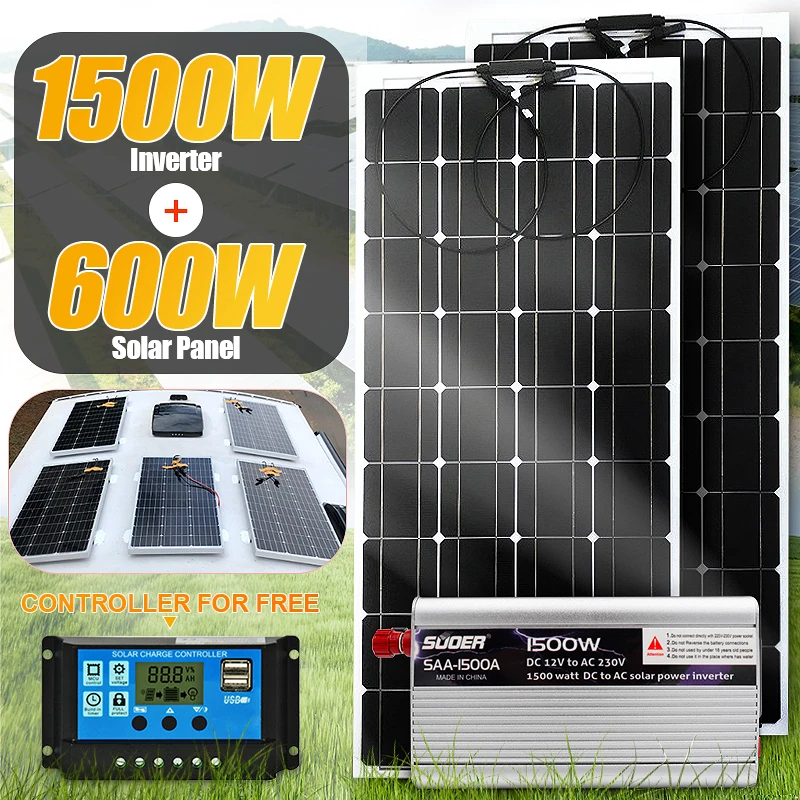

300W Solar Panel
