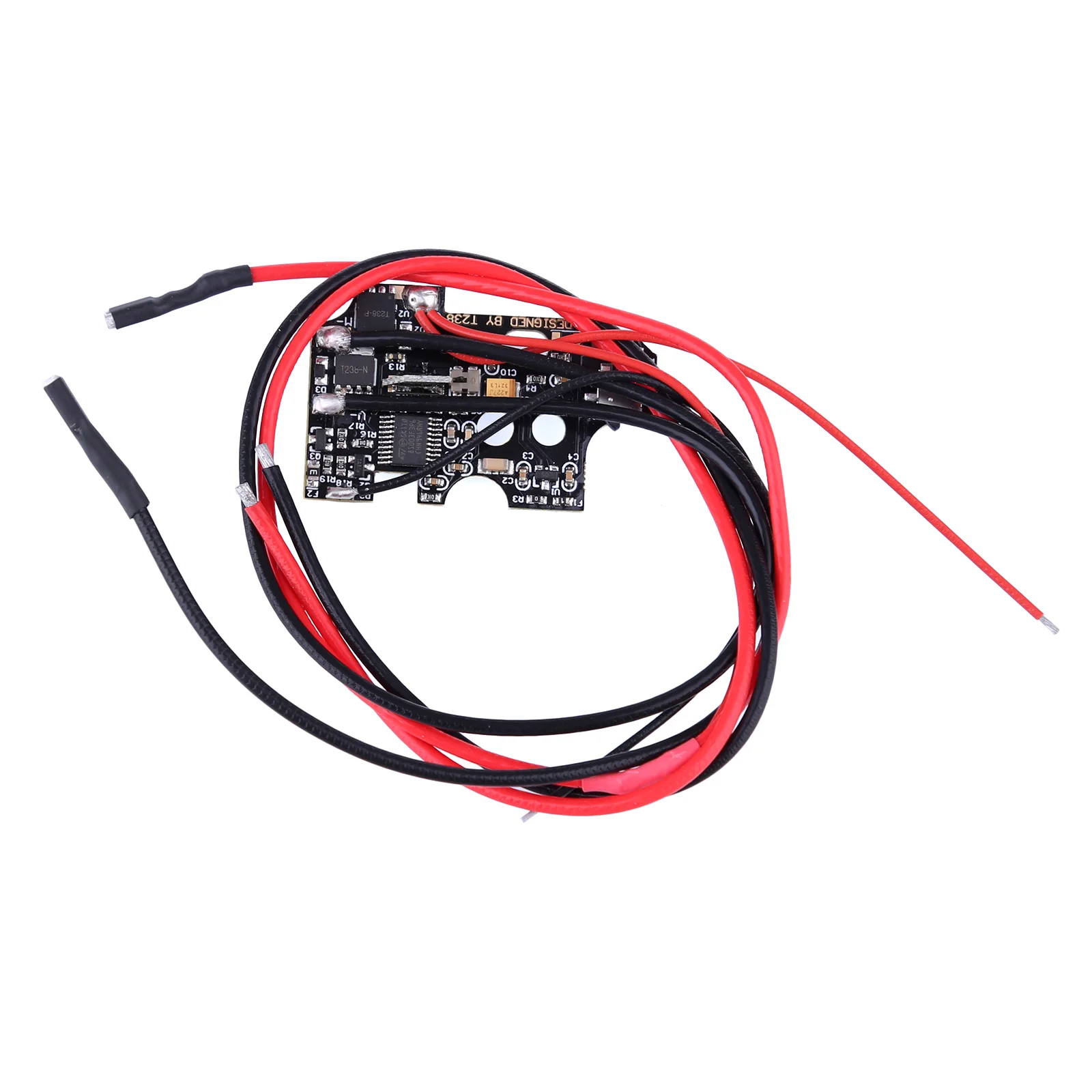

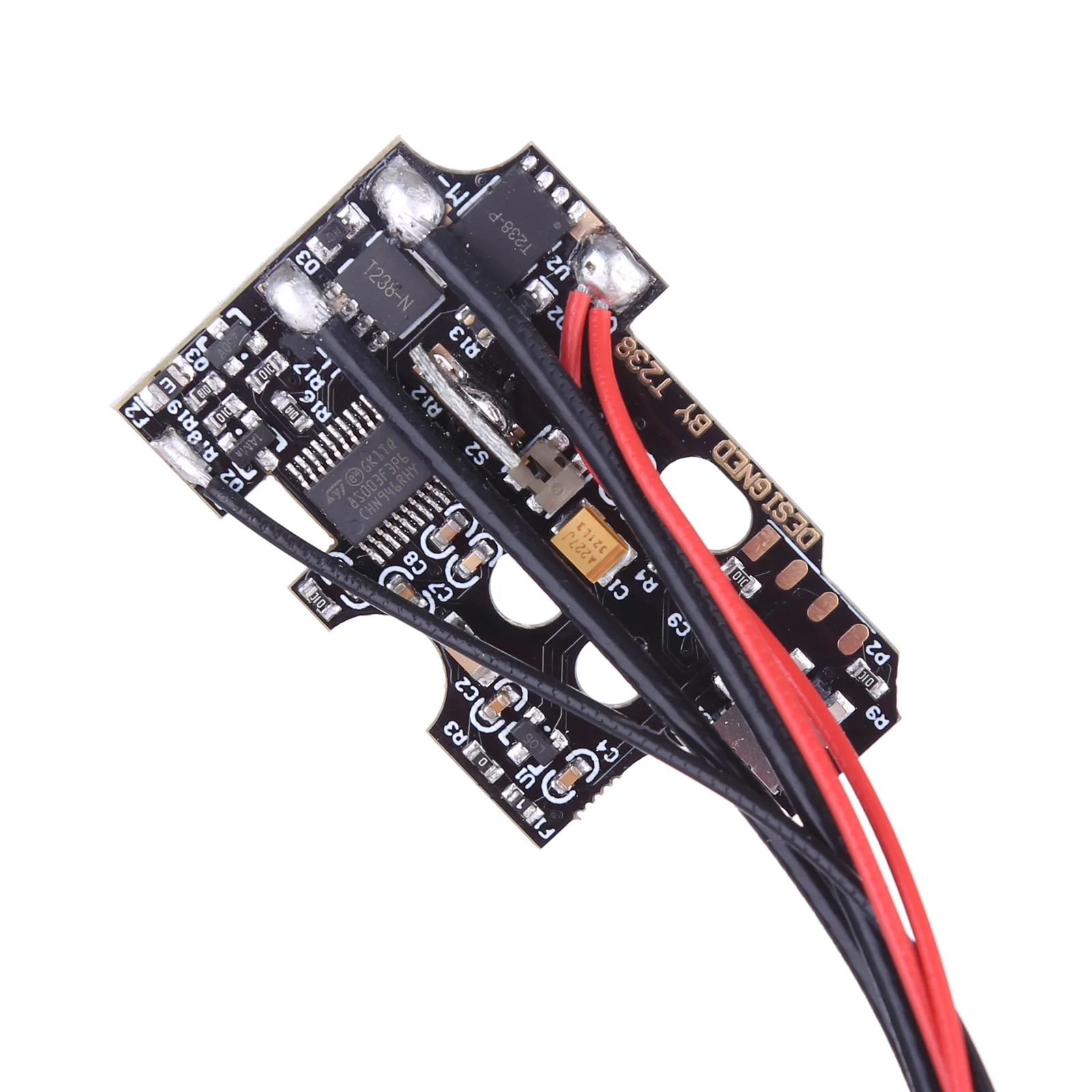

T238 Digital Trigger Unit V1.42 with Overheat Protection for AIRSOFT and gel ball version Gearbox V2

Features:

.Low battery voltage protection, the default setting is 7.4V battery. Change the battery when hearing ‘beep beep beep beep’ 4 times low voltage warning sound.
.Block-up protection. When gearbox Block-up occurs, the system stops working and emits an elongated ‘beep’ sound. Please check the wave box immediately by power off.
.This module is powered by small current, the current flow through the MOSFET directly to the motor, not through the original mechanical switch. Due to this, the MOSFET can provide higher current to the motor to increase the rate of fire and shorter respond time. Due to the current on the original switch has been significantly decreased, therefore the Switch burn is prevented.
.This module is able to increase rate of fire, the stability of single-shot and make batteries have higher durability.
.The energy that support the active brake function comes from the inertia of motor, stop the piston without delay. The effect of active brake is significant on high torque motor.
.The active function prevents the over-spin of gears, this solve the issue that the single shot becomes multiple shot under high voltage. Meanwhile, the spring is fully released in semi-auto model and parts in gearbox are not under strain, increase the life cycle of gearbox and parts.
.The system includes multiple shooting mode, these modes can be selected by fire select switch.
.The default position of the piston is adjustable in semi-auto model. Pre-cocking function can be implementing, zero trigger delay.
.Adjustable rate of fire, the gap between two single shots can be programmable, to achieve adjustable rate of fire.
.When the DTU is overheated, after the trigger is pulled, the motor will give a beep prompt until it is automatically restarted after cooling.

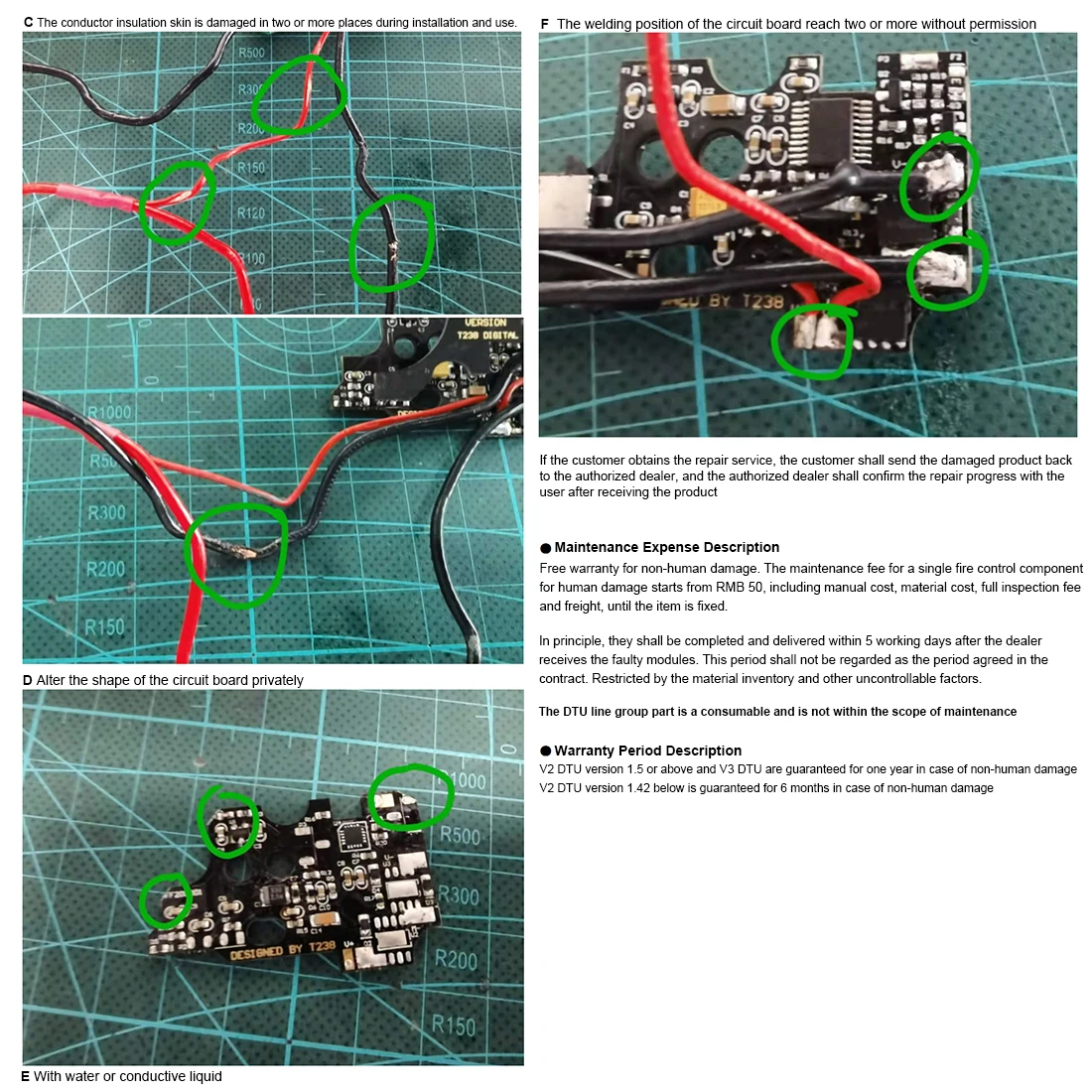

.V2 DTU version 1.5 or above and V3 DTU are guaranteed for one year in case of non-human damage. In the case of man-made damage, you need to pay for repair. Please refer to the picture for explaining the warranty and repair scope

Note : If the product does not work after installation, in many cases it is not the product itself. It may be 1. The installation method is wrong, 2. The trigger angle is too small to trigger the trigger sensor, 3. Other reasons. If there is a problem with the product, we will arrange replacement (replacement is not supported if it is artificial damaged). If you have any questions, please contact us instead of opening a dispute. We will try our best to solve the problem for you.

Specifications:

.Color: As Shown
.Material: 500D Matte Cordura Fabric
.Product Size: 4.5 x 3 x 1.4cm
.Product Weight: 90g
.Package Dimensions: 10 x 10 x 5cm
.Package Weight: 100g

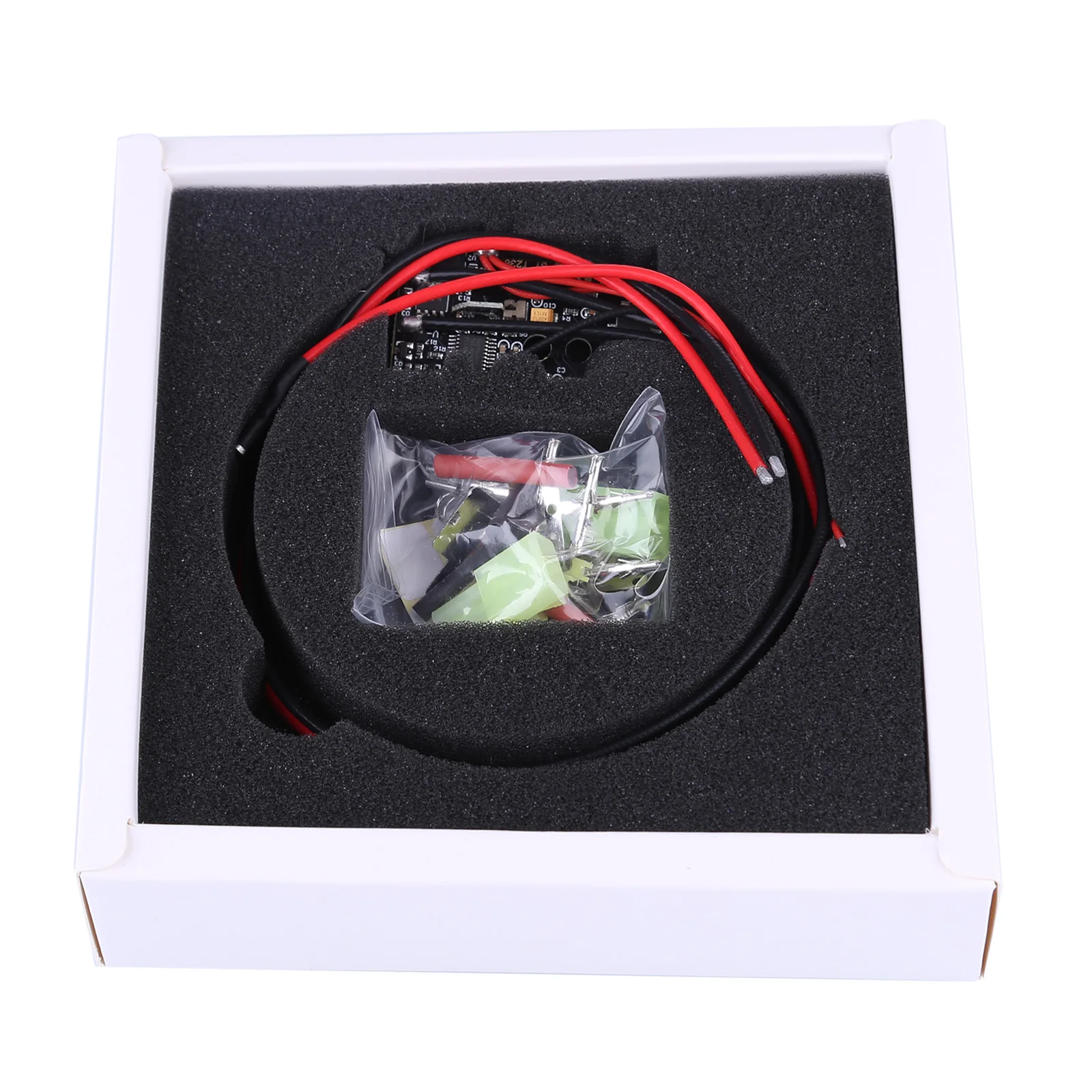

.Packing: Box

Package Content:

.1 x T238 Digital Trigger Unit V1.42
