DA580 HiFi Digital Audio Decoder DAC Headphone Amplifier 24Bit 96KHz Input USB/Coaxial/Optical Output RCA Amp

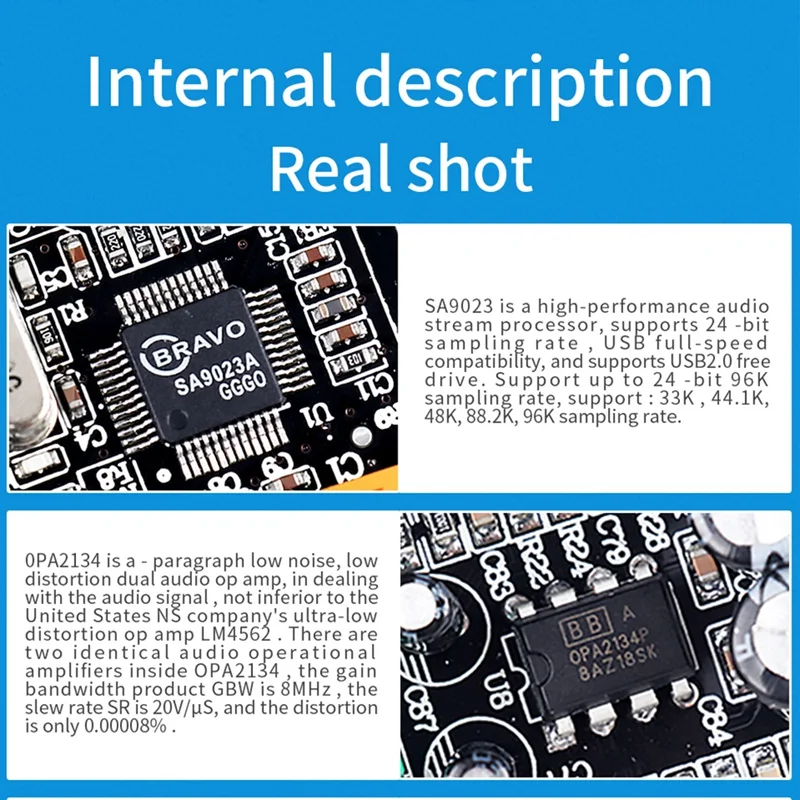

SA9023 is a high-performance audio stream processor, supports 24 -bit sampling rate , USB full-speed compatibility, and supports USB2.0 free drive. Support up to 24 -bit 96K sampling rate, support : 33K , 44.1K, 48K, 88.2K, 96K sampling rate.
0PA2134 is a - paragraph low noise, low distortion dual audio op amp, in dealing with the audio signal , not inferior to the United States NS company's ultra-low distortion op amp LM4562 . There are two identical audio operational amplifiers inside OPA2134 , the gain bandwidth product GBW is 8MHz , the slew rate SR is 20V/μS, and the distortion is only 0.00008% .
The well-received CS8416 in audiophiles has a sampling rate of up to 192 kHz . Professional audio products exchange S/PDIF and AES/EBU audio data. It has a very low jitter clock recovery mechanism , which can generate a very clean recovered clock from the input audio stream. With its extremely low jitter performance of 200 ps , CS8416 has become an perfect choice for industry-leading 192kHz digital audio receivers.
CS4398 is a 120 dB , 24 -bit 192kHz low-power stereo DAC with DSD support , with digital de-emphasis, half- dB step volume control, ATAPI channel mixing and optional . Fast and slow roll-off digital interpolation filters . 50kHz sheet . Filter on , receiving DSD audio and 32kHz to 200kHz data sampling rate , selectable digital filters , capable of providing superior sound quality.
The TPA6120A2 high-performance HIFI headphone amplifier adopts the TPA6120A2 high-performance chip from the American TI company specially designed for HIF| upper computer amplifier . The distortion is as low as 0.000635% .TPA6120A2 in HIFI industry has long known, Sony's PHA Series amp without - - exception all use TPA612A2 .

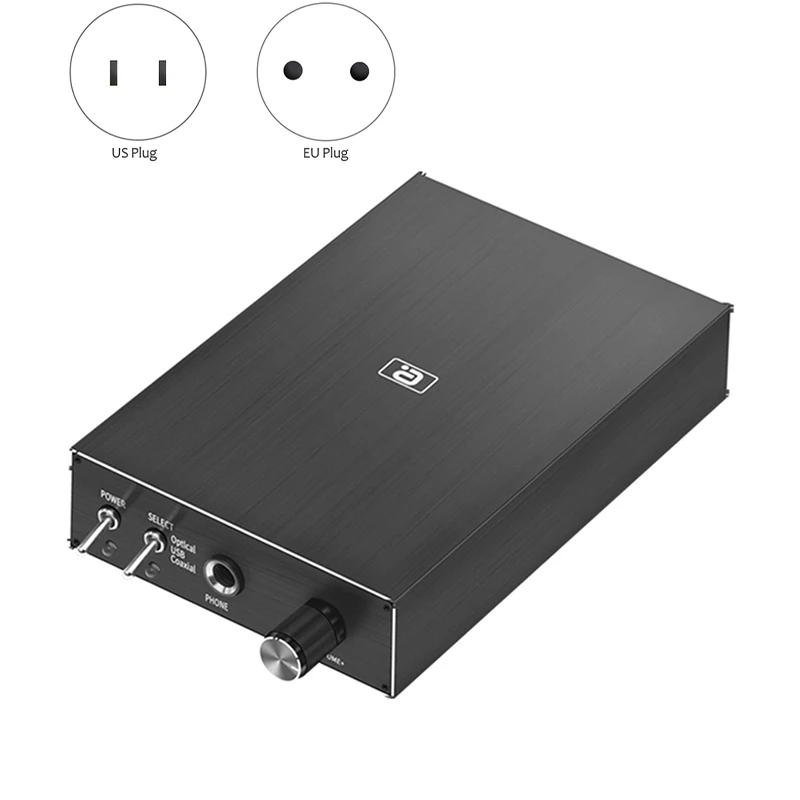

Plug Type:US Plug,it applies to Canada, India,Mexico, Thailand, the United States, the Philippines,Taiwan and so on.
Plug Type:EU Plug,it applies to Indonesia, Germany, France, Spain, Italy and so on
Model : DA580

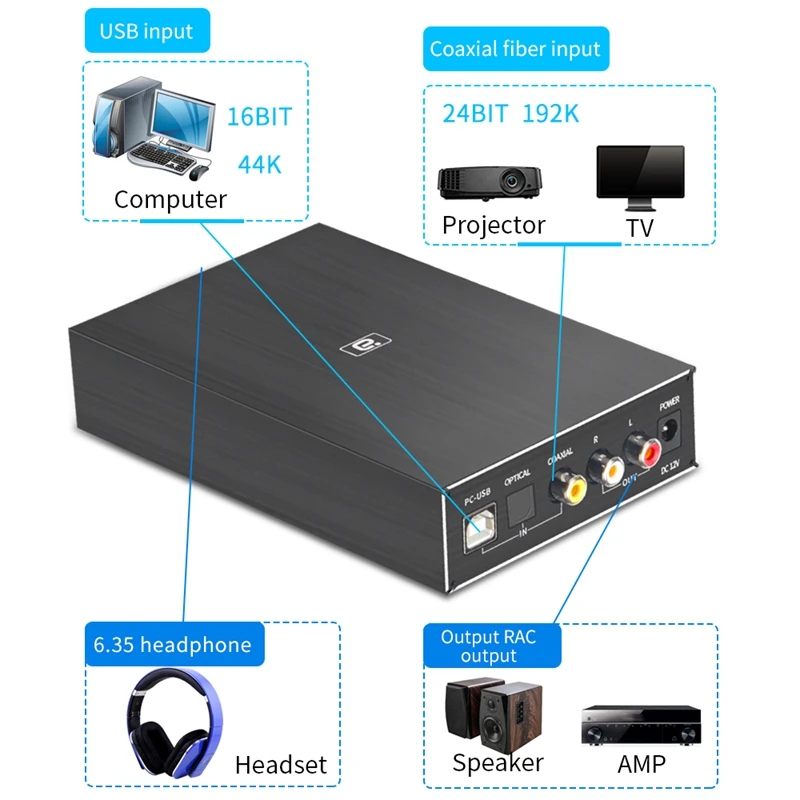

Input : PC-USB / coaxial / optical
Output : 60
Input : PC-USB / coaxial / optical
Output : 6.5mm headphone Output, 2. 0 stereo amplifier

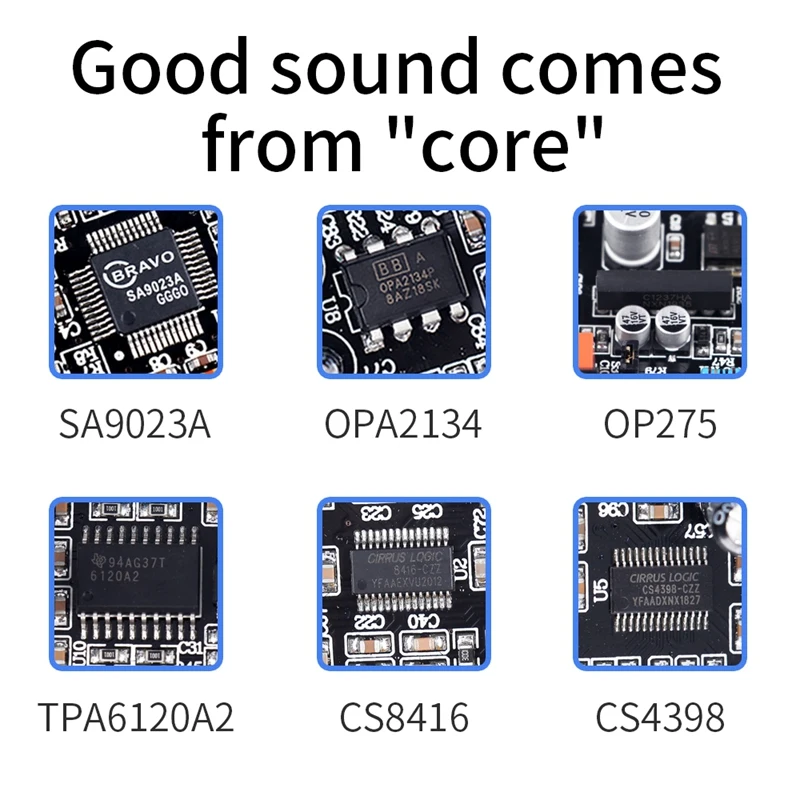

Chip : CS8416 + CS4398 + SA9023A + 0PA2134
Amp chip : OP275 + TPA6120A2
SNR : greater than equal 105dB
Distortion : Less than 0.001%
Frequency response : 20hz-20khz
Sampling Rate : USB 24 bit/96khz
Coaxial / optical fiber : 16bit/ 192kHz
Earphone impedance : 16-600Ω
Amp power : 90mw /600Ω, 180mw /300Ω, 450mw /100Ω, 610mw /62Ω, 910mw /32Ω, 1000mw /16Ω
Signal -to- noise ratio : 94dB
Dynamic range : 98dB
Distortion rate : 0.001%
DC voltage : 12V 2A

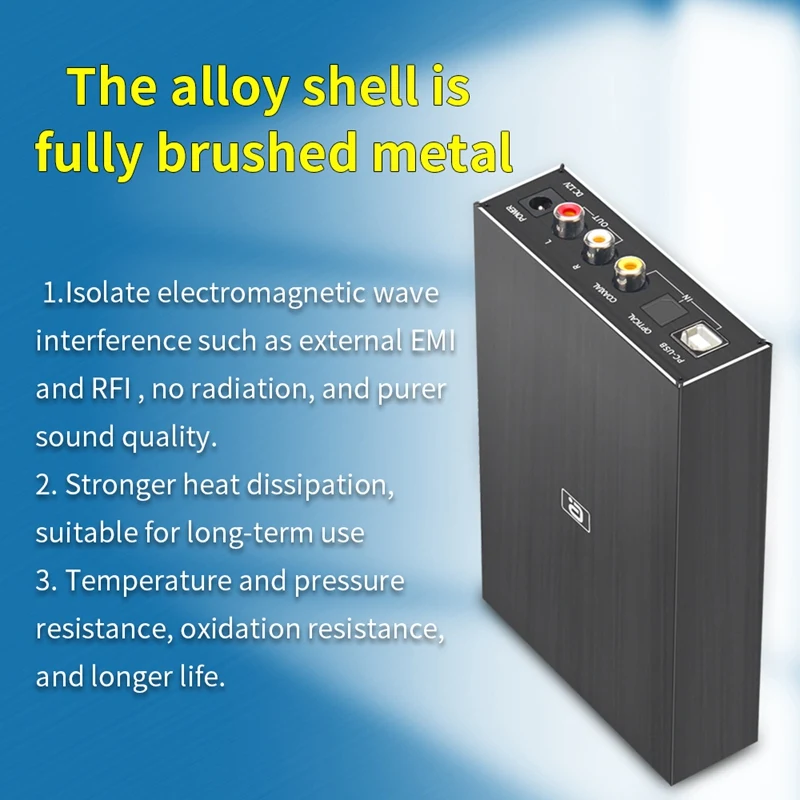

Material:metal
colour:black

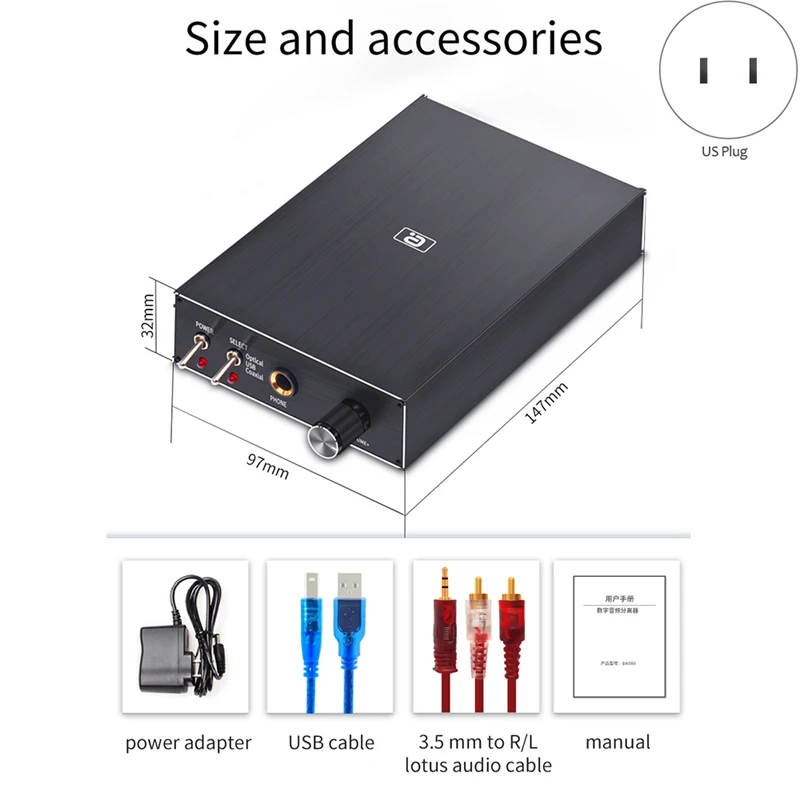

Package Contents:
1 x Host
1 x USB Cable
1 x Power Adapter
1 x Audio Cable

Only the above package content, other products are not included.
