Overviews:

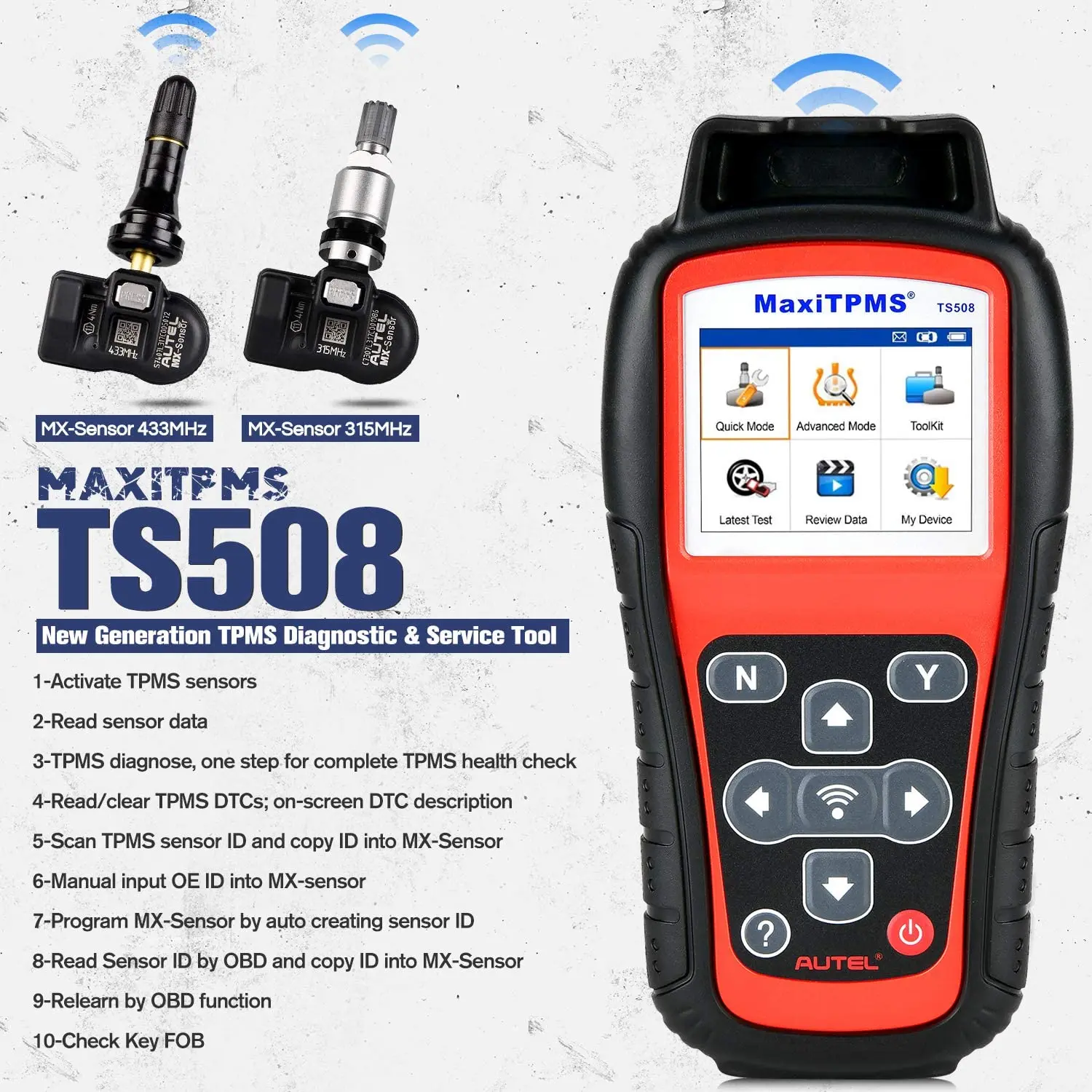

The Autel MaxiTPMS® TS508 is a new generation complete TPMS diagnostic tool specially designed to activate all TPMS sensors, read TPMS sensor status, check TPMS system health, program MX-sensors and conduct TPMS relearn. Based on service type needed, the option to choose a Quick or Advanced TPMS service mode will decrease repair time. The TS508K premium kit includes one tool and 8 MX-Sensors(433MHz/315MHz), to offer a perfect solution for quick TPMS service repair.

Support Languages;

English, French, German, Spanish, Portuguese, Dutch, Polish, Swedish, Russian, Italian, Hungarian.
(Please leave the S/N of machine to authorize the language you want after you receive it.)

TS508 TPMS TOOL FEATURES:

- Vehicle Specific Database (Domestic, Asian and European)
- Auto Selection of Frequency for Fast Scanning
- Two TPMS Service Modes to Use
Quick Mode for Fast Installs designed for tire / wheel shops
Advanced Mode To diagnose, repair and replace TPMS for repair shops
- TPMS Status Screens for Easy Diagnosis
- Shows ID matching in color
- Low Sensor Battery Indicator
- Code Notification
- Information - relearn procedures at the touch of help button
- Batch Programming - Program multiple sensors with one touch (up to 16 sensors at a time)
- Programs vehicle ECU to learn sensor IDs and positions
- Activates ALL magnetic, frequency and tire deflation triggered sensors using 125Khz continuous or modulated waive signals
- Receives both 315MHz and 433MHz signals
- Reads / writes sensor IDs from vehicle ECU
- Reads / clears DTC's of TPMS and resets Malfunction Indicator Light
- Programs Autel MX-Sensors 315MHz or 433MHz wirelessly
- Checks Remote Keyless Entry (Key FOB) for transmissions
- Reads Data including sensor IDs, tire pressure, temperature, battery condition.
- OEM Part number and relearn information
- Displays different sensor relearn procedures for different OEM sensors
- OEM sensor information display based on vehicle Make/Model/Year
- Displays OBD locations for test vehicles
- Pre-selection process offers faster activation and diagnostics
- Provides visual and audible responses to confirm sensors are working properly
- On-screen code definitions
- Incredibly easy-to-use with intuitive navigation and step-by-step on-screen instructions
- Proper LF signal to prevent being fooled by other RF signals
- Built-in rechargeable 3.7 v Li-polymer battery
- Automatic power-off to preserve battery life
- Multilingual support: English, French, Spanish, etc.
- Free Lifetime updates on the internet using USB port
- Ergonomic design features strong housing and protective rubber boot
- TFT Color Display (320 X 240 dpi)
- 8.0" LED Capacitive touchscreen with 1024 X 766P resolution

Specifications:

Battery Life： ≥5 years
Operating Temperature： -40°C to +125°C
Storage Temperature： -40°C to +150°C
Operating Humidity： 90%
Operating Frequency： 433 MHz/315MHz
Pressure Monitoring Range： 100 to 900 kPa
Pressure Reading Accuracy： ±10 kPa
Temperature Reading Range： -40°C to +125°C
Temperature Reading Accuracy： ±5°C
G Sensor Reading Accuracy： ±15%
Transmission Power： 5-8 dBm
Battery： 3.0 V
Dimensions (W x H x D)： 54.2 mm x 29.4 mm x 19.1 mm (Snap-in Sensor)
Weight (Without Valve)： 15.6 g (Snap-in Sensor)

Packing Included:

Bundle1: Only TS508
1xTS508 TPMS scanner
1 x OBD II Cable
1 x USB Cable
1 x Magnet
1 x AC Adapter
1 x Carry case
1 x User manual
1 x Free Software Updates-Lifetime

Bundle2: TS508K
1xTS508 TPMS scanner
1 x OBD II Cable
1 x USB Cable
1 x Magnet
1 x AC Adapter
1 x Carry case
1 x User manual

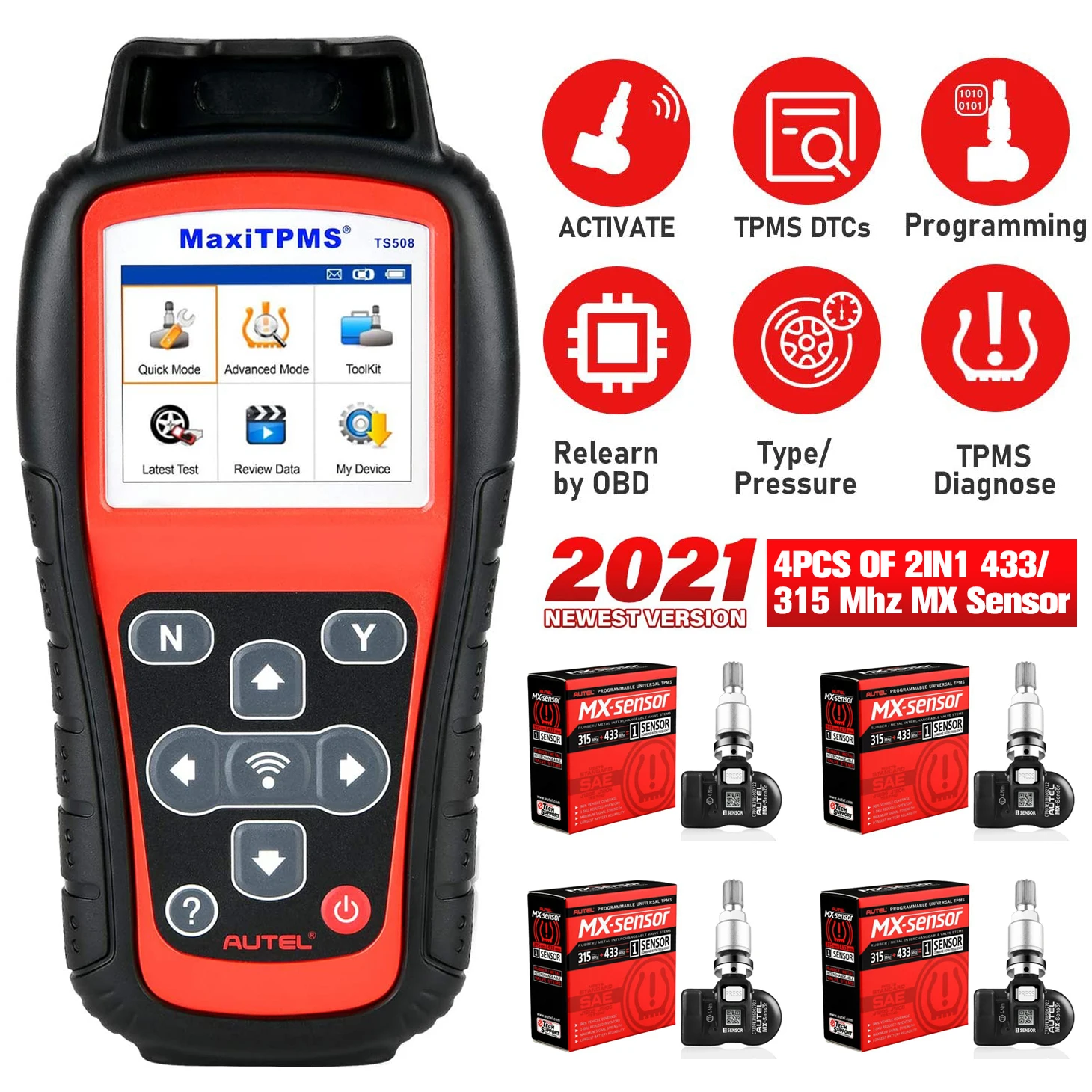

4 x 2in1 315/433MHz MX-Sensors
1 x Free Software Updates-Lifetime

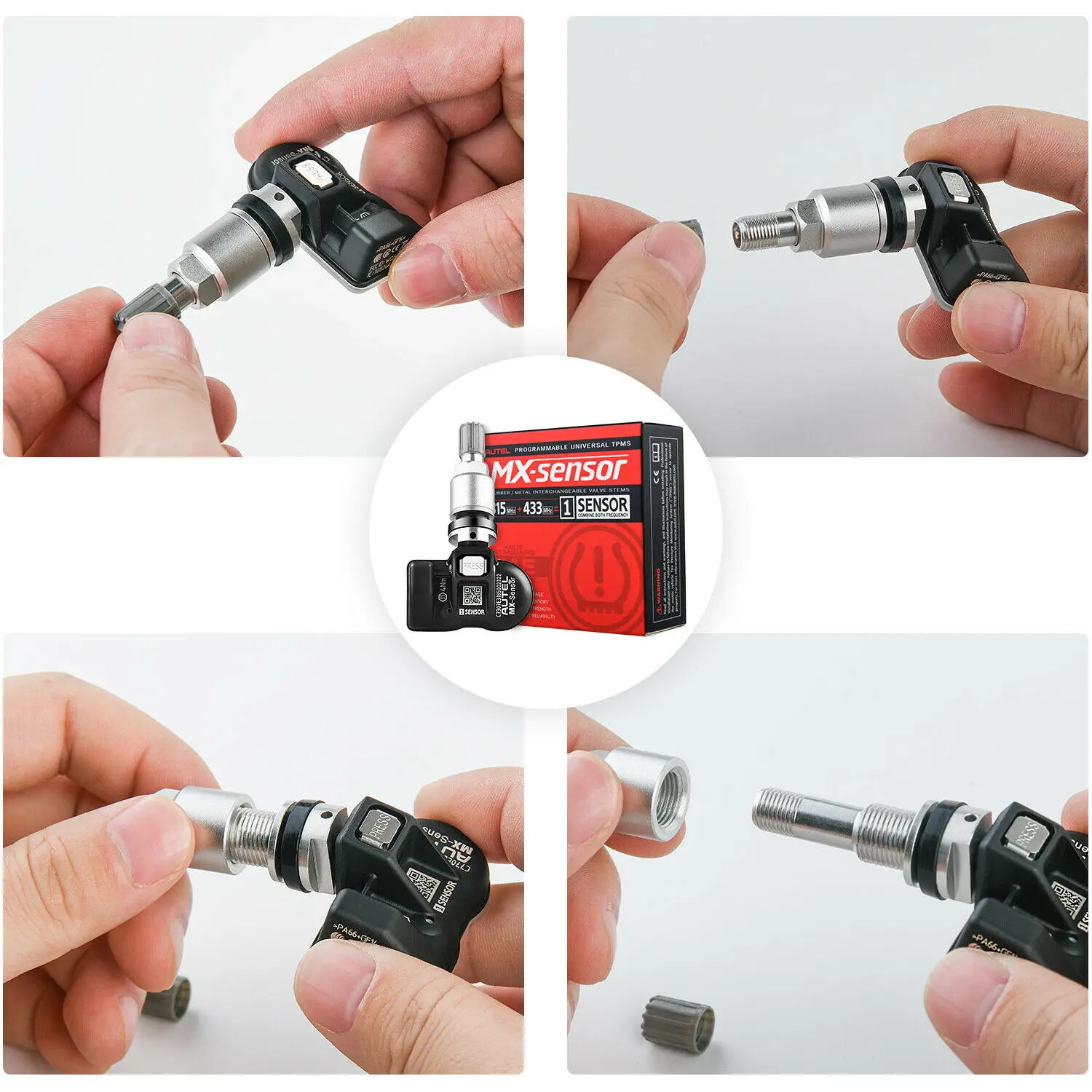

How to use the MX 2IN1 Sensor

User Tips

Here are videos guide for useful function of Ts508, and we will update from time to time.

1. Autel MaxiTPMS TS508 — MX-Sensor Programming, please refer to video below or refer to: youtube.com/watch?v=o_K8pgc63VQ&t=7s

2. Autel MaxiTPMS TS508 — TPMS Relearn Function, please refer to:
youtube.com/watch?v=MthVJcimQs8
