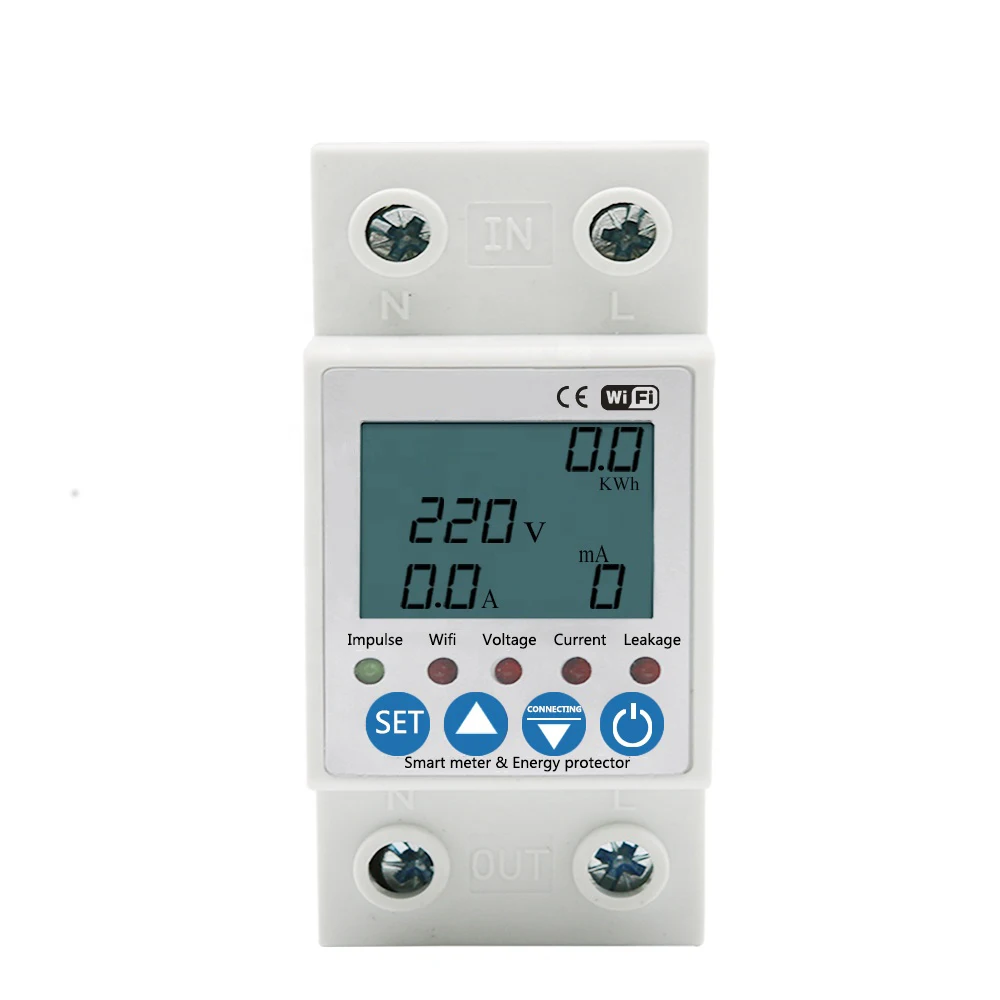

2P 63A TUYA APP WiFi Smart Circuit Earth Leakage Over Under Voltage Protector Relay Device Switch Breaker Energy Power kWh Meter |

2P 63A TUYA APP WiFi Smart Circuit Earth Leakage Over Under Voltage Protector Relay Device Switch Breaker Energy Power kWh Meter |

Function:

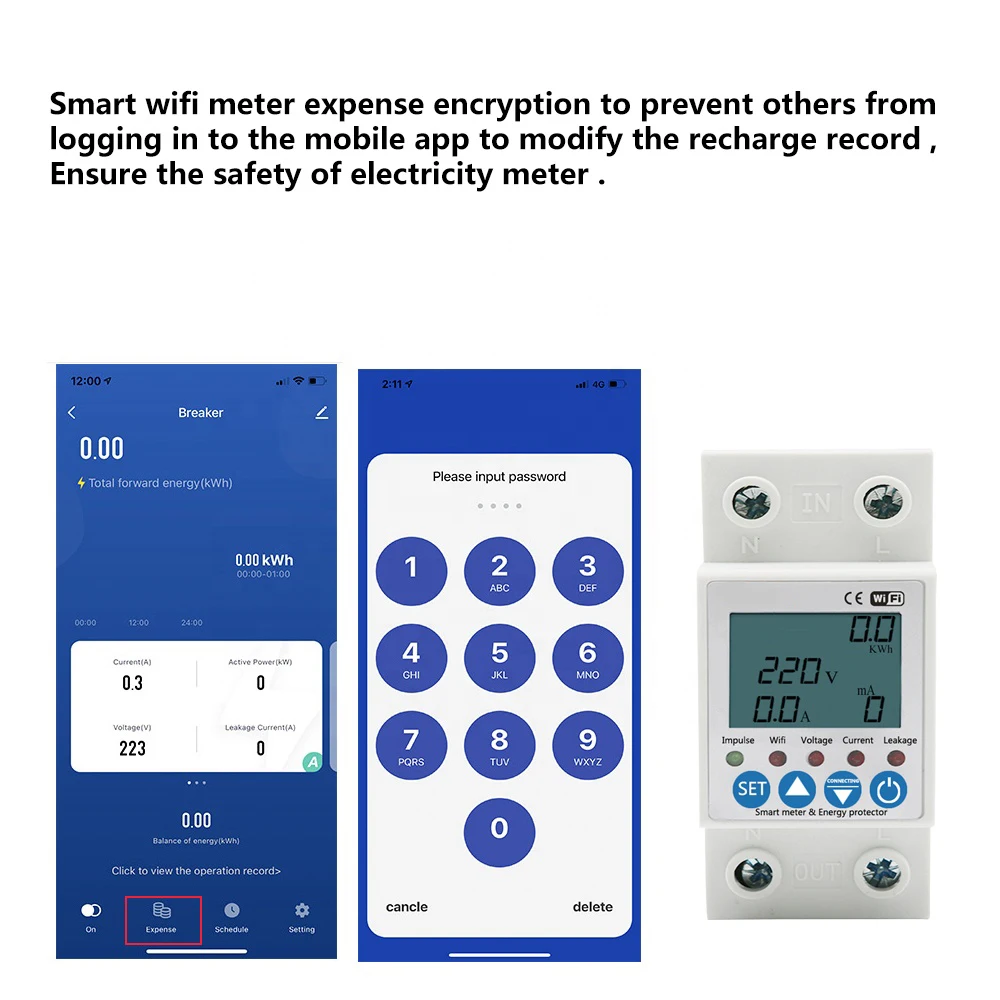

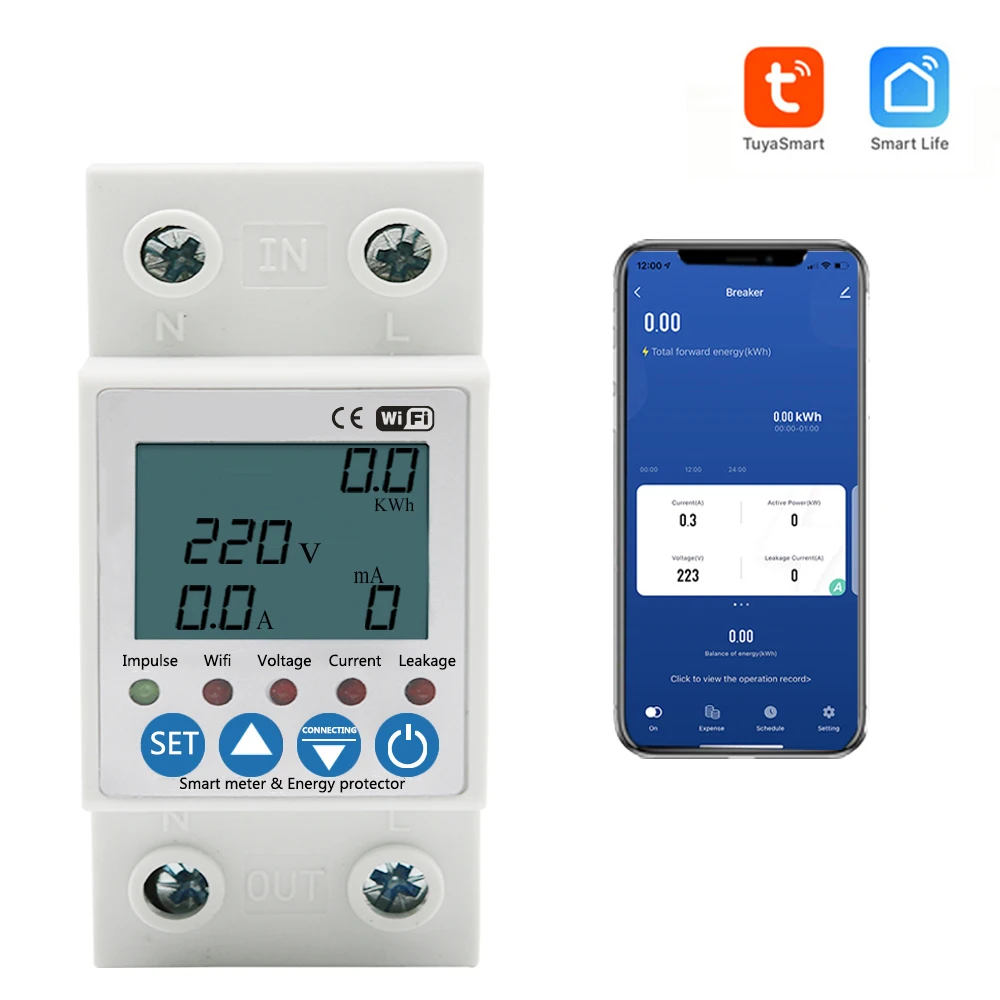

1.Remote control at anytime from anywhere

2.Schedule/Timer/loop timer

3.Energy monitoring

4. Under voltage protection 150V-190V (adjustable) (default: 170V)

5. Over voltage proteciton 250V-300V (adjustable) (default: 270)

6. Over current protection 1A-63A (adjustable) (default: 63A)

7.Electric leakage protection:10-99mA

8.Preset current/voltage threshold values by app,Once the real-time/current/voltage reaches the threshold values,The connected electrical appliances will be automatically turned off

Technical Data

Rated Supply Voltage

AC 220V

Operation Voltage Range

AC80v-400v(single phase)

Rated Frequency

50/60Hz

Electric Current (>A)setting range

1-63A

Overvoltage (>U) setting range

250-300V (adjustable)

Undervoltage(

150-190V (adjustable)

Electric Leakage Protection

10-100mA(This feature can be turned off)

Error

2%

>U and<U trip delay

0.5s

Reset/Start Delay

5s-90s

Voltage Measurement Accuracy

l%(Not exceeding1%of the overall range)

Rated Insulation Voltage

400V

Output Contact

1NO

Electrical Life

105

Mechanical Life

106

Protection DegreeProtection Degree

IP20

Pollution Degree

3

Altitude

≤2000m

Operating Temperature

(-30°C^70°C

Humidity

<50%at40°C (without condensation)

Storage Temperature

-30°C~70°C

Power Display Range

0-99999.9kw/h
