Autel MaxiIM IM608 Professional Key Programming Tool

Autel MaxiIM IM608 X400 IMMO Key Programmer OE-level Diagnostics Tool, IM608 20+ Service Car Key JVCI ECU Programmer Obd2 Scanner

Autel MaxiIM IM608 is a state of the art 10-inch Android-based touchscreen tablet combining the most advanced key programming and immobilizer capabilities with OE-level diagnostics and service functions. Equipped with XP400 key programmer and MaxiFlash JVCI ECU programmer, IM608 is a comprehensive immobilizer and key programming tool and ideal for auto technicians and locksmiths. Advanced version of Autel IM508.Autel MaxiIM IM608 is a state of the art 10-inch Android-based touchscreen tablet combining the most advanced key programming and immobilizer capabilities with OE-level diagnostics and service functions. Equipped with XP400 key programmer and MaxiFlash JVCI ECU programmer, IM608 is a comprehensive immobilizer and key programming tool and ideal for auto technicians and locksmiths. Advanced version of Autel IM508.

Autel MaxiIM IM608 Features :

· 1 Years Free Updates Online
· 1 Year Warranty
· Muti-Language: English / Portuguese / Germany / Japanese / French / Spanish
·Extraordinarily powerful Cortex A7+A15 six-core processor
·10.1-inch LED capacitive touch screen with 1920x1200 resolution
·Internal reliable 64GB On-board Memory for better performance
·Built-in 8-megapixel rear camera with autofocus and flashlight
·802.11 a/b/g/n/ac Wi-Fi to access your favorite web resources
·Open source Android Operating System for fast boot-up and multitasking
·Support IMMO functions for over 60 worldwide makes and models.
·Equipped with XP400 to support PIN/CS read, transponder read/write/identification, MCU/EEPROM chip read/write and IMMO ECU Reset/Adaption.
·Professional key programming equipped with XP400 key programmer and MaxiFlash ECU programmer for complete Immo coverage
·Smart mode for guided and automated key learning
·Expert mode for advanced key learning

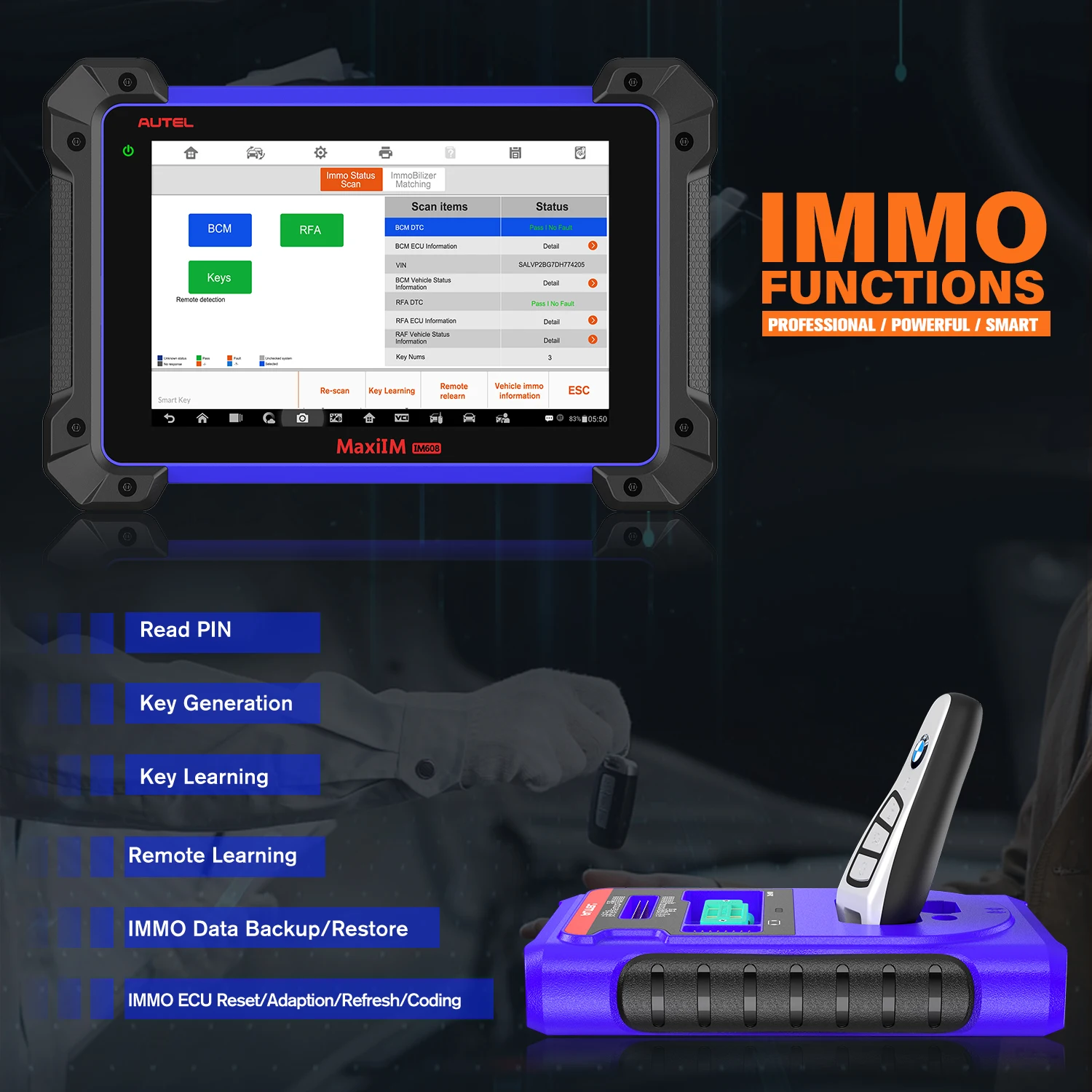

·Read PIN/CS (all key lost), generate key, key learning, remote learning
·IMMO ECU reset/adaptation, refresh/coding
·Read/write transponder data, ECU/MCU/EEPROM data (eg. 9S12 encryption chip), IC card, detect remote frequency

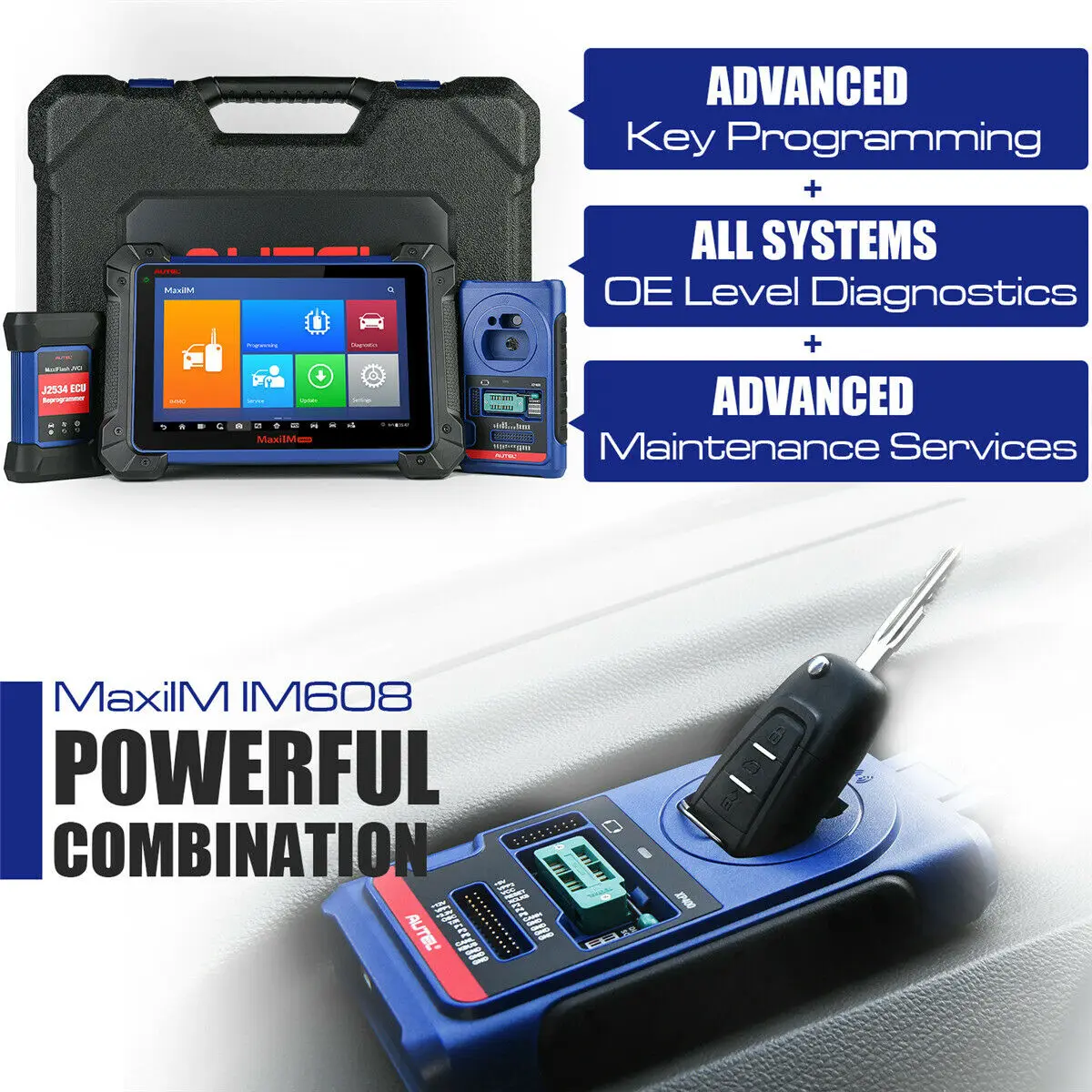

·Powerful combination of advanced key programming/all systems diagnostics/advanced maintenance services

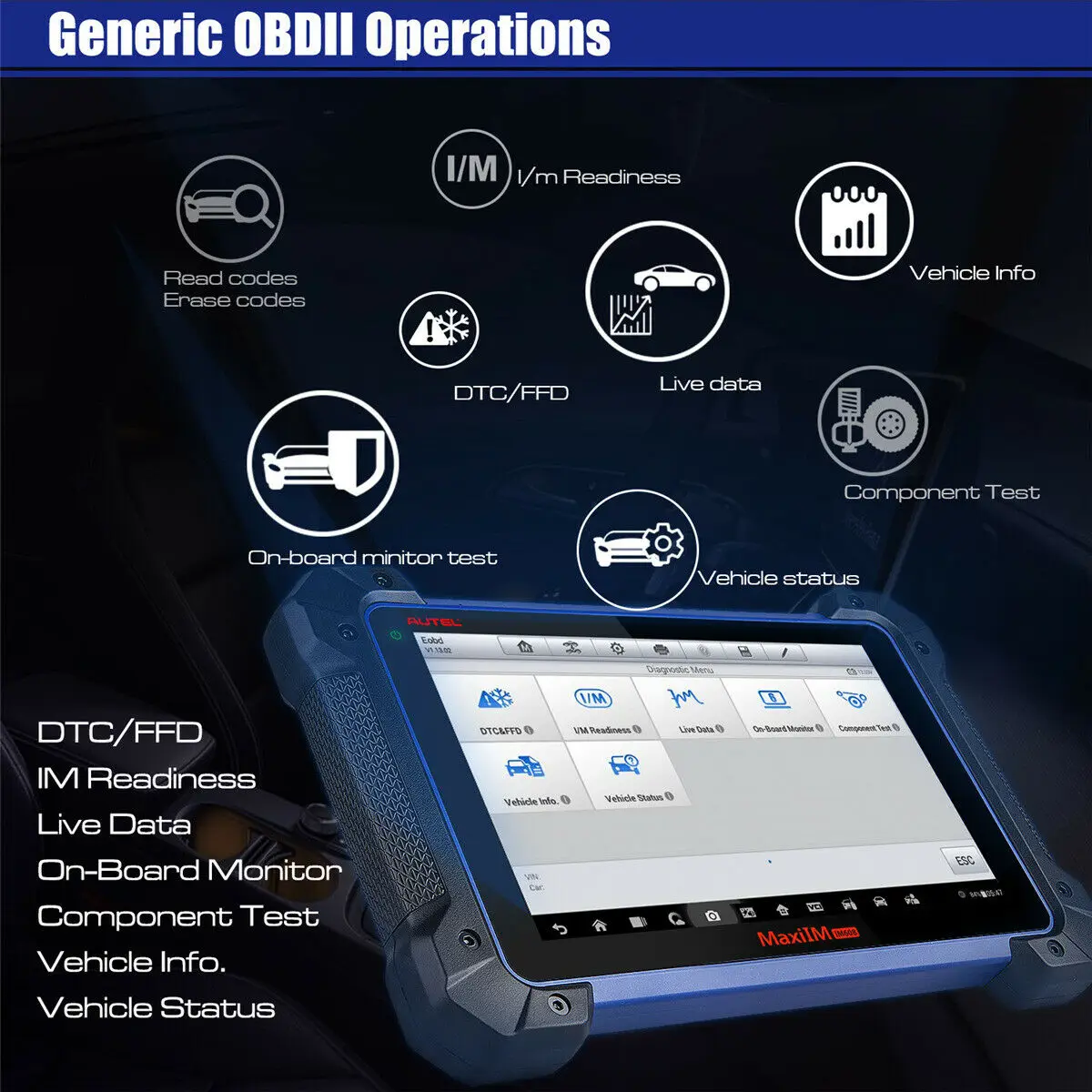

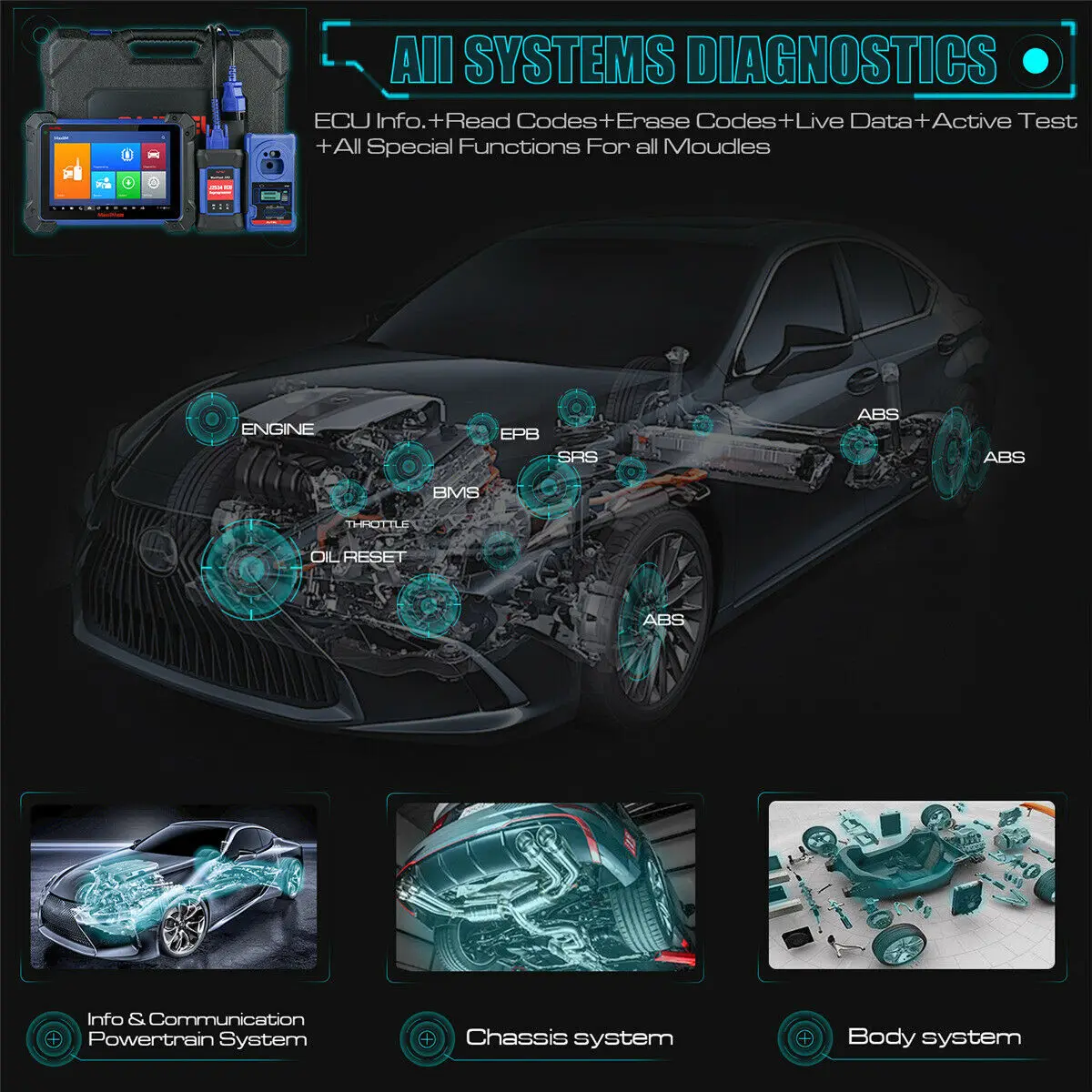

·Powerful OE level diagnostics for more than 80 US, Asian and European makes and models
·Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, coding etc.
·Displays live data in text, graph, analog and digital gauge for easy data review and analysis.
·Auto VIN technology can automatically identify the vehicle`s make, model and year information in no time.

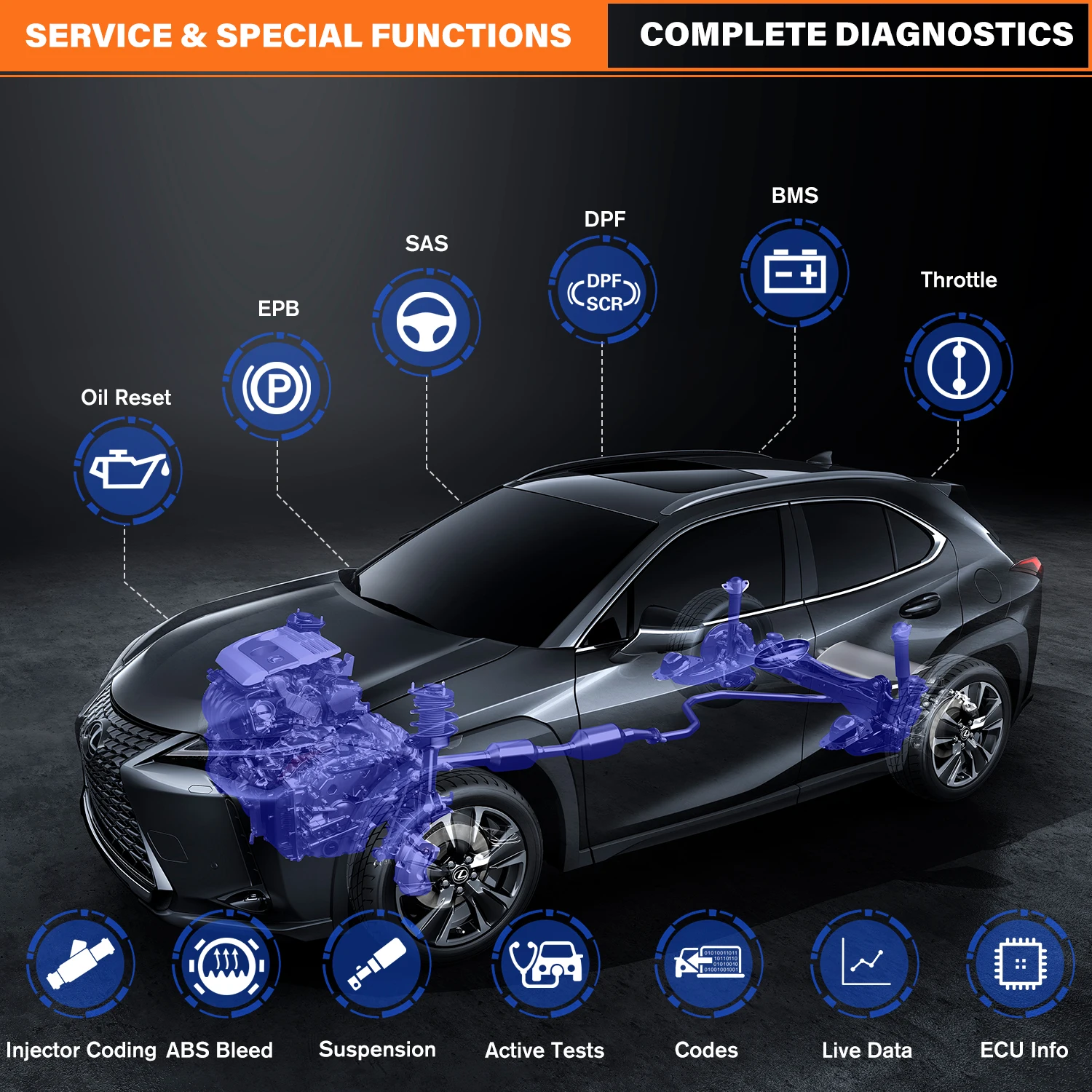

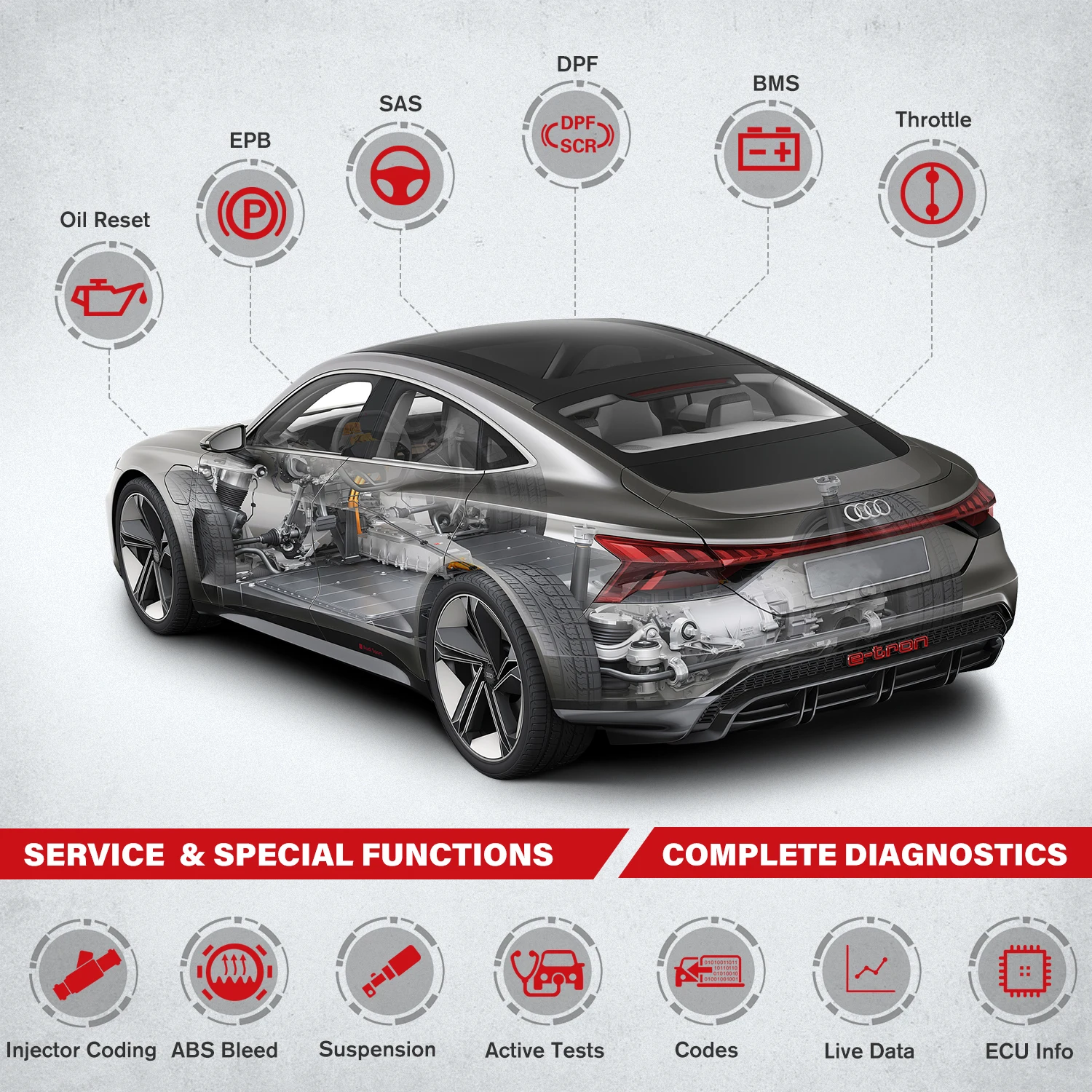

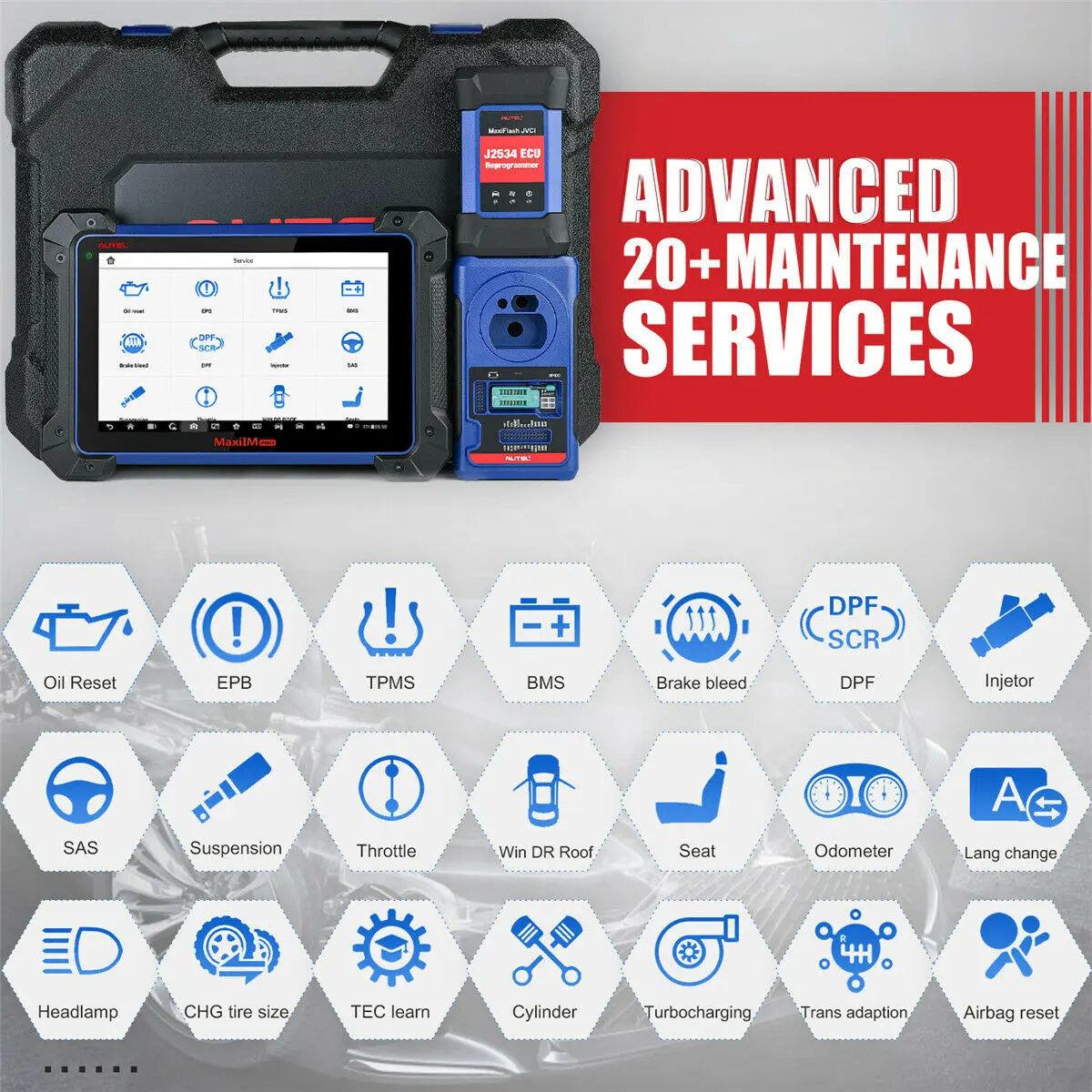

·Quick access for more than twelve common service functions including EPB, DPF, SAS, Oil reset, BMS, TPMS sensor ID relearn, etc
·Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes.
·Remote technical support for convenient demonstration, training and increased customer satisfaction.
·Print out recorded data anytime and anywhere with Wi-Fi technology.
·Automatic Wi-Fi updates available in new software releases.

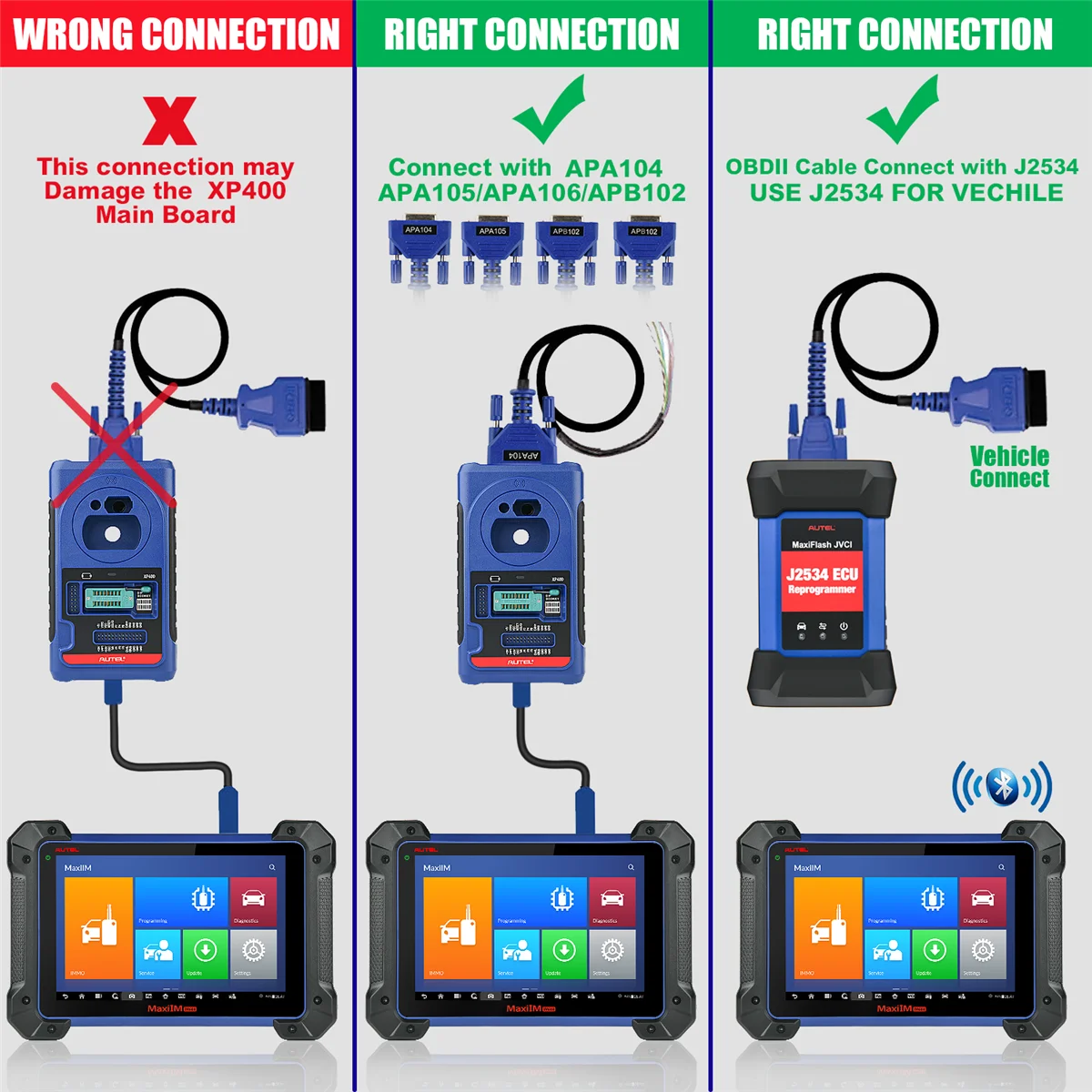

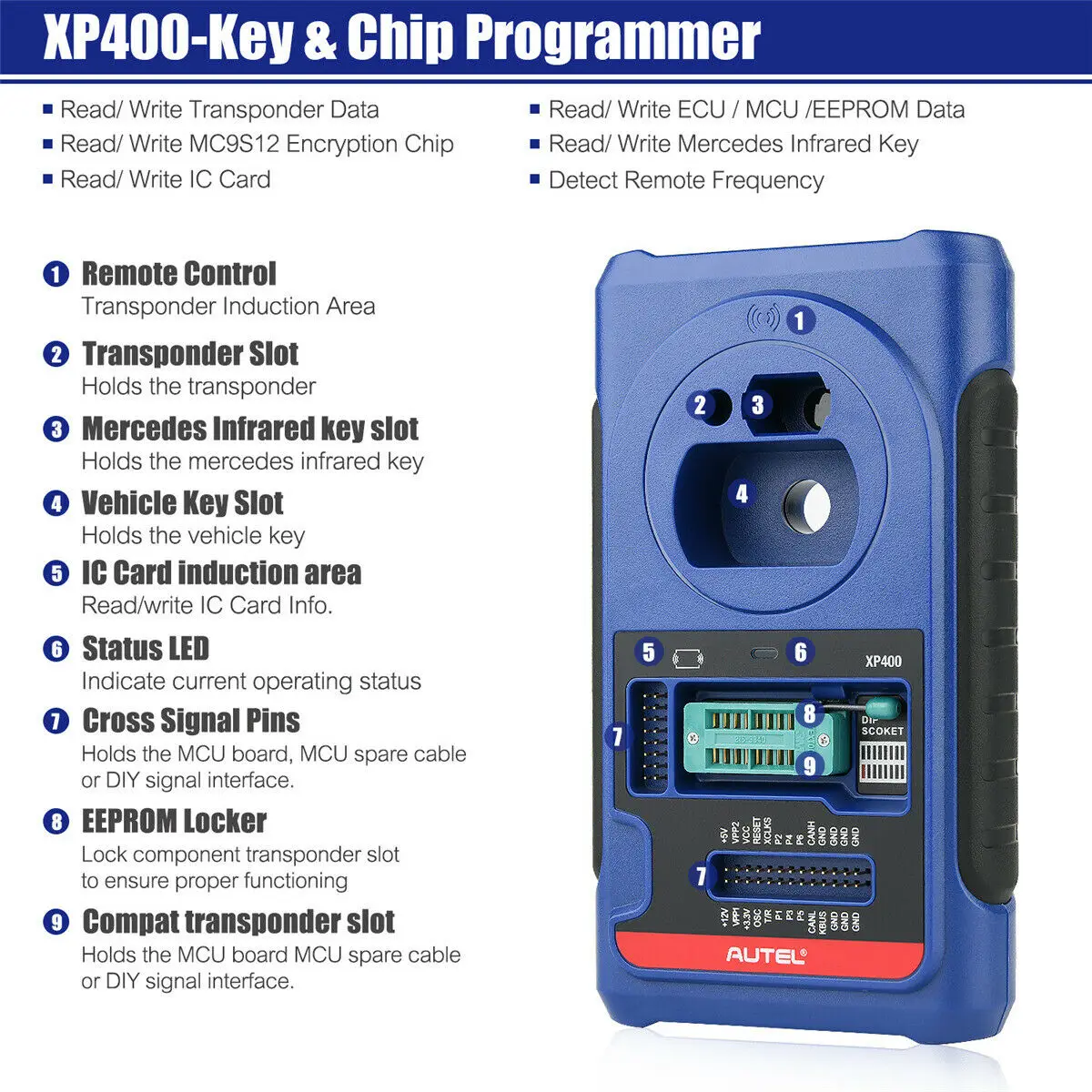

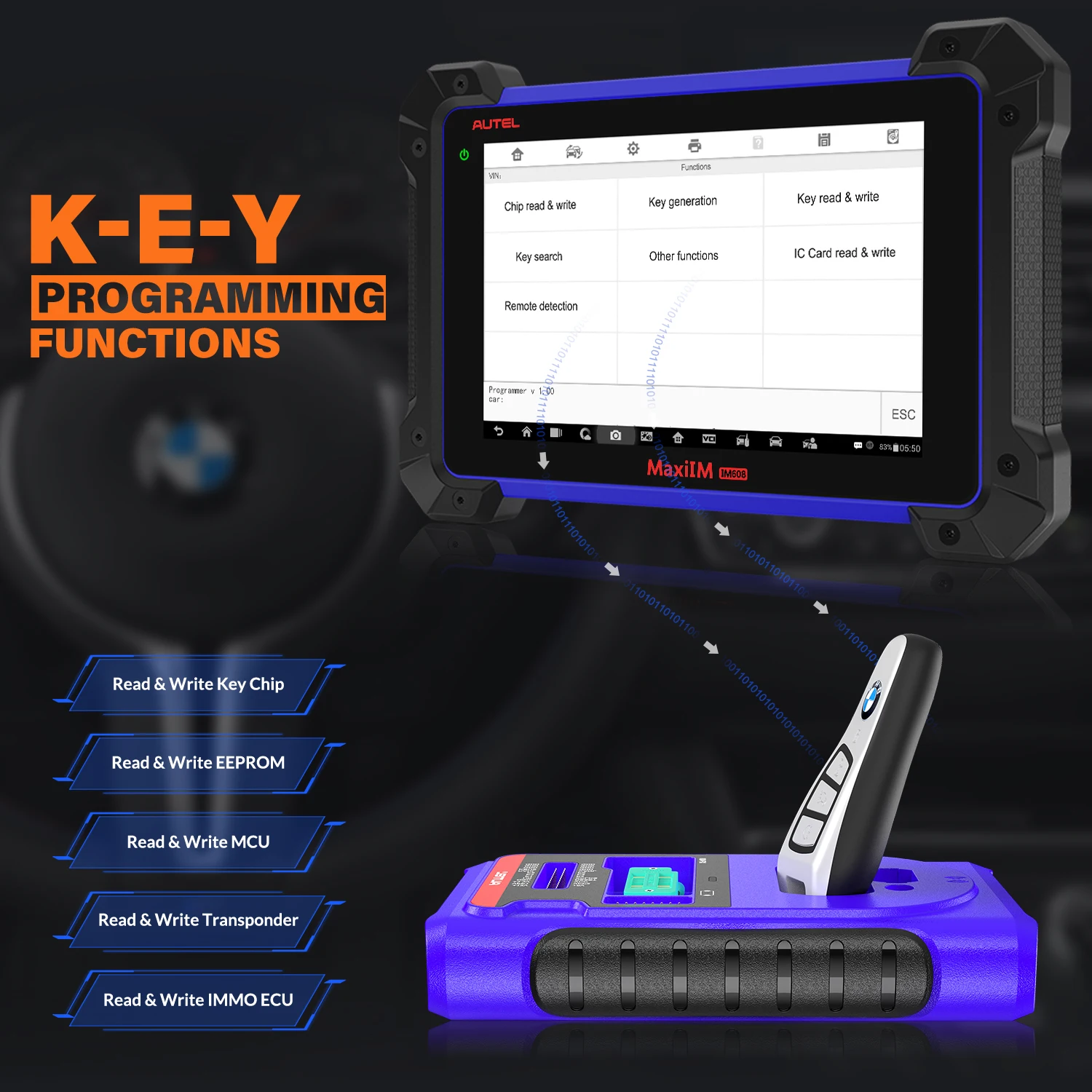

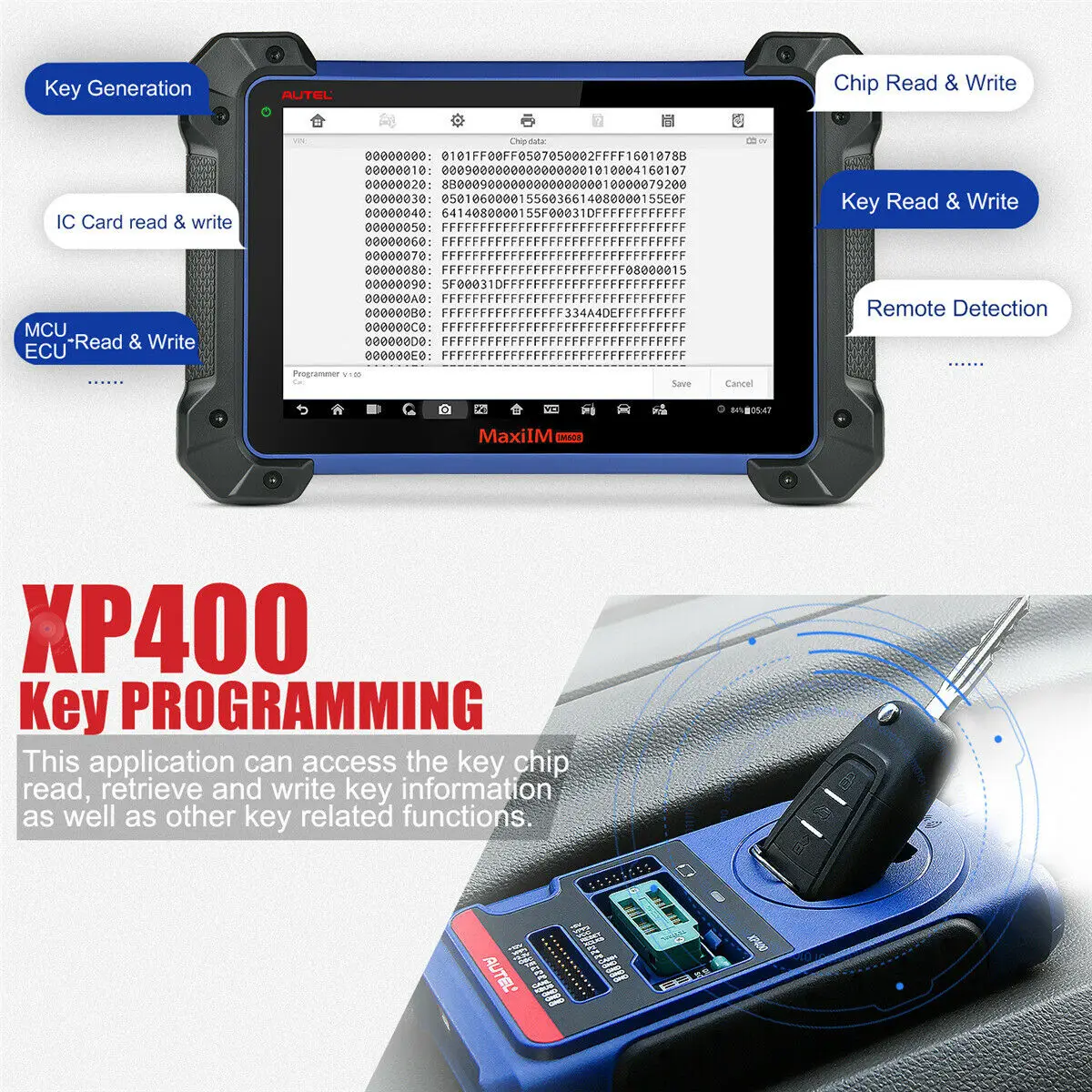

XP400 SWITCH & CHIP PROGRAMMER

PC Supported
MCU / EEPROM Chip Read / Write
ECU Read / Write
MC9S12 Encrypted Chip Read / Write
Key Reading / Writing
Mercedes Infrared Key Reading / Writing
Finding the Control Frequency
IC Card Reading / Writing

Autel MaxiIM IM608 Specification:

Operation System: Android 4.4.2,KitKat
Processor: Samsung Exynos hex-core Processor(1.3GHz Quad-core ARM Cortex-A7+1.7GHz Dual-core ARM Cortex-A15)
Memory: 2GB RAM & 64 GB On-board Memory
Display: 10.1-inch LED capacitive touch screen with 1920*1200 resolution; Wi-Fi:(802.11 a/b/g/n/ac); USB 2.0
Connectivity: BT v.2.1+EDR; SD Card (Support up to 32GB); HDMI
Camera(rear): 8.0 Megapixel, AF with Flashlight
Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio: Microphone; Dual Speakers
Input/output: 3-Band 3.5mm stereo / standard headset jack
Power and Battery: Charging via 12V AC/DC power supply with the temperature between 0℃ to 45℃
Input Voltage: 12V (9-24V)
Power Consumption: 6.5W
Operating Temp: 0℃ to 50℃ (32 to 122℉)
Storage Temp: -20℃ to 60℃ (-4 to 140℉)
Dimensions(W*H*D): 300mm (11.81'') x 220.0mm (8.66'') x 50.0mm (1.97'')
Weight NW: 1.42kg (3.13lb.)
GW: 8.655kg(19.08lb)
Protocols: ISO9141-2, ISO14230-2, ISO15765-4, K/L-line, Flashing code, SAE-J1850 VPW, SAE-J1850PWN, CAN ISO11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6SAE J1939, SAE J1708, Fault-Tolerant CAN

Autel MaxiIM IM608 IMMO Vehicle List:

Audi: A1, A3, A4, A5, A6, RS4, B6, B7, RS5, RS6, A4 Allroad, A8, S8, Q3, RSQ3, Q5, Q7, R8, TT
Seat: Alhambra, Altea, Altea, Cordoba, CupraLeon, Exeo, Ibiza, Leon, Mii, Toledo
Skoda: Citigo, Fabia India, Fabia, Kamiq, Karoq, Octavia, Rapid India, Rapid, Roomster, Superb, Yeti
VW: Amarok, Arteon, Atlas, Beetle, Bora, BoraGli, Caddy, Crafter, EOS, Fox Africa, Fox EU, Fox, GTI, Gol County, Gol(5U), Gol(5W), Golf PLUS, Golf/Rabbit(1K), Golf6 ESTATE, Jetta, Parati, Passat, Phaeton, Polo, Scirocco, Sharan, Suran, T-Roc, Tiguan, Touareg, Touran, Transporter5/Multivan, up, UP!/cross UP!
Fiat: 500, 500L, 500X prox, Albea, Boxer, Daily, Doblo, Doblo New, Ducato, Egea, Fiorino, Freemont, Idea, Grande punto, Jumper, Linea, Marea, Nemo, Ottimo, Palio, Palio RST, Panda, Perla, Promaster, Punto, Sinea, Stilo, Viaggio

More IMMO vehicle models please check vehicle coverage by this website:
//pro.auteltech.com/measurecarApp-1-1.html?m=94&proTypeCode=IM608(IMMO)&operatorType=2

What's the difference between the IM608 & IM508 & IM608 PRO

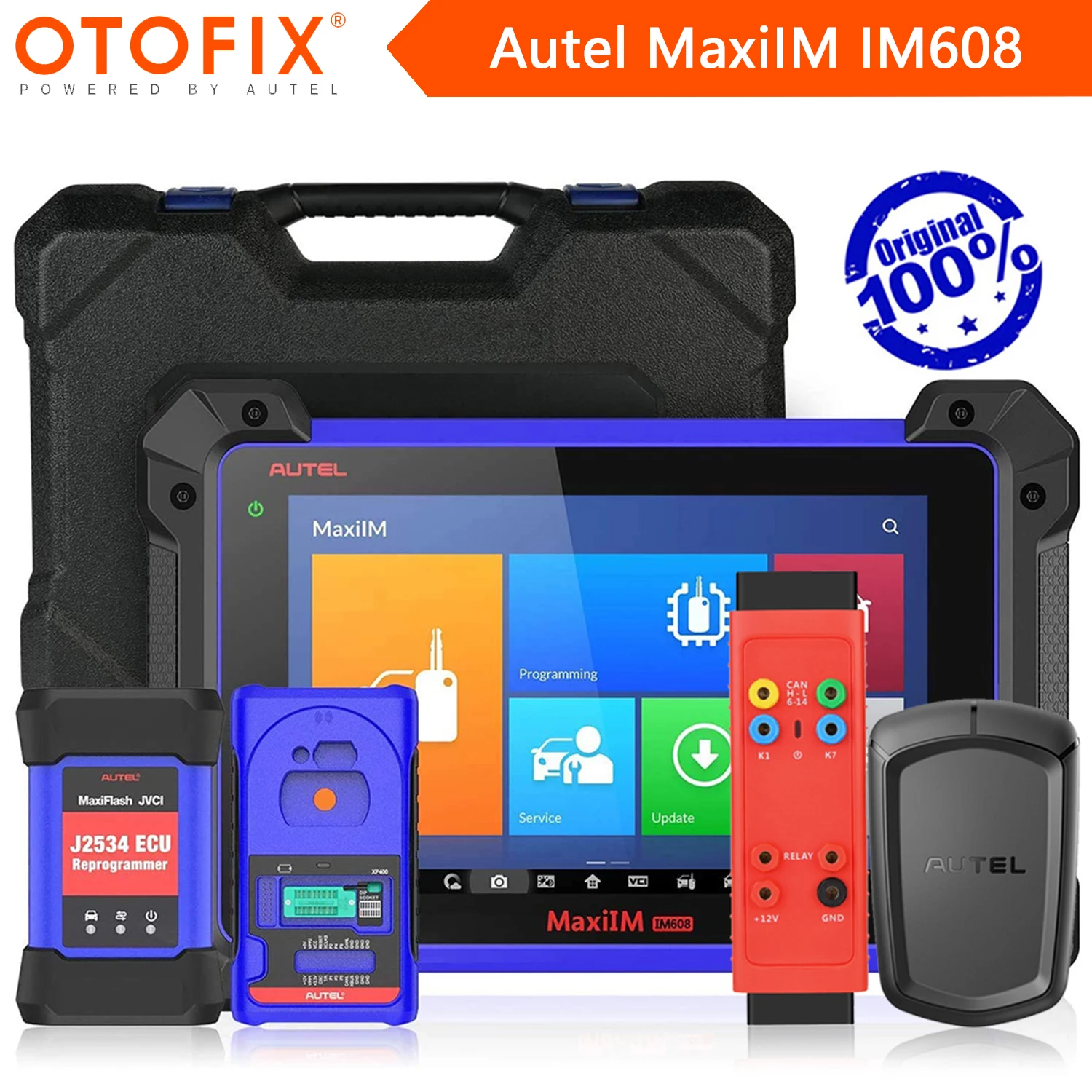

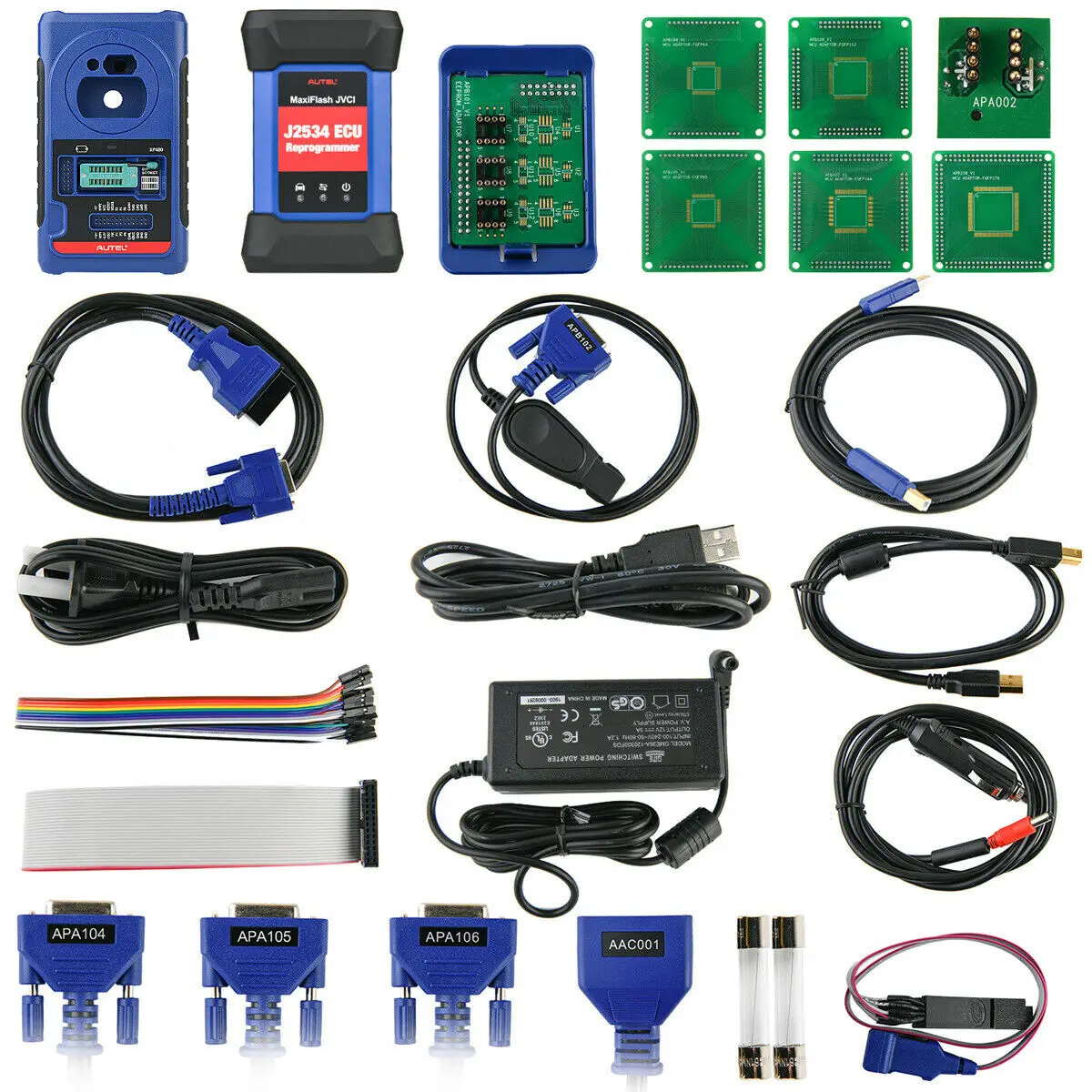

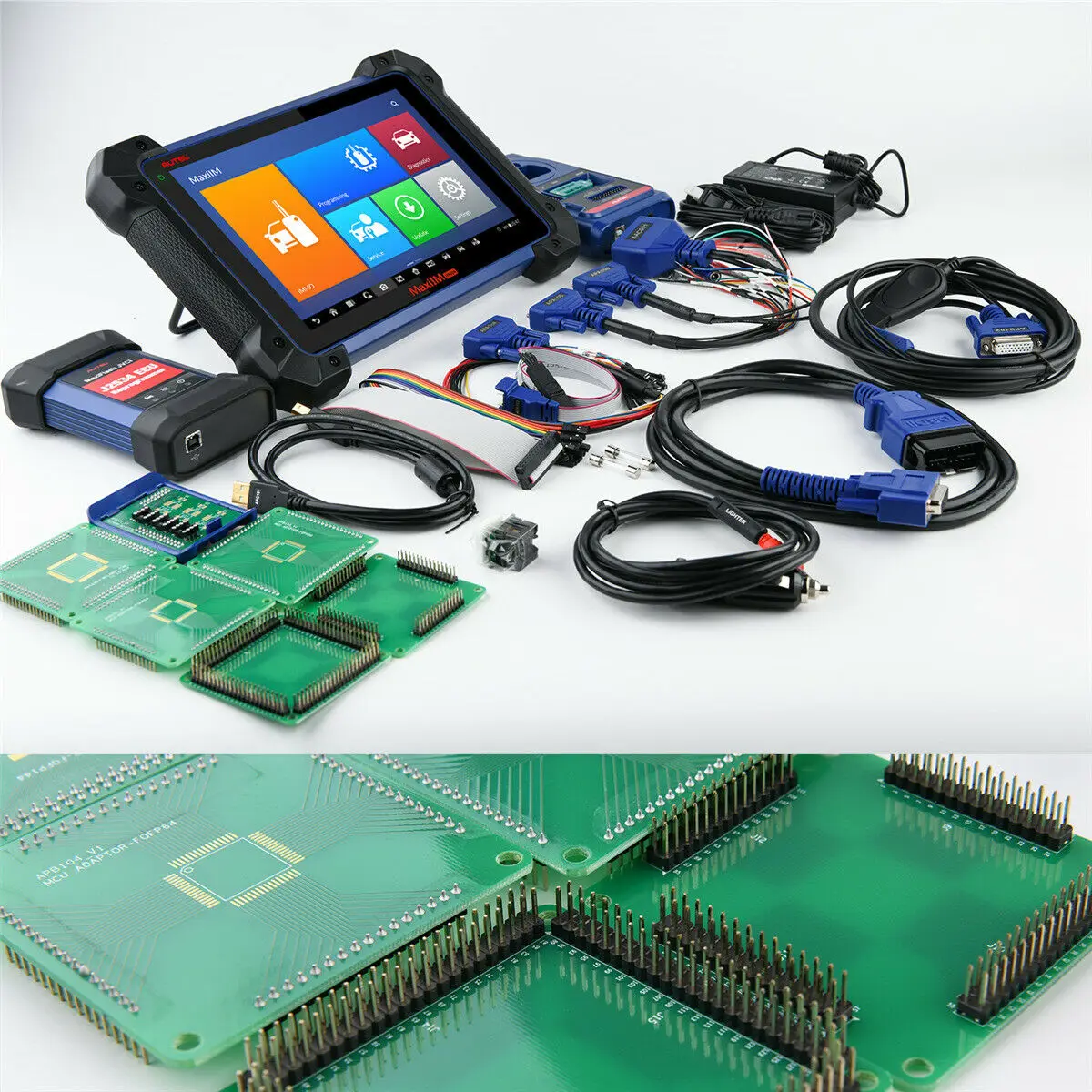

Autel MaxiIM IM608 Packling List:

1x Autel MaxiIM IM608 Main Unit
1x APC101 USB Cable
1x APA101 Signal Cable
1x MaxiFlash JVCI
1x APB101+APD101(EEPROM Adaptor+EEPROM Adapter Shell)
1x APA103(EEPROM Clamp)
1x XP400
1x APB102 MB IR Cable
1x APA104 ECU Clamp
1x Main Cable
1x APB104(MCU_FQFP64)
1x APA105(MCU Clamp)
1x USB Cable (2m)
1x APB105 MCU_FQFP80
1x APA106(MC9S12 Clamp)
1x Mini USB Cable
1x APB106(MCU_FQFP144)
1x APA107(Connect Cable)
1x AC/DC 12V Adapter
1x APB107(MCU_FQFP144)
1x Quick Reference Guide
2x Light Fuse 6*30mm
1x APB108(MCU_FQFP176)
1x Packing List
1x Cigarette Lighter
1x APA002(EEPROM Socket)
1x Carrying Case 634*170*404mm
1x AAC001

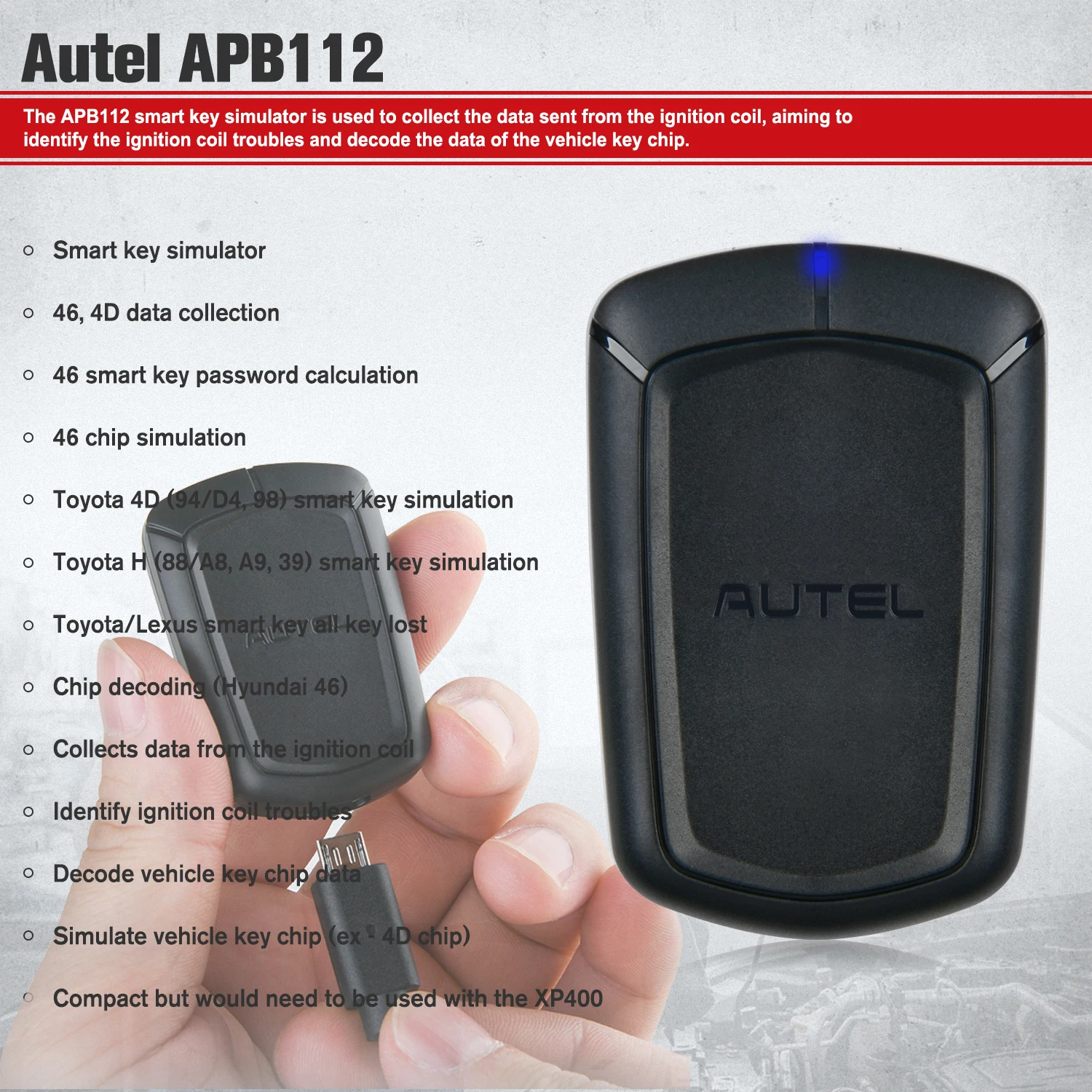

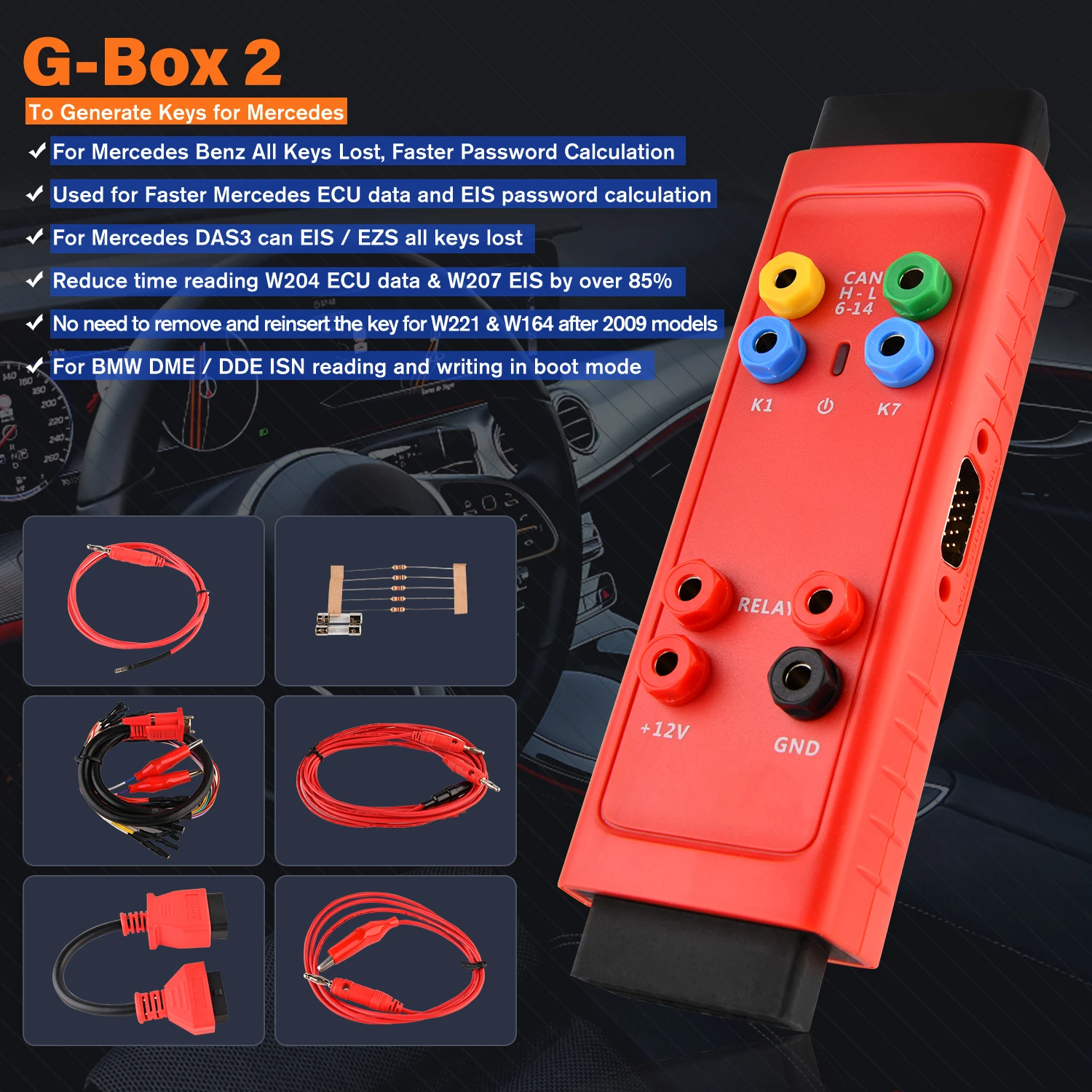

AUTEL APB112/Autel G-BOX2
