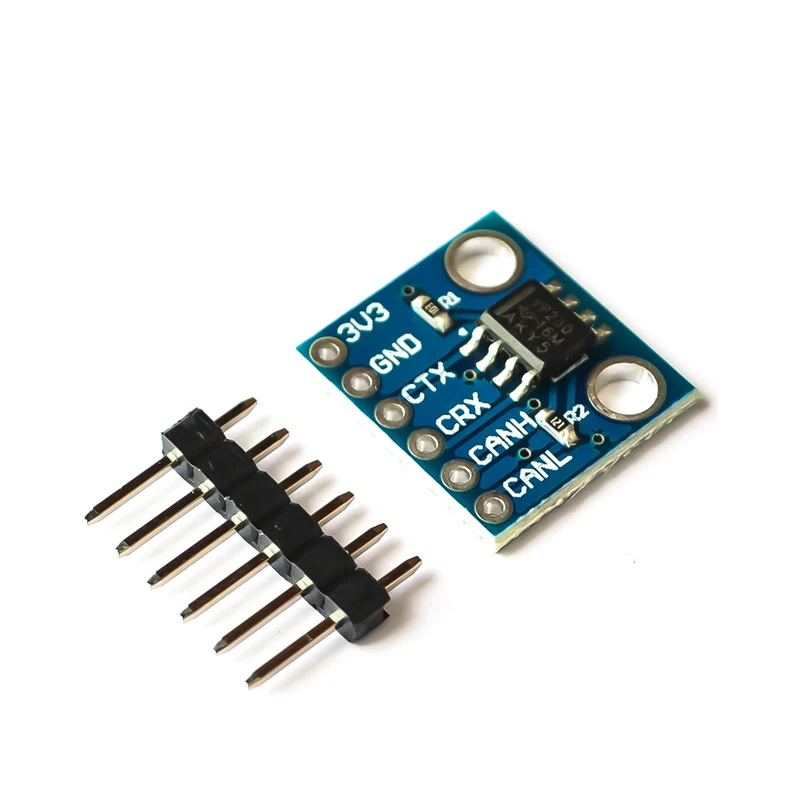

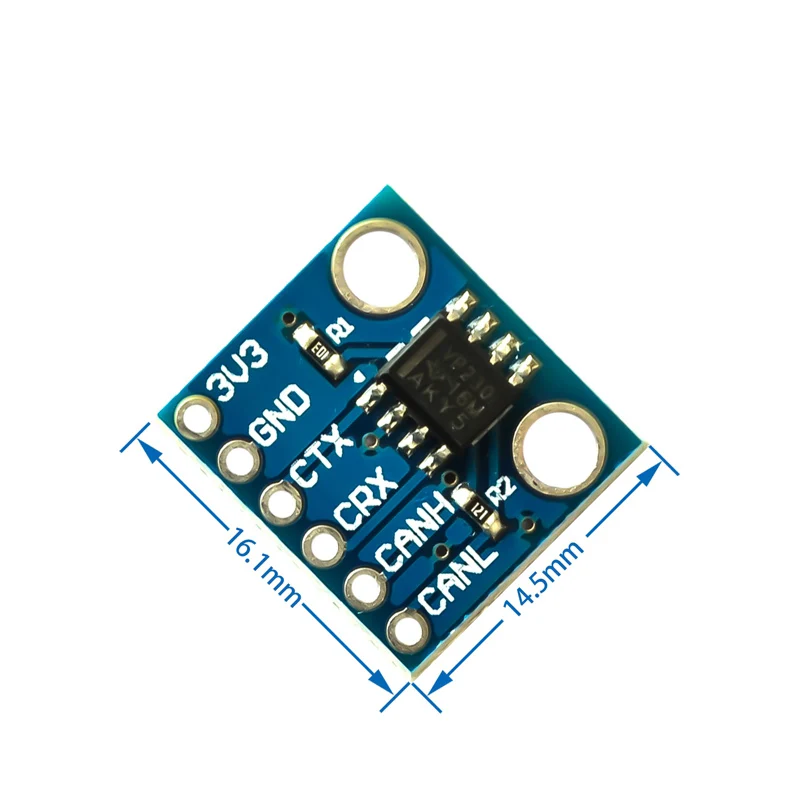

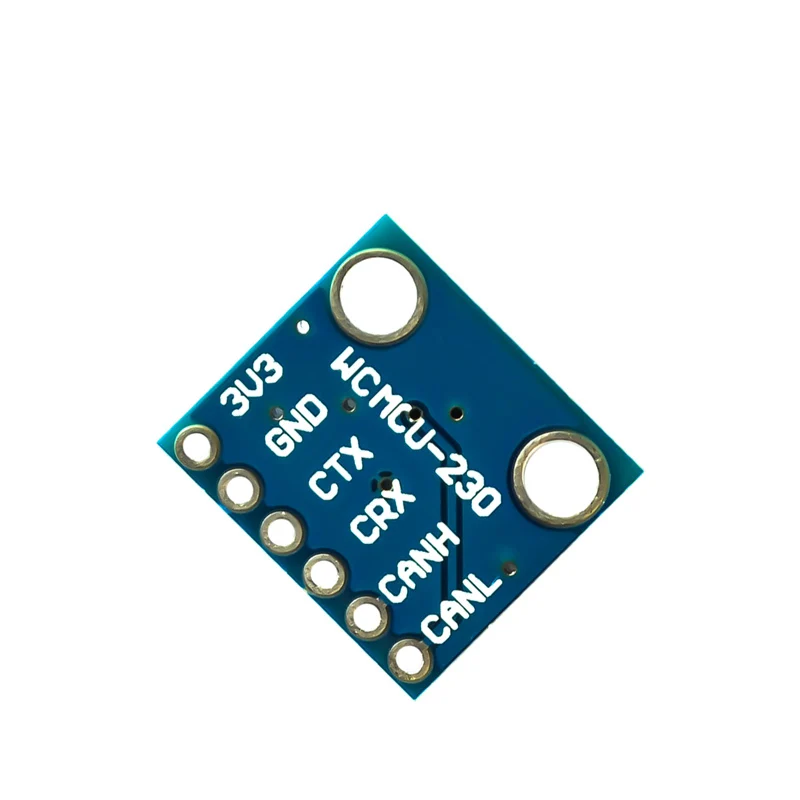

10PCS SN65HVD230 CAN bus transceiver communication module for arduino Module | Integrated Circuits

Brand NameNoneModel NumberSN65HVD230OriginMainland ChinaTypeVoltage Regulatoris_customizedYesConditionNewApplicationComputerSupply VoltageStandardDissipation PowerStandardOperating TemperatureStandardPackageStandardMeasurement unitpiece/piecesSold insell_by_lotEach pack10Package weight0.050Package size - length (cm)2Package size - width (cm)4Package size - height (cm)41 289,34 ₽-15%1 289,34 ₽-15%1 096,20 ₽1 096,20 ₽there is store discountAdd to CartBuy now1 096,20 ₽

Delivery to Moskva g

18 Jul - Free

Delivery to a Post office

90-Day Buyer ProtectionReviews

5,0

3 reviews30000Top reviewsWith photosFrom Russia

All stars

All starsAdditionalviktor T.8 July 2022

Danke

Show moreAnonymous user20 January 2022

Show moremarco v.12 January 2022

Show moreOpen 3 reviewsDescription
Key Features and pin functions
SN65HVD230 can be used at high interference environment. The device has the ability to send and receive good at different rates, its main features are as follows:
Fully compatible with ISO11898 standards;
High input impedance, allowing 120 nodes;
Low current standby mode, the typical current is 370μA;
Signal transfer rate up to 1Mb / s;
Thermal protection, open fail-safe function;
With anti moment interference protection function bus;
Slope control, reduce radio frequency interference (RFI);
Differential receiver with a wide range of anti-common mode interference, electromagnetic interference (EMI) capabilities.

Operating mode and control logic
SN65HVD230 high speed, slope and wait three different modes of operation. Its mode of control can be achieved by control pin Rs. Figure 2 is a SN65HVD230 CAN bus system in a typical application diagram. Can be seen from the figure, CAN controller is connected to the output pin Tx SN65HVD230 data input terminal D, this CAN node can send data transferred to the CAN network; CAN controller and receive pins of Rx and SN65HVD230 R data output terminal coupled for receiving data. Options SN65HVD230 Rs port via jumpers and slope resistance grounded at one end, a way can be achieved through hardware choose 3 modes of operation, in which the slope is 0 ~ 100kΩ resistor potentiometer.



---
