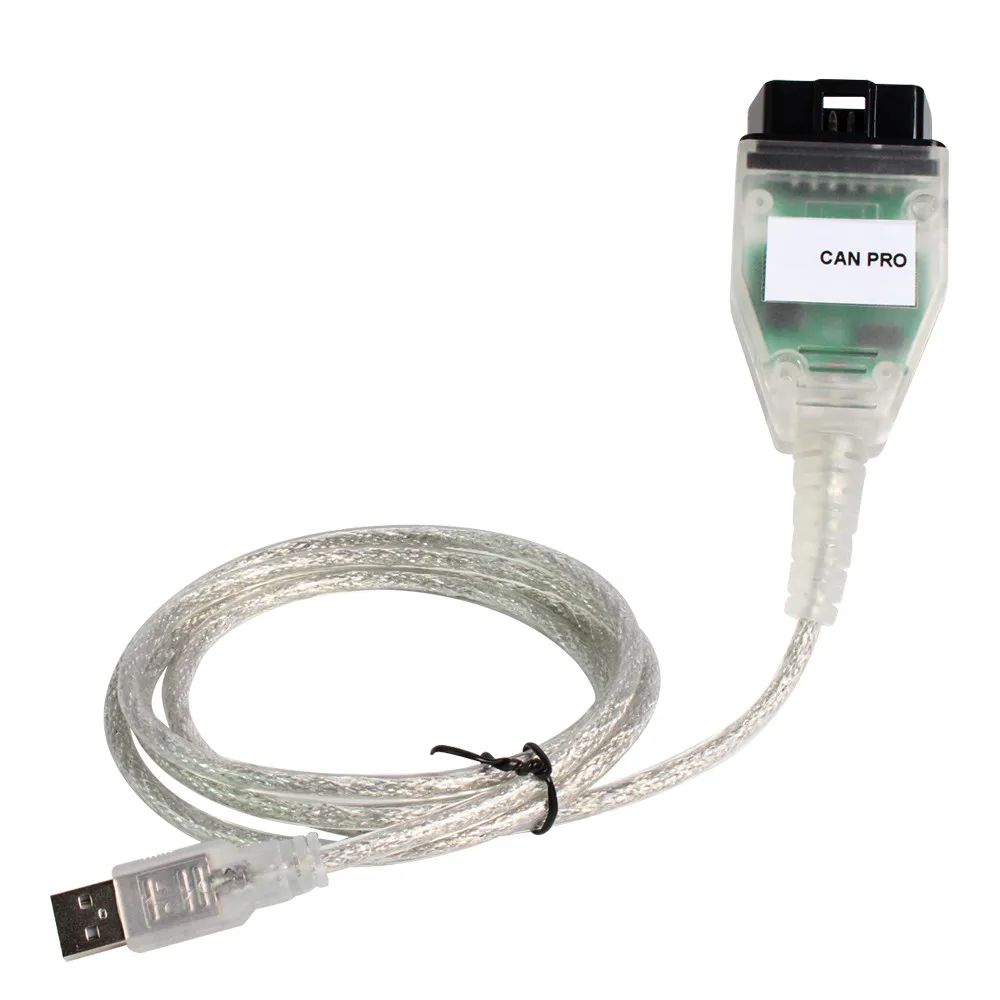

VCP VAG Can Pro 5.5.1 for VW/Audi with Dongle Car Diagnostic Auto Tool OBD OBD2 Scanner For CAN BUS+UDS+ K-line k line Cable | Автомобили

VCP VAG Can Pro 5.5.1 for VW/Audi with Dongle Car Diagnostic Auto Tool OBD OBD2 Scanner For CAN BUS+UDS+ K-line k line Cable | Автомобили

Warm Tips:

5.VAG CAN PRO do not support for VAG other software and we only test the software on Windows XP and Wnidows 7

Can Pro V5.5.1 Diagnostic Cable Software Display:

V A G PRO support CAN BUS + UDS + K-Line for diagnostics and programming of
electronic components used in vehicles for Volkswagen, for Audi, for
Seat, for Skoda, made from 1990 to 2015.

Main Features of VAG PRO:

* Unique features OCLF service procedures (One-Click-Function);

* inexpensive flasher for VAG;

* inexpensive flasher with support UDS controllers;

* ESP MK60EC1 decision coding blocks;

* ZDC-loading containers in the electronic components;

* Unlock video in motion (VIM)

* Coding controllers for PR-codes;

* "Login finder" - allows you to scan and logins in the CAN controllers UDS;

* Support for the new Polo in 2014 Facelift;

* Support for the new Passat B8;

* Full support of Audi TT-3 on the platform of the IBC;

* Full support for Skoda Fabia III

New in Version 5.5.1:

Support for new addresses entered in the MLB-Evo platform

Update database-ODX (support for all models 2015)

Major Changes in the PR encoder:

* Now it is possible to keep PR-codes of a file

* PR-self-sustaining encoder may select codes known PR-analysis of current data stored in the ECU

* You can compare the data stored in the ECU against the calculated data, choose what you want to download.

*
OCF "Activating automatic folding mirrors", the problem is illuminated
space around the machine solved - Thanks Ciamardo / vcp-forum.de

*
The new team in the Scripter: GetCardSerial, returns the current smart
card number. You can use it to prepare a script that will run only on
these smartcards.

* Enhanced TXT-coding, coding calculation is now faster APDUs.

* Updated data base DTC- Fixed problems with parameterization 7N0 cameras

* Fixed problems with parameterization 5M0 ...... F AFS modules

* OCF new section called "Apps", which is: Download the parameter data, coding for PR-code, BCM, and so forth programmer..

* The new procedure OCF "FlashFile Dumper" - can extract content from Flash files (*

.SGO, * .FRF, * .ODX) in a binary dump. Note: The source data format is not changed, *

so that if a Flash file kriptovat and compressed, the binary file will be the same.

* Fixed an issue in the Gateway Sheet MLB-EVO (B7 II, A4 B9) - not all ECU were available through the Gateway.

* Updated database of error codes (added more than 200 new codes, including the MQB / MLB-EVO platform)

*
New Firmware v.1.1 for interfaces (04.0D / 02.04) v.2.0 (0A.04 / 0B.04)
to support new protocols (TCP-IP) used on the MLB-EVO platform

* Fixed a connection problem with the address 46 (room unit) on the MLB-EVO (B9 A4 / Q7 4M) platform

* Reduced time delays during the loading of large data blocks in the non-flash modes.

This contributes to a more stable connection when connected directly to the ECU (Direct Connect), popular among fans VAG.

Supported Cars:

1. For Audi

A2 2009-

A3 8P 2003-

A3 - platform MQB-

A4 model 8E wariant B7 (Engine, transmission, airbags, ABS, park) 2005-

A4 model 8K wariant B8 (UDS + TP2.0) 2008-

A5 model 8K (UDS) 2007-

A6 model 4F 2004-

A8 model 4E 2003-

Q3 (UDS) 2010-

Q5 (UDS) 2008-

Q7 (TP2.0 + UDS) 2006-

S5 model 8K

(R)S6 model 4F

R8 (UDS)

TT model 8J 2007-

2. For Mercedes

For Sprinter (VW Crafter) - - Only the engine and immobilizer

3. For Seat

For Altea

For Leon MQB 2013-

For Leon model 1P 2005-

For Toledo model 5P 2004-

For Exeo 2008- (Engine, transmission, airbags, ABS, park)

4. For Skoda

octavia model 1Z 2004 -

octavia platform MQB -

superb II B6 2008-

fabia model 5J 2007-

yeti 2009-

5. For Volkswagen

For Crafter (immobilizer, engine)

For Caddy model 2K 2005-

For Eos

For Golf V model 1K

For Golf VI model 5K

For Golf VII platform MQB

For Golf Plus

For Jetta II model 1K

Transporter / Multivan (Only after the CAN-BUS drive for storing data)

Multivan/Transporter GP model 7E (UDS) 2009-

For Passat B6 model 3C 2005-

For Passat CC-

For Phaeton GP 2007-

For Polo model 6R 2009-

For Polo FL MQB 2014-

For Scirocco III-

For Touran-

For Tiguan-

For Touareg GP 2007-

For Touareg NF 2010

6. K-line ( KWP1281, TP/KWP2000)

For VW Golf III, IV

For VW Passat 3B

For VW Bora

For VW Transporter T5

For VW New Beetle

For VW Polo II,III,IV

For Skoda Octavia I

For Skoda Fabia i i II

For Seat Leon I

For Seat Toledo II

For Seat Alhambra

For Seat Ibiza II, III, IV

For Audi A2,A3,A4,A6 K-Line

Notes for Audi A4:

1. Option A4 8E B6 model

This
model has a can-bus (TP1.6), but it is not connected to the diagnostic
socket. The car is fully diagnosed on the K-line (VCP required interface
+ K). Used protocols KWP2000 and KWP1281 it.

2 .Model A4 8E, B7 option

This
model has a CAN BUS TP2.0, but the diagnostic socket is only connected
to the so- called CAN-Antrieb, i.e. Engine, transmission, airbags, ABS,
Quattro drive.

In
addition, a standard K-line. In other words, VCP fully supports the
diagnosis B7 models, but only in the CAN-Antrieb. Other controllers are
available through the K-Line and KWP2000 KWP1281 protocols.

if you use win 7 64 bits system, please install this driver""

4. after installed driver, run ""

5. wait a few seconds, it will appear software Interface. Then you can choose the function you want to diagnose.

Question&Answer:

Q1. I bought the cable without USB dongle, after I install the program, then run program, Why it has such tips?

A1:
please check whether you have install the driver or not. if finish to
install the driver, please directly run "vagcanpro.exe" this file.

Q2:the programmer is not working,why?

A2:It is VCP 5.5.1,not VCP 6.2,please contact with us to get video about how to install.

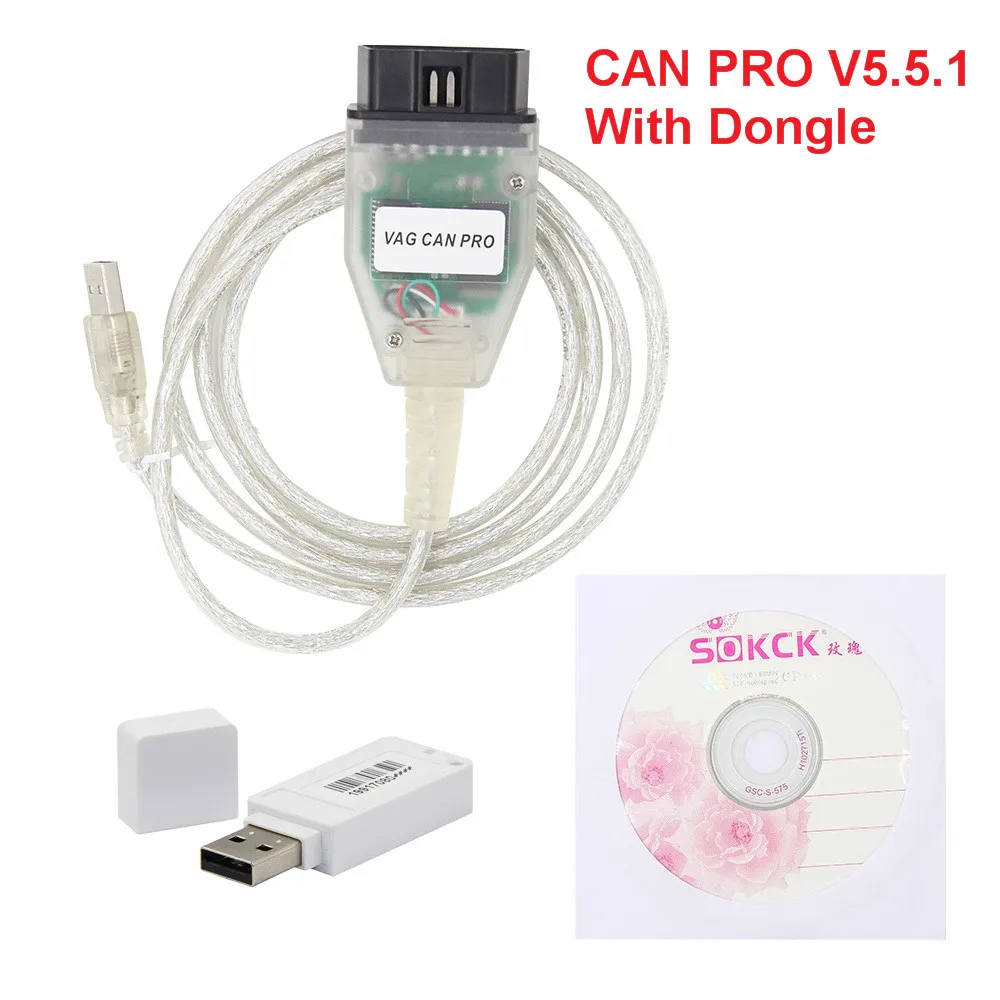

Packing List 1

1pc x VAG PRO

1pc x Encryption Dog

1pc x CD

Packing List 2

1pc x VAG PRO

1pc x CD
