Product characteristics

Product Name: HDMI to CSI

Raspberry Pi HDMI IN

Features: HDMI to CSI-2

Parameters: HDMI input supports 1080p25fps

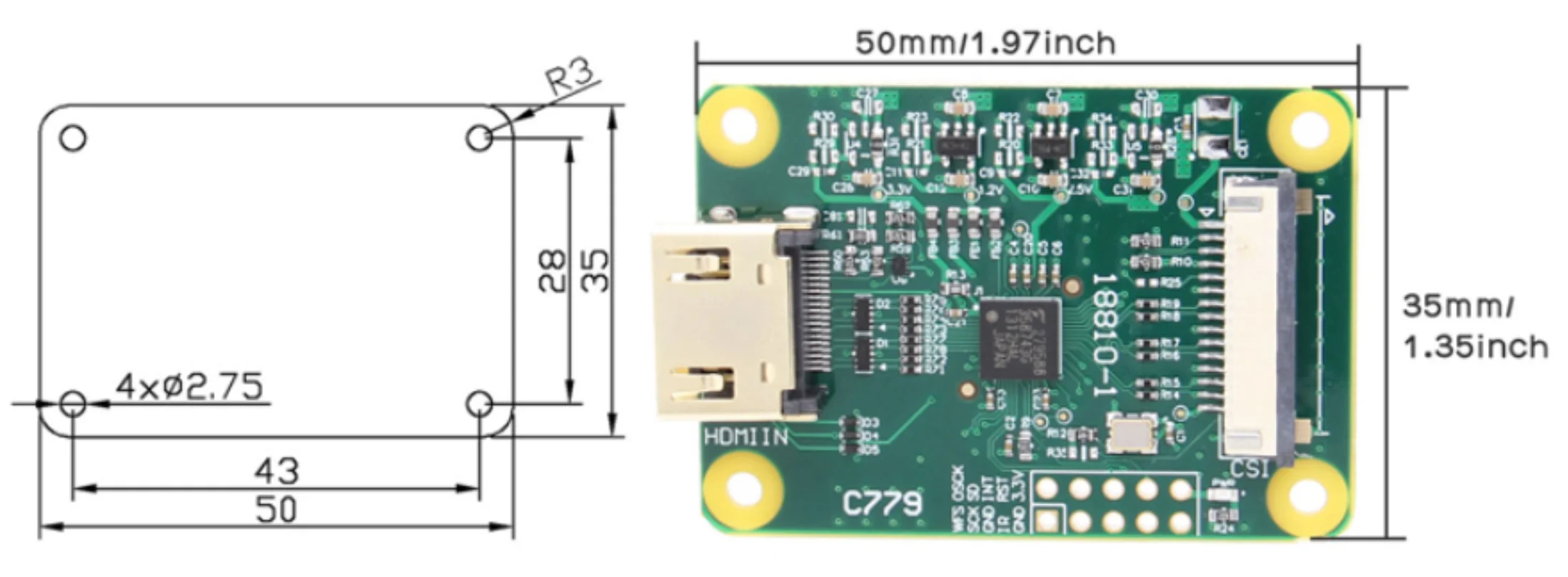

Size: 6.5*3.5*0.5 (cm)

Compatible: Raspberry Pi 4B/3B+/3B/2B/B+/3A+/Pi Zero/Zero W

Note: if after 3 or 4 steps, still not found that video0 / dev directory path in the file, have the following screen
Solution:
1, confirm the hdmi input device if it has any signals, can meet test is normal display screen;
2, confirm the hdmi input device resolution and frame rate is below the maximum input resolution and frame rate;
If the above two points are no problem, according to the error baidu or Google also cannot very good solve, suggested that again next
Mount tree blackberry sent the latest official mirror.

Four, use photograph raspistill
Raspistill role: running camera at a specific time, and if need can capture JPG figure
Slice.
Use the format:
Raspistill [options]
Image main parameters and the command:

-?, -- help: help documentation
- w, - width: set the image width size >
- h - height: set the image height
- q - quality: set the jpeg quality
- r - raw: increasing original bayer raw data to JPEG metadata
- o - output: the output filename
- l - latest: link recently, full image to the specified file
- v -- verbose: output details when run the camera
- t - timeout: photographed and closing delay specified, do not specify when the default is 5 s
- e - encoding: code to specify the output format files (JPG, BMP, GIF, PNG)
- tl - timelapse: timelapse, each
Trigger - k - keypress: buttons, press ` ENTER ` photo, press ` X ` then ` ENTER ` key to exit
- s - signal: the trigger signal, waiting for another process signals to a photo shoot
- gc - glcapture: capture GL frame buffer instead of the camera image
- set - Settings: retrieve the setting of the camera and then write to stdout

- cs - camselect: select camera equipment

More than just lists the commonly used commands, more detailed command to baidu, Google, or view help
Document, the following several specific examples:
# 2 seconds delay (time units for milliseconds) after a photo shoot, and save the image. The JPG.
Raspistill - 2000 - t o image. JPG
# to get photos of a custom size.
Raspistill - 2000 - t o image. JPG - 640 - h 480 w
# use the default Settings to record a period of 5 seconds video clips (p25) 1080.
Raspivid - 5000 - t o video. H264
# save to file for a period of 5 seconds after encoding camera images
Raspivid - 5000 - t o - > my_file. H264

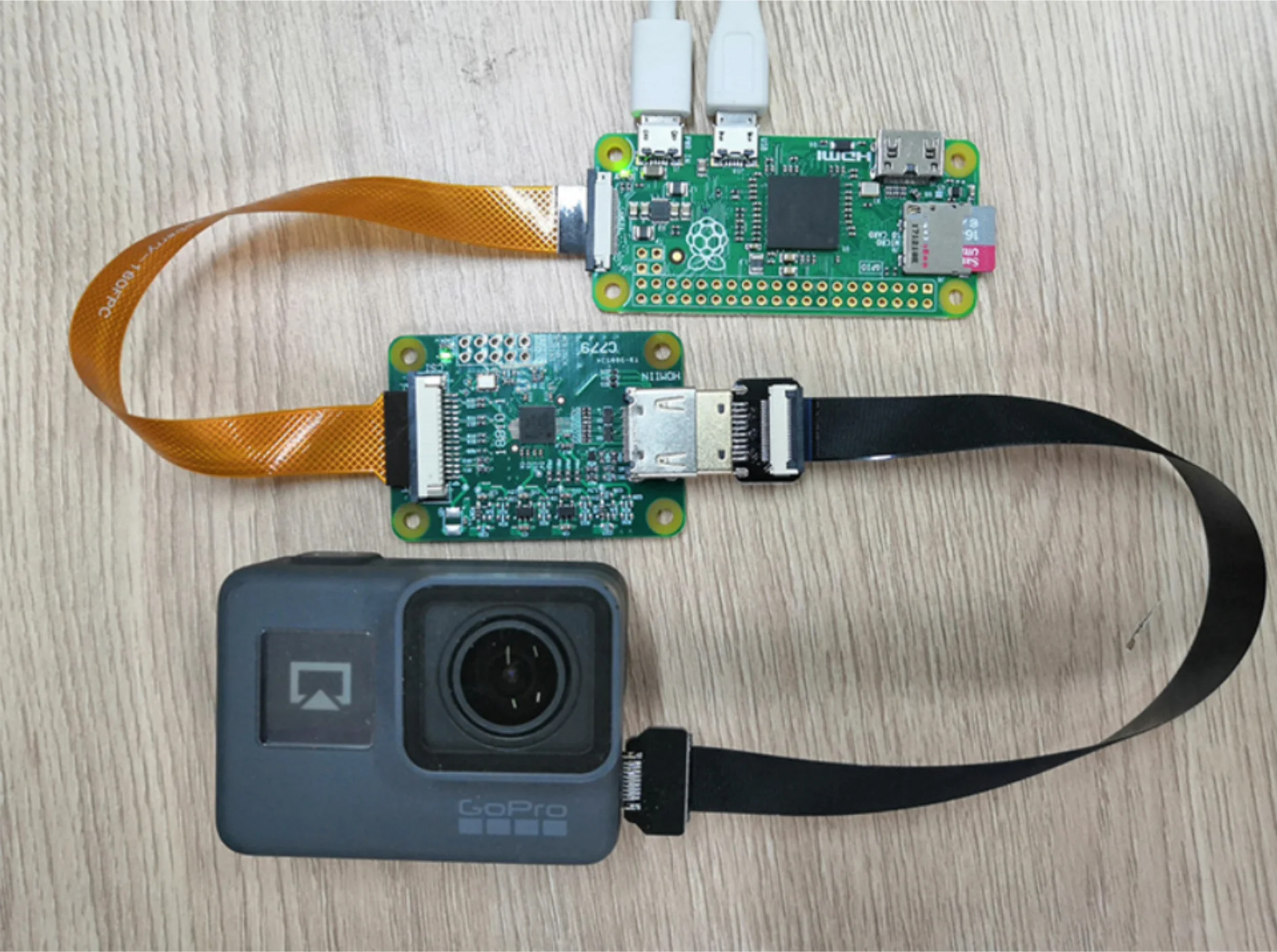

Application scenarios

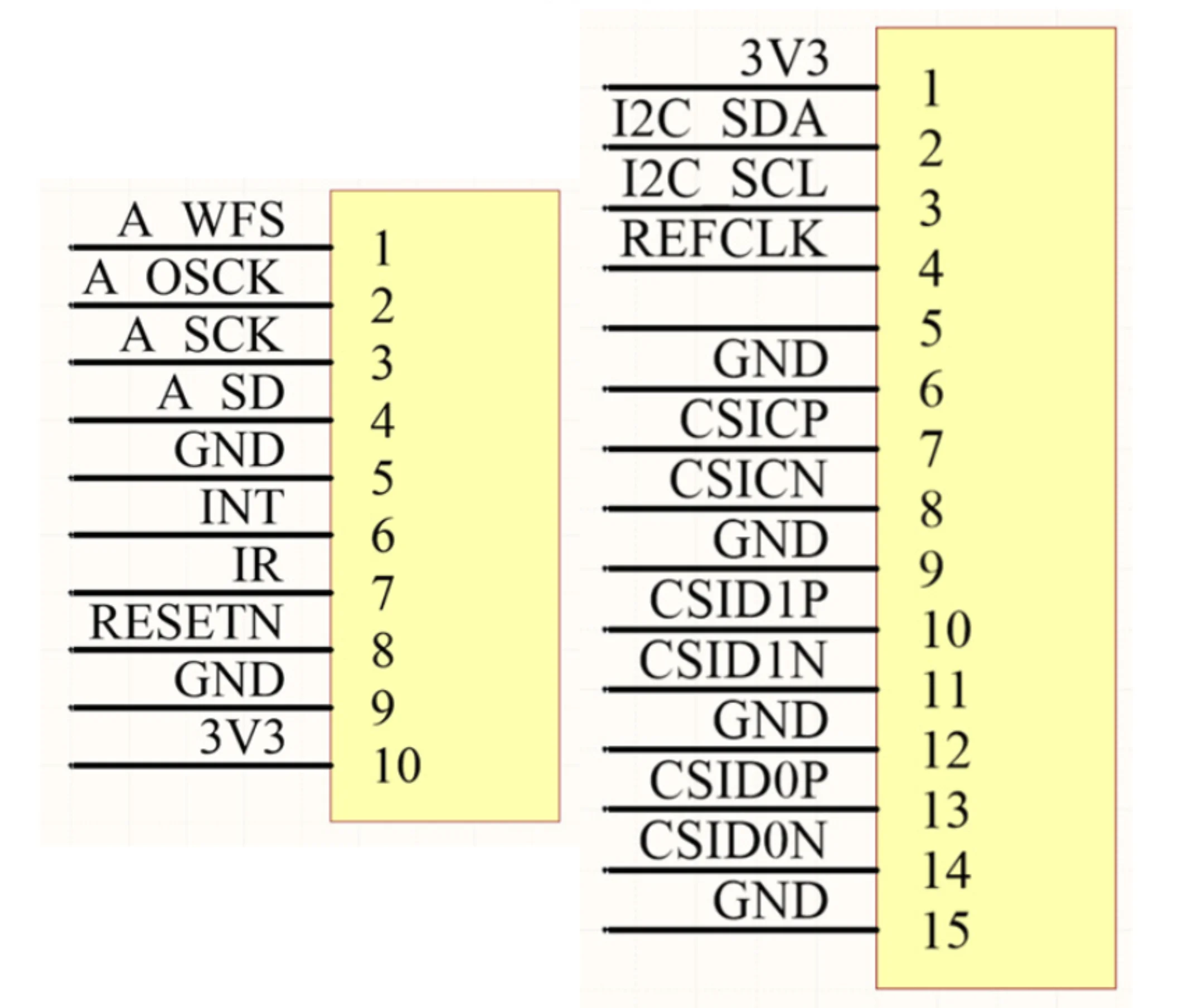

The interface definition
