Type 1:vlink BT V3.0,Support Android
Type 2:vlink BT V4.0,Support Android and IOS
Type 1:vlink Wifi ,Support Android and IOS

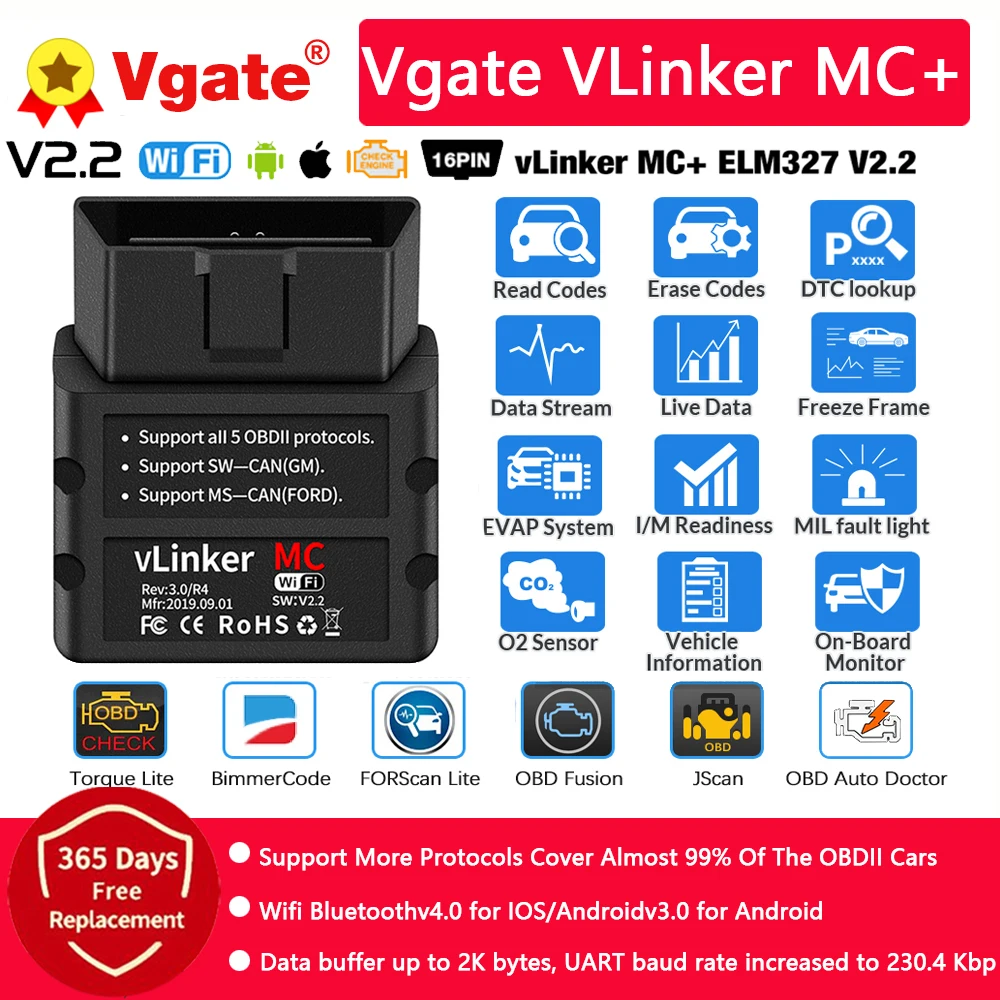

Vgate vLinker MC+ ELM 327 V2.2 Bluetooth-compatible 4.0 WIFI ELM327 For Android/IOS Scanner OBD 2 OBD2 Car Diagnostic Auto Tool PK OBDLINK

Purchase Notes：

1.Our software to test if is origina Vgate, if you need you can contact us，Avoid getting fake Vgate from other stores
2.If you use Bluetooth-compatible 4.0 to Connected, please connect directly in the diagnostic APP

Why choose this vLink MC+?

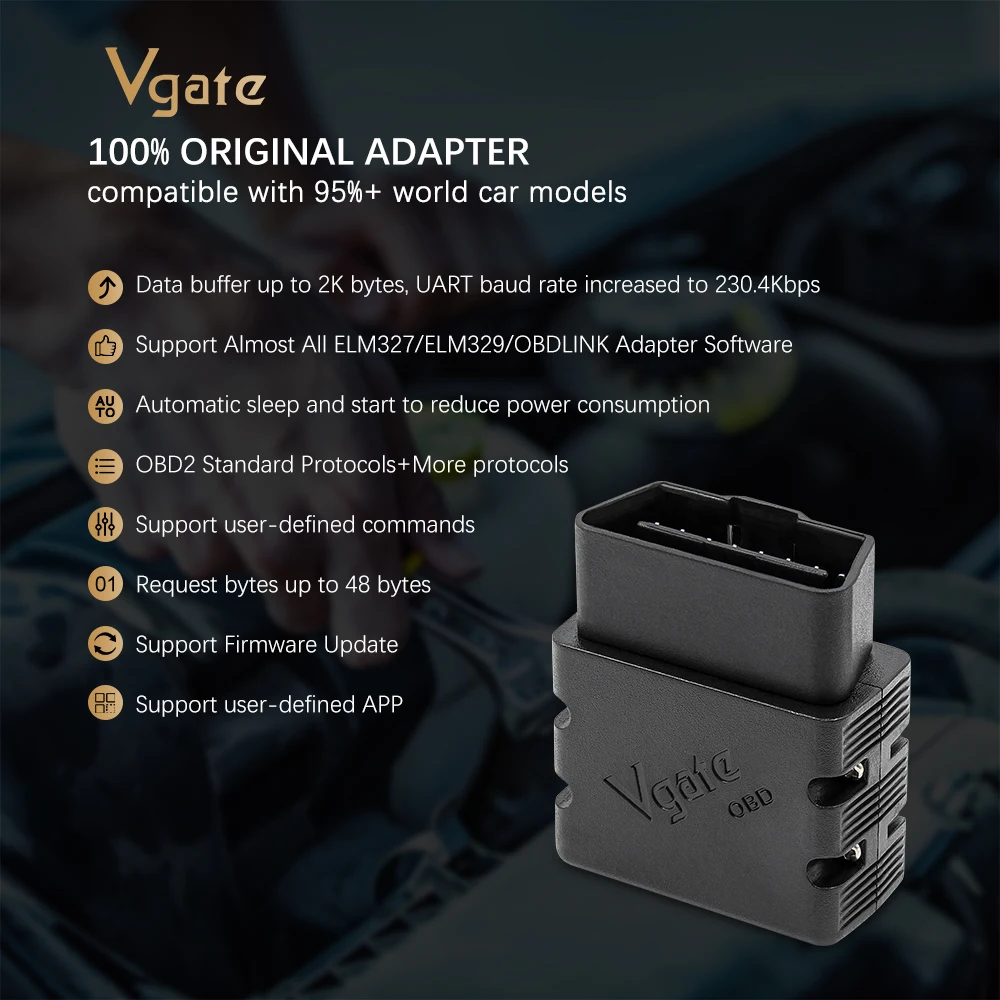

100% Original Vgate vLinker BT3.0/4.0/WIFI:
compatible with 95%+ world car models.

1.Data buffer up to 2K bytes, UART baud rate increased to 230. 4 Kbpsc
2.Support Almost All ELM327/ELM329/OBDLINK Adapter Software
3.Automatic sleep and start to reduce power consumptione
4.OBD2 Standard Protocols+More protocols
5.Support user-defined commands
6.Request bytes up to 48 bytes
7.Support Firmware Update
8.Support user-defined APP

Support Protocols Multiple protocols：

--15 ELM format protocols;
-- 23 STN format protocols;
-- Up to 64 user-defined protocols.

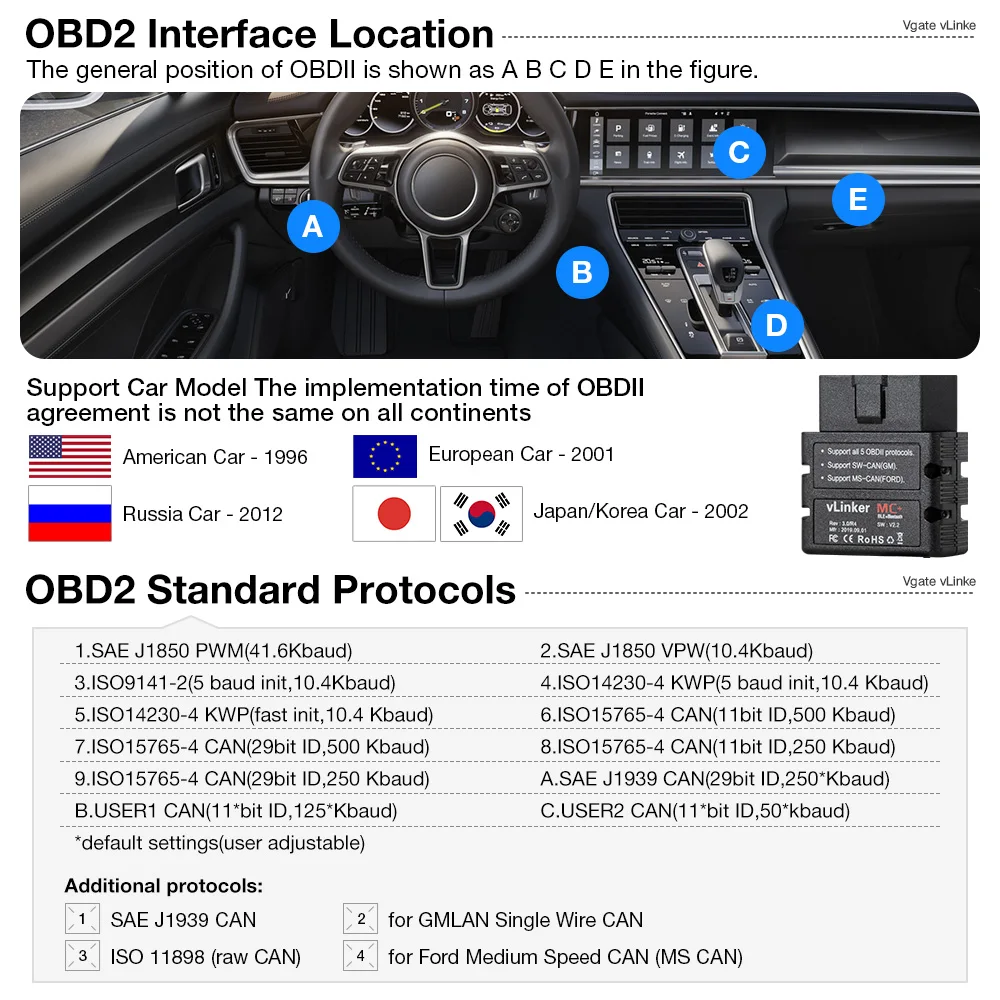

OBDII 5 standard protocols：

-- SAE J1850 VPW
-- SAE J1850 PWM
-- ISO 9141-2
-- ISO 14230-4
-- ISO 15765-4 CAN

Additionalprotocols：

-- SAE J1939 CAN
-- ISO 11898 (raw CAN)
-- for GMLAN Single Wire CAN (for GMW3089)
-- for Ford Medium Speed CAN (MS CAN)

Theseprotocolscover almost 99% of the OBDII Cars on the market

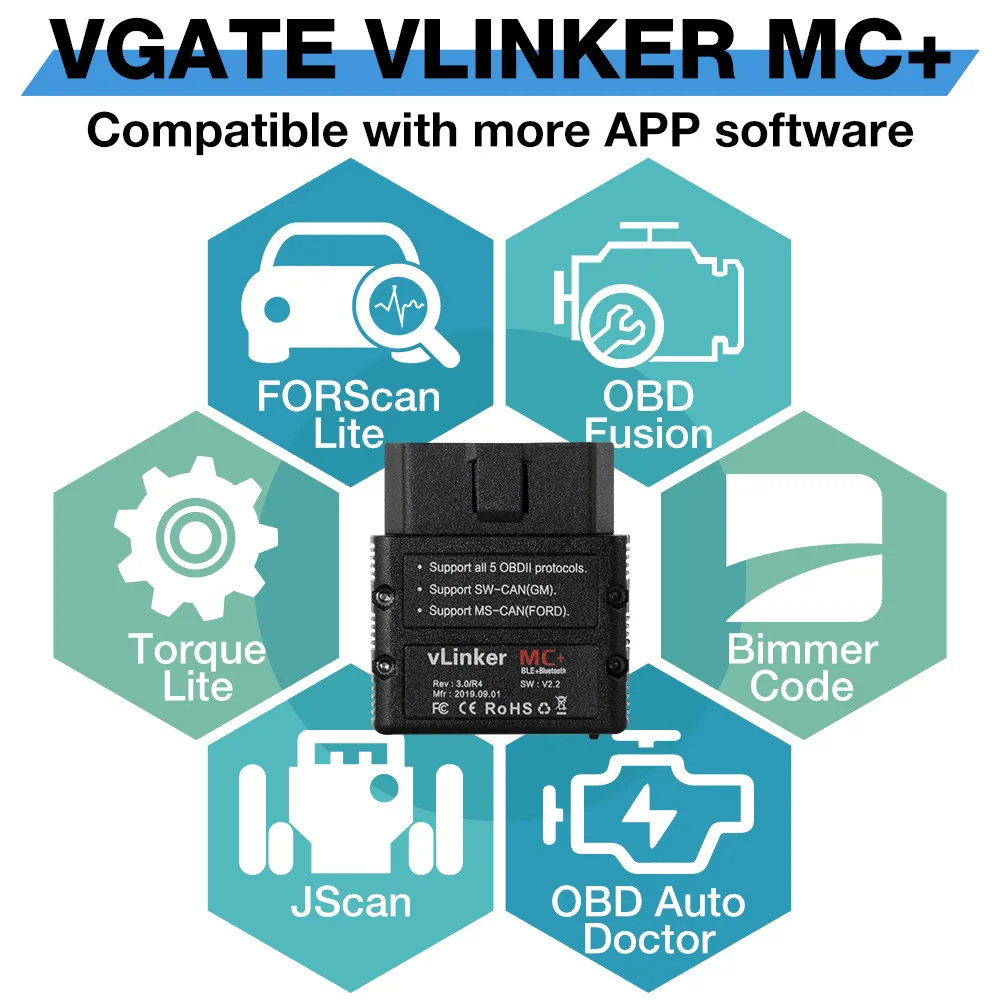

Software Support：

Perfect compatibility: For Bimmer Code/For Torque/For Forscan/For JScan/For Auto Doctor/For OBD Fusion etc. 99% APP Software

Please Note：

We only sell adapters. If you need to charge for some functions of the software you choose, this money is paid to the software developer，not to us

Rich instruction set, compatible with more APP software：

-- Fully compatible with ELM's AT command set;
-- Fully compatible with STN's ST command set;
-- Expanded 7 AT commands for HS-CAN, MS-CAN, SW-CAN;
--39 VT macro commands, some instructions are equivalent to the effect of several AT and ST instructions, simplifying the communication steps.
-- Compatible with ELM and STN power management solutions.
-- Support for instructions, UART silence, battery low voltage, OBD bus silence, etc. Up to 5 ways to go to sleep;
-- Support UART active, battery voltage drop, OBD bus active, key, etc. Up to 5 ways to wake up from sleep mode.
-- Device sleep power consumption is less than 2 mA.
-- OBD request byte up to 48 bytes, can meet the needs of some special long framecommunication.
-- UART data buffer up to 2K bytes, baudrate increased to 230.4Kbps.
-- 256-byte storage unit
-- More than 100,000 erasable times
-- Read and write operations on any unit in the storage area by using the VT command
-- Mix ID Sending" mode of CAN protocol.
-- Optional formatted send data according to protocol
-- Multiple WM sequence settings
-- Support AT command to manually set WM sequence
-- Support for specifying a protocol or a full protocol-wide temporary WM sequence
-- Support for a permanent link between a protocol and a private WM sequence
-- Secure bootloader for easy firmware updates

Typical Applications：

• Vehicle telematics
• Fleet management and tracking applications
• Usage-based insurance (UBI)
• OBD data loggers
• Automotive diagnostic scan tools and code readers
• Digital dashboards

Special Function:

1.Fully automatic identification of vehicle protocols,quick reading of vehicle information
2.Fully automatic standby/start,no manual switch button required

Connection method:

How to install the BT4.0/3.0(type 4 and type 5)?

1.Turn on theIgnition in the car
2.Plug in the adapterinto the OBD Port
3.Turn on Bluetooth-compatible,Bluetooth-compatible only needs to be turned on
4.Open OBD Auto Doctor choose “Extras” ，cick “Connectivity”,choose ”and “vLinker MC+” Drop out software and Enter again

How to install the Wifi (type 3)?

1.Turn on theIgnition in the car
2.Plug in the adapterinto the OBD Port
3.Turn on WIFI,connected “vLinker”
4.Open OBD Auto Doctor choose “Extras” ，cick “Connectivity”,choose “WIFI”，Drop out software and Enter again

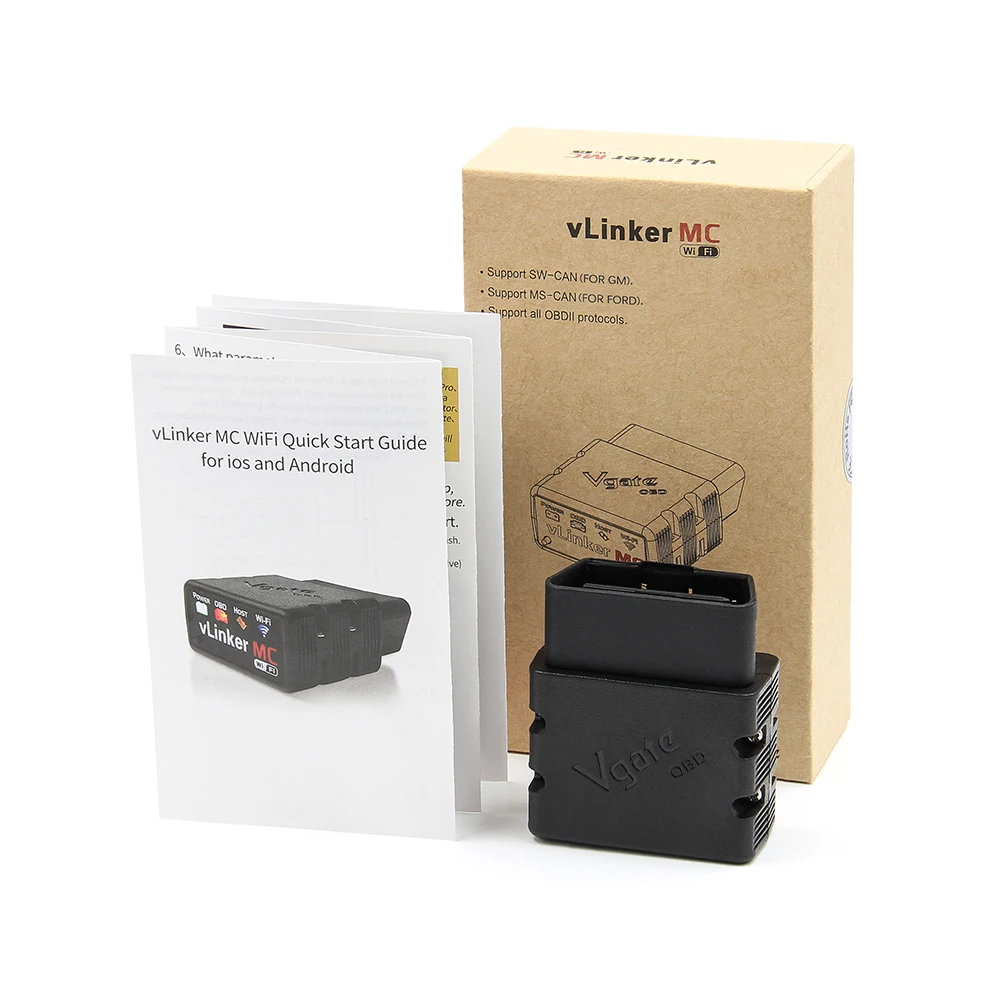

Package List:

1 x Vgate vLinker WIFI/BT3.0/BT4.0
1 x User manual
