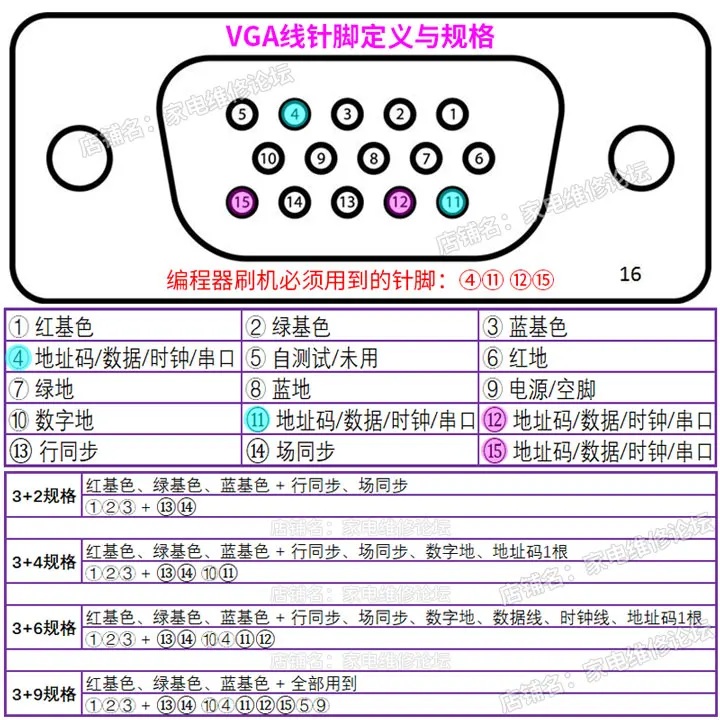

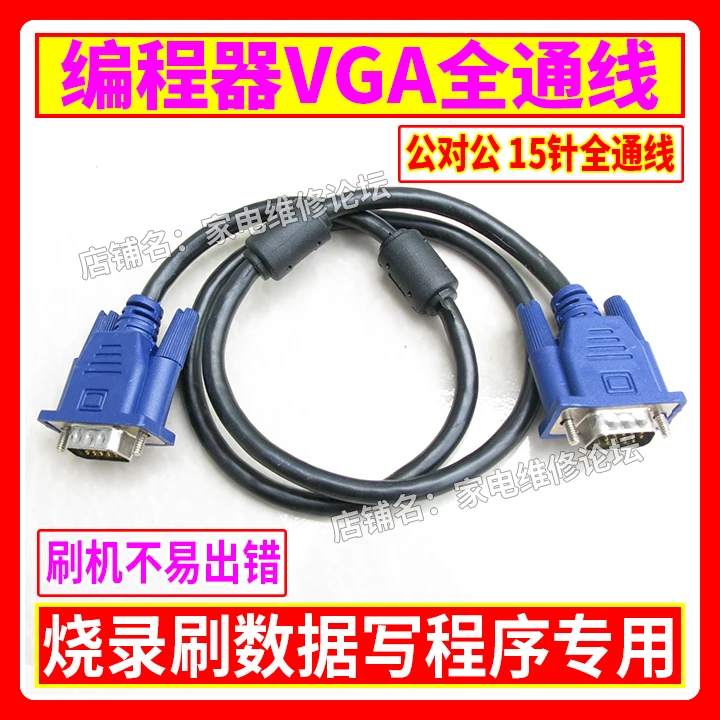

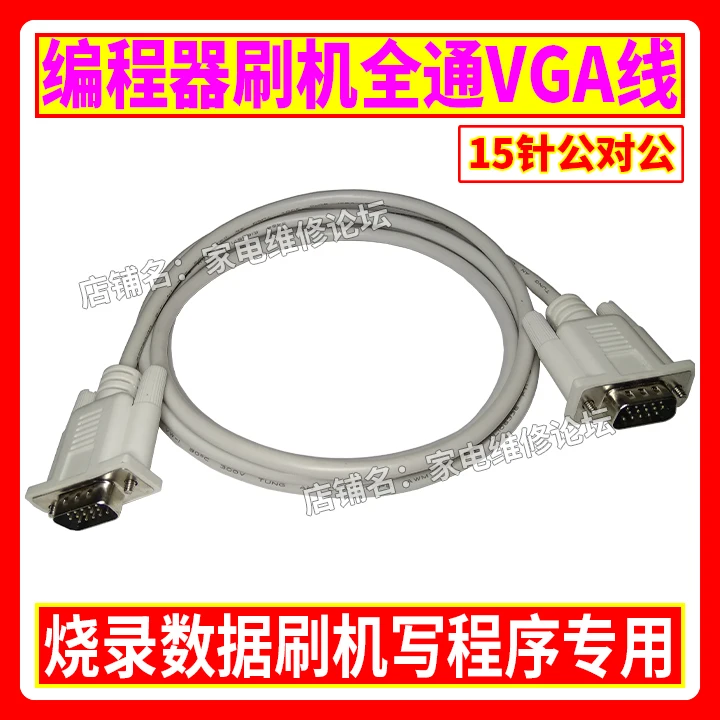

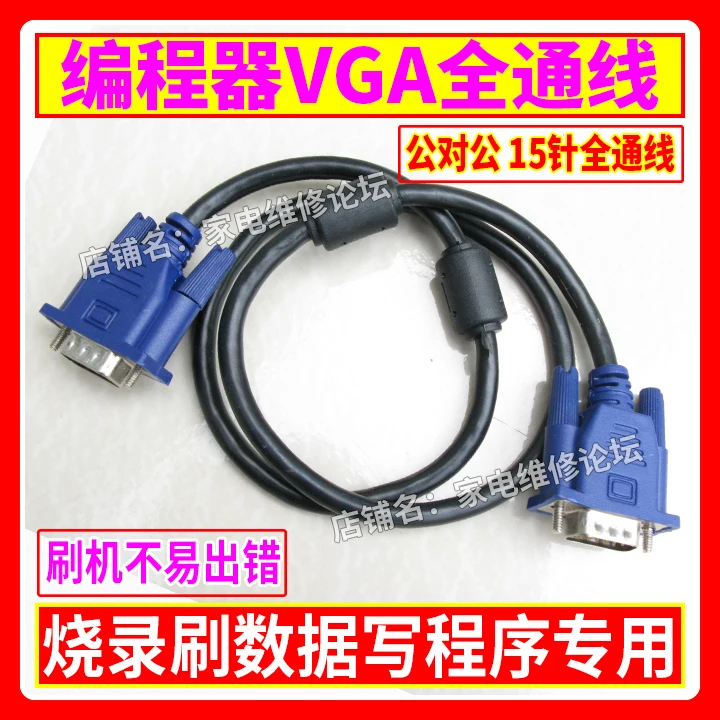

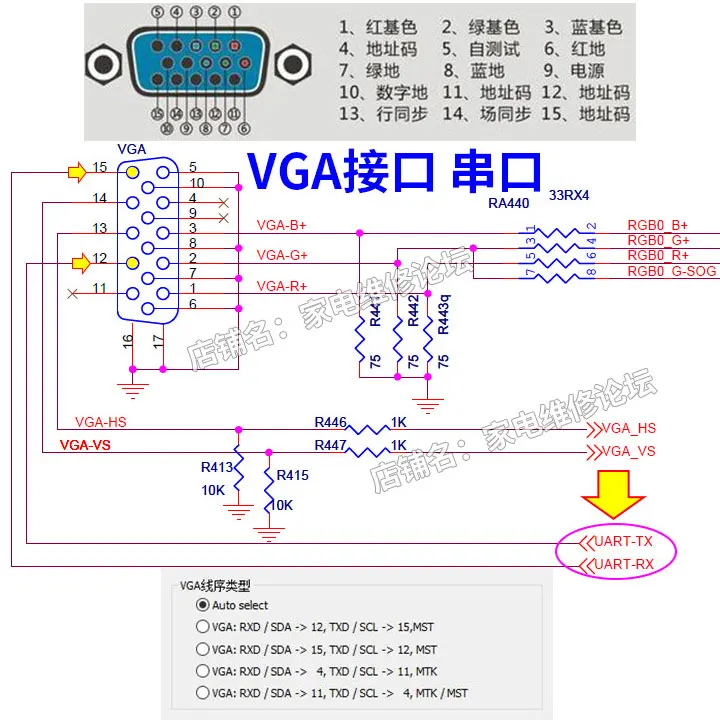

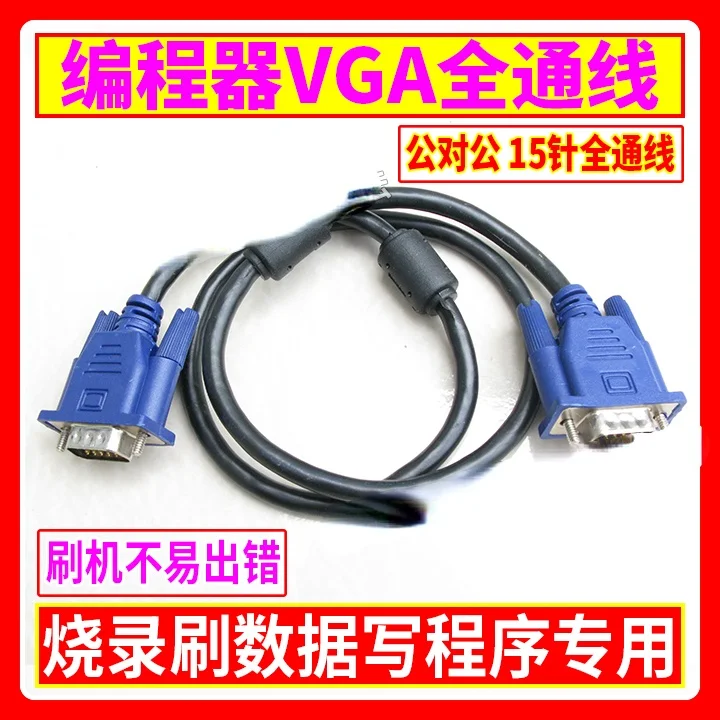

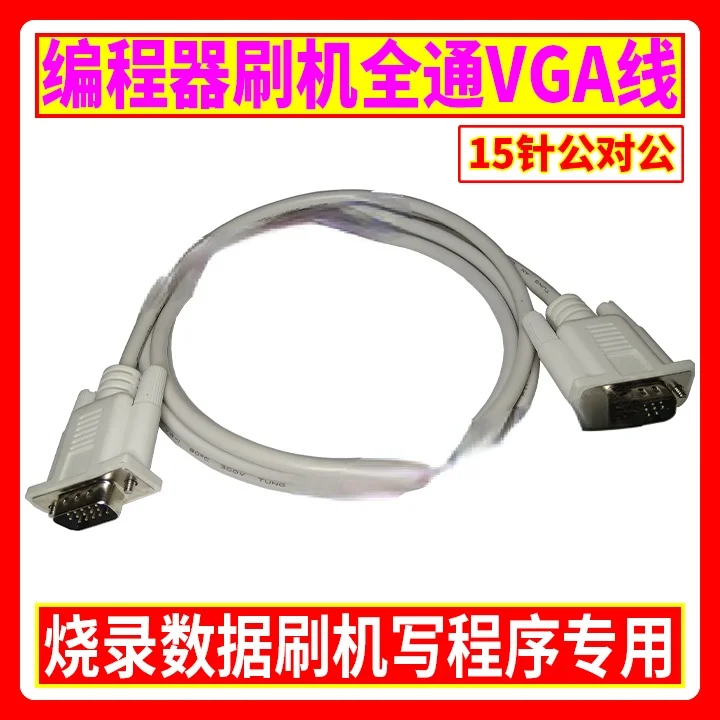

Programmer dedicated public to public15Needle all passVGAdata line，Designed for burner、Programmer and other tools customization，Writing a program、It is not easy to make mistakes when reading data，Reduce trouble。The programmer brush usually has four kinds of wire sequences：from12needle、15Needle or4needle、11The pins are respectively combined into serial port communication，Therefore, the programmer must ensure this4Pin valid，Select the for programmer brushVGALine can only be used3+9Specification or special wire for brushing machine。VGALine means15needleDType interface line，VGAInterface is aDType interface，Shared above15needle，Divided into three rows，Five in each row，The interface number is usually marked next to the pin。Which must be5A cable is used for transmissionVGAMain signal，Red, green and blue primary color analog signal and line field synchronization signal。6、7、8Red, green and blue ground wires can be connected together，Coaxial shielded wire is used to transmit analog signal with red, green and blue primary color。5The needle is a self-test foot，Usually not used。9The pin is a power supplyusbpower supply，It is usually designed as a blind needle, that is, an empty foot。10The needle is digital，It can also be multiplexed with analog ground。
