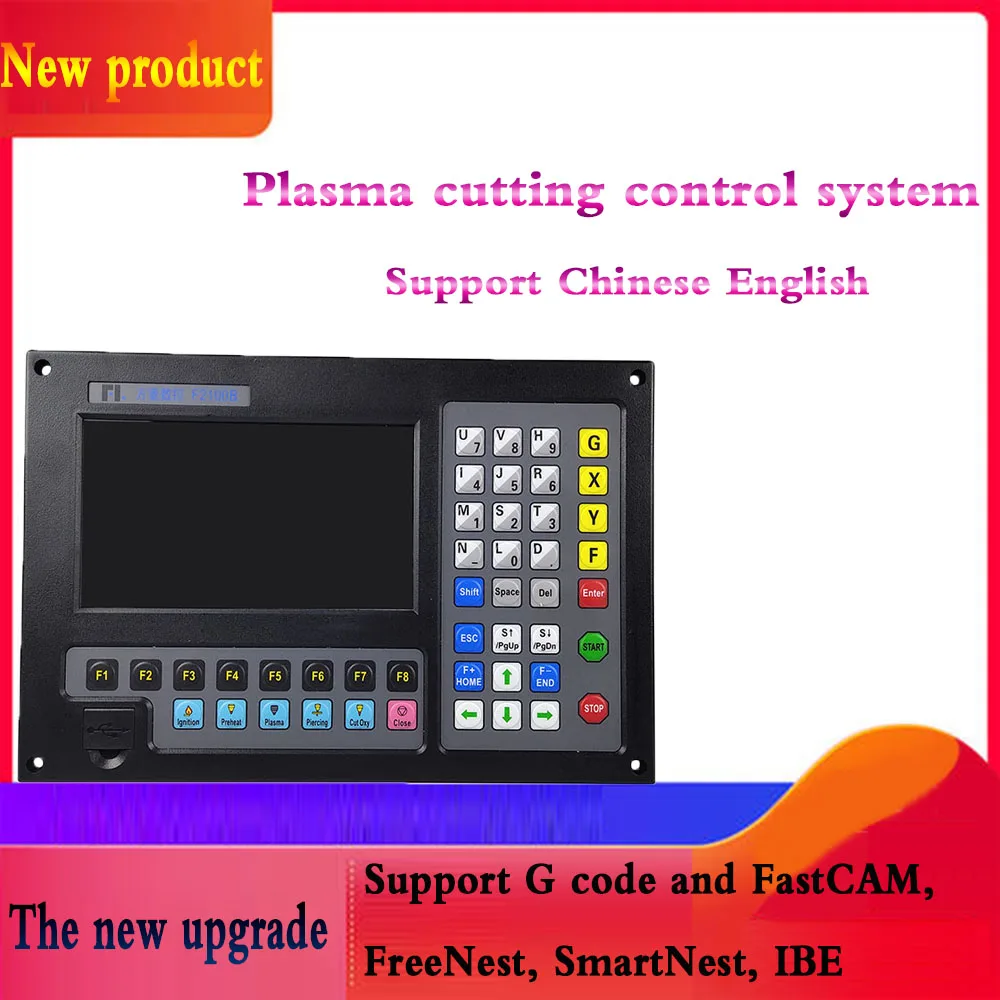

CNC контроллер высоты резака с плазменным факелом на 2 осях + комплект THClifter F2100B+F1621P+JYKB-100+F1510 для использования на режущих машинах с огнем.

CNC контроллер высоты резака с плазменным факелом на 2 осях + комплект THClifter F2100B+F1621P+JYKB-100+F1510 для использования режущих машинах огнем.

Packing list：

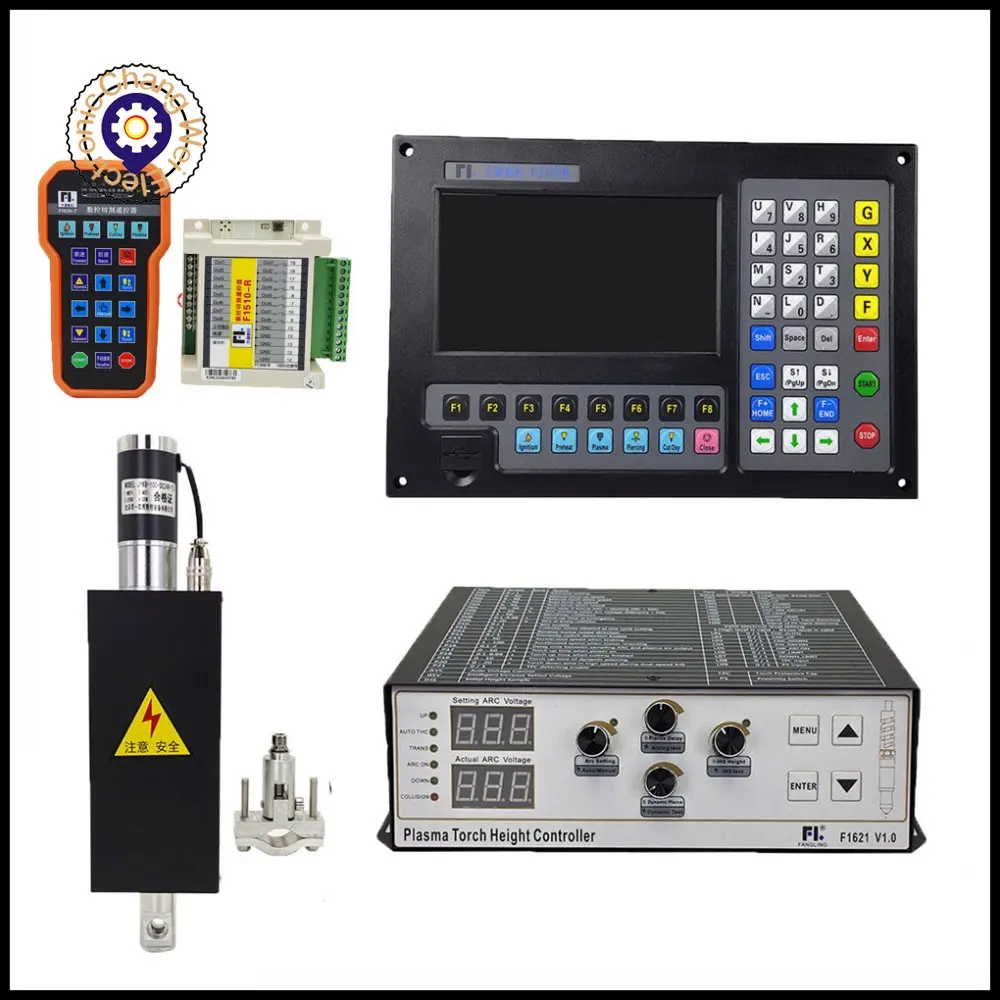

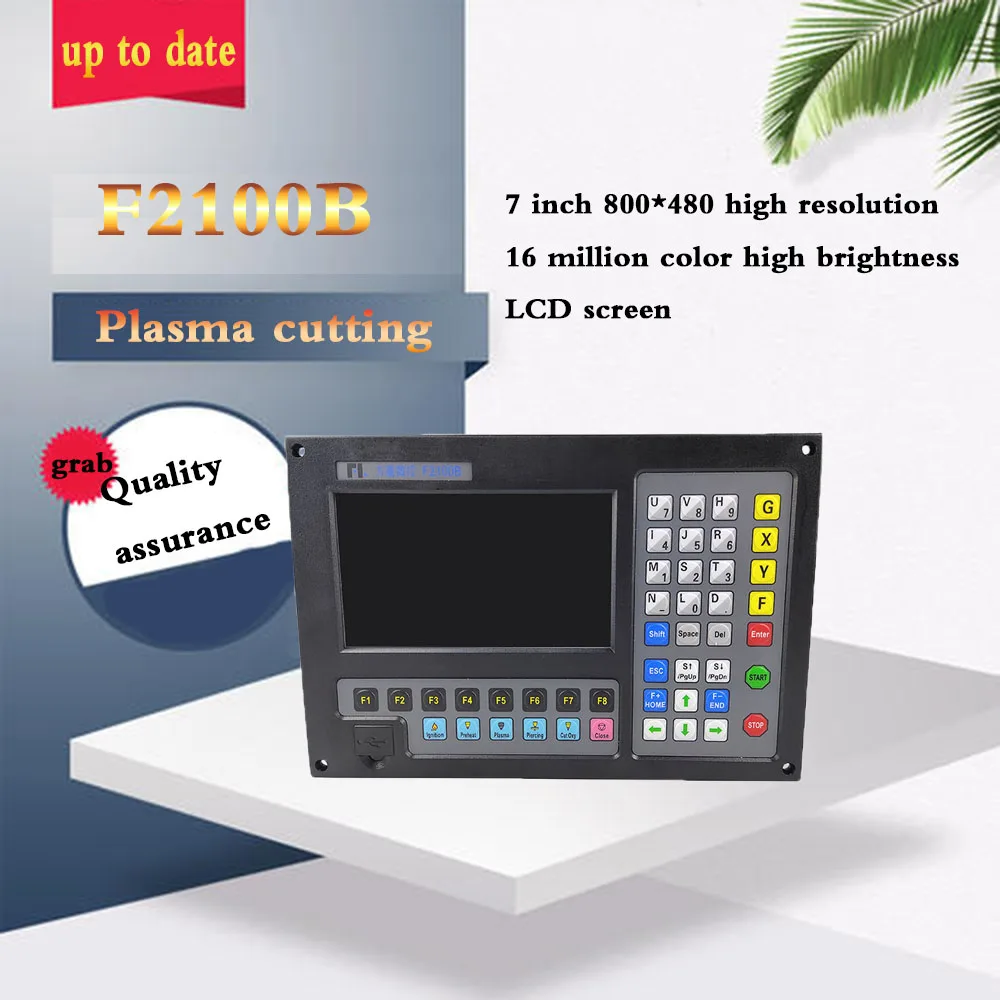

1PCS F2100B Controller+1PCS F1621P Kit

Module Function：

1.Supporting 2 axes cutting tube machine with chuck mode

2.Supporting 2 axes cutting tube machine with friction disk mode

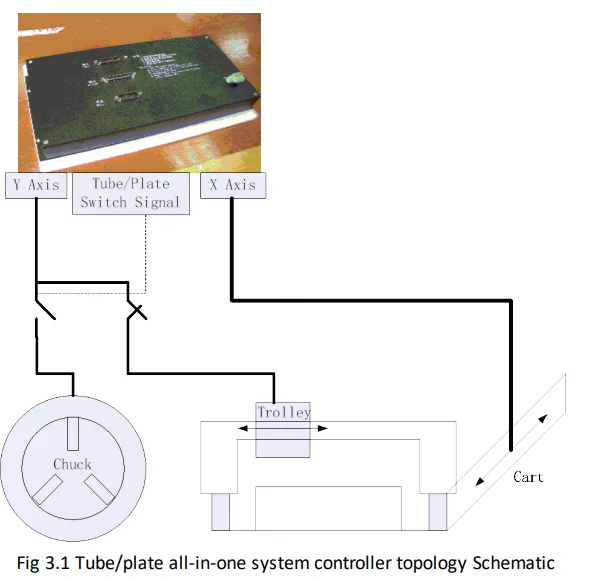

3.Supporting tube and plate all-in-one (chuck mode) cutting machine

4.Supporting tube and plate all-in-one (friction disk mode) cutting machine

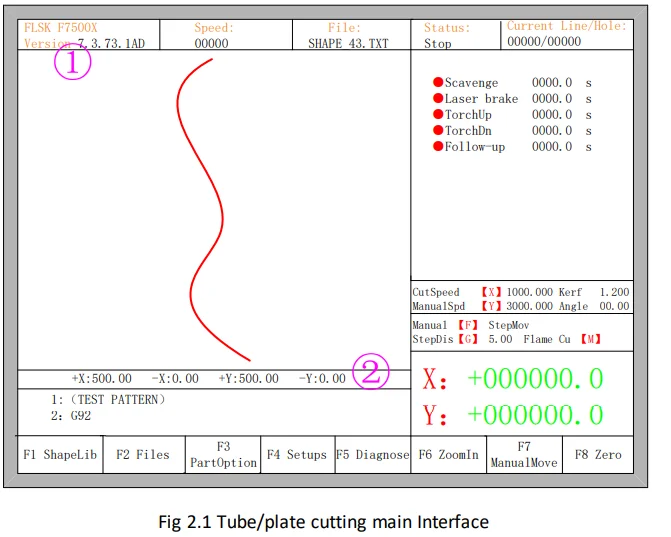

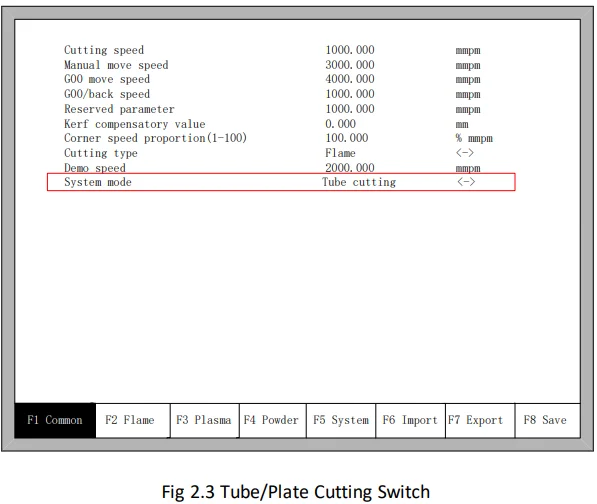

5.Tube /Plate function auto switch

6.Tube part processing with arbitrary tube’s diameter.

7.Tube part telos cutting off function, can arbitrarily set inclined cutting angle

8.Tube with equal radius process function(V-shaped saddle)

9.Tube part telos slotting function, can arbitrarily set slotting size and angle

10.Mitre elbow cutting, can set pitch number, angle of bend

11.Saddle cutting, can arbitrarily set inclined angle

12.Eccentric saddle cutting

13.Main tube trepanning cutting, can mate with riding-type or plug-in branch pipe

14.Arbitrary shape trepanning cutting, can design profile hole by CAD

15.Multiple saddle branch pipe cutting

16.Kerf compensatory function

17.Full-automatic nesting function

Technical indicators:

1)Number of control axes:

2)2-axis linkage (customizable three-axis or four-axis) 2) Control accuracy: ±0.001mm

3) Coordinate range: ± 99999.99mm

4) Maximum pulse frequency: 200KHz; maximum operating speed: 15 meters / minute

5) Maximum number of program lines: 80,000 lines

6) Maximum single program: 4M

7) Time class resolution: 10ms

8) System working power: DC +24V DC power input, power is greater than 80W.

9) System working environment: temperature -10 ° C to +60 ° C; relative humidity 0-95% without condensation
