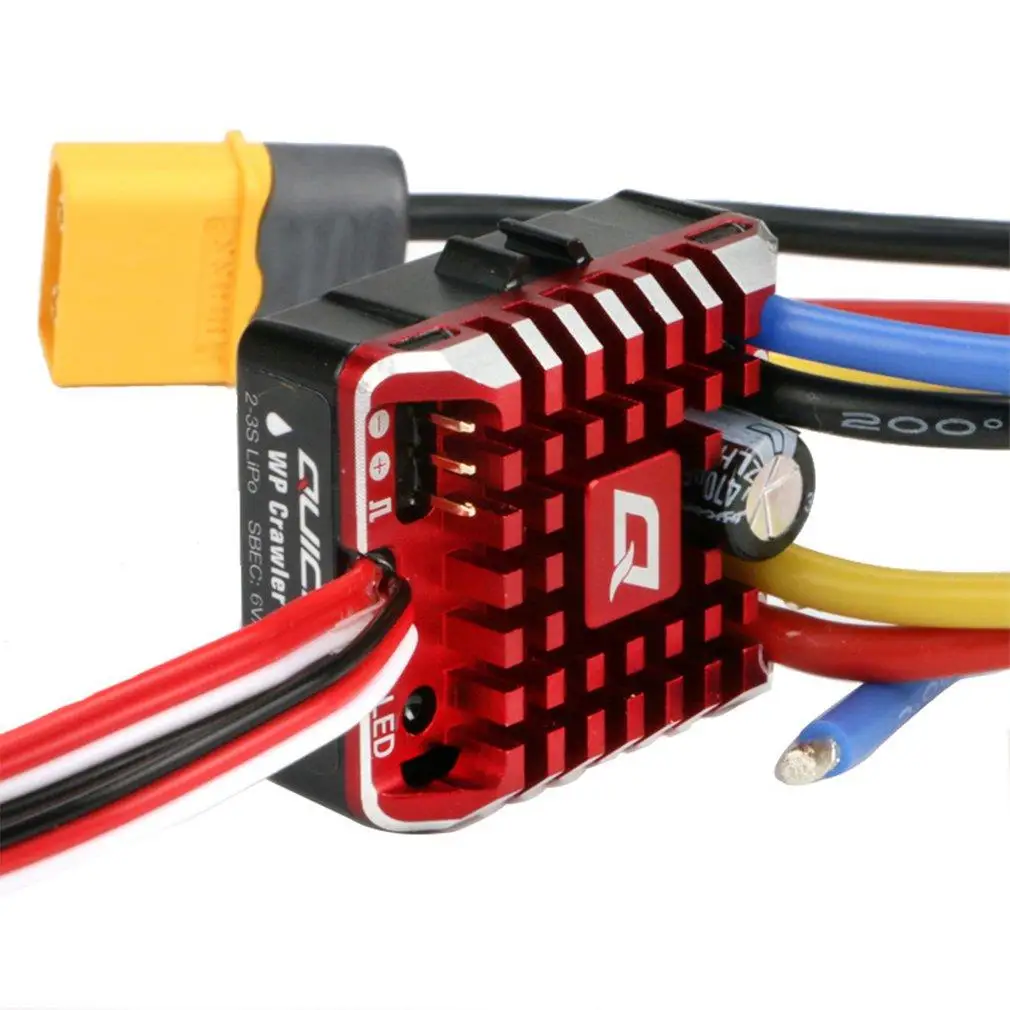

Hobbywing QuicRun 1:10 1/8 WP Crawler Brush Brushed 80A 1080 Electronic Speed Controller Waterproof ESC With Program box LED BEC | Игрушки и

Hobbywing QuicRun 1:10 1/8 WP Crawler Brush Brushed 80A 1080 Electronic Speed Controller Waterproof ESC With Program box LED BEC | Игрушки и

Features:

1. Suitable for 1/16, 1/18, 1/24 remote control climbing vehicle military truck semi-big truck modification, remote control boat,

2. The light weight is also suitable for mini-Z mosquito car modification

3. Especially suitable for remote control cars with excellent starting, acceleration and linear functions.

Description:

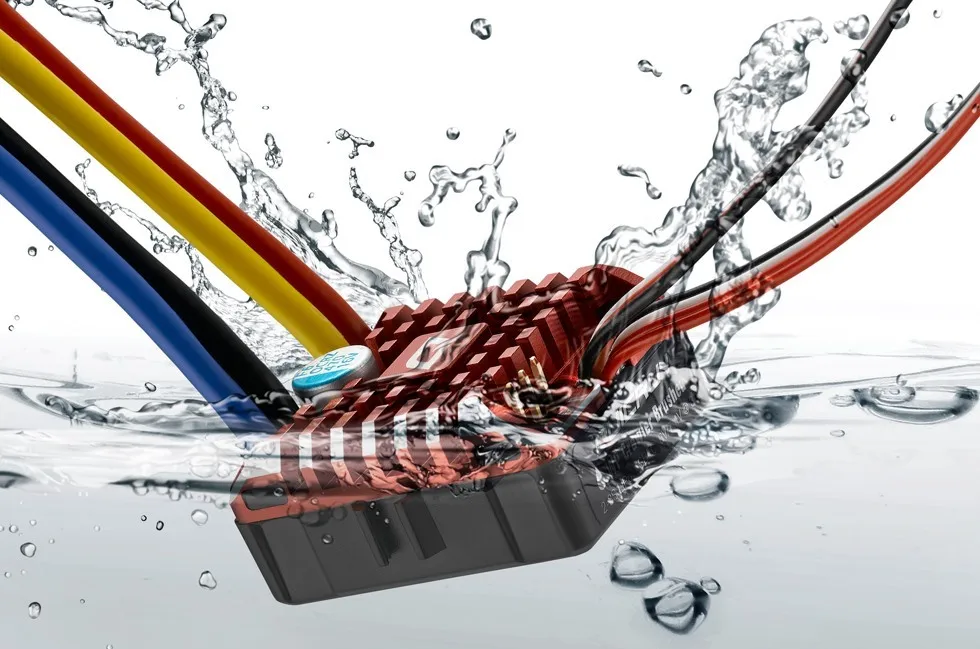

The brush ESC is waterproof and dustproof, suitable for all-weather racing.

Specifications:

Type :

Scale :  1/8th & 1/10th

Brushed/Brushless : Brushed

Waterproof : Waterproof

Specifications :

Cont./Peak Current : 80A/400A

Input Voltage : 2-3S Lipo/5-9 Cell NiMH

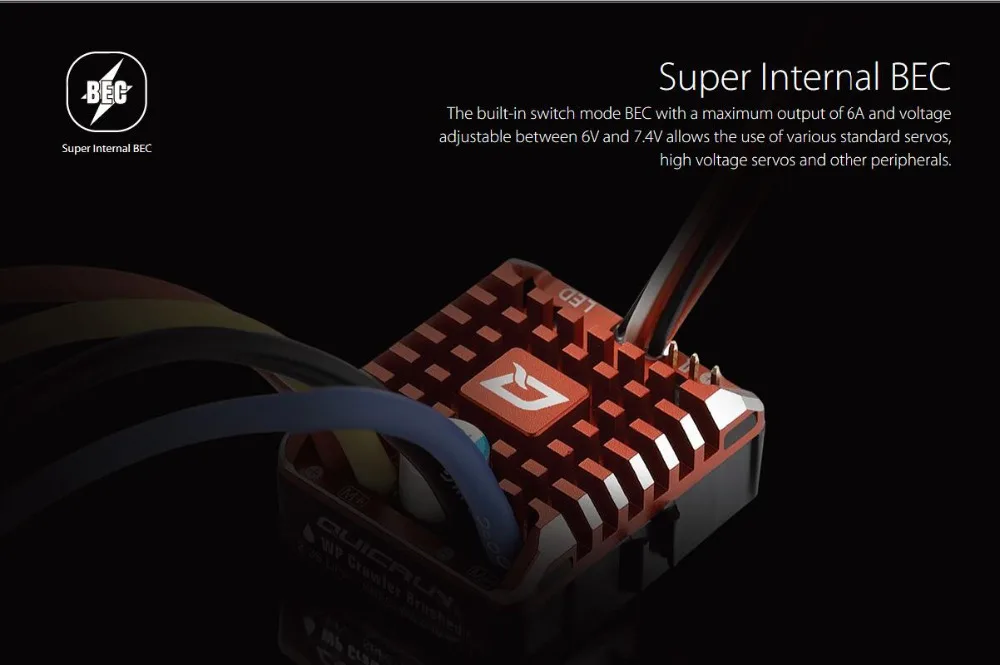

BEC Output : Switch  Mode: 6V/7.4V 3A

Wires and Connectors :

Input Wires : Red-14AWG-200mm*1 / Black-14AWG-200mm*1

Output Wires : Blue-14AWG-200mm*1 / Yellow-14AWG-200mm*1

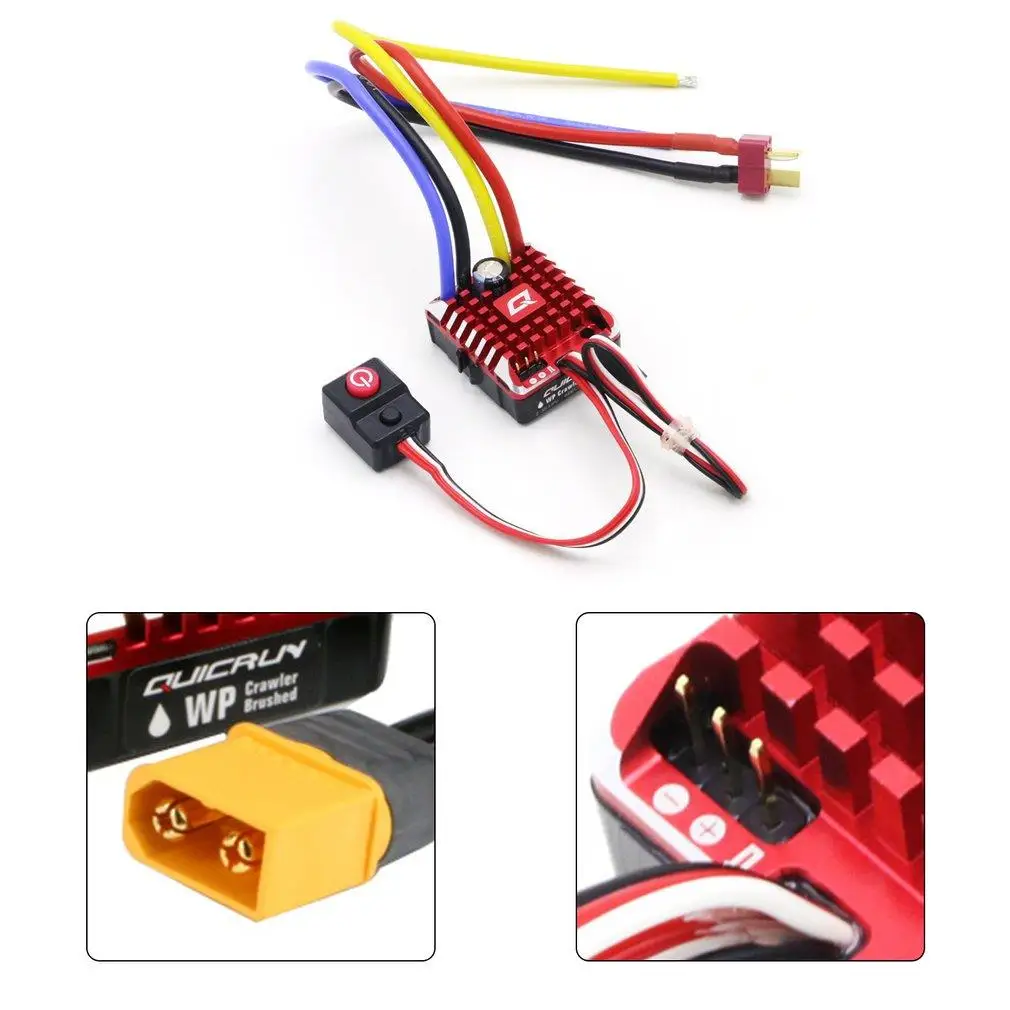

Input Connectors : XT60 Connectors

Output Connectors : No

(Note: All the wire length above is the original length not the length you see from the outside.)

ESC Programing via :

SET Button on ESC : Supported

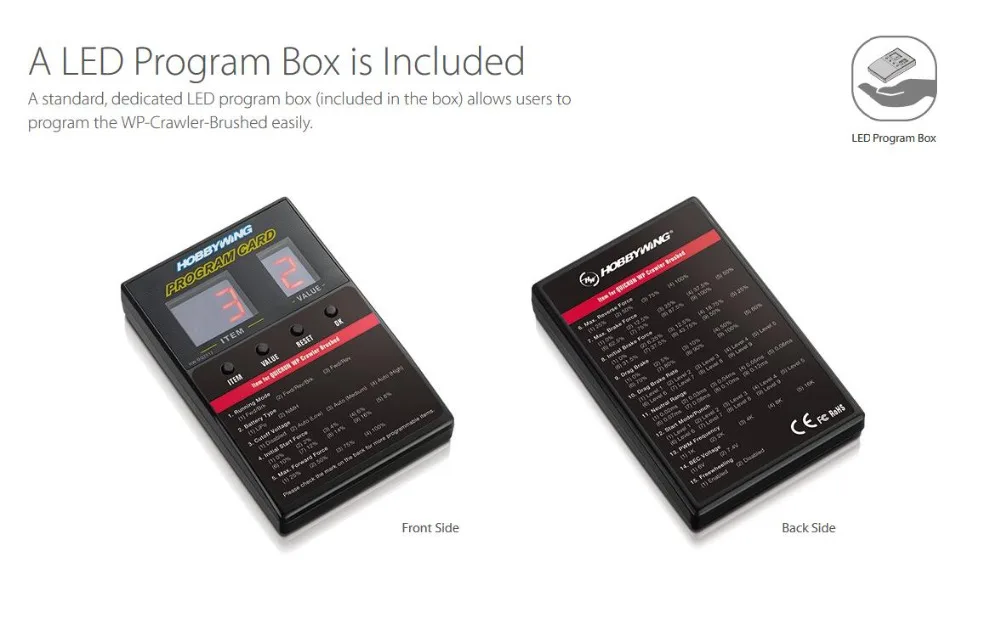

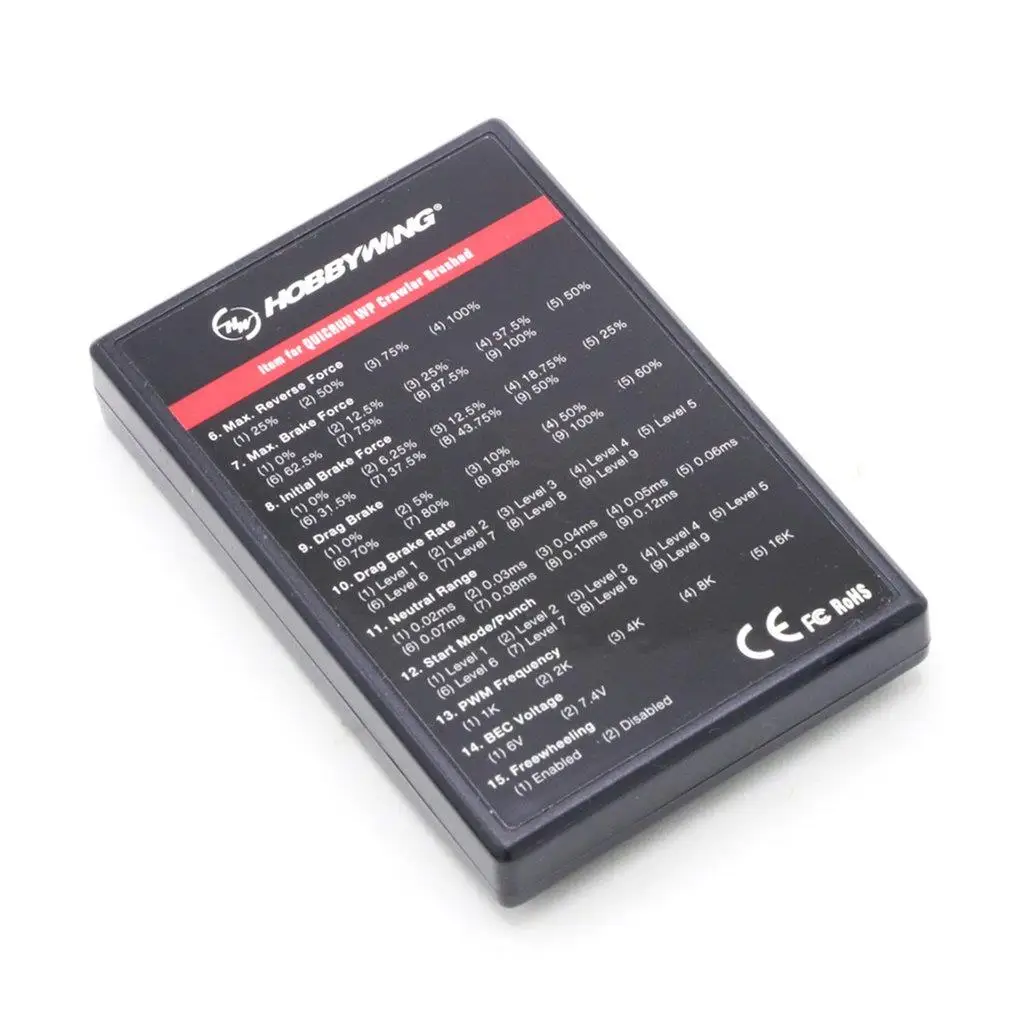

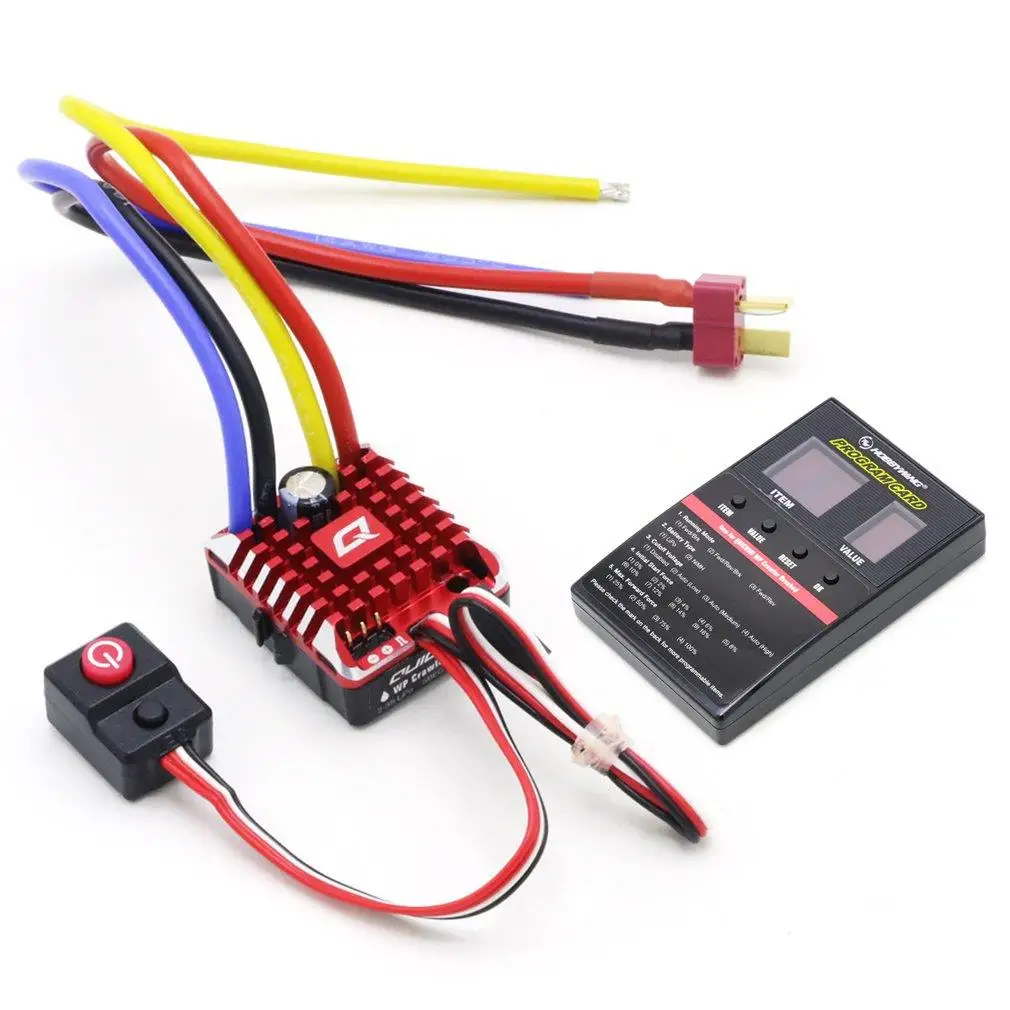

LED Program Box : Supported

LCD Program Box : Not Supported

WiFi Module : Not Supported

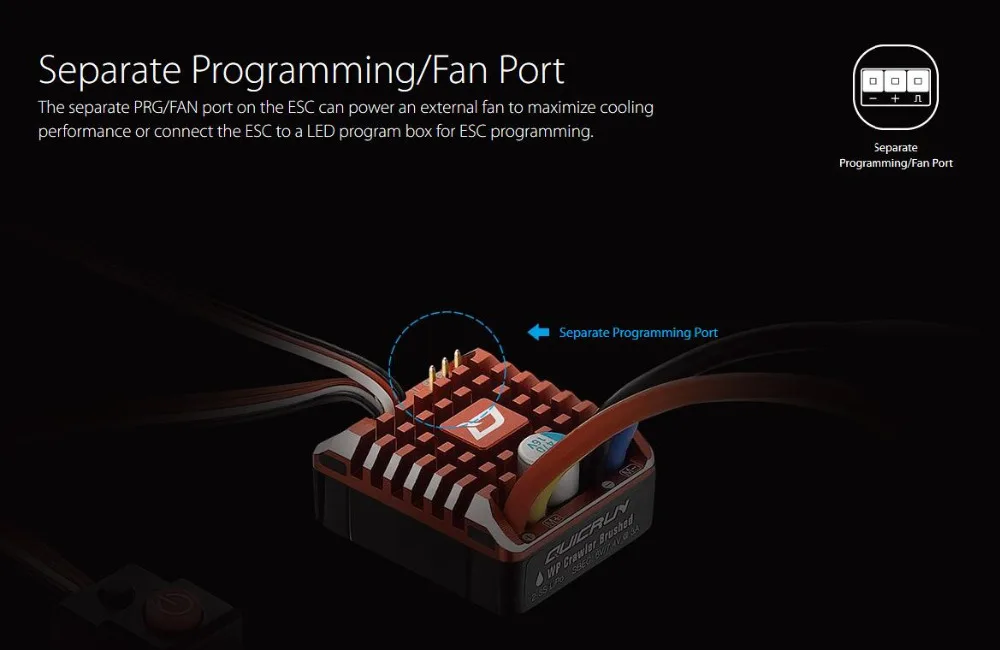

Program Port : Separate Program Port

Firmware :

Firmware Upgrade : Not Supported

Size and Weight :

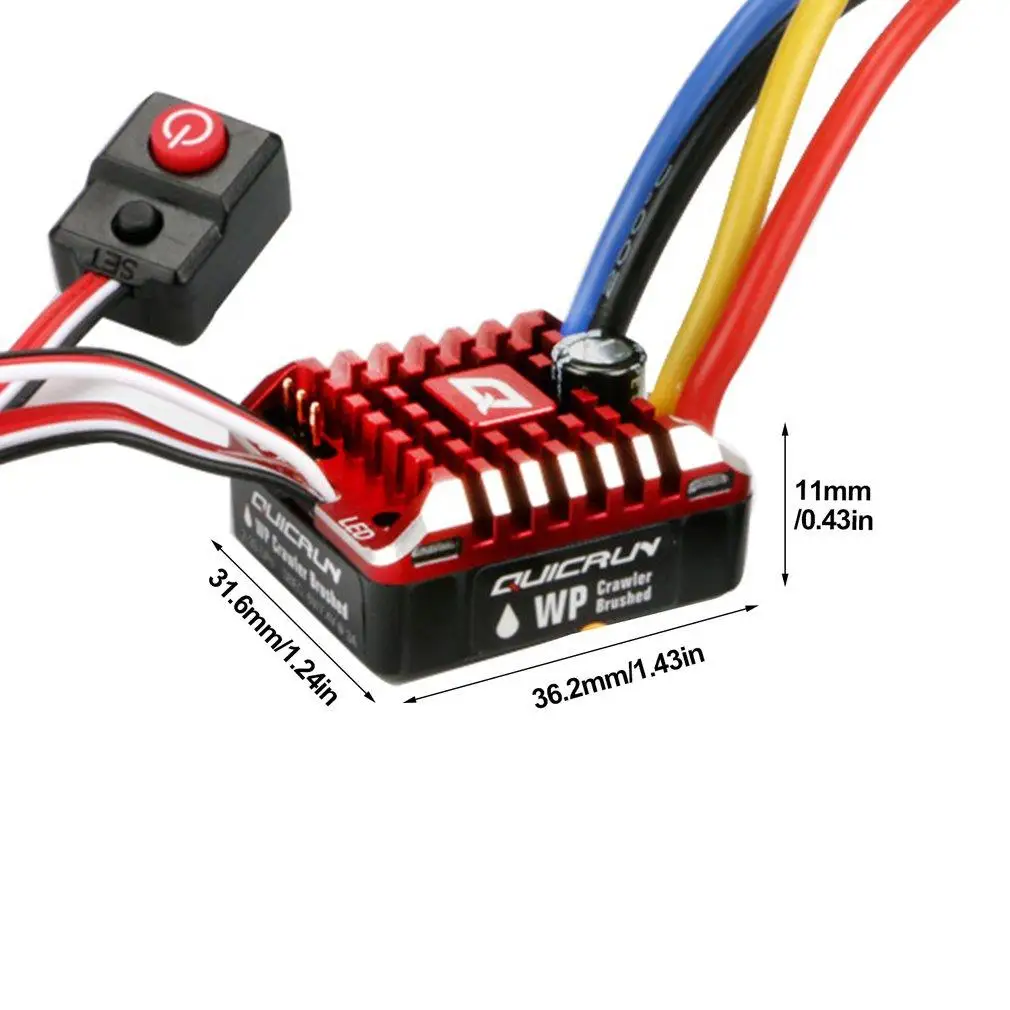

Size : 36.2x31.6x17.0mm

Weight : 58.5g (w/Wires)

Applications :

Motors : Brushed Motor (540/550/775 size motors)

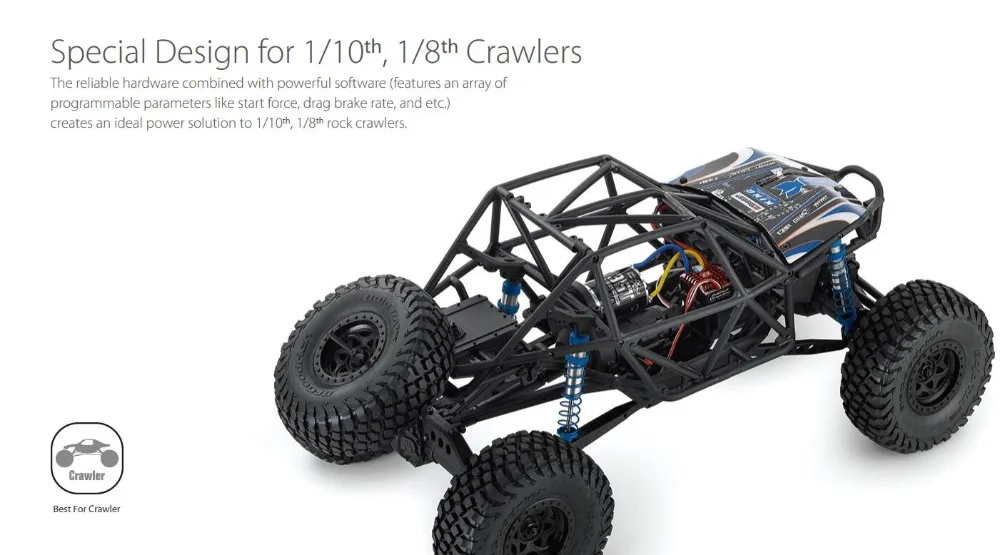

Vehicles : 1/8th,1/10th Rock Crawlers

KV Rating/T Count :

Brushed Motor Limit with 2S LiPo/6S NiMH: ≥10T or RPM<30000 7.4V

Brushed Motor Limit with 3S LiPo/9S NiMH: ≥16T or RPM<20000 7.4V

Package Included:

1 *  Brush ESC
