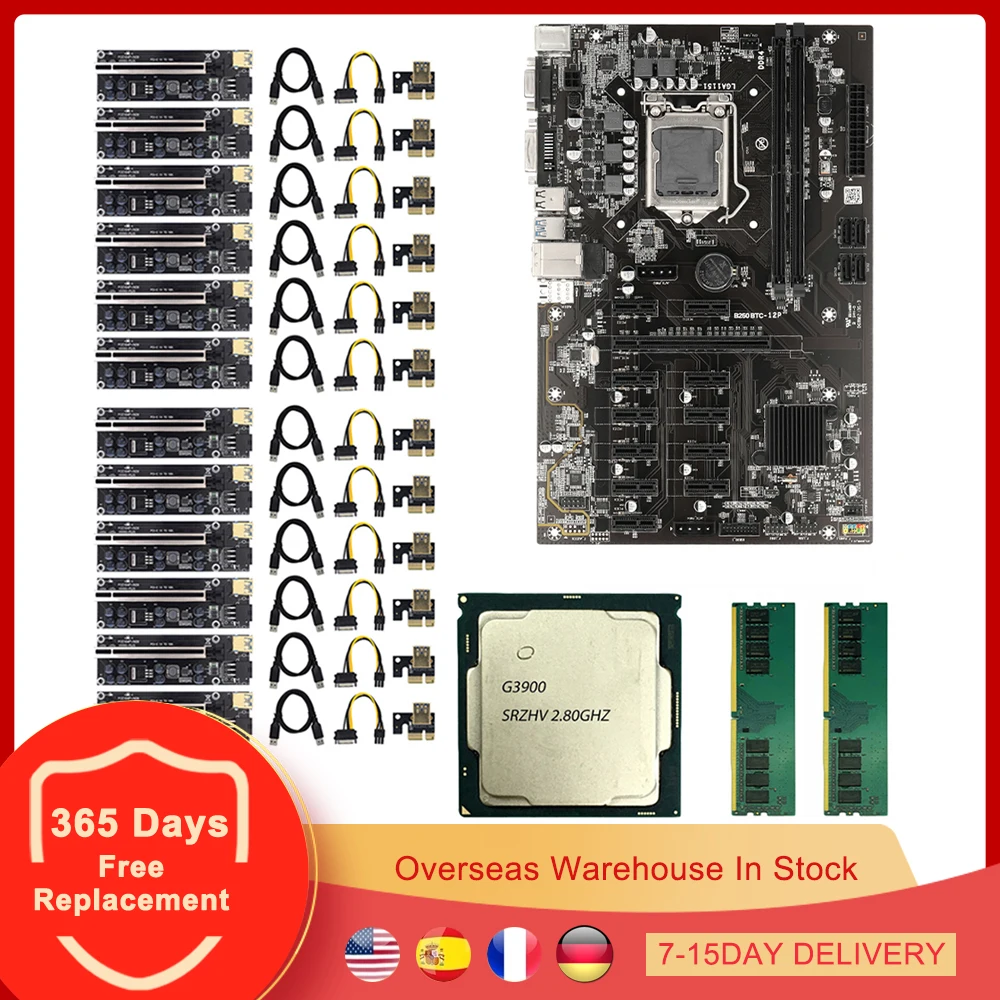

B250 BTC Mining Motherboard Set Combo Kit PCIE X1 PCI-E X16 LGA 1151 16G DDR4 G3900 CPU 009S Riser Card Bitcoin ETH Miner | Компьютеры и

B250 BTC Mining Motherboard Set Combo Kit PCIE X1 PCI-E X16 LGA 1151 16G DDR4 G3900 CPU 009S Riser Card Bitcoin ETH Miner | Компьютеры и

Please note: The button battery will not be included when it is shipped by DHL or FedEx.

Note: This motherboard only supports 6th and 7th generation CPUs, not supports 8/9/10 generations.

7th/6th generation Intel Core i7 i5 i3 Pentium Celeron

Please note that the CPU is second-hand, but we will install it directly on the motherboard after the test is good.

Description:

100% brand new and high quality
Perfect match: According to the original model design, perfect replacement installation, high-quality components.
Quick start, loading and file transfer. Low power consumption, quiet, reliable and durable.
Durable material: This product is made of high-quality material, durable, long service time, firm and stable in use.
Compact and portable: being so mini and light-weight, this product does not take much space and can be easily taken away.
Meticulous workmanship: The meticulous design, perfect in workmanship, durable and long service time.

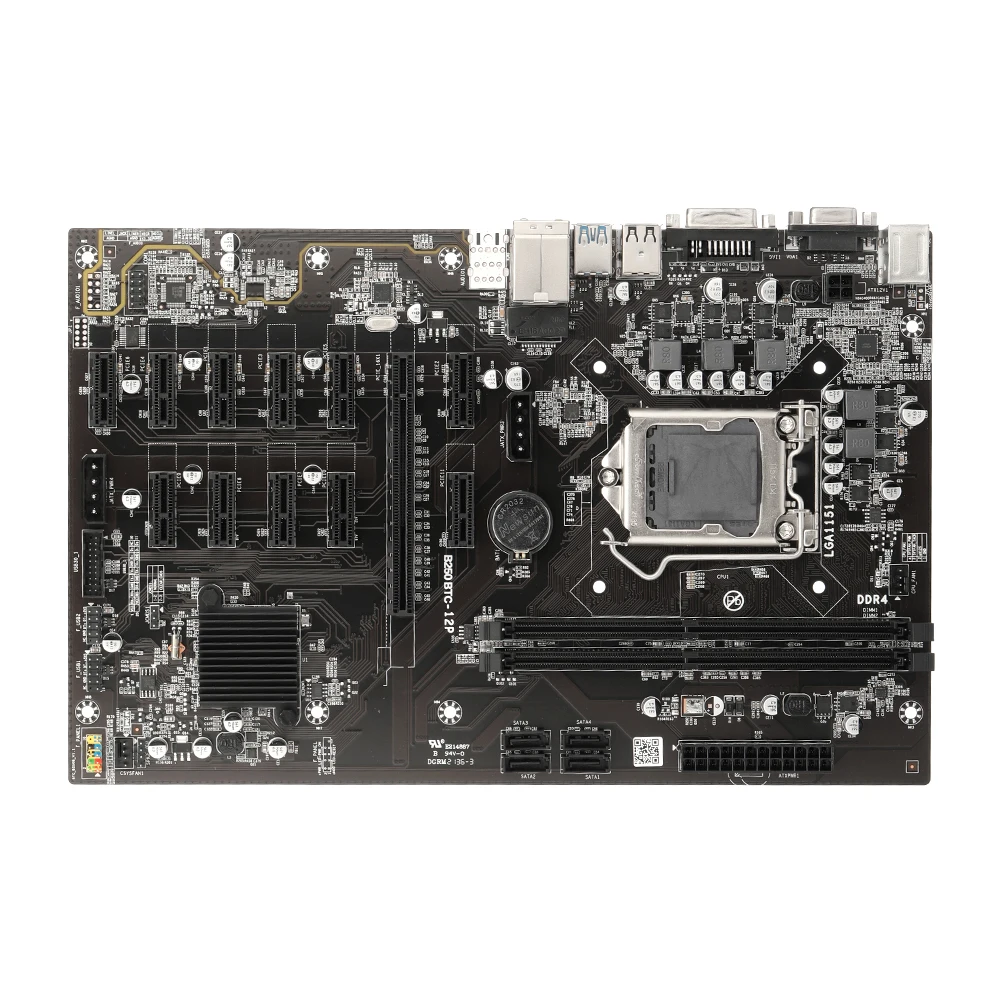

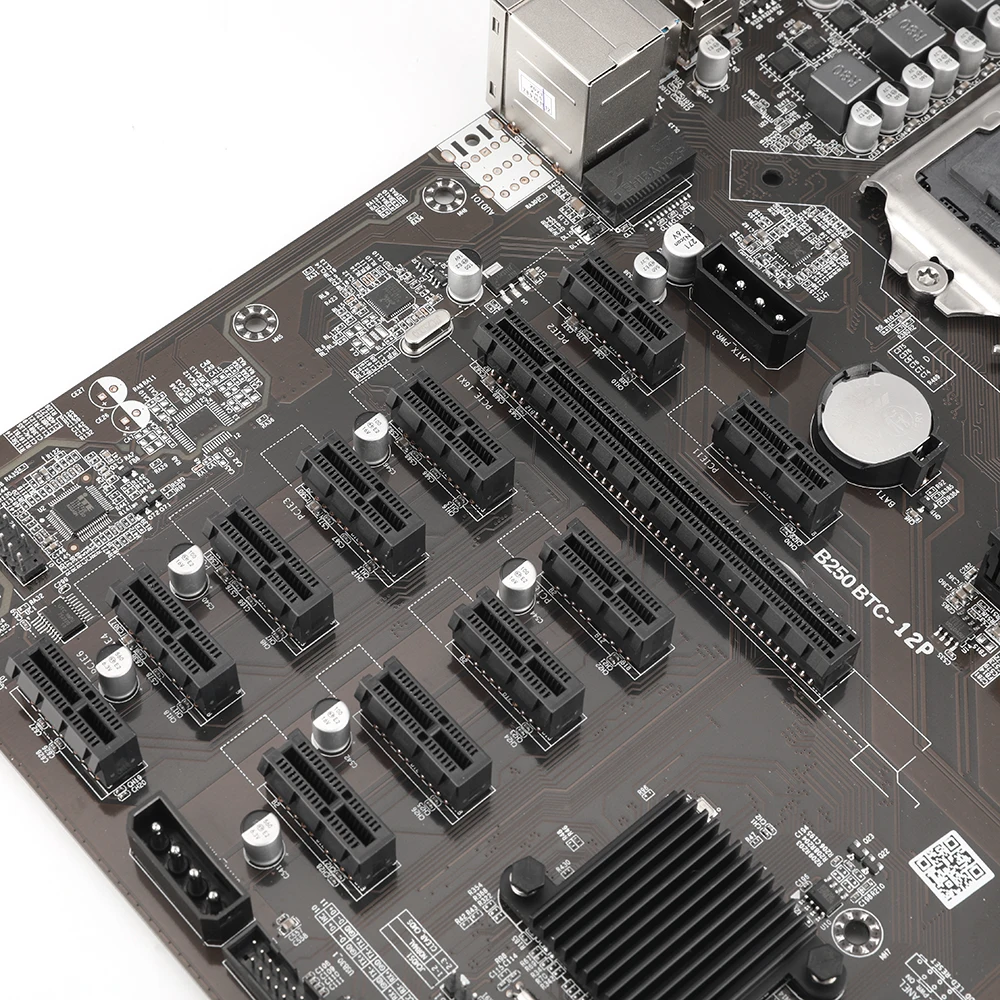

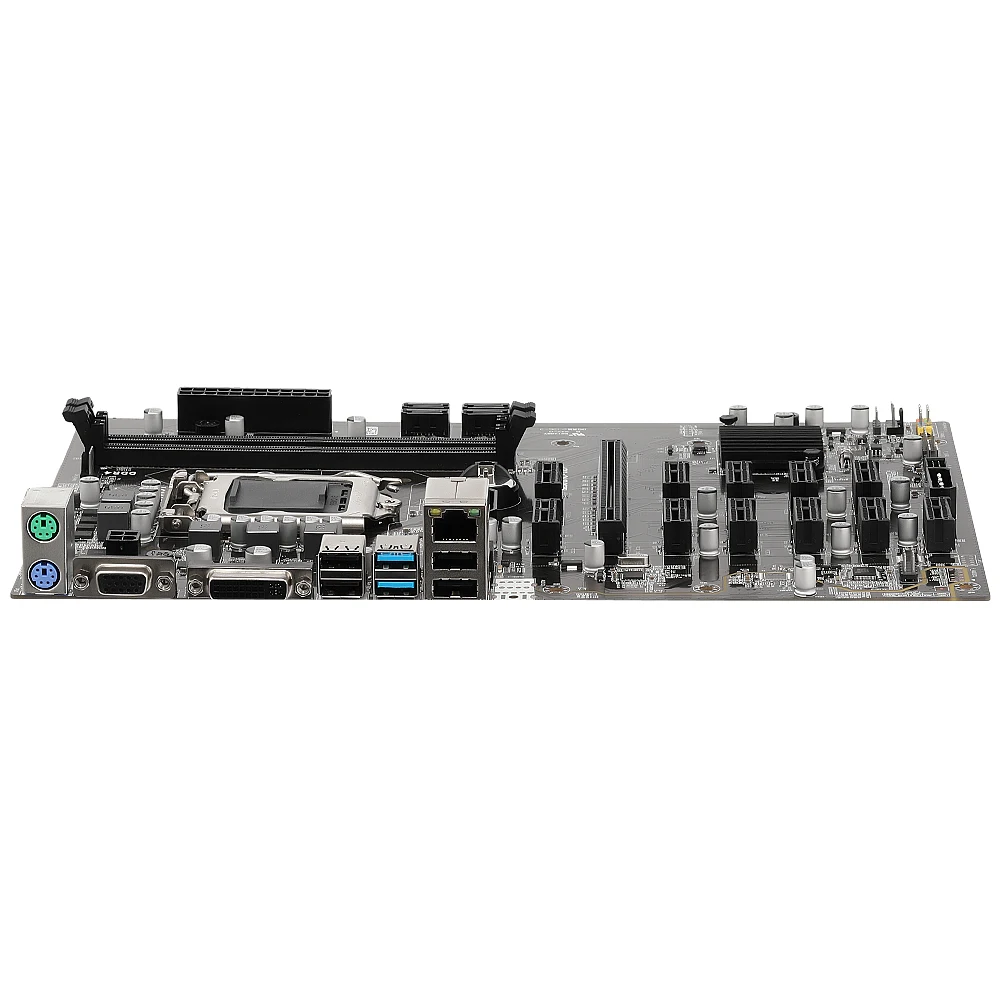

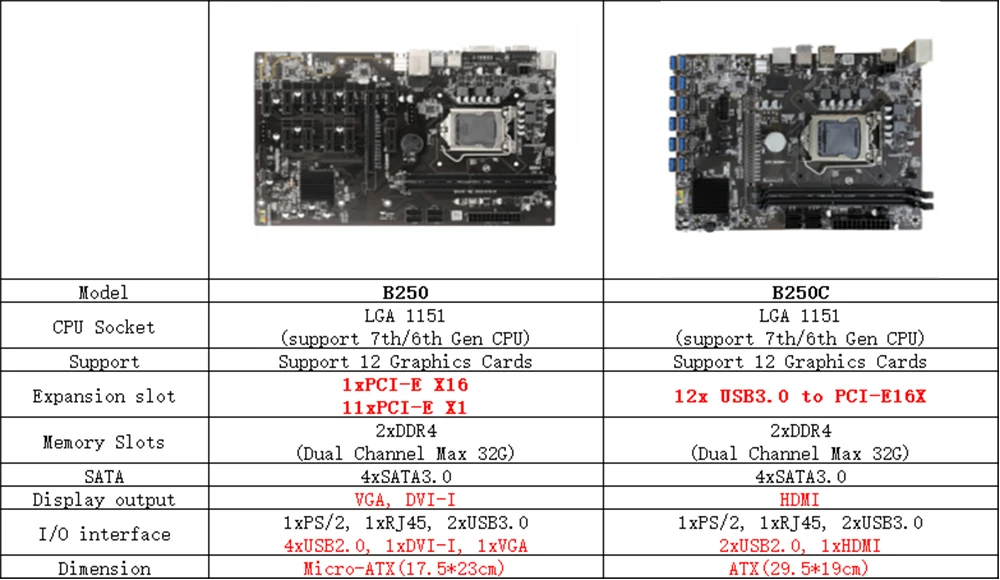

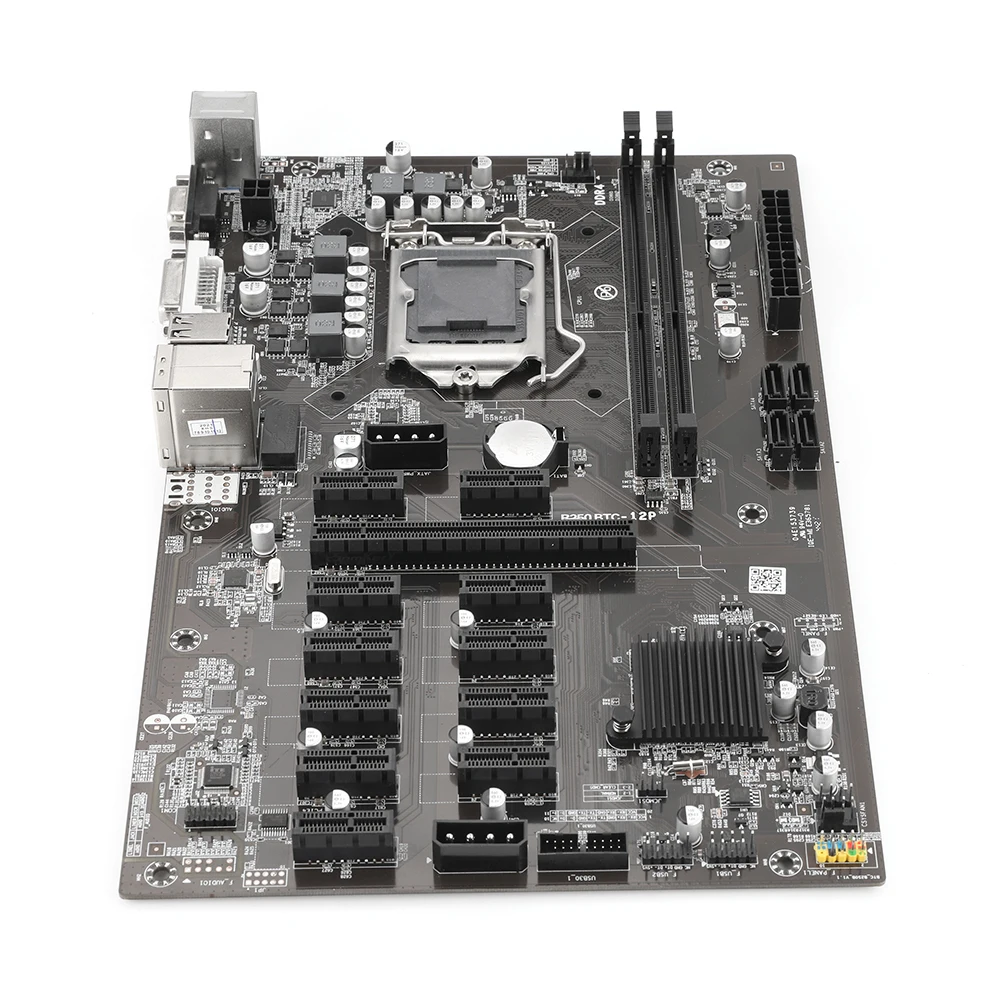

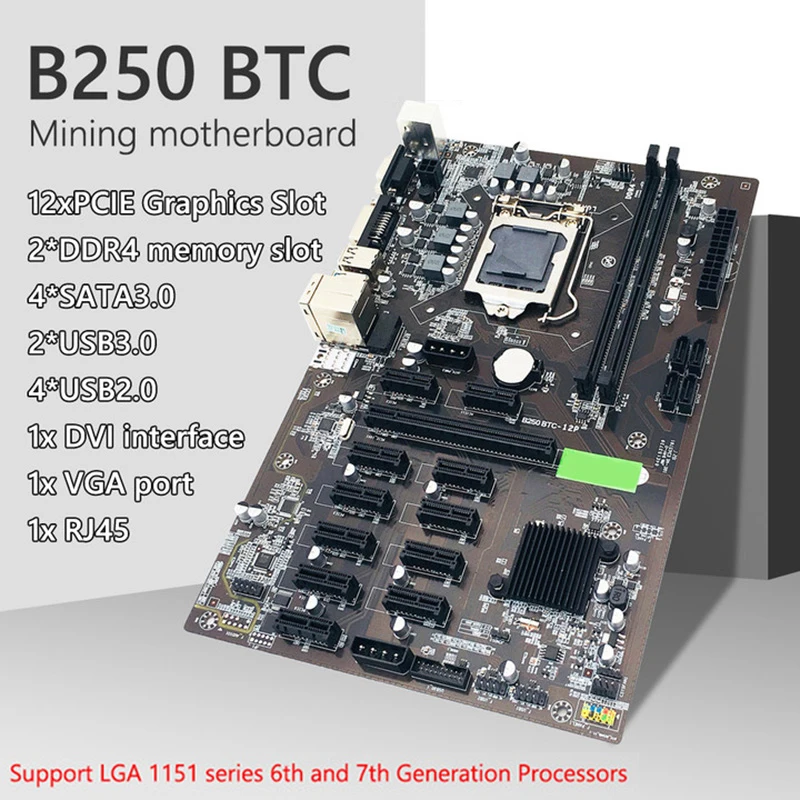

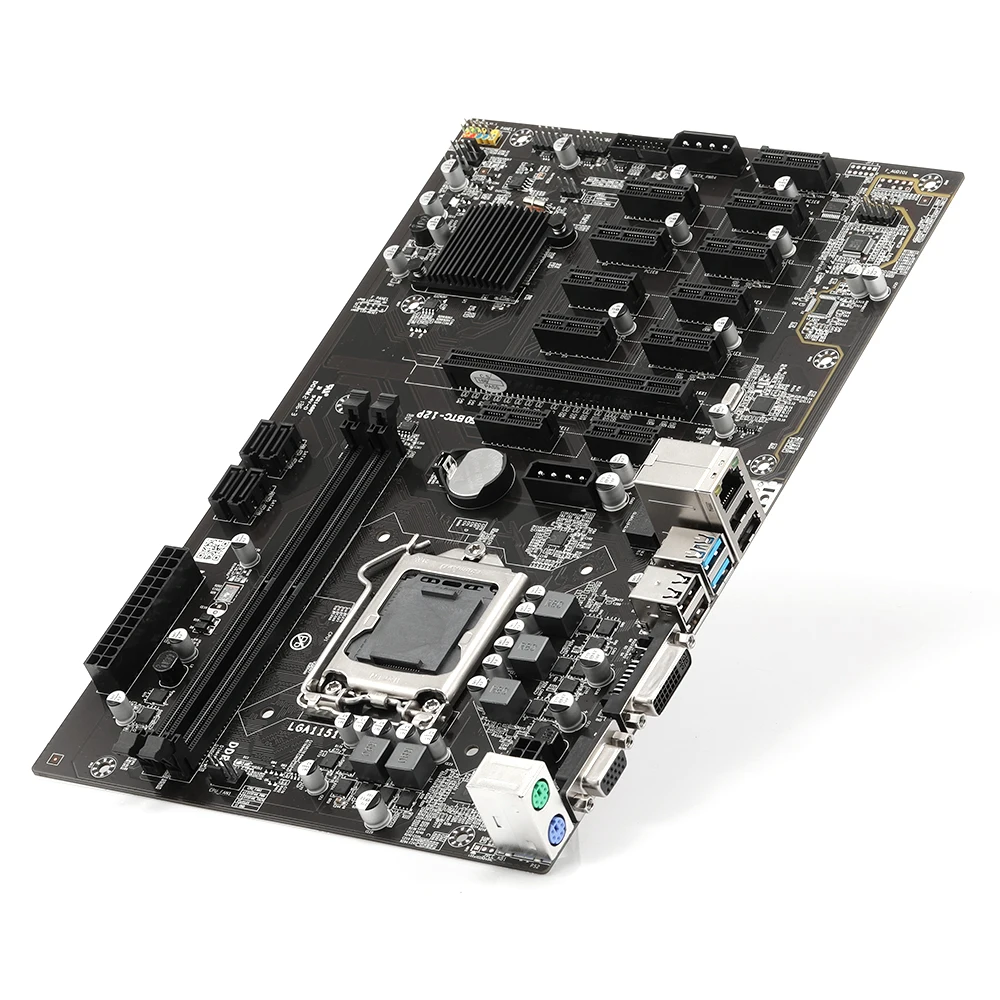

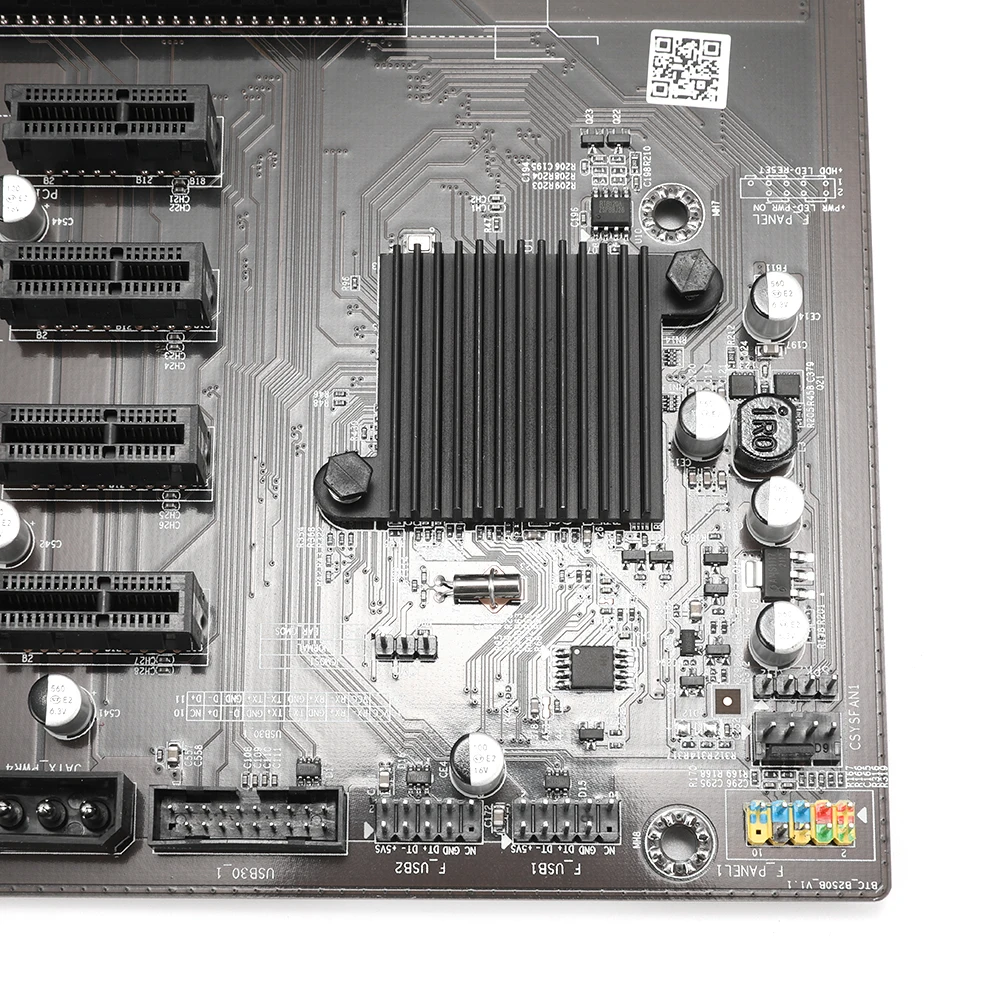

Specification:

CPU : Support LGA 1151 Socket i3/i5/i7 series CPU
Chipset: Intel B250 Chipset

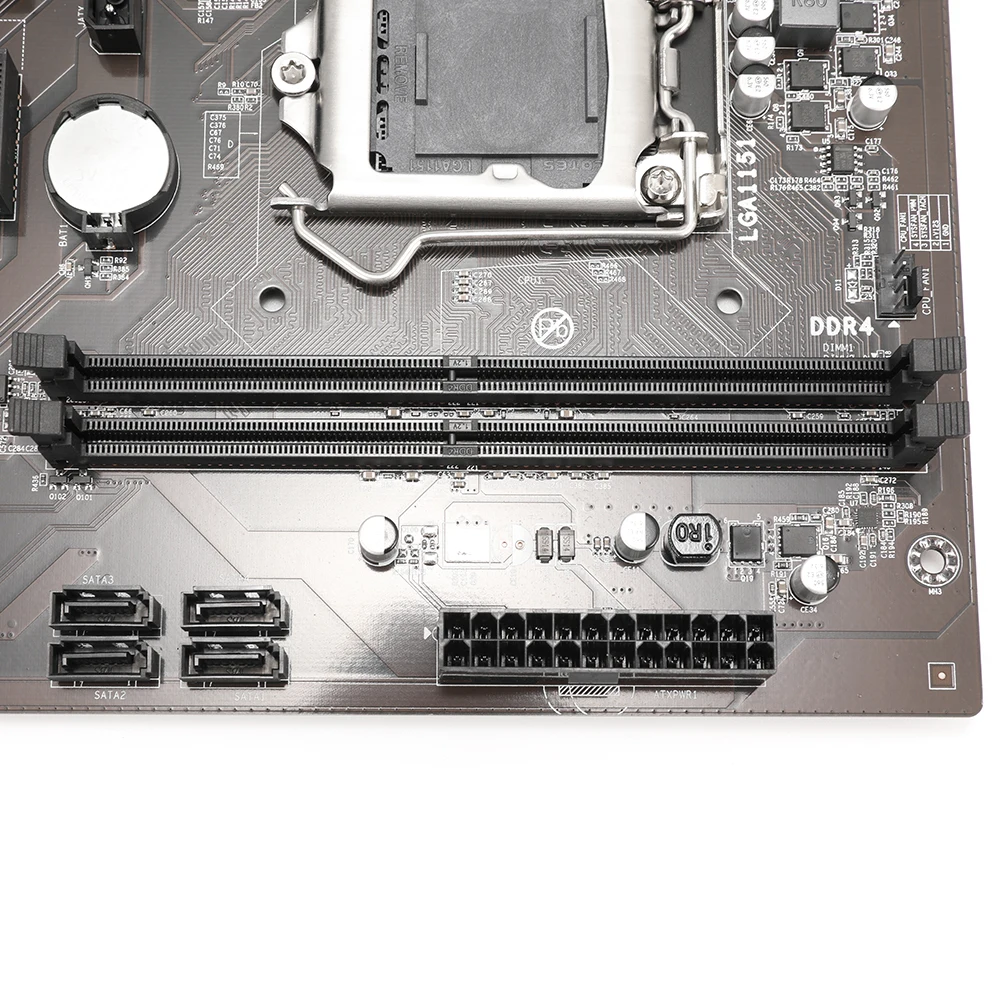

Memory:
2* DDR4 slots
Memory up to 32GB
Support dual-channel DDR4 2133/2400/2666 MHz memory
Color: black

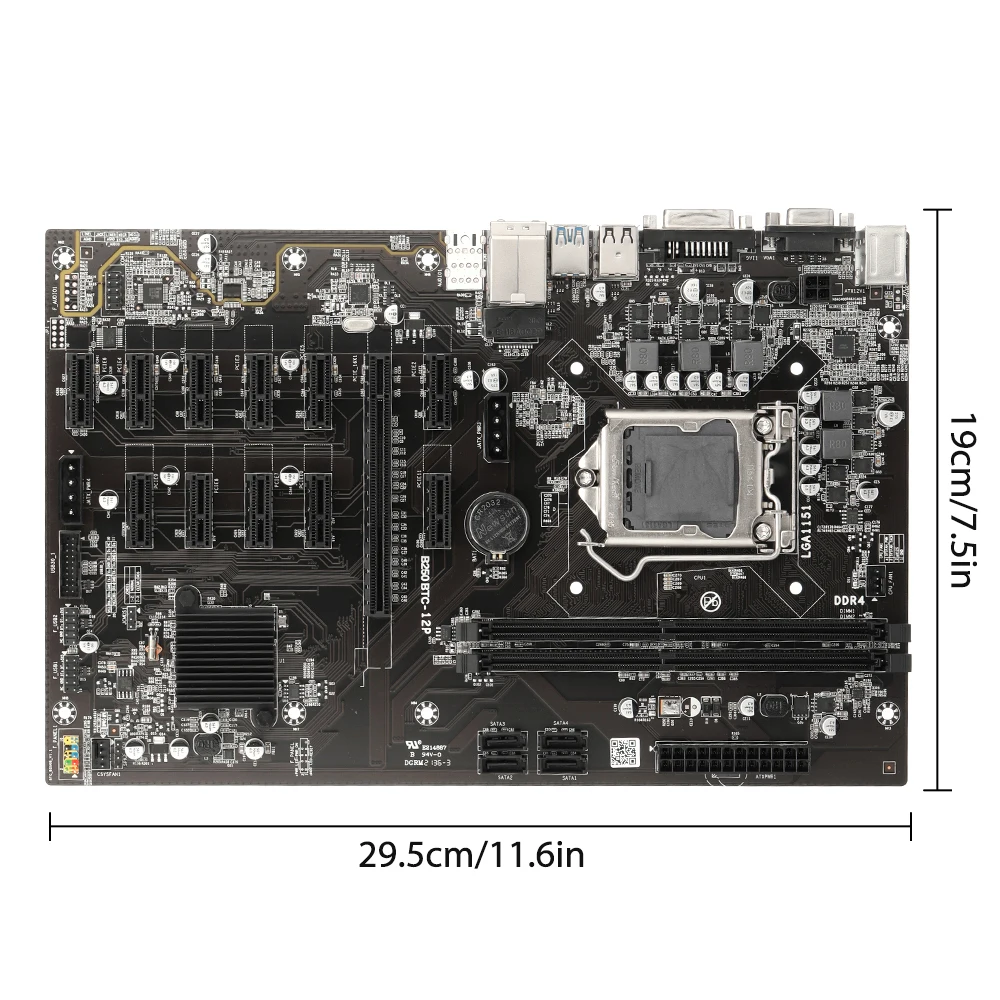

Size: 29.5x19cm/11.61x7.5in
Expansion slot:
1× PCI-E X16 graphics slot
11× PCI-E X1 graphics slot
2x USB2.0 pins
1x USB3.0 pin
1x COM pin
2x 4p square power port
4x SATA3.0 port

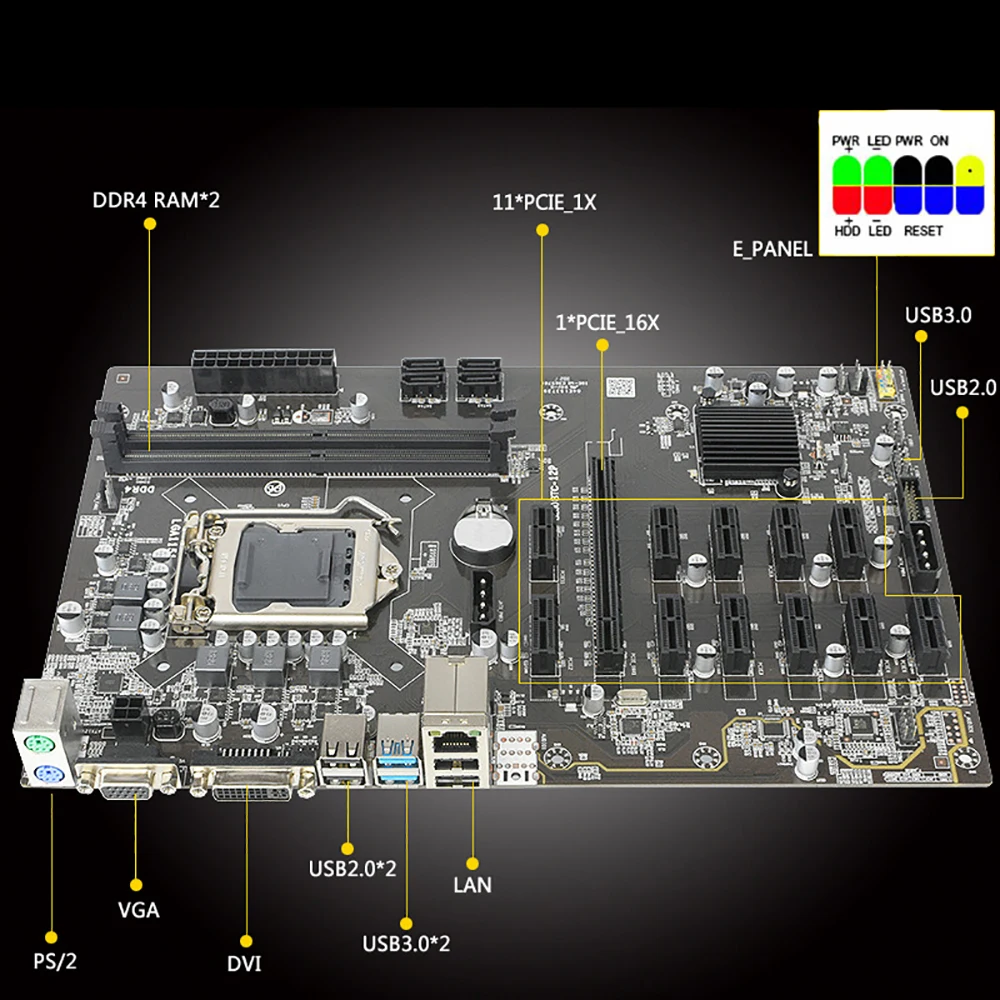

I/O port:
PS/2 port keyboard and mouse universal port 2
1× RJ45 network port
1× DVI-I High Definition output
2x USB 3.0 port
4x USB 2.0 port
1x VGA

Feature:

Feature1: Speed with 12x PCIe slots and only one power connector
Feature2: Separates 12x PCIe slots into 3 groups
Feature3: 5X protect III hardware-level safeguards with safe slot core.
Feature4: LAN guard and over voltage protect
Feature5: PCIe slot state detection
Feature6: Supports up to six USB 3.0 ports
Feature7: Supports up to six SATA 6Gbps ports, PCIe 3.0 lane speed

Ps：

1. N card: refers to the graphics card developed by NVIDIA company.

2. A card: refers to the graphics card developed by AMD company.

Note: since the windows driver can only support 8 graphics cards at most, the mining combination of 12 cards is generally

6N+6A

8N+4A or 8A+4N

7N+5A or 7A+5N

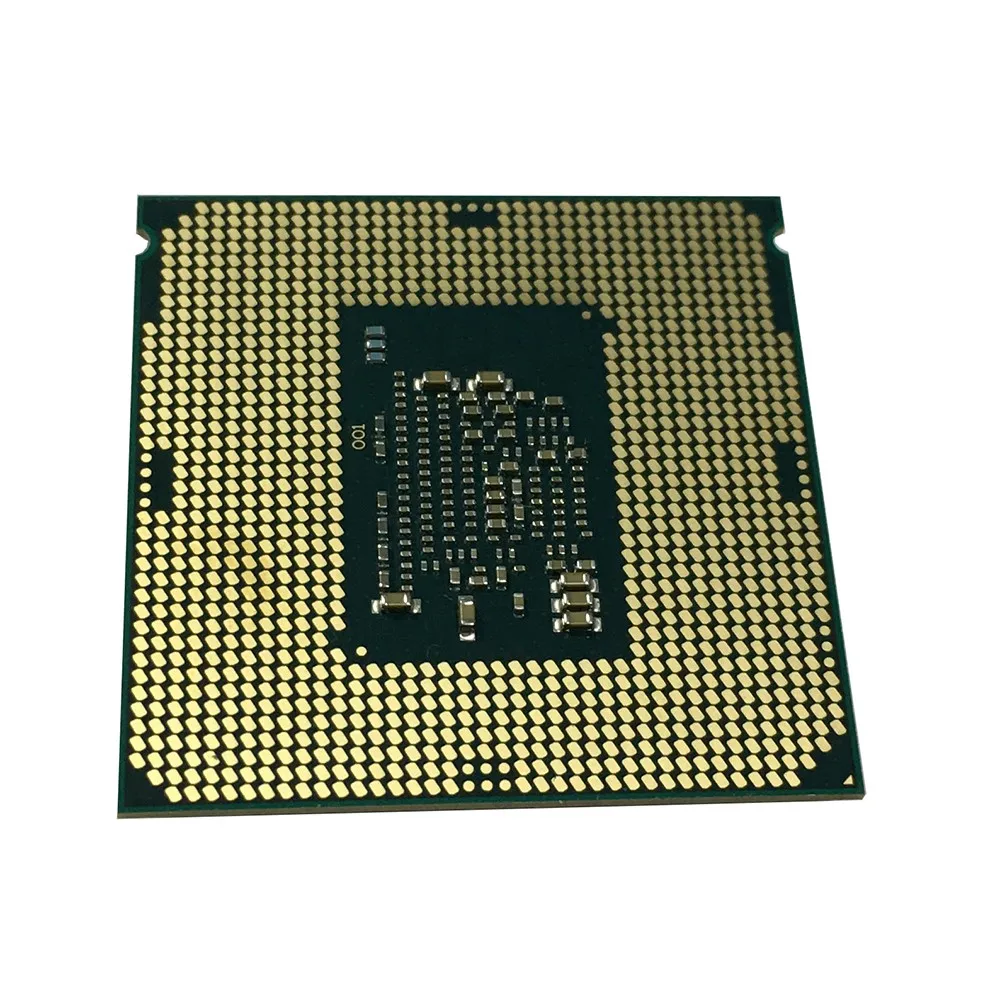

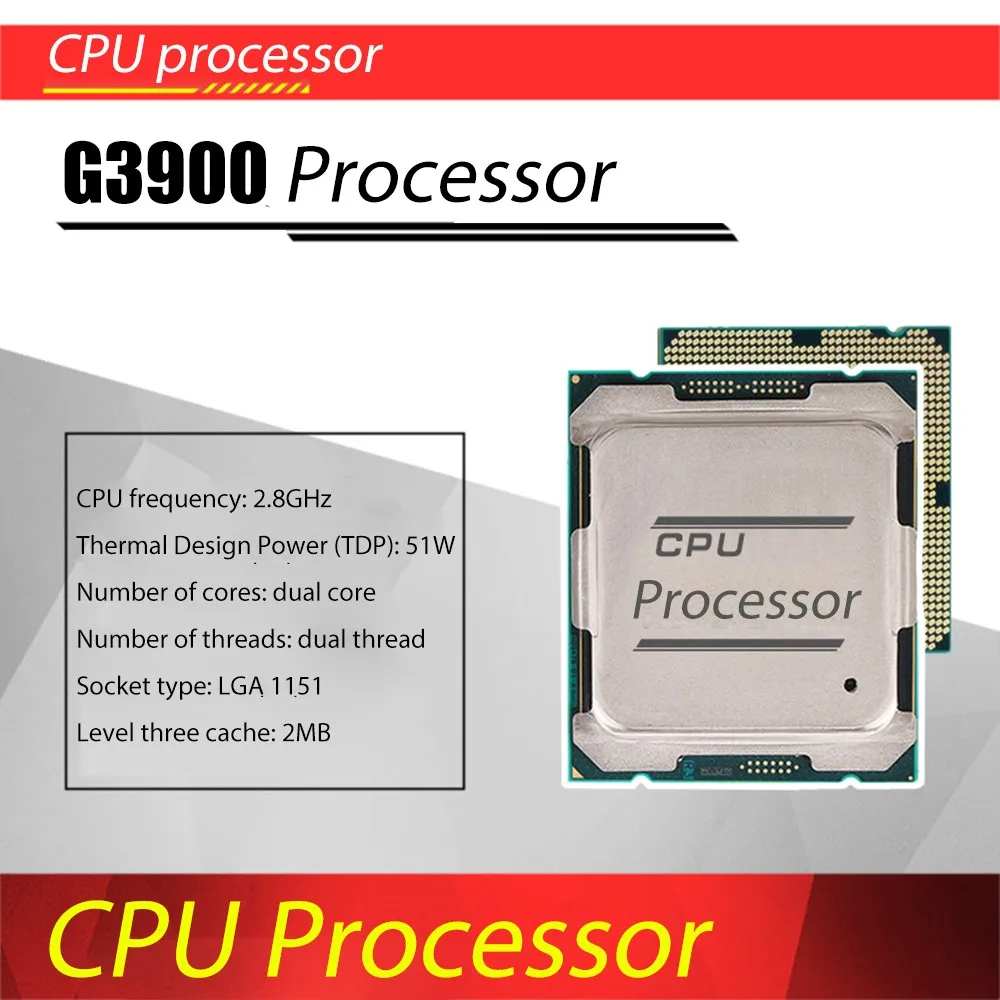

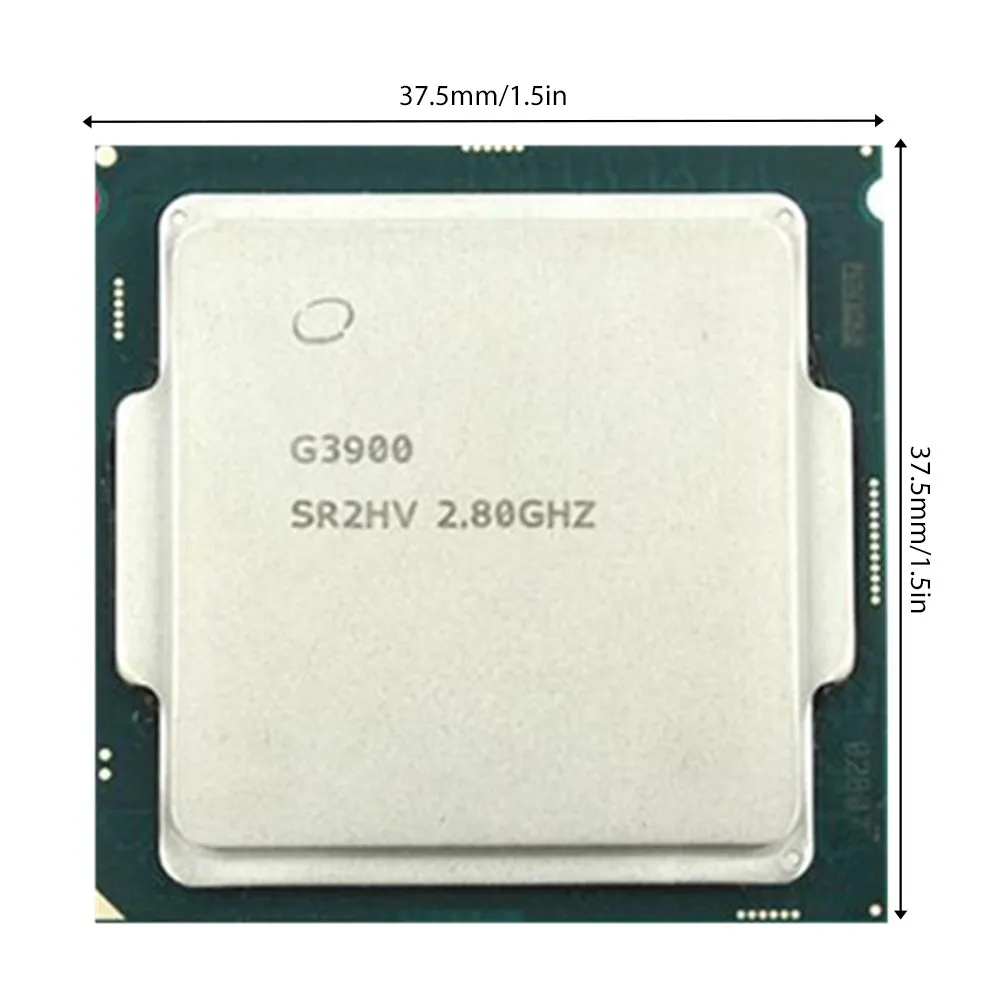

CPU:G3900 SR2HV 2.80GHZ LGA 1151

Description:

Multi-core multi-threaded processor.
Stable operation and good compatibility.
2M Cache,making it better to cope with high-load environments.
Low-performance processor, low heat generation, only suitable for mining machine motherboards.

Color: Silver+green
Material: Monocrystalline silicon
Size: 37.5*37.5mm
Model: G3900
Applicable type: desktop
CPU series: Celeron dual core
Production process: 14 nanometers
Core code name: Skylake
CPU architecture: Skylake
Socket type: LGA 1151
CPU frequency: 2.8GHz
Number of cores: dual core
Number of threads: dual thread
Level three cache: 2MB
Bus specification: DMI3 8GT/s
Thermal Design Power (TDP): 51W
Support maximum memory: 64GB
Memory type: DDR4 1866/2133MHz, DDR3L 1333/1600MHz @1.35V
Maximum number of memory channels: 2
Maximum memory bandwidth: 34.1GB/s
ECC memory support: yes
Integrated graphics: Intel HD Graphics 510
Basic frequency of graphics card: 350MHz
Graphics card maximum dynamic frequency: 950MHz

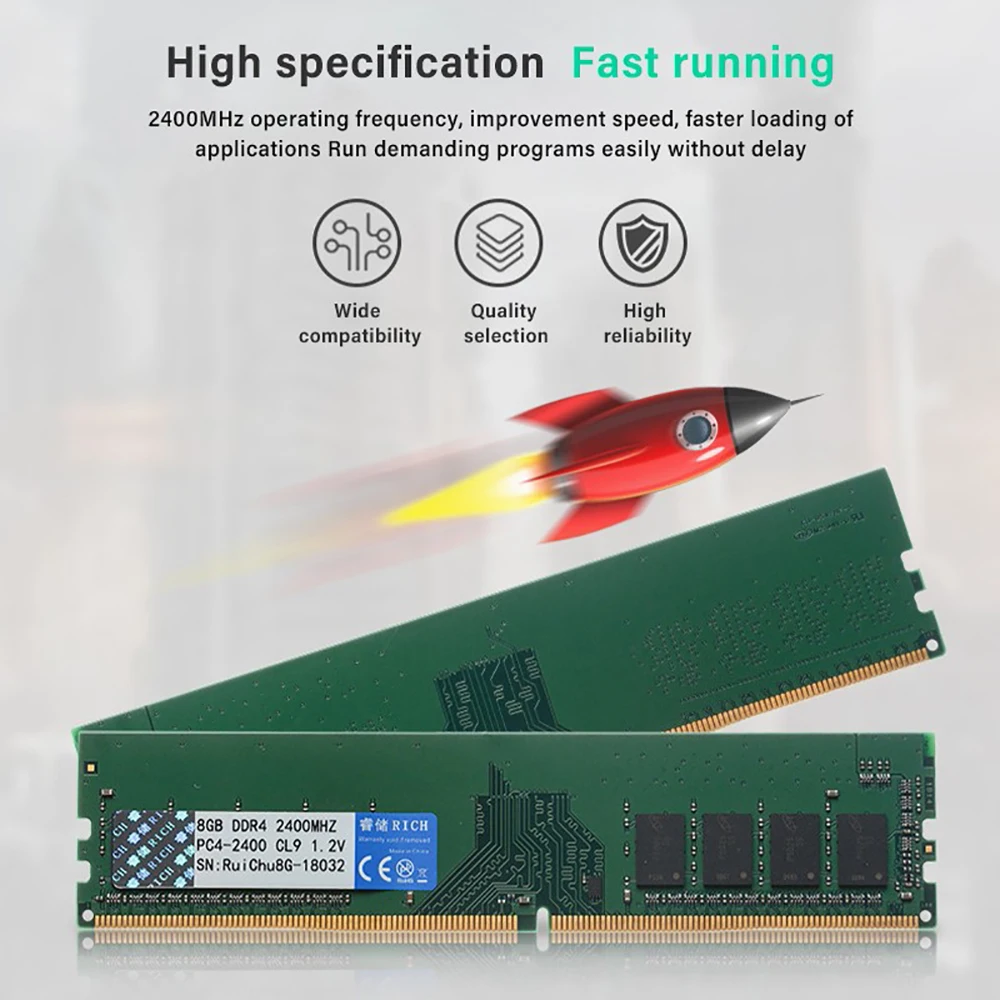

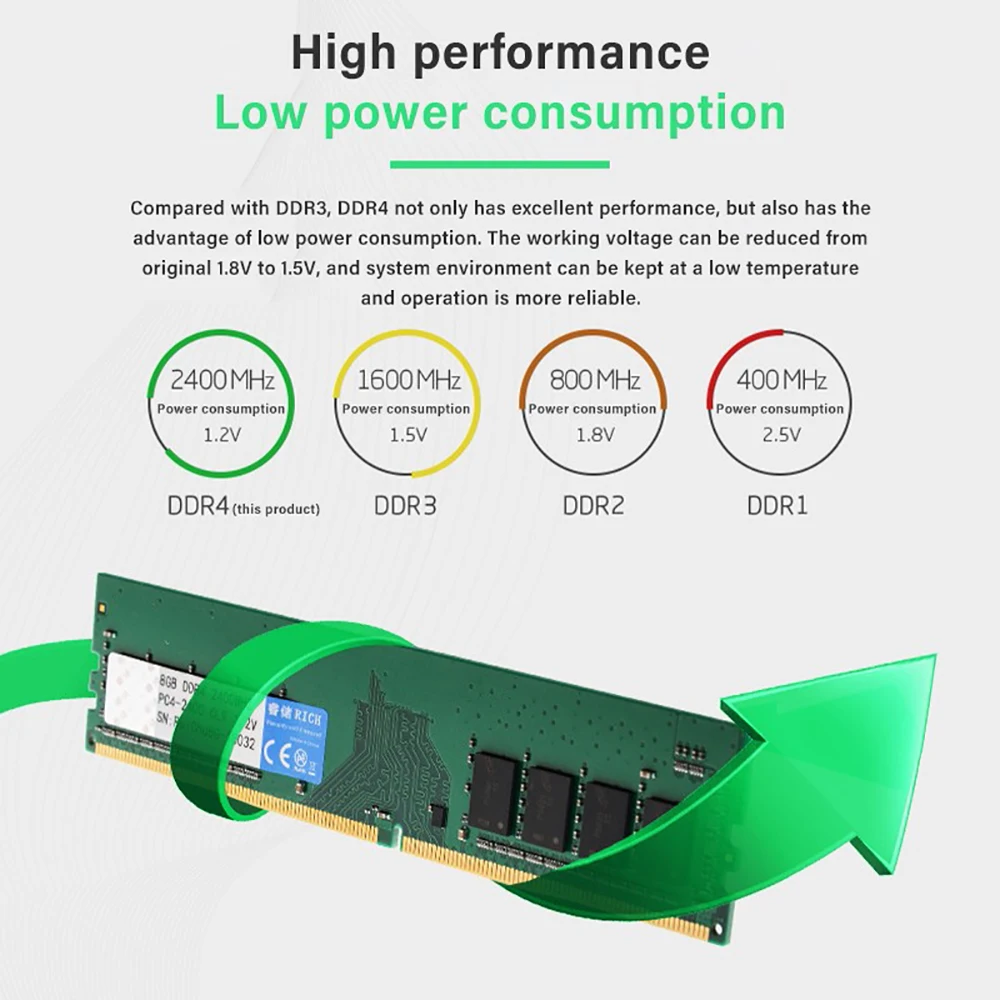

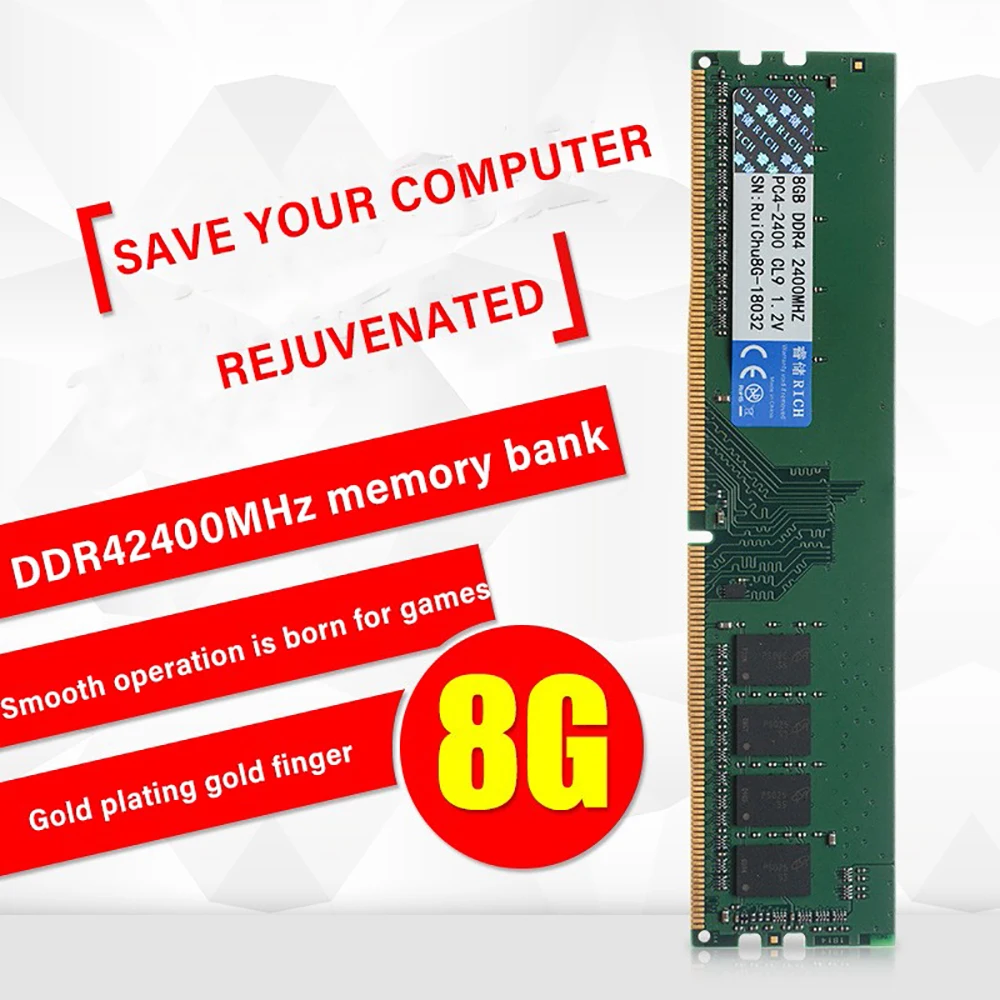

DDR4 4/8GB Memory Module

Product Name: Desktop Memory DDR4
Memory capacity: 4GB/8GB
Memory Technology: UDIMM RAM
Frequency: PC4-17000 (2133MHz)
Memory Timing:CL15/CL17/CL19
Voltage: 1.2V
Interface Type:288PIN
Chipset: 1Rx8
Function:Non-ECC Unbuffered
Can only use the PC computer, can't use the server

009S PLUS RISER

Description:

Made of PCB+Capacitance+Copper wire, super stable.
Tin and Copper plated conductor has better electrical conductivity and antijamming capability which can speed up data transmission.

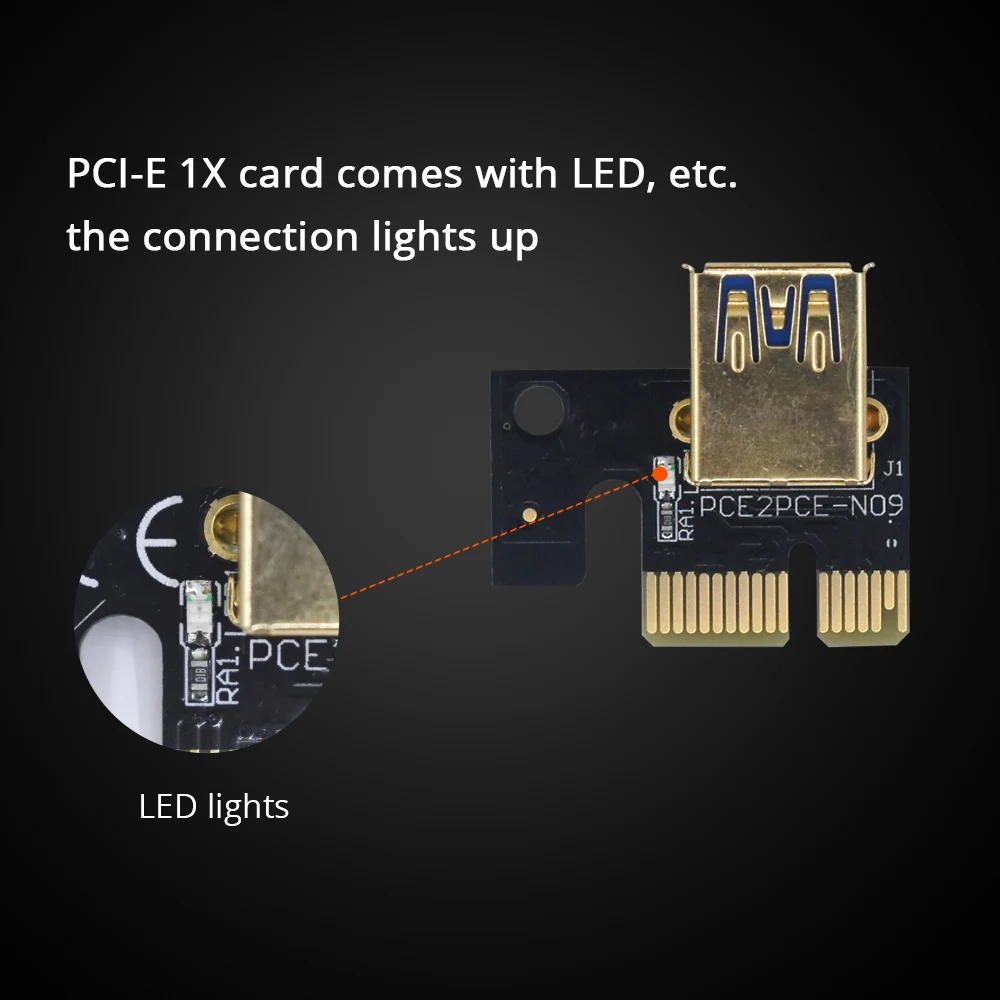

PCI-E 1X card comes with LED, etc.the connection lights up.
Original electronic chips, more efficient for your mining.
Patent card slot shielding design, data transmission is faster and more stable.

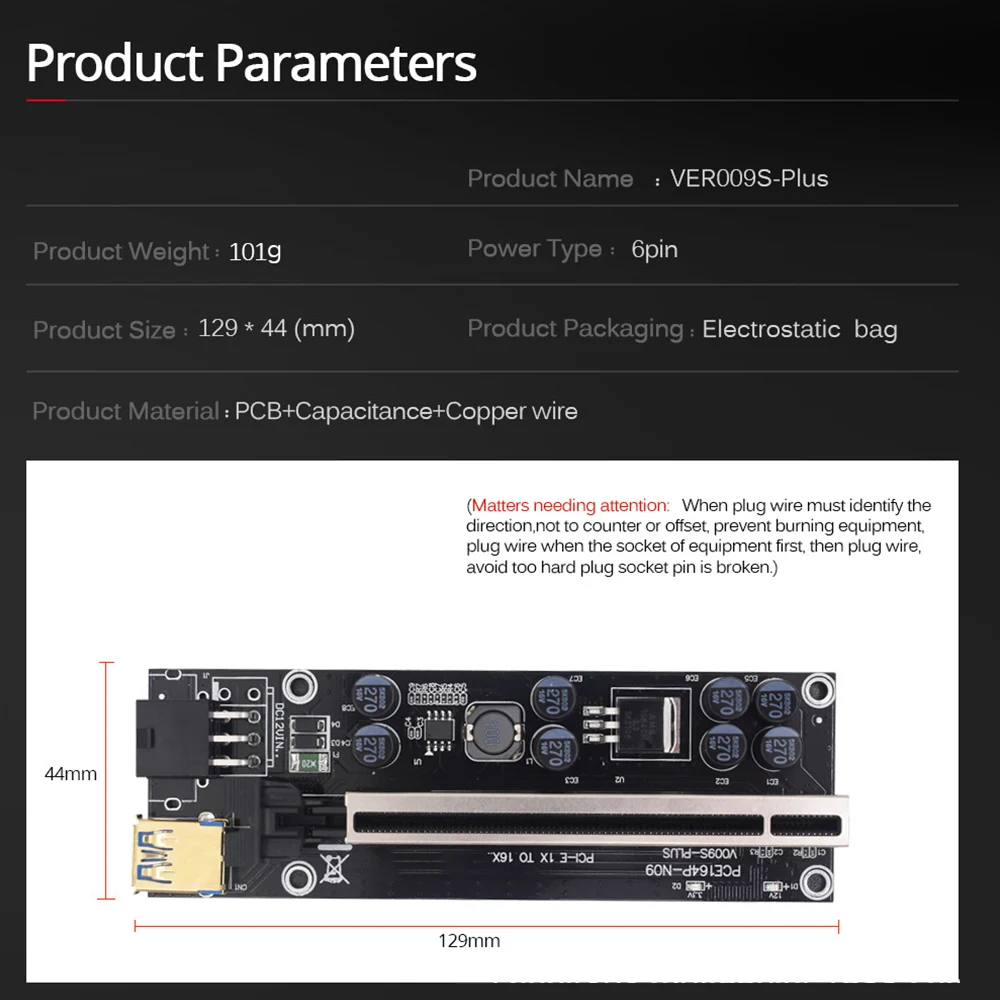

Specifications:

Item type: 009S Plus PCI-E Riser Card
Color: Black
Material: PCB+Capacitance+Copper wire
Size:129x44mm
USB Cable length: 60cm
Interface: PCI-E X1,PCI-E X16, USB3.0,6Pin

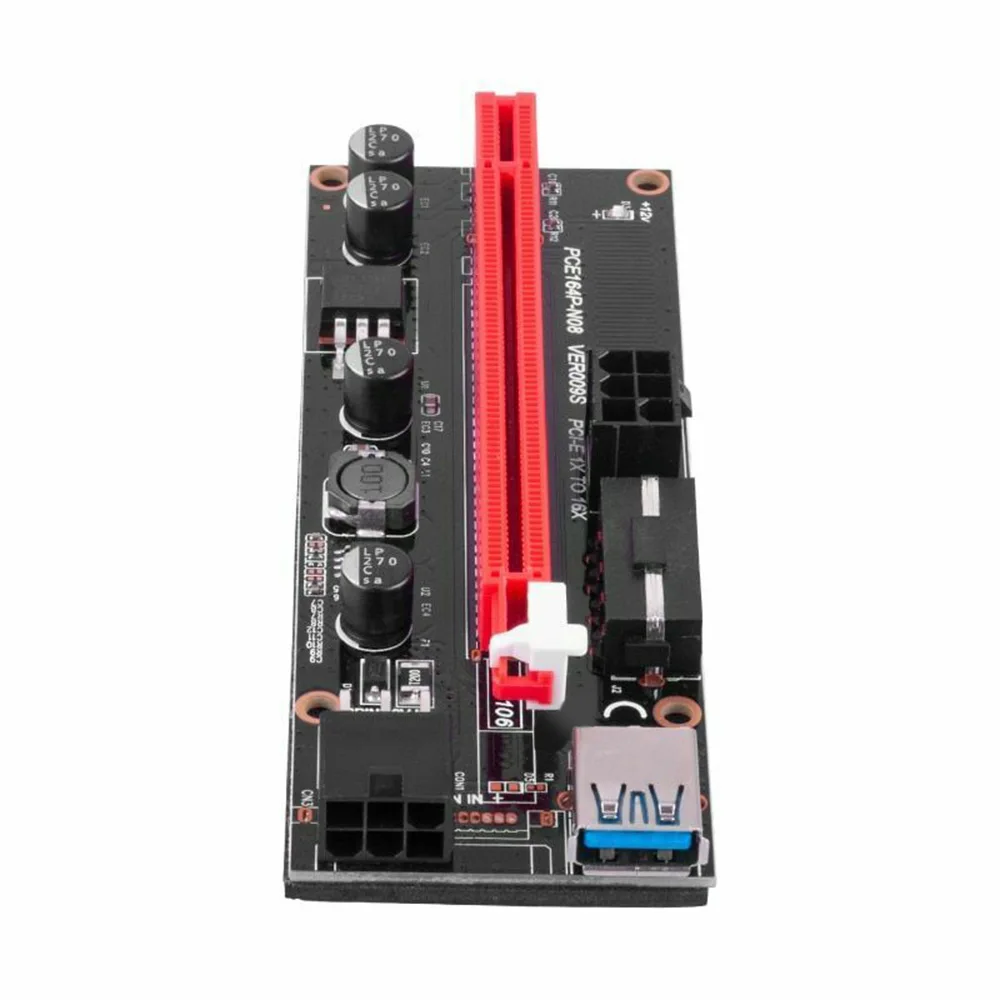

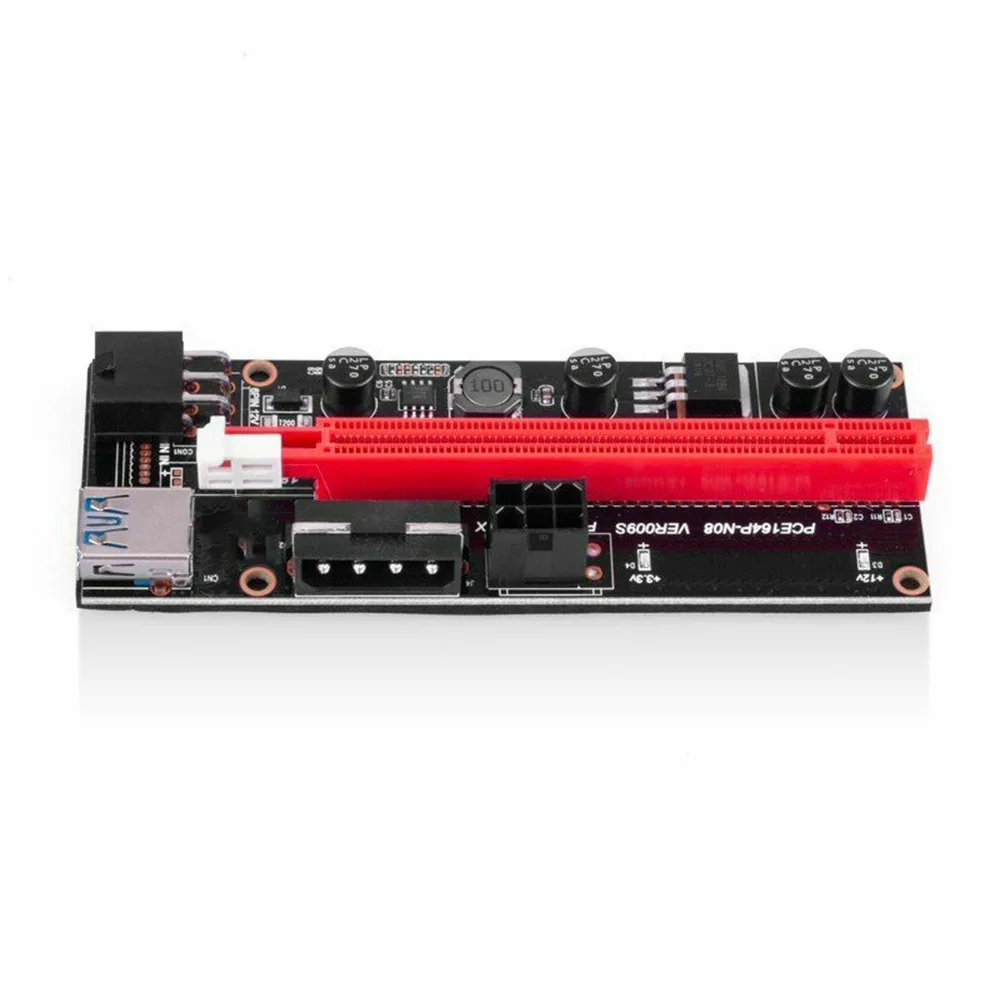

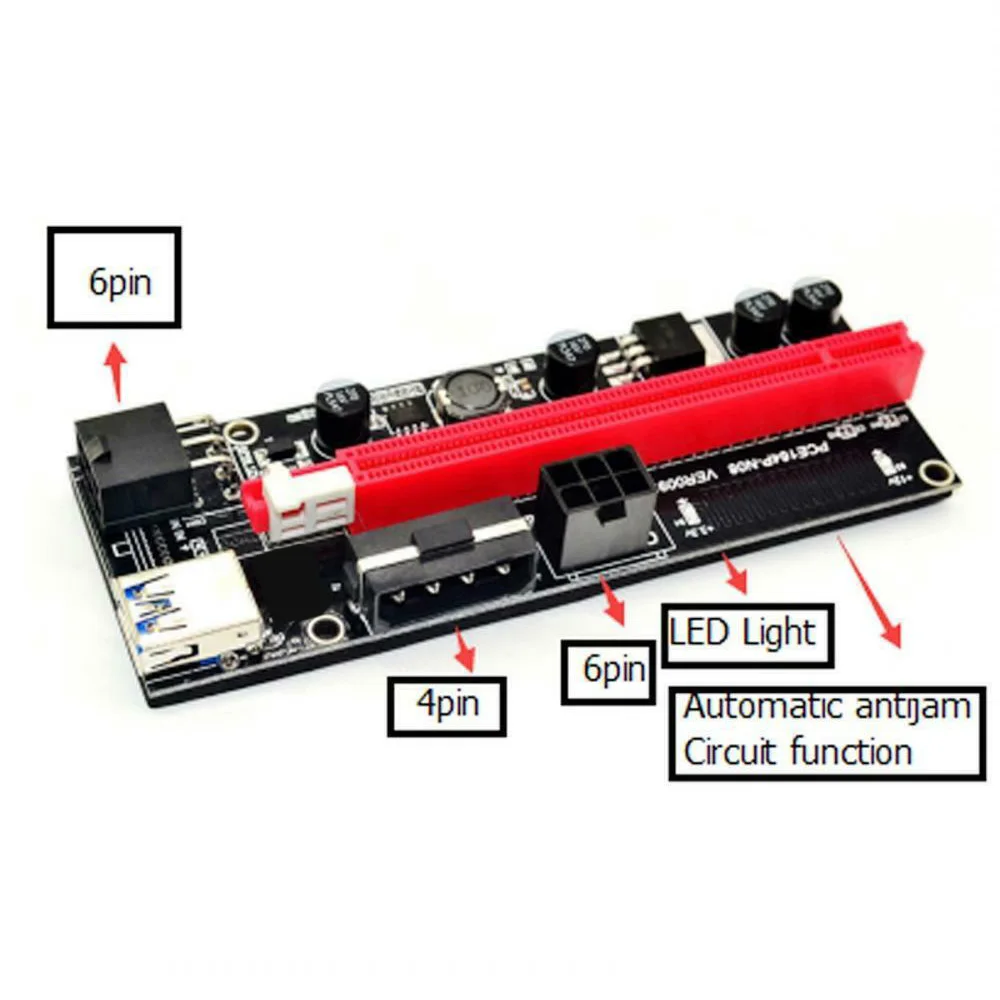

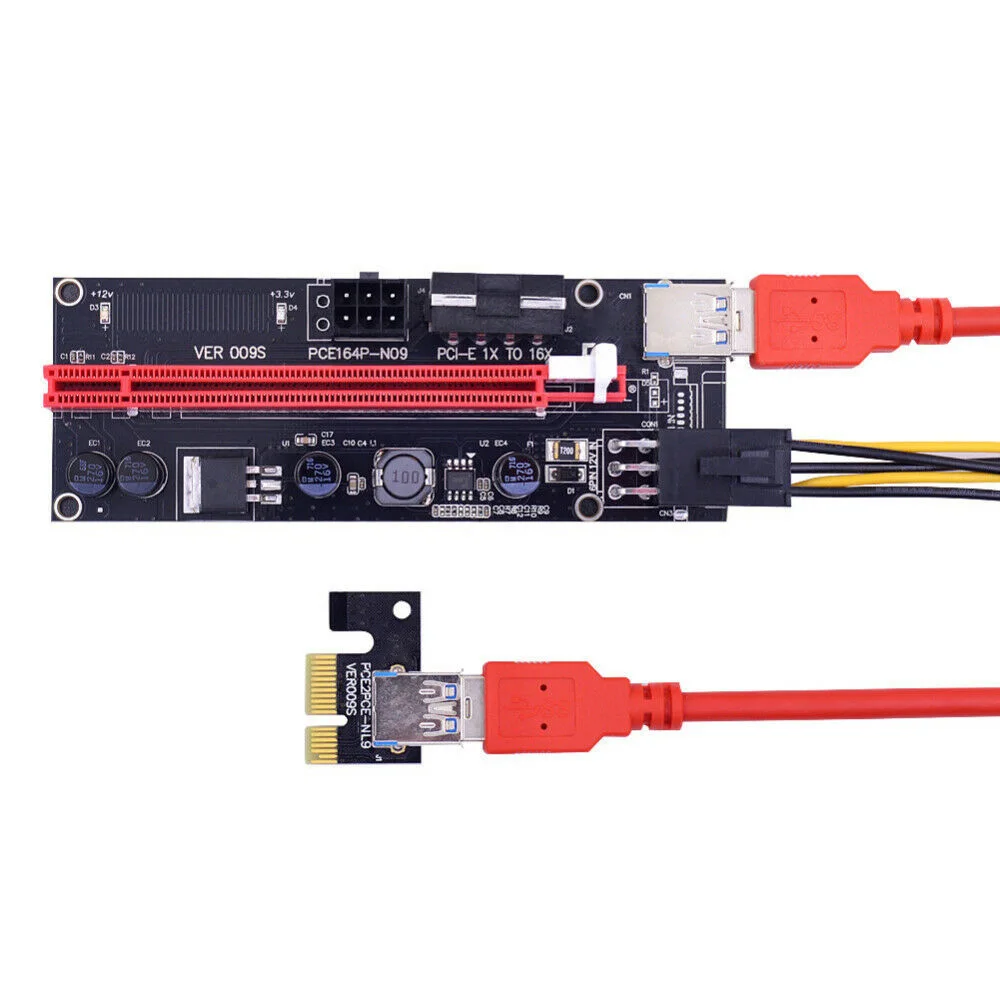

009S RISER

Feature:

1.4PIN and Two Graphic card 6PIN interface are optional to power, which provides Graphic card independent power and reduces motherboard burden when using more Graphic cards. With 4pcs anti-explosion capacitors, making graphics power supply more stable and secure.
2.Stable resistance, makes data more stable and safer.
3.With 6 pin interface, more powerful, and reduce the burden of the motherboard.
4.Slot with a fixed buckle, easy to remove and fix graphics card so that the card will not fall off from the slot.
5.Version 009S riser kits are the newest and top of the line solution for setting up GPU mining rigs. 4 Solid Capacitors, 60cm USB 3.0 cable, Suitable for all Window systems, XP and LINUX

Specification:

Type Name: PCI-E Riser Card Extender Cable
Color: Black
Material: Metal+Plastic

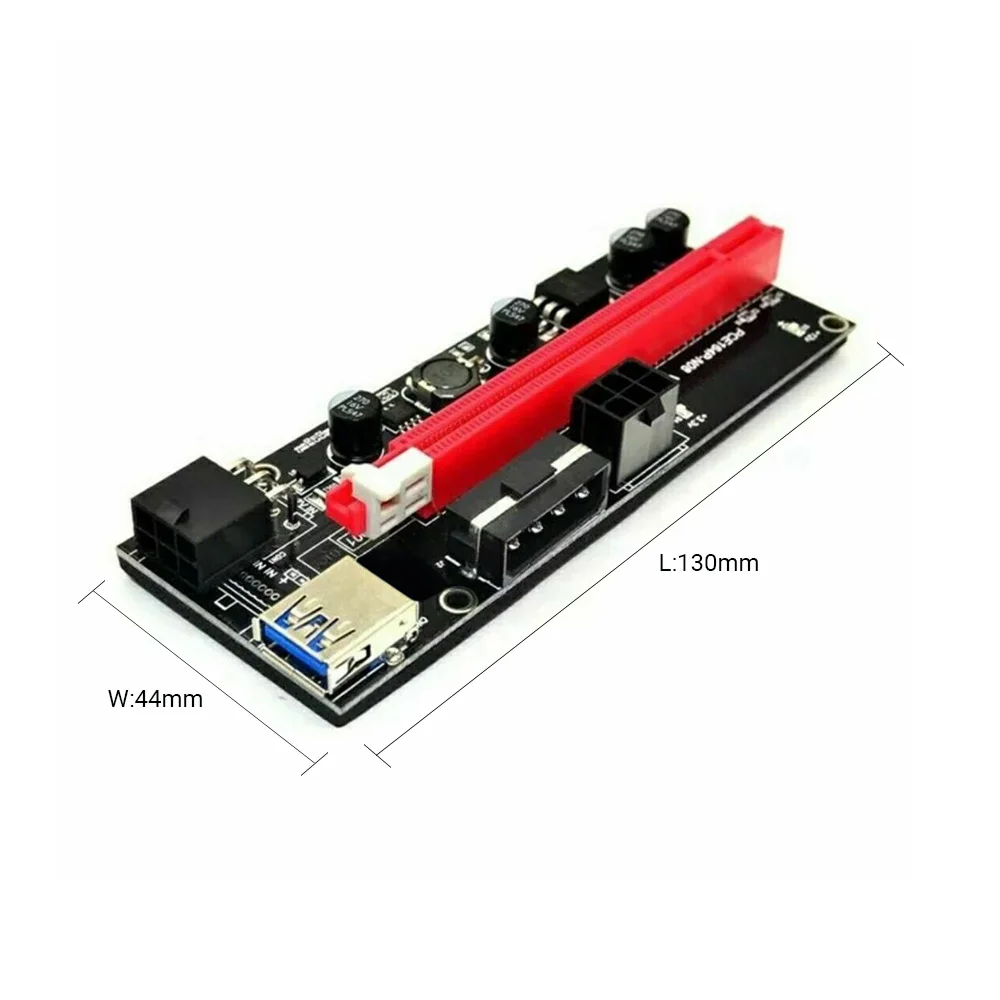

Size:130*44mm
USB Cable length: 60cm
Interface: PCI-E, USB3.0, 2pcs 6Pin,4Pin
