CONTEC TLC6000 ЭКГ/ЭКГ Holter Monitor Dynamic 48 часов 12 свинцовых + бесплатное программное

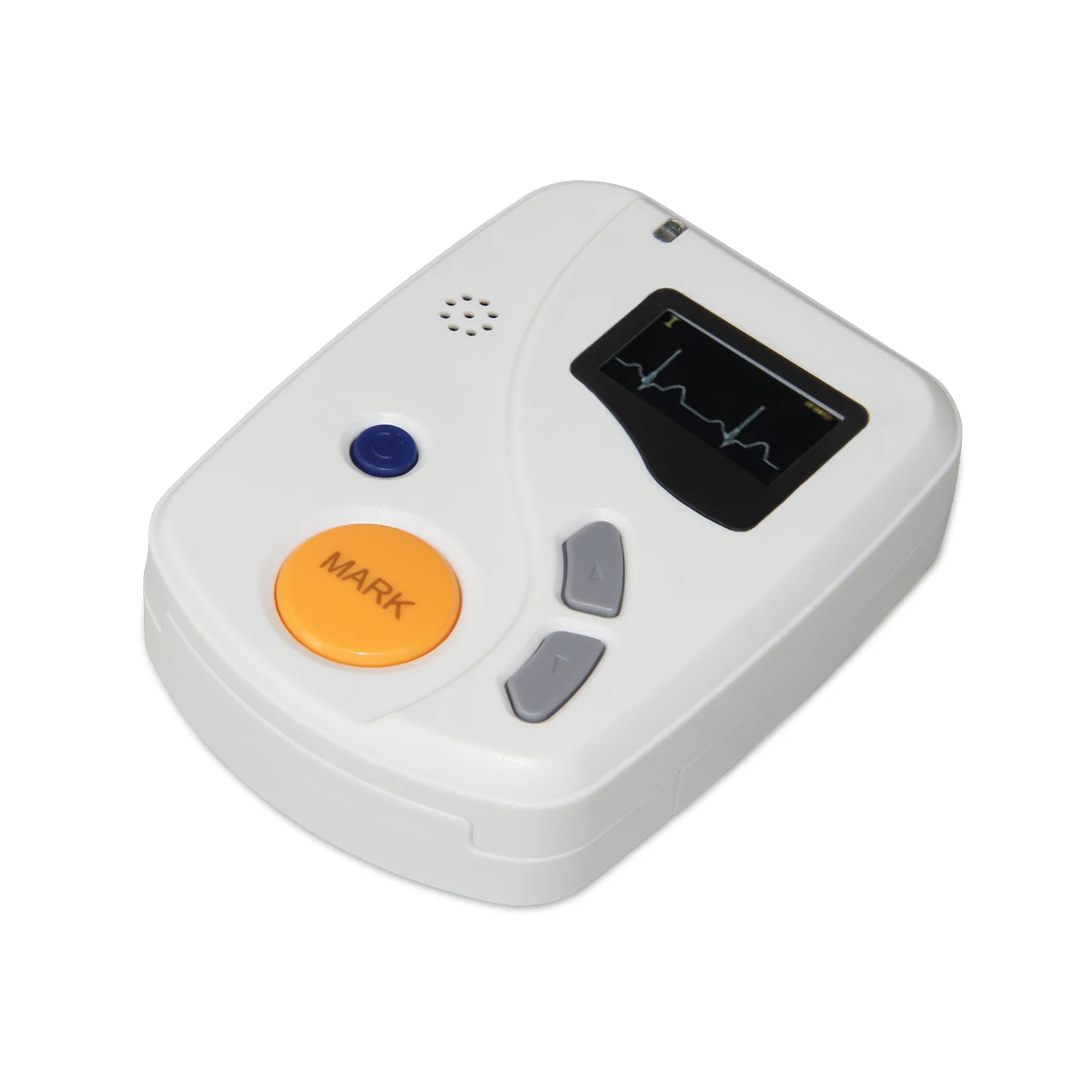

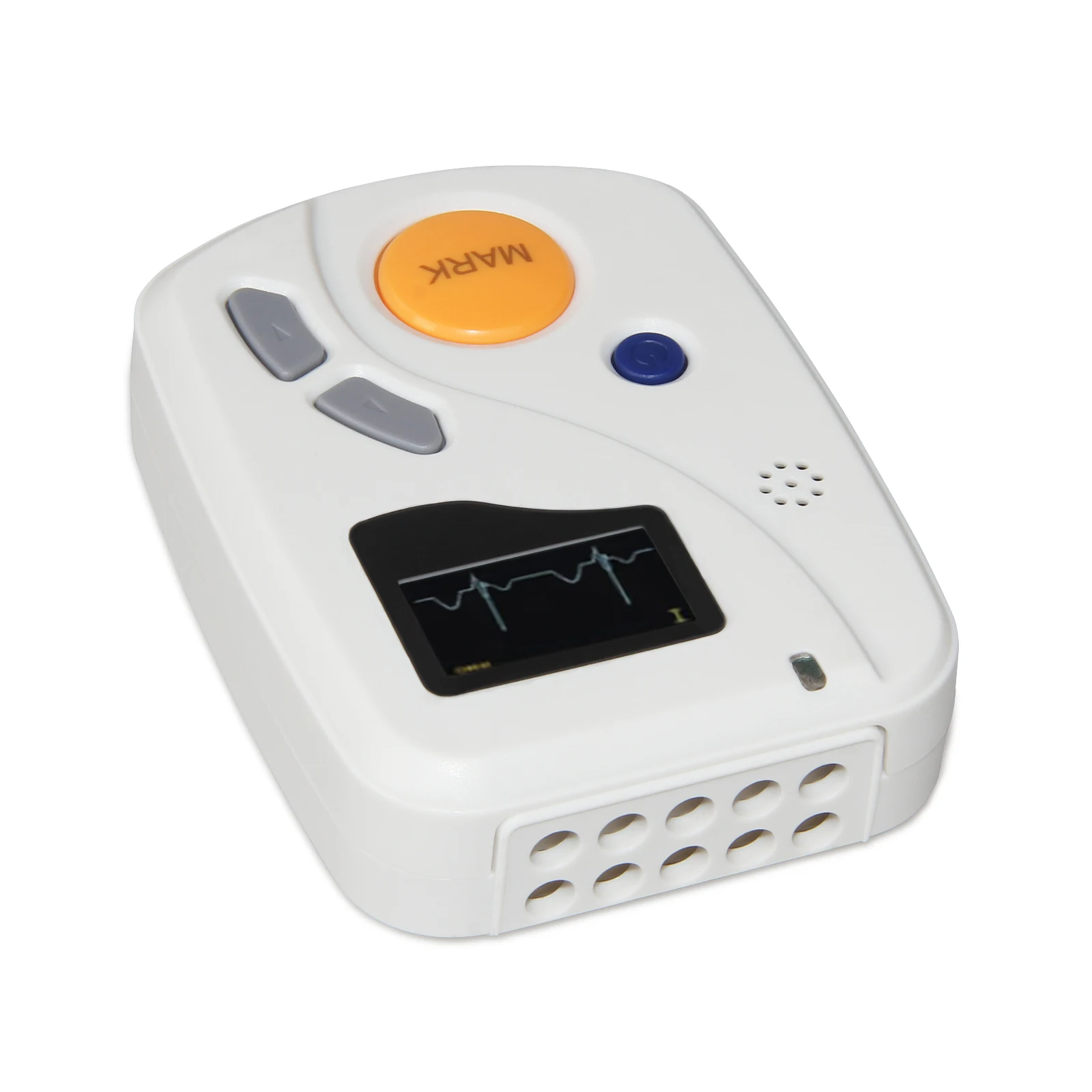

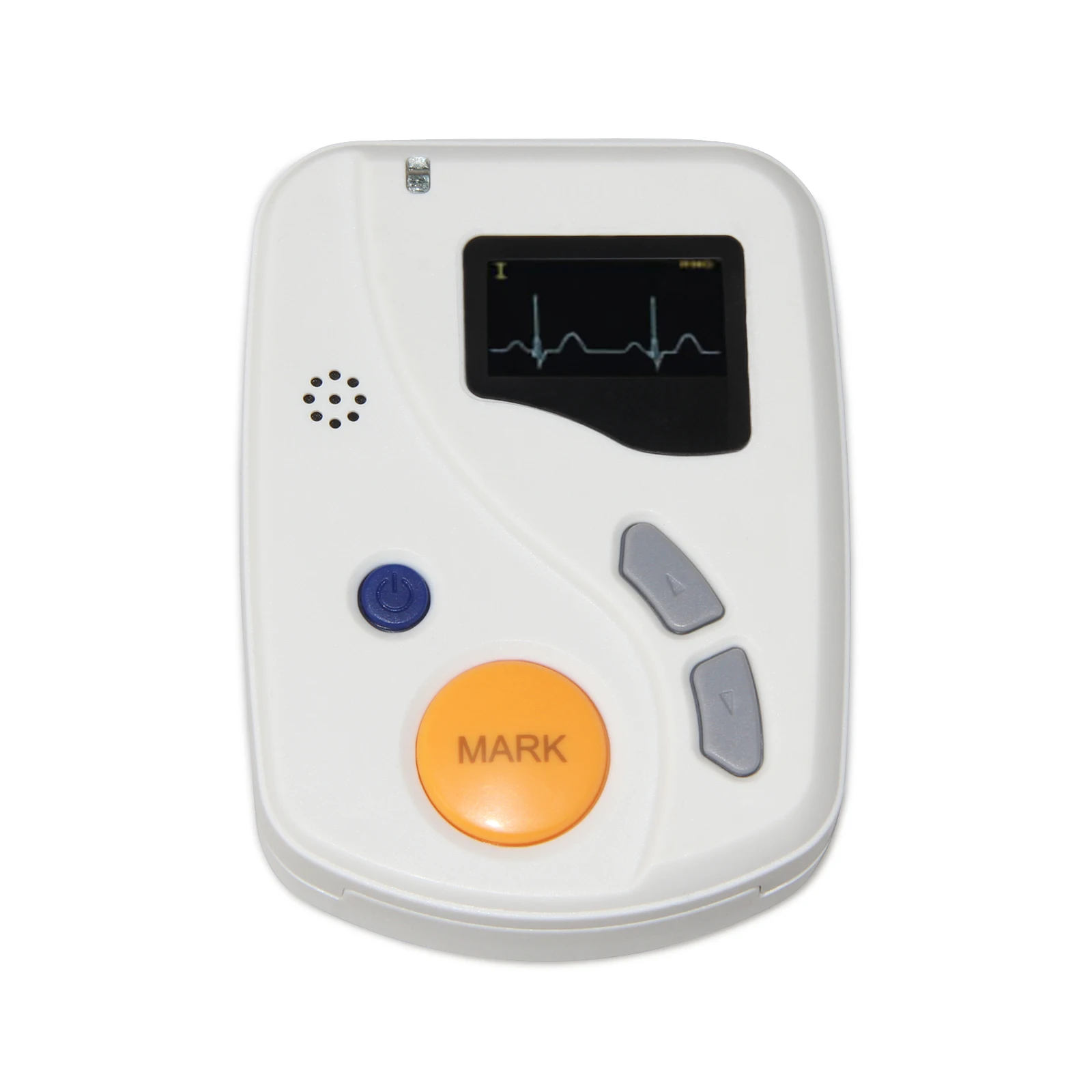

CONTEC TLC6000 ECG/EKG Holter Monitor Dynamic 48hours 12 Lead + Free PC Software

Introduction
Dynamic ECG Systems adopt 12-lead system of international standard, which
can continuously record ECG waveform for 48-hour (high energy battery) and
analyze ECG waveform by the PC software. It is applicable for use in medical
institution and community.
Function
1)Adopt 12-lead
system of international standard, continuously record ECG waveform up to
48-hour.
2)Sync analysis for 12-lead, and any channels can be selected as the
main analysis channel, which ensures that QRS waveform can be found accurately,
and no distortion.
3)With more than 10 templates(such as atrial premature
beat, ventricular premature beat, long interval, atrial fibrillation, etc.) and
many user-defined modules, which can almost distinguish any kind of pathologic
waveforms.
4)Flexible atrial fibrillation analysis, which ensures that
physicians can use the whole or segmented AUTO/manual analysis, more accurate in
atrial fibrillation analysis.
5)All pacemakers(such as AAI, VVI, DDD etc.)
can be analyzed by the powerful pacemaker analysis function.
6)Single or
full-lead ECG in any time bucket can be reviewed by the fast review analysis
function.
7)With analysis functions for 5-minute, 1-hour and whole heart rate
variability.
8)One-key print, convenient and fast to print the
reports.
9)The death risk in patients with myocardial infarction can be
predicted by the "HRT" analysis function.
10)“T-Wave alternation” is an
important index to predict the malignant arrhythmia and sudden cardiac
death.
11)With QTD(QT dispersion), VCG(vector cardiogram), VLP(ventricular
late potential) and TVCG(time vector cardiogram) analysis modules, more valuable
in analysis report.
Performance
Lead: standard
12-lead
Power supply: one “AAA” alkaline battery
Interface:
USB2.0
Sampling frequency: 200Hz
Input impedance: ≥10MΩ
CMR:
≥60dB
Gain accuracy: At all possible gain settings, the maximum amplitude
error of the output is ±10%
Gain stability: One minute after energizing the
device, the gain change in stable ambient conditions shall not exceed 3% over a
24h period.
System noise: ≤50µVp-p
Multichannel crosstalk:
≤0.2mV
Frequency response: The amplitude response to sinusoidal signals
within the frequency range 0.05Hz to 40Hz shall be between the +3dB to -3dB of
the response at 5 Hz.
Minimum measure signal: 50 µV
Timing accuracy: the
overall error during 24h shall not exceed 30s.
