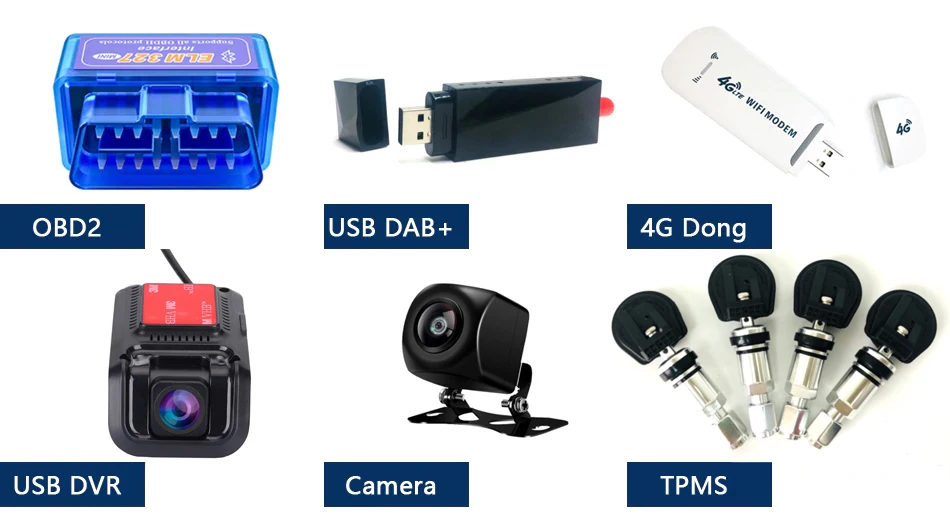

Optional Accessories to perfect your user Experience

Idoing 9"Android Car Radio Player For Kia CEED Ceed 2 JD 2012-2018 PX6 GPS Navigation Carplay Auto Head Unit Bluetooth 5.0 NOdvd

Full installation video:    //youtu.be/WbELtYw6te0

Brand

Idoing

Din

 1 din

Operating System

Android 10 system

CPU

Rockchip PX6,Dual Cortex-A72 + Quad Cortex-A53, 64-bit

DDR

SAMSUNG DDR3 4GB

EMMC

64GB

Max External Memory

128G

Radio

FM/AM/RDS

Screen

IPS Full Touch Screen

Screen Resolution

1280*720

GPU

G6110 GPU

Radio IC

NXP 6686

Power amplifier IC

TDA7850

Bluetooth IC

BC 5.0

Power supply

4*50 W max

Video Decoder

1080P HW

DSP

15-Bands Equalisation

OSD Language

English,Russian,Spanish,Turkish,Portuguese,Arabic,Italian,German,French...for up to 70 national languages

Built in

Wifi,GPS+GLONASS,Bluetooth,MIC,Split screen,Mirror Link for andriod phone and iphone,WIFI

Support

Support external Car-Play,Andriod Auto,DAB+,Bluetooth,OBD2,Reverse Camera,USB DVR

Multi media Parameters

Music Format

MP3,WMA,AAC,RM,FLAC etc

Video Format

MPEG-1/2/4,H264,H263,VC1,RV,H265,DivX,Sorenson SparK,Spark,VP8,AVS Streamhellip

Picture Format

JPG/BMP/JEPG/GIF/PNG

Radio Parameters

Frenqency Range

FM:76.0MHz-108.0MHz

Frenqency Range

AM: 522KHz-1620KHz

Country

Australia,Europe,Russia,USA1,USA2,

Amplifer Parameters

Test Voltage

14.4V

Max output power

4*50W

GPS Parameters

Support Map

Android 9.0 Map:google/here/sygic/tomtom/waze/igo...

Main Frenqency

1.575GHz

WIFI Parameters

Power supply

Vcc_3.3V

Suppoted Protocol/standard

IEEE802.11B/g/n compatible WLAN

Interface type

USB2.0

Frequency

2.4-2.484GHz

Modulation

OFDM/DBPSK/DQPSK/CCK

RF Power

15dBM

Could you take a picture to show your car center dash console if you are confused!

Idoing 9" Universal Newest Version Android Car GPS System

Vehicle Fit List and Installation TIPS:

car model number and year for your reference:

Product installation size(Very important)

All the car model numbers listed are just for reference, you canrsquot depend on it 100%. Because it happens occasionally that the same brand same model car made by different factories may have different car original radio/CD player. Sometimes the same car in different countries may have different names because of car company marketing strategy. As a professional international seller, we will try to send you the right product. Exchange products or return will waste your time, import tax and expensive shipping cost.

About The Tablet

Provide you with more choices,for up to 70 national languages.

Android 10 Operating System

LITTLE CPU: Quad-core Cortex-A53 – Optimized for low power

Experience incredible Performance and improved power efficiency with the powerful Hexa-core 64 bit processor.

2.5D+IPS Display Screen

2.5D,prevent scraping,IPS screen for all viewing angles very clear.

What is 2.5D?Please check this video. //youtu.be/klQffAjZ4fc

Build-in Digital Signal Processing (DSP)

FM/AM/RDS Radio

1.Automatic or manual station search function.

2.Support RDS function.

3.AM/FM radio (AM 2 bands,FM 3 bands).

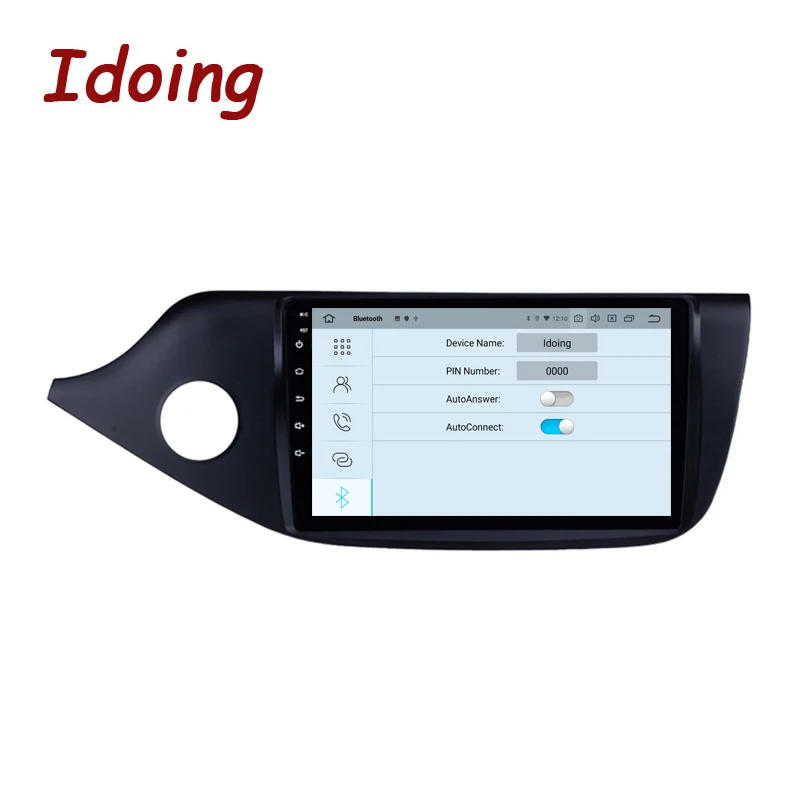

Bluetooth 5.0

1.Built-in bluetooth for hand free calling.

2.Phonebook fuction(avaliable for mobile support Bluetooth contacts output).

3.Can connect your phone and our OBD dongle simultaneously.

4.A2DP Bluetooth music(available for mobile support Bluetooth audio output).

5.Can not support:file transfer,internet sharing.

Silicon crystal microphone

1.silicon crystal mic for bluetooth hand-free calling better sound quality.

2.radio built-in silicon crystal mic and external 3 meters long silicon crystal mic.

Cool 3D Navigation (GPS+Glonass Dual Satellite)

1.Built-in GPS+GLONASS dual satellite positioning system, more accurate positioning, stronger GPS signal.

2.map can be run the background to achieve music navigation functions.

3.support GPS dual-zone function,passengers can continue to play multimedia while drive navigating.

4.Support maps:google/here/sygic/tomtom/waze/igo...

5. Pre-install off-line map inside radio flash,if we do not have your country map,we will leave message to let you know.

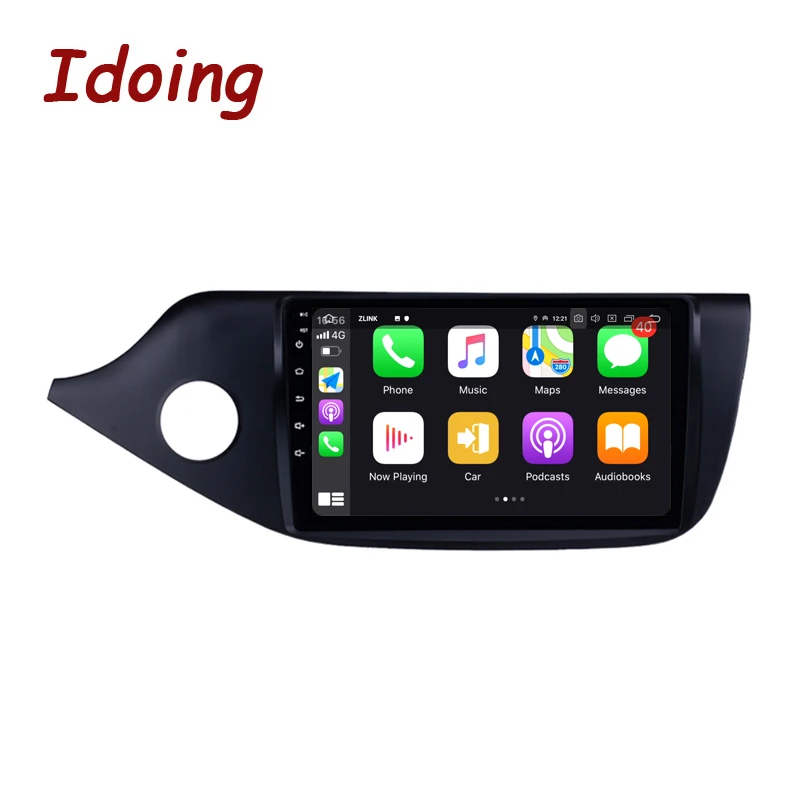

Built-in Car link (Wired+Wireless Carplay+Wired Android Auto)

Steering Wheel Control

Steering wheel remote adaptor ready to take control of your music safely on the move, with this function,you can intently focus straight ahead, which will make the driving safer.

TIPS: this function is available for most of the car,can only work with the car which support analog signal.

Multimedia Function

Support 9 EQ Equalizer for music,video display album art,songs title,singer name,lyric info from default player.

Support full HD resolution 1920*1080P pixels videos.

Support media format: MP3, VMA,MPEG1/2/4,JPEG,DVIX,CD-DA,CD-TEXT.SUPPORT.

Support breakpoint memory play.

HDMI Output

The HDMI output port provides a connection method between the head unit and an HDMI enabled monitor or other device. With an HDMI cable, you can share the high definition video and high quality audio with all passengers in your vehicle.

Support OBD2

You can connect a bluetooth OBD2 scanner tool to use this function.

Tips: OBD2 is optional,Suggest you buy it from us.pls click this picture:

Support external 3G/4G Modem

Support Rear View Camera (can not support original car rear view camera)

1.Support reversing mirror, mirror horizontally,rear automatically enter the rear video.

2.Support radar display.

3.Support backing track(track data to provide auto protocol).

Tips: Not inclding rear view camera,suggest you buy it from us.

Support DAB+

1.connect with a DAB+Box via USB port to use DAB+ function.

2.support input digital radio programs and touch operation.

3.support touchscreen to search programs.

Tips: Not including DAB+ BOX,suggest you buy it from us,pls click the picture:
