WiFi Thermostat for Electrical/Water/Gas Boiler Weekly Programmable Electronic Digital Thermoregulator Room Heating for Alexa

Note:
BHT-6000GA is for water heating;
BHT-6000GB is for electric heating;
BHT-6000GC is for water/gas boiler;

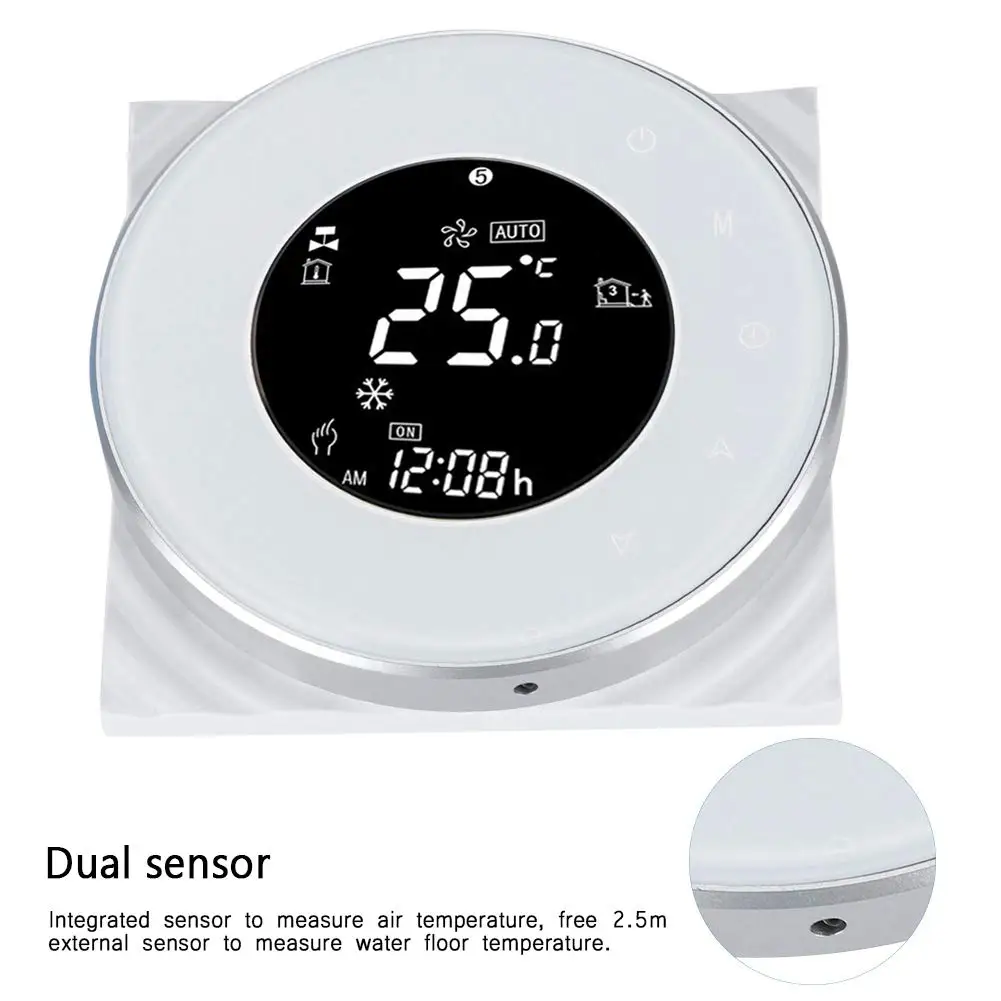

Electric heating has external sensor , Water heating and Gas boiler heating without external sensor
There are two types of this product with WiFi and no WiFi, please purchase according to your needs

Technical Parameters
Power Supply: 95~240VAC, 50~60HZ
Current Load: 3A (water heating/water boiler/gas boiler)16A (electric heating)
Sensor: NTC3950,10k
Accuracy: ±0.5 ℃ or ±1 ℉
Set Temp. Range: 5-35 ℃
Dispaly Temp. Range: 5~99  ℃
Ambient Temp.: 0~ 45 ℃
Ambient Humidity: 5~95 % RH (Non Condensing)
Storage Temp.:-5~45 ℃
Power Consumption:<1.5W
Timing Error:< 1%
Shell Material: PC +ABS (Fireproof)

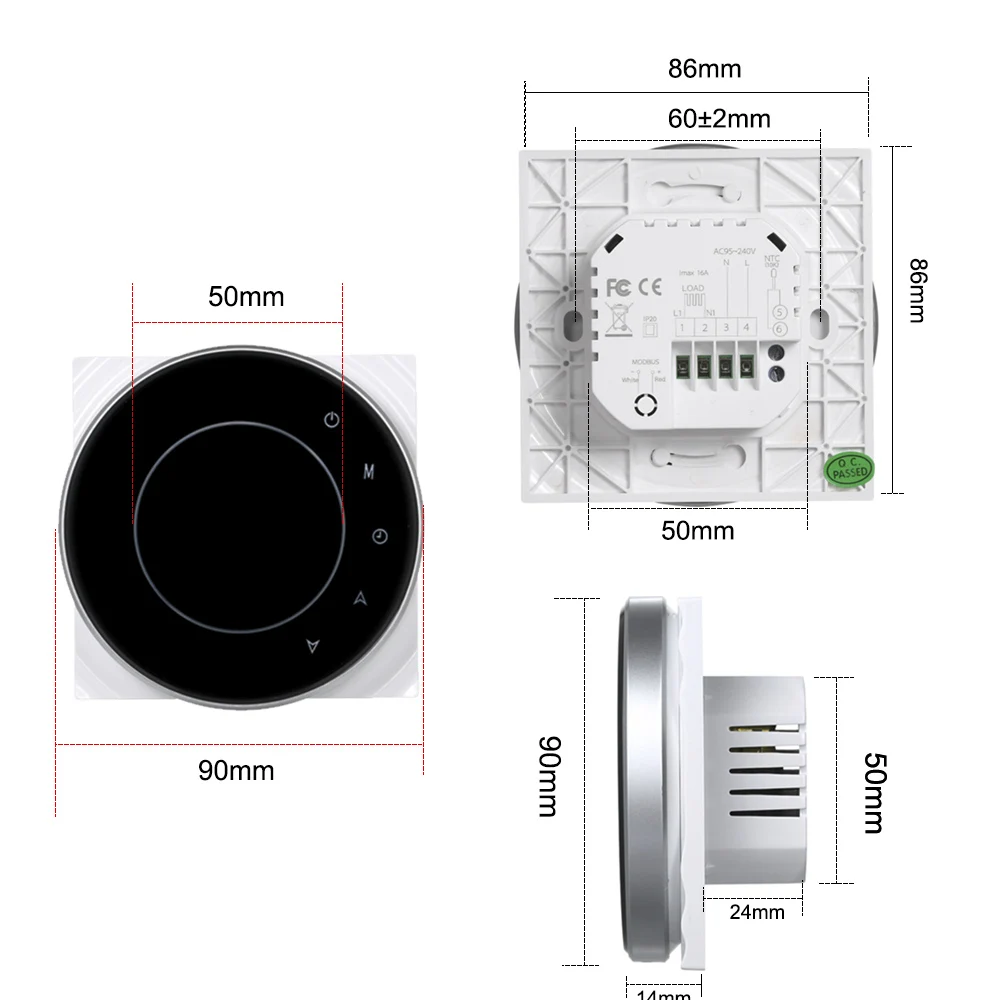

Installation Box: 86 * 86mm Square or European 60mm Round Box
Wire Terminals: Wire 2× 1.5 mm2 or 1x 2.5 mm2
Protection Class: IP 20
Buttons: Capactive Touch Buttons
Product features

1

2

1

3

01

4

AL

5

05

6

35

7

00

8

00

9

45

A

0

B

20

C

04

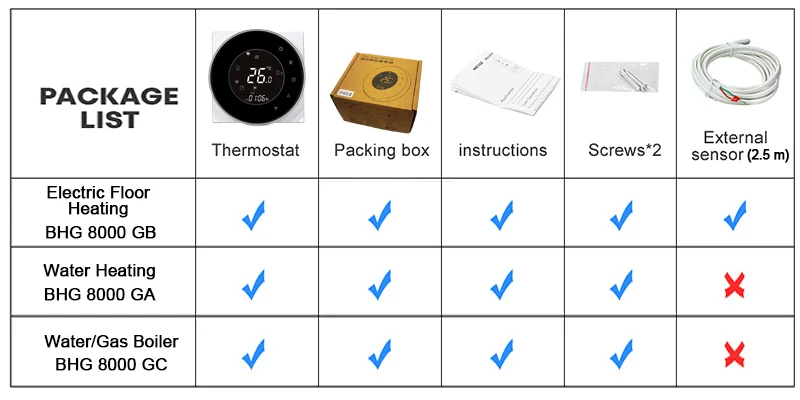

Packing List

Thermostat x1
Screw x2

English Manual x1

1. Powerful Functions Are Available Such as BACnet/Modbus/Wifi etc.
2. 0.5°C Accuracy Keeps temperature within the level you set
3. Data Memory when power is off
4. 5+2Six periods Programmable Maximize Comfort and Econom

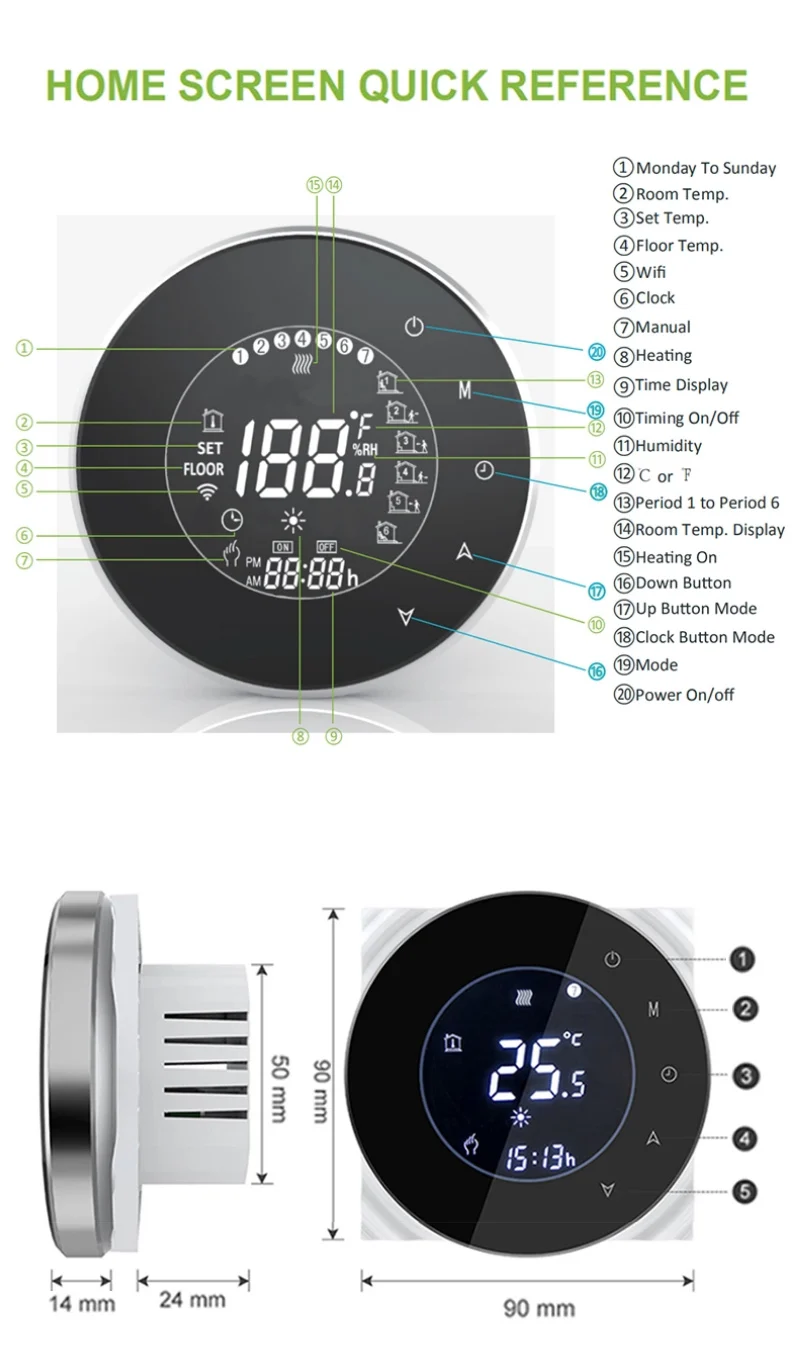

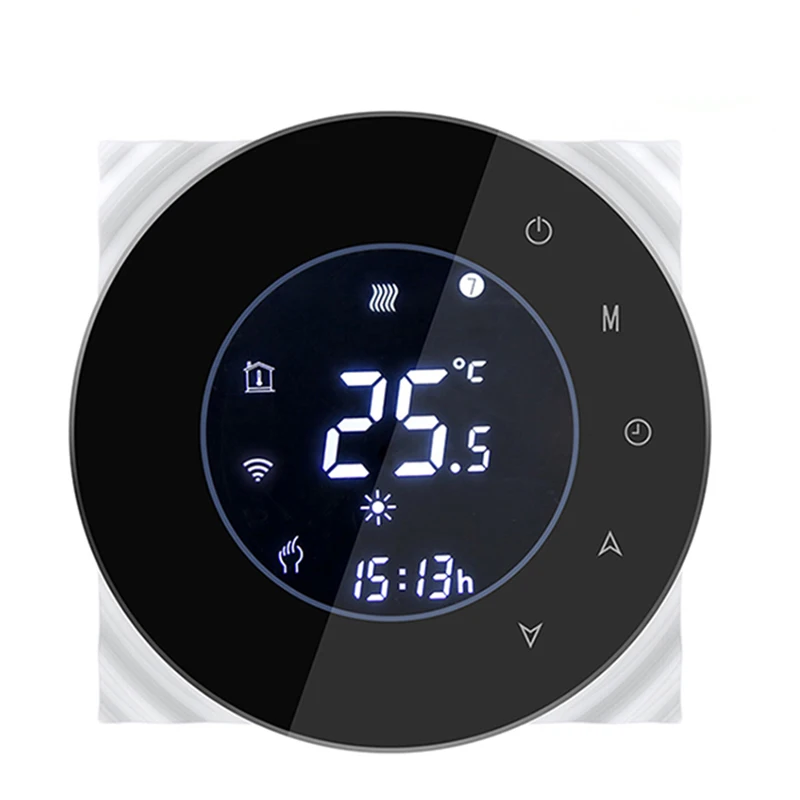

1. Power On / off, turn the thermostat on / off
2. Mode Key, switch between Manual & Program mode
3. Clock Button Mode,set minute, hour and weekday
4. Up Button, adjust the settings
5. Down Button, adjust the settings

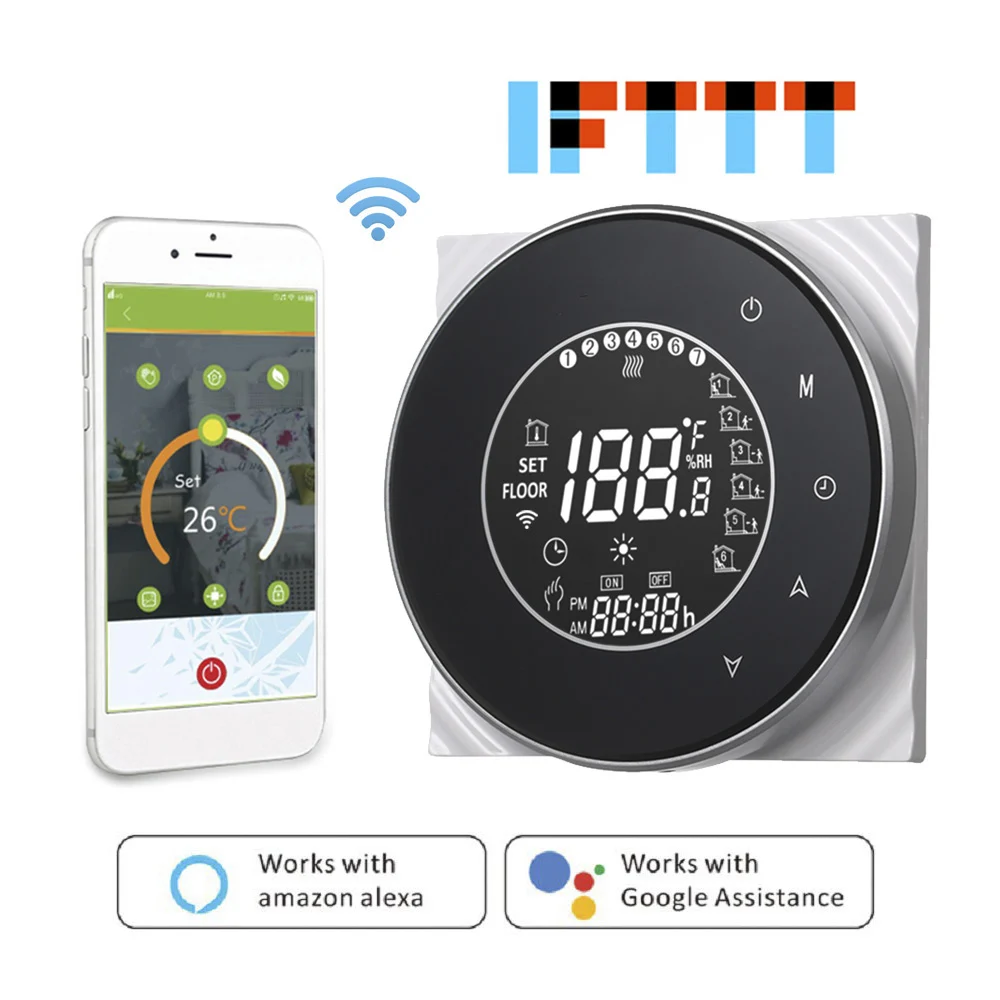

Voice control, compatible with Amazon Echo, Google Home, IFTTT.

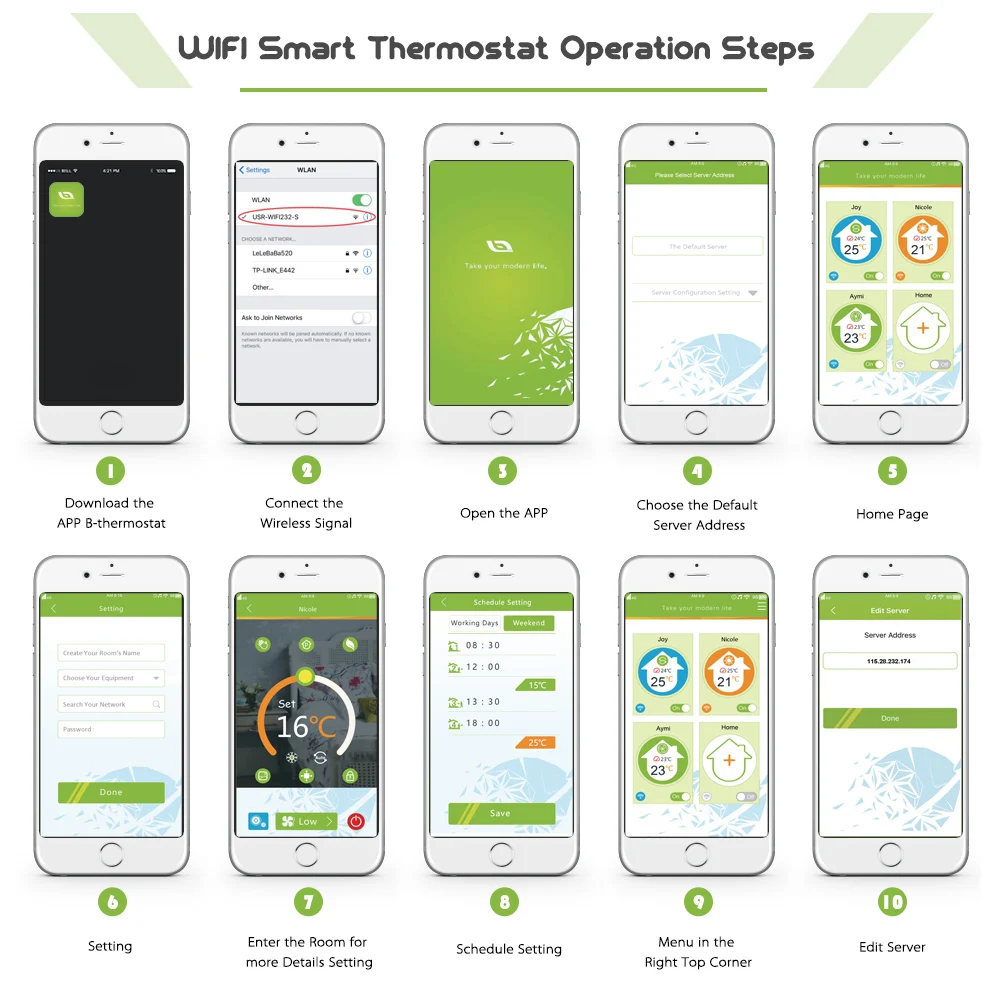

App remote control, convenient for you to control your thermostat with your mobile device.
This feature is available only if you select the WIFI model.

This thermostat has been developed to control water/gas boiler heating room thermostat.
Weekly programmable and 5+2 six periods programmable to maximize comfort and economy, very flexible.
WiFi and voice control, convenient for you to control your thermostat with your mobile device (only type 2).

Supporting 14 different kinds of language, including English/German/French/Russian/Spanish/Italian, etc.
That follow your phone setting.

INSTALLATION
Your thermostat is suitable foe installation within a standard 86mm pattress box or European 60mm pattress box

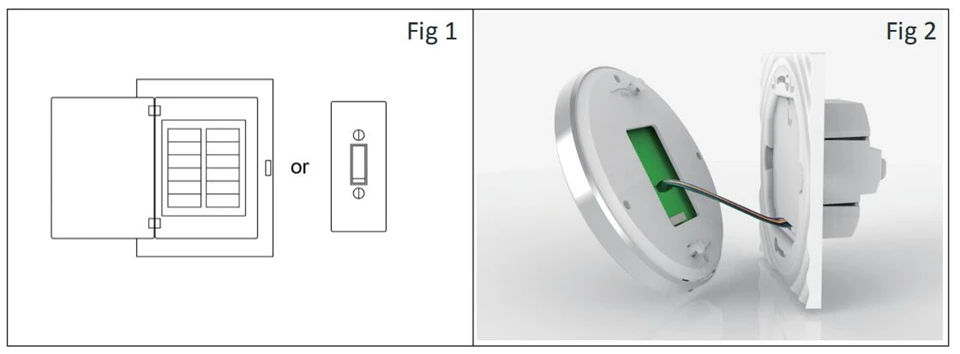

Step 1. Keep power off. See Fig 1
Step 2. Remove the mounting Plate by rotating the LCD part. See Fig 2.

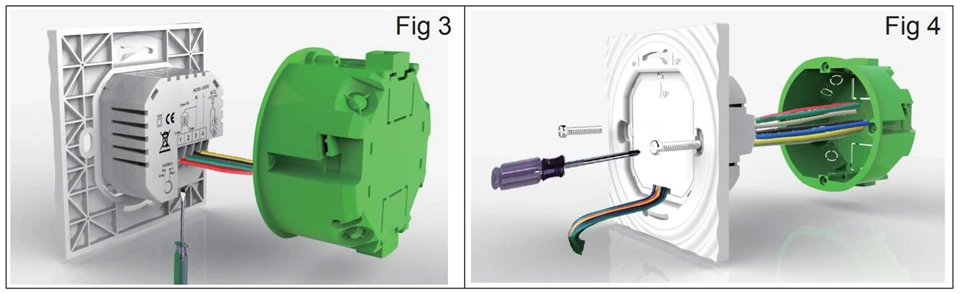

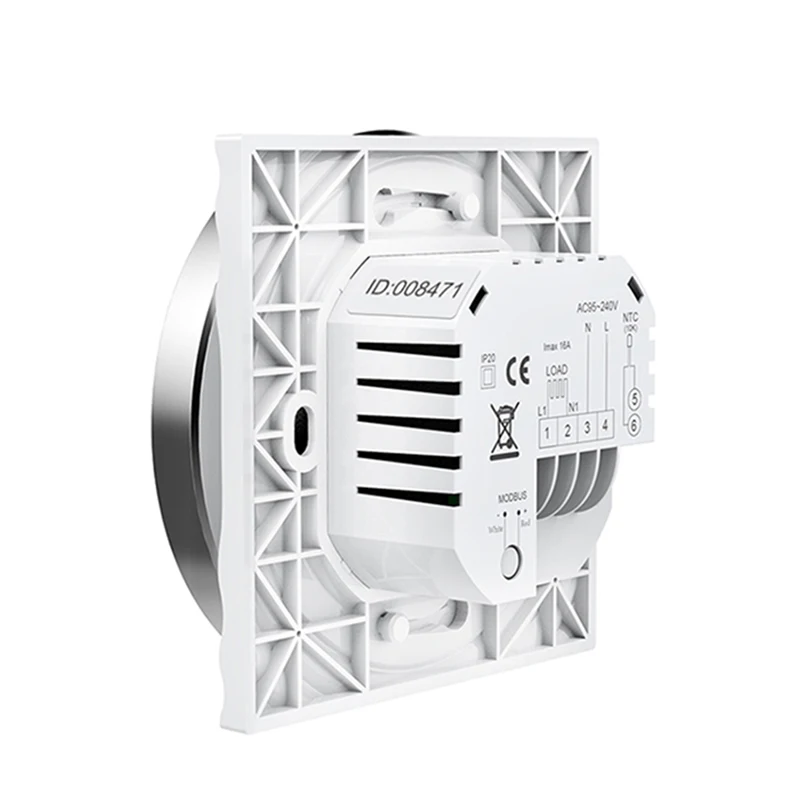

Step 3. Connect power supply, load into the appropriate terminals. (see "Wiring your thermostat" for details and Fig 3).
Step 4. Fix the mounting plate into the wall with screws in the box. See Fig 4.

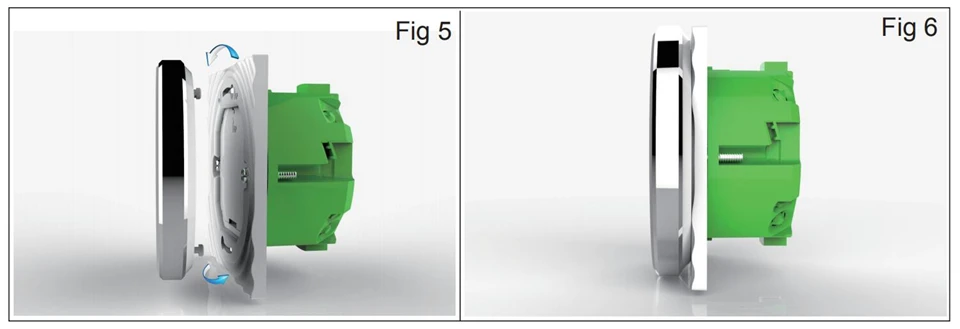

Step 5. Fasten body of the thermoatat and the mounting plate through rotating. See Fig 5.
Step 6. Installation complete. See Fig 6.



Installation Notes:
Please confirm that this product is suitable for your heating equipment before installation;
Be sure to keep the power off before installation or maintenance;
Please strictly follow the wiring diagram for wiring installation;
Please confirm that the fastener is suitable for this product when installing to the wall;
Do not pull the cable hard, otherwise the product will be damaged;
If a hard plastic wire is used in the installation process, it must be bent to an appropriate angle in advance;
Please arrange professional installation;
Please contact the after-sales service for equipment failure, please do not try to repair it yourself;
After installation, please check this manual again to ensure normal and safe use, and keep this manual properly
