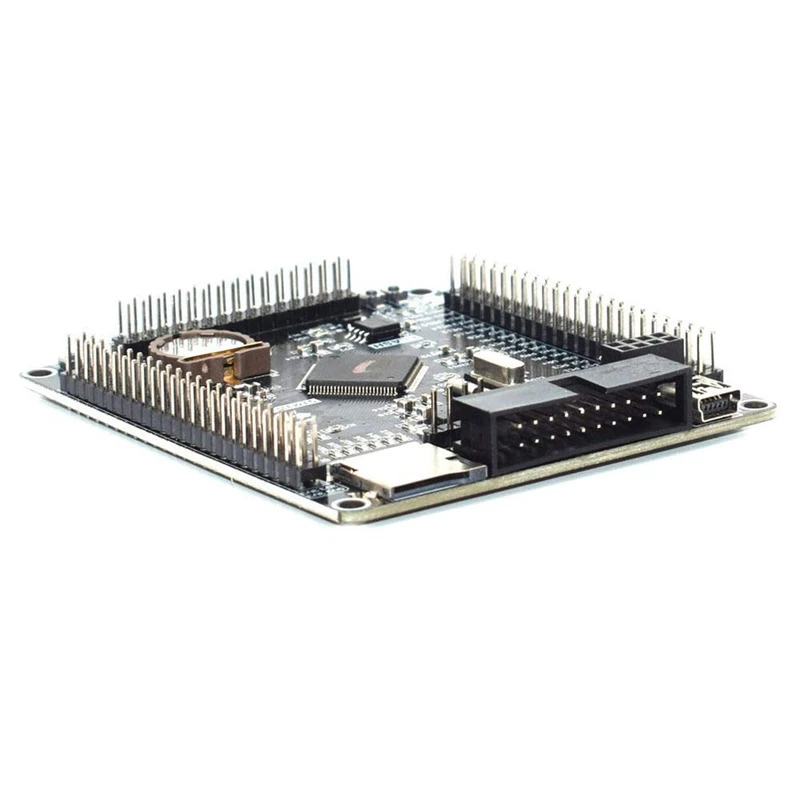

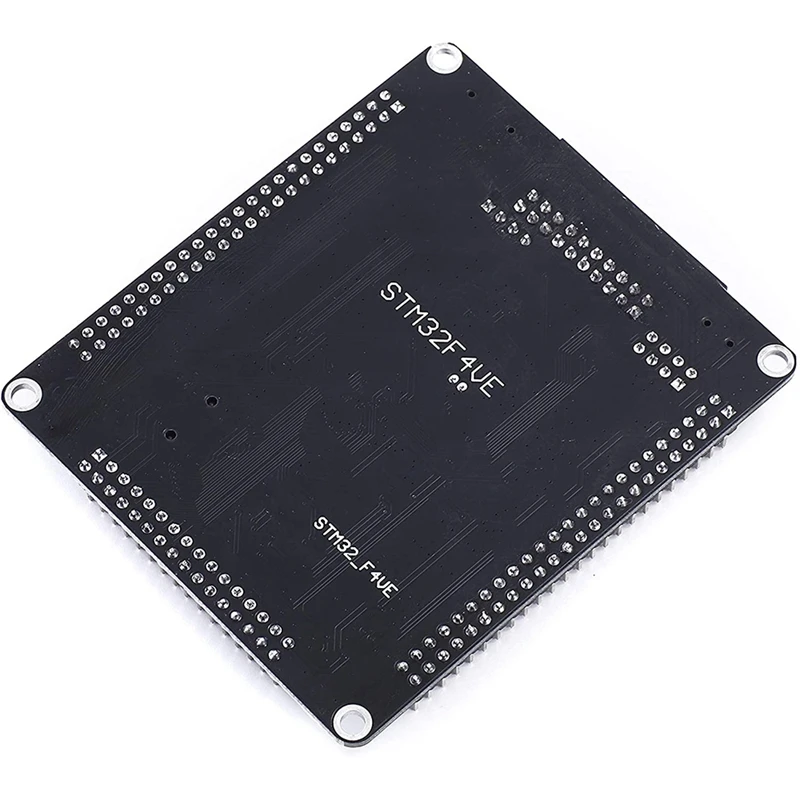

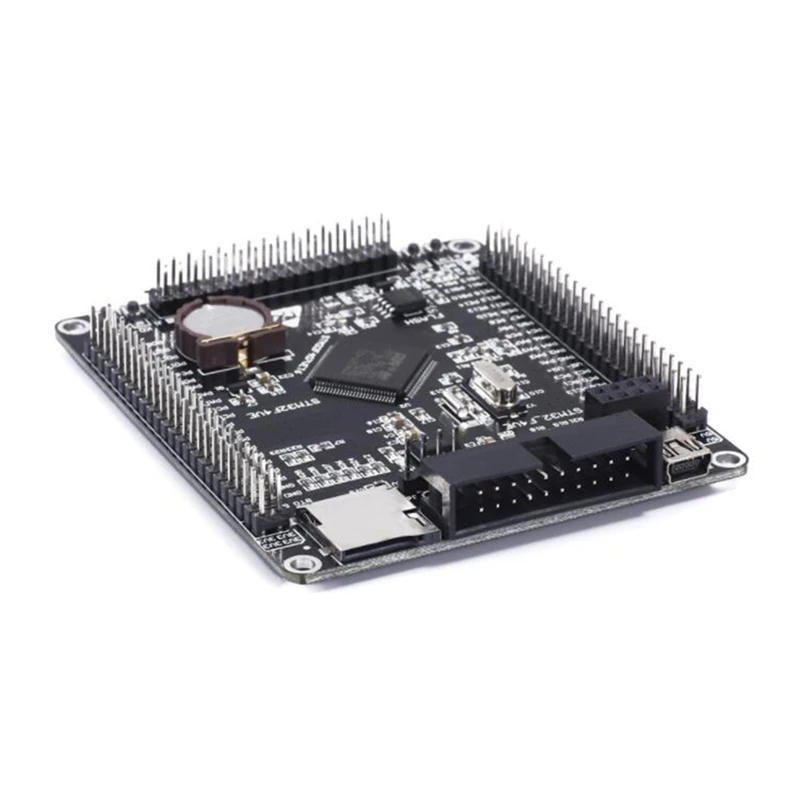

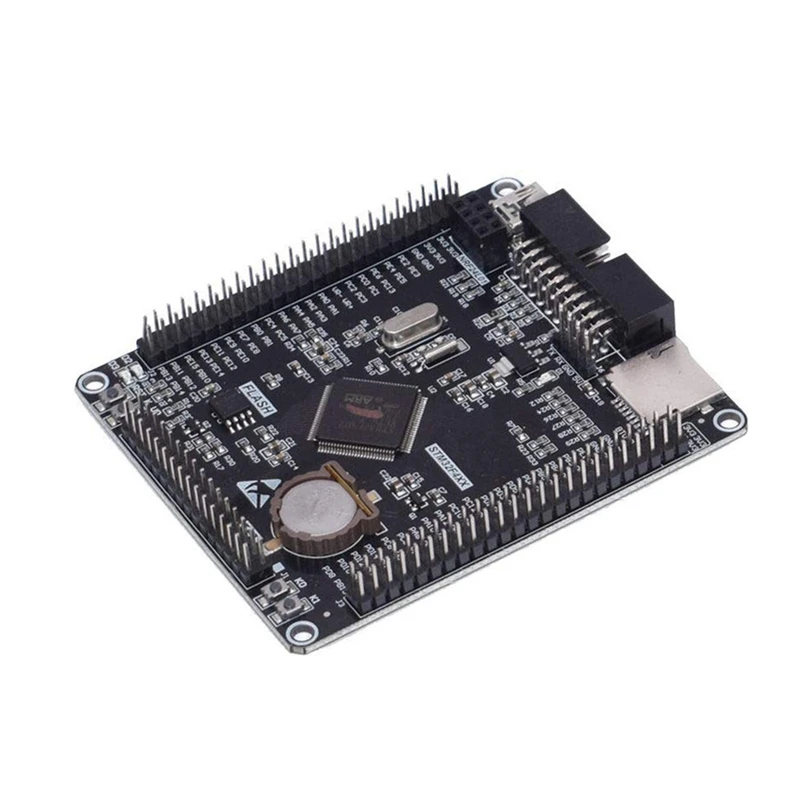

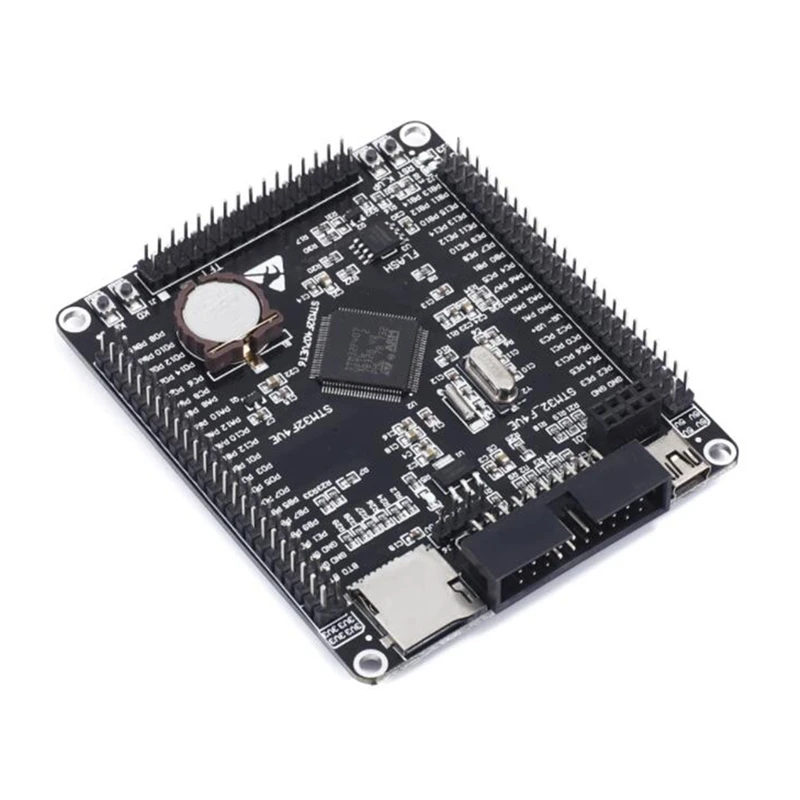

STM32F407VET6 Development Board STM32 Minimum System Learning Board ARM Core Board F407 Single-Chip Learning Board

Onboard: SD card connector
The wireless communication: NRF2401 Interface
Data storage: W25Q16
Supports FMSC LCD interfaces, Multi-user keys and all CPU-IO leads;
2.54mm integer multiple spacing pin insertion

STM32F407VET6 chip main parameters
Kernel: Cortex-M4 32-bit RISC;
Features: single-cycle DSP instructions;
Operating frequency: 168MHz, 210DMIPS / 1025 DMIPS / MHZ;
Operating voltage: 1.8-3.6V
Package: LQFP100
Storage resources: 512kB Flash; 192 + 4kb SRAM
Resources:
3 X SPI, 3 X USART
2 X UART
2 X I2S, 3 X I2C
1 X FSMC, 1 X SDIO, 2 X CAN
1 X USB 2.0 FS / HS controller (with dedicated DMA)
1 X USB HS ULPI (for external USB HS PHY)
1 X 10/100 Ethernet for MAC
1 X 8 to 12-bit parallel camera interface
3 X AD (12 Wei, 1us, sharing 24), 2 X DA (12-bit)
Colour: black
Material: PCB+plastic+metal

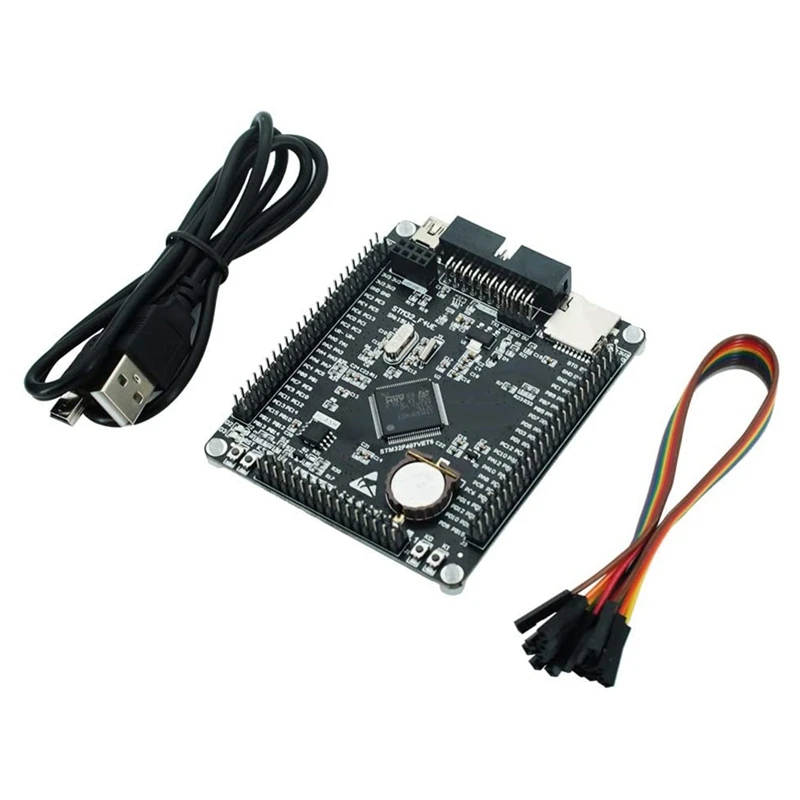

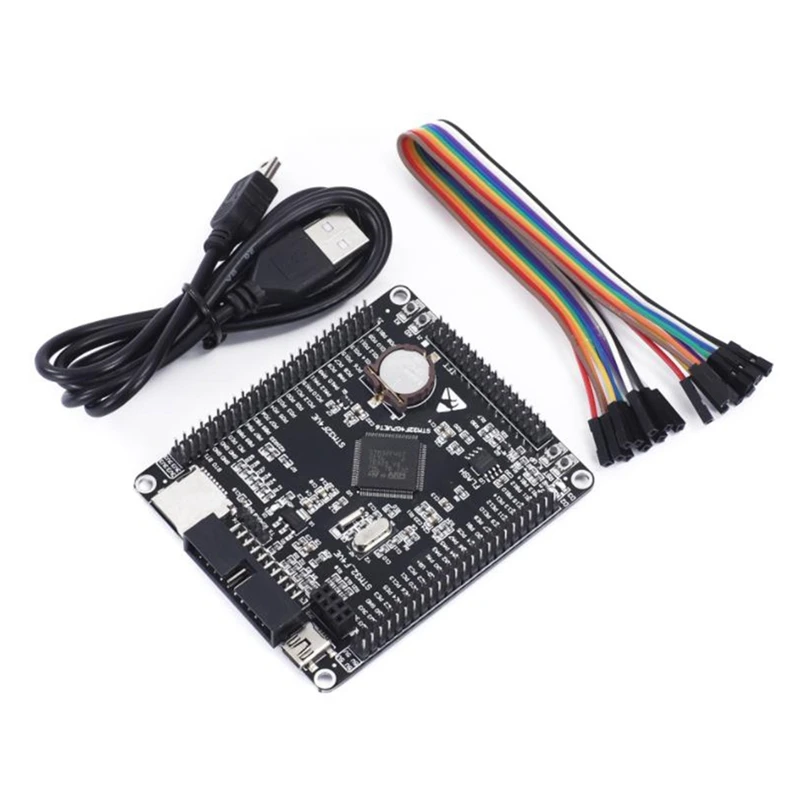

Package Contents:
1 * STM32 development board
1 * USB cable (random colors, don't accept the specified color)
1 * Cable (random colors, don't accept the specified color)

Only the above package content, other products are not included.
