Зарядное устройство для литий-ионных аккумуляторов 18650 BMS 3S 10A 11,1В 12В 12,6В с защитой от короткого замыкания/перегрузки для питания банка/дрели.

Зарядное устройство для литий-ионных аккумуляторов 18650 BMS 3S 10A 11 1В 12В 12 6В с защитой от короткого замыкания/перегрузки питания банка/дрели.

Description

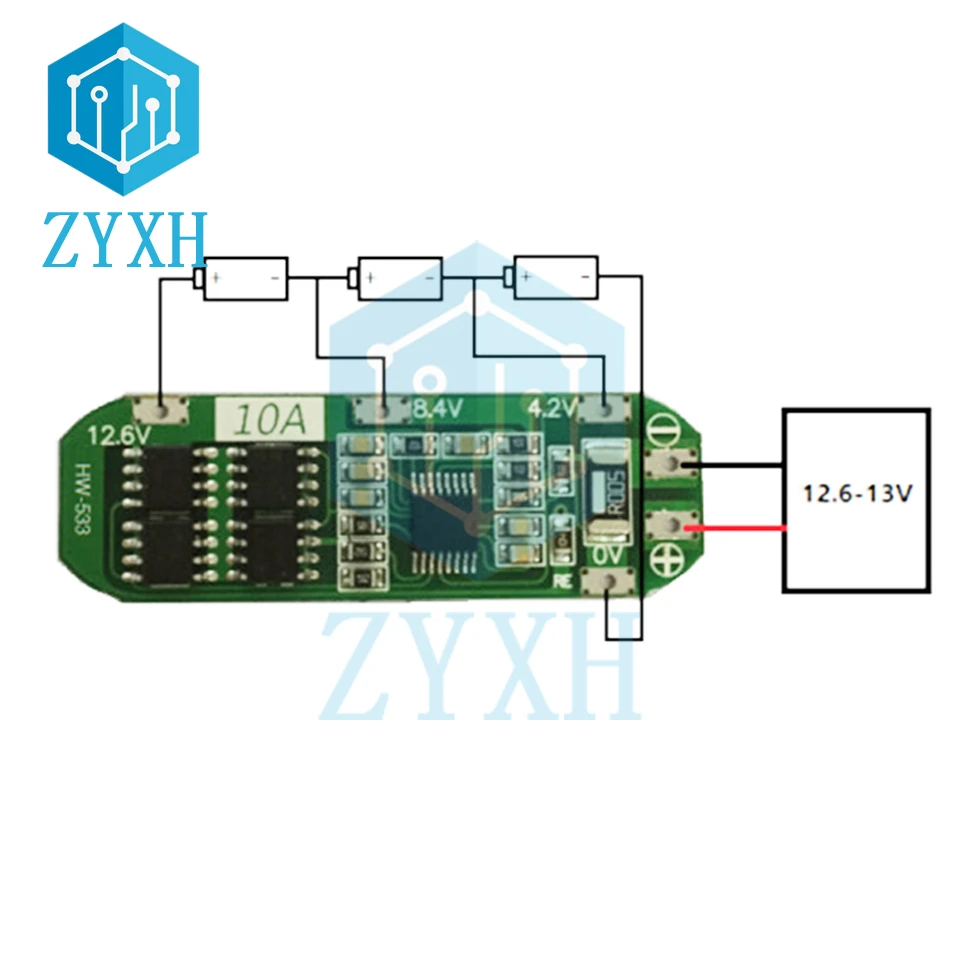

The product is used for charging/discharging 3 lithium batteries in series (lithium ion or lithium polymer batteries). In the process of charging and discharging, it has the functions of overcharge protection, overdischarge protection, overcurrent protection, and short circuit protection, so it can be used with confidence. In life, the common products that can be used for it are: vacuum cleaner, massager battery pack; LED lamp backup power supply, solar street lamp battery pack; monitoring backup power supply and other products.

Parameters

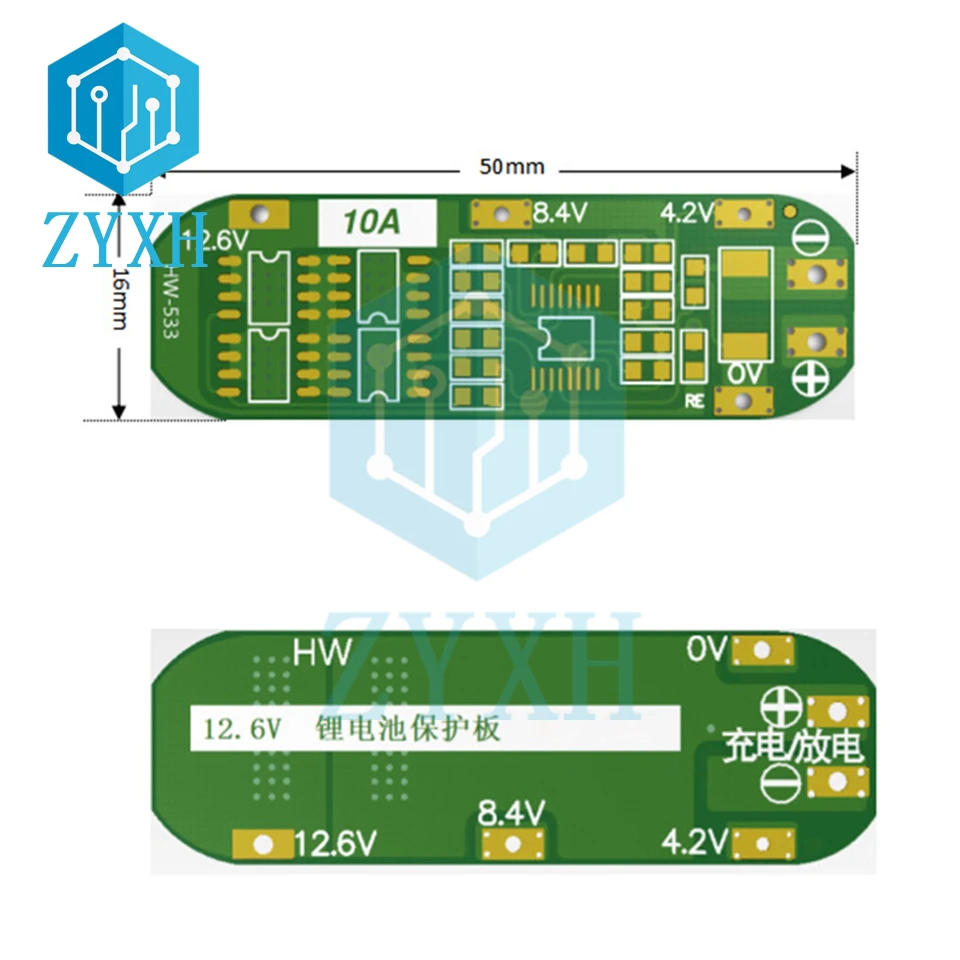

Size: 50*16*1.0mm;
Charging voltage: 12.6V-13V;
Maximum working current: 10A;
Overcurrent protection: 25A;
Quiescent current: less than 6uA;
Internal resistance: less than 60mΩ;
Overcharge voltage range: 4.25-4.35v±0.05v;
Over-discharge voltage range: 2.7-3.0v±0.05v;
Working temperature: -40---+50℃;
Storage conditions: -40-- +80℃;
Effective life: more than 30000 hours;
Short circuit protection: can be protected, delayed self-recovery.
