The color sensor module uses TCS3200D, which is an upgraded product of TCS230D. TCS3200 is a static recognition object color, and output different frequencies according to the color information, the color RGB data can be obtained after the frequency sampling and conversion by the single-chip microcomputer.

We provide sample code that has completed the conversion of frequency to RGB value (convert the frequency value to 0-255, you can check the color table we provide below for specific colors), and users can use it directly with a little modification, which is greatly shortened Time for user development.

Performance characteristics

Main chip: TCS3200D

The output frequency range is from 10kHz to 12kHz, and the duty cycle is 50%

Working voltage: +2.7V～+5.5V

Working current: 1.4mA

Detection status: static detection

Best detection distance: 10mm

Diameter: 36mm

Product parameter
1. Working voltage: 3.3～5V
2. Detection distance: 3～10mm
3. Communication method: IIC

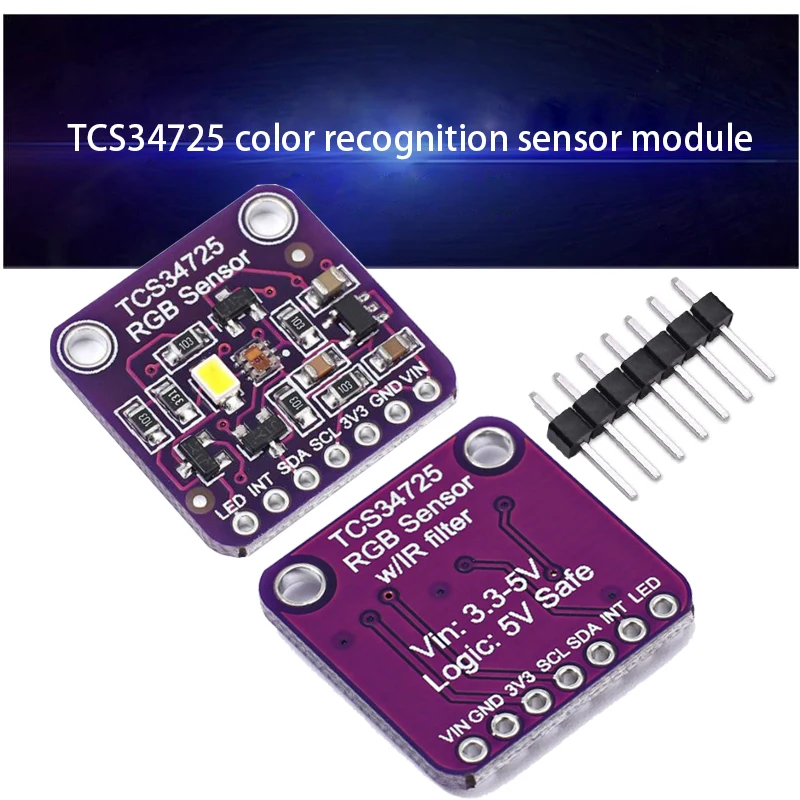

Product pin definition and description
1. VIN power supply positive
2. GND negative pole of power supply
3.3V3 3.3V output
4. SCL clock signal
5. SDA data signal
6. INT interrupt output, active low

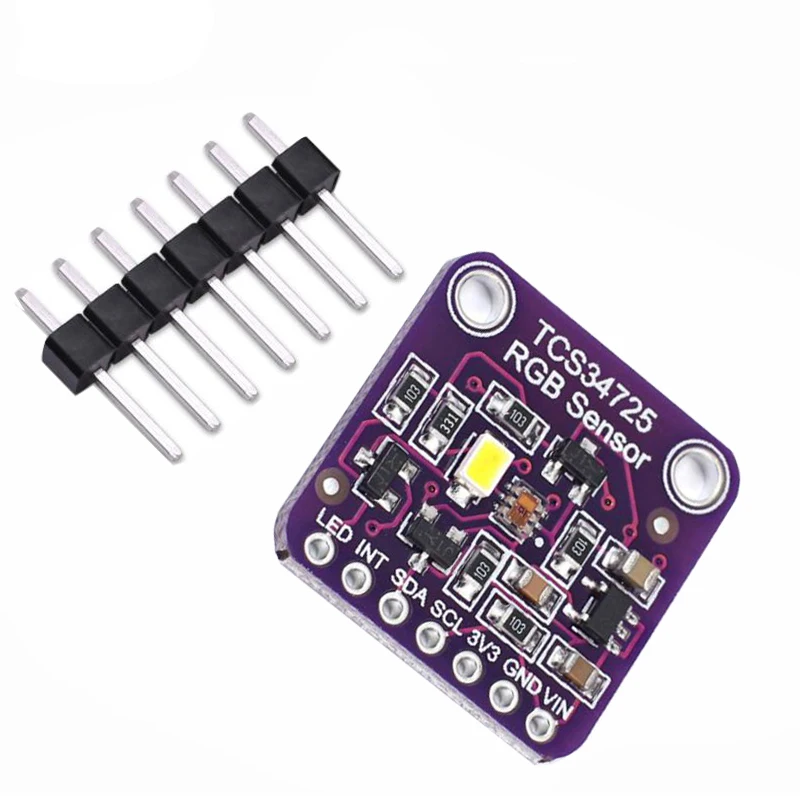

7. LED control the LED light near the sensor, the LED light will be on when the high level signal or floating, and the low level signal LED light will be off
