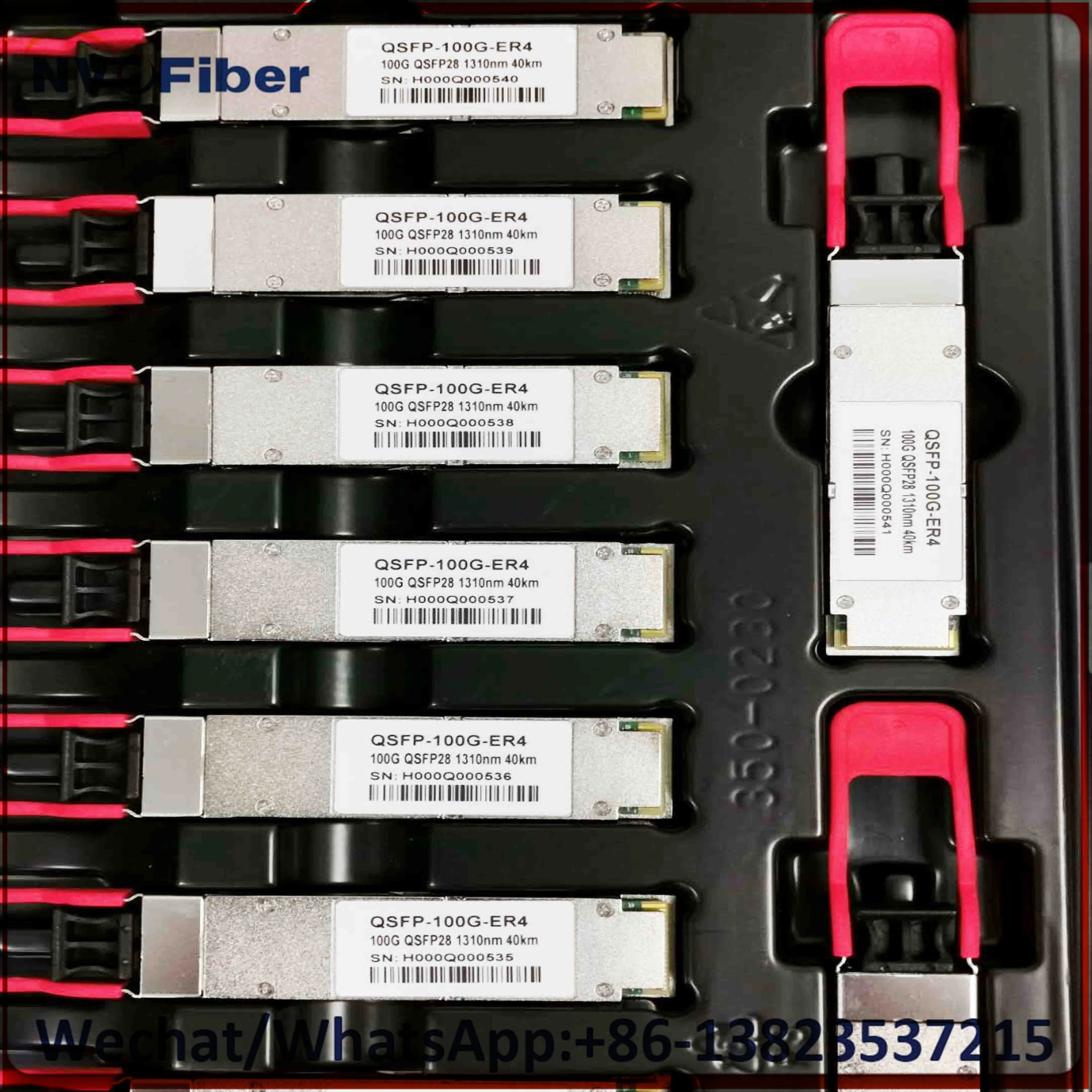

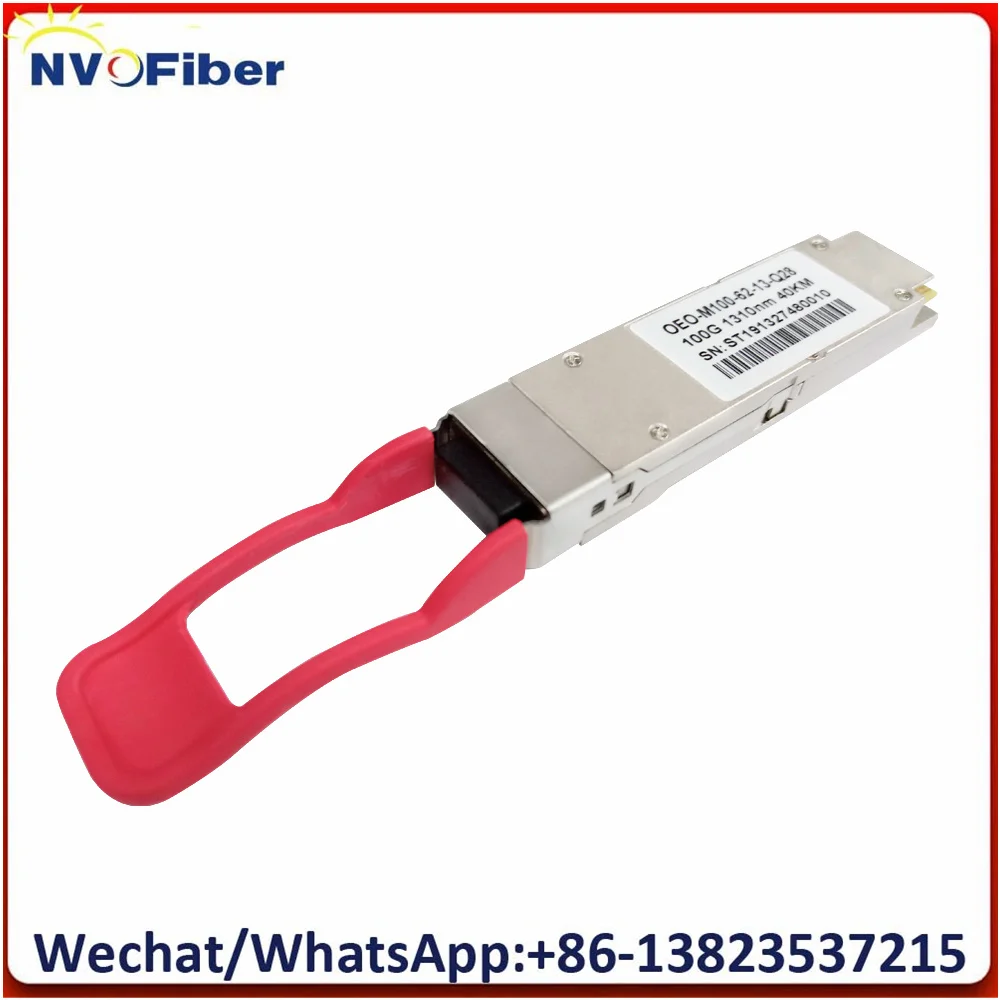

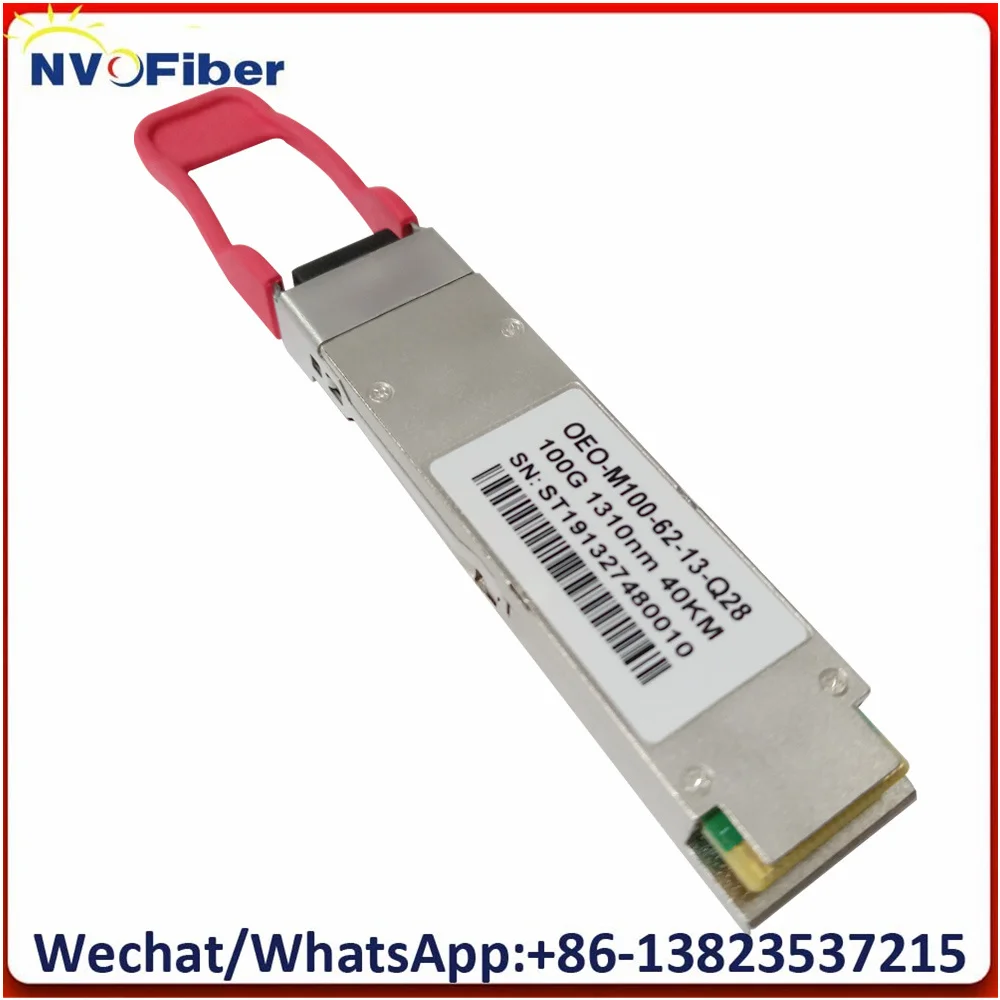

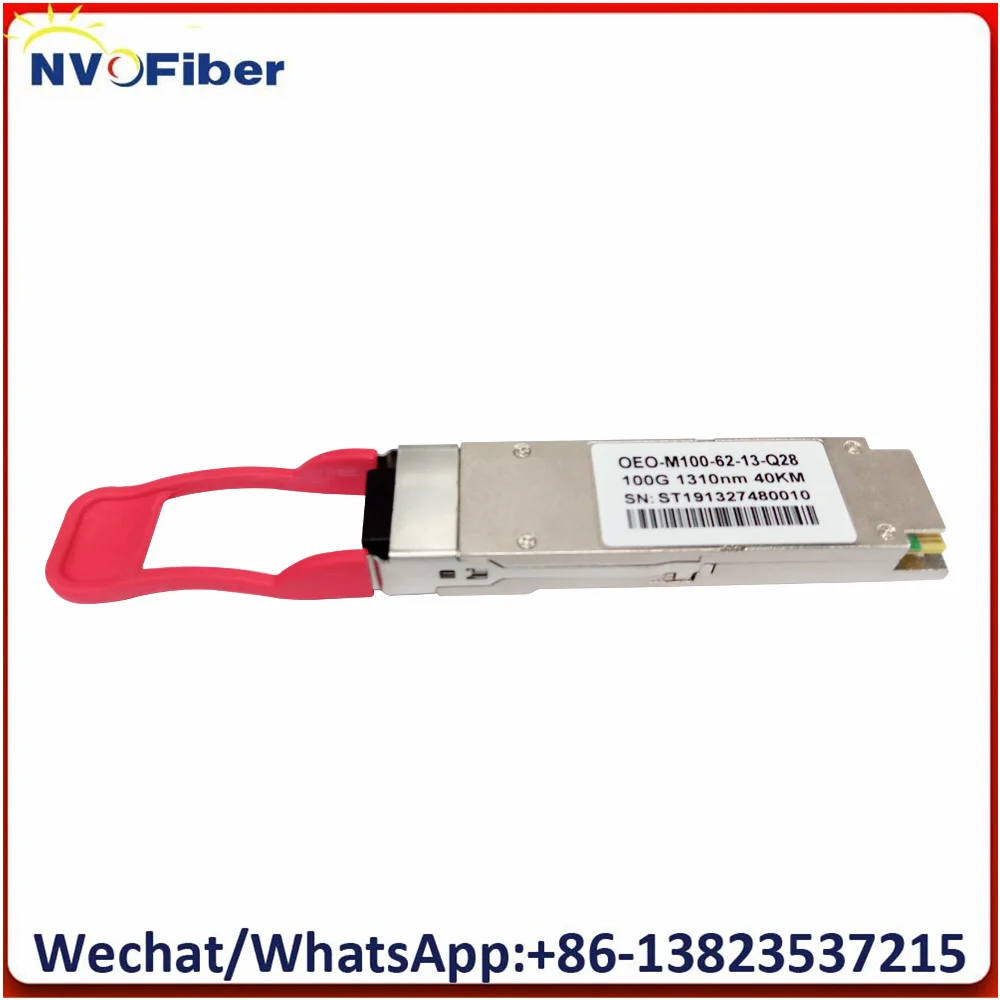

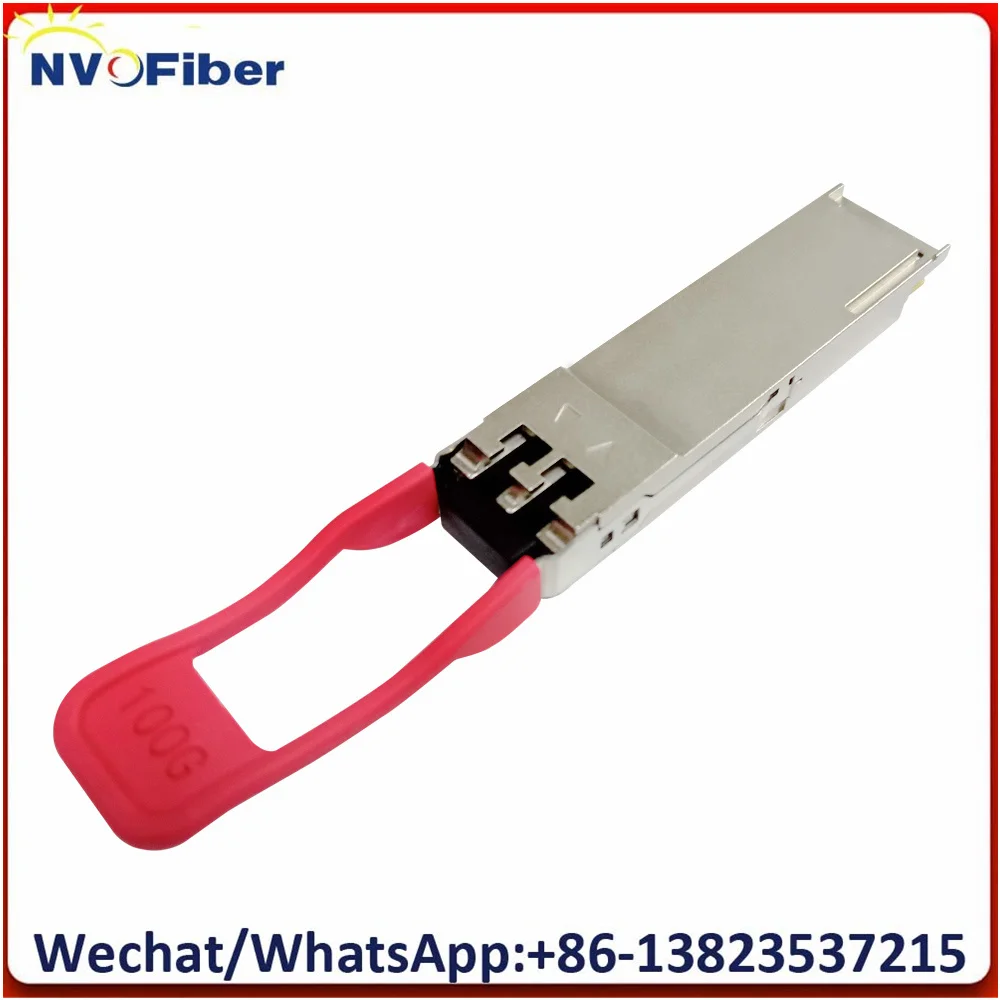

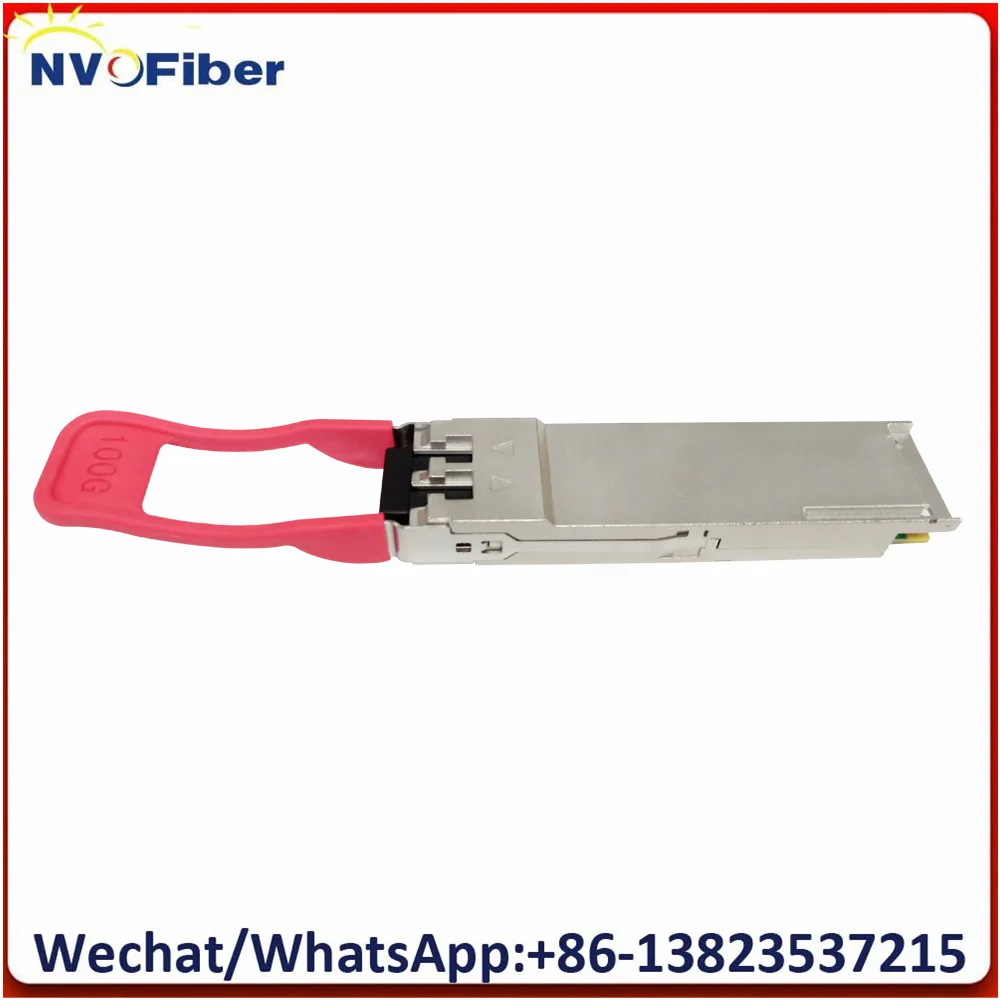

100G QSFP28 ER4 40KM LC LWDM Dual Data Rate QSFP-100G-LDER4 100Gbps DFB Fiber Optic Transceiver Module | Мобильные телефоны и

100G QSFP28 ER4 40KM LC LWDM Dual Data Rate QSFP-100G-LDER4 100Gbps DFB Fiber Optic Transceiver Module | Мобильные телефоны и

What is Your Switch Mode?

Note：This listing is for Cisco Switch, if you need other compatibility please kindly leave the Switch's Brand and Model, when you make an order!

Welcome to NVOC Factory Store.

100Gb/s QSFP28 LR4 10km LC LWDM Single Data Rate

Features:

Product Features
Single LC receptacle optical interface
Single +3.3V power supply
Hot-pluggable QSFP28 MSA form factor
4x25G Electrical Serial Interface
Compliant with 4x28G(CEI-28G-VSR)
AC coupling of CML signals
Receiver: 4x25Gb/s PIN ROSA
Low power dissipation(Max:3W)
Built in digital diagnostic function
Operating case temperature range:0℃ to 70℃
Compliant with 100GBASE-LR4
I2C Communication Interface
Applications
100GBASE-LR4
Infiniband QDR and DDR interconnects
100G Datacom connections

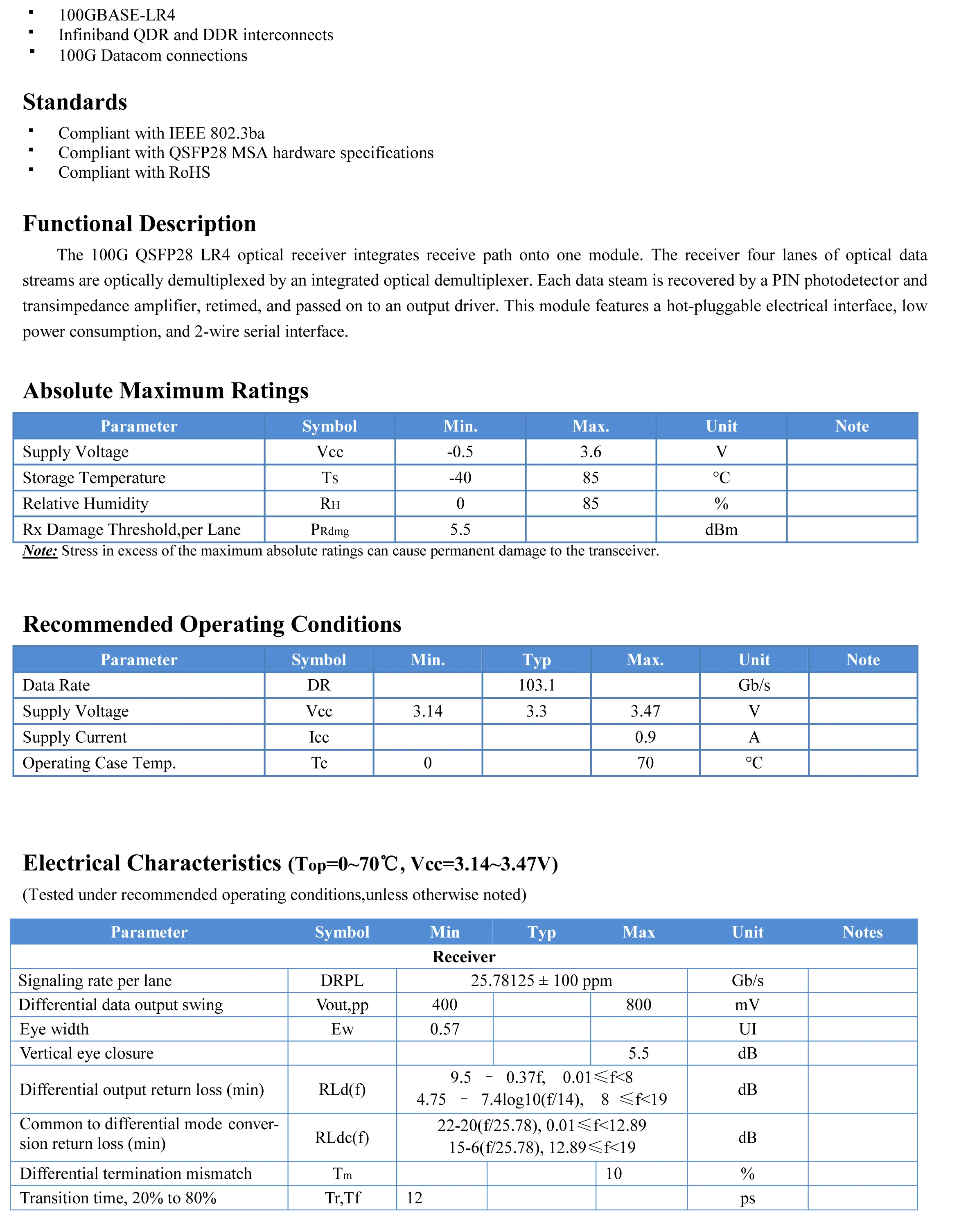

Standards
Compliant with IEEE 802.3ba
Compliant with QSFP28 MSA hardware specifications
Compliant with RoHS

Company Brief

Shenzhen New Vision Optical Communication Co.,LTD. is one of the powerful and high-tech companies specialized in Optic fiber transmission, network communications equipment and the provision of fiber to the home (FTTH) products. All the products manufactured strictly carry out international and national relevant technical standards. ISO9001-2008 quality management system and ISO14001-2004 environment management system are implemented comprehensively. The products are widely used in telecommunication and electric power and optical fiber CATV and the transmission network of data optical fiber and optical fiber communication system and Security field of high-definition video.
Our major products are Communications Fiber cable, Power Fiber cable, FTTH fiber cable and Mobile fiber Cable; optic media converter, digital video optical transmission systems and Optical Transceiver Modules; HD HDMI / SDI video optical transceiver , optical transceiver modules, Ethernet fiber optic transceivers and fiber optic accessories.
Professional research ,design and production team,The concept of innovation and mutual benefit and win-win. The multiple OEM/ODM service is provided for famous brand of domestic and overseas. It is exported to America, Canada, Romania, Mexico, Argentina, Brazil, West Africa, Thailand, and Saudi Arabia

FAQ

Payment

1. You can Pay via Alipay, Visa, MasterCard, Western Union, Bank transfer on AliExpress.
2. Please make the payment as soon as possible so that you can get the item earlier.
3. Note: Any import tariff of the item is the buyer's responsibility, not included in the selling price or shipping fees; But we will declare the product as a gift with a lower value to help you easily get the item through the Customs.

Shipment

1. WORLDWIDE SHIPPING (except a few countries and APO/FPO).
2. All the orders will be promptly processed and will be shipped out in 2-3 days after the payment is confirmed Holiday time extended.
3,Please kindly do not 1-3 low scores on shipping cause the overseas shipping will be affected by many factors such as Customs processing, Post strike etc.
4. We o nly ship the item to the confirmed order addresses, so please make sure that your order address matches your delivery address.
5. Optional shipping ways: China Post Air Mail, HongKong Post Air Mail, ePacket, EMS, DHL, Fedex, UPS, etc.
6. Almost all the orders under 2kg is for free shipping by China Post Air Mail. Please choose other shipping ways if you need the item urgent

Guarantee

1. 12 months Manufacturer’s limited Warranty for defective items (excluding items damaged and/or misused after receipt). Accessories come with a 3-month warranty.
2. Defective items MUST BE reported and returned within the warranty period (and in the original packaging, if possible). You must tell us what the defect is and give us your order number. WE DO NOT REPAIR OR REPLACE ITEMS WITH AN EXPIRED WARRANTY.
You agree to all of the above-listed policies upon ordering on aliexpress!
3.Warranty freight borne by the buyer.

Feedback

We maitain high standars of excellence and strive for 100% customer satisfcation!
Feedback isvery important to us,we request that you contact us before you give us neutral or negative feedback,so that we can satisfactorily address your concerns
It is impossible to address issues if we dont know about them
