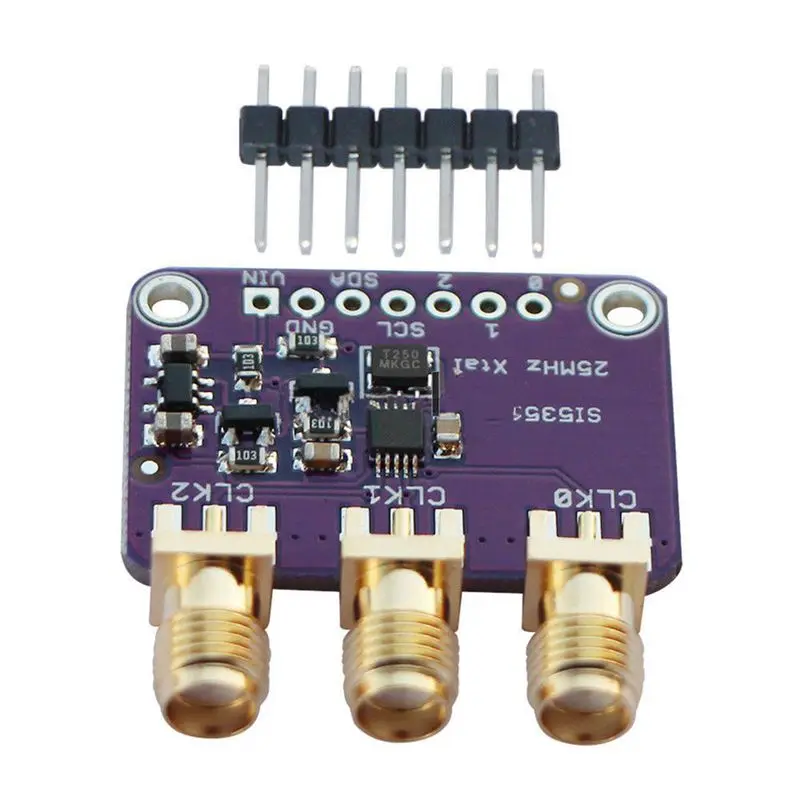

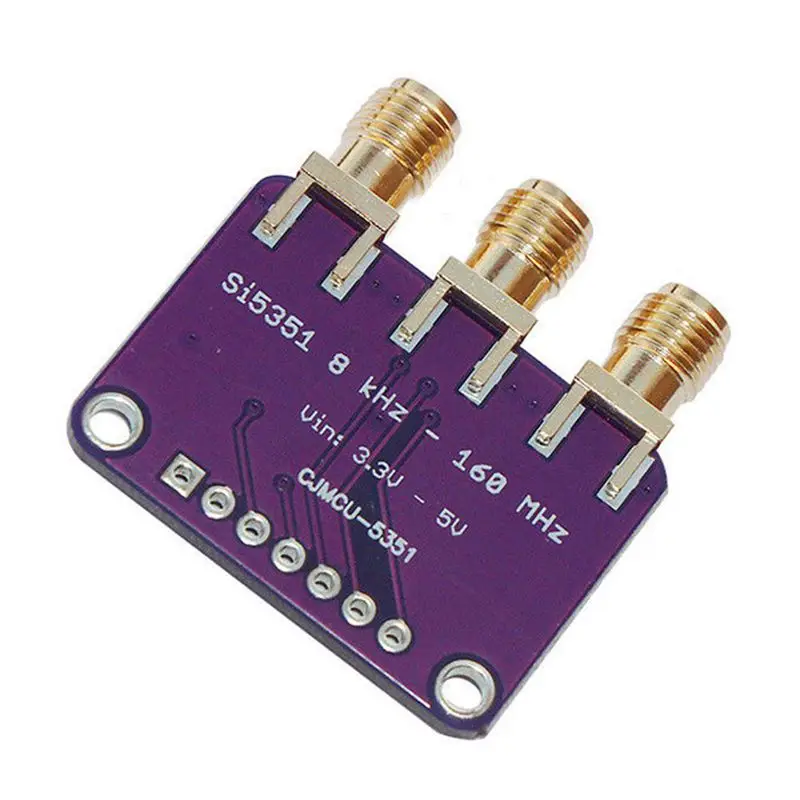

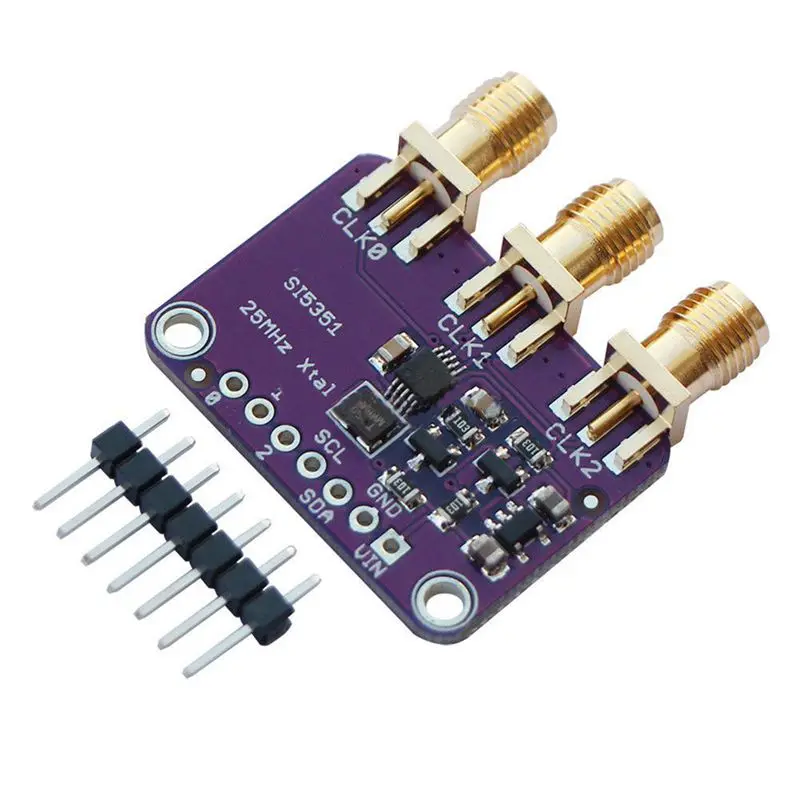

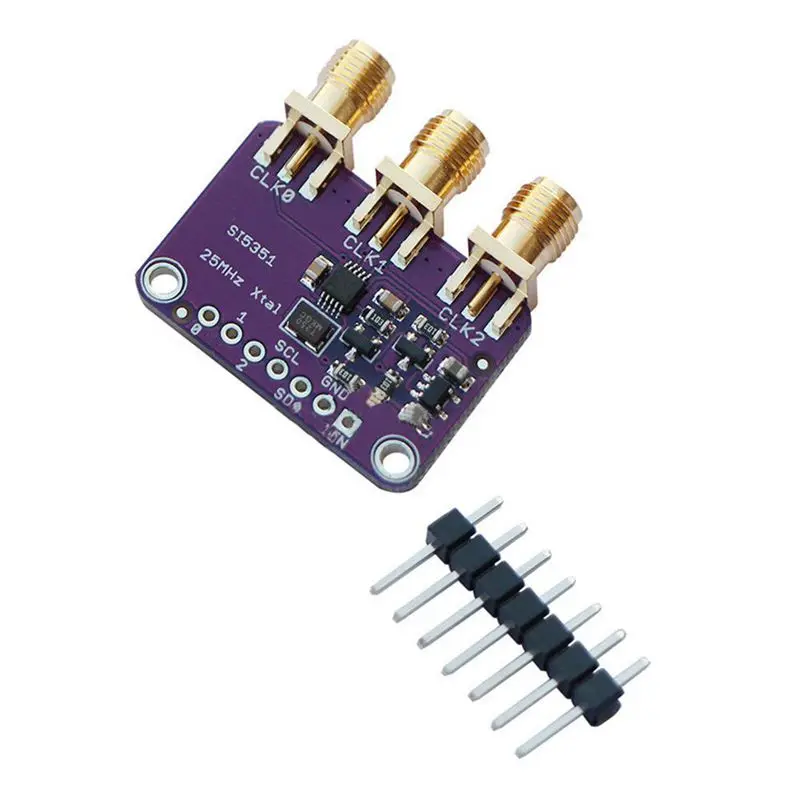

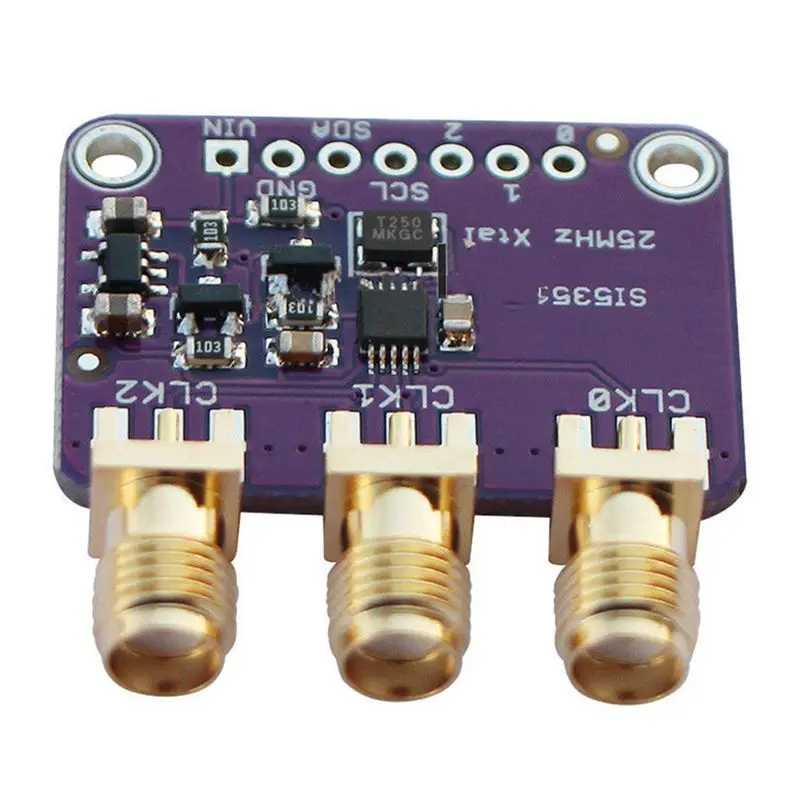

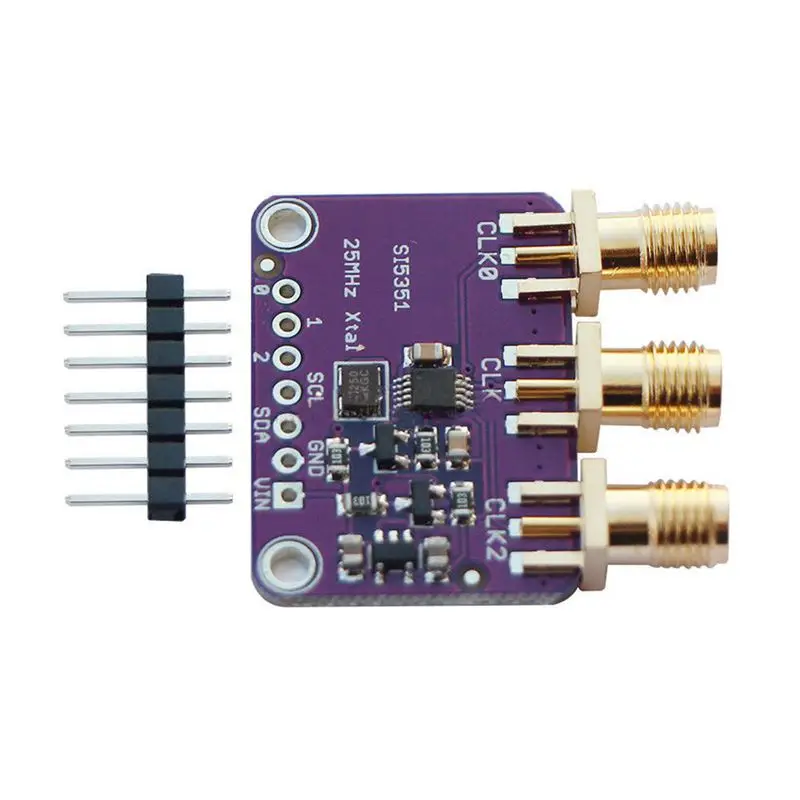

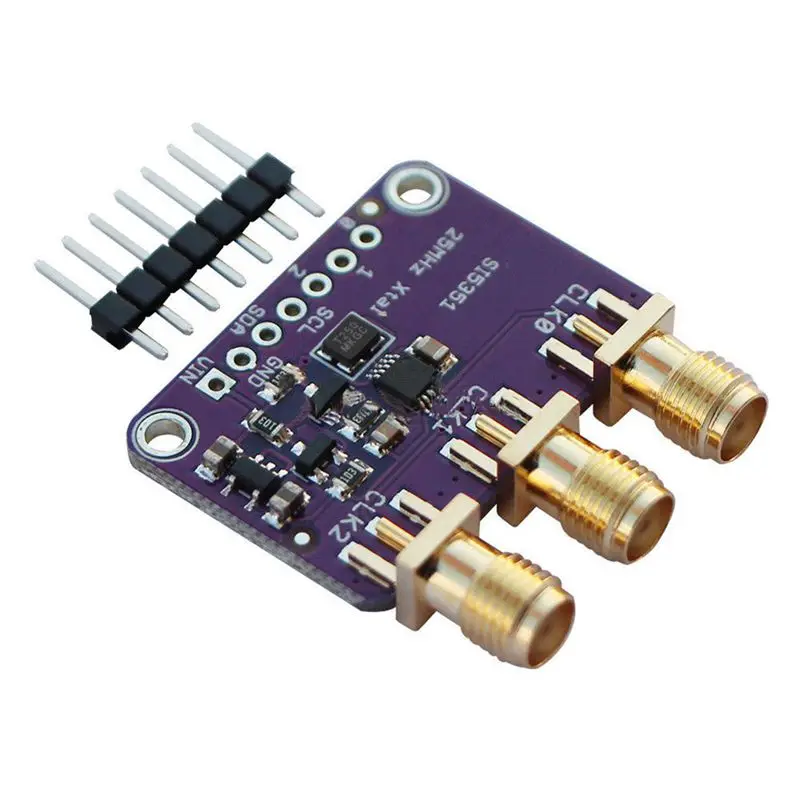

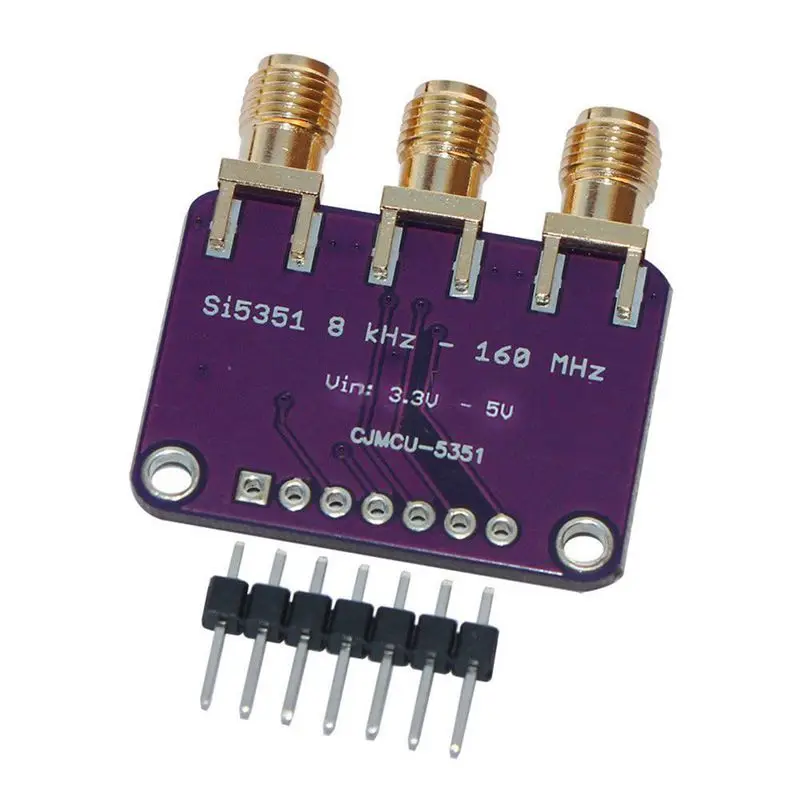

Si5351a I2C 25MHZ Clock Generator Breakout Board 8Khz To 160Mhz For Arduino | Инструменты

The Si5351 is an I2C configurable clock generator that is ideally suited for replacing crystals, crystal oscillators, VCXOs, phase-locked loops (PLLs), and fanout buffers in
cost-sensitive applications.
Based on a PLL/VCXO + high resolution MultiSynth fractional divider architecture, the Si5351 can generate any frequency up to 160 MHz on each of its outputs with 0 ppm error
The Si5351A generates up to 8 free-running clocks using an internal oscillator for replacing crystals and crystal oscillators.
The Si5351B adds an internal VCXO and provides the flexibility to replace both free-running clocks and synchronous clocks.
The Si5351B eliminates the need for higher cost, custom pullable crystals while providing reliable operation over a wide tuning range.
The Si5351C offers the same flexibility but synchronizes to an external reference clock (CLKIN).
Functional Block Diagram Generates up to 8 non-integer-related frequencies from 8 kHz to 160 MHz I2C user definable configuration
Exact frequency synthesis at each output
(0 ppm error)
Highly linear VCXO
clock input (CLKIN)
Low output period jitter: 100 ps pp
Configurable spread spectrum able at each output
Operates from a low-cost, fixed frequency crystal: 25 or 27 MHz
Supports static phase offset
Programmable rise/fall time control
Glitchless frequency changes
Separate voltage supply pins:
Core VDD: 2.5 or 3.3 V
Output VDDO: 1.8, 2.5, or 3.3 V
Excellent PSRR eliminates external power supply filtering
Very low power consumption
Adjustable output-output delay
PCIE Gen 1 compliant
Supports HCSL compatible swing
HDTV, DVD/Blu-ray, set-top box
Audio/video equipment, gaming
Printers, scanners, projectors
Residential gateways
Networking/communication
Servers, storage
XO replacement
Material: PCB
Colour: Fuchsia
Package Contents: 1 x Clock Generator Breakout Board
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
