4G Home wireless router:

1. Configured with 1 Wan port and 2 Lan ports, Built-in Quectel EC200TEUHA-N06-SNASA module, Nano SIM card can be inserted.

2. Two ways of use are supported:

a. Used for network cable access to become a single frequency router.

b. Insert a 4G SIM card to become a 4G router

3. It is suitable for most European and Asian, Australia regions, The frequency bands it can support are as follows:

Quectel, CAT4, LTE module:

FDD: B1/B3/B5/B7/B8/B20/B28

TDD: B38/B40/B41

WCDMA: B1/B5/B8

GSM: 900/1800MHz

Simple Introduction:

♦ WE2805-A-BC adopts MT7628AN program, the main frequency is up to 580MHz, equipped with high-speed SPI Flash, provides stable 300Mbps/1200Mbps 2.4G+4G wireless WIFI network, built-in 4G module, supports high-speed 4G Internet access.

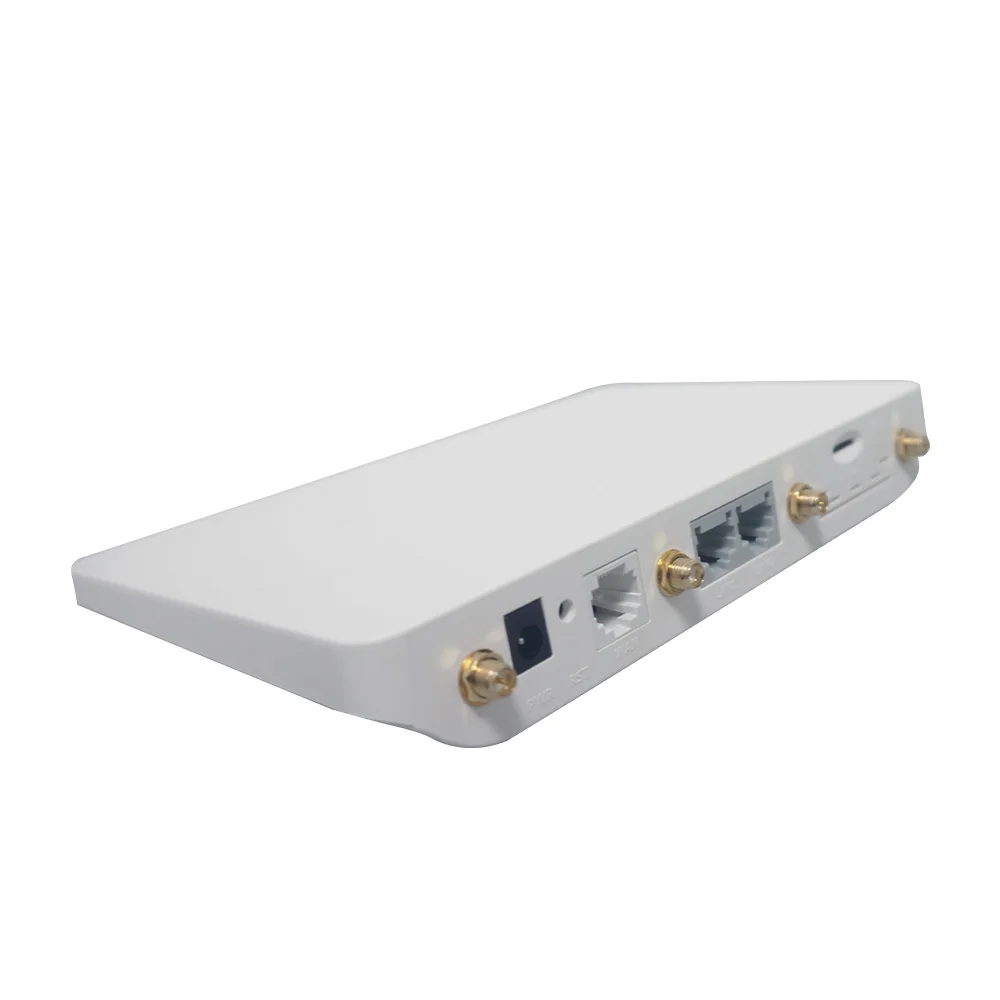

♦ Provides rich hardware interfaces, including three 10/100/1000M adaptive Ethernet interfaces, SIM interfaces, and DC interfaces, to meet various routing application needs, and has a high cost performance.

♦ Compliant with IEEE802.11n / g / b wireless network protocol, using 2x2 MIMO (Multiple Input Multiple output) architecture, wireless transmission rate up to 300Mbps/1200Mbps, two external 5dbi high gain omni directional antennas, two 4G antennas.

♦ Wireless signal in open environment The theoretical coverage radius is greater than 50 meters, and the theoretical capacity is 30.

Product Feature:

* 3 network port 300M/1200Mbps wireless 4G router

* MT7628AN program, the main frequency is up to 580MHz

* Support IEEE 802.11b, IEEE 802.11g, IEEE 802.11n wireless standards

* Support IEEE 802.3, IEEE 802.3u standards, 1 WAN port, 2 LAN ports, support auto flip (Auto MDI / MDIX)

* Wireless transmission rate up to 300Mbps

* Support one-key RESET function

* Support WEP, WPA, WPA2 and other security encryption modes

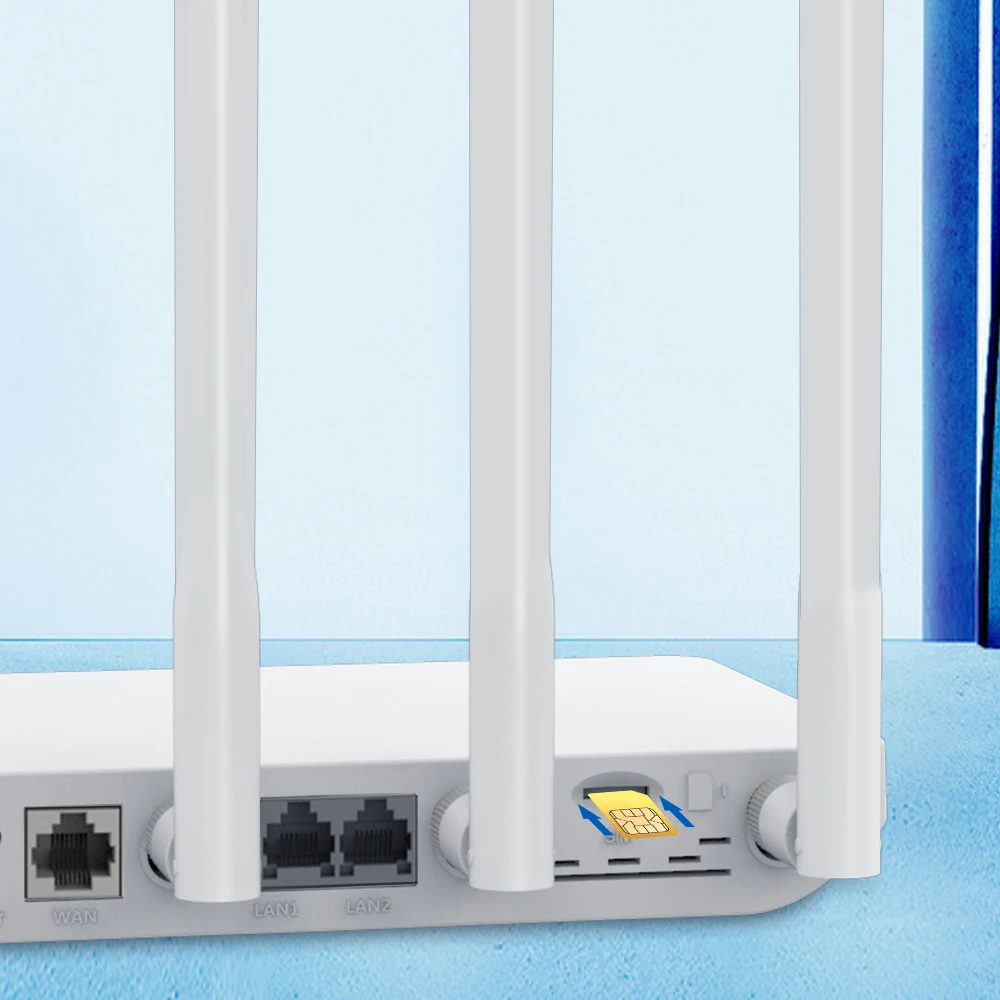

* Built-in 4G module, external SIM interface, support 4G dial-up Internet

* Support webpage "one-key flash mode", users can easily flash mode

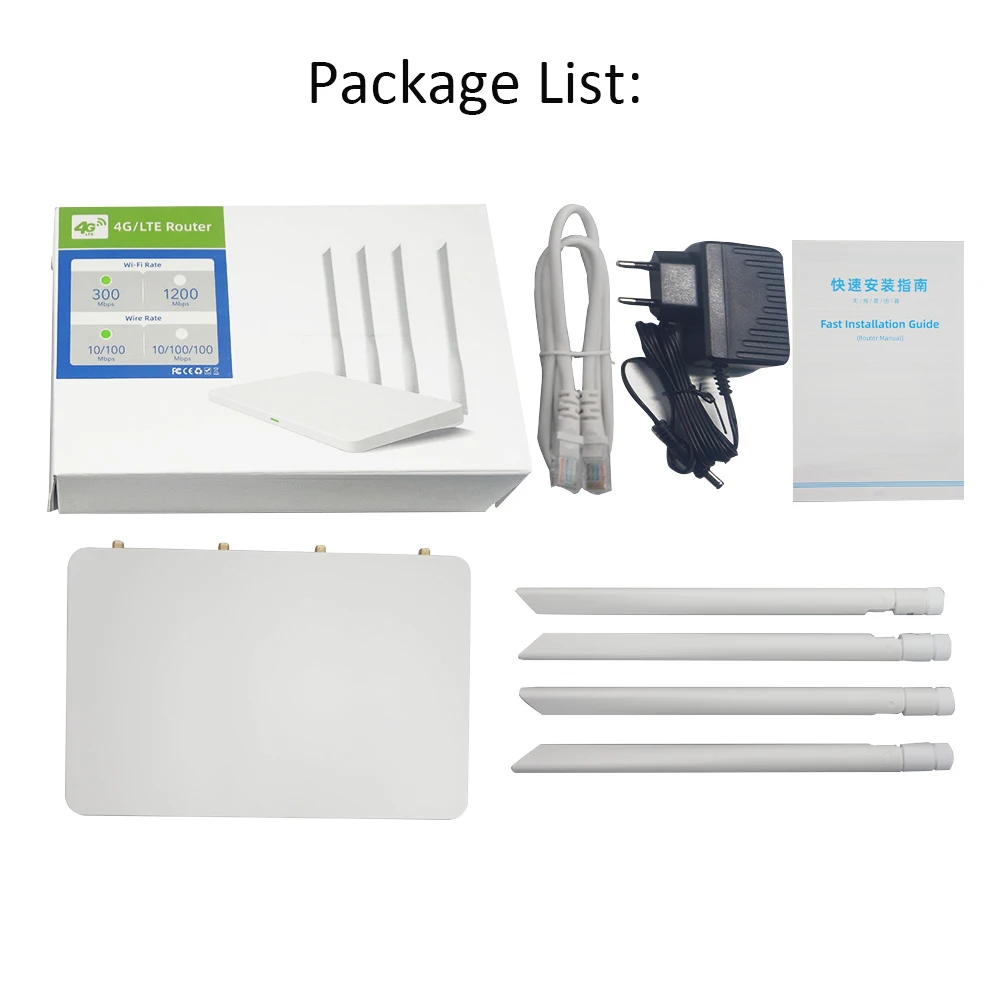

Package Listing:

1 * Router

1 * Adapter

1 * Internet Wire

1 * Uers Manual

4 * 5dbi Antennas
