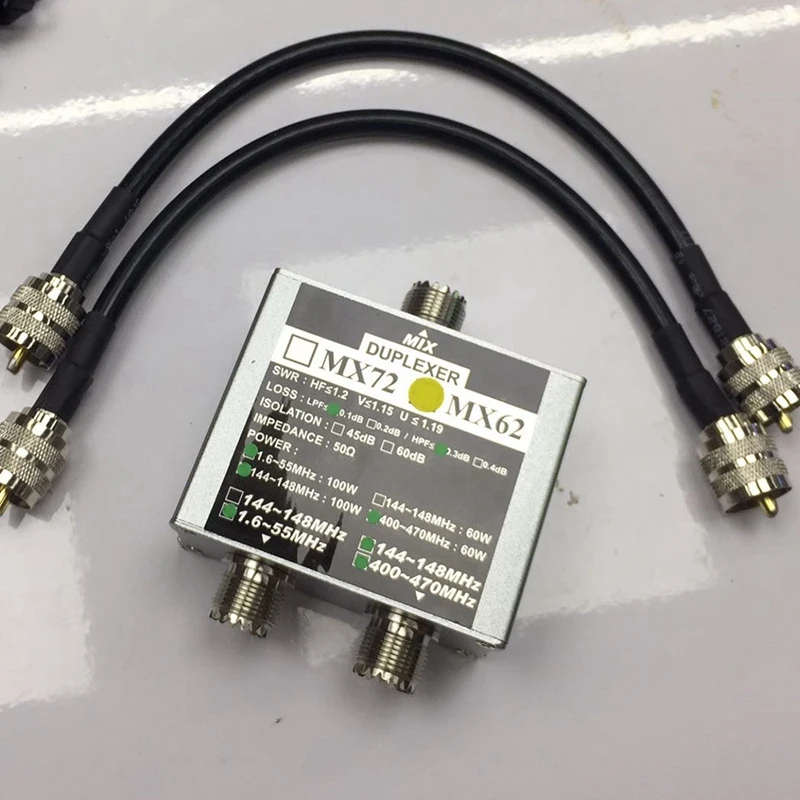

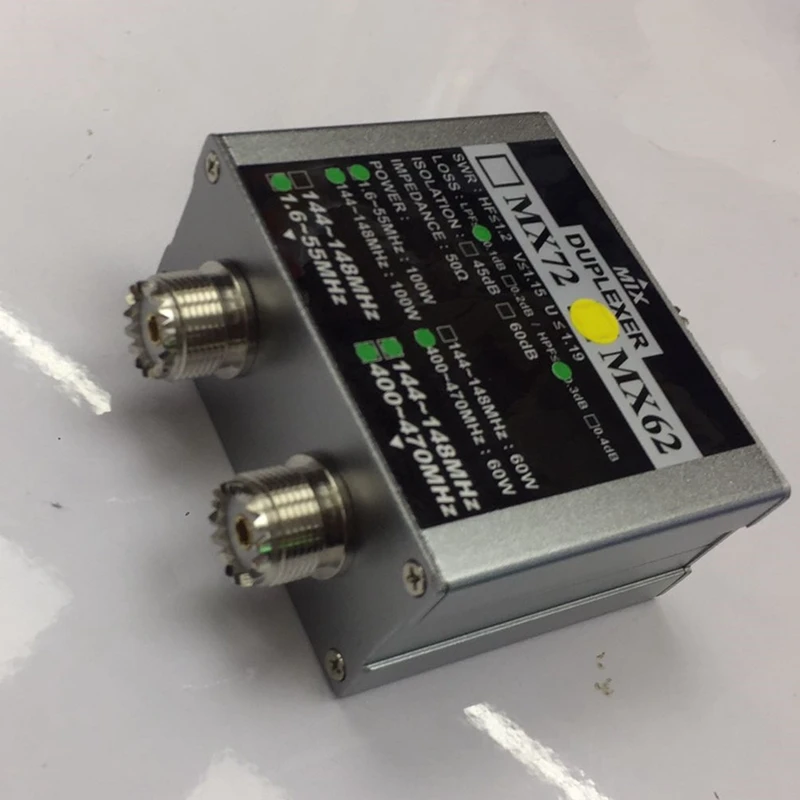

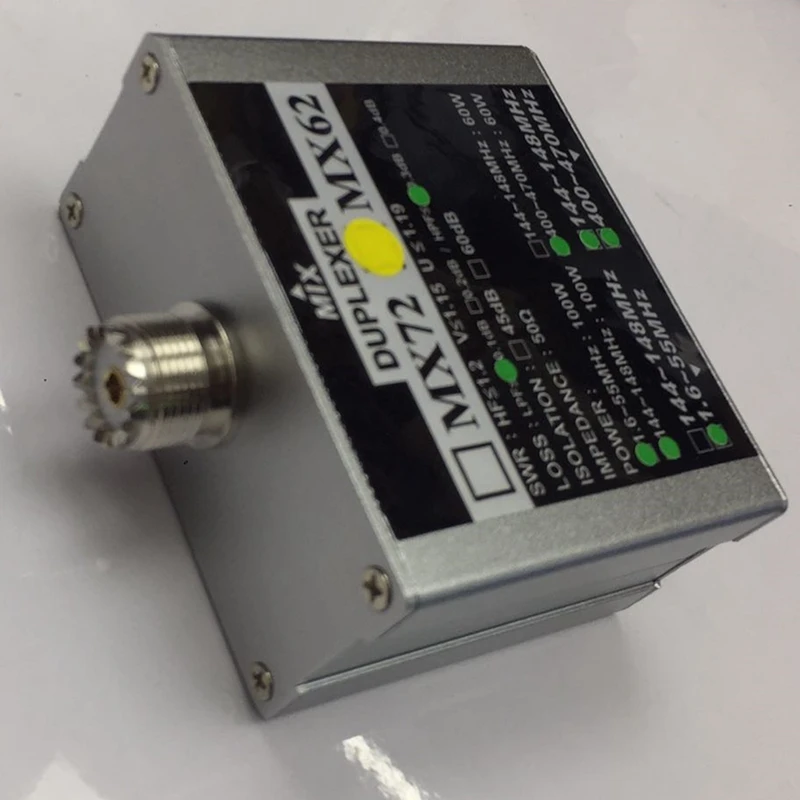

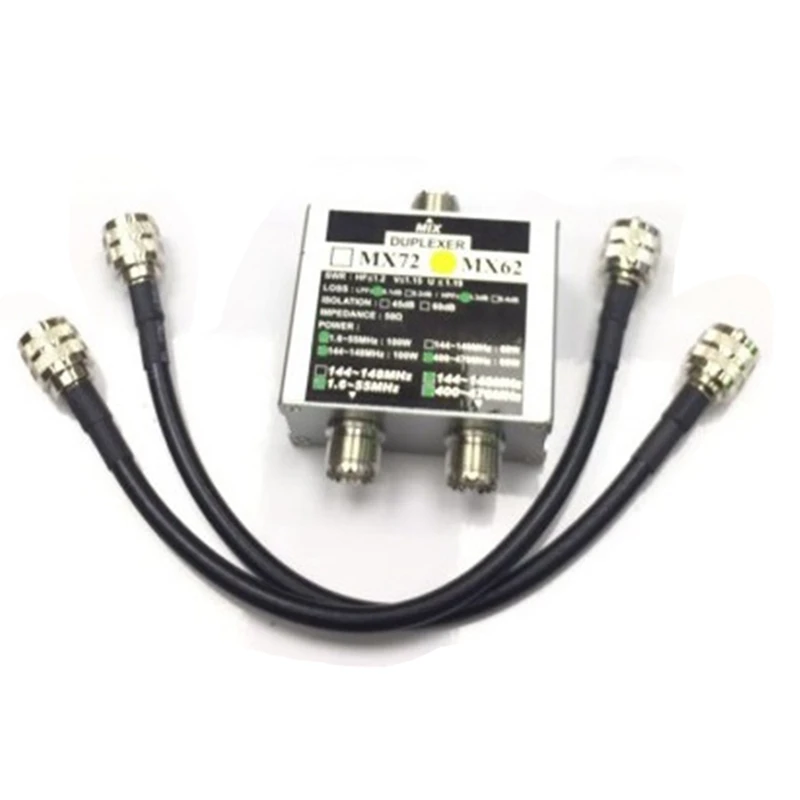

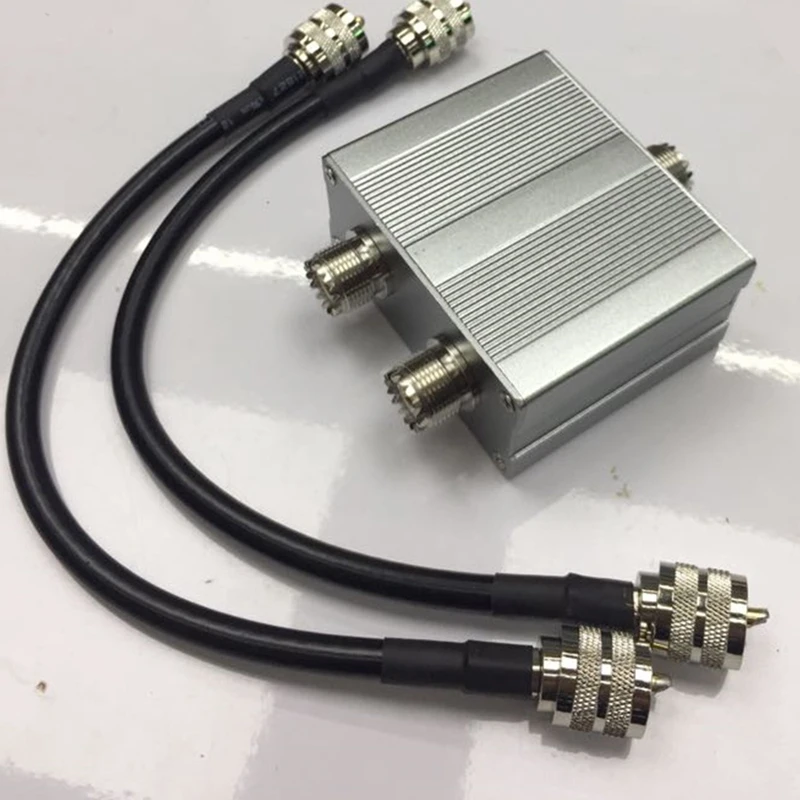

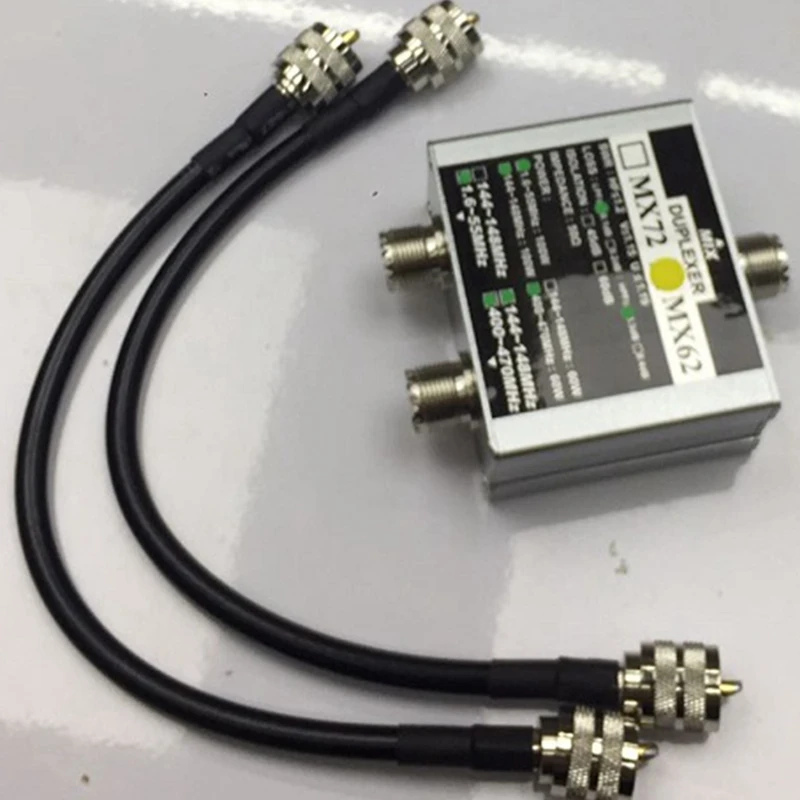

Newest MX62 HAM Antenna Combiner Different Frequency (HF / VHF UHF) Linear Transit Station Duplexer |

Operating frequency: 1.6-55MHz / 144-148MHz&400-470MHz
Endurance: 1.6-55MHz & 144-148MHz: 100W
400-470MHz: 60W
Isolation: 45dB
Insertion loss: 1.6-55MHz: 0.1dB or less

144-148MHz & 400-470MHz: 0.3dB or less
Standing wave ratio: HF: 1.2 or less, VHF: 1.15 or less, UHF: 1.19 or less
Impedance: 50 ohm
Coaxial feeder: 5D-FB (30cm)
Interface: MJ-MP MP
size:74 x 33mm
Material:metal
colour:Black+silver

Package Contents:
1 x analyzer

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
