B250 BTC 12P Mining Motherboard+G3900 CPU+2XDDR4 4G Memory+12X009S Adapter Miner Board Set LGA 1151 6/7 PCI-E X16/X1 USB2.0/3.0 SATA3.0 Computer Accessory
Feature:
Perfect matching: according to the original model design, perfect replacement and installation, high-quality components.
Fast startup, loading and file transfer. Low power consumption, quiet, reliable and durable.
Durable materials: This product is made of high-quality materials, which is durable, long in service life and stable in use.
Portable: This product is very small and light, takes no space, and can be taken away easily.
Meticulous workmanship: elaborate design, perfect workmanship, durability and long service life.
Speed with 12x PCIe slot and only one power connector.
12x PCIe slots are divided into 3 groups.
5 xprotect iii hardware level security slot core.
LAN protection and overvoltage protection.
PCIe slot status detection.
Supports up to 6 USB 3.0 ports.
Support up to 6 SATA 6Gbps ports and PCIe 3.0 channel speed.

Specification:
Type: B250 BTC 12P
Memory: t2xDDR4 2133 4G memory, the motherboard itself has 2* DDR4 DIMM memory slot,supports 2133/2400/2800/3000MHz memory, with the maximum support of 16GB.
Color: Black
Dimension: 29.5x19cm/11.61x7.5in
Memory type: DDR4
Frequency: 2133/2400/2800/3000 MHZ.
Memory slot: 2 X DDR4.

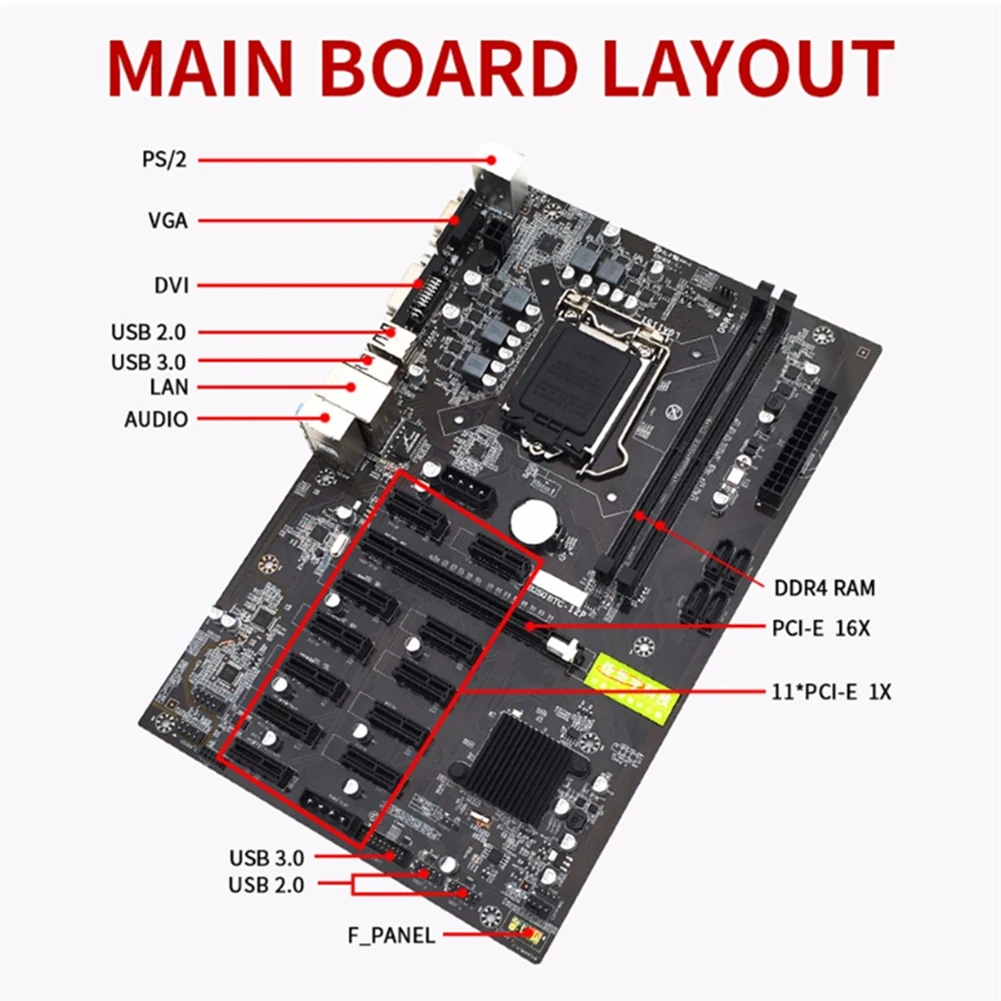

Expansion slot:
1 X PCI-E X16 graphics card slot.
11 X PCI -E X1 graphics card slot.
2 X USB2.0 pin
1 X USB3.0 pin
1 X COM pin
2 X square power port.
4 X SATA 3.0 port
I/O port:
PS/2-port keyboard and mouse universal port 2.
1 X RJ45 network port.
1 X DVI HD output.
2 X USB 3.0 port.
4 X USB2.0 port
1 X VGA
CPU: G3900 CPU, support LGA 1151 series 6th/7th generation processors.
Chipset: for IntelB250 high-speed chipset

Adapter parameter:
Specification:
Model: 009S-K.
Wire length: 60cm/23.6in
Adapter size: 130*44*5mm/5.1x1.7x0.2in
Interface: PCI-E 1X.
Performance: Extended line graphics card 6P interface (16A power supply capability) enhances power supply.
Color: Black/Blue/Red/White (shipped randomly)
Weight: 90g
Material: Taiwan Gold +PceA.
Accessories: USB cable power cord.
Packaging: electrostatic bag.

Function:
1.4PIN and 6PIN interfaces of two graphics cards are power-selectable, which provides power independent of graphics cards and reduces the burden on the motherboard when more cards are used. Equipped with 4 explosion-proof capacitors, the graphic power supply is more stable and safe.
2. Stable resistance makes the data more stable and safer.
3. It has a 6-pin interface, which is more powerful and reduces the burden on the motherboard.
4. The slot with fixing buckle is convenient for removing and fixing the graphics card, so that the graphics card will not fall off from the slot.
5. Riser card kit version 5.009S is the latest and most advanced solution for setting GPU mining equipment. 4 solid state capacitors, 60 cm USB 3.0 cable, suitable for Window system/XP and LINUX.

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

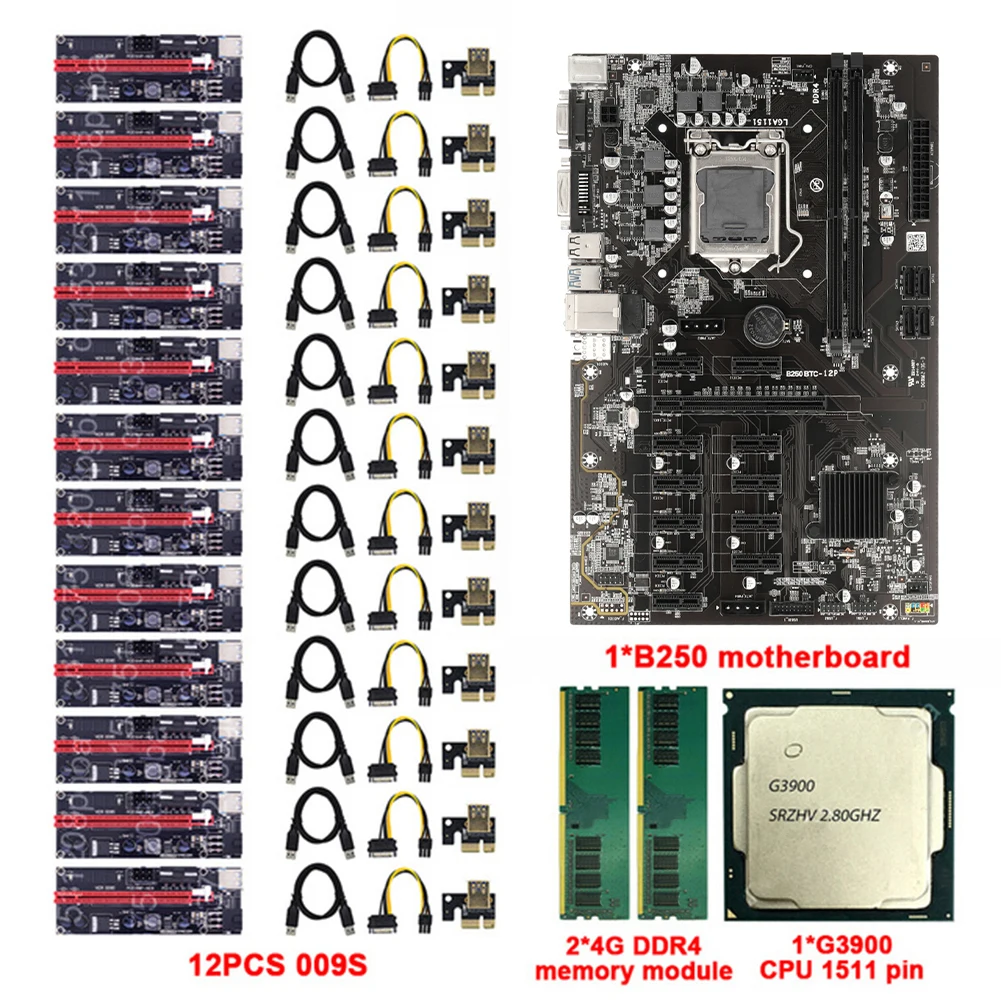

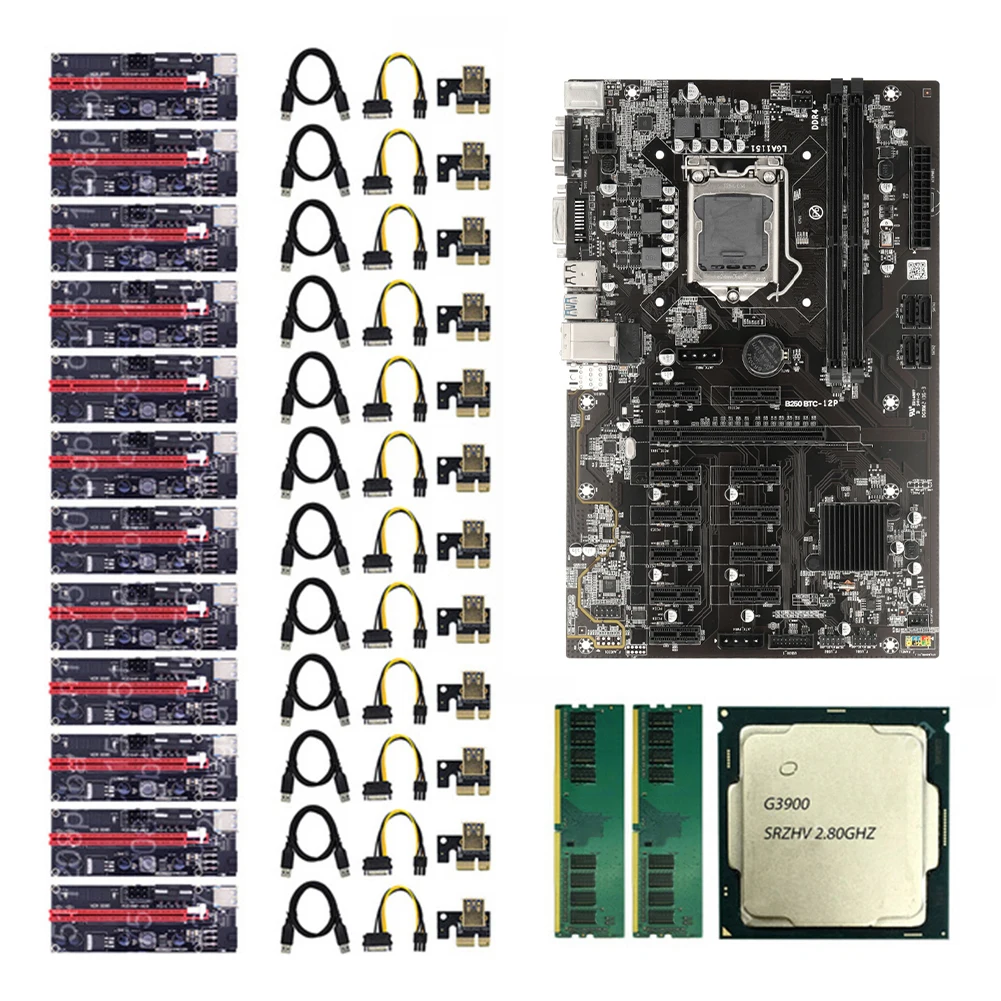

1 X B250 BTC Mining Motherboard
1 X G3900 CPU Processor
2 X DDR4 4G Memory
12 X VER009S Adapter
