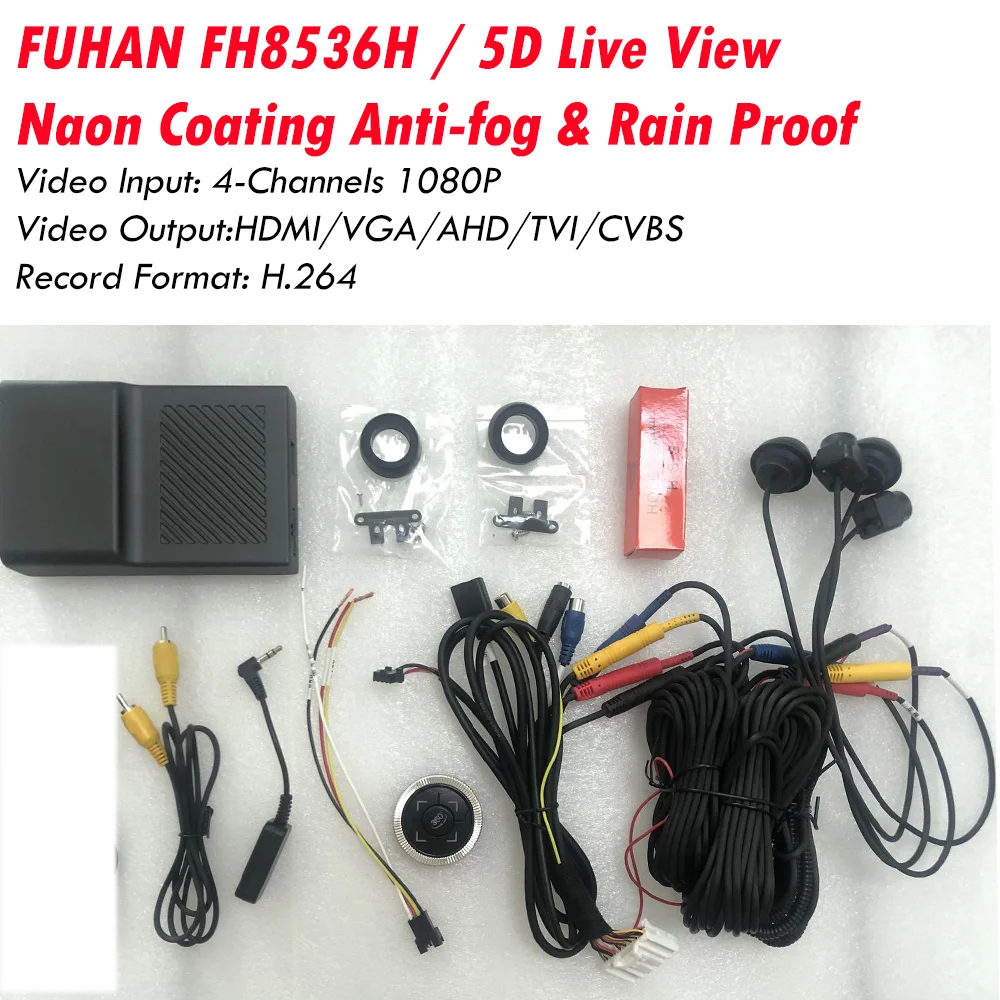

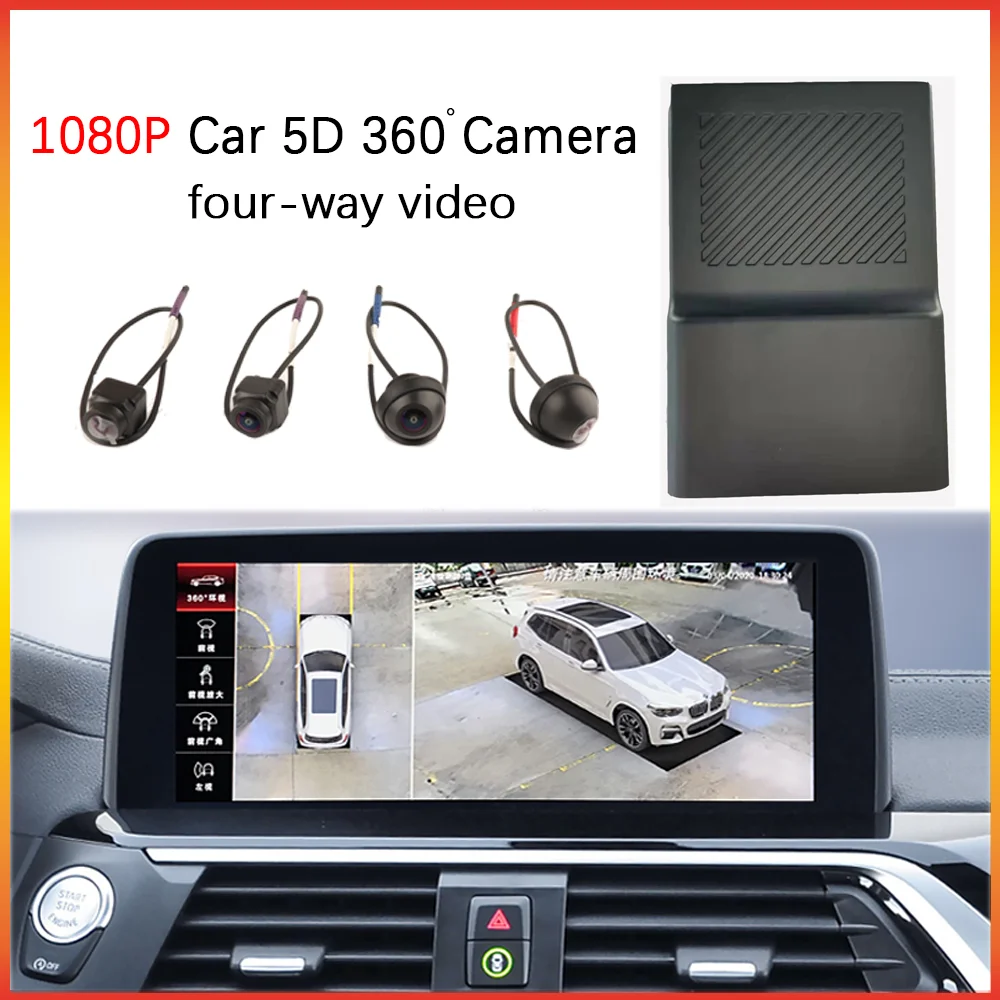

2021 Newest 5D 360 PRO HD Camera Surround View System DVR Driving With Bird View Panorama System Nano Coating Anti-Fog & Rain-Proof

1.Host working voltage DC: 12V

2.Camera power supply voltage: 5.0V

3.Working current: 700mA@12V

4.Working temperature: -30℃-85℃

5.Storage temperature: -40℃-100℃

6.Video input: 4 channels 720P/1080P AHD signal input

7.Video output format: CVBS/VGA/AHD/HDMI

8.Video storage: U disk 8GB/16GB/32GB

9.Video file format: MP4

10.CPU: Allwinner T7 Cortex-A7 6 core

11.Main frequency: 1GHZ

12.FLASH 4GB

13.GPU Mali-400 MP4

5D model Feature:

1. Knob control: One key to turn on /turn off 360, various view angles can be switched instantly;

2. True 5D: 5D viewing angle can be switched in any direction;

3. Various dynamic effects: door switch, wheel speed/direction, forward/backward, 3D stereo radar real-time display;

4. There are built-in 3D car models: the default is a neutral car, including neutral cars; Porsche SUV; BMW sedan;

Mercedes-Benz sedan; Audi SUV; Lexus SUV; Volkswagen SUV...car models are optional.

5. Support dual CAN gussets, insert dual CAN boards into dual CAN 3D all-in-one machines in seconds;

6. You can choose the style of each trajectory line, the radar is activated, and the trajectory follows; the default is Audi, with Audi; Mercedes-Benz; BMW; Lexus; Cadillac; Volkswagen...The trajectory style is optional. (if you need Activity trajectory, pls contact us, its need use box)

7. Parking monitoring, one shot per second, up to 24 hours parking monitoring;

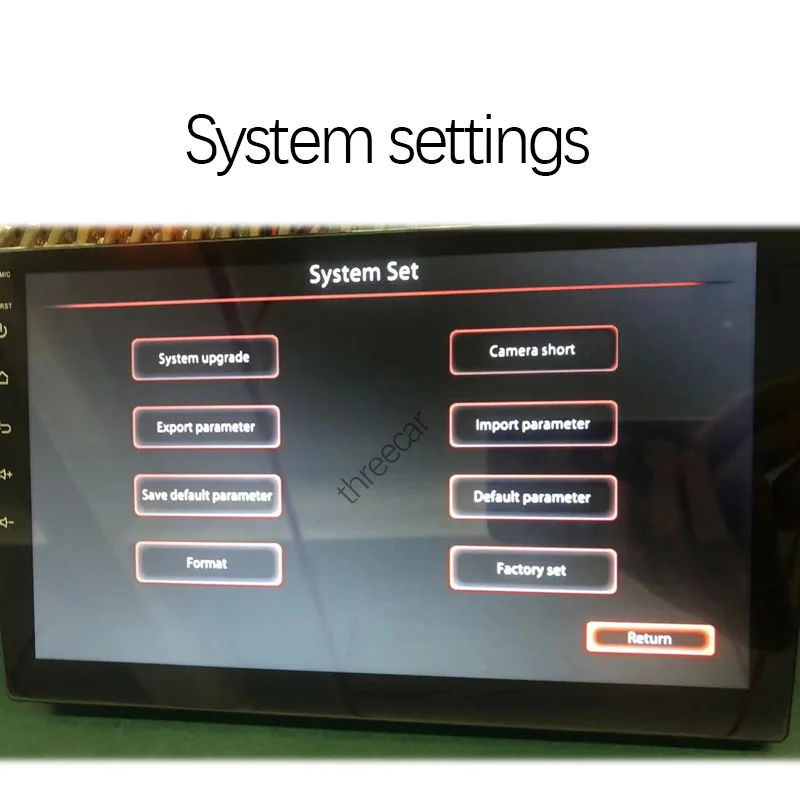

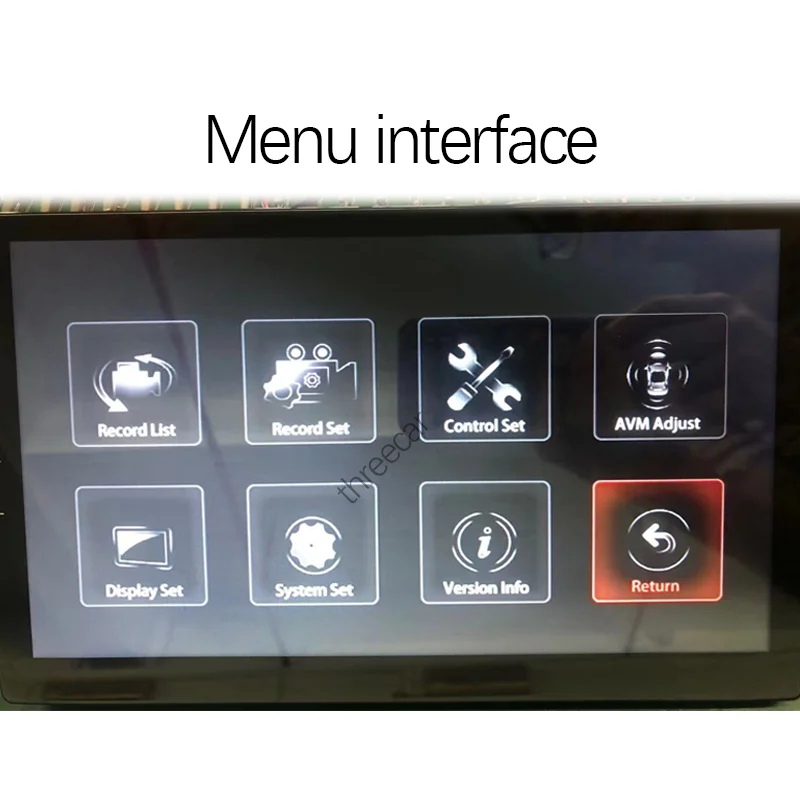

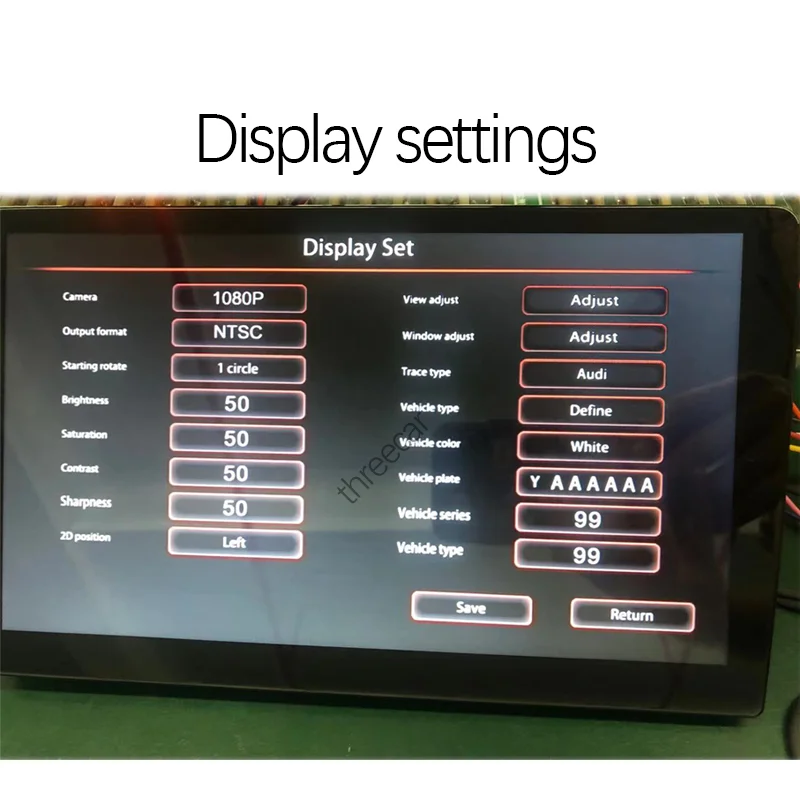

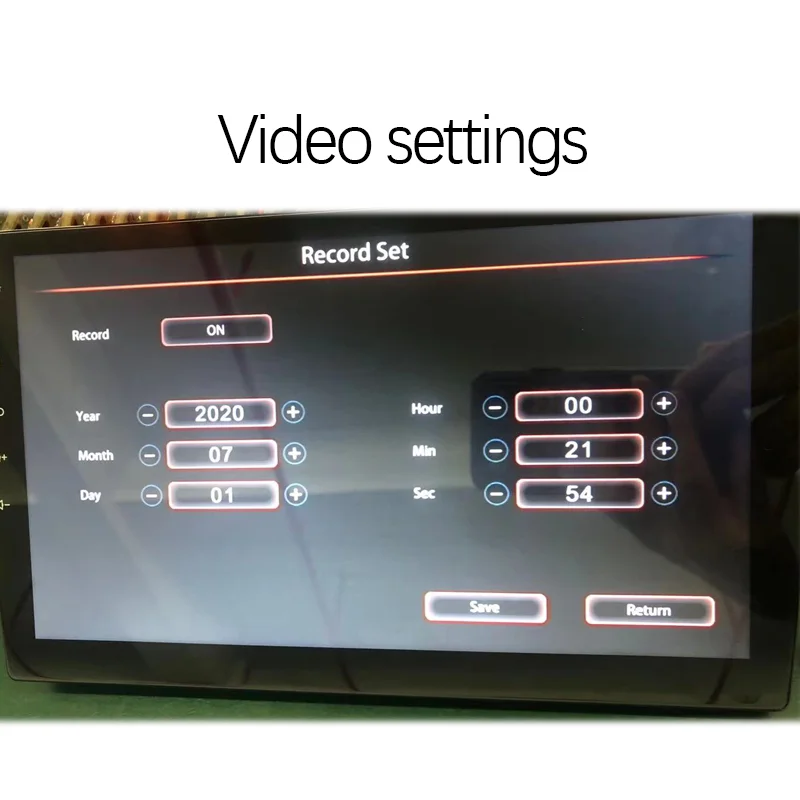

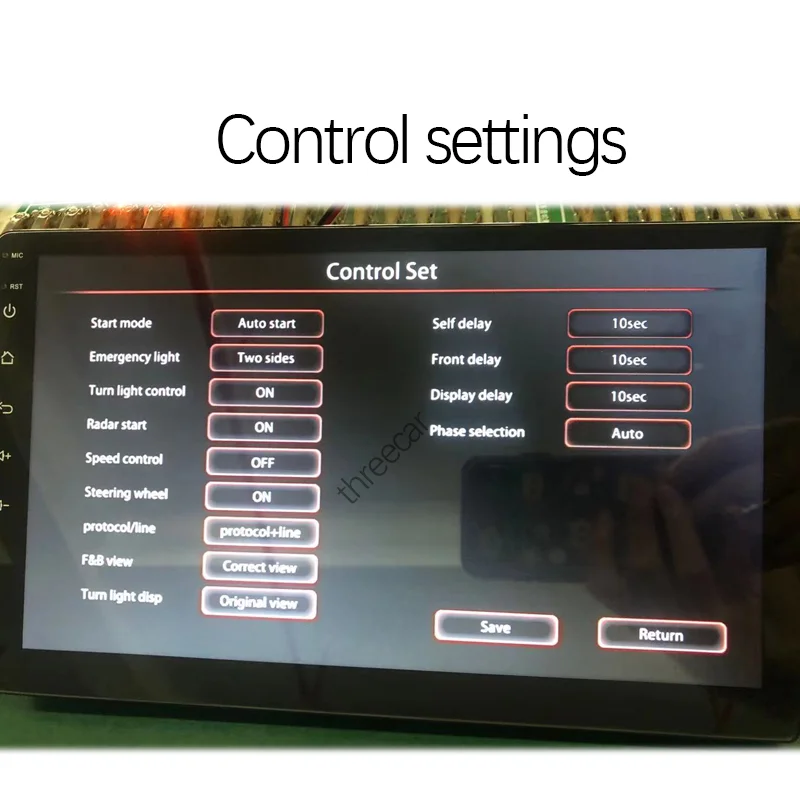

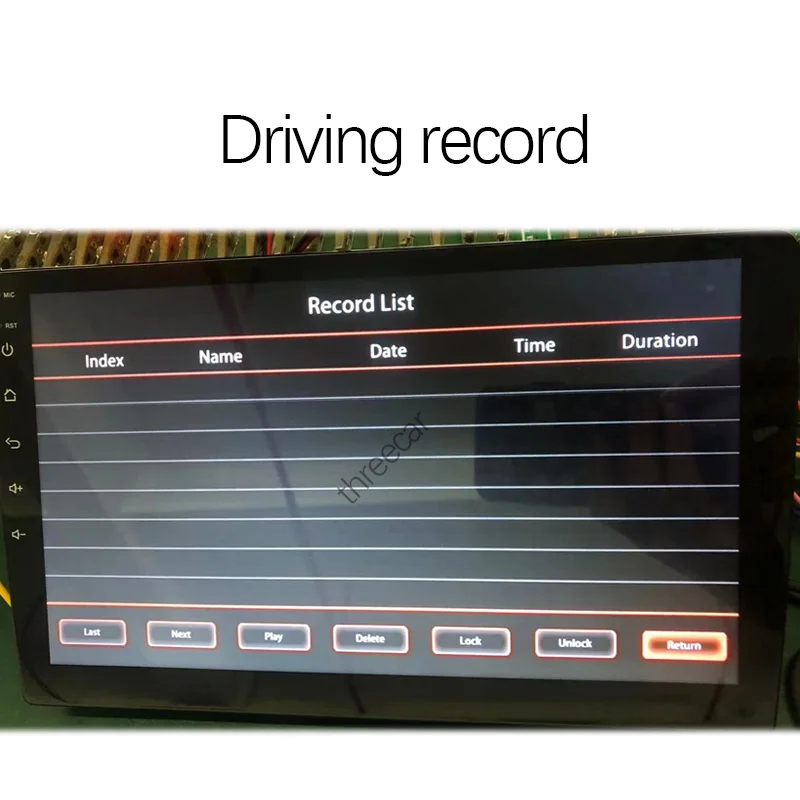

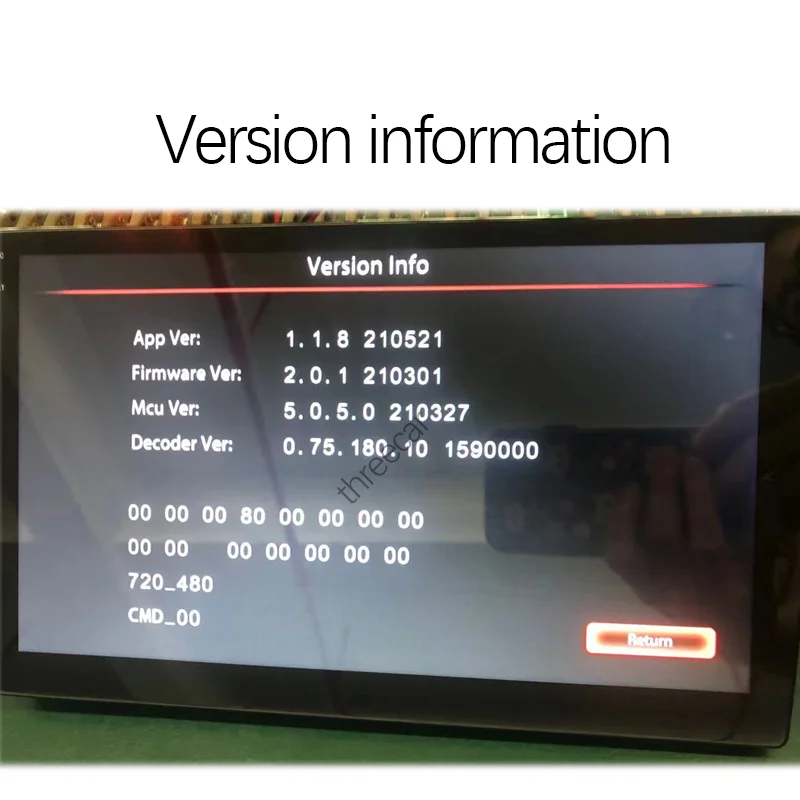

8.Main menu functions: driving record, video setting, control setting, panoramic debugging, display setting, system setting, version information

5D Product parameters：

1. 3D、2D view mode
2. Wireless knob remote control.
3. after car start, automatically circular display, also can adjust angle by remote
4. support multiple view model 2D, 3D
5. Support CVBS,AHD, VGA video format, easy change in menu
6. Recorder resolution: 1920x1080P
7. support full-automatic calibration, seamless calibrate, no blind spot
8. 4 way video recording and playback, MP4 video file.
9. parking monitoring, can set 2-24 hours
10. circular recording, new file automatically cover old file.
11. can save important video, avoid lost
12. support U disk 16G-512G (3.0-3.5 flash, FAT32 format)
13.OSD language: English

Main function:

when car reverse, turn Left or Right, 360 system trigger by lamp signal, car screen will automatically switch to Back, Left, Right view, then show Front view after trigger.With Parking monitoring function,and DVR recorder

How to open 360 bird view:

1. press remote control
2. double press car Hazard emergency light button
3. trigger by lamp signal

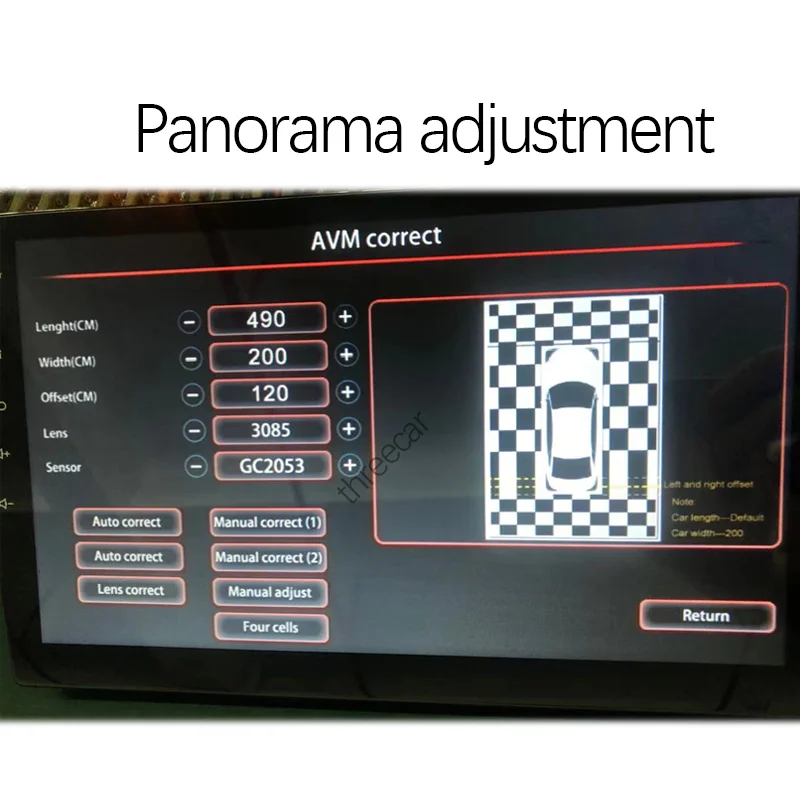

How to calibrate 360 system：

Buy below calibration map and you can finish calibration in 10 second so easy and simple

AHD PLUS 3D 360 CAMERA

Solve your parking troubles

Safe escort one cannot be less

More easy to view

The displayed picture is not deformed

Our panorama

360°panoramic view For near-fieldstereoscopicview, the real body, fuses,tires and other WYsIwYG are displayedon the display screen in real time, the blincspot is clear, intuitive and not dizzy

Four-way wide angle lens

360 panoramic large angle can avoid car scratch, built-in DVR

function,can be used for accident forensics

PARKING MONITORING

You can monitor the condition of the car after parking

360 degree panoramic camera

The conditions around the body are clear at a glance, seamlessly connecting to true digital high-definition recording without dead endslImported Processor

Built-in high-definition proc

ge restoration is more real,

the definition is higher, the picture is smooth and not stuck

One key controlTwo modes

2D/3D mode can be switched at will,3D stereo view

has better visual effects

remote control:

Short press: OK / return (panoramic display interface)Long press: return (menu setting interface)Left rotation: left selection Right rotation: right selection

8 panoramic views of 3D car models Intelligent switching, easy to avoid all kinds of potential risks without unnecessary operations, safe driving,and a good travel experience

BLIND SPOT

Driving position blind spot range

Staggering proportion

360°Monitoring

Four-way wide-angle lens

Look at the blind spot to avoid bumping against the porcelain, and the 4-way driving recorder records 360 degrees without dead angles

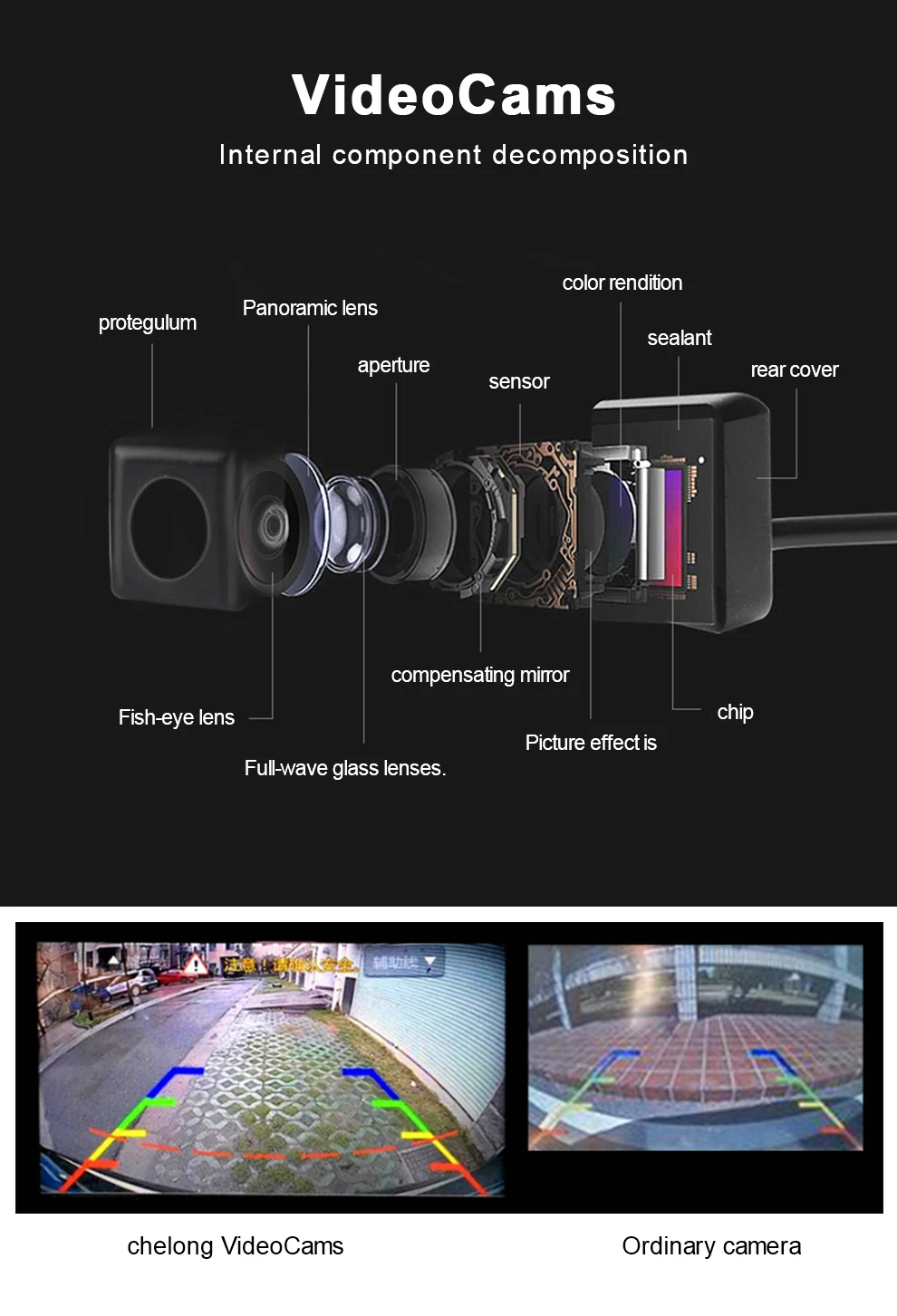

180°Fisheye Lens

Large wide-angle spherical lens, wide field of view, safer driving

Real-time recording

Simultaneous recording of 4 pictures before and after, left and right,to make disputes more evidence

Seamless stitching reduction technology

COMS +DPS technology algorithm is used to correct

radian distortion.Seamless reduction technology is used to shape the real driving scene.

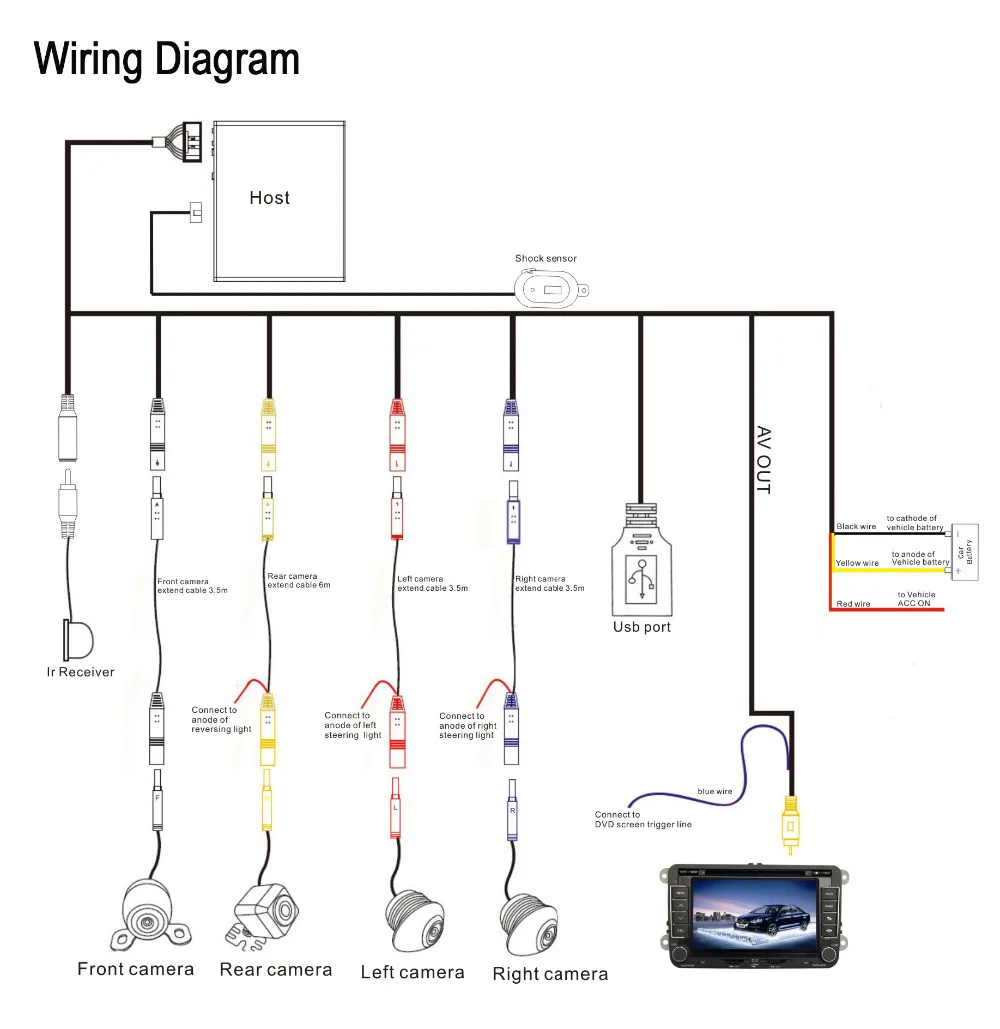

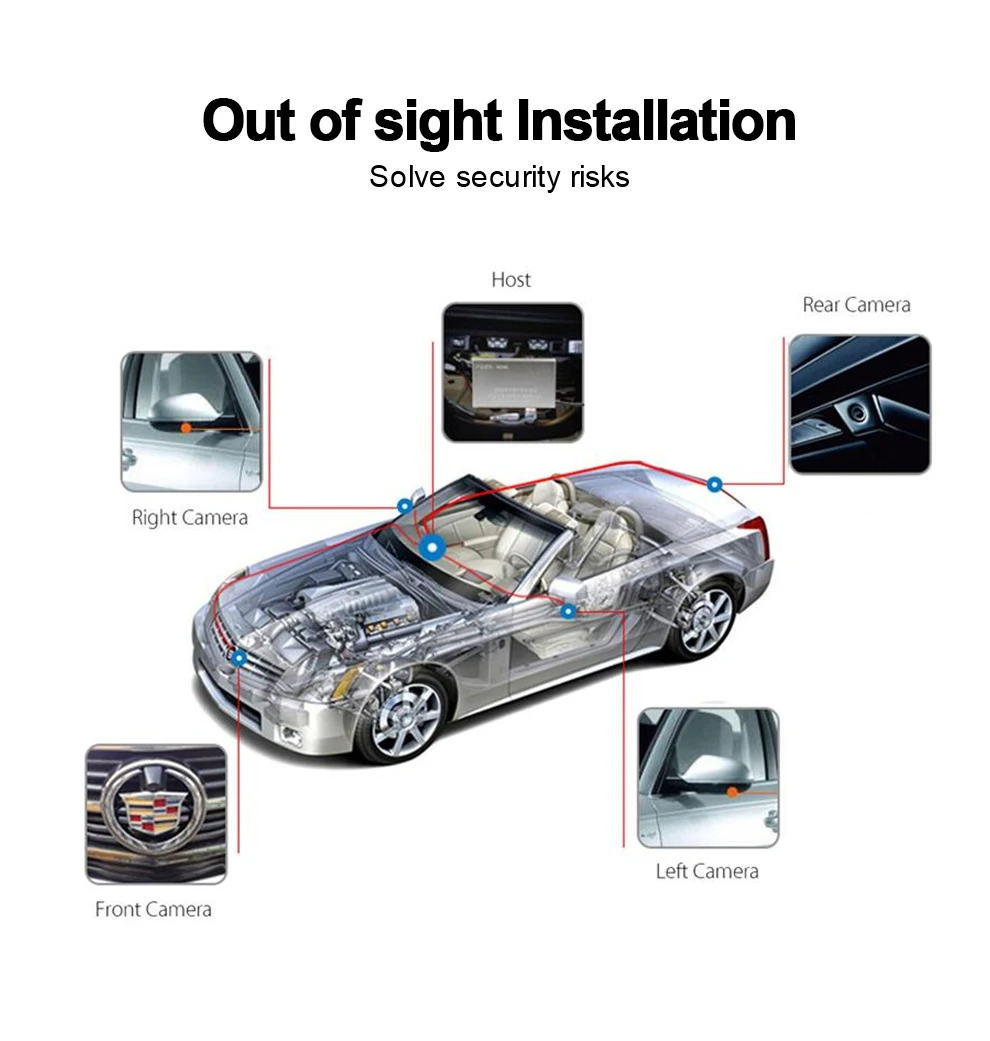

1.Power connection: connect power supply (yellow wire to normal power; red wire to ACC, black wire to ground)

2.Red lines on the extension cord: connect the positive pole of the left and right turn signal and the reversing light respectively

3.Black BMW joint: connect to the front camera

4.Yellow BMW joint connect to rear camera

5.Red BMW connector: connect to the left camera

6.Blue BMW connector: connect to the right camera

7.Yellow AV interface: host video CVBS output interface, which is connected to CVBS reversing video channel display through video extension cord

8.Blue AV interface: the host video AHD output interface is connected to the central AHD reversing video channel display through the video extension cord

9.Brown DVD trigger line: connect the navigation and reversing detection line

10.Yellow RF antenna, receiving knob controller signal

11.6PIN interface: VGA video output interface of the host, connect to the VGA decoder; and connect to the original vehicle screen through the decoder (original vehicle support is required)

12.USB interface: connect the U disk, which can be used for driving record, system upgrade and parameter storage

13.OBD/CAN interface: some models are inserted into the original vehicle OBD, and some models are connected to gateway or host CAN line. Specifically according to the system setting-setting of the model menu prompt

14.Indicator light the flashing red light of the host machine means it is working normally^ while the flashing green light means it can receive the signal of the controller Operate the controller with no flashing green light Please check whether the controller is installed with batteries or paired successfully
