Version 1.7 T238 Programmable MOSFET Electronic Fire Control Module for XWE M4 / JM Gen.9 / FB / Kublai / Jingji / JQ No.2 Gearbox

Features:

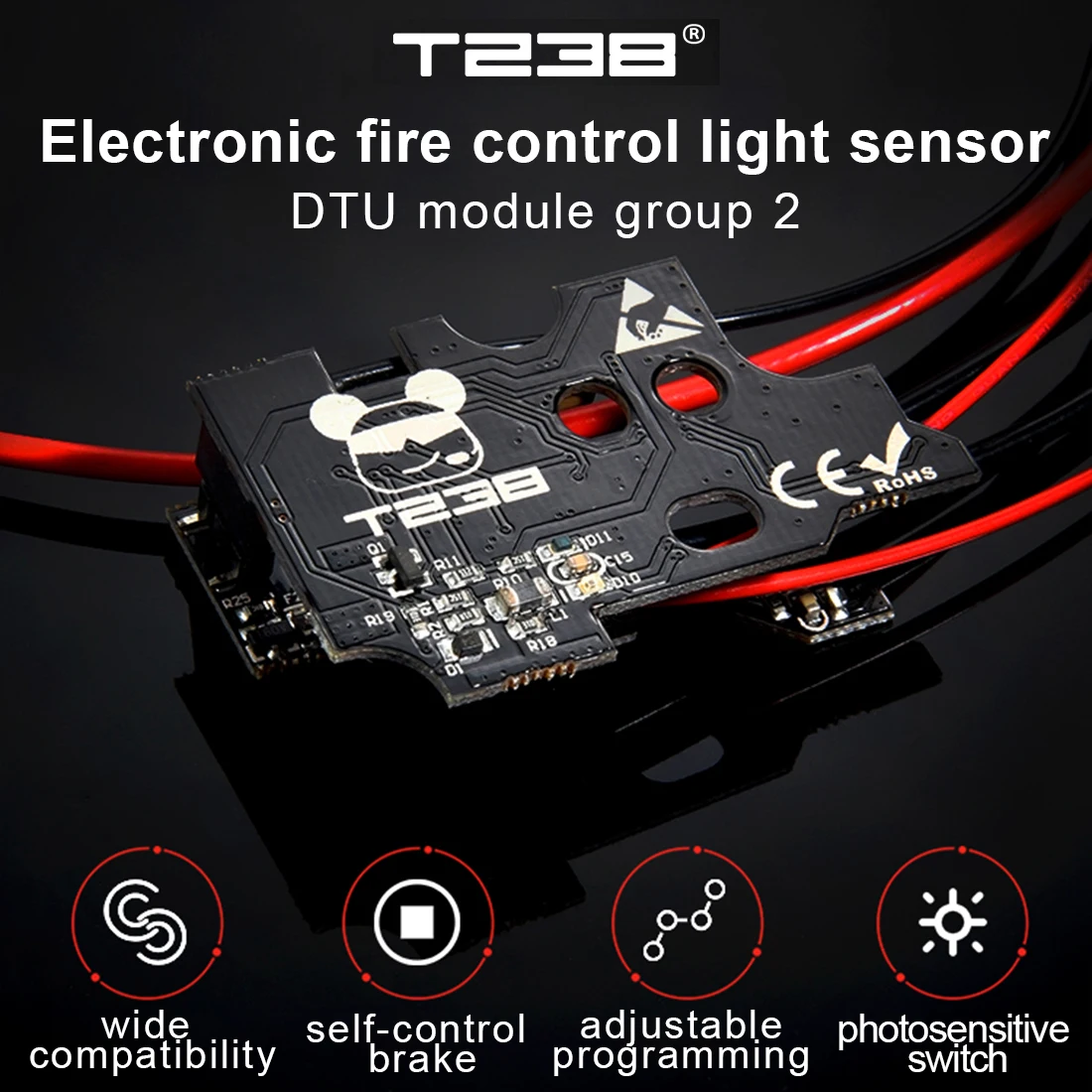

.This electronic fire control module is a programmable MOSFET electronic fire control module designed for the water gel beads No. 2 gearbox.
.It has a variety of personalized programmable functions such as ladder return, single-stroke double-stroke, and multiple bursts. In addition, it also has low-voltage battery protection and gearbox stall protection functions, which can effectively improve the stability, rate of fire, and response speed of the gearbox At the same time, it can completely eliminate the problem that the gearbox becomes more frequent.
.The module uses a maximum of 14.8V battery, which needs to be soldered and wired by yourself
.Size: 45 x 30 x 14mm, working voltage: 7.4v-14.8v
.Programmable Multiple Shooting Modes: safe mode, which is the same as the original. Under the action of the gearbox thrust rod, the switch release cannot be pulled. SEMI mode. This mode can be programmed to achieve single shot, double stroke single shot and 3 to 6 consecutive shots. The default is single shot. AUTO mode. This mode can be programmed to achieve bursts, 3 bursts, 6 bursts, and 9 bursts. The default burst is
.Supports up to 240A starting current and 100A braking current

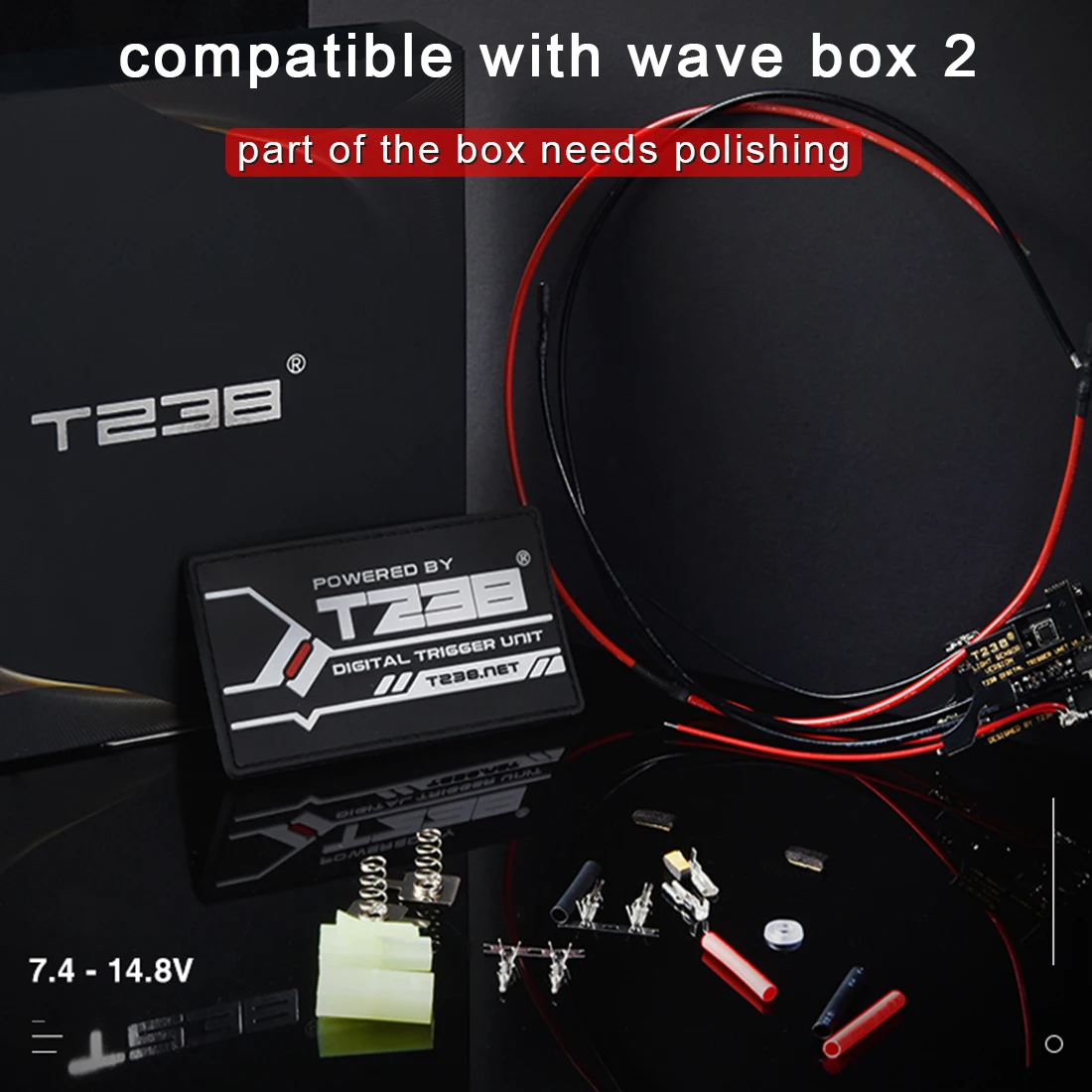

.No. 2 gearbox suitable for the standards of XWE M4, JM Gen.9, FB, Kublai, Jingji, and Jiqu

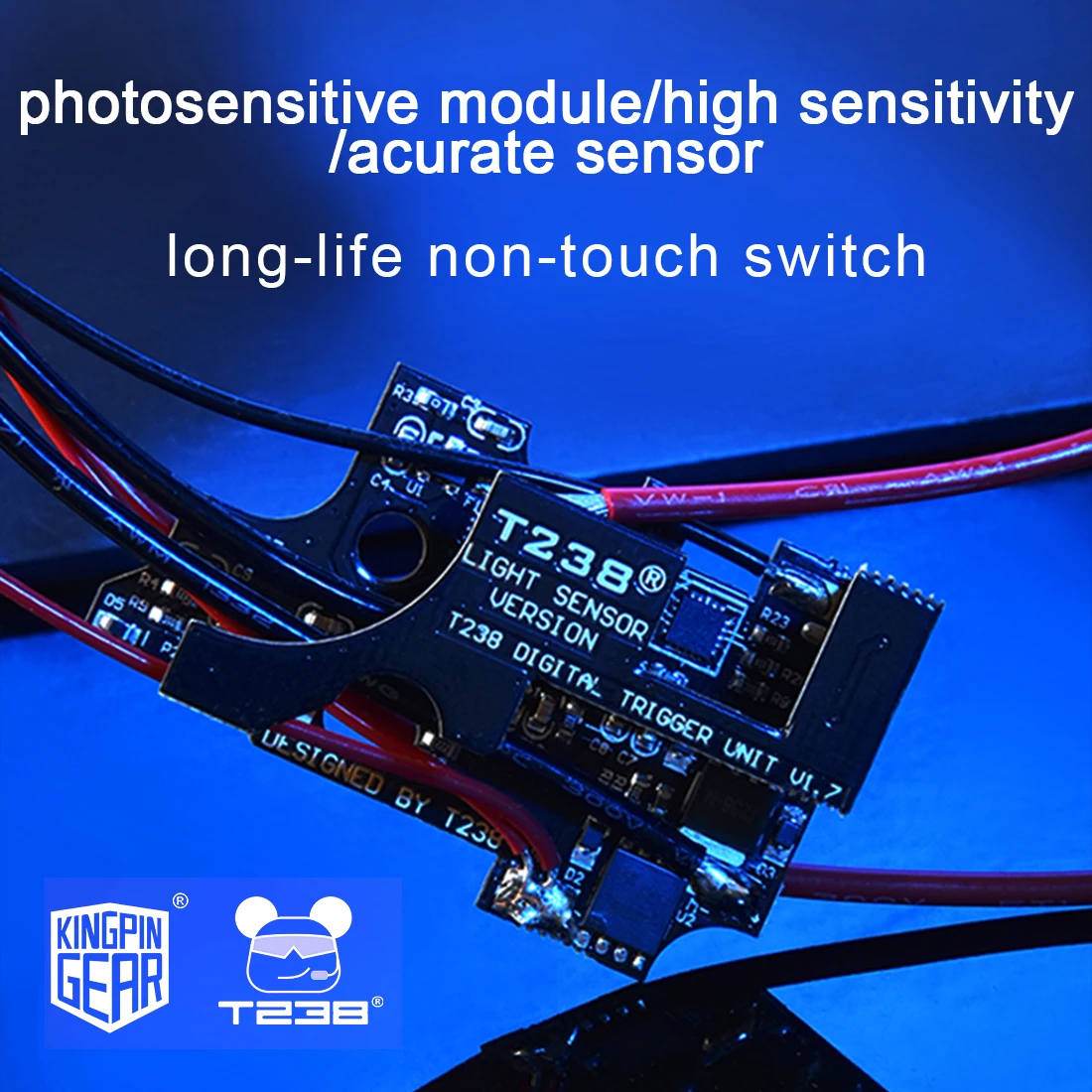

.Full light sense without contact and wear, with silver-plated wire set and plug connector; support adjustment of trigger sensitivity and AUG mode
.Note: For age: 14+. Please prepare a silver-plated wire, 0.75 square is recommended. Please pay attention to protect the detection switch during installation. Do not pull the switch release before the installation is completed to prevent the trigger detection switch from being scratched. Pay attention to the positive and negative poles of the motor and battery. The gearbox, the grip, and the motor cannot be used normally before they are installed. Please install them before using. Welding requires professional skills, if you cant, ask a professional. For springs below M150, please use external module T238 electronic brake module for more than M150. Use a high magnetic motor and a battery with a high discharge rate to reduce the motor and battery heating caused by a single shot. In the non-transmitting state, the total system current does not exceed 0.01A, which is one ten thousandth of the working state. Disconnect the battery if it is not used for a long time.
.V2 DTU version 1.5 or above and V3 DTU are guaranteed for one year in case of non-human damage. In the case of man-made damage, you need to pay for repair. Please refer to the picture for explaining the warranty and repair scope

Note : If the product does not work after installation, in many cases it is not the product itself. It may be 1. The installation method is wrong, 2. The trigger angle is too small to trigger the trigger sensor, 3. Other reasons. If there is a problem with the product, we will arrange replacement (replacement is not supported if it is artificial damaged). If you have any questions, please contact us instead of opening a dispute. We will try our best to solve the problem for you.

Specifications:

.Color: As Shown
.Material: Nylon + Electronic Components + Wire Rod
.Product Weight: 90g
.Package Dimensions: 16 x 16 x 4cm
.Package Weight: 100g
.Packing: Box

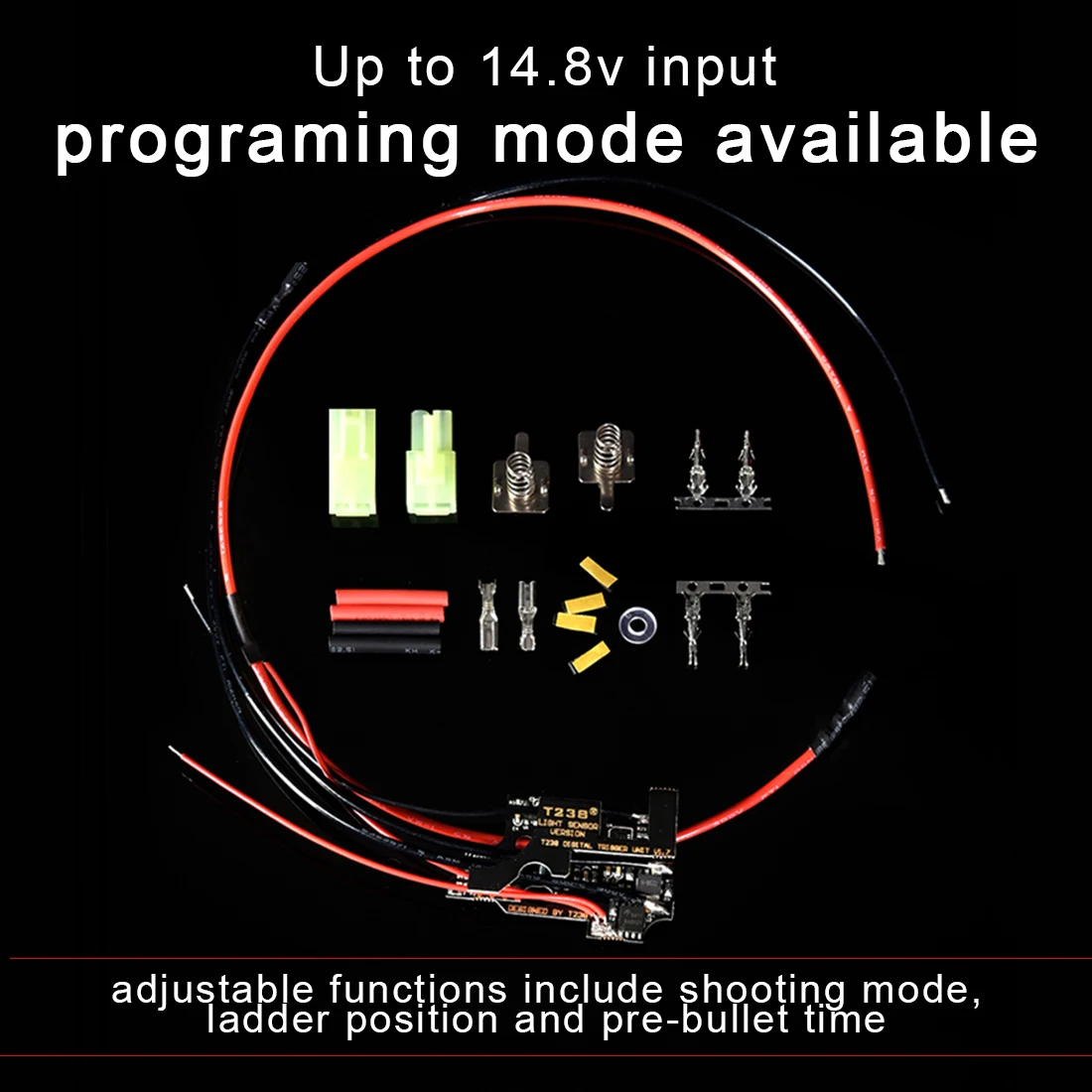

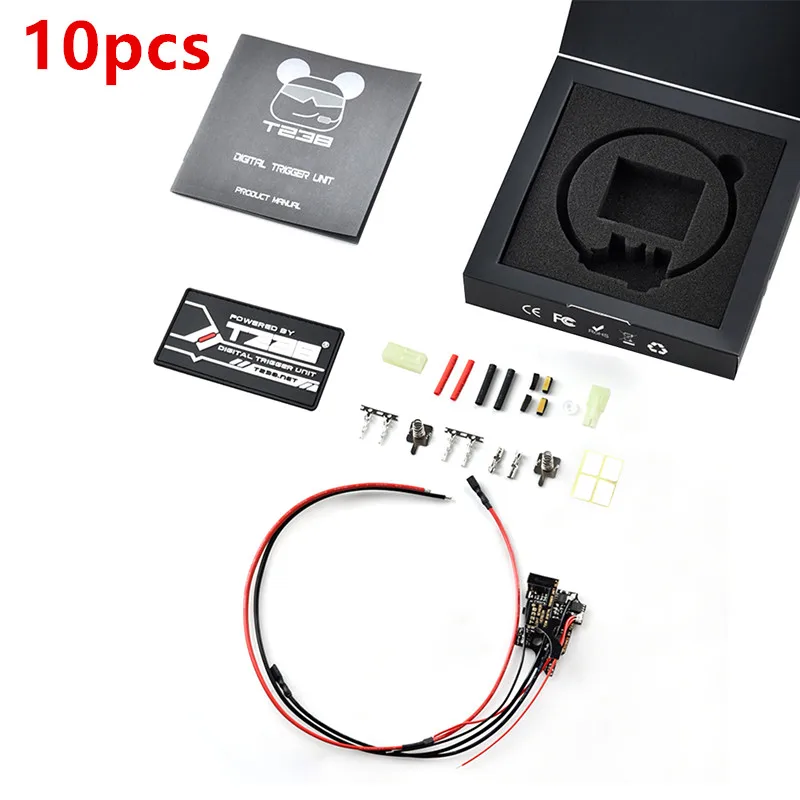

Package Content:

.1 x Fire Control Module
.1 x Manual
.1 x Component Pack
