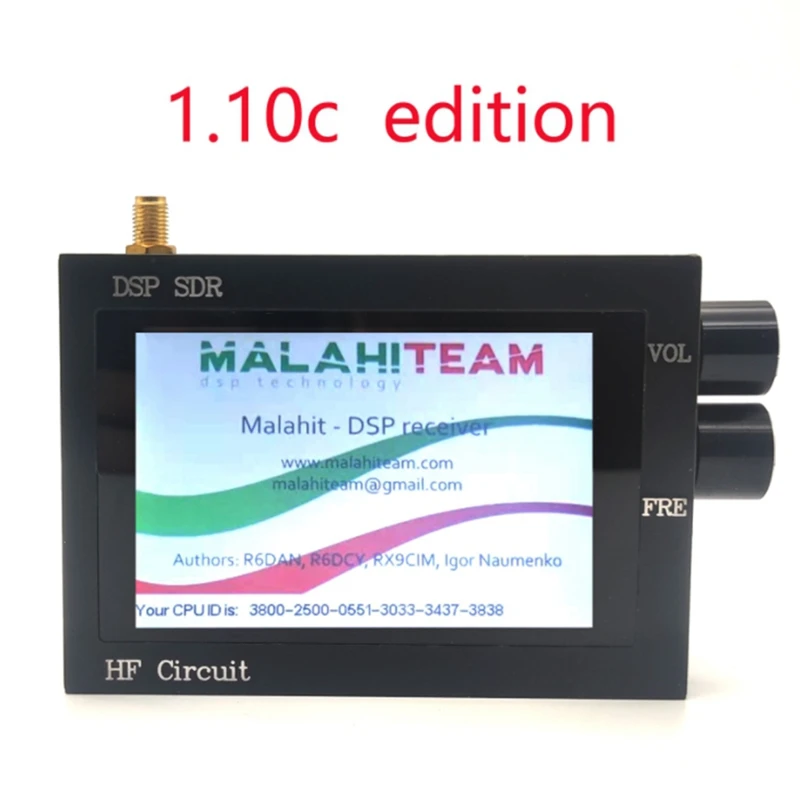

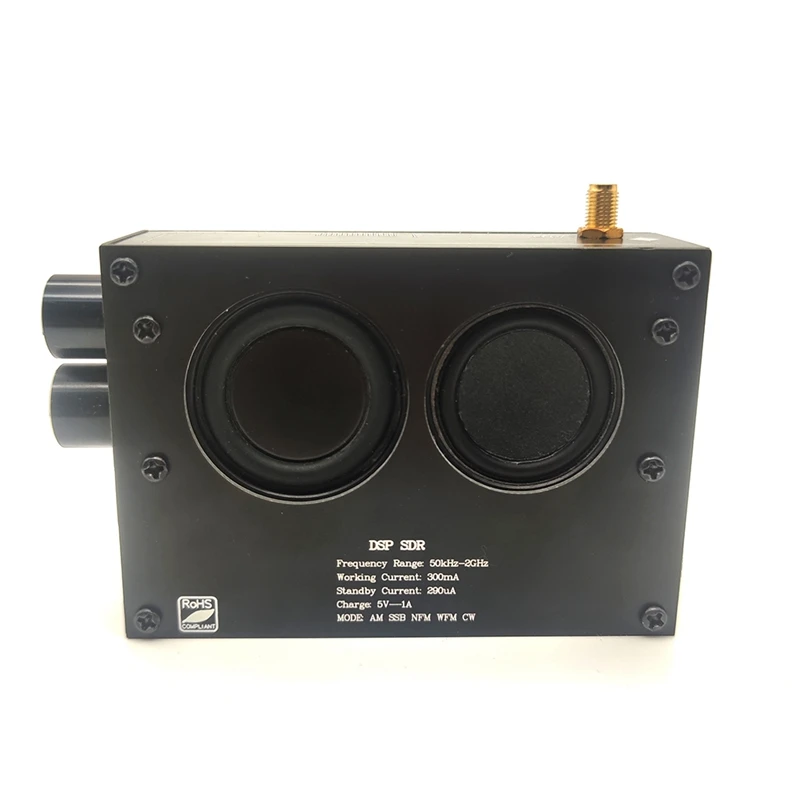

                            1.10C Edition 3.5Inch 50KHz-2GHz DSP SDR Shortwave Radio Receiver for Malahit Sound Two-Speaker AM SSB NFM WFM

DSP SDR Receiver for Malahit. Capacitive touchscreen. Flash via USB cable
Default frequency range: 50KHz-2GHz
Demodulation mode: AM, SSB, NFM, WFM

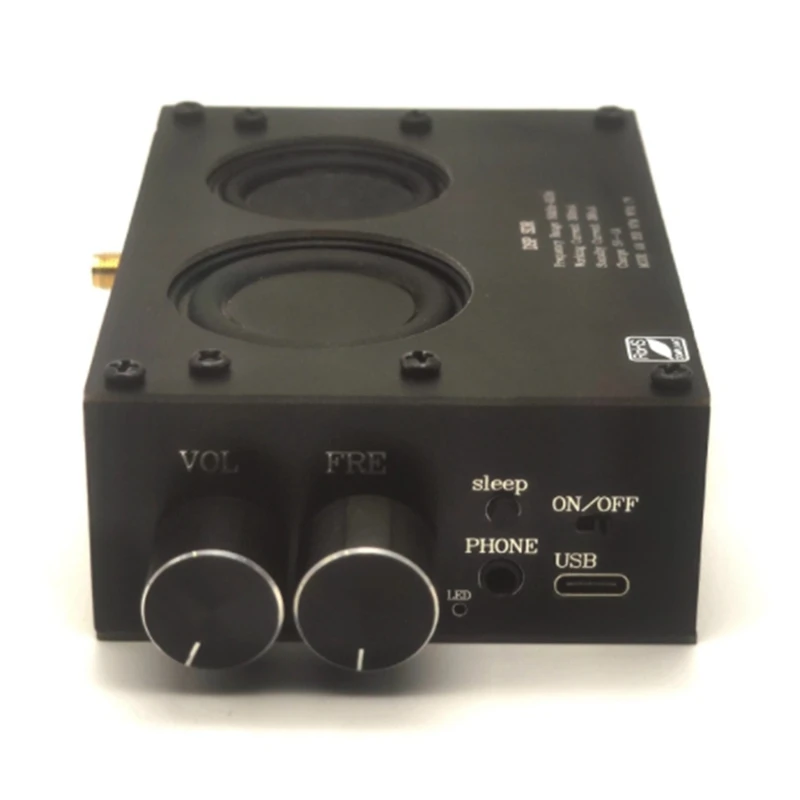

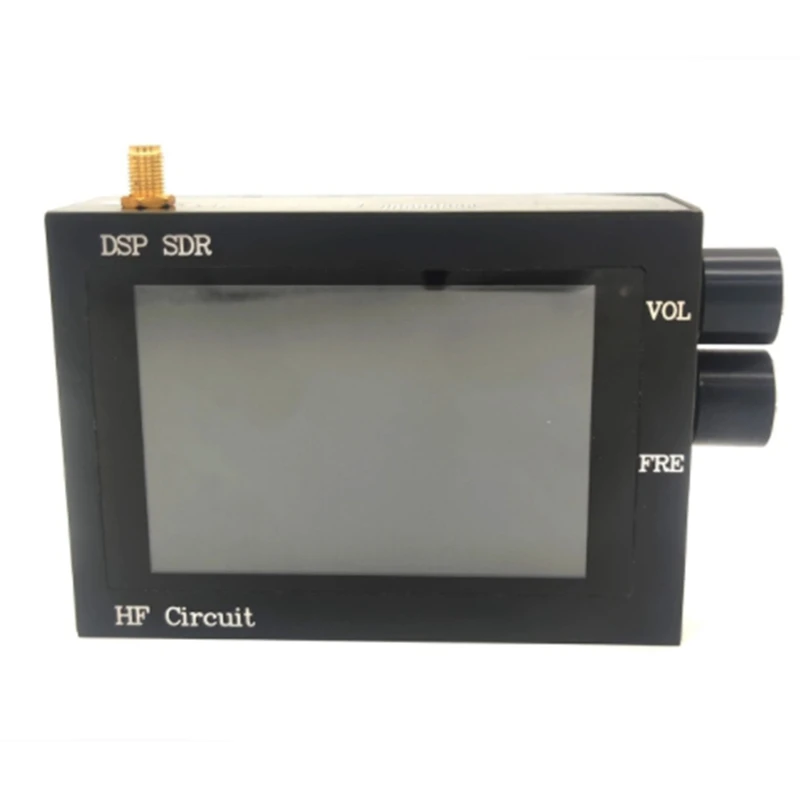

Advantages: 1. 3.5 inch capacitive screen. 2. Adopt a sound unit, 2 vibrating chambers, the speaker comes with a sound chamber, the bass sound quality is very full
The radio is built on the principle of SDR-the function is determined by loaded software

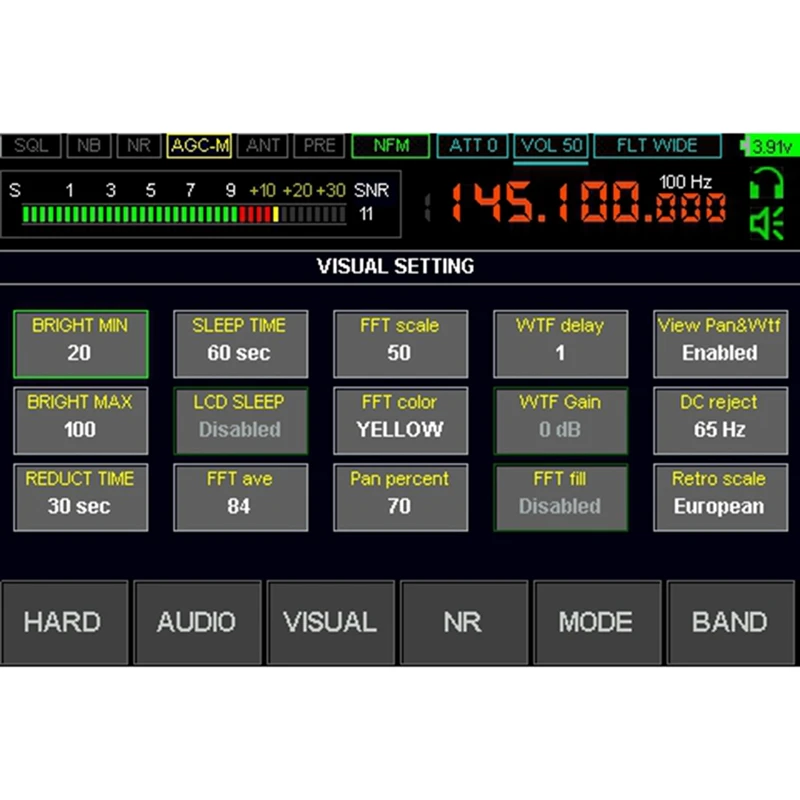

Powerful functions: variable filter width, adaptive noise suppressor, threshold noise suppressor, for Noise Blanker, AGC, equalizer
Use cheap but fully functional chip msi001
The powerful stm32h743 with a clock frequency of 480 MHz is applied
There is a built-in UHF
Controls: 2pcs; encoders with buttons and touchscreen
It is powered by an external TYPE-C (for Huawei mobile phone) interface or battery (with battery ), which can be charged by TYPE-C.
Consumption: 300mA when listening to headphones
The reception on built-in telescope or external antenna is to improve the HF reception on telescope antenna, and an additional board with source follower has been developed. The board will be built into standard receiver design.
Connect to computer via USB, which can transfer CAT, IQ and audio.

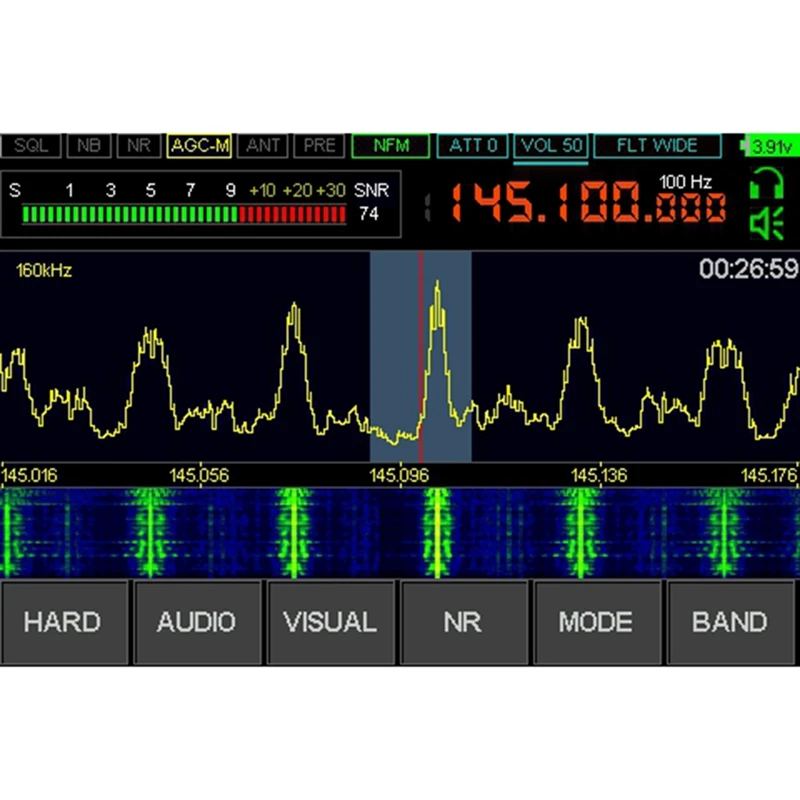

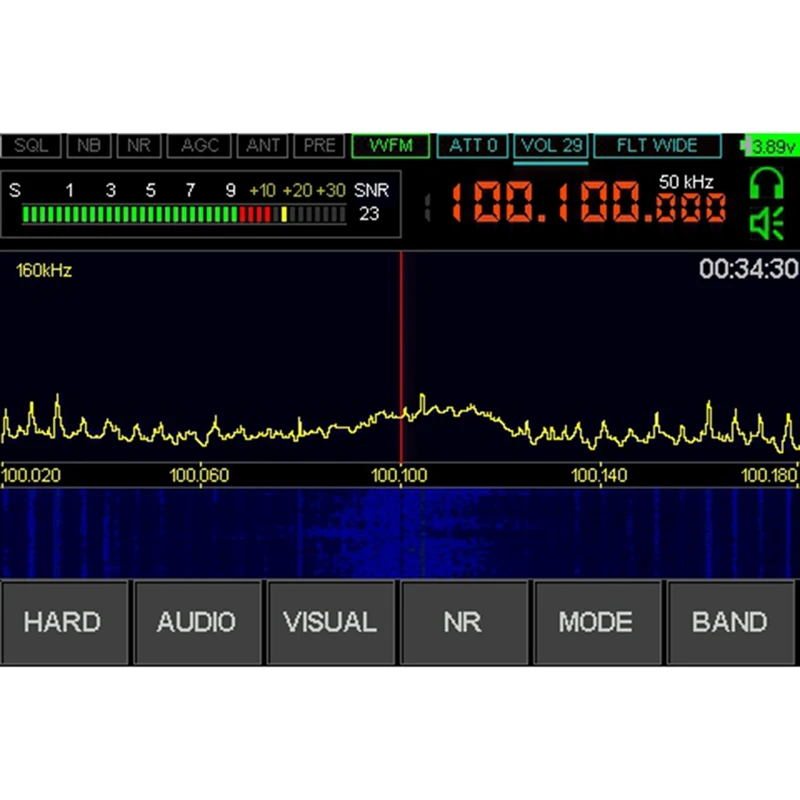

160 kHz span, with scalability
Sensitivity: Under the condition of up to 250MHz, s/w is 0.3μV = 10dB; due to lack of measurement equipment, so the above measurements were not taken
Due to the characteristics of msi001 chip used, dynamic blocking range is about 85dB.
With backlight control
SMA female antenna socket
Motherboard size: 100 x 70mm (without the sizes of connectors).
This is use to protect the batte
Colour: black
Material: metal + plastic

Package Contents:
1 x receiver
1 x antenna
1 x USB cable

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
