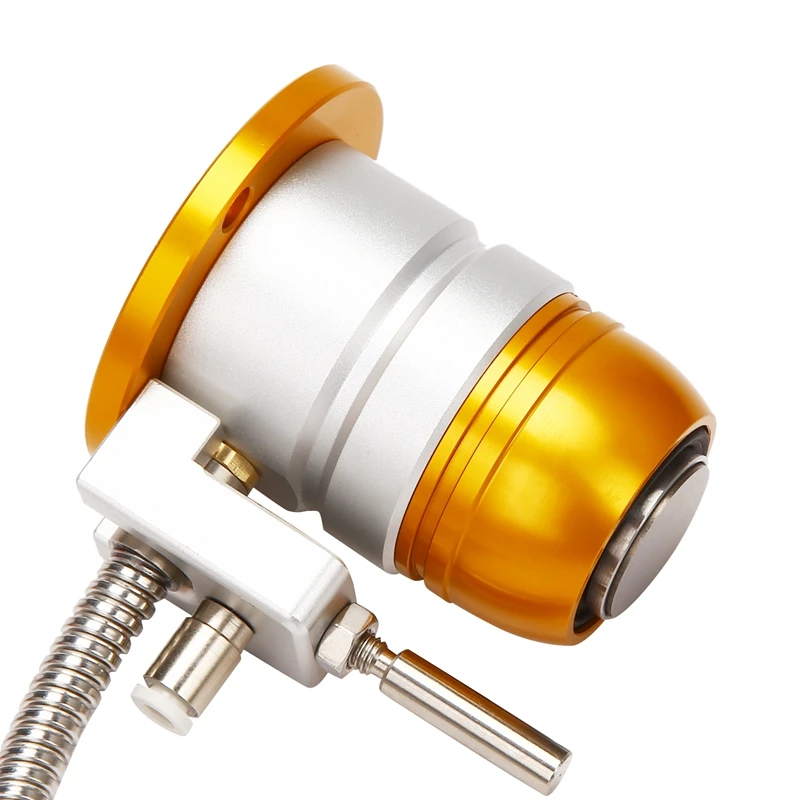

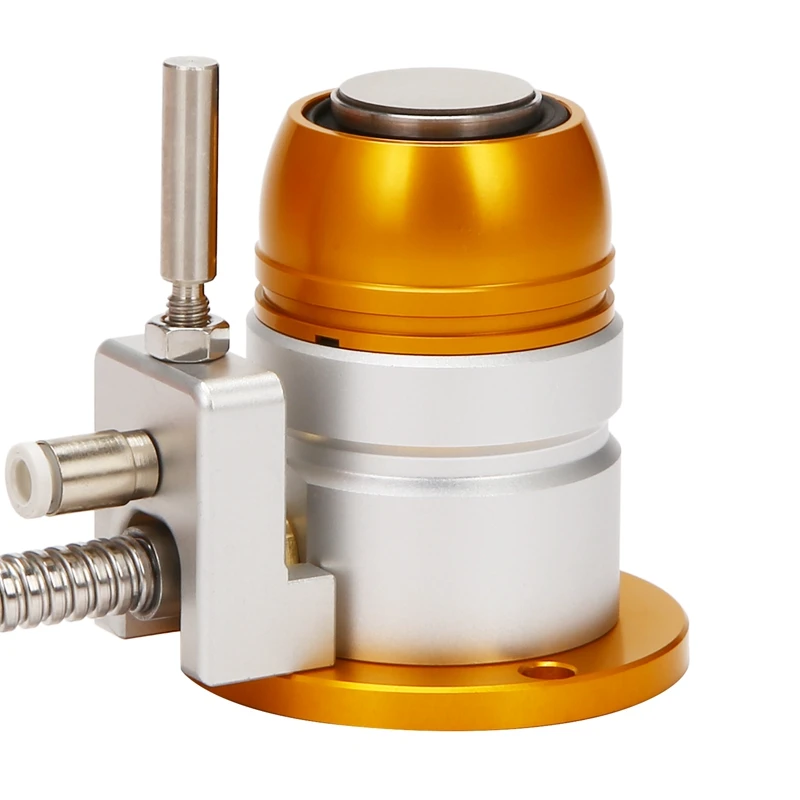

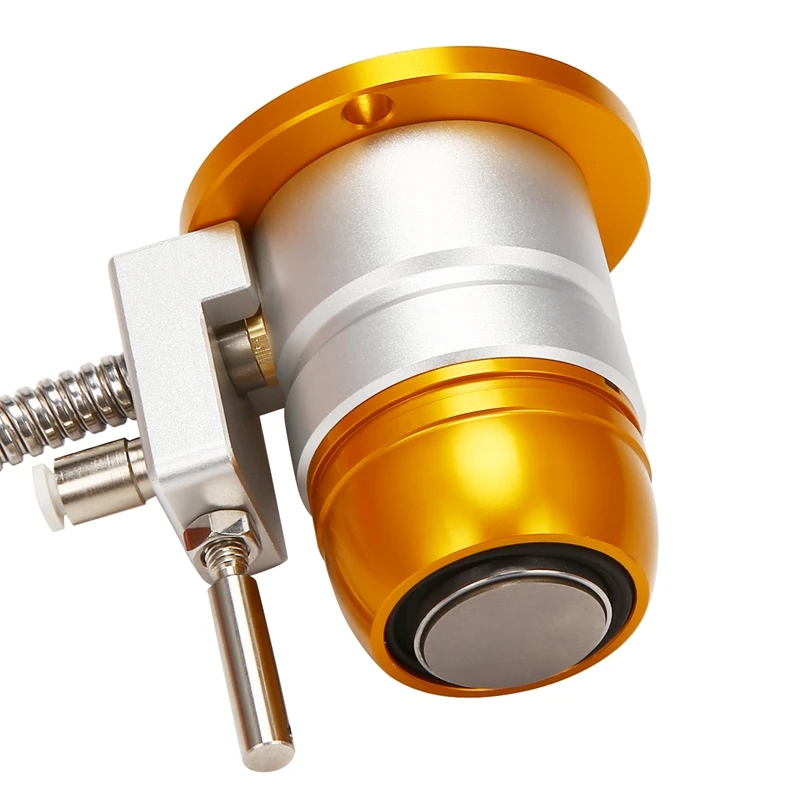

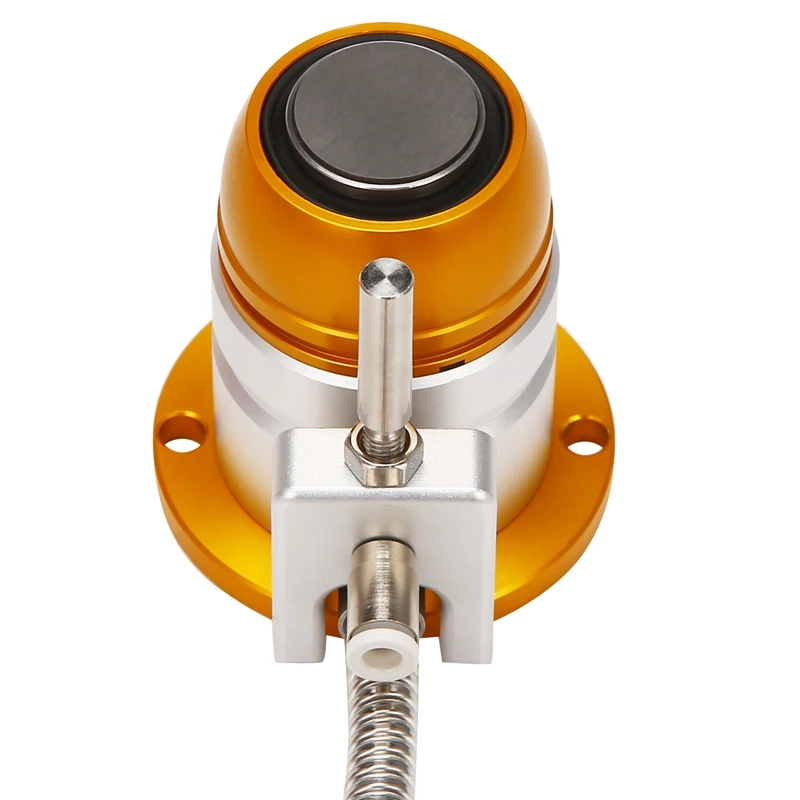

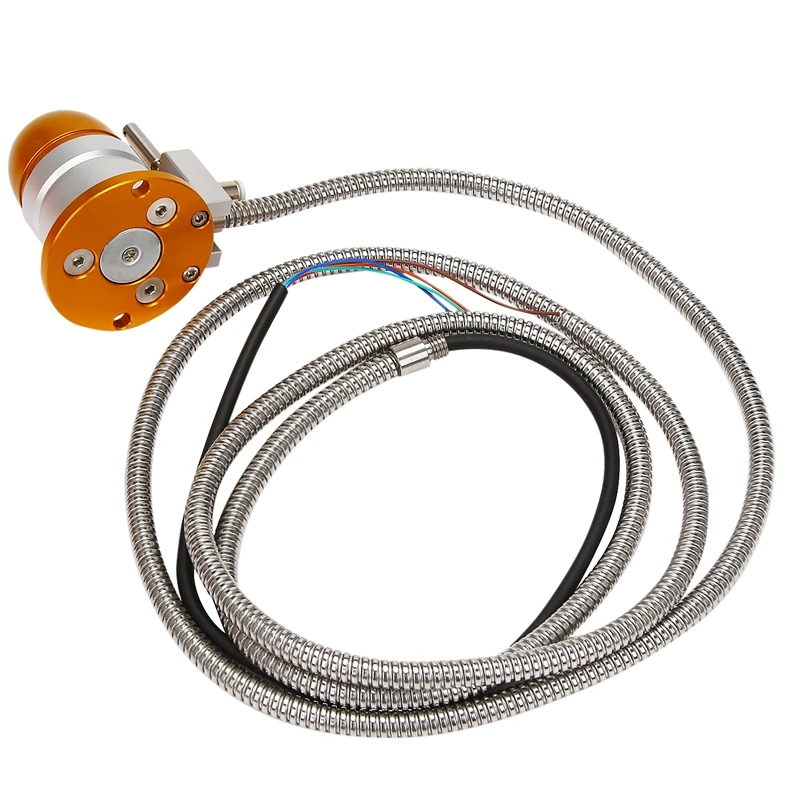

High Precision Automatic Tool Sensor Cnc Z Axis Tool Press Sensor Tool Setting Gauge for CNC Router Engraving Machine

Dustproof, waterproof and durable
No built-in amplification is required, and there is no deviation caused by the fluctuation of the power supply voltage due to the position temperature of the tool setting instrument. Can be directly input like NC program
The alarm signal is reflected in time, and an alarm signal is issued in time when the overtravel is performed, so as to avoid other troubles caused by the operation of the equipment.
High precision and strong anti-interference.

Stroke: 5mm
Repeatability: 0.001mm
Electric shock life: 3 million times
Protection structure: IP67 waterproof
Contact force: 1.5N
Housing material: grinding 4S
radius: R25MM

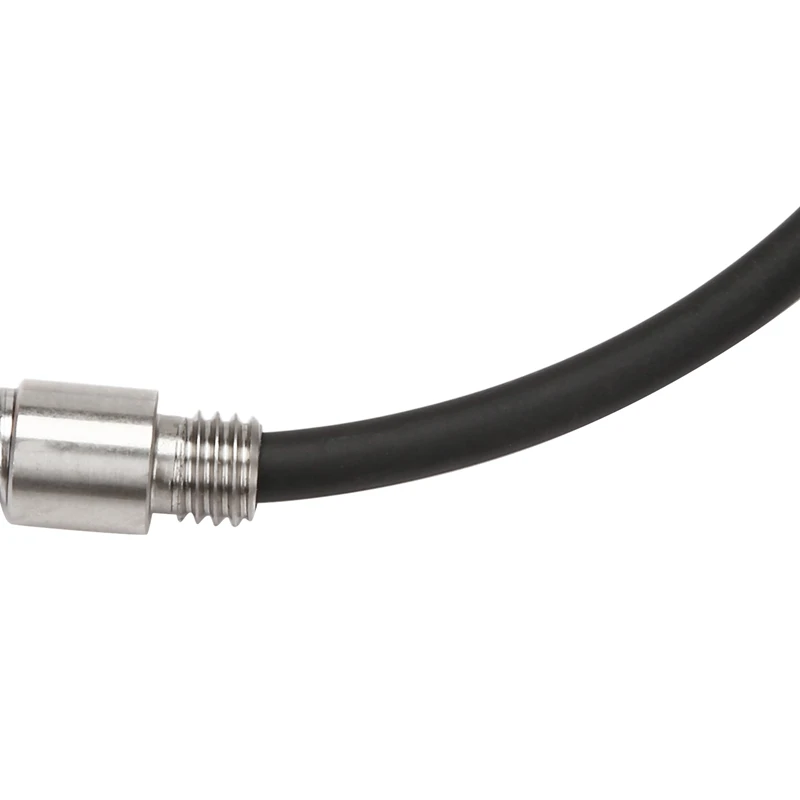

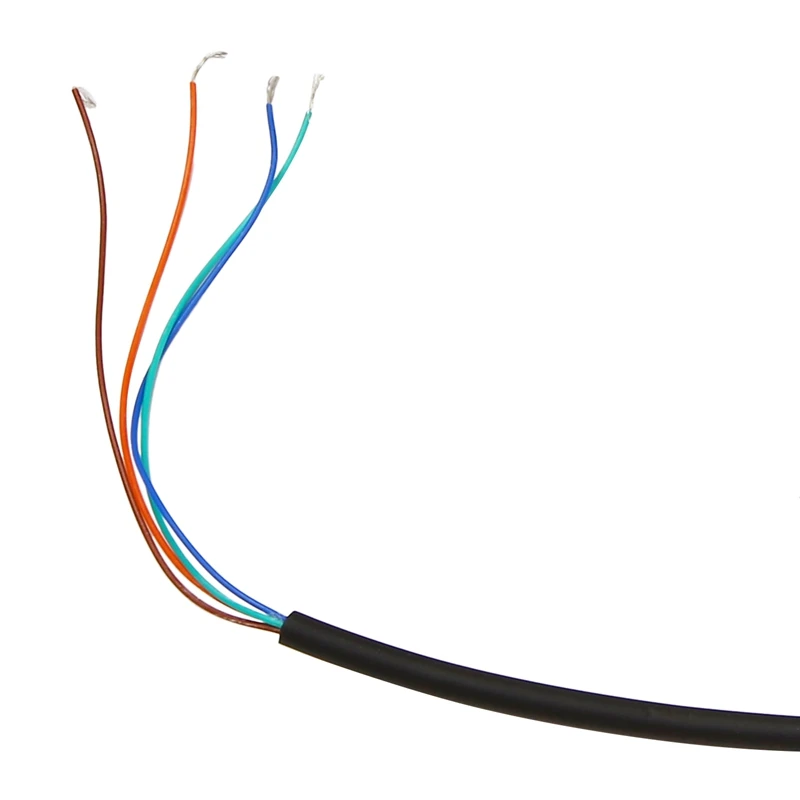

Cable: 2.1m

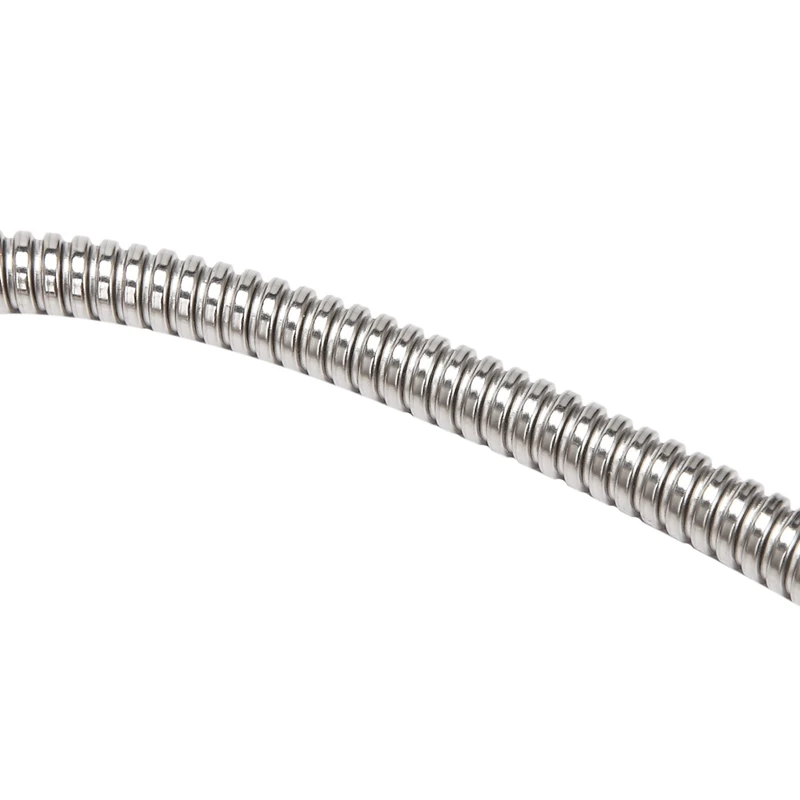

Protection tube length: 1m
colour:Golden
Material:metal
size:62x55x55mm

Package Contents:
1 * CNC tool presetter

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
