Note:

If you buy a 72V3000W motor, the maximum current after your battery is fully charged should not exceed 50A. It is recommended to use the power-assisted mode during the uphill process. Do not use the pure electric mode, otherwise the controller will easily burn out. Thank you very much for your cooperation.

Ship from China

[Please notice the ATTENTION information below]

We have the following options:

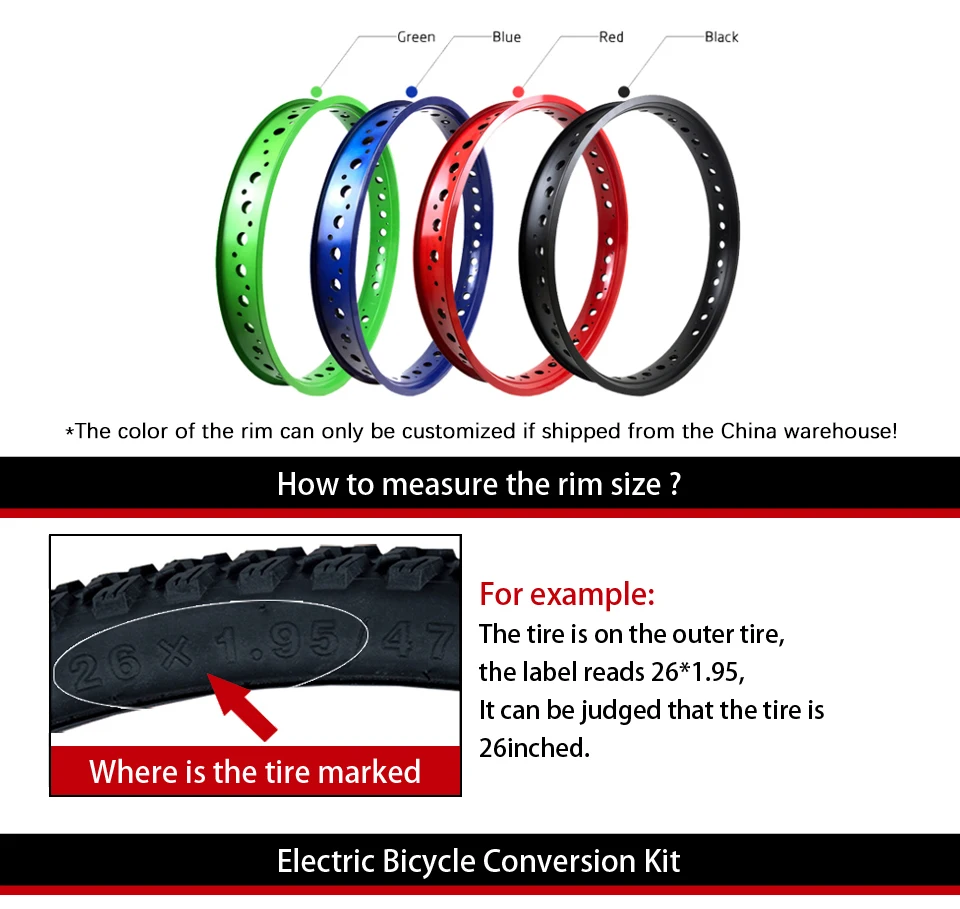

●wheel size :20inch 26inch(leave message when you order)

●Throttle:Half Twist Throttle , Thumb Throttle , Twist Throttle （Depend the type you choose）

Ship from Spain

[Its not optional and can't change parts,Please leavea message to confirm the wheel size agianafter you place an order]

We have the following Option:

●48V 1500W，26inch，LCD3 Rear wheel

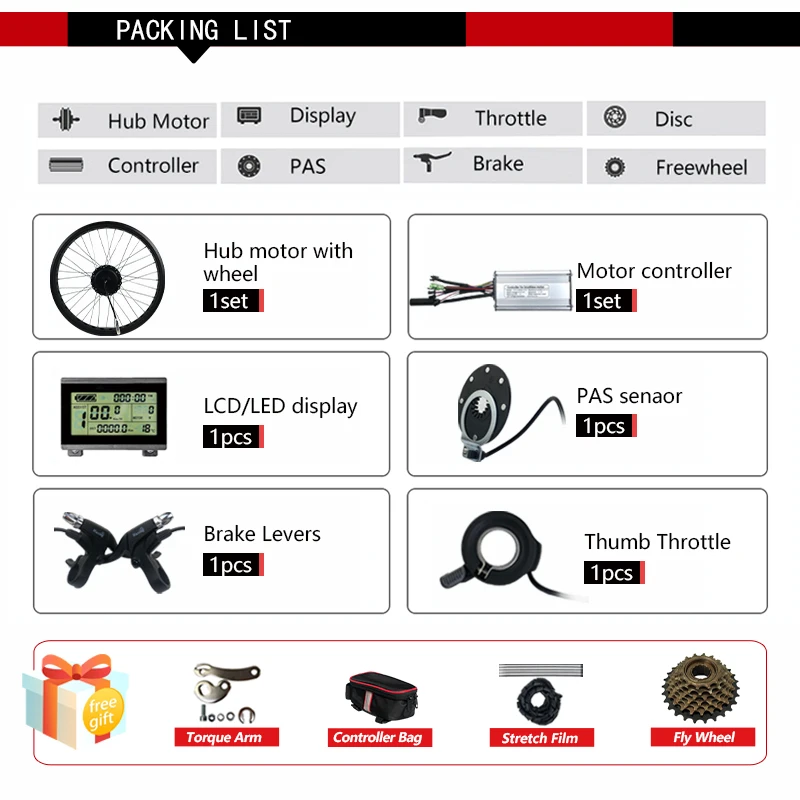

●72V 3000W，26inch，LCD3 72V Rear wheelPacking List :

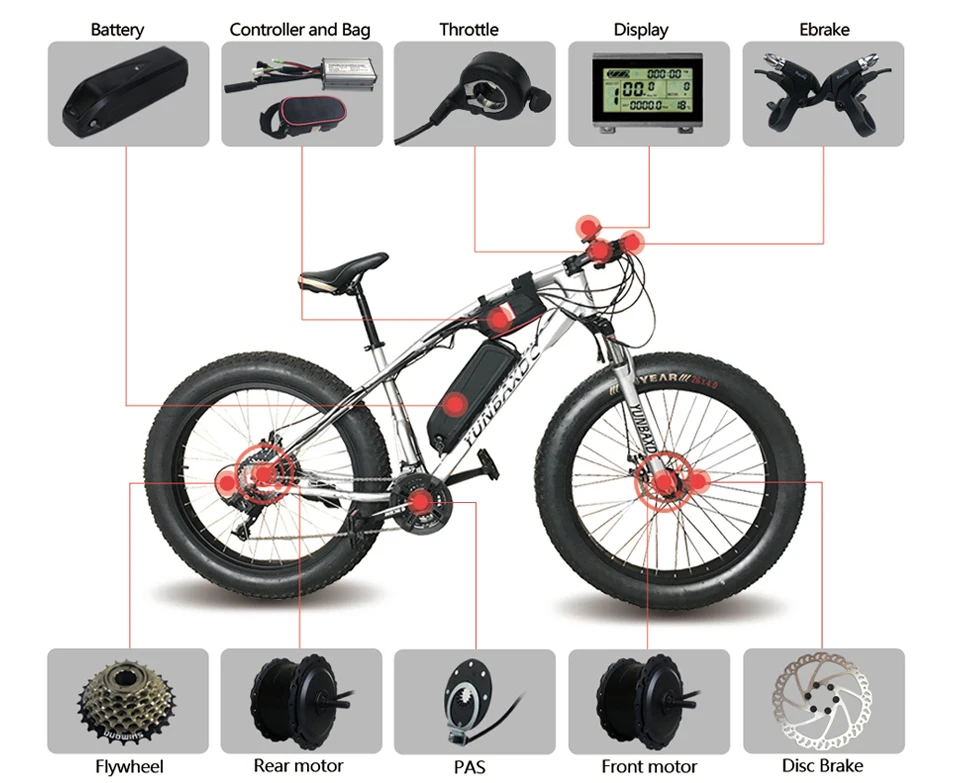

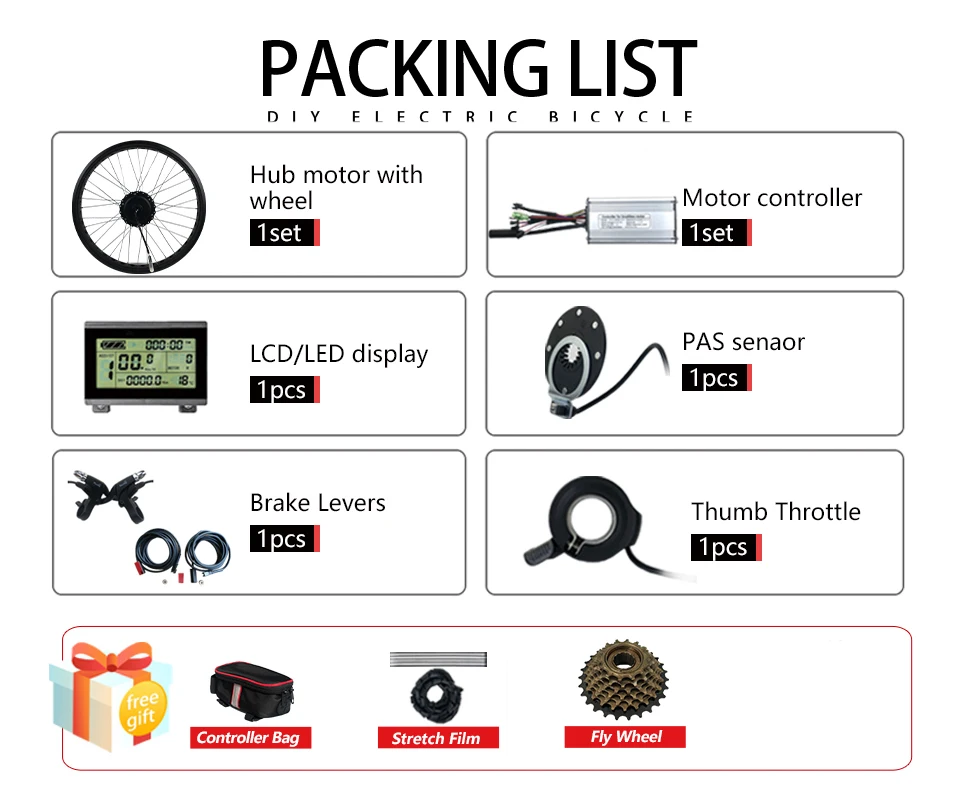

★★★Noted:Conversion Kit not include Battery, tire, tirque arm,disc brake.( If you need a Battery, tire, tirque arm, disc brake, Please contact us for an additional fee )

① Motor wheel(Front or Rear)

② Controller

③ pair * Power cut-off Brake lever

④ pair * Brake sensor

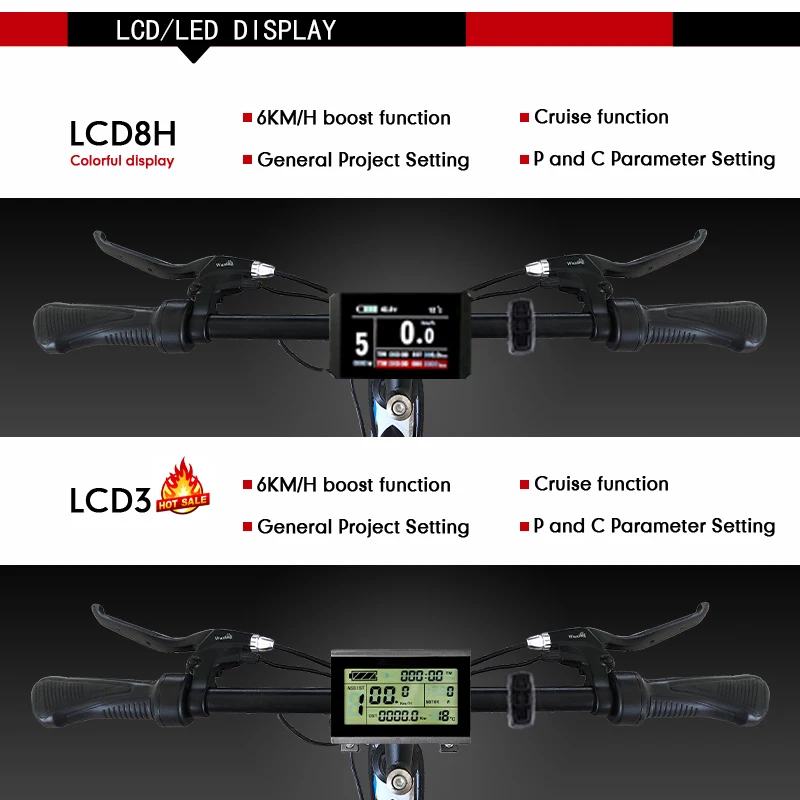

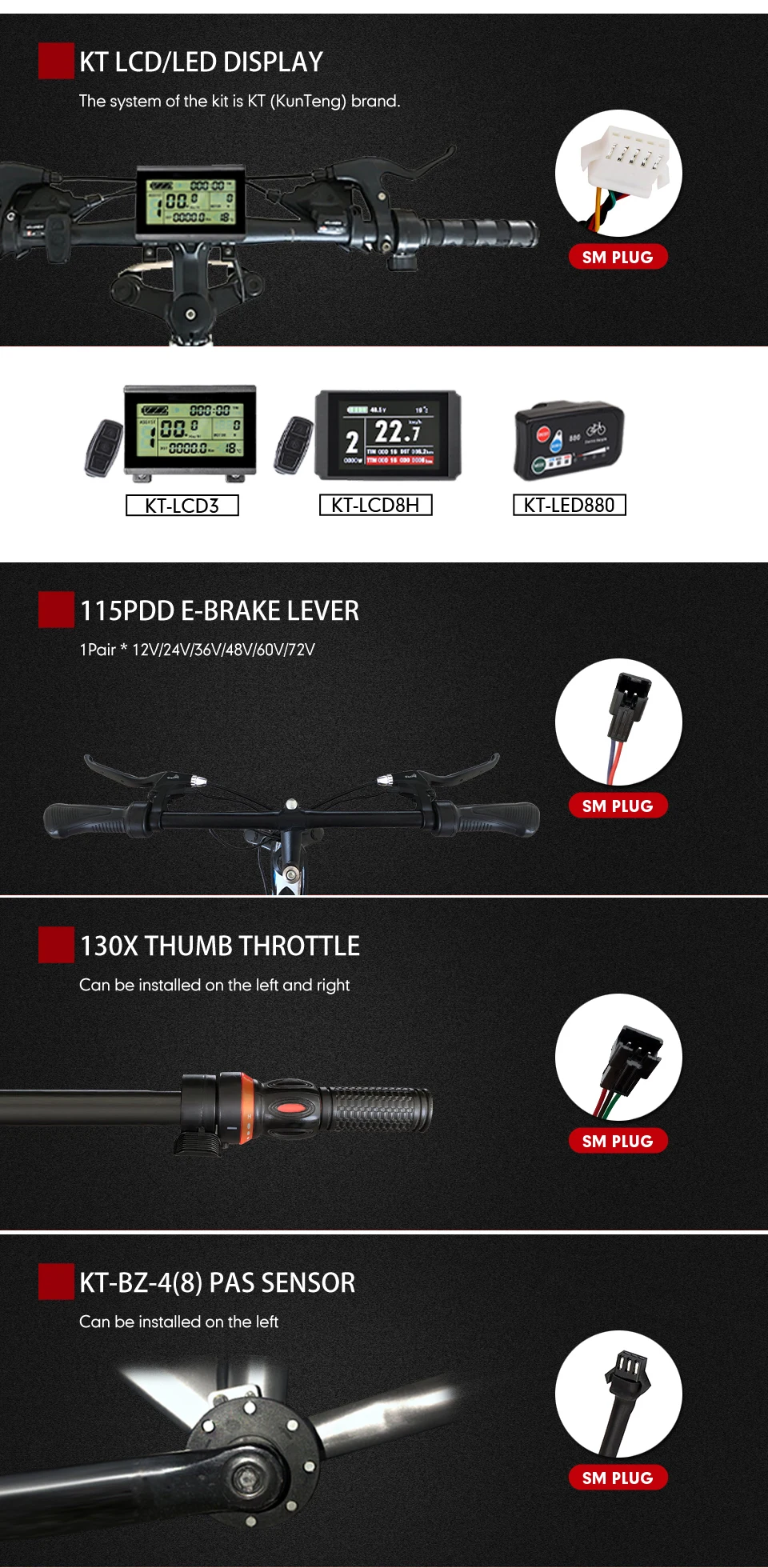

⑤Display LCD3

⑥8 Magnet Pedal Assistant Sensor

⑦Throttle

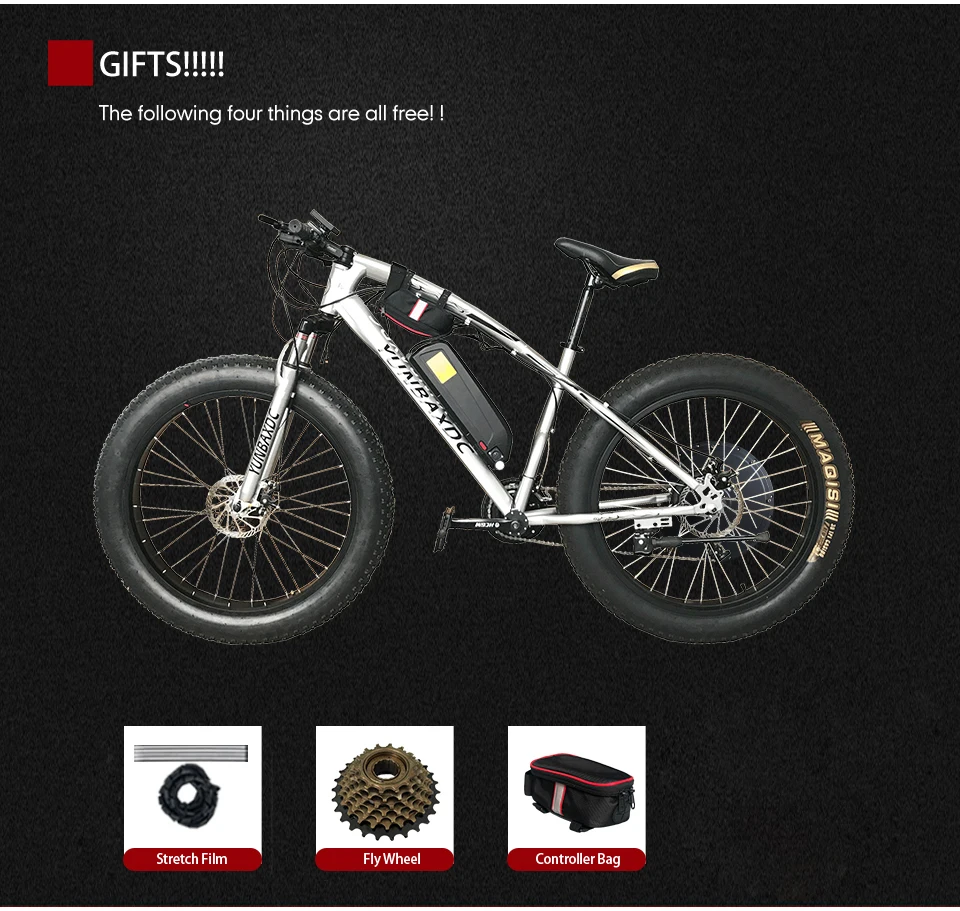

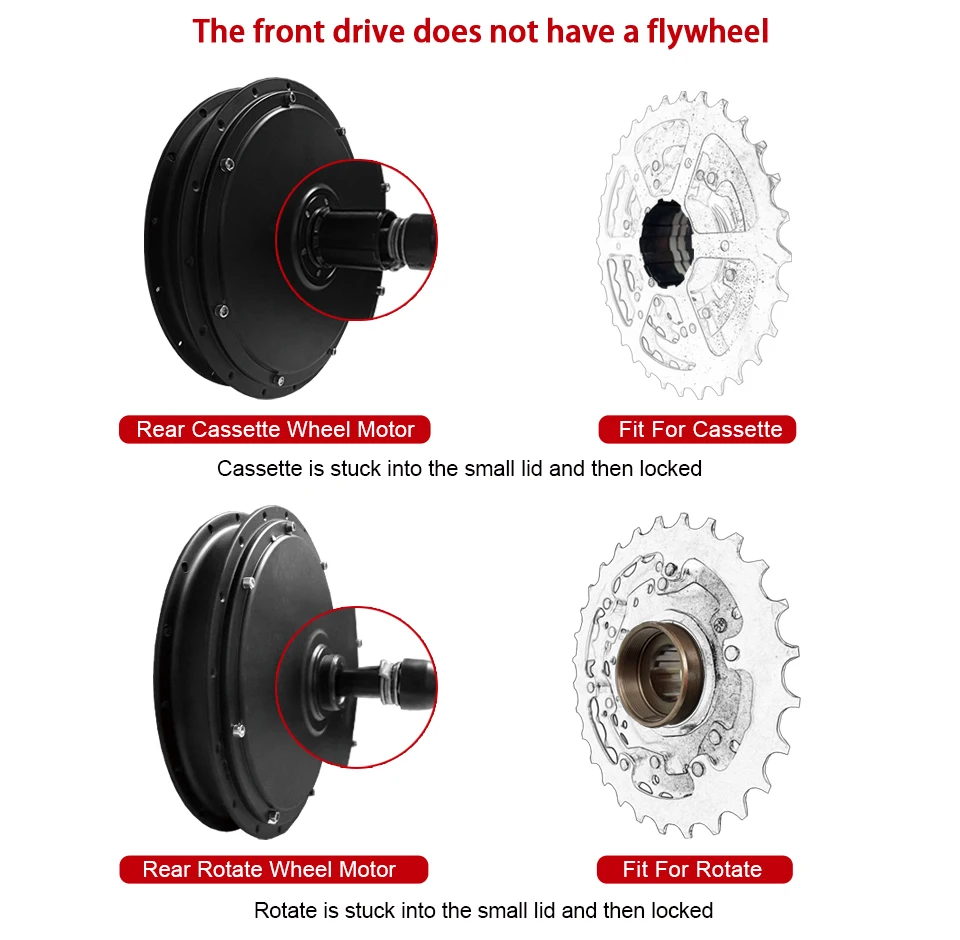

⑧ Flywheel（Only in the Rear）

⑨Controller Bag( not battery) （Gifts）

⑩Install cable ties and stretch film（Gifts）

⑪Installation Manual（Gifts）

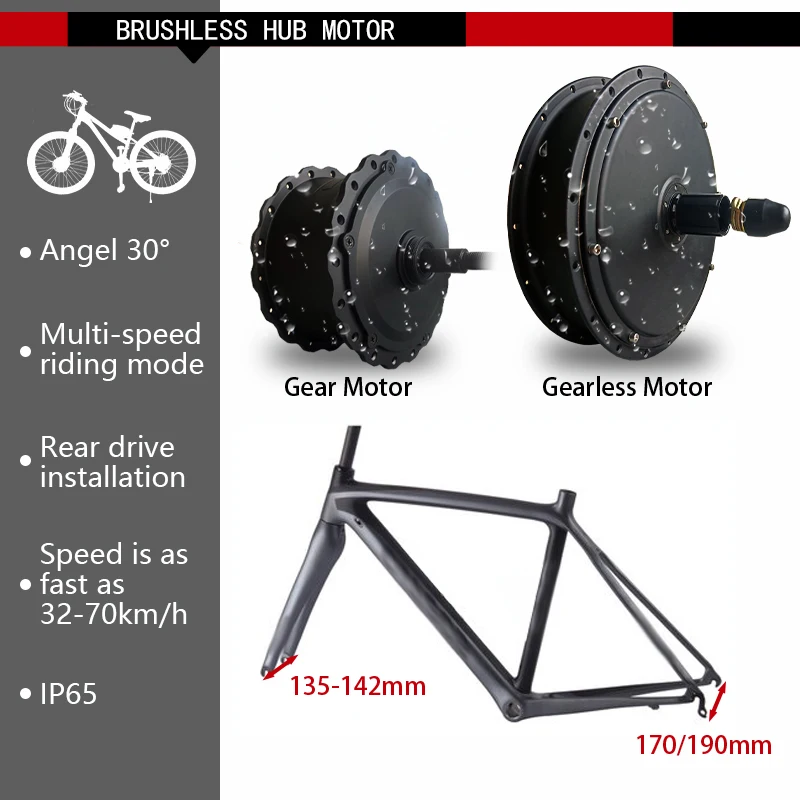

Motor Wheel Detail:

36V/48V 500W Motor

●Rated Speed(KM):32-35 km/h

●Rated Speed(rpm):289-346

●Torque(N.m): 59-66

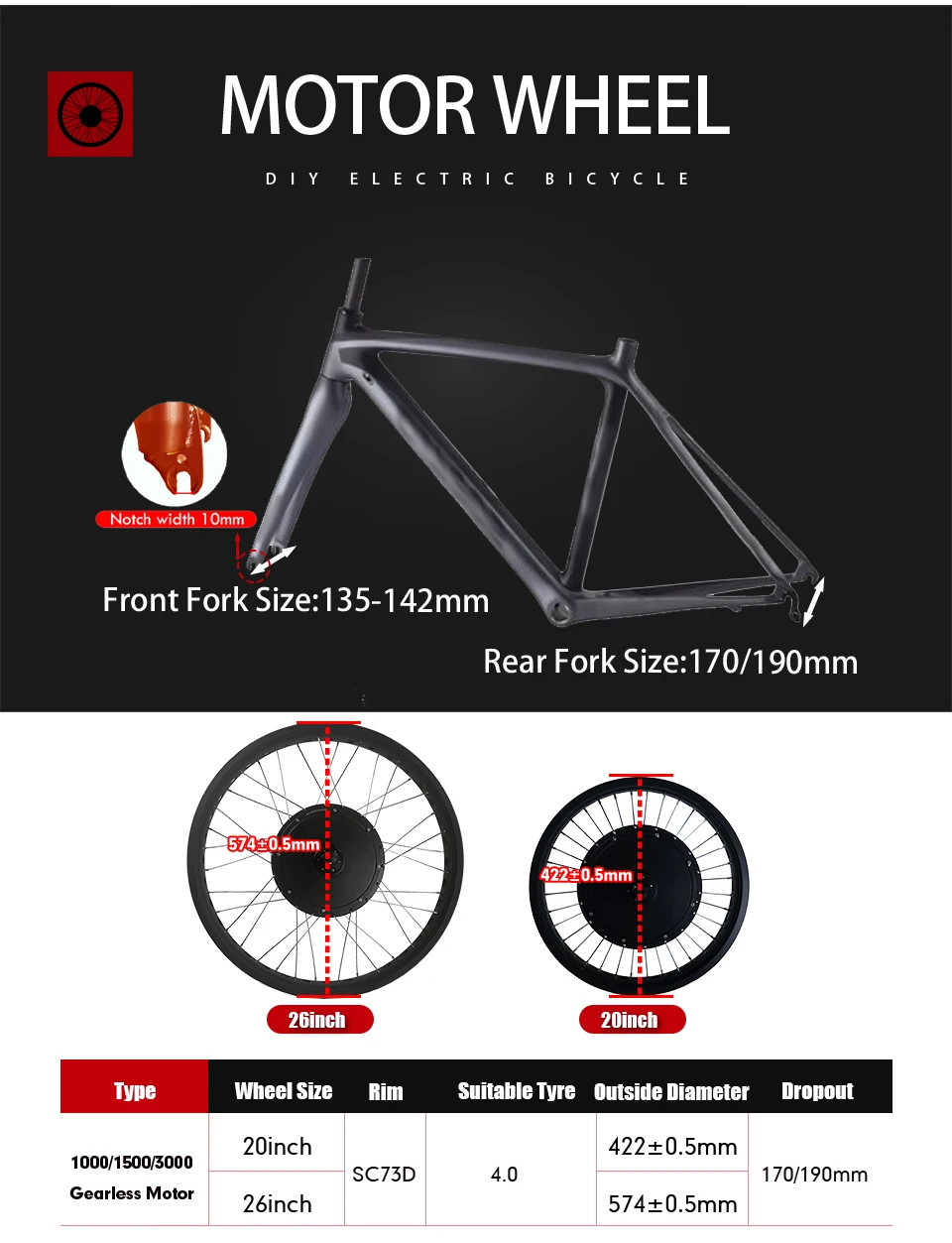

●Front Fork size(mm):135-142mm

●Rear Fork size(mm):170mm or 190mm

48V 1000W Motor

●Rated Speed(KM):40-45km/h

●Rated Speed(rpm):372-433

●Torque(N.m): 59-60.3

●Rear Rotate Fork size(mm):170mm or 190mm

48V 1500W Motor

●Rated Speed(KM):45-50

●Rated Speed(rpm):414-487

●Torque(N.m): 71-74.6

●Fork size(mm):170mm or 190mm

72V 3000W Motor

●Rated Speed(KM):55-70

●Rated Speed(rpm):579-596

●Torque(N.m): 91-101

●Fork size(mm):170mm or 190mm

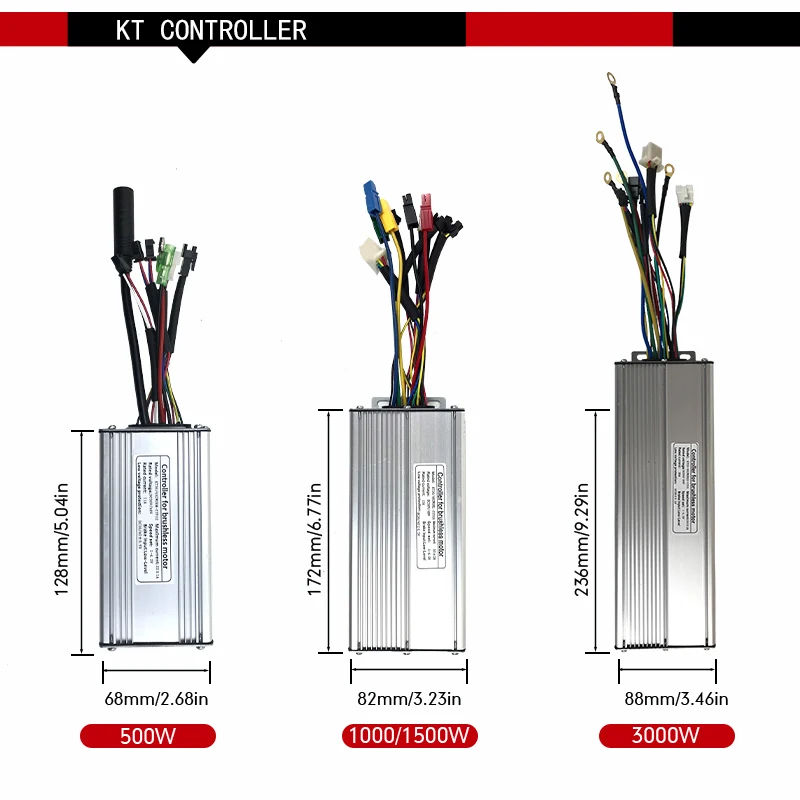

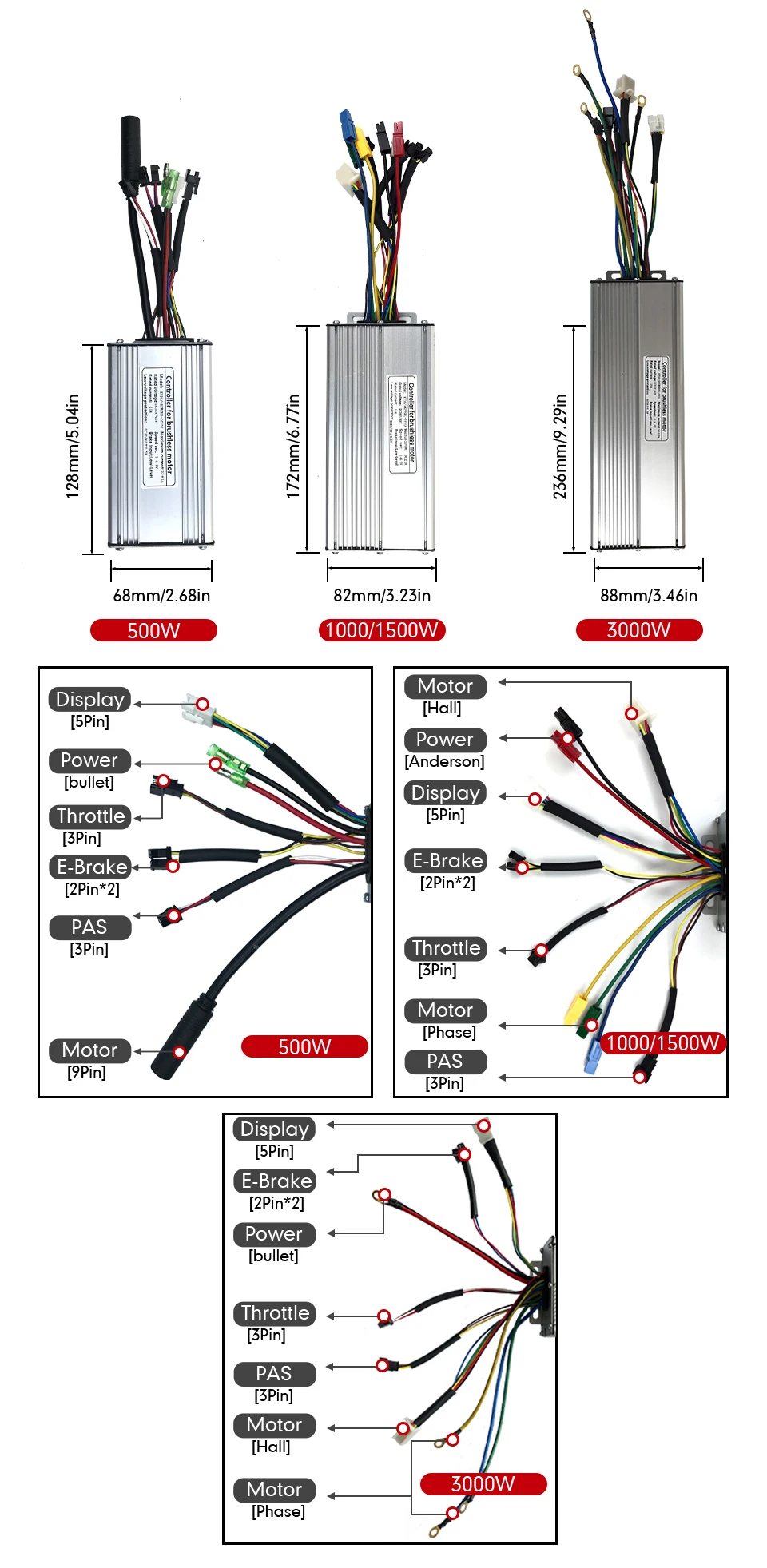

Controller Specification:

22A Controller

●Use For :500W Motor

●Dimension :125*65*41 mm

●Mosfets :9 mosfets

30A Controller

●Use For :1000W Motor

●Dimension :180*83*45 mm

●Mosfets :12 mosfets

35A Controller

●Use For :1500W Motor

●Dimension :180*83*45 mm

●Mosfets :12 mosfets

50A Controller

●Use For :3000W Motor

●Dimension :236*88*42 mm

●Mosfets :18 mosfets

Wheel width 80mm
