Характеристики

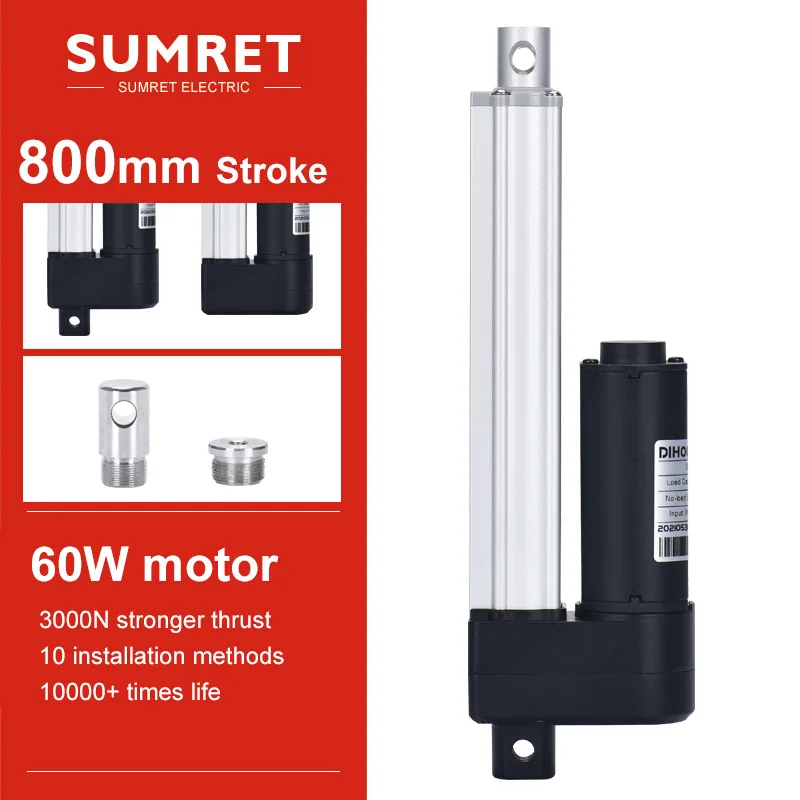

800mm Stroke Electric Linear Actuator With Position Feedback DC 12V 24V Motor Lift Telescopic Push Rod Medical Bed 3000N 66MM/S |
Описание товара
800mm Stroke Electric Linear Actuator With Position Feedback DC 12V 24V Motor Lift Telescopic Push Rod Medical Bed 3000N 66MM/STECHNICAL PARAMETERS:Model
SRA3000
Voltage
DC 24V
No-load speed(mm/s)
5
10
15
20
26
30
40
50
66
88
110
Load Pull Capacity(N)
3000
1500
1200
1000
800
600
400
400
300
200
100
Load Push Capacity(N)
3000
1500
1200
1000
800
600
400
400
300
200
100
Self-locking Capacity(N)
4000
2000
1500
1200
1000
800
600
500
400
200
100
Voltage
DC 12V
No-load speed(mm/s)
5
10
20
30
40
66
Load Pull Capacity(N)
2400
1200
600
400
300
200
Load Push Capacity(N)
2400
1200
600
400
300
200
Self-locking Capacity(N)
2400
1200
600
400
300
200
Stroke Length
50mm-1600mm
Motor Power
60W
Operating Temperature
-25°C~+85°C
Limit Switches
Built-in(will not built-in if with HALL sensor)
IP Grade
IP45 / IP66
Material
Aluminum,Plastic
Gears Material
Plastic
Noise
30dB
Operating Frequency
10%max 2min. continuous use
Inner Tube
Aluminum Tube
Lead Screw Type
Type T
Mechanical Life
More than 30,000 times
Application:
Television console.couch for massage.Electric bed.Medical chair.Electric equipment ....
Optional Configuration
1.Hall Sensor 2.Magnetic Sensor 3.Limit-Switch-Feedback

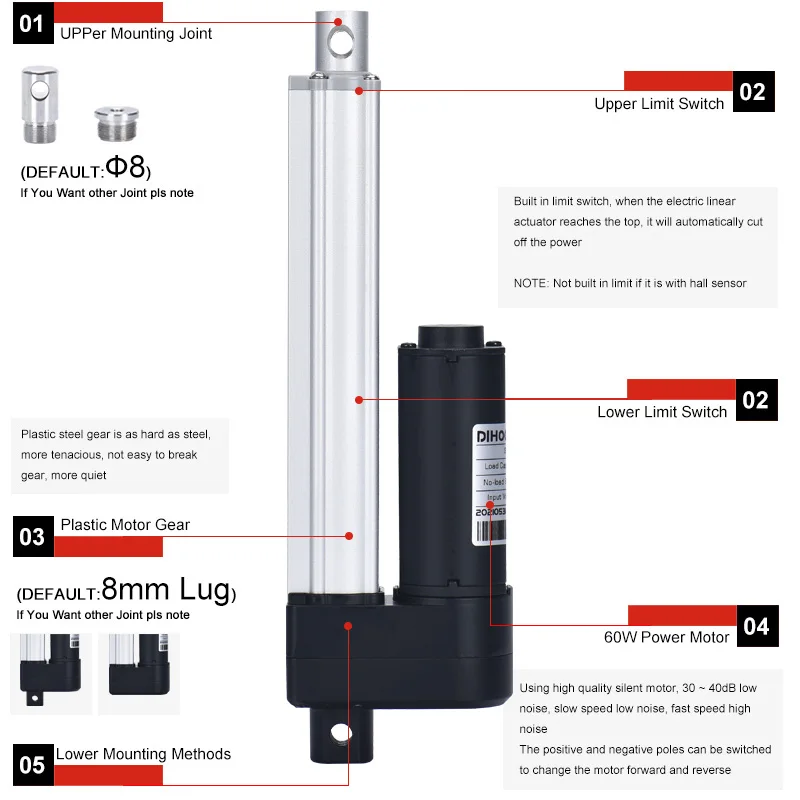

Metal Gear VS Plastic Gear:Metal Gear: noisy; long-term work will cause metal fatigue and easy breakage due to overheating;
Plastic Gear: quiet sound; plastic steel material has good toughness and will not break due to overheating;
Plastic steel gears are used in more and more places, such as medical equipment must be replaced by plastic steel gears

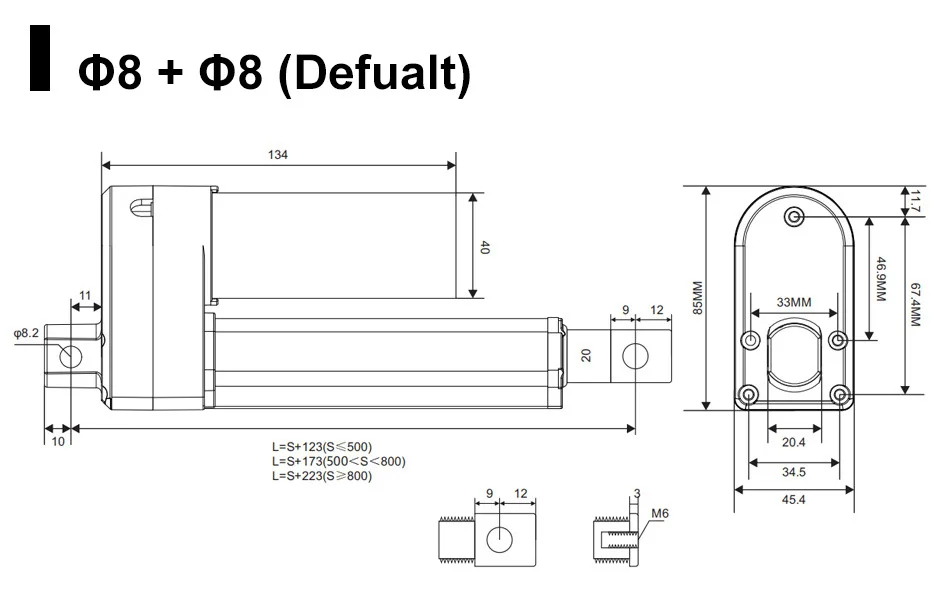

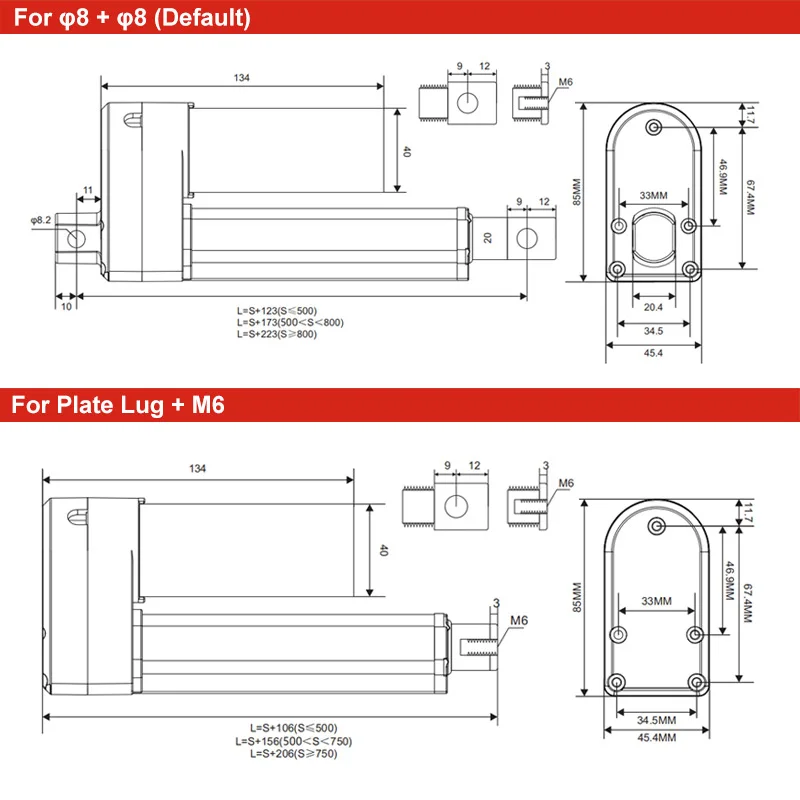

S means the STROKE Length
Stroke(mm)

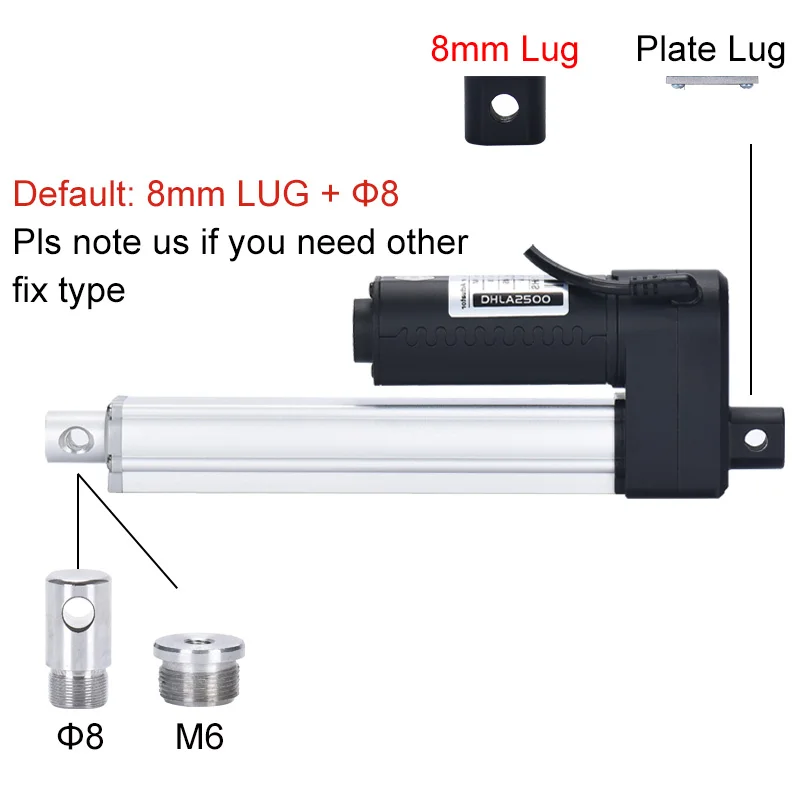

Φ8+Φ8 (Default)
Plate Plug +M6
L(MIN) mm
L(MAX) mm
L(MIN) mm
L(MAX) mm
800
1023
1823
1006
1806

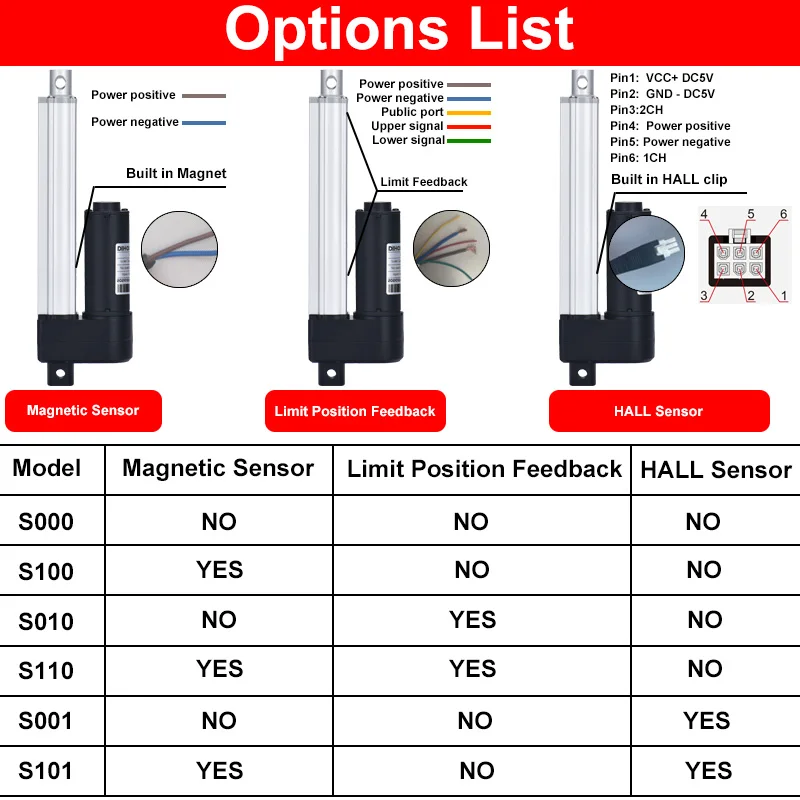

What's in:1 PC Linear Actuator
MODEL
Linear Actuator
Controller
Bracket
Stroke
Magnetic-Sensor
Limit Switch Feedback
HALL-Sensor
S000
800mm
NO
NO
NO
NO
NO
S100
800mm
YES
NO
NO
NO
NO
S010
800mm
NO
YES
NO
NO
NO
S110
800mm
YES
YES
NO
NO
NO
S001
800mm
NO
NO
YES
NO
NO
S101
800mm
YES
NO
YES
NO
NO
Magnetic-sensor Feedbackbuilt-in magnet to the actuator
When Actuator has built-in magnetic senor, you can adapt the stroke length of standard actuators by the moving the Magnetic switch so that the actuator can adjust its expansion length after leaving the factory .There is a great need for various stroke lengths, especially in areas where unique applications are the rule rather than the exception. Sensor integration provides a universal solution.
For example, an 100mm stroke SRA3000 Linear Actuator ,it's expansion length is from 275mm to 375mm. you can set the expansion length from x to y (x
First, you should get the following list ready:
1, A Linear Actuator with the magnetic senor;
2, One or two normally closed (NC) magnetic switches;(you will need two if you need to set the upper and the lower expansion length,otherwise only one.The second switches allows both the actuator's incoming and outgoing movements to be set.).
3,one forward and reverse controller with Upper and Lower limit
Second,wiring the linear actuator like following picture(with our 5A 24V controller eg.)
Last, fix the magnetic switches on the linear actuator at the position you want to set
Limit switches Feedback
Limit switches feedback are a bit different from the HALL-SENSOR or the Magnetic sensor.Limit switches feedback not meant for an electric linear actuator with position feedback, instead, they determine the start and stop points of the linear actuator.
To put it simply, limit switches are installed at both endpoints of the actuator's stroke and as soon as the actuator rod comes in contact with them, they break off the circuit. This is a necessary measure as the motor does not know when to stop, and if not turned off at endpoints, it can destroy the actuator, itself, or even cause damage to users. The feedback control, in this case, is slightly limited as it is only responsible for collecting position feedback at extreme positions.
It is suggested to install relays to realize the feedback of the in-place signals at the two highest and lowest positions
Some users' application needs the limit switch feedback signals to control their system. Instead of using the mechanical trigger to shut off the motor, the application prefers to have an analog signal as part of an integrated control system. Currently, Progressive Automation offer two different configurations when it comes to limit switch feedback.
It is suggested to install relays to realize the feedback of the in-place signals at the two highest and lowest positions
the extended and retracted mechanical limit switch share a common signal. This will still provide the same open and closed state, but with one less wire involved.
Limit switches Feedback can provide the signal needed to turn on or off the indicator light and notify the user that the unit has reached its final position. This is a common application for assembly line machinery, where the operator is usually away from the actuator, and they rely on the control panel indicators to alert them on the state of the operation. This can also be used as redundancy in a control loop to provide extra safety assurance to the user.
HALL-sensor FeedbackBuilt-in Hall chip to the actuator
The Hall sensor makes it possible to count the motor revolutions by using magnets fixed on the motor shaft. A microprocessor counts the revolutions.
By using the Hall controller to receive the Hall signal from the actuator, precise control of the actuator can be realized, such as height memory, height display, and synchronization of multiple actuators
What the Hall sensor do
The Hall sensor is a magnetic field sensor which is made according to the Hall effect,So we can monitor and control the actuator by the hall controller.
Related Accessories You may need1V1 means that 1 pcs Controller that control 1 pcs Motor
1V2 means that 1 pcs Controller that control 2 pcs Motor
1V3 means that 1 pcs Controller that control 3 pcs Motor
1V4 means that 1 pcs Controller that control 4 pcs Motor
60W 86 Controller
60W 2 Keys Controller
1V2 120W/60W Controller
Timer Controller
Click to buy
Click to buy
Click to buy
Click to buy
25A Controller With Upper And Lower Limit
5A Controller With Upper And Lower Limit
Wifi Controller(Ewelink APP)
Rocker Switch
Click to buy
Click to buy
Click to buy
Click to buy
1V1 HALL Controller
1V2 HALL Controller
1V3/1V4 HALL Controller
Bottom Plate For Plate LUG
Click to buy
Click to buy
Click to buy
Click to buy
Bracket
AC110-240V TO DC12V/24V Power Supply Adapter
Voltage Adjustable Power Supply
AC220V TO DC12V/24V Power Supply
Click to buy
Click to buy
Click to buy
Click to buy
Recommend List:Stroke(mm)
10MM Plug
Plate Plug
Click to buy
L(MIN) mm
L(MAX) mm
L(MIN) mm
L(MAX) mm
50
225
275
215
265
Actuator--Click to buy
Actuator & Bracket Kit--Click to buy
S000/S010 Actuator & Controller Kit--Click to buy
S000/S010 Actuator & Controller & Bracket Kit--Click to buy
S100/S110 Actuator & Magnetic Controller Kit--Click to buy
S001 Actuator & Hall Controller Kit--Click to buy
100
275
375
265
365
Actuator--Click to buy
Actuator & Bracket Kit--Click to buy
S000/S010 Actuator & Controller Kit--Click to buy
S000/S010 Actuator & Controller & Bracket Kit--Click to buy
S100/S110 Actuator & Magnetic Controller Kit--Click to buy
S001 Actuator & Hall Controller Kit--Click to buy
150
325
475
315
465
Actuator--Click to buy
Actuator & Bracket Kit--Click to buy
S000/S010 Actuator & Controller Kit--Click to buy
S000/S010 Actuator & Controller & Bracket Kit--Click to buy
S100/S110 Actuator & Magnetic Controller Kit--Click to buy
S001 Actuator & Hall Controller Kit--Click to buy
200
375
575
365
565
Actuator--Click to buy
Actuator & Bracket Kit--Click to buy
S000/S010 Actuator & Controller Kit--Click to buy
S000/S010 Actuator & Controller & Bracket Kit--Click to buy
S100/S110 Actuator & Magnetic Controller Kit--Click to buy
S001 Actuator & Hall Controller Kit--Click to buy
250
425
675
415
665
Actuator--Click to buy
Actuator & Bracket Kit--Click to buy
S000/S010 Actuator & Controller Kit--Click to buy
S000/S010 Actuator & Controller & Bracket Kit--Click to buy
S100/S110 Actuator & Magnetic Controller Kit--Click to buy
S001 Actuator & Hall Controller Kit--Click to buy
300
475
775
465
765
Actuator--Click to buy
Actuator & Bracket Kit--Click to buy
S000/S010 Actuator & Controller Kit--Click to buy
S000/S010 Actuator & Controller & Bracket Kit--Click to buy
S100/S110 Actuator & Magnetic Controller Kit--Click to buy
S001 Actuator & Hall Controller Kit--Click to buy
350
525
875
515
865
Actuator--Click to buy
Actuator & Bracket Kit--Click to buy
S000/S010 Actuator & Controller Kit--Click to buy
S000/S010 Actuator & Controller & Bracket Kit--Click to buy
S100/S110 Actuator & Magnetic Controller Kit--Click to buy
S001 Actuator & Hall Controller Kit--Click to buy
400
575
975
565
965
Actuator--Click to buy
Actuator & Bracket Kit--Click to buy
S000/S010 Actuator & Controller Kit--Click to buy
S000/S010 Actuator & Controller & Bracket Kit--Click to buy
S100/S110 Actuator & Magnetic Controller Kit--Click to buy
S001 Actuator & Hall Controller Kit--Click to buy
450
625
1075
615
1065
Actuator--Click to buy
Actuator & Bracket Kit--Click to buy
S000/S010 Actuator & Controller Kit--Click to buy
S000/S010 Actuator & Controller & Bracket Kit--Click to buy
S100/S110 Actuator & Magnetic Controller Kit--Click to buy
S001 Actuator & Hall Controller Kit--Click to buy
500
690
1190
680
1180
Actuator--Click to buy
Actuator & Bracket Kit--Click to buy
S000/S010 Actuator & Controller Kit--Click to buy
S000/S010 Actuator & Controller & Bracket Kit--Click to buy
S100/S110 Actuator & Magnetic Controller Kit--Click to buy
S001 Actuator & Hall Controller Kit--Click to buy
550
740
1290
730
1280
Actuator--Click to buy
Actuator & Bracket Kit--Click to buy
S000/S010 Actuator & Controller Kit--Click to buy
S000/S010 Actuator & Controller & Bracket Kit--Click to buy
S100/S110 Actuator & Magnetic Controller Kit--Click to buy
S001 Actuator & Hall Controller Kit--Click to buy
600
790
1390
780
1380
Actuator--Click to buy
Actuator & Bracket Kit--Click to buy
S000/S010 Actuator & Controller Kit--Click to buy
S000/S010 Actuator & Controller & Bracket Kit--Click to buy
S100/S110 Actuator & Magnetic Controller Kit--Click to buy
S001 Actuator & Hall Controller Kit--Click to buy
650
840
1490
830
1480
Actuator--Click to buy
Actuator & Bracket Kit--Click to buy
S000/S010 Actuator & Controller Kit--Click to buy
S000/S010 Actuator & Controller & Bracket Kit--Click to buy
S100/S110 Actuator & Magnetic Controller Kit--Click to buy
S001 Actuator & Hall Controller Kit--Click to buy
700
890
1590
880
1580
Actuator--Click to buy
Actuator & Bracket Kit--Click to buy
S000/S010 Actuator & Controller Kit--Click to buy
S000/S010 Actuator & Controller & Bracket Kit--Click to buy
S100/S110 Actuator & Magnetic Controller Kit--Click to buy
S001 Actuator & Hall Controller Kit--Click to buy
750
940
1690
930
1680
Actuator--Click to buy
Actuator & Bracket Kit--Click to buy
S000/S010 Actuator & Controller Kit--Click to buy
S000/S010 Actuator & Controller & Bracket Kit--Click to buy
S100/S110 Actuator & Magnetic Controller Kit--Click to buy
S001 Actuator & Hall Controller Kit--Click to buy
800
990
1790
980
1780
Actuator--Click to buy
Actuator & Bracket Kit--Click to buy
S000/S010 Actuator & Controller Kit--Click to buy
S000/S010 Actuator & Controller & Bracket Kit--Click to buy
S100/S110 Actuator & Magnetic Controller Kit--Click to buy
S001 Actuator & Hall Controller Kit--Click to buy
850
1040
1890
1030
1880
Actuator--Click to buy
Actuator & Bracket Kit--Click to buy
S000/S010 Actuator & Controller Kit--Click to buy
S000/S010 Actuator & Controller & Bracket Kit--Click to buy
S100/S110 Actuator & Magnetic Controller Kit--Click to buy
S001 Actuator & Hall Controller Kit--Click to buy
900
1090
1990
1080
1980
Actuator--Click to buy
Actuator & Bracket Kit--Click to buy
S000/S010 Actuator & Controller Kit--Click to buy
S000/S010 Actuator & Controller & Bracket Kit--Click to buy
S100/S110 Actuator & Magnetic Controller Kit--Click to buy
S001 Actuator & Hall Controller Kit--Click to buy
950
1140
2090
1130
2080
Actuator--Click to buy
Actuator & Bracket Kit--Click to buy
S000/S010 Actuator & Controller Kit--Click to buy
S000/S010 Actuator & Controller & Bracket Kit--Click to buy
S100/S110 Actuator & Magnetic Controller Kit--Click to buy
S001 Actuator & Hall Controller Kit--Click to buy
1000
1190
2190
1180
2180
Actuator--Click to buy
Actuator & Bracket Kit--Click to buy
S000/S010 Actuator & Controller Kit--Click to buy
S000/S010 Actuator & Controller & Bracket Kit--Click to buy
S100/S110 Actuator & Magnetic Controller Kit--Click to buy
S001 Actuator & Hall Controller Kit--Click to buy
Трекер стоимости
Отзывы покупателей
Новые отзывы о товарах
Виктория 19 Декабря 2021, 09:16 #
Заказала эту футболку, под свои джинсы. Товар пришел а отличном состоянии. Футболка идеально подошла по размеру. После стирки не села,... Читать отзыв полностью...
Juli 19 Декабря 2021, 15:16 #
Всем здравствуйте)купил и дочки такую курточку! Очень понравилась! Красивая, теплая, стильная, очень качественно выполнена! Удобные карманчики, очень вместительные!Легк о стирается,... Читать отзыв полностью...
Мария 23 Декабря 2021, 11:45 #
Очень эффектные босоножки, почти как у моей любимой певицы Леди Гаги. Взяла сразу два варианта, с сердечками и с цветочками.... Читать отзыв полностью...
RavensTroo 20 Декабря 2021, 21:06 #
В детстве я обожал смотреть мультик по этой вселенной. Каждая битва прям наполняла адреналином и постоянно хотелось почувствовать себя на... Читать отзыв полностью...
Анна 19 Декабря 2021, 16:48 #
Отличный материал для рукоделия. Бусины яркие, без сколов, удобные в работе и недорогие. Из них получаются красивые браслеты, серьги, пояса... Читать отзыв полностью...
Мария 23 Декабря 2021, 11:51 #
Мне понравился дизайн, нечто похожее недавно видела в бутике. Но там босоножки стоили нереально, а на эти весьма посильная цена.... Читать отзыв полностью...
Всем приветики) Девчонки лосинки огонь! Всем советую! Очень приятные к телу, очень удобные, хорошо тянутся, прекрасно подчеркивают фигуру и срывают... Читать отзыв полностью...
