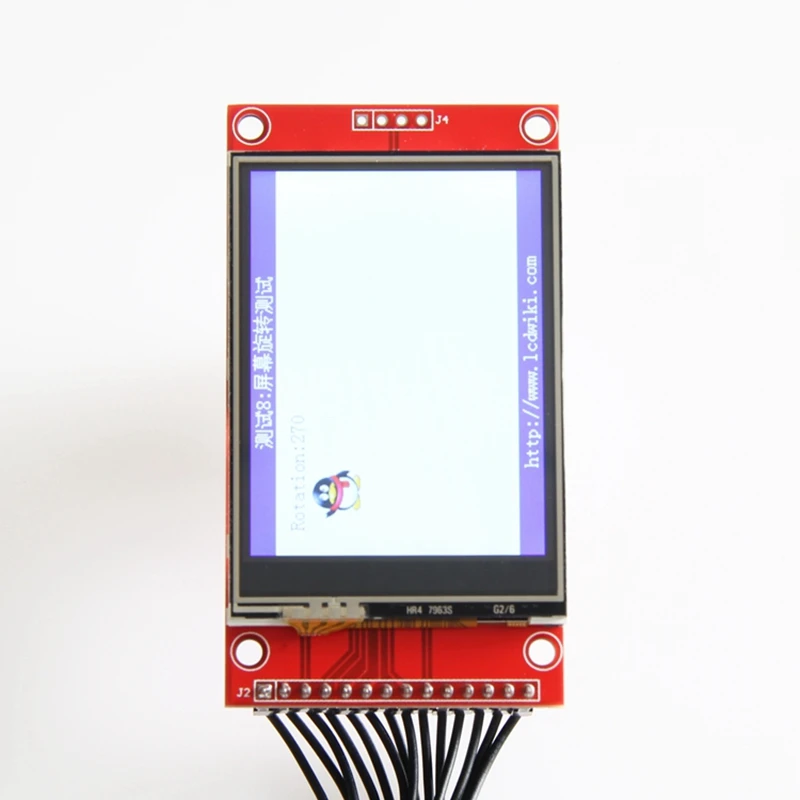

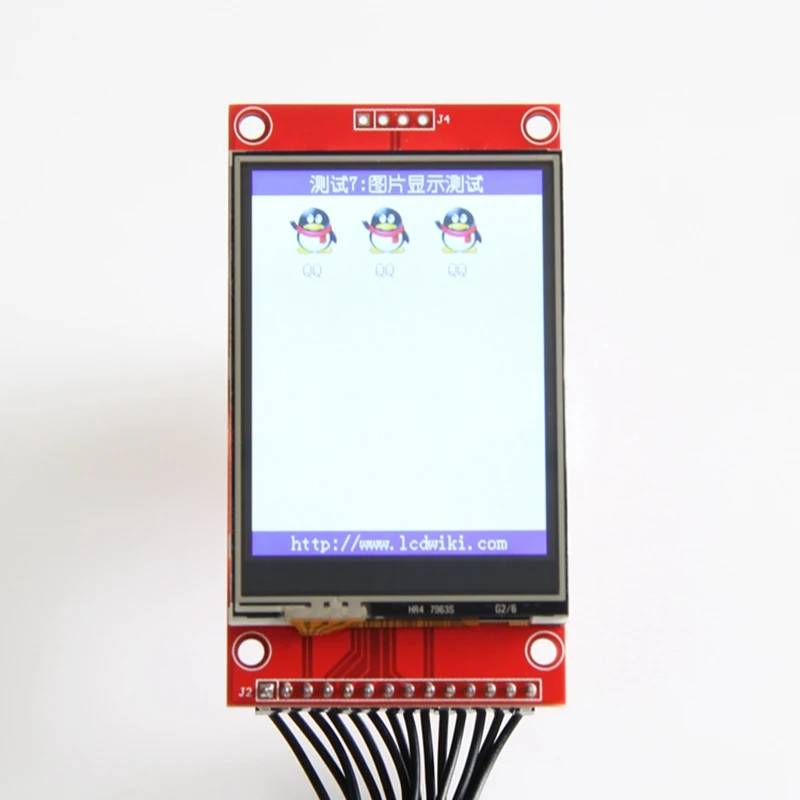

2.4 Inch 320X240 SPI Serial TFT LCD Module Display Screen With Press Panel Driver IC ILI9341 For MCU | Электроника

2.4 Inch 320X240 SPI Serial TFT LCD Module Display Screen With Press Panel Driver IC ILI9341 For MCU | Электроника

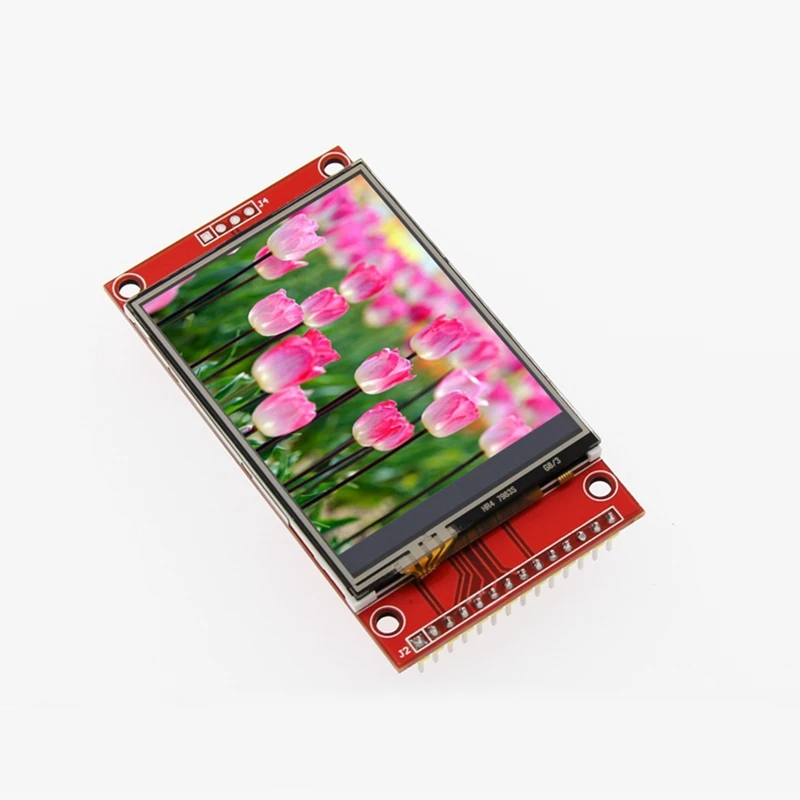

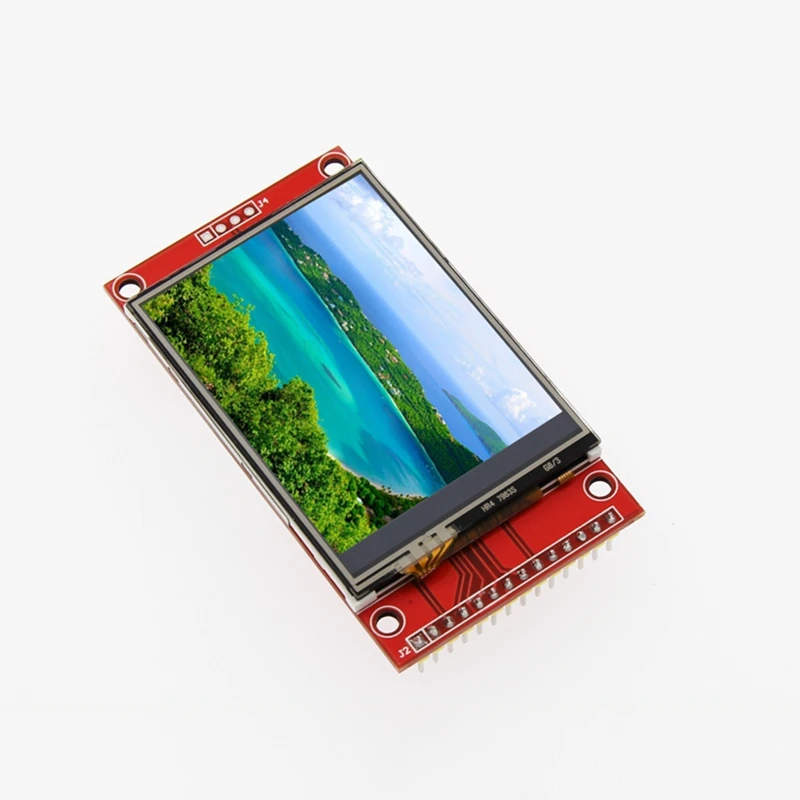

2.4-inch color screen,support 65K color display,display rich colors.
Using the SPI serial bus, it only takes a few IOs to illuminate the display.

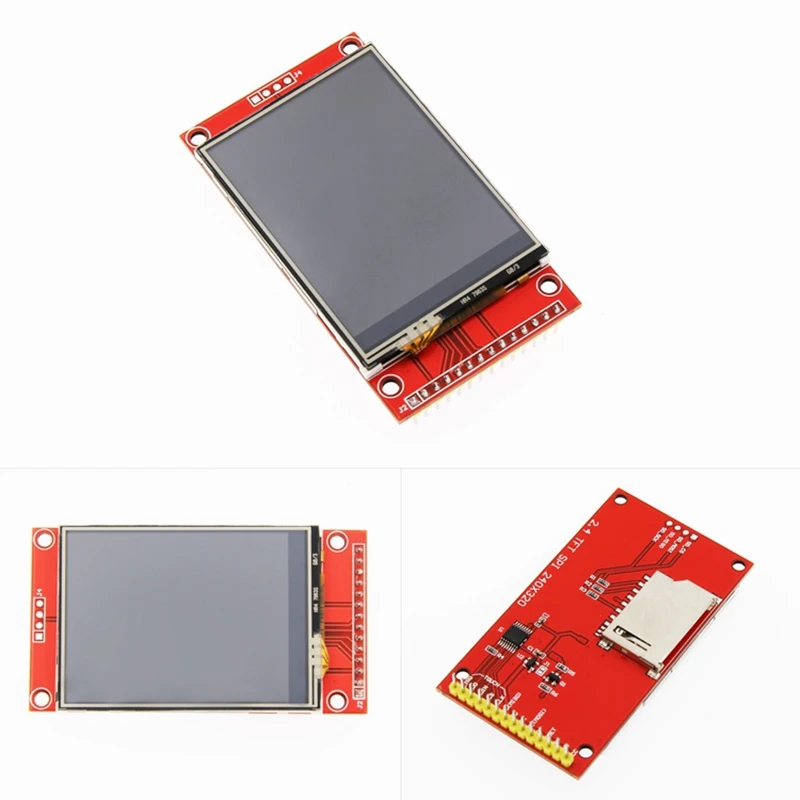

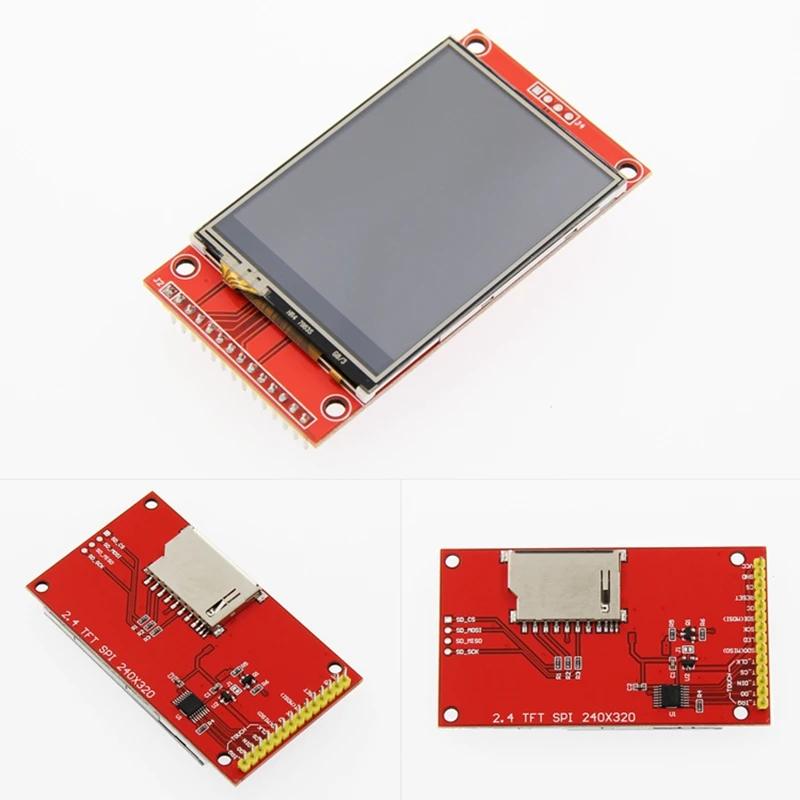

Easy to expand the experiment with SD card slot.
Provide a rich sample program.
Process standards, long-term stable work.
Display Color : RGB 65K color
SKU: have Press screen: MSP2402
Screen Size: 2.4(inch)
Type : TFT
Driver IC : ILI9341
Resolution: 320*240 (Pixel)
Module Interface: 4-wire SPI interface
Active Area (AA area): 36.72x48.96(mm)
Module PCB Size: 77.18x42.72(mm)
Operating Temperature: -20Celsius ~60Celsius
Storage Temperature: -30Celsius ~70Celsius
VCC power voltage : 3.3V~5V
Logic IO port voltage : 3.3V(TTL)
Power Consumption: TBD
Colour: red
Material: metal + pc
Package Contents:
1 * 2.4 inch 320*240 SPI Serial TFT LCD Module(with Press screen driver)
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
