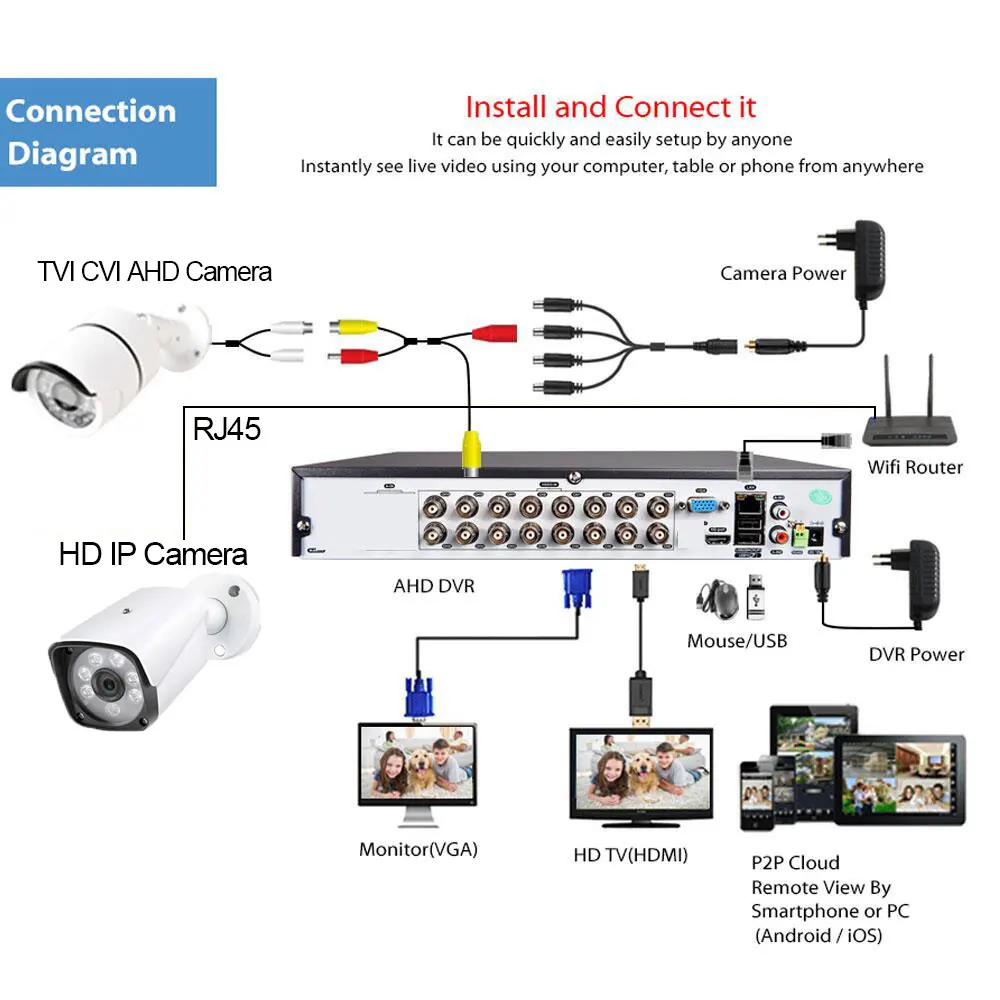

View live video of the system from anywhere and anytime via you smarphone, table or PC with advanced P2P technology, you are able to remote access your system in minutes or less, no portforwarding needed, remote access has never been so easy!!!

(VGA or BNC to RCA cable is not included.)

For added convenience, the DVR also comes with VGA and BNC connections for standard resolution viewing options.

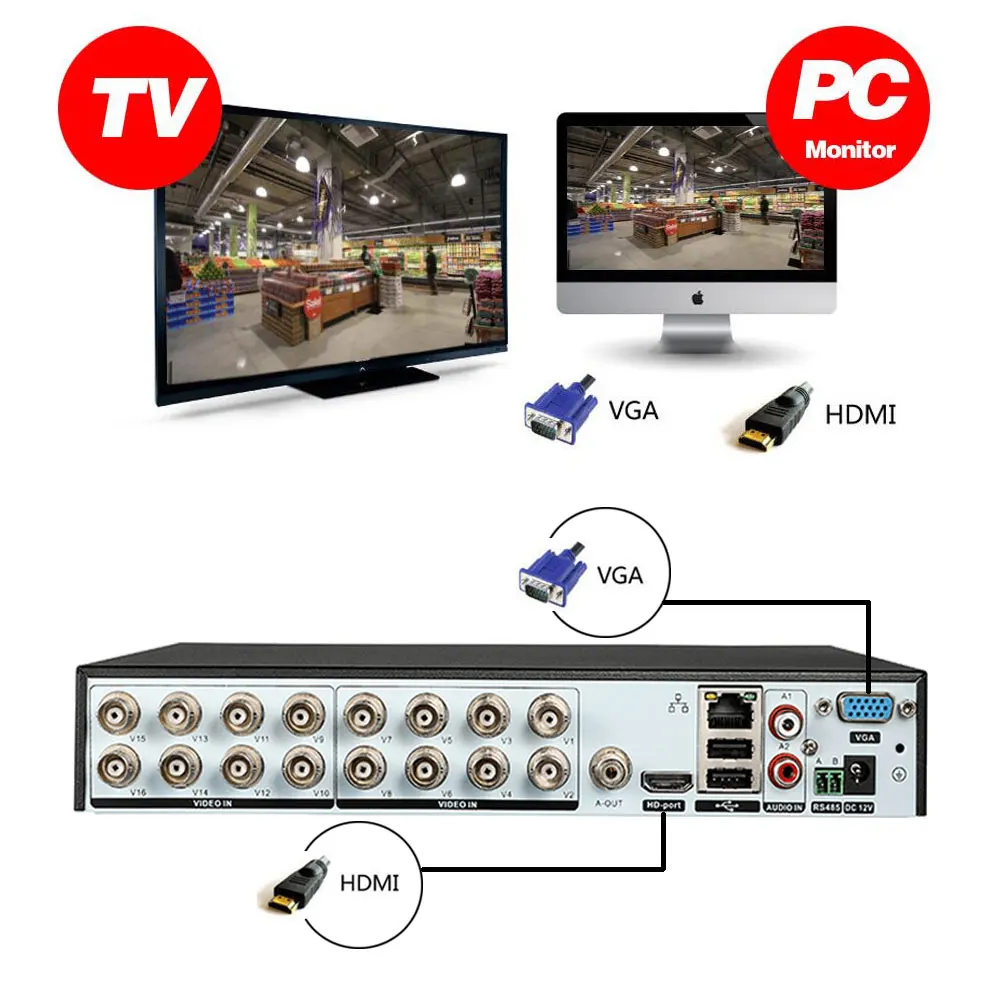

View on TV or PC Monitor

clarity. (HD Cable Not Included)

Easily display video through the HDMI port of your computer monitor to take full advantage of the security system's

View on HDMI Monitor

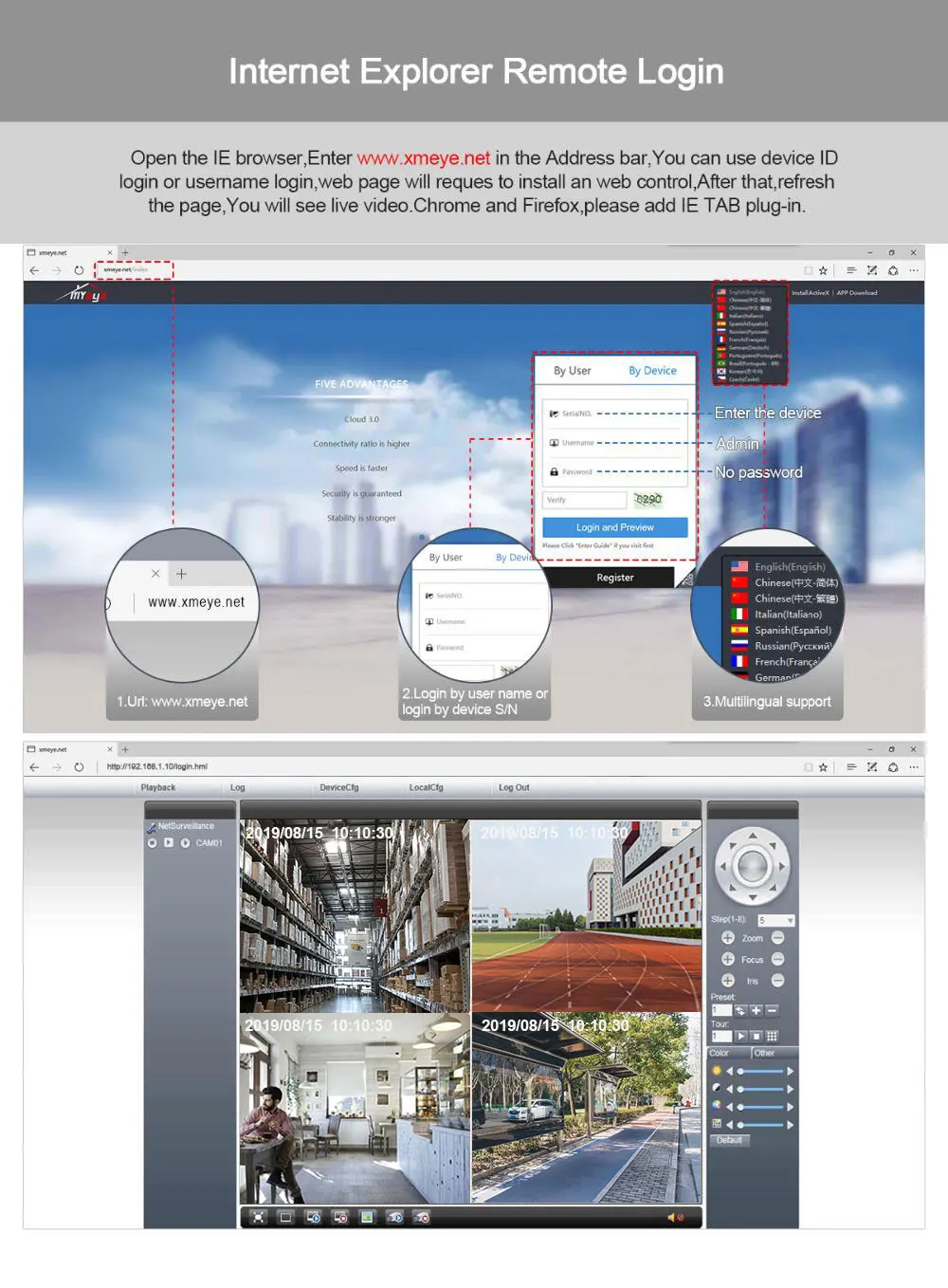

View live video of the system from anywhere and anytime via you smarphone, table or PC with advanced P2P technology, you are able to remote access your system in minutes or less, no portforwarding needed, remote access has never been so easy!!!

Easy remote view setting

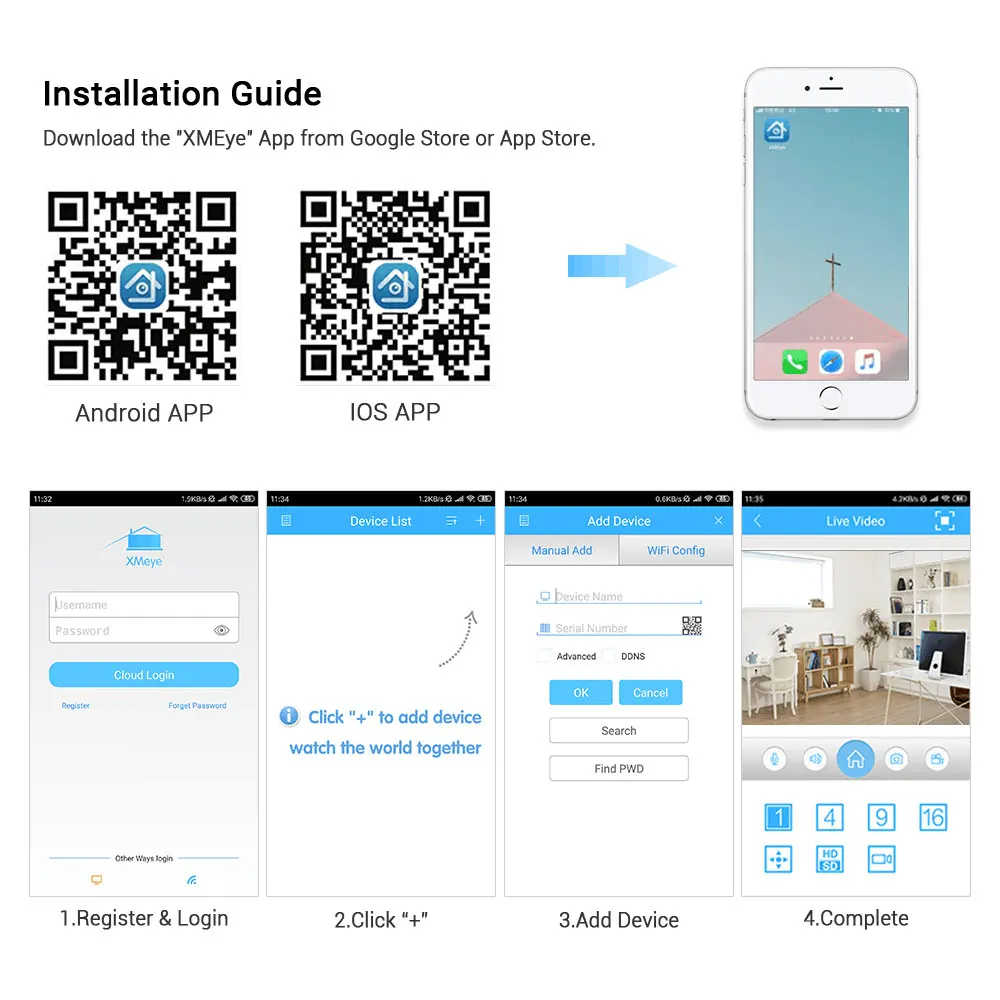

Easy setting , just 4 steps for mobile phone viewing,View live video of the system from anywhere and anytime via you smarphone, table or PC with advanced P2P technology, you are able to remote access your system in minutes or less, no portforwarding needed, remote access has never been so easy！！！

Smart Playback

You can easy find the video footage you'd like to playback,Smart playback available with customizable searching area, playback time is greatly reduced by speeding through unimportant videos.

Motion Detection & Instant Alert

When you are outside or at home, it will send alert notifications to your phone once it detected any movement in the monitoring area to keep your home safe. No matter where you are, this security camera will be a reliable protector for your home and let you be assured.

H.265 More Clear , HD resolution offer you best image quality in a lower bit rate.Save more storage space,can reduce 40%-50% file size,save your HDD storage space and reduce your purchase cost.

Why chooses H.265?

You can freely enjoy Six connection modes with this one multi-function digital video recorder.AHD(Analog High Definition)is new advanced technology on home security with 6 recordering modes.for your option:Analog/ AHD/ Network / TVI / CVI / AHD+Network. You can get HD quality video in each mode.

6 in 1 Hybrid AHD DVR

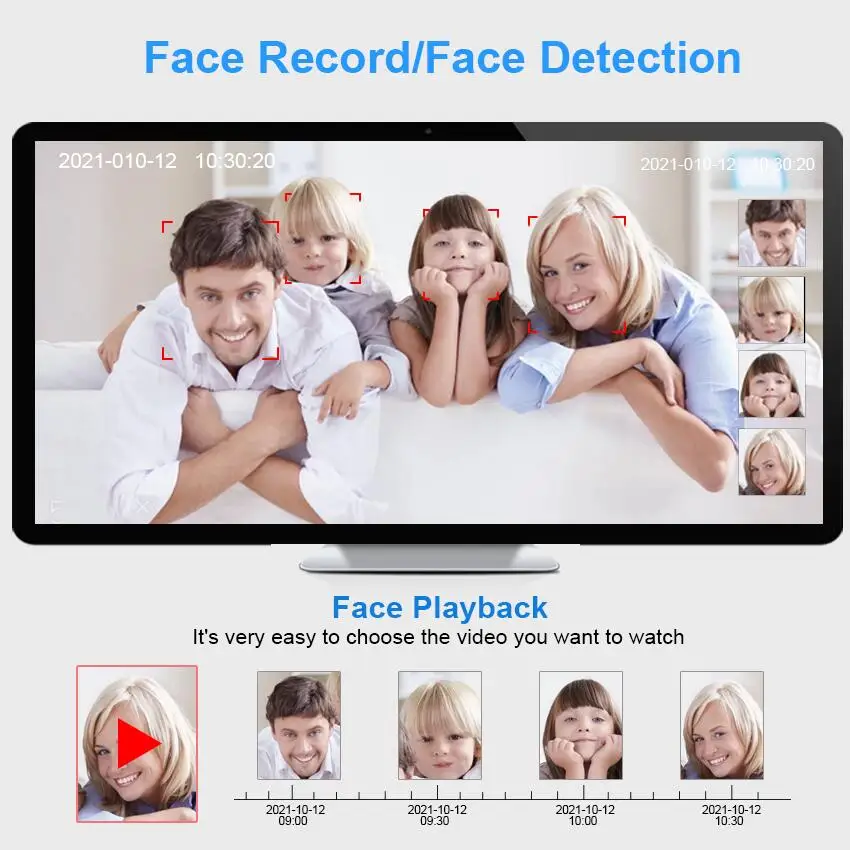

Face Detection and Face playback and Face Record;Face Detection and Face Playback;Quickly capture face images and quickly play back face videos;Face Detection:automatically capture face images;Face Playback:Intelligent Face video playback,saving time,not missing every details.

Face Detection & Face playback

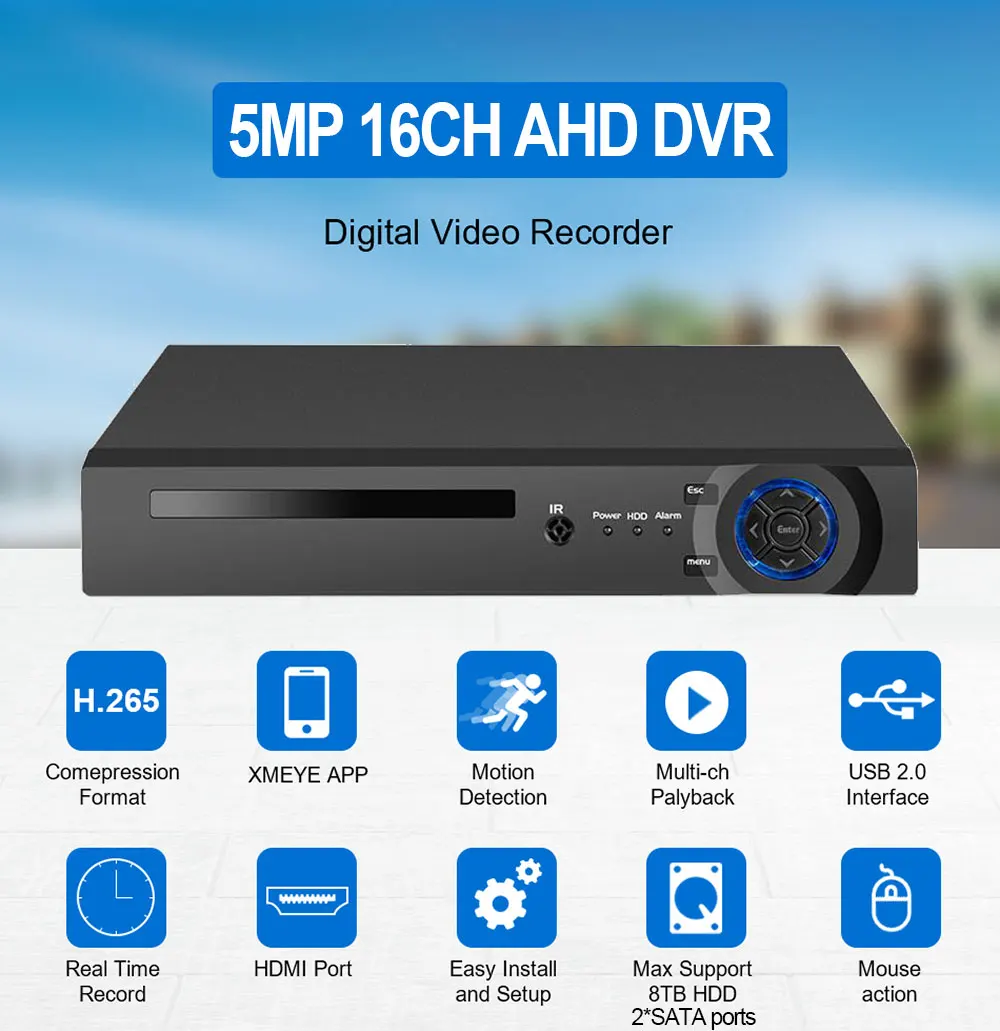

Main Features:

1.H.265 16CH AHD Digital Video Recorder;
2,Ultra HD 5MP High Definition Display,Advanced H.265 Video Compression;
3.Support CVBS,AHD,TVI,CVI ,XVI,IP ,6 in 1 Hybrid input;
4.Support Face Detection,Face Record,Face Playback;
5.Support HDMI&VGA Output,Audio Input&Audio Output;
6.Support Ultra HD Day Night Vision View;
7.Support 3.5"inch Hard Drive;
8.Support Motion Detection, Email Alerts, Video Playback,and Multi-Language;
9.Support Android,Iphone,Ipad,PC,VMS,P2P view;
10.Support Plug and Play ,Easy to Setup;
11.Remote Access Anywhere,Anytime;

H.265 16CH 5MP DVR Specifications

System

Main processor: Embedded processor

Operating system: Embedded Linux

Video compression:H.265

System resource：Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up

Interface

Operation interface：16bit real color GUI interface support

Preview ： 1/4/8/9/16

Video

Video standard :PAL; NTSC

Image encode:H.265

Monitor quality: VGA,HDMI:High definition

Analog input ：16CH*5MP

Network input:4CH*5MP/16CH*1080P

Motion detection：Support

Email Alert : Support

Face Detection:Support

Face Playback:Support

Smart Playback:Support

Remote Access:Support

Audio

Audio compression ：G.711A

Intercom : Yes

Record&Playback

Record mode：manual>alarm>motion detection>timing

Local playback：5MP

Video search：Time, date, event, channel search

Storage&Back up

Video storage : Local HDD ,Network

Back up mode： Network backup, USB portable，HDD,USB imprint,SATA imprint

Interface

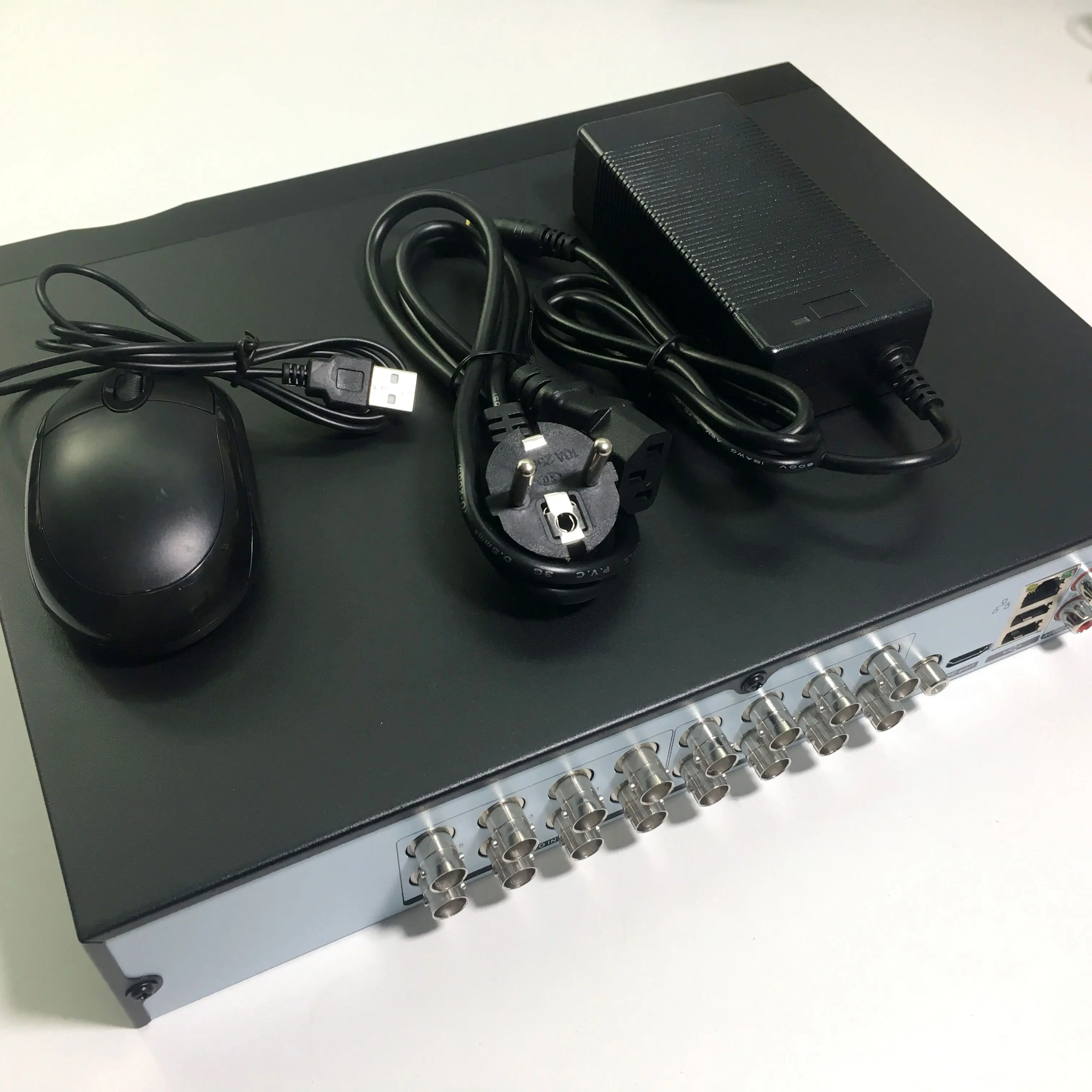

Video input：16CH BNC

Video output : 1ch VGA,1ch HDMI HD output

Loop output : N/A

Network port:1* POE RJ45 1000M self-adaptive Ethernet port;

USB port : 2* USB 2.0

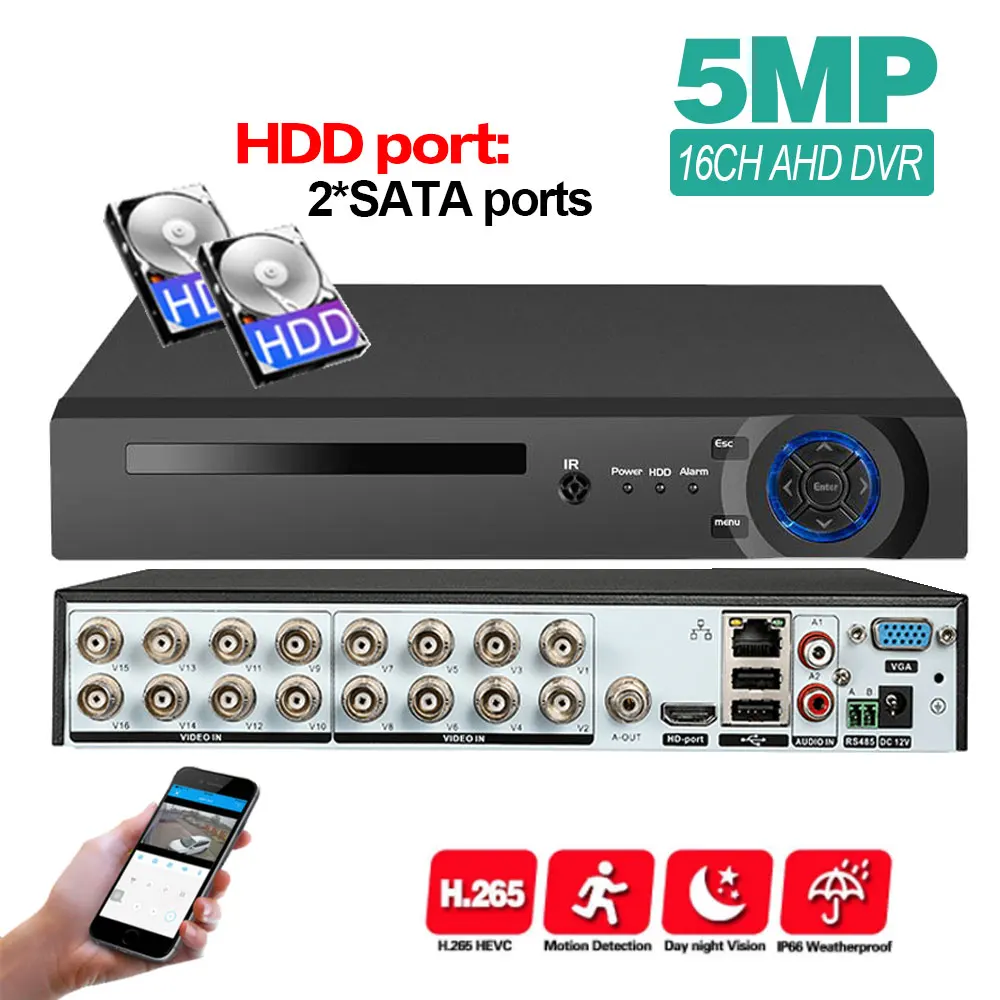

HDD port :2* SATA ports,max support 2* 8TB(HDD is optional)

Other

Power :DC 12V

USB Mouse：included

Remote Control : included

Temperature : -20℃+50℃

Humidity : -10%-90%

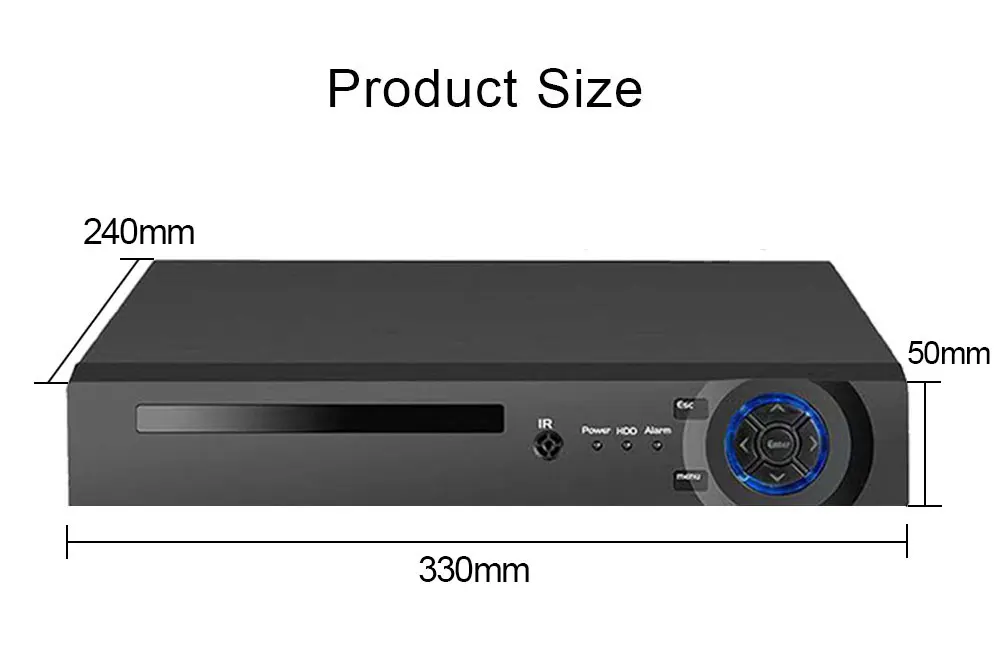

Dimension : L330mm* W240mm* H50mm

Weight :2.5KG

DVR Language

Russian, English, Finnish, French, German, Greek, Italian, Japanese, Poland, Protugal, Spanish, Thai, Turkey Romanian, Slovakia, Czech, Arabic, Swedish and so on

Package list:

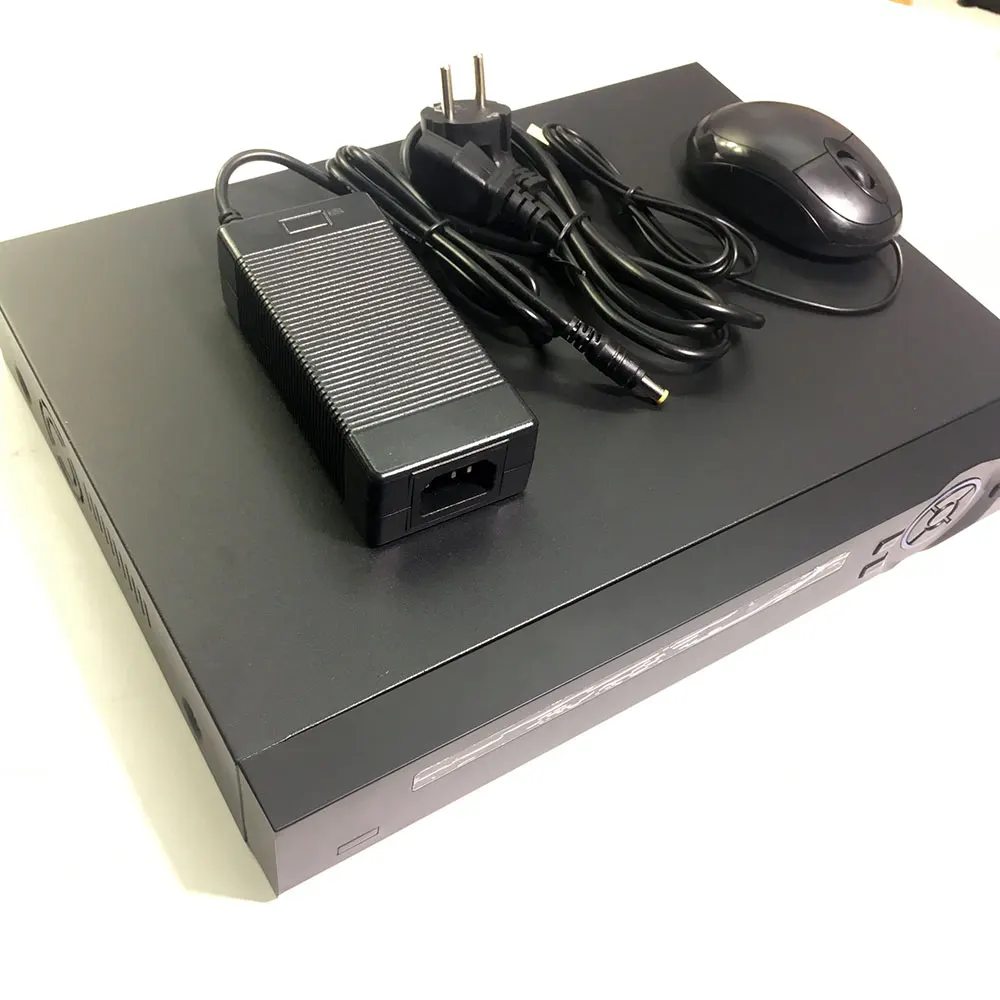

1 X H.265 16CH 5.0MP 6 IN 1 AHD DVR Hybrid Digital Video Recorder
1 x Power Supply for DVR
1 X USB Mouse for DVR
1 X Software CD for DVR
