LCR-T3 Transistor Tester Diode Triode Capactitance ESR LCR Meter MOS PNP NPN | Инструменты

Powered by 9V layer-built battery.
2 li-ion batteries combined can form a 8.4V battery pack for long time power.
New function of boot voltage detection.
Automatically detect NPN and PNP transistors, N-channel and P-channel MOSFET, diodes, triodes, resistors, capacitors or other devices.
Automatically test the pins of a component and display on the LCD.
Measure the gate threshold voltage and gate capacitance of the MOSFET.
Measure bipolar transistor current amplification factor and base-emitter threshold voltage.
One-button operation, automatic shutdown to avoid unnecessary waste.
Short detection time: only 2 seconds. It is normal to cost 1 minute for bulk capacitor detection.
Note:
Please make sure that capacitors are discharged before testing.

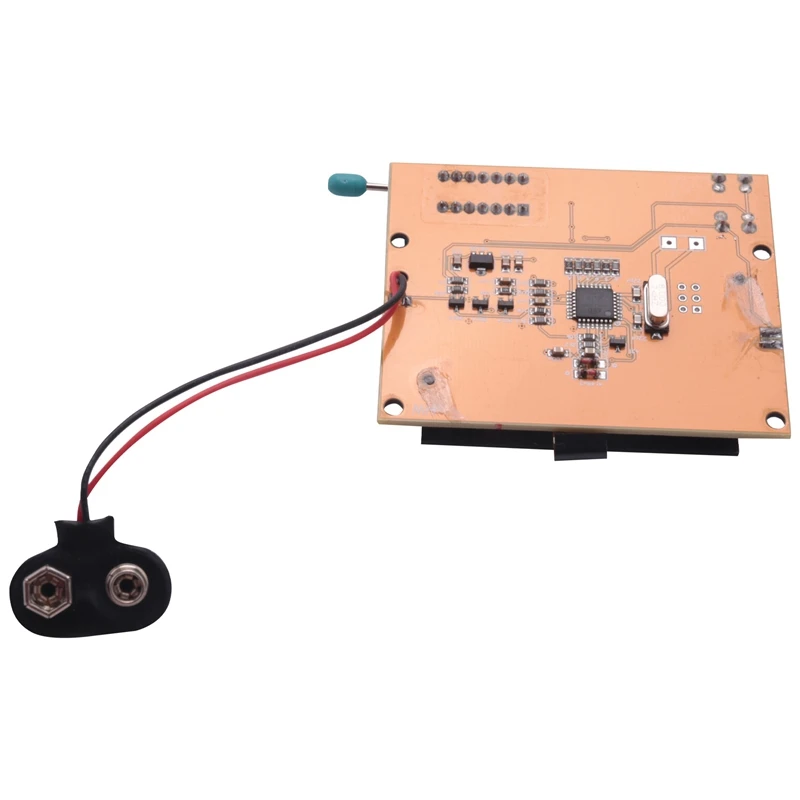

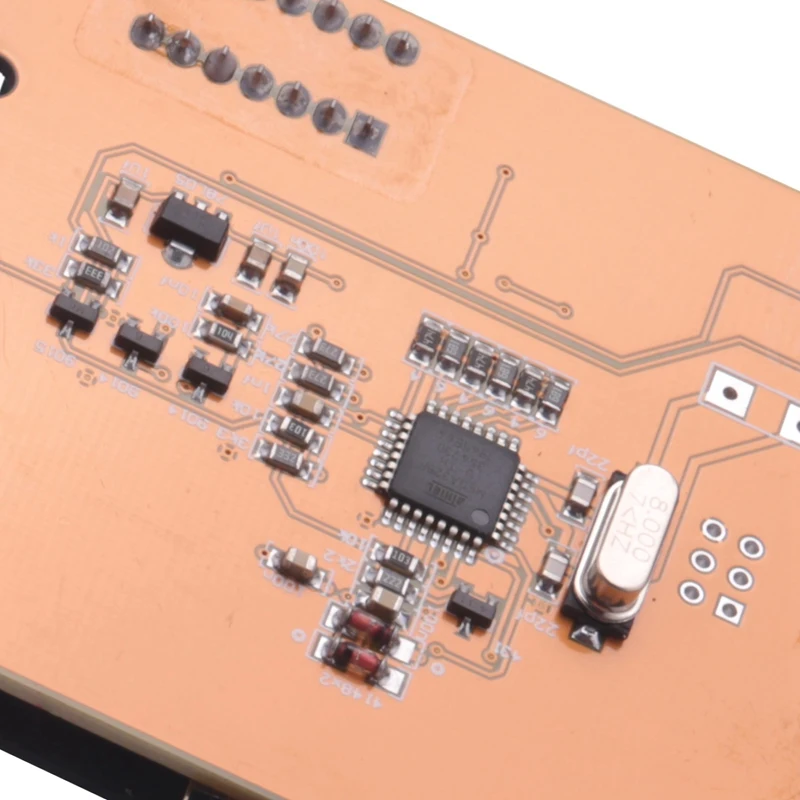

The disassembled transistor tester in the picture is just for reference, please don't disassemble.
The pictures of testing process are also for reference, please in kind prevail!
Material: PCB
Display: 128 * 64 LCD
Normal Testing Speed: 2 seconds
Shutdown Current: 20nA
Item Size: 7.3 * 6.0 * 1.3 cm/2.95 * 2.36 * 0.5 inch
Item Weight: 44g / 1.6oz
Package List:
1 * Transistor Tester (battery not included)
Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3 cm.
