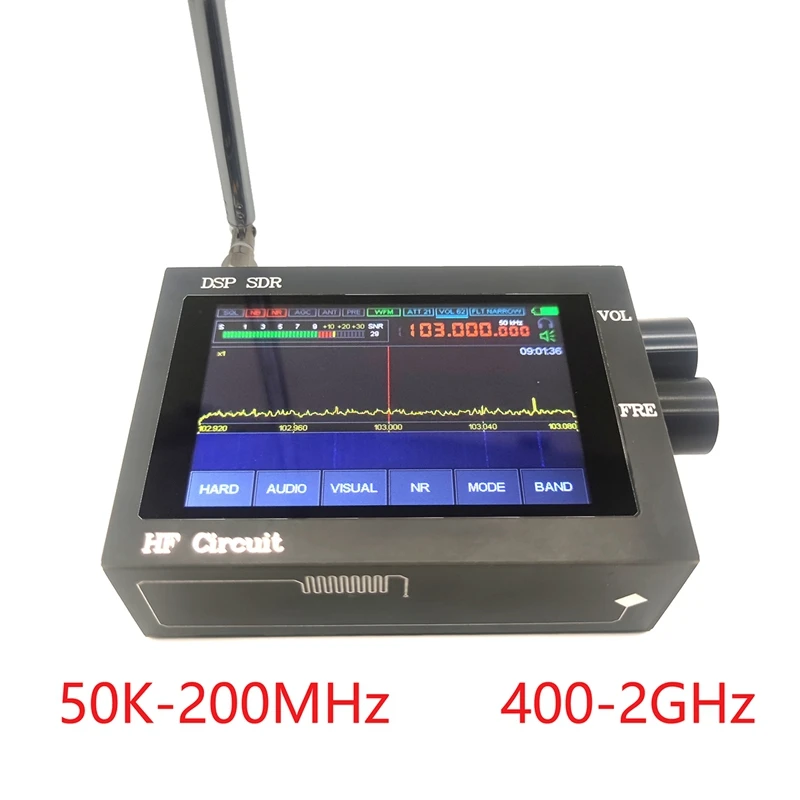

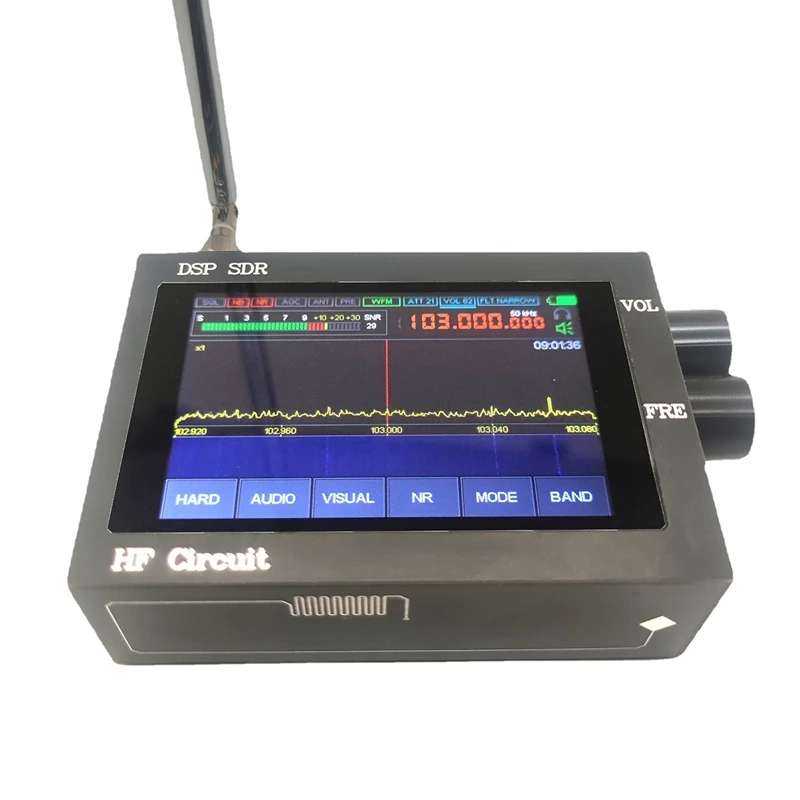

3.5Inch 50Khz-2Ghz DSP SDR Receiver For Malahit Shortwave Radio Firmware 1.10C Nice Sound | Электроника

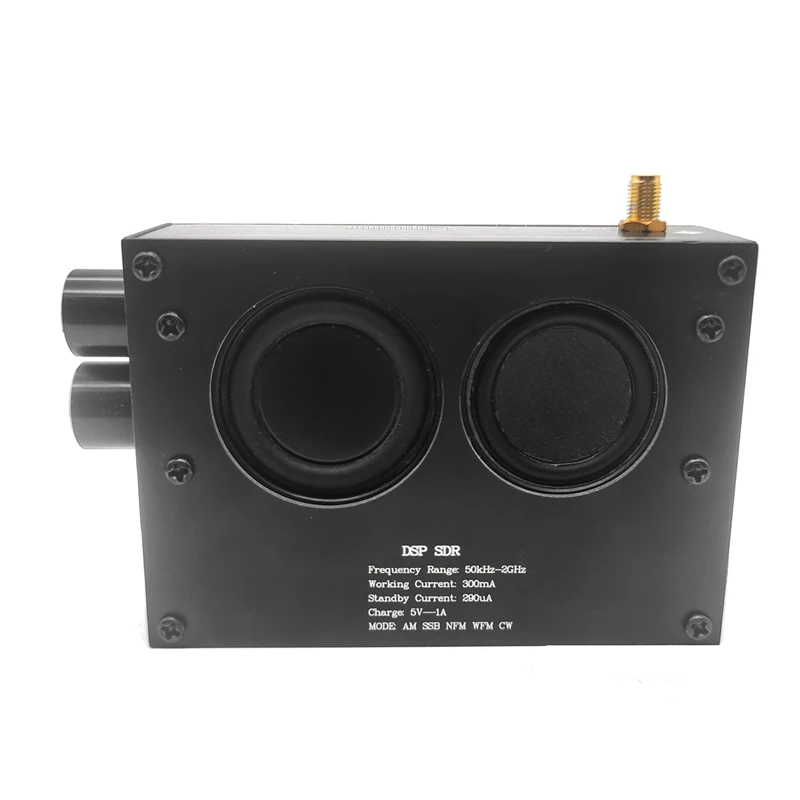

Advantages: 1. 3.5 inch capacitive screen; 2. 4-layer board structure, higher performance than two-layer PCB; 3. Adopt a sound unit, 2 vibrating chambers, the speaker comes with a sound chamber, the bass sound quality is very full
Features: DSP SDR Receiver for Malahit; Capacitive touch screen; Flash via USB cable
The radio is built on the principle of SDR-the function is determined by loaded software; Frequency range: from 50 kHz to 200 MHz (default version), users can contact official website to upgrade as 400 MHz to 2 GHz; All types of analog modulation: AM, SSB, NFM, WFM; Powerful functions: variable filter width, adaptive noise suppressor, threshold noise suppressor, for Noise Blanker, AGC, equalizer; Use cheap but fully functional chip msi001

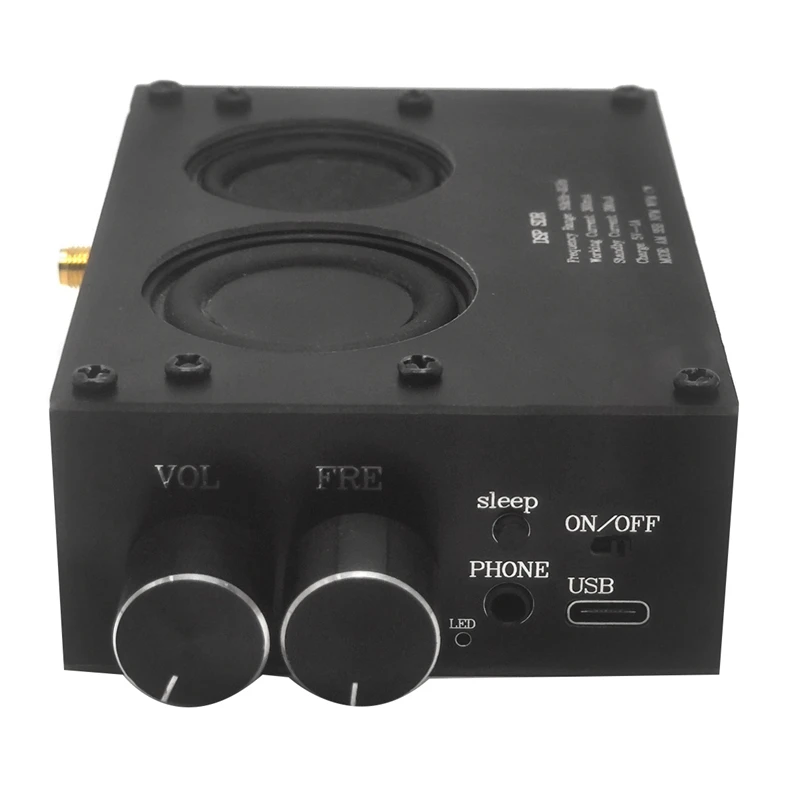

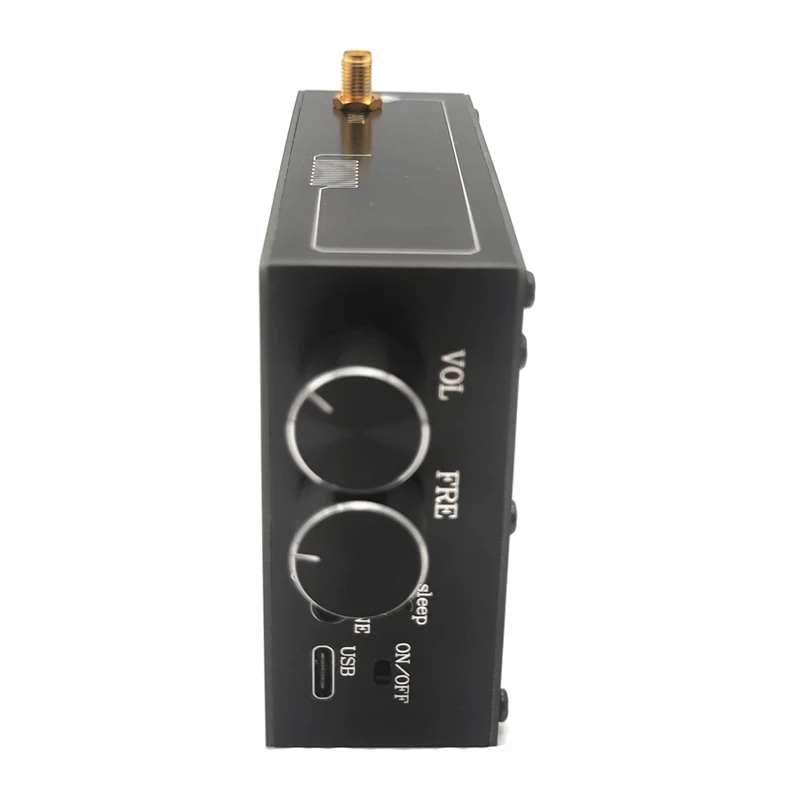

The powerful stm32h743 with a clock frequency of 480 MHz is applied; 3.5-inch IPS display touch screen; There is a built-in UHF; Controls: 2pcs; encoders with buttons and touch screen
It is powered by an external TYPE-C (for Huawei mobile phone) interface or battery (2000mAh battery is included), which can be charged by TYPE-C. Consumption: 300mA when listening to headphones; The reception on built-in telescope or external antenna is to improve the HF reception on telescope antenna, and an additional board with source follower has been developed. The board will be built into standard receiver design.

Connect to computer via USB, which can transfer CAT, IQ and audio.
160 kHz span, with scalability;
Sensitivity: Under the condition of up to 250MHz, s/w is 0.3μV = 10dB; due to lack of measurement equipment, so the above measurements were not taken
About Touch Screen

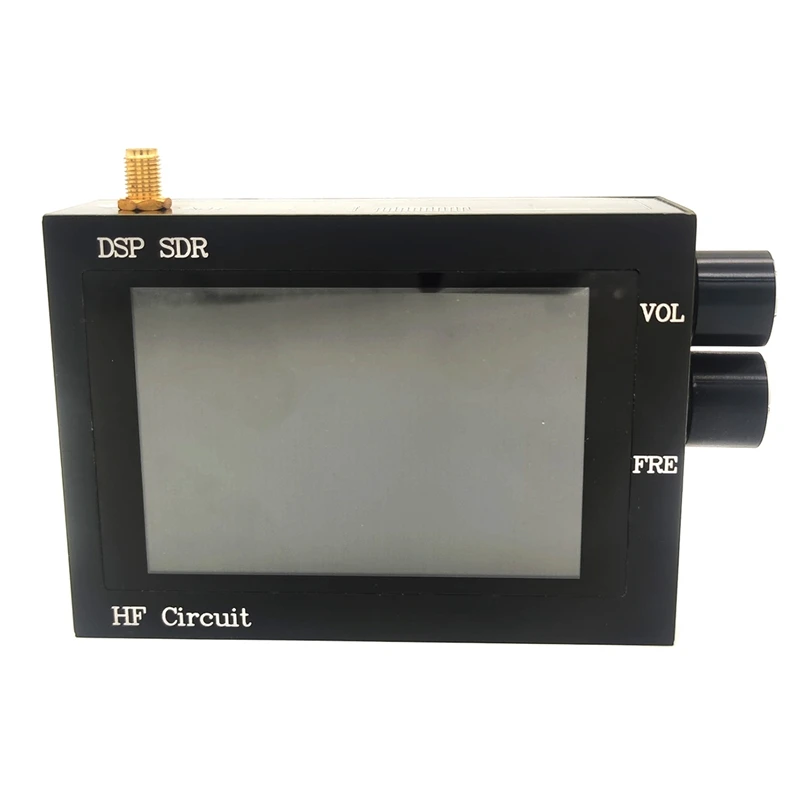

This is a capacitive ISP screen
Capacitive touch has nothing to do with the screen material, the touch module is independent.
Malachite responds to the same touch problems.
First of all, the main control is a single-chip microcomputer, and the main frequency is only 480M, which cannot be as smooth as a mobile phone.
In addition,the touch will cause strong interference when working.
The firmware updated by the author reduces the refresh rate, so that the touch will not be so smooth.
Besides,long press the volume key to turn off the touch function,turning off the touch signal interference will be greatly improved.
There are certain skills in touch screen operation.
Fast click the screen can not let screen work,if you touch the screen about 1 second,it will work perfectly
Colour: As Shown
Material: ABS
Size: 10 x 7 x 3.2cm

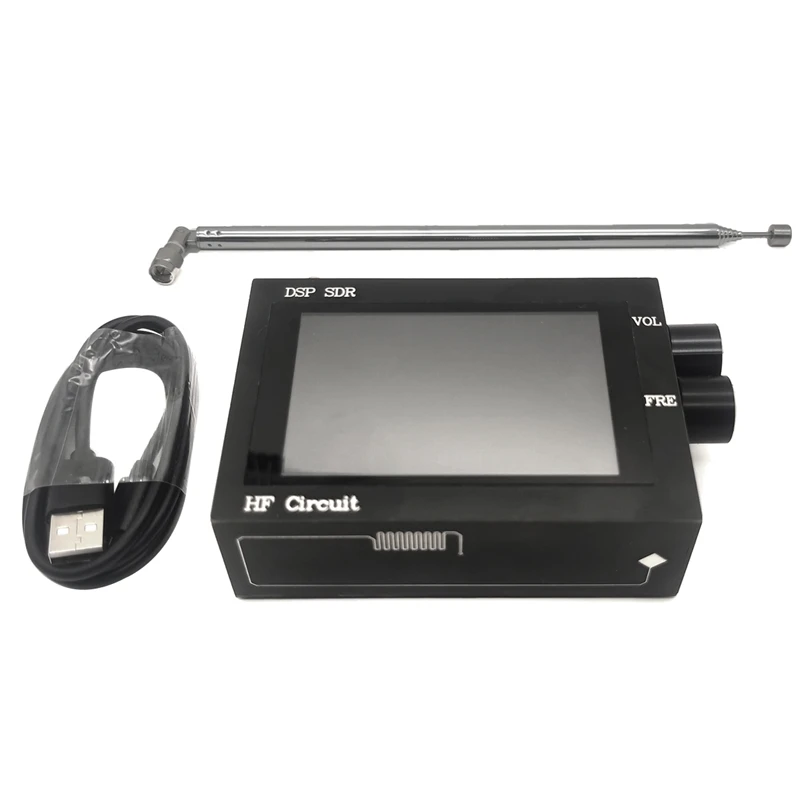

Package Contents:
1 x DSP SDR Receiver

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
