 Pay attention to a few points!
1. The valve opening and closing line cannot be charged at the same time, otherwise the motor will be damaged or the work will not be normal!
2. It is not allowed to switch multiple switches in parallel at the same time, otherwise they will be connected in series and abnormal.
3. It is not waterproof and can not be used outside or in humid environment.
4. The voltage should be stable within 220 ± 10%

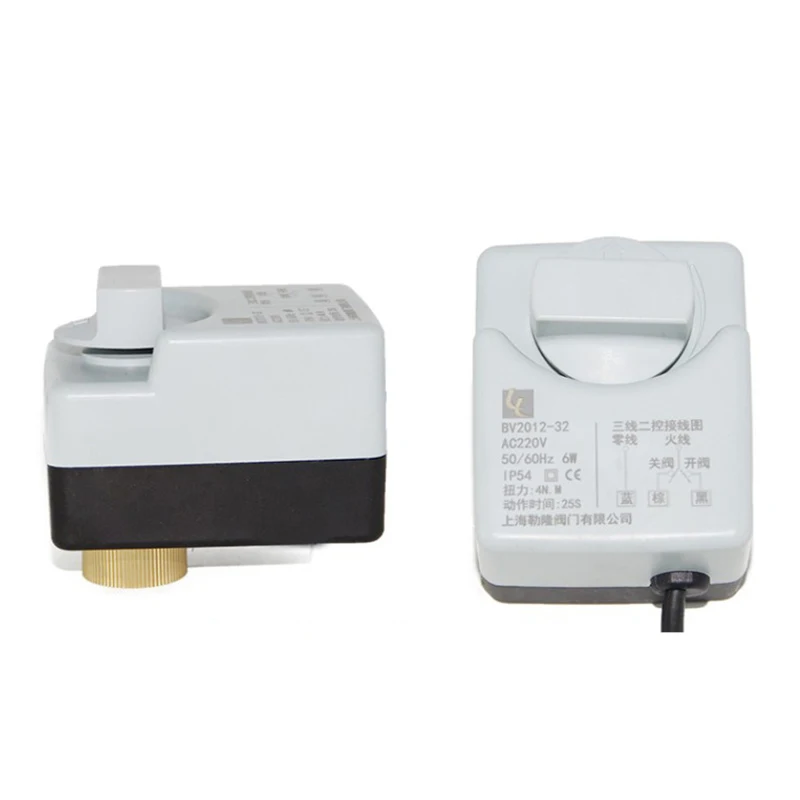

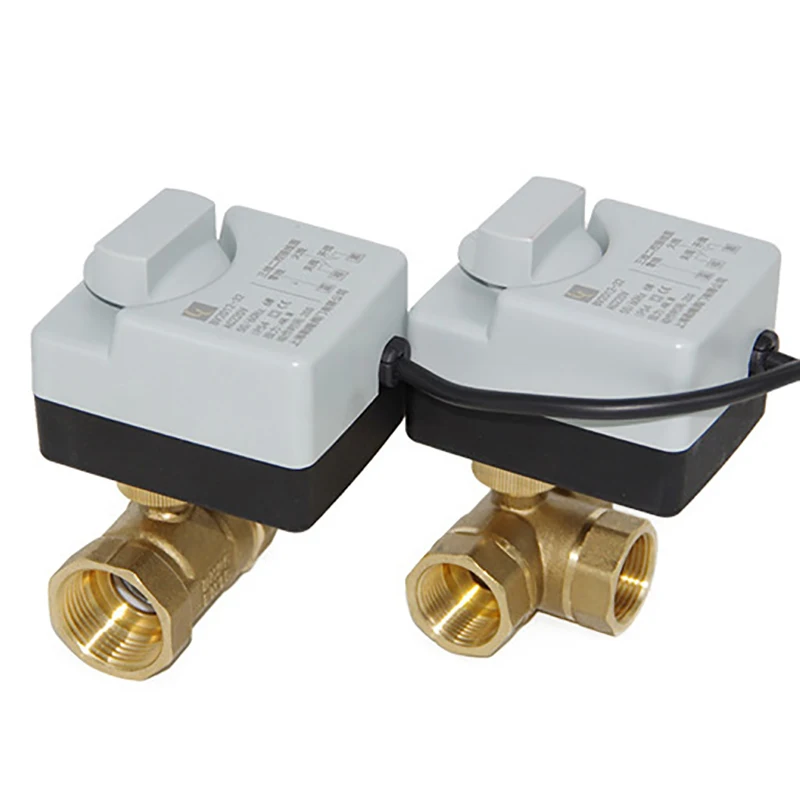

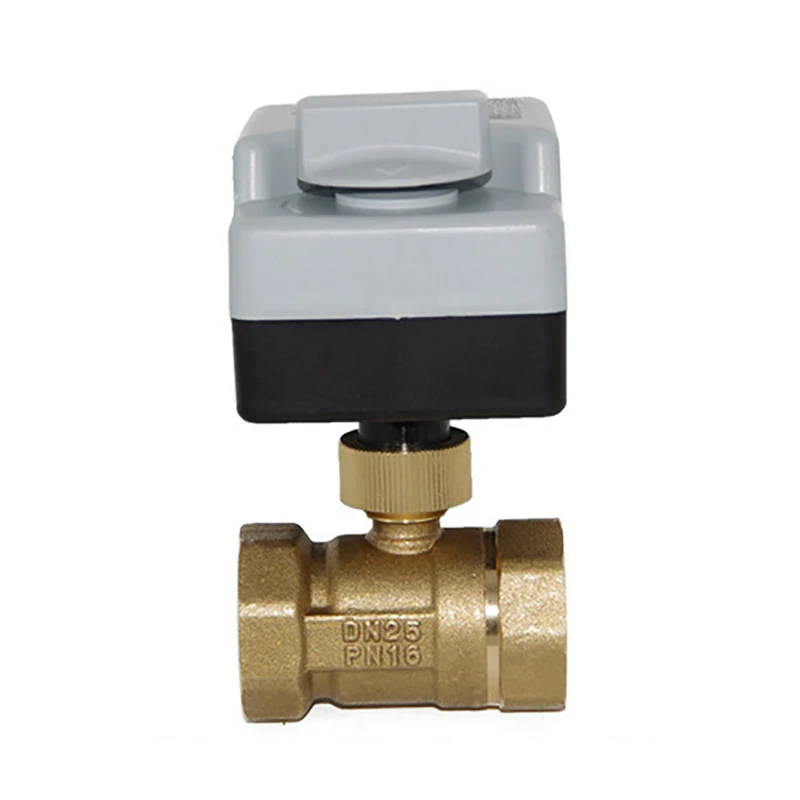

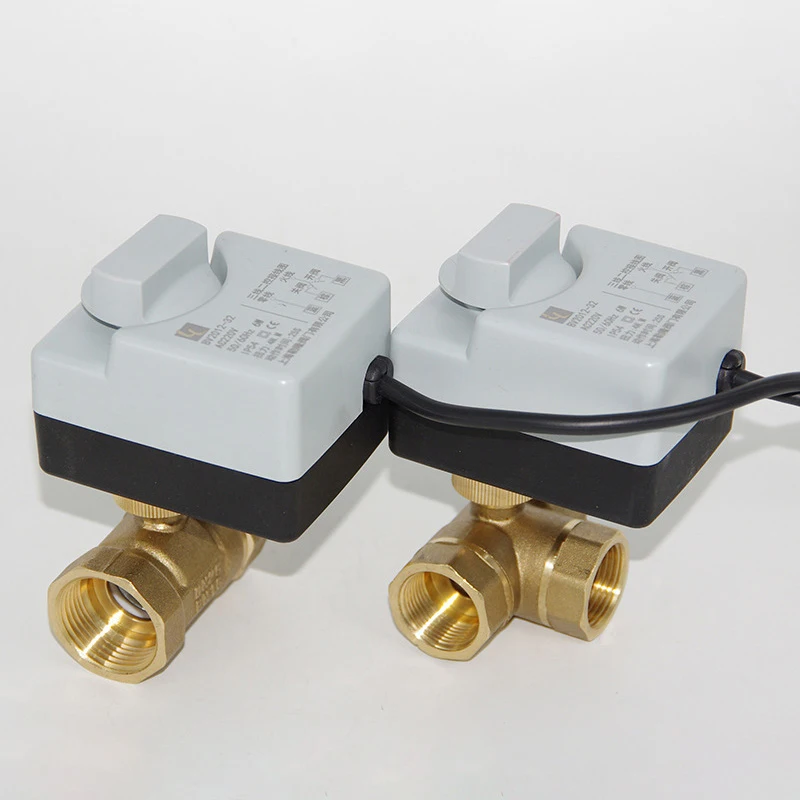

This brass motorized ball valve applicable to air conditioning fan coil system and heating system in the off control, by the ball valve and the actuator composition, Actuator using synchronous motor drive, built-in limit contacts, the valve can be fully open or full off when the power, stable action.
This Valve used for heating systems and air-conditioning fan coil systems on-off controlled by the valve and actuator components,actuators driven by a rotary valve ball 90 percent ofmovement.Synchronous motor driven actuator, Built-in limit contacts, enabling the valve in the fully open or fully closed off, the action and stability.

Dimension:DN15 DN20 DN25 DN32 DN40
Feature: 3-Wire Two Control

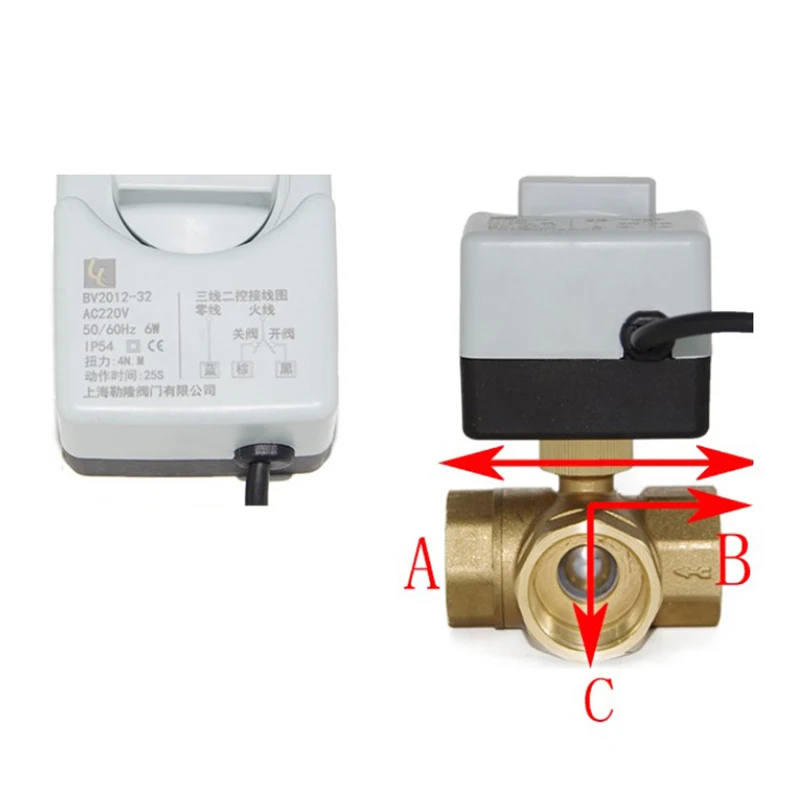

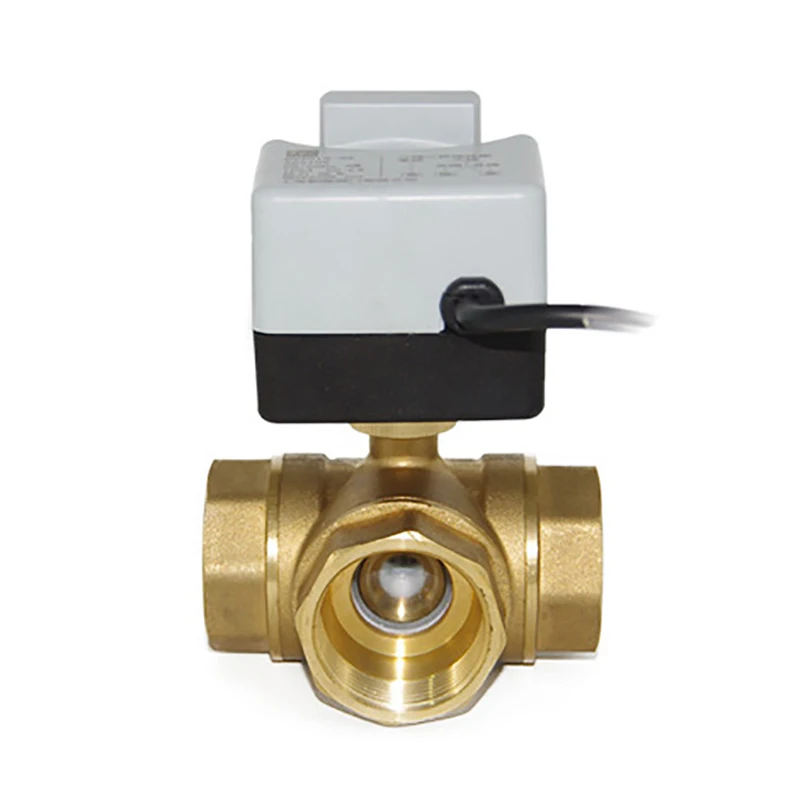

Way:  2 Way /3 Way (3 Way is T type)
Open/Close Time: 25 seconds
Maxmum Working Pressure: 1.6 MPa / 232psi;
Medium: Water, Air, Oil;
Voltage: AC220V  50/60 Hz Available;
Power: Max is 6W

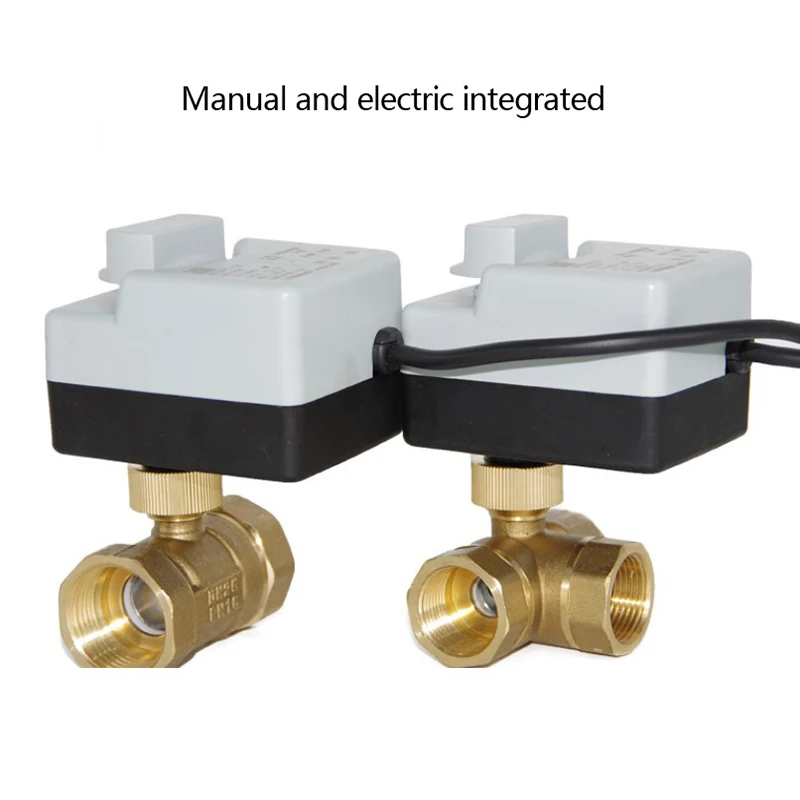

Operation: Motor and hand(with manual switch function)
Life Time: 100000 times;
Material: Brass,ABS plastic
Seal Material: EPDM & PTFE;
Enviroment Temperatur :0°~65° in Celsius;
Medium Temperatur: 0°~95° in Celsiu
Protect Class: IP 54

The package included:
1pc * Brass Motorized Ball

Notes:
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow 1-3cm measuring deviation due to manual measurement.
