🔴 Please kindly note that our zigbee devices(Zigbee/Plus/Pro version Products) require zigbee gatewayswith standard protocol.(Such as SmartThings, Tuya, Conbee ect.)

🔴 If you don't have any gateway, please buy one 2.4G RF remote control or wall switch to work with Pro Version Products.

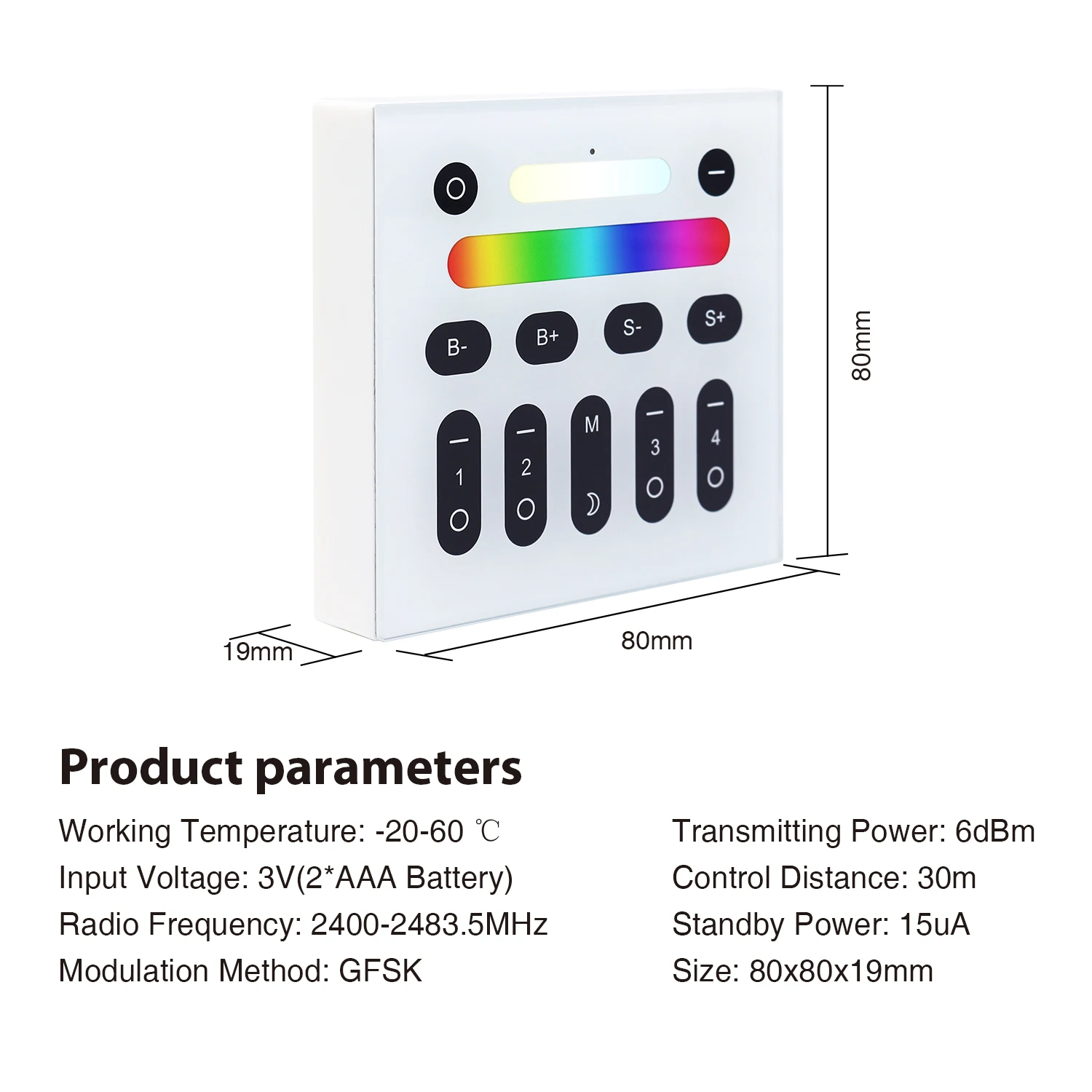

🔴 2.4G RF Remote Control and Wall Switch only work with Pro Version Products.(Not ZigBee)

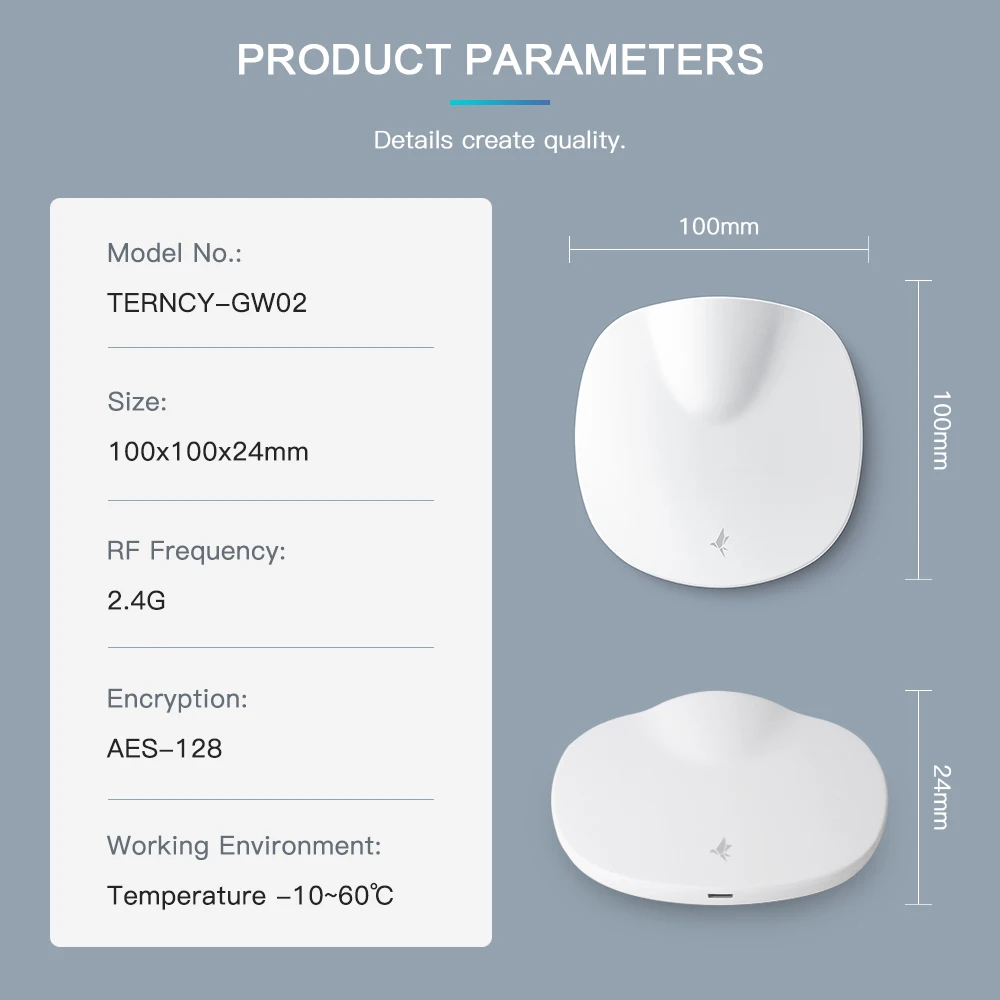

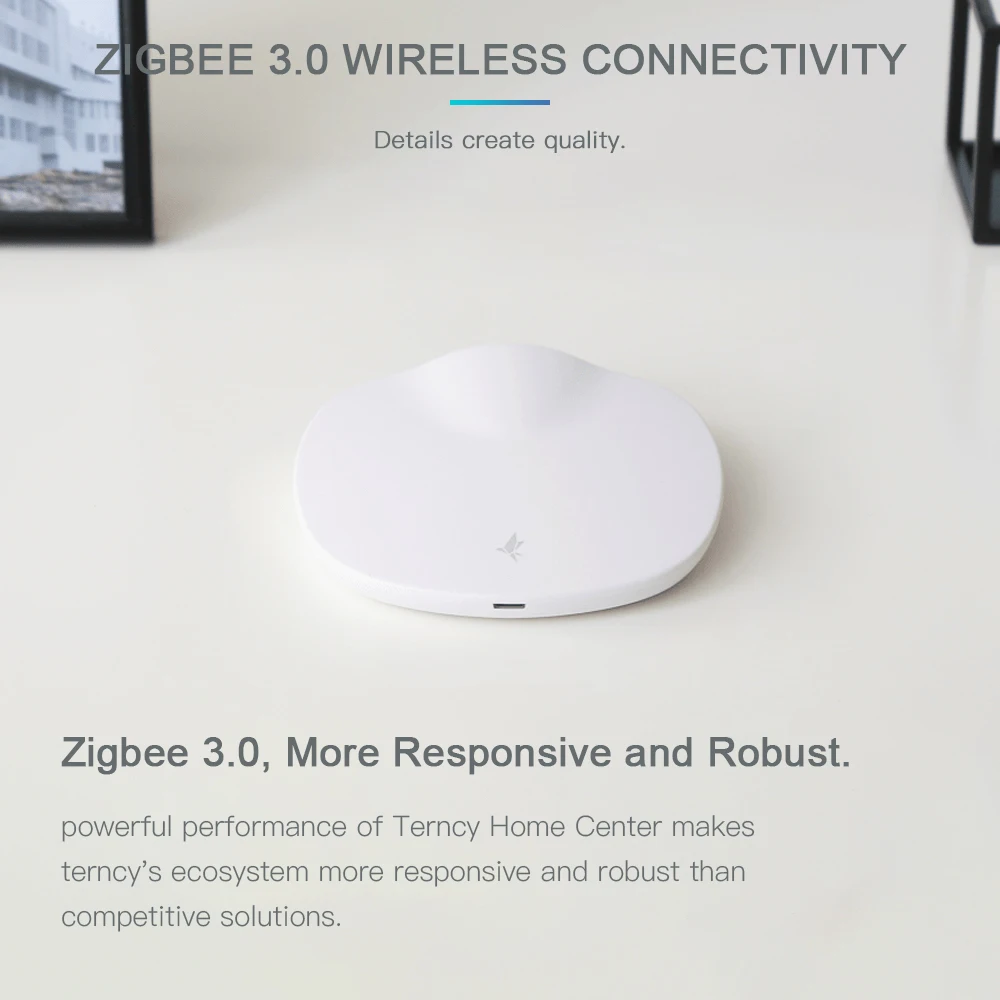

🔴 Terncy Home Center use private protocol, only compatible with Pro version products.

🌟 If the device will enter "touch link" mode by default after power off and restart, the mode will be turned off after 160s.

If the device has been connected to the network, it will enter "find and binding " mode, and the mode will be turned off after 180s.

🌟 Repeat power off and on 3 times, it will go into the "Power On Behavior" mode, the devide will save the state before power off.

It will has two options state under:

① if the device is powering on, after the electricity drop and power on again, the device will keep on;

② if the device is powering off, after the electricity drop and power on again, the device will keep off.

Therefore, power cycle 3 times to turn off the "Power On Behavior" mode, and the device will go back to "default lighting on" state.

🌟 Reset: repeat power off and on for 5 times.

🔥 16 million colors for your choice and make your life colorful, to create a relaxing and quiet atmosphere. Such as living room, kitchen, bedroom and so on.

🔥 There has warm white and cool white(2700-6000K) to choose from,which can experience the more delicate atmosphere lighting effect;

🔥 When adjusting the brightness from 1% to 100% that you want, making a vibrant atmosphere anytime.

🔥 Control ways:

① APP Control: Requires to zigbee gateway such as SmartThings, Tuya ect., support APP control in Android/IOS Phone;

② Voice Control: support Amazon Alexa/Google Home/Homekit via zigbee hub;

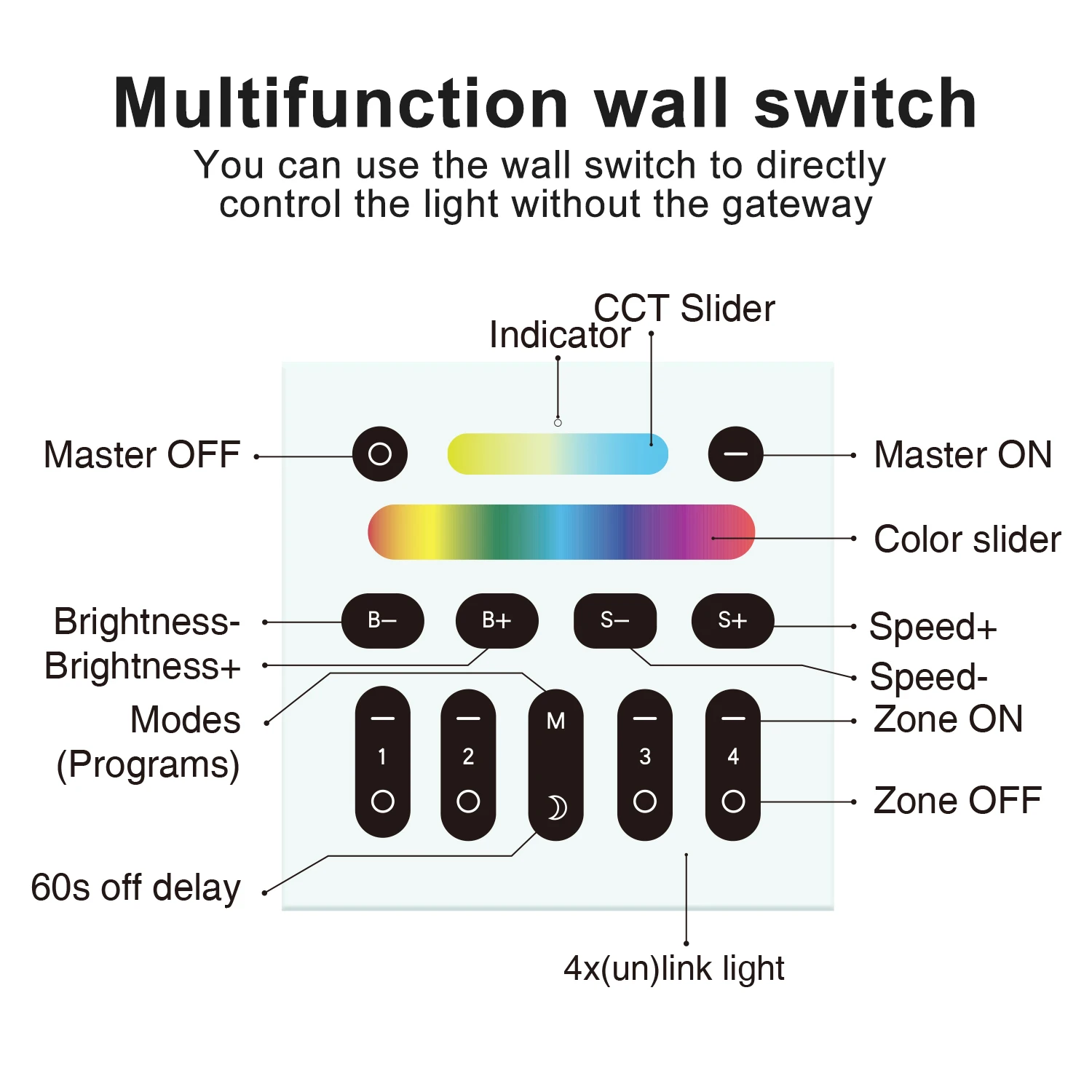

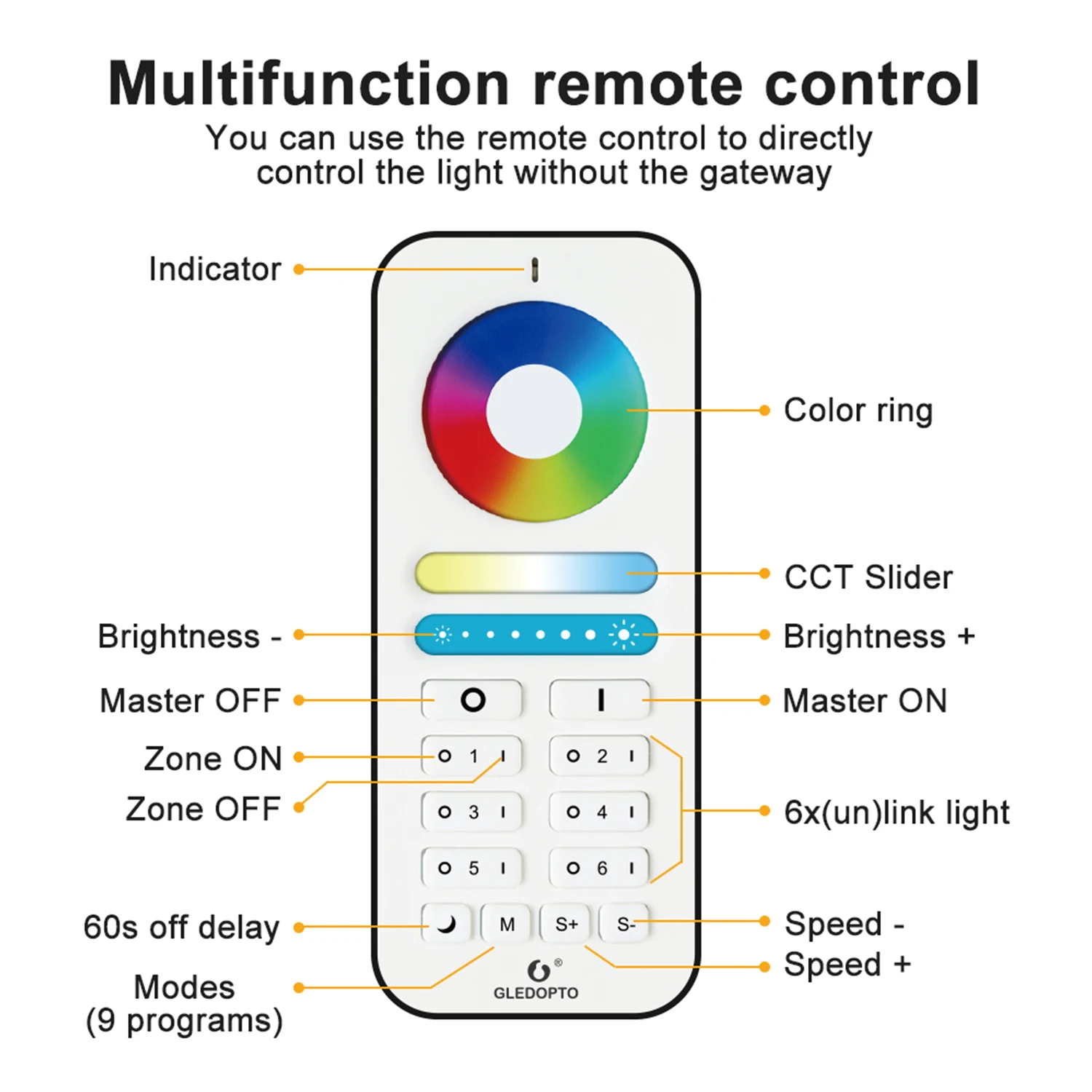

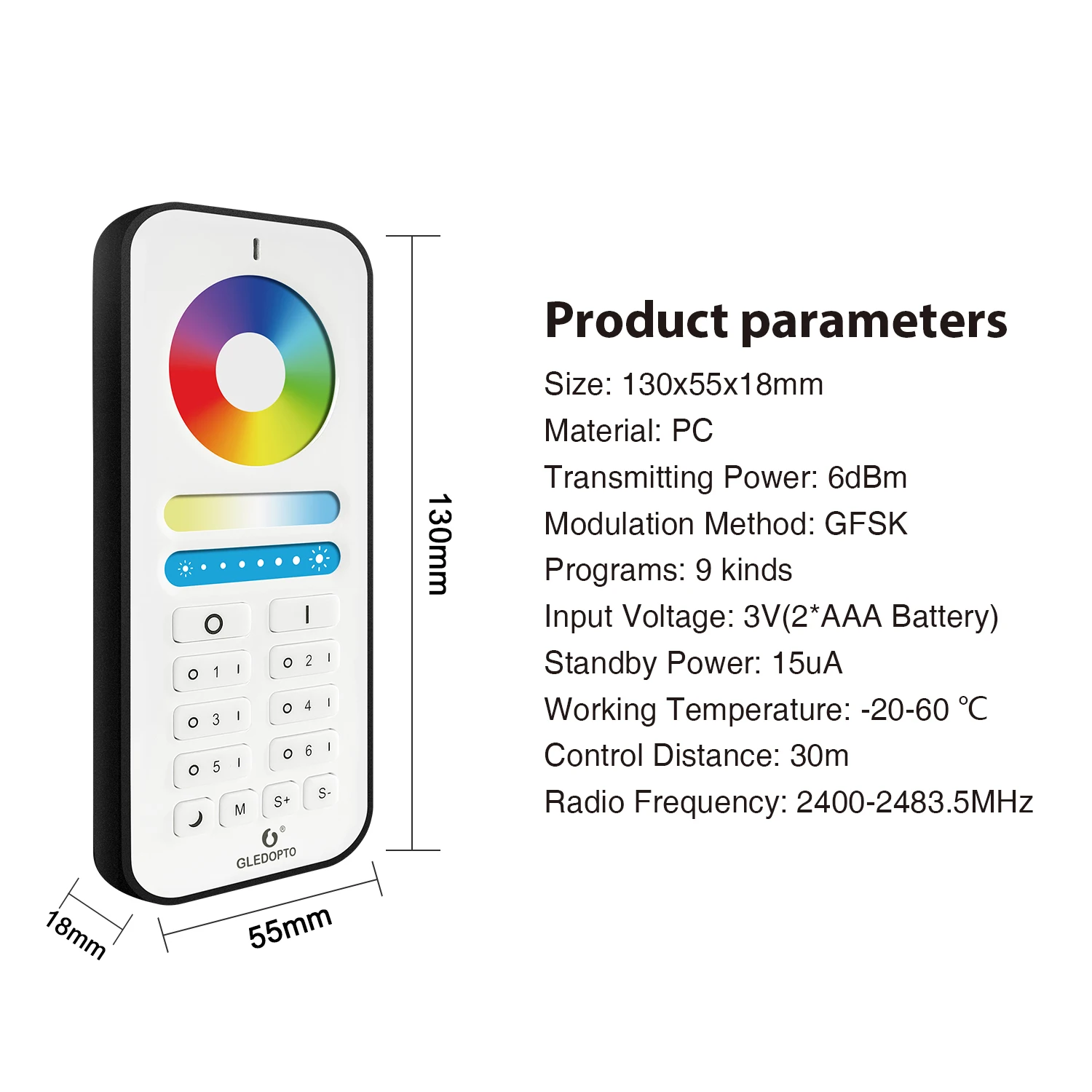

③ Remote Control: support 2.4G RF remote control/wall switch directly, without zigbee hub;

🔥 Group: Create rooms, divide your strip lights into one room( to control lights together) or several rooms(to control lights in different room separately).

🔥 Set the Scene that can adjust the different lights atmosphere in your room according to your needs.

🔥 Compatible With Zigbee Gateway: it's using with zigbee light link(ZLL) standard protocol, zigbee transmission technology, mesh, multi signal at the same to to transmit, receive, anti interference ability.

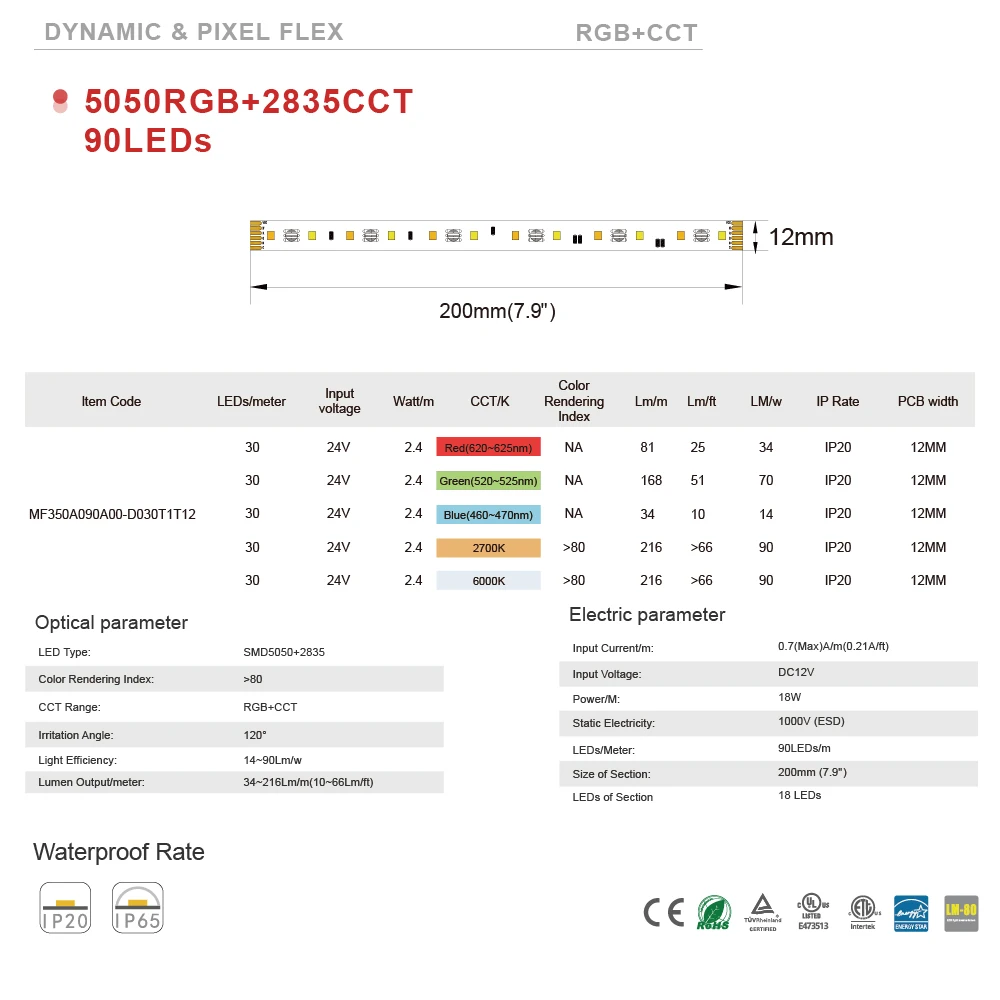

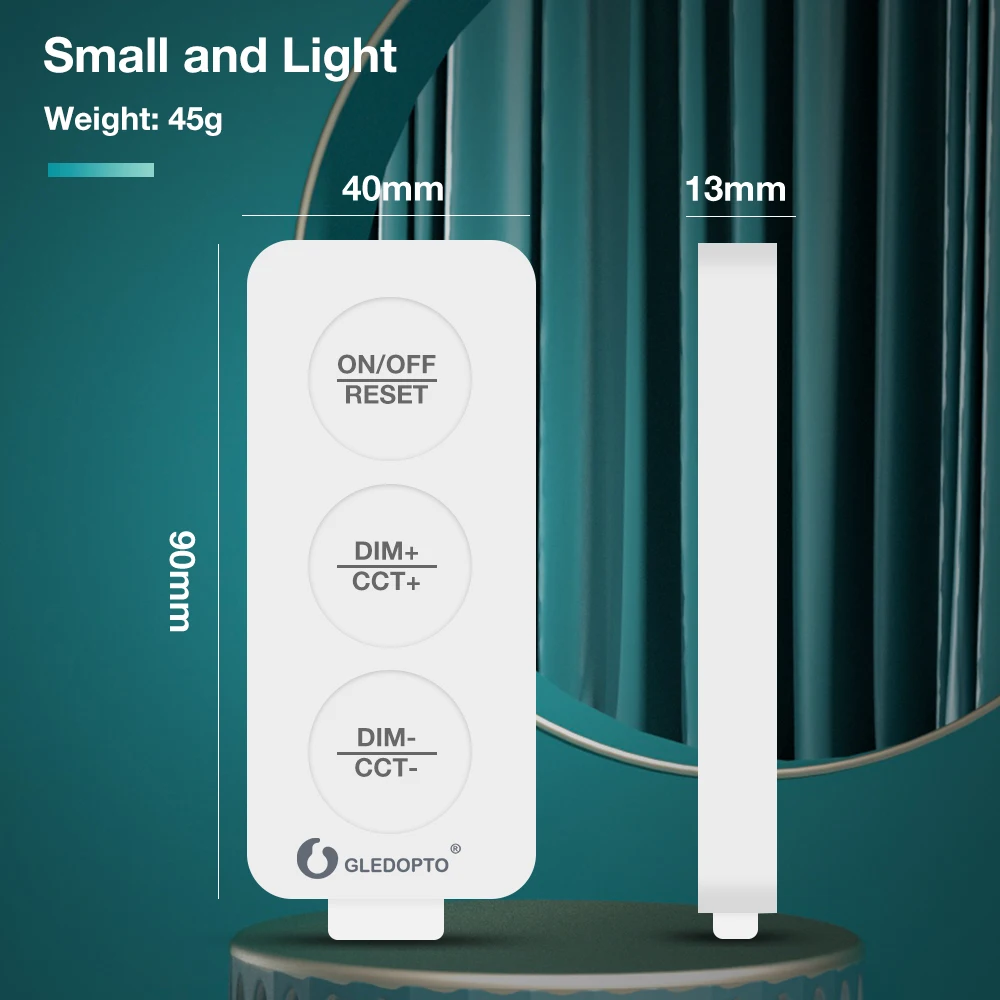

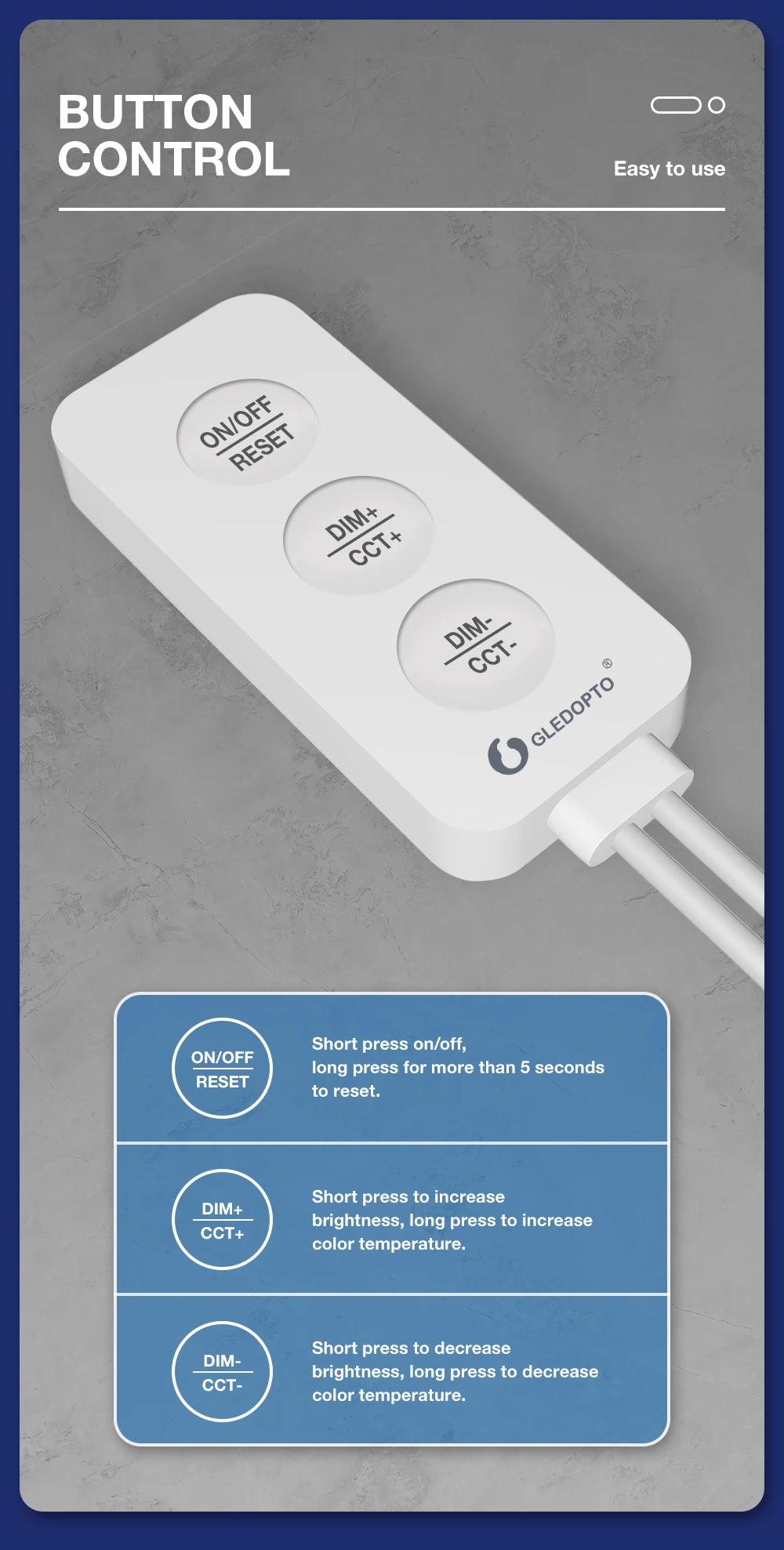

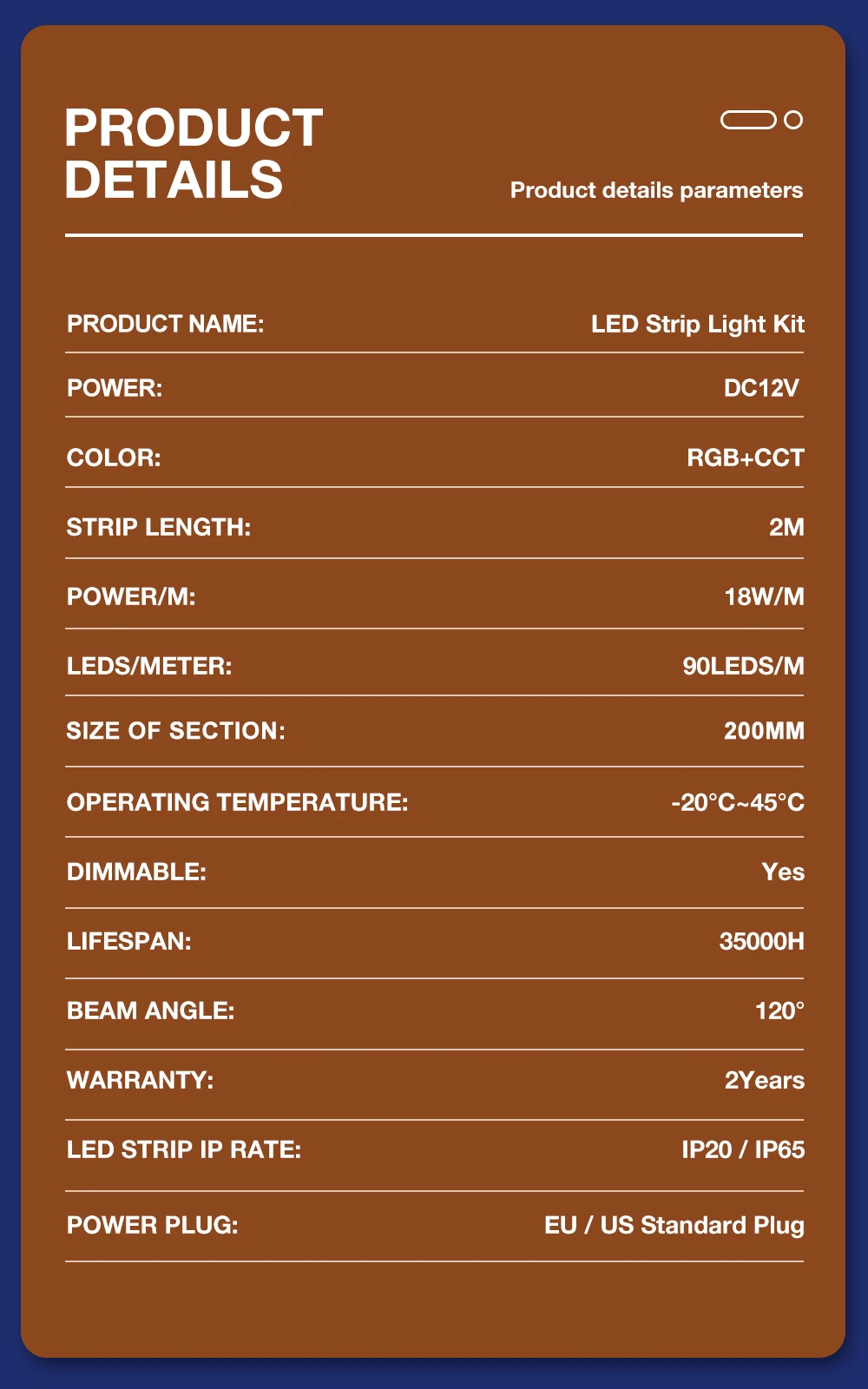

Product Name: Three-Button LED Strip Light Kit
Model: GL-C-004P
Input Voltage: DC12V
Color: RGB+CCT
Strip Length: 2m
Strip Width: 12mm

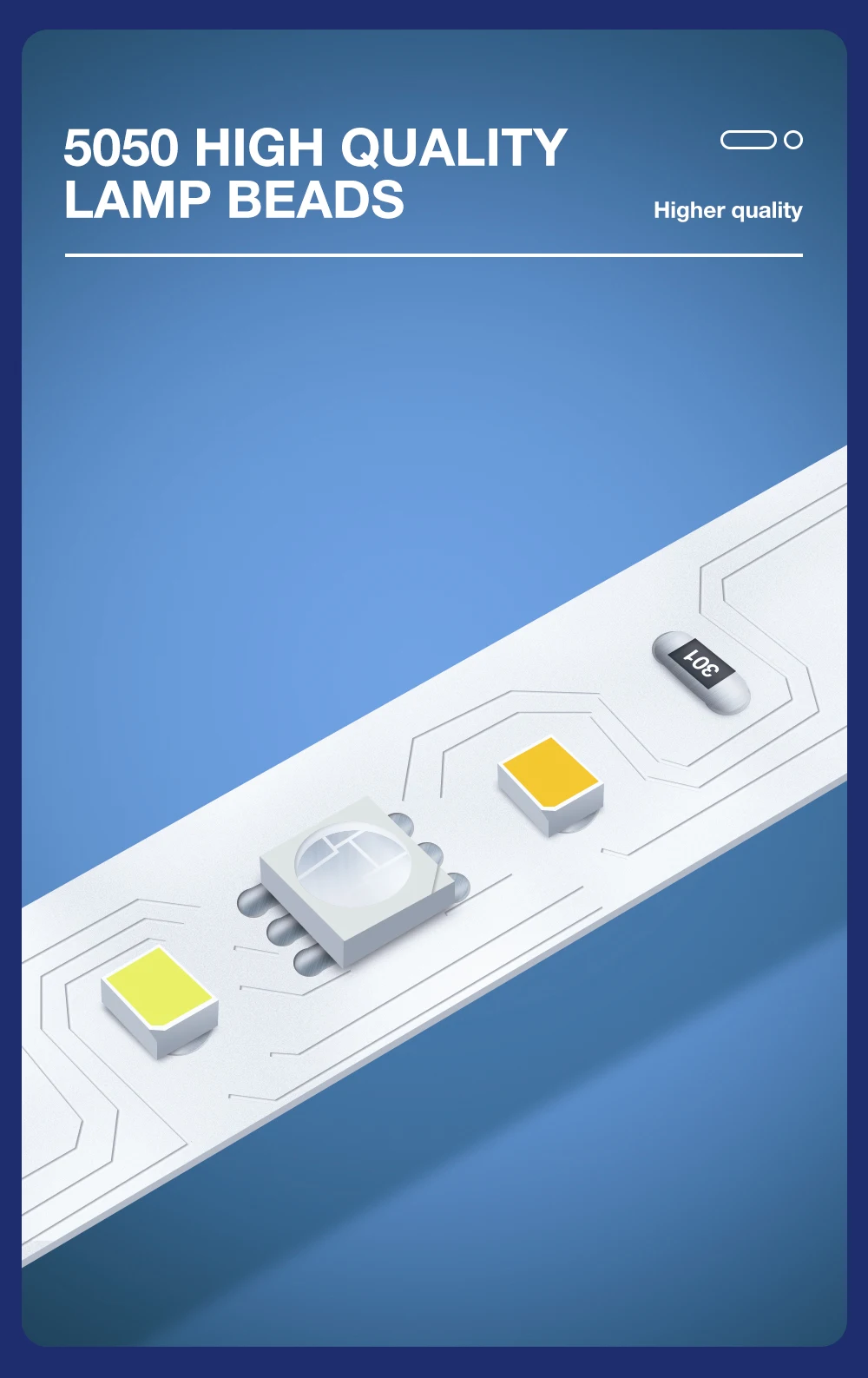

LEDs/Meter: 90LEDs/m
Power/Meter: 18W/m

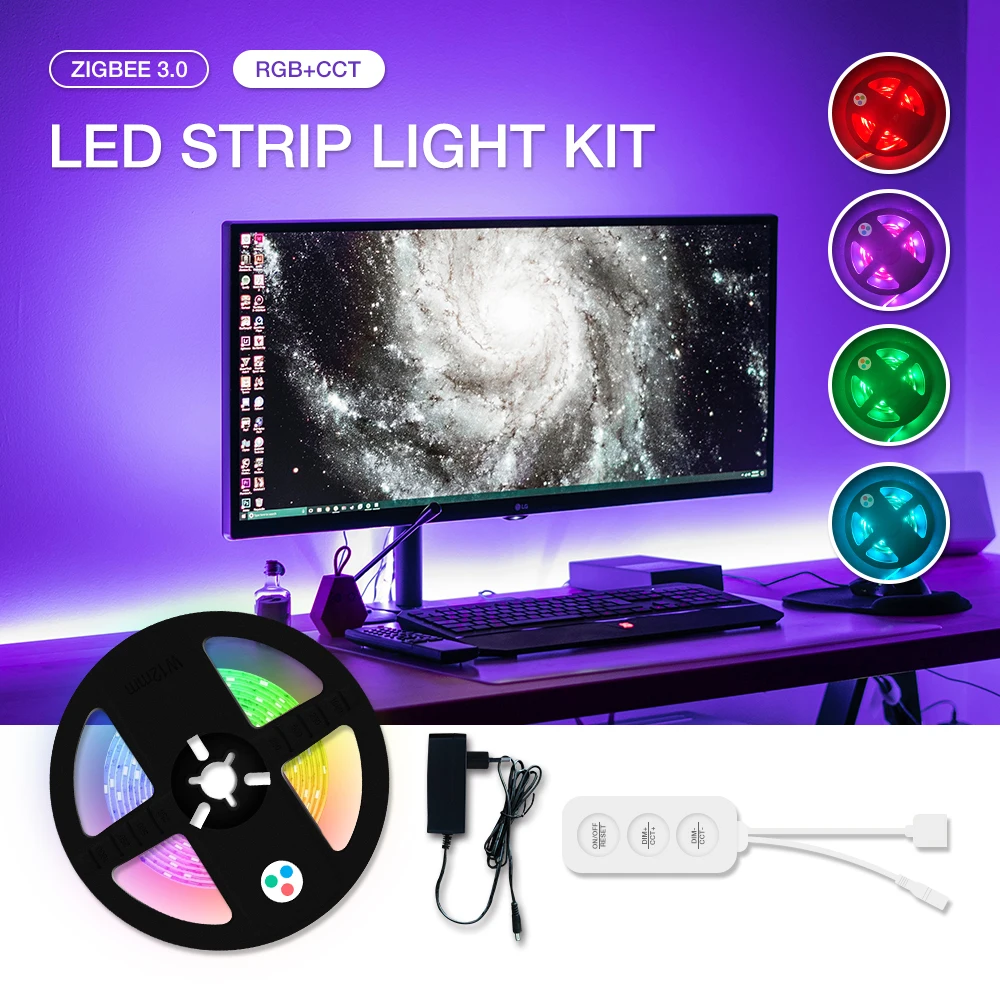

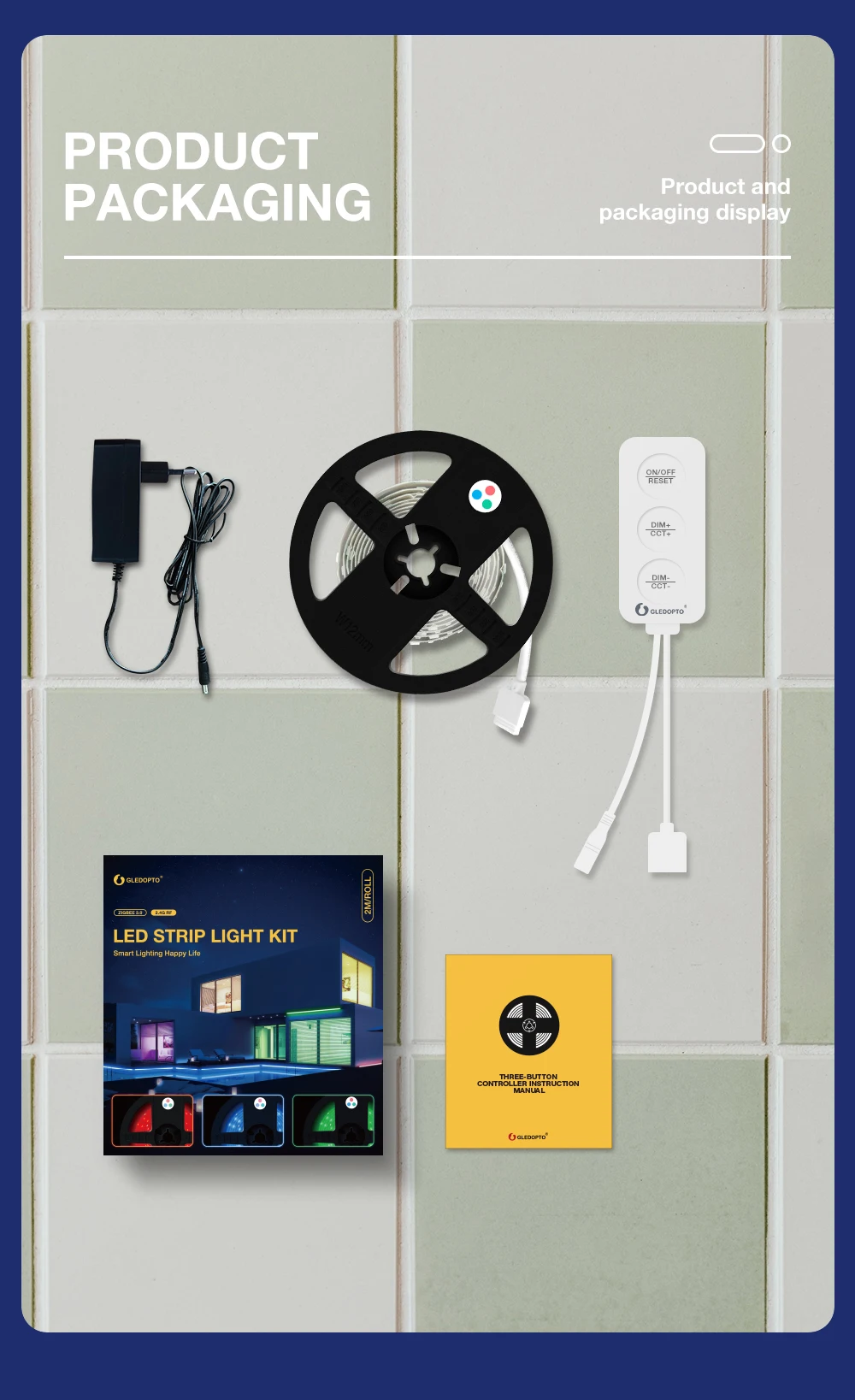

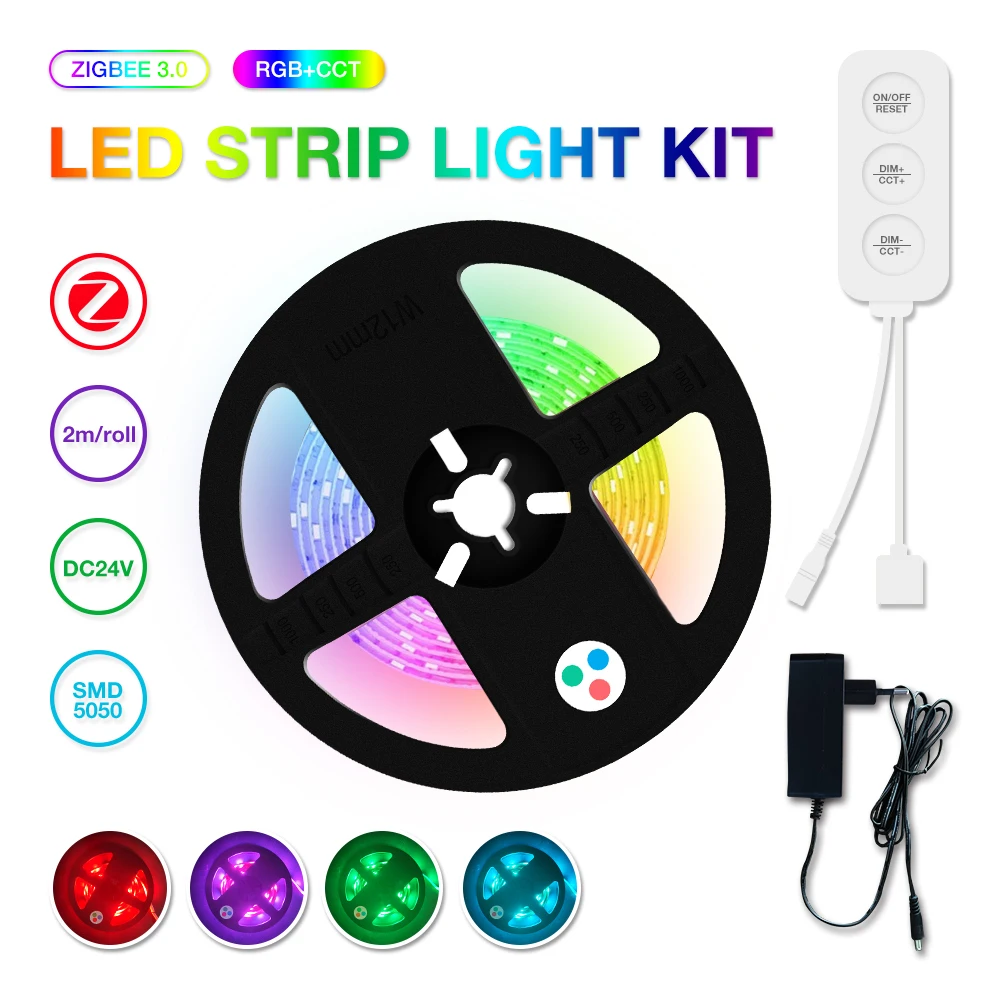

1PCS* Three-Button Controller
1PCS* 2m RGBCCT LED Strip with IP20
1PCS* DC12V Power Supply(EU or US Plug Optional)
1PCS* User Manual
1PCS* Packing Box

In this manual we will explain the connection of wires and the connection with a ZigBee LightLink Gateway.

These devices works with many ZigBee Light Link Gateways like:  Amazon Echo Plus.

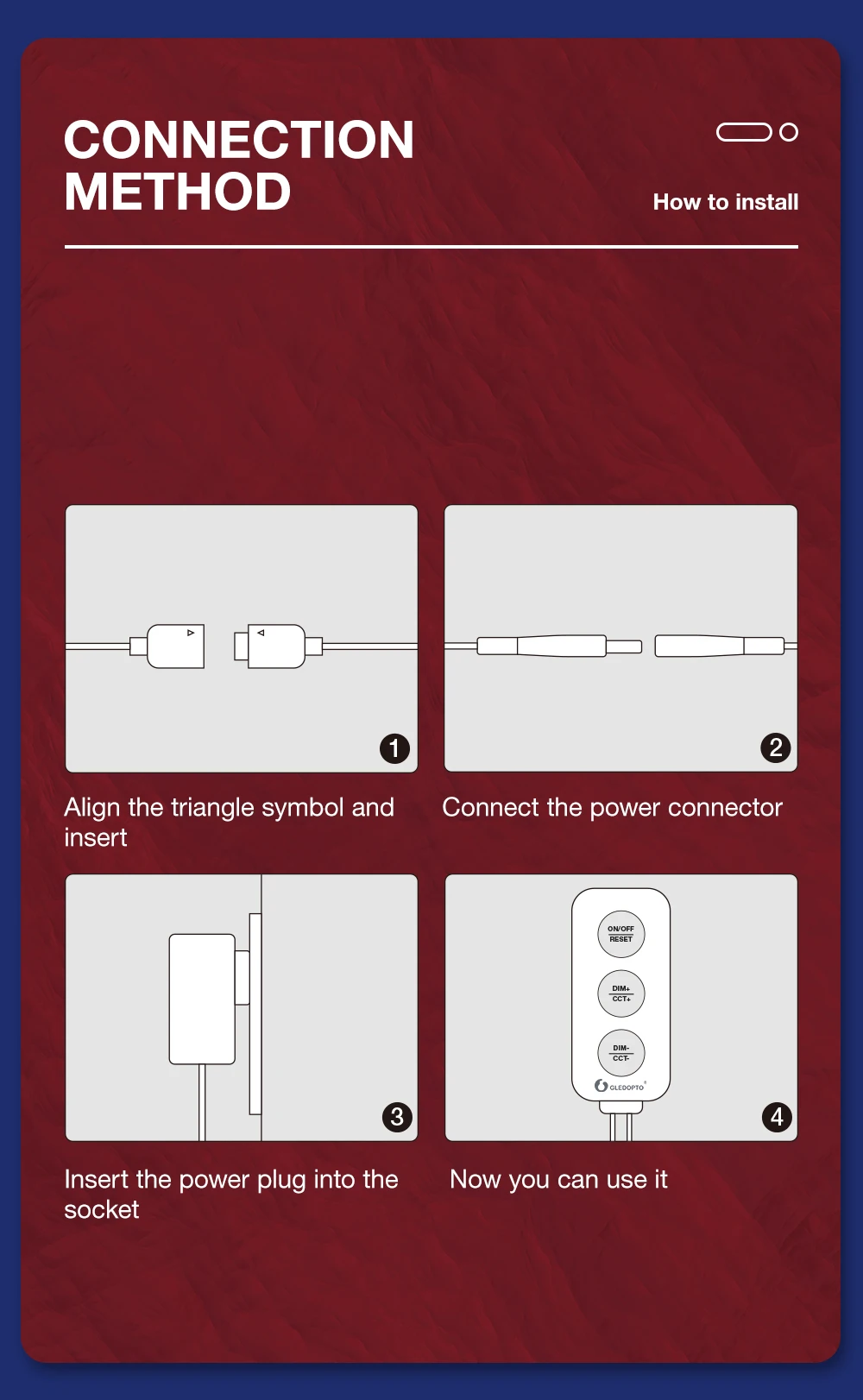

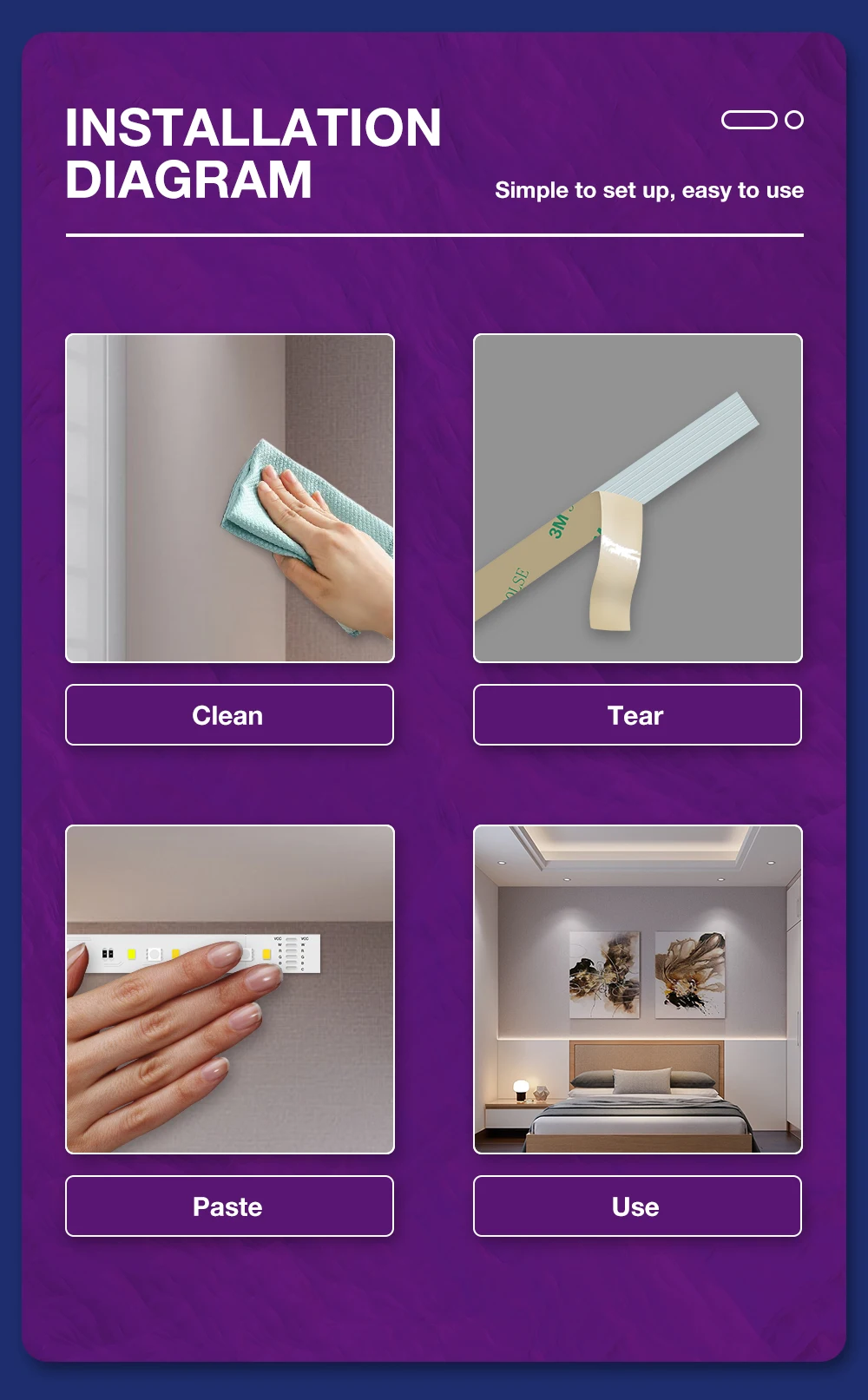

Installation:

1. Turn off the Power.

2. 2.Plug in the bulb.

3. 3.Now you can connect it with the gateway.

Connection with Gateway:

1. Connect the LED product to the controller see section “Installation”.

2. Start the device searching on the ZigBee Light Link Gateway, it could take some time.If the Gateway does not find the device, plug power off/on or make a reset.

3. The Gateway found your device and you can assign it to the differentrooms/zones/groups.

4. Now you can use the device.

Reset:

1. Switch on your device.

2. Now switch off and on within 2 seconds.

3. Repeat off/on four times.

4. Reset is done when the device is switched on in the fifth time and the light stays on afterblinking 4 times
