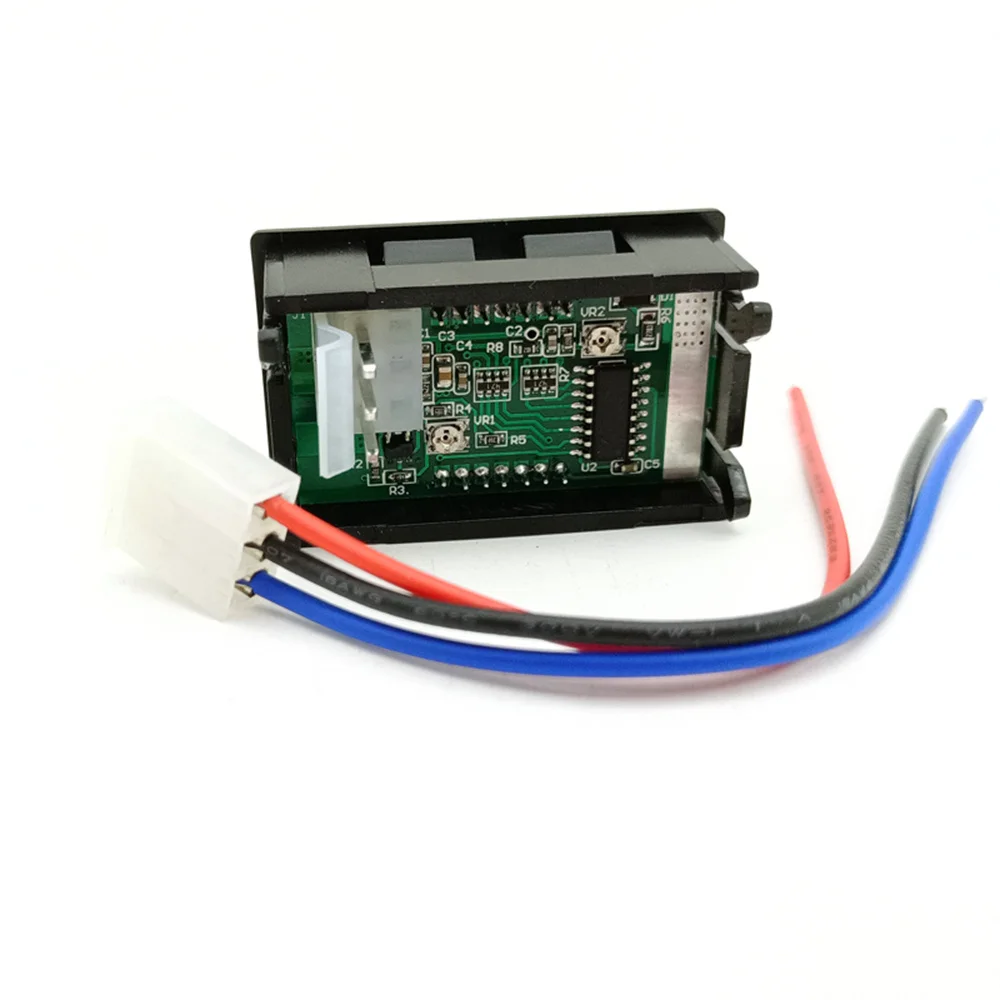

0.28'' LED 6-120V 10A 50A 100A Digital Voltmeter Ammeter Car Motocycle Voltage Current Meter Volt Detector Tester Monitor Panel

Features:

1. The dual display current + voltage is clear at a glance, and the display is more intuitive

2. Wide range of use, DC 6-120V can be used

3. The meter head automatically recognizes voltage and current

4. Can be embedded or used directly

5. Direct power supply, no need for a separate external power supply, more convenient to use

Notice:

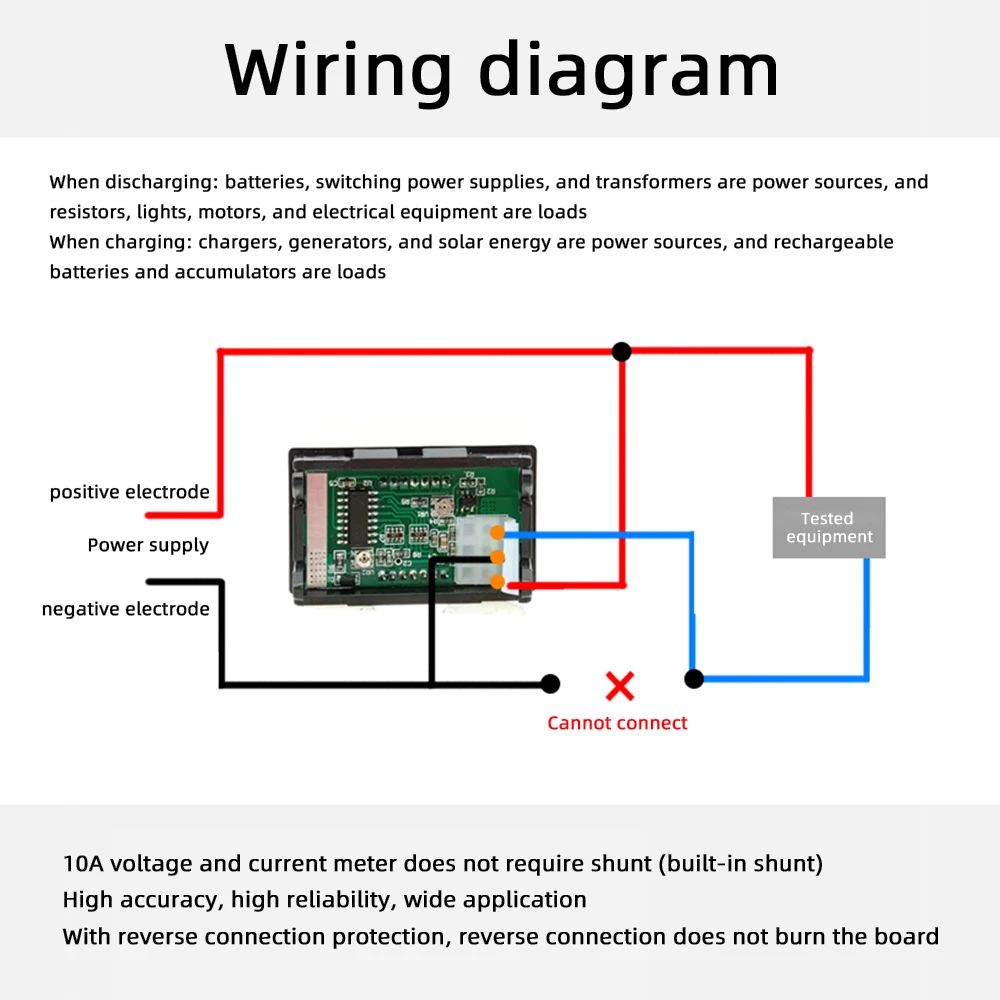

The instrument with a range of 10A can directly measure current.

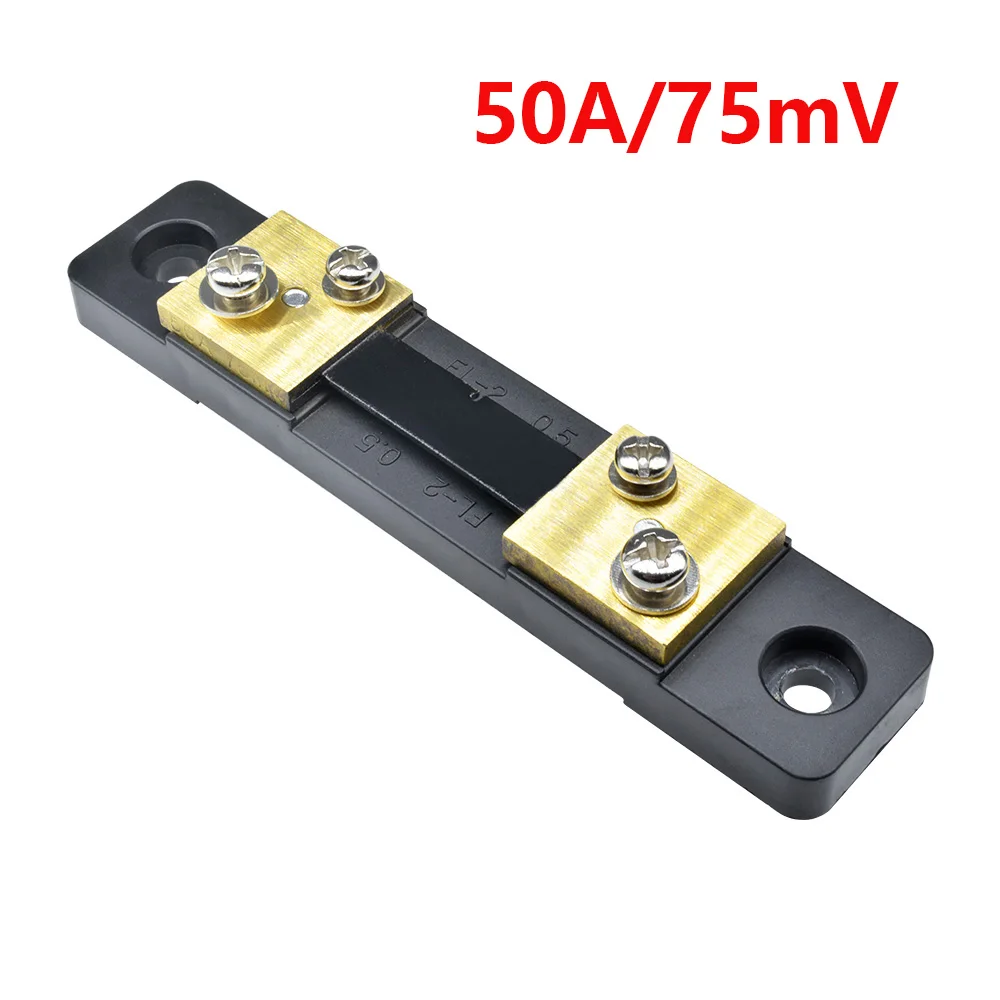

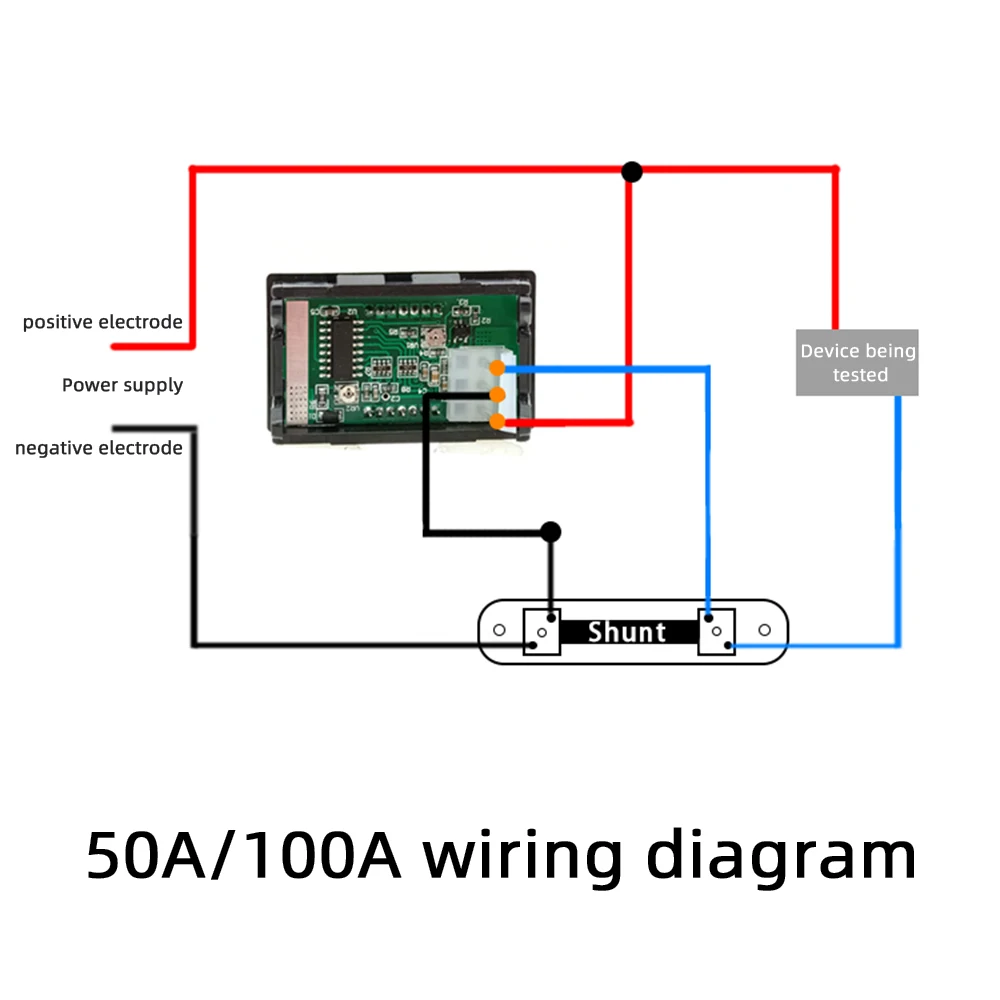

For meters with a range of 50A or 100A, no matter whether the measuring current is less than 10A, a shunt must be connected to measure the current! Otherwise it will not work.

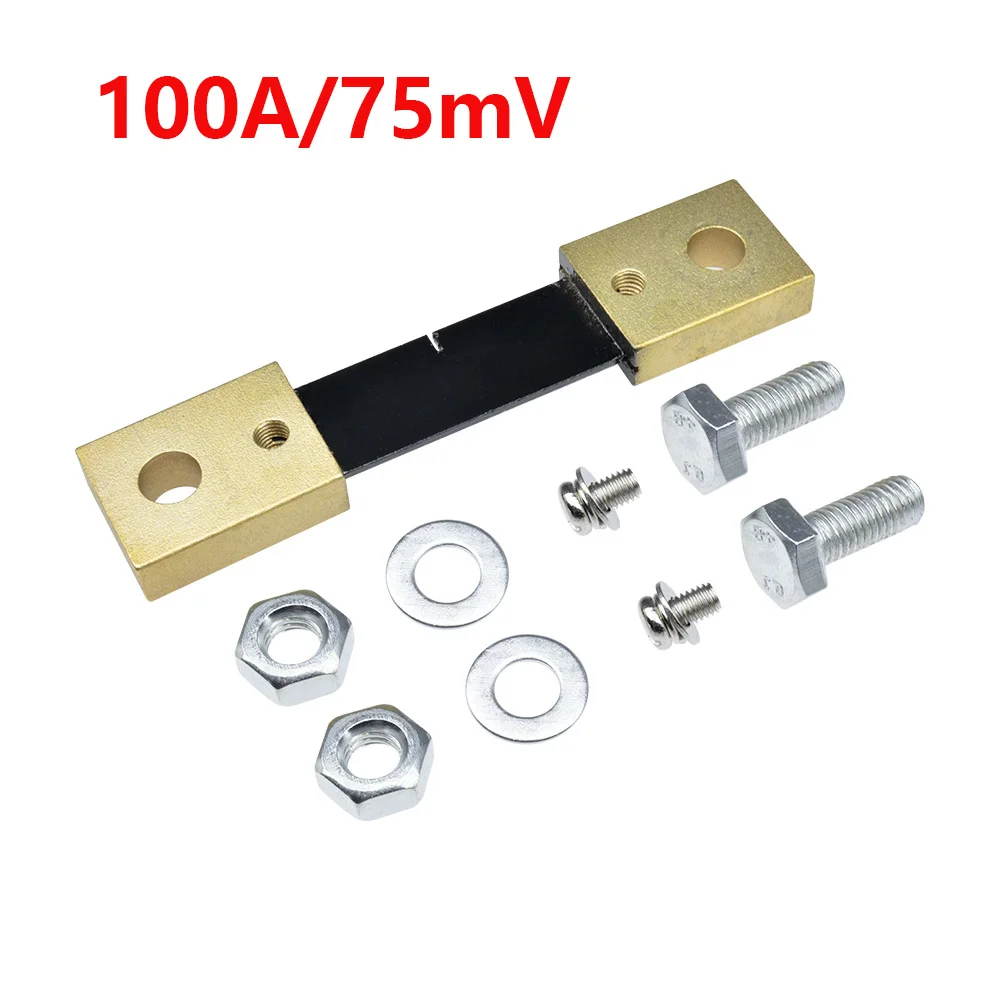

Our products do not include shunts; you must purchase them separately.(If you want to buy the 100A/75mV shunt, please contact us)

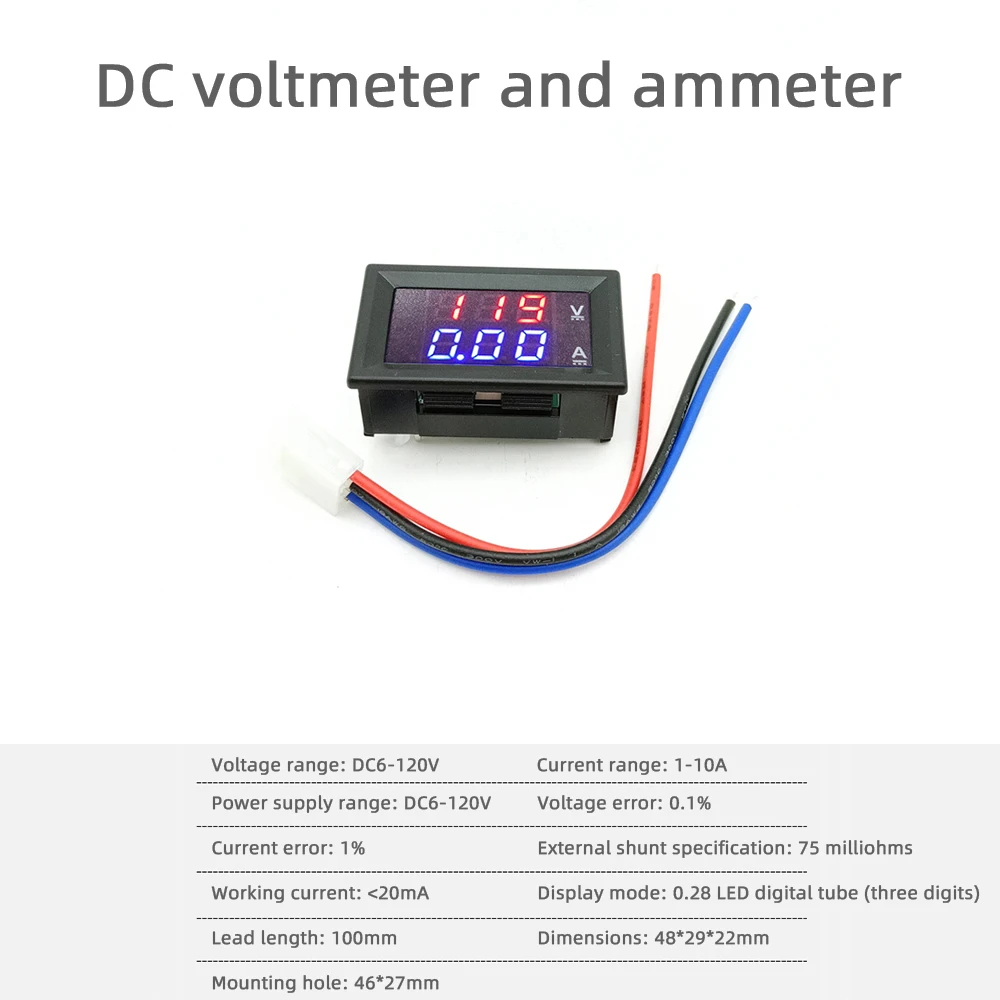

The main parameters:

Voltage range: DC6-120V

Current range: 1-10A 1-50A 1-100A (3 ranges are optional)

Power supply range: DC6-120V

Voltage error: 0.1%

Current error: 1%

Working current: <20mA

Display mode: 0.28LED digital tube (three digits)

Lead length: 100mm

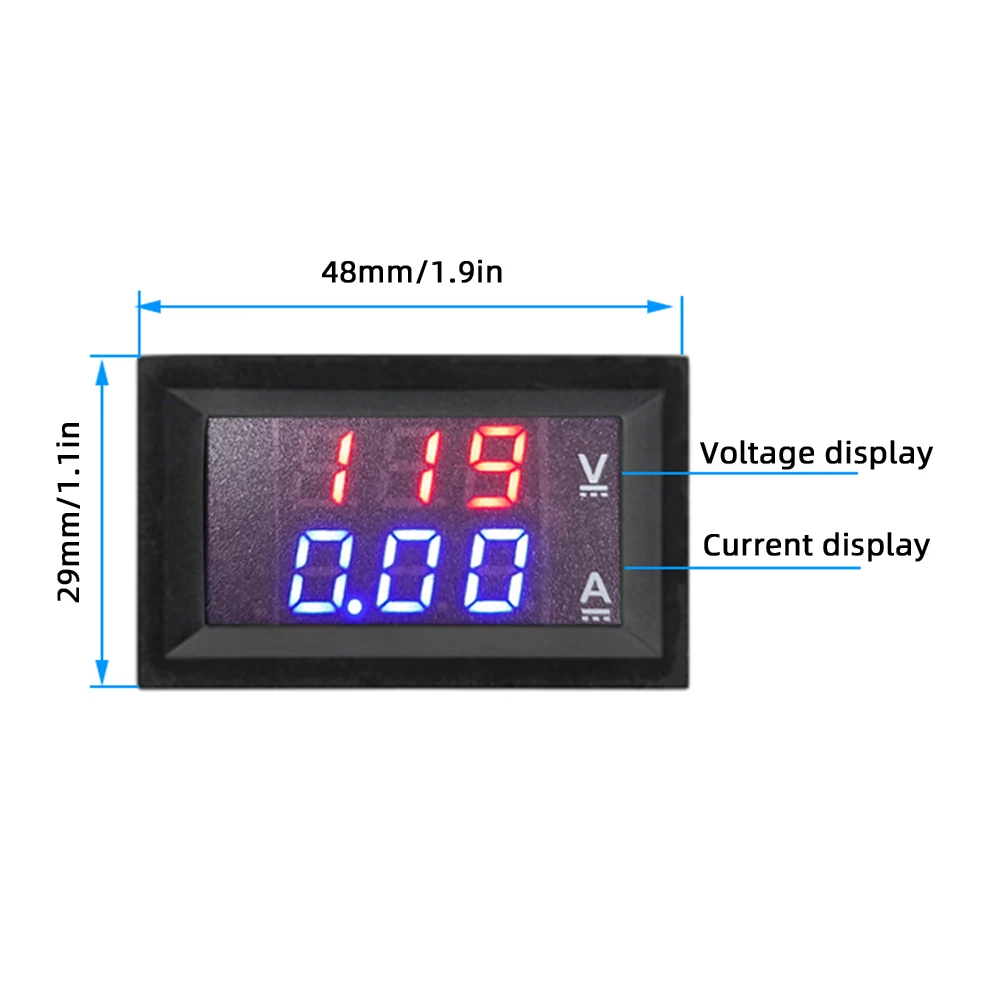

Dimensions: 48*29*22mm

Mounting hole: 46*27mm

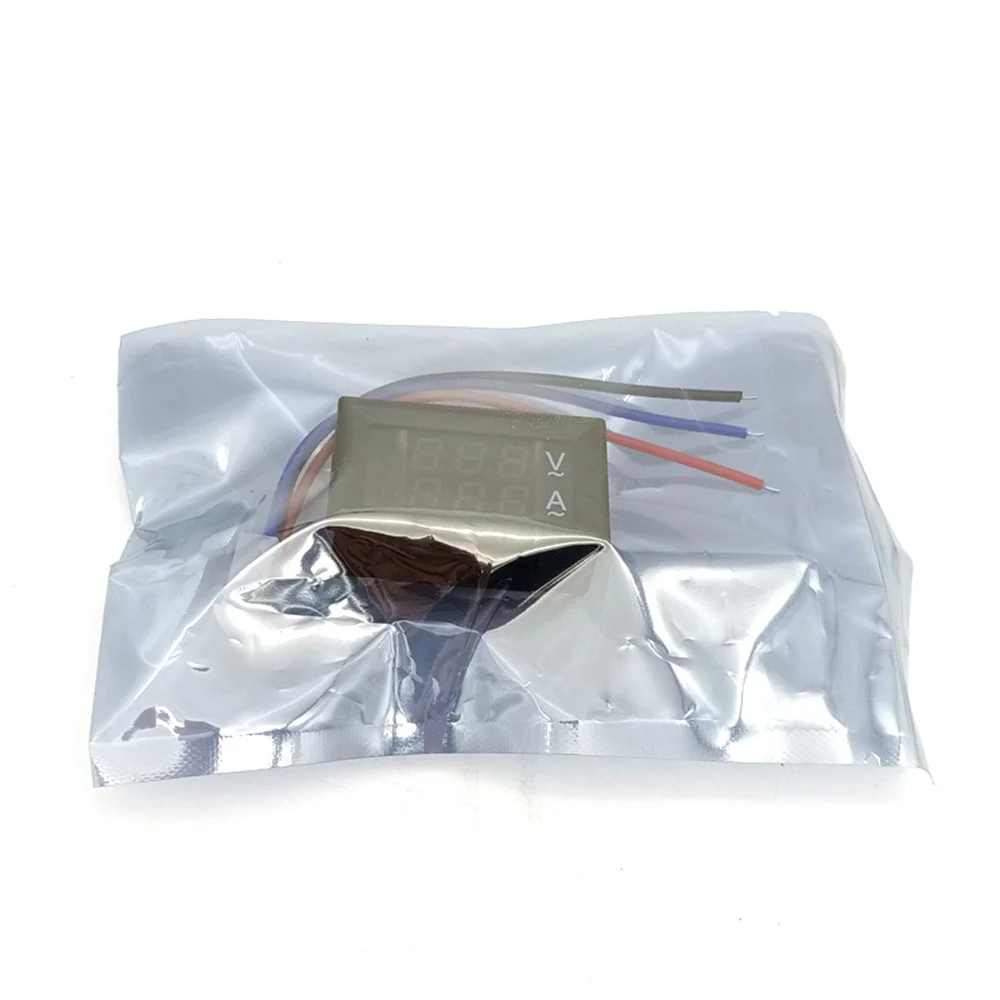

Packing list:

Voltage current meter X1
