New Digital Terrestrial Decoder HD TV Set-Top Box DVB T2 USB 2.0 1080p Tuner Case Television H.264/H.265 Multimedia Accessory |

Digital Terrestrial Decoder HD TV Set-Top Box DVB T2 USB 2.0 1080p TV Tuner Case Television H.264/H.265 Multimedia Accessory
Specification:
Hardware:
CPU: GX6702H5
Memory: 512Mbit DDR3 frequency 1066
Flash memory: 32m bytes of memory
Built in demodulator type
Tuner R836
USBWiFi-mt7601
Demodulation:
Terrisal receiver standards DVB-T2 (EN 302 755 V1.3.1, supporting T2 Lite), DVB-T (EN 300 744), DVB-C
Input radio frequency "VHF": 177.143 ~ 213.143 MHz: UHF 473.143 ~ 803.143mhz.
Bandwidth 6mhz / 7MHz / 8MHz
Demodulation QPSK / 16QAM / 64QAM / 256QAM
FEC 1 / 2, 2 / 3, 3 / 4, 5 / 6, 7 / 8 automatic
Protection interval 1 / 4, 1 / 8, 1 / 16, 1 / 32
FFT mode 2K / 8K / 32K
Input level - 83 -- 5dBm
Sorting software function
Use in any DVB-T / T2 / C country
Support all DVB-T / T2 / Cbroadcast, MPEG-2 / MPEG-4 AVC / H.264, H.265 (HEVC) HD or memory advanced video, compatible with DiVX

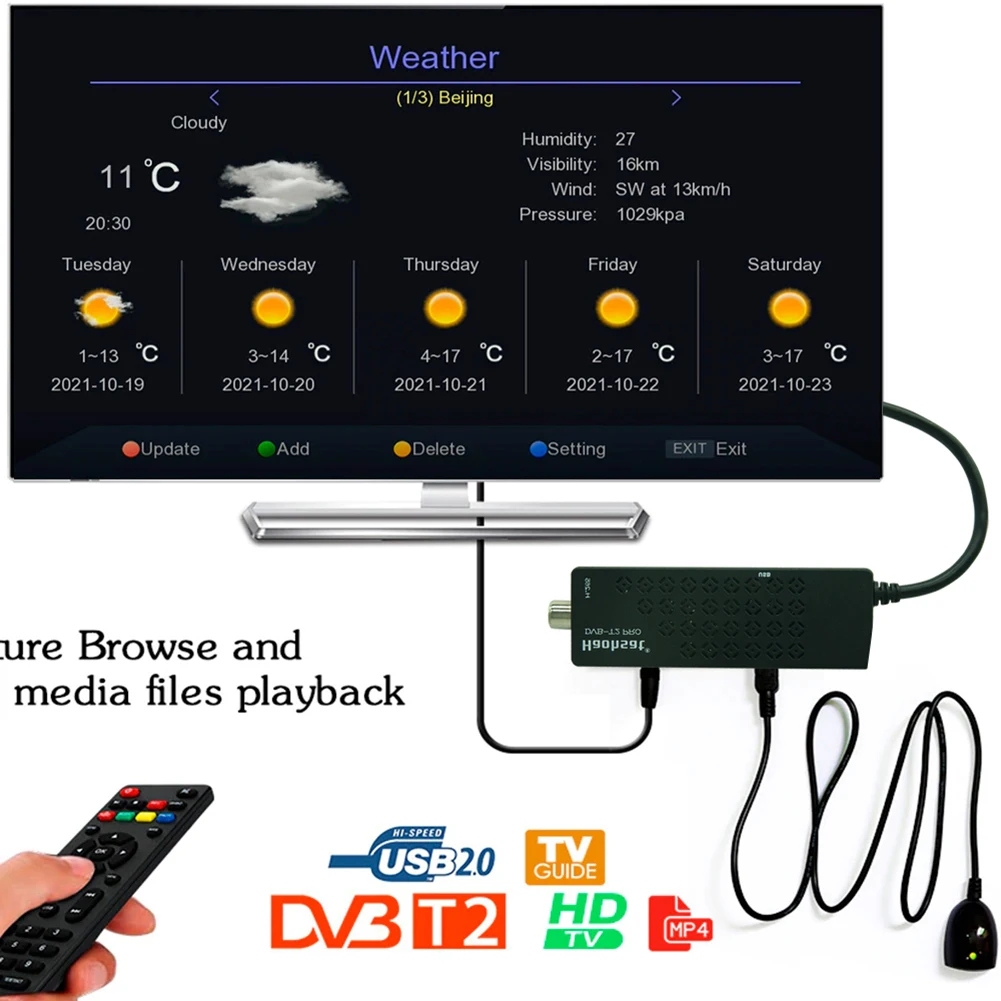

Support for YouTube / weather / IPTV
Support teletext / subtitle / multilingual
Support 7-day EPG function, VBI teletext
Auto, 16:9 Pillar Box, 16:9 Pan G scan, 4:3 Letter Box, 4:3 Pan G scan, 4:3 full screen, 16:9 Widescreen

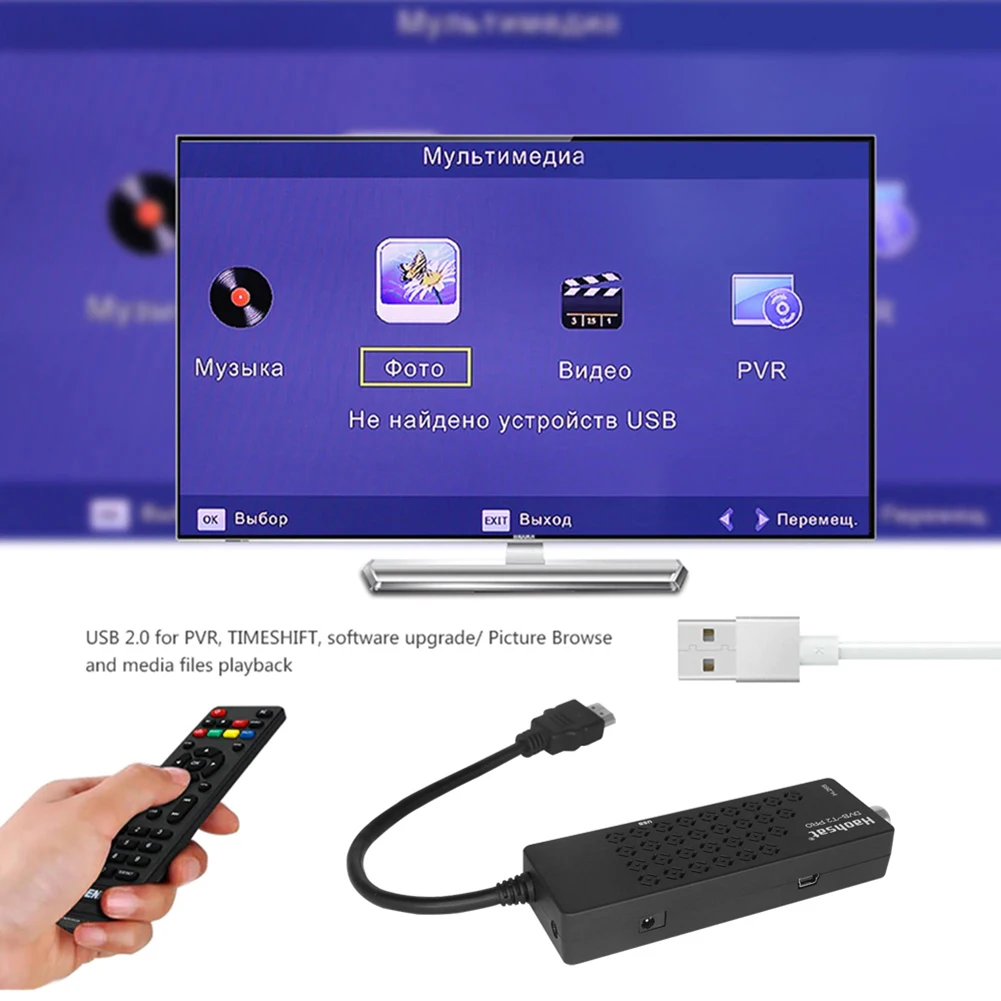

USB 2.0 is used for PVR, for TIMESHIFT, software upgrade and media file playback
Video output resolution: 480i / 576i / 480p / 576p / 720p / 1080i / 1080p
decoder
Video decoder "conforming to: MPEG-4 part10 / MPEG-2 ISO / IEC 13818 / H.264/H.265 (HEVC), BP, MP, HP up to L4.1
MPEG-4 Simple/Main/Advanced  Profile@LEVEL3 (10Mbps)
MPEG-2 Main Profile# Main Level(15Mbps)
H.264 MP#L3(10Mbps) H.264 HP L4. 1(25Mbps)"
Audio decoder "MPEG-1, MPEG-2 (Layer I / II), MP3, AC-3 (Dolby Digital), AAC-LC, WMA, HE-AAC"
E-AC-3 (Dolby Digital +) decoding HE-AAC 7.1 multichannel decoding
Powerful multimedia functions
Media codec avi mpg dat vob div mov mkv jpeg ts et al.
Front panel USB 2.0 embedded host
Front panel LED display
Red LED standby, green LED locked
Panel button, power supply, CH+, CH-

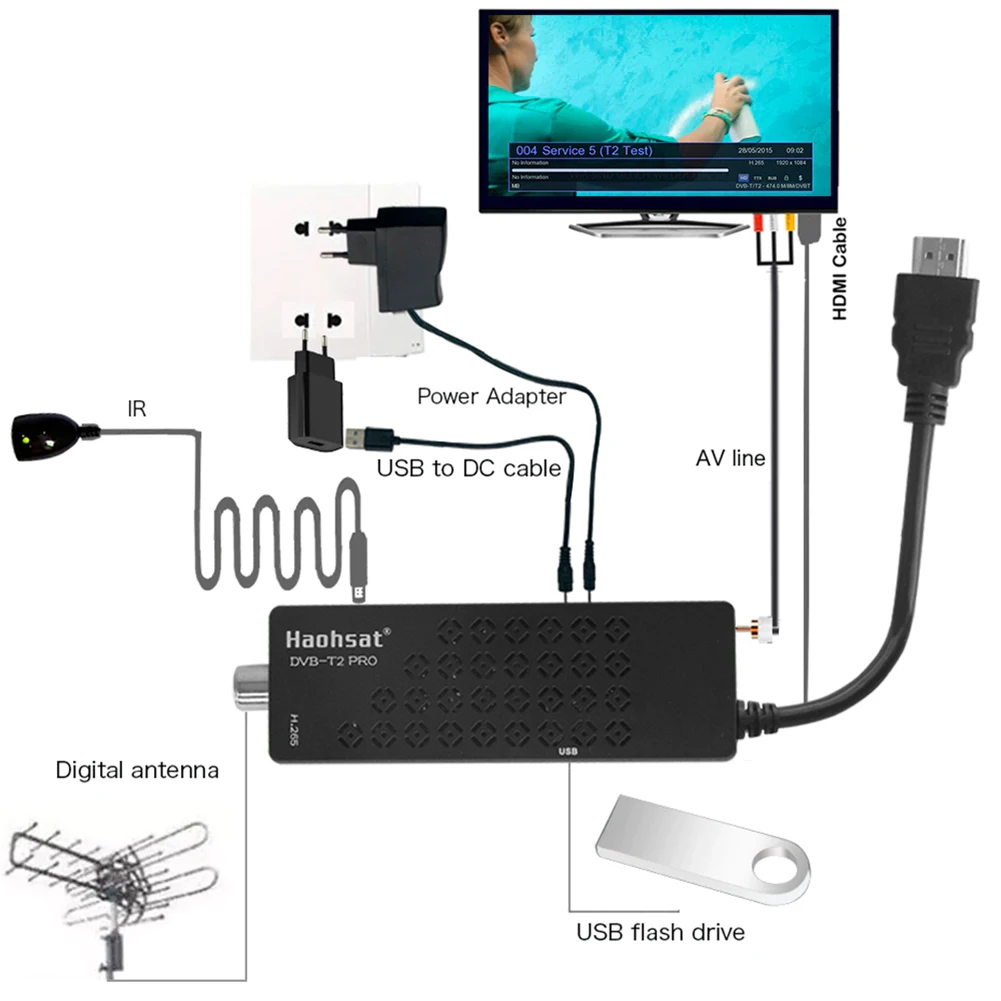

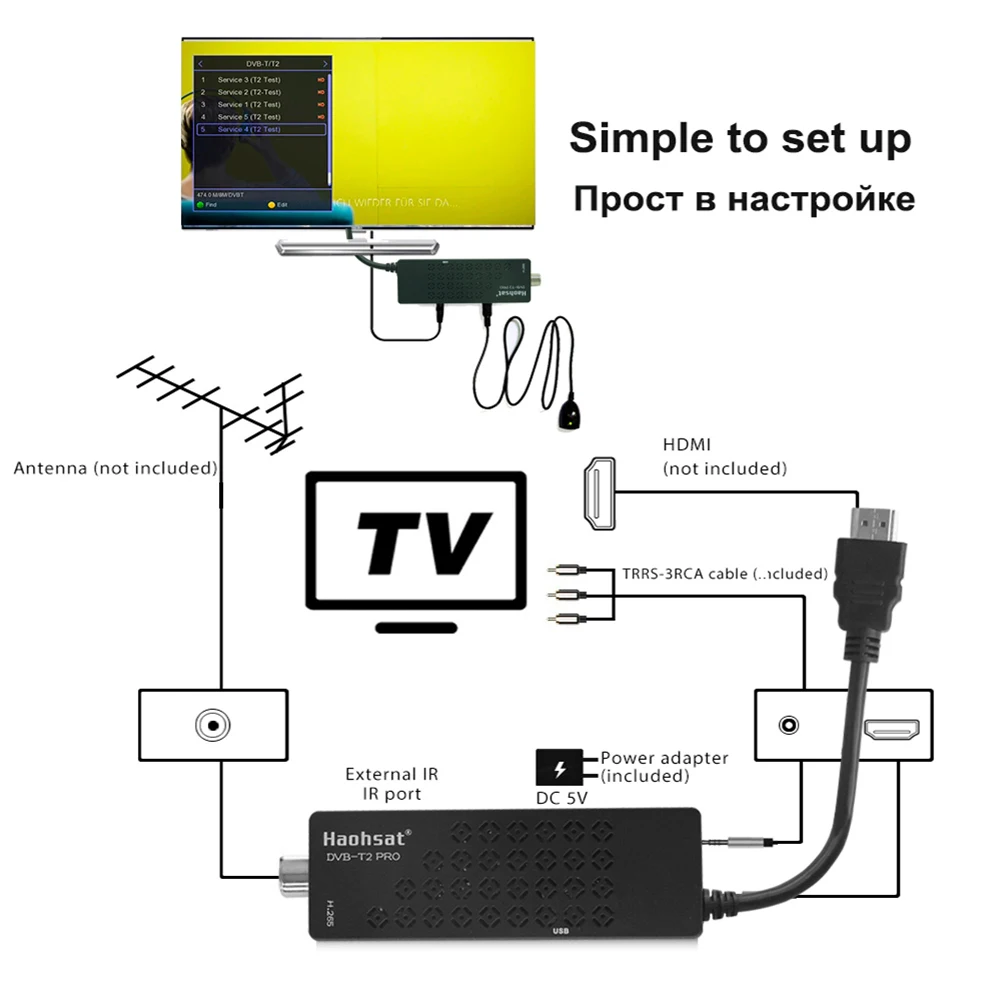

Rear panel Tuner RF input connector
Type C iec169-2 female head
Tuner RF loop connector
IEC type IEC169-24 male
HDMI-Compatible V1. 3/V1.4
RCA CVBS AL AR connector x1
USB 2.0
Power supply DC5V 2A (35135x8mm)

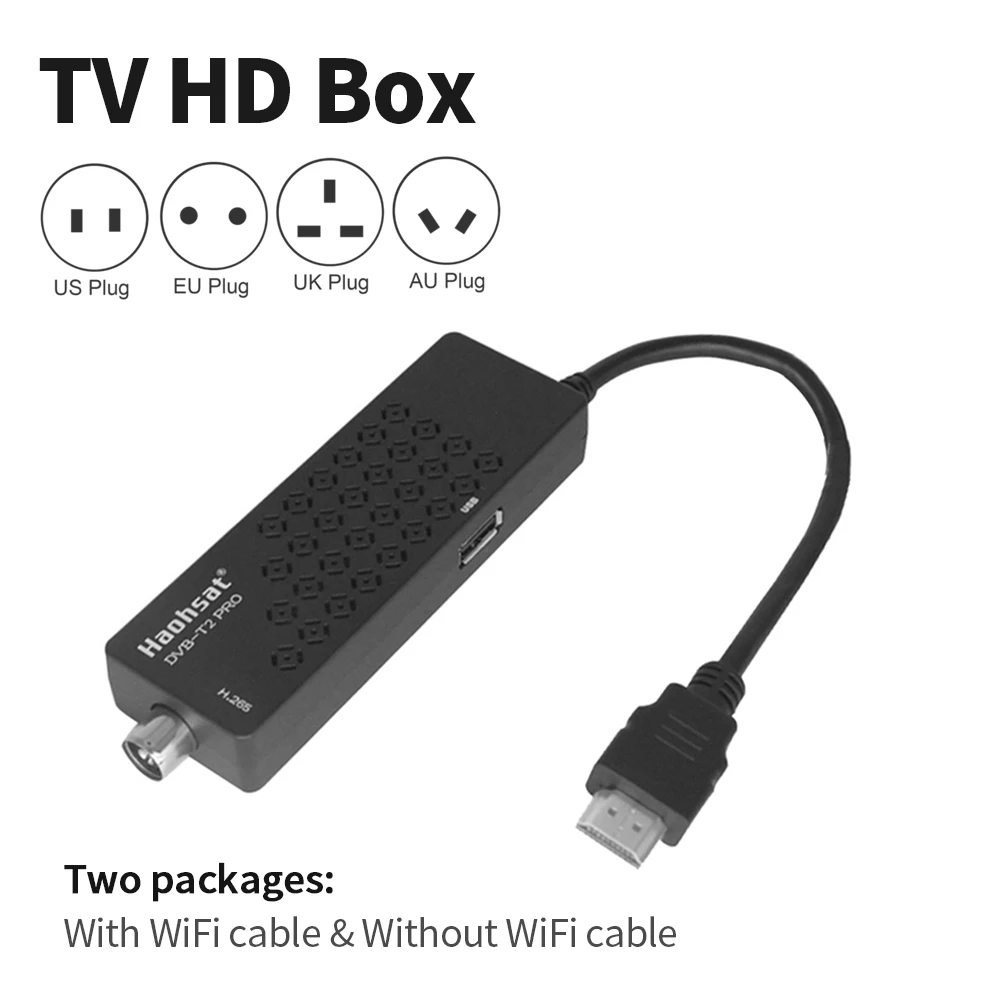

Plug: US/EU/UK/AU Plug

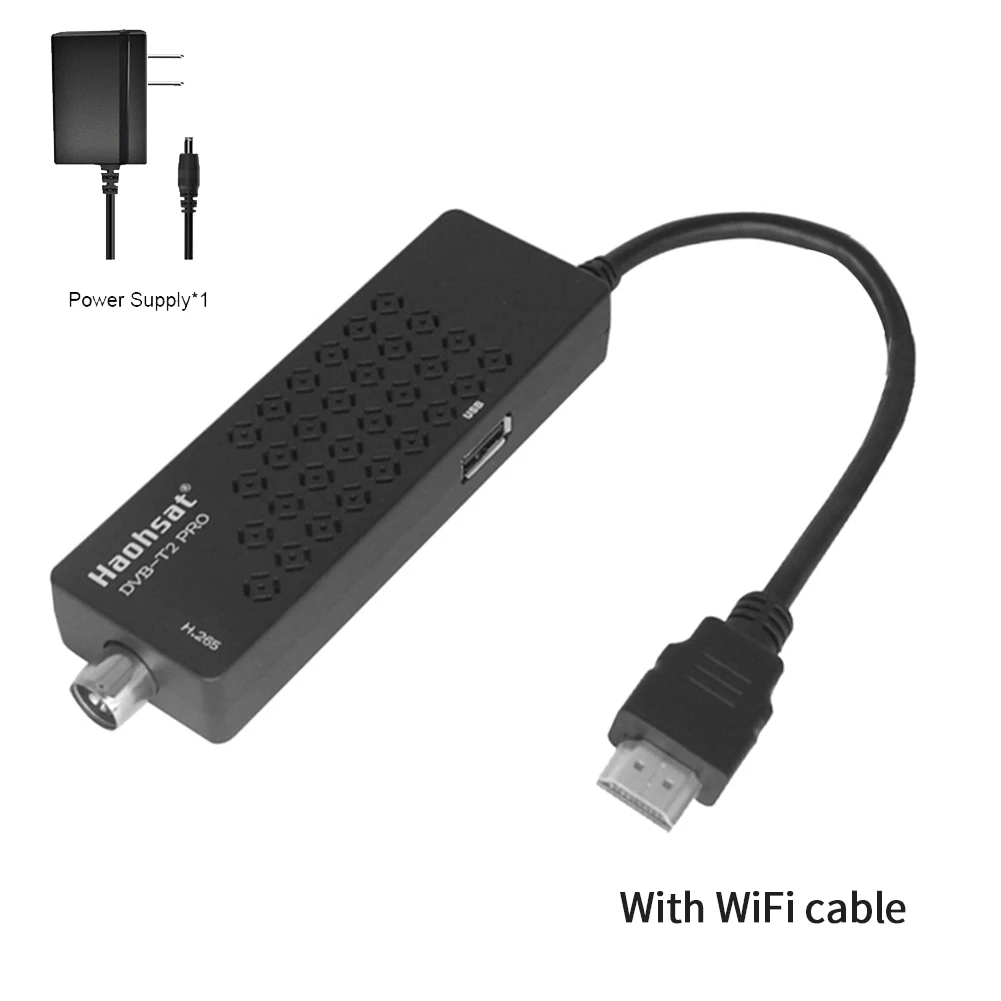

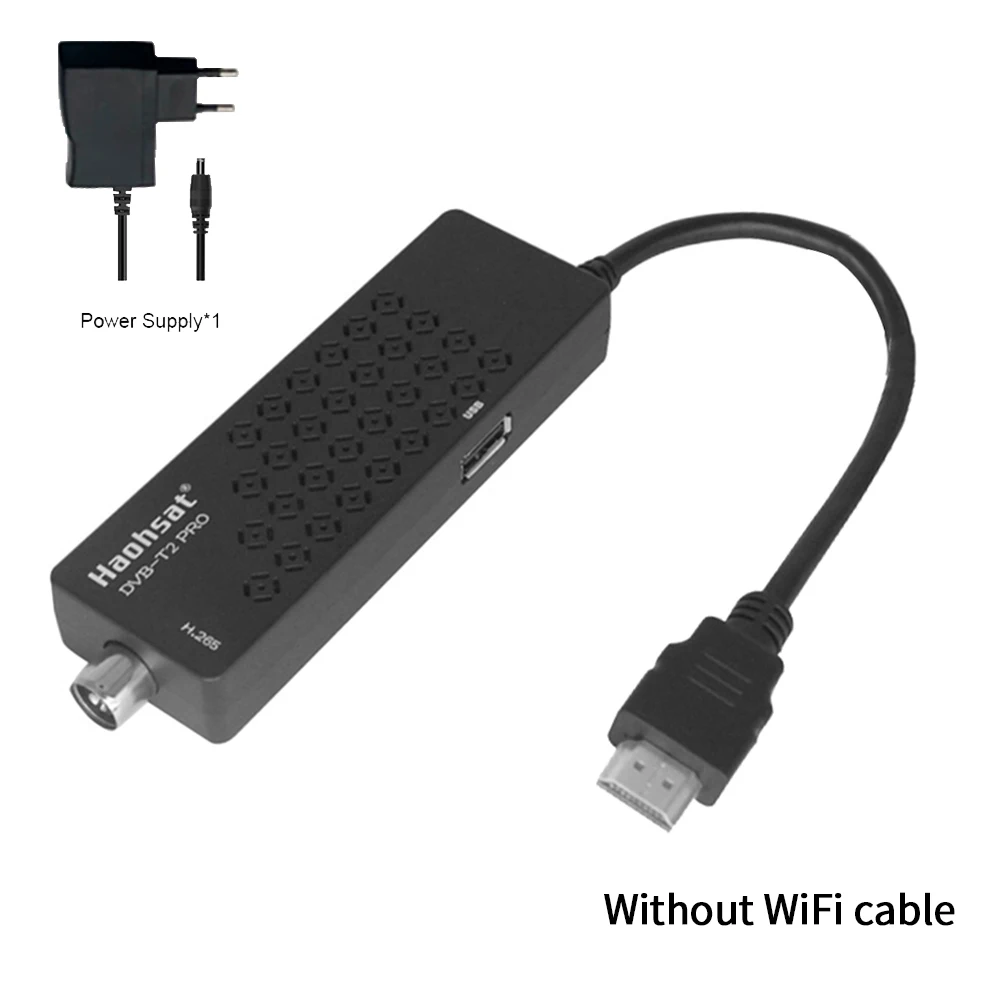

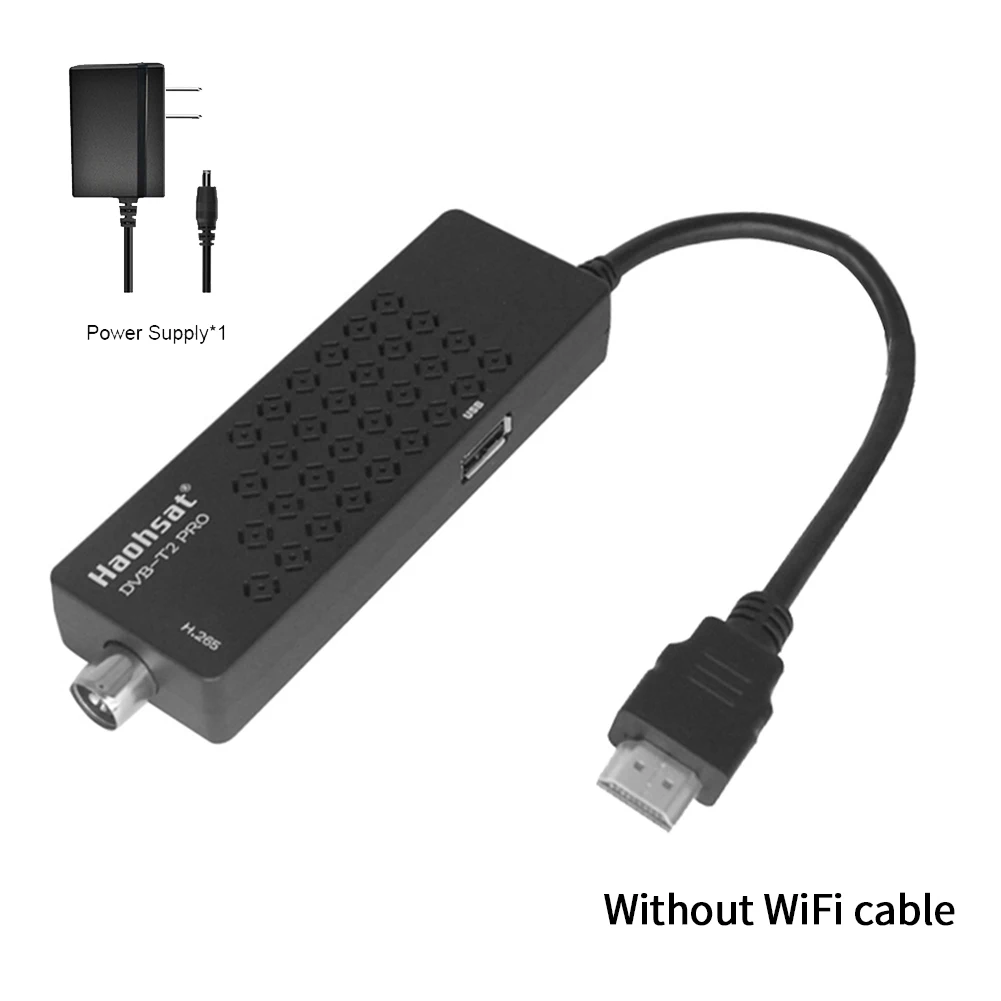

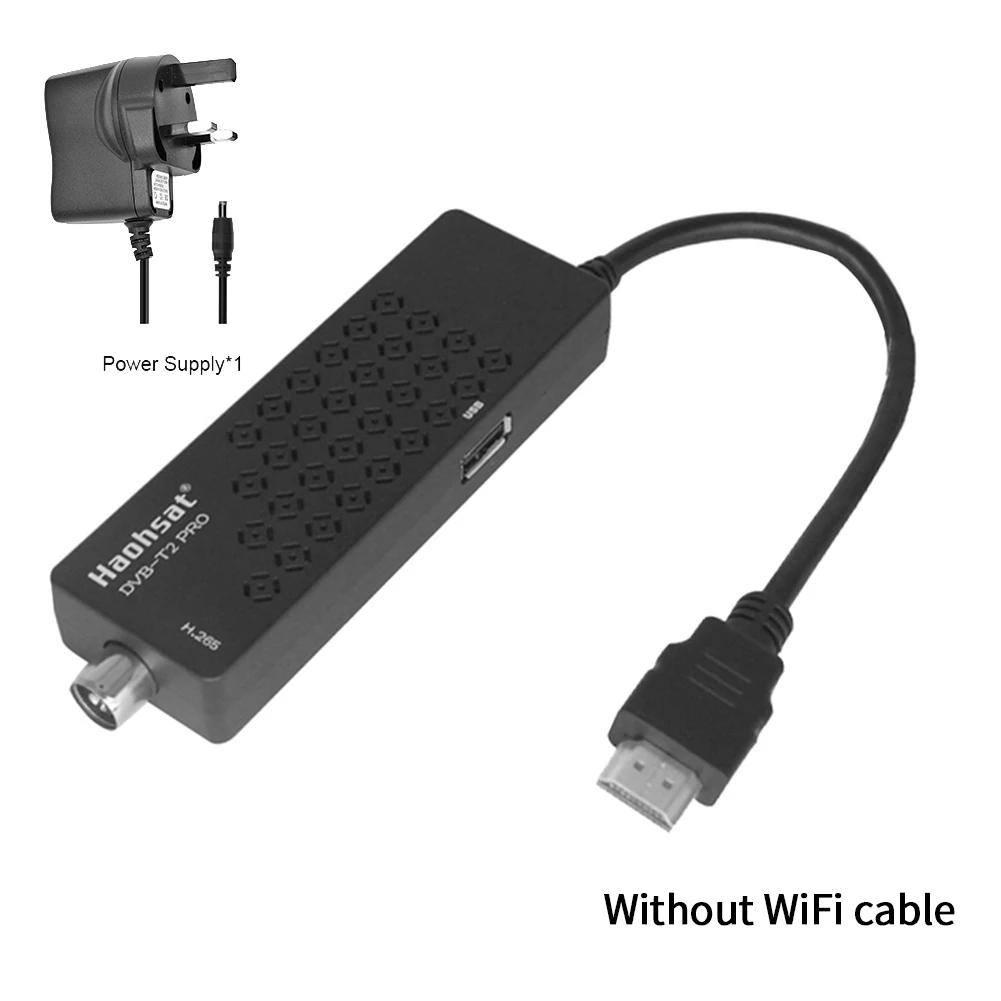

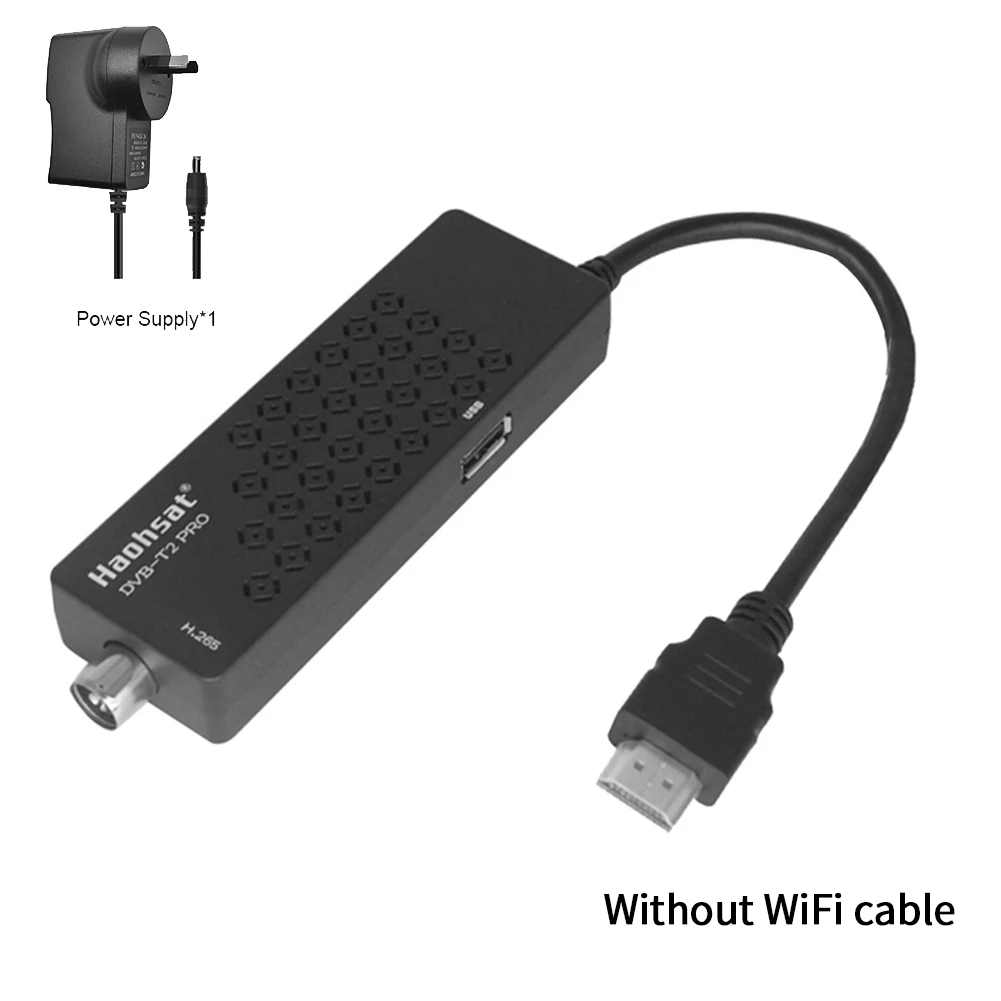

Style: with WiFi Cable/No WiFi Cable

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

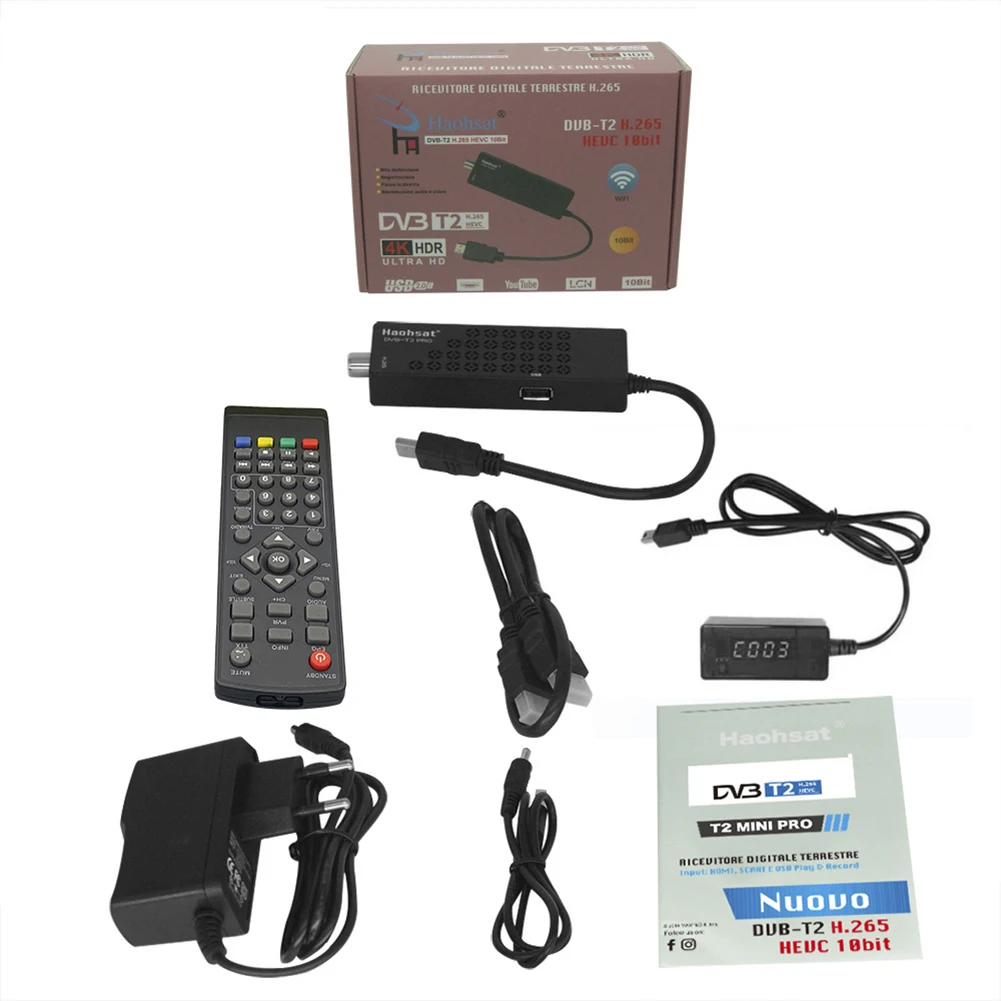

1 x TV Box
1 x Remote Control
1 x Infrared Remote Control
1 x USB -5V Cable
1 x USB to DC Cable
1 x Power Cord
1 x Manual
or
1 x TV Box
1 x Remote Control
1 x Infrared Remote Control
1 x USB -5V Cable
1 x USB to DC Cable
1 x Power Cord
1 x MT7601WIFI
1 x Manual
