360-градусный цифровой протрактор высокой точности электронный гониометр-инклинометр уровня углового поиска метра измерения коробки.

360-градусный цифровой протрактор высокой точности электронный гониометр-инклинометр уровня углового поиска метра измерения коробки.

ABS Plastic enclosure (light weight and durable).

Relative / absolute measurement interchange at any position.

Angle and slope readout conversion.

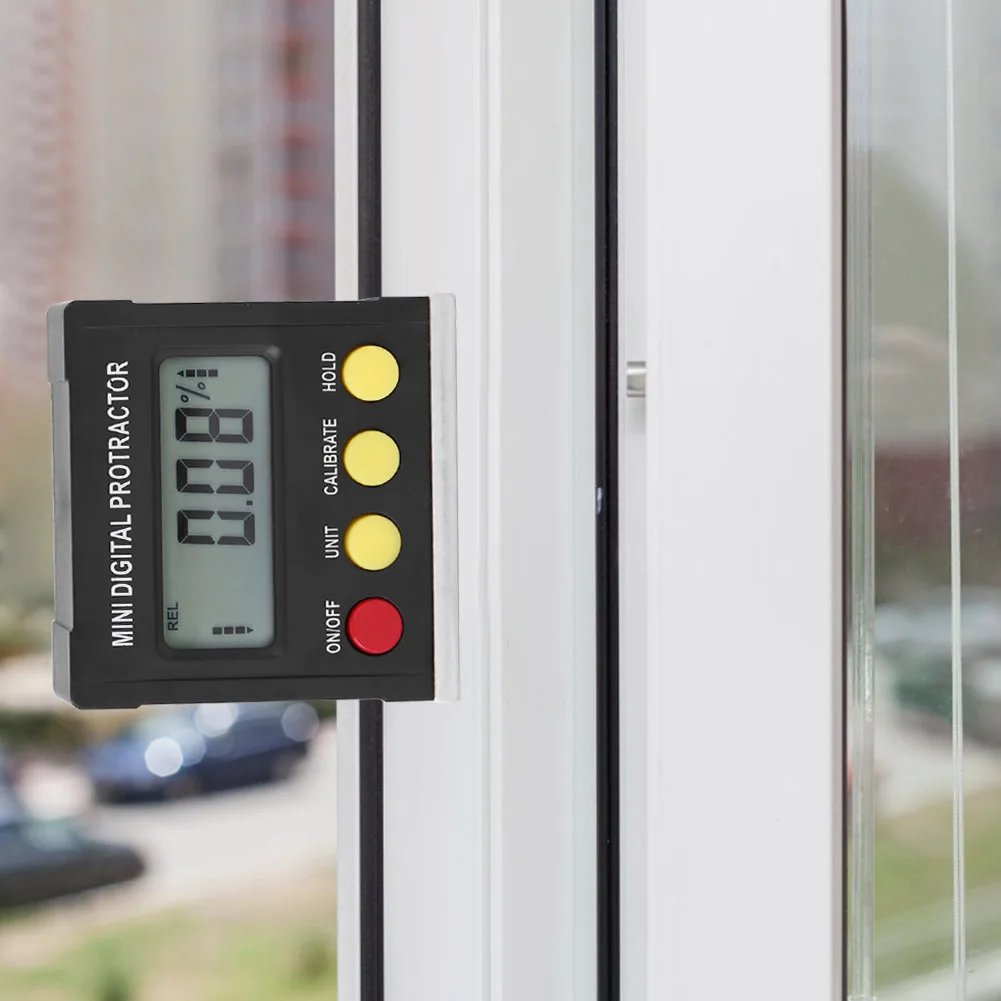

With built-in magnets in measuring surface, which is convenient to be attached to the object measuring workpiece

Power-off automatically in 5 minutes.

Portable size, convenient to co-work with other measuring tools and enlarge measuring range.

Measuring range: 4×90°

Resolution: 0.05°

Operating temperature: 0 to 40 degrees

Working humidity: 40～80% humidity

Power battery: 2×1.5V AAA battery (not included)

Size: about 58×57×24 mm

Product weight: 57G

Packing: white box

Manual *1

Weight with packaging: 71G

Packing size: 67*64*33mm

1. Do not clean with organic solvents, keep away from water and corrosive substances.

2. Do not damage or wear the working surface, use a soft cloth to remove the dirt and maintain accuracy.

3. If the instrument is not used for a long time, the battery should be removed for storage.

4. When the power supply voltage is too low, the battery symbol flashes, please replace the battery as soon as possible.

5. Since this product is only suitable for two-axis measurement, when the third axis (front and back) and the horizontal angle are less than 45°, the LCD displays the error message "error".
