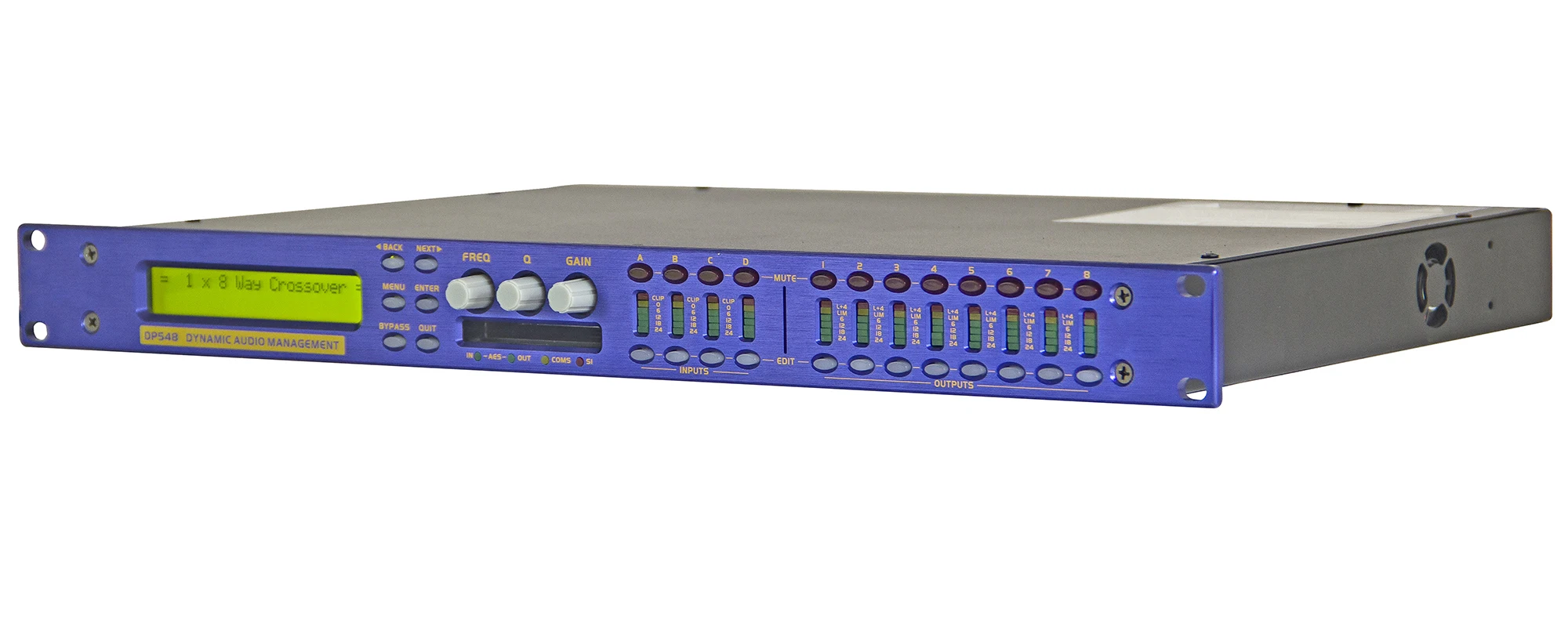

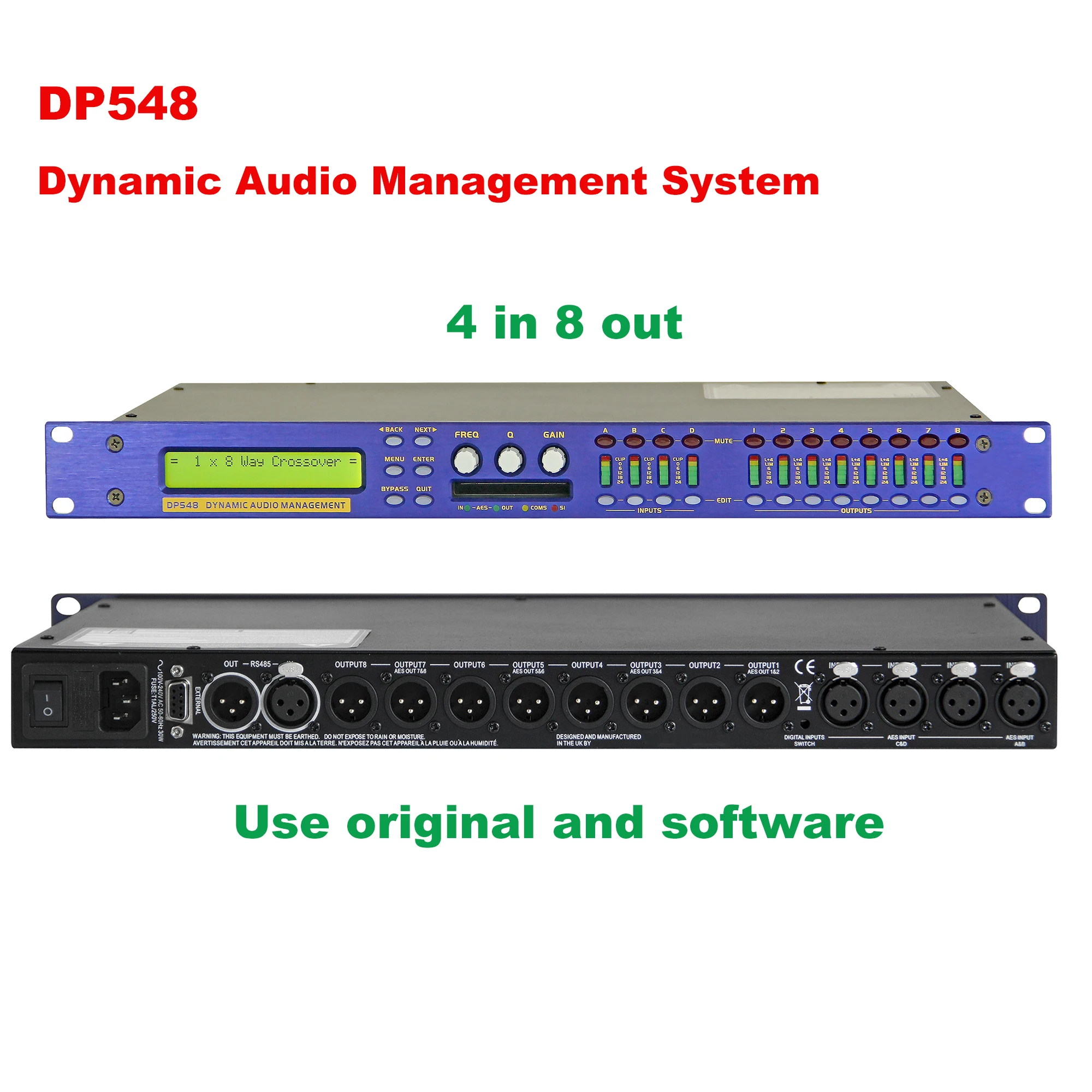

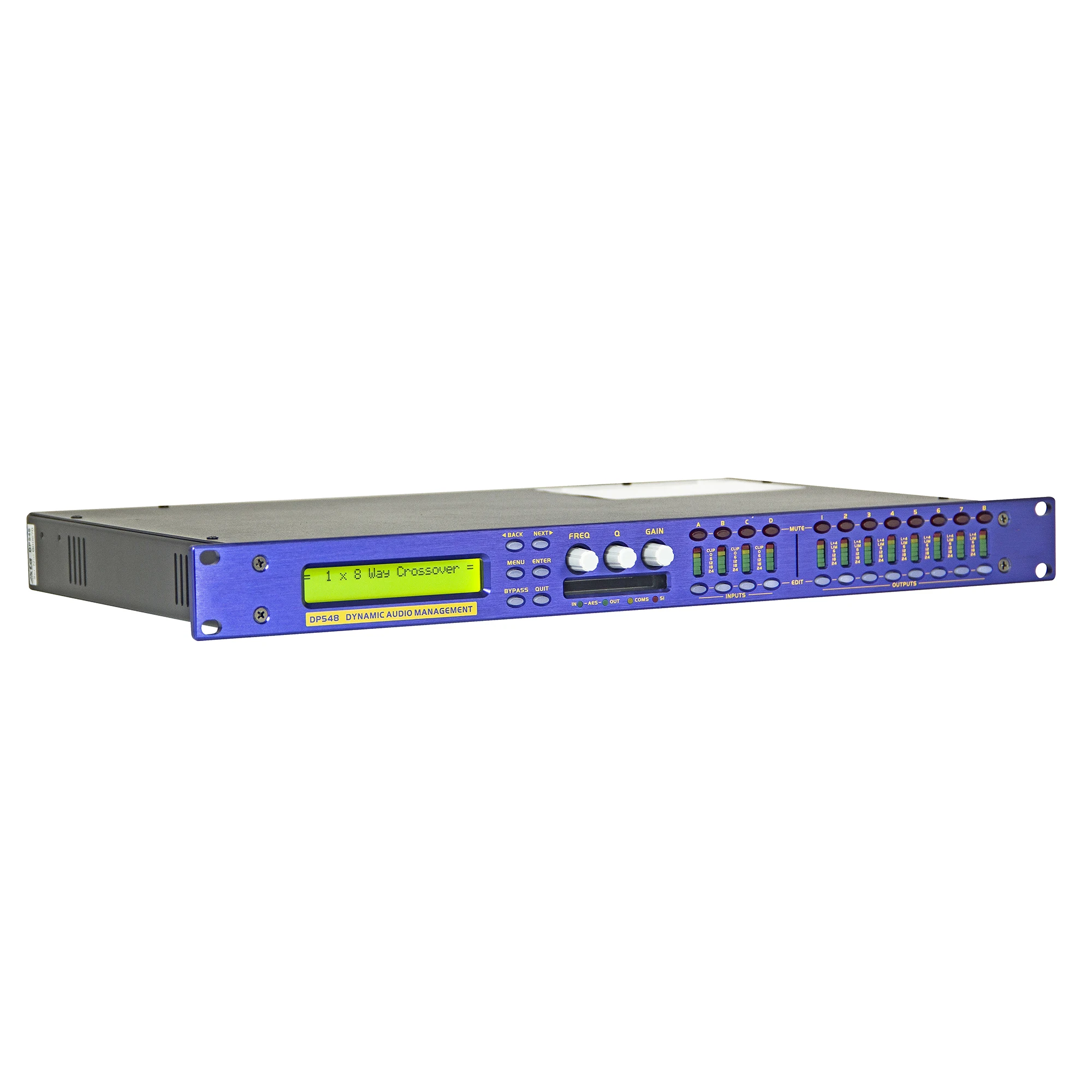

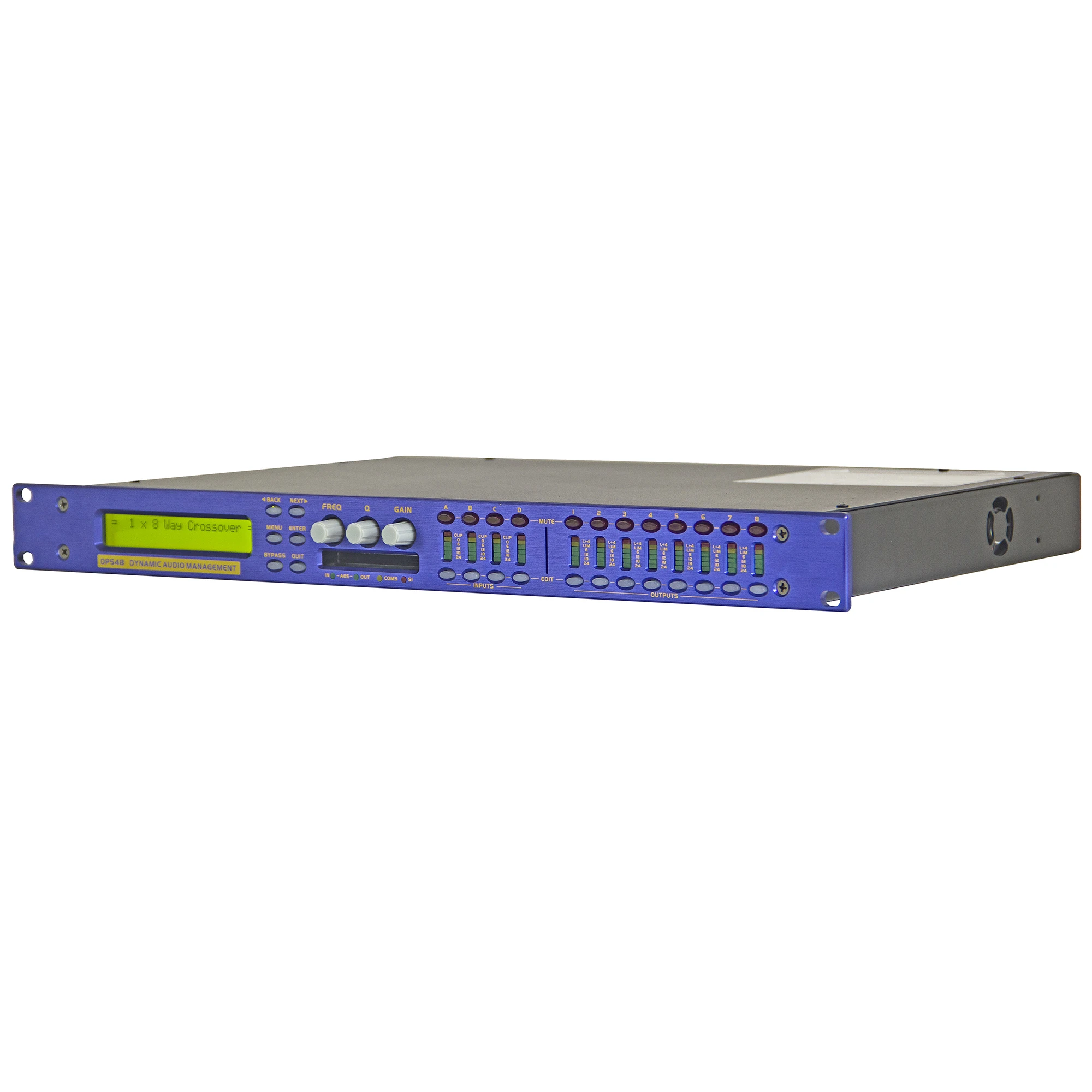

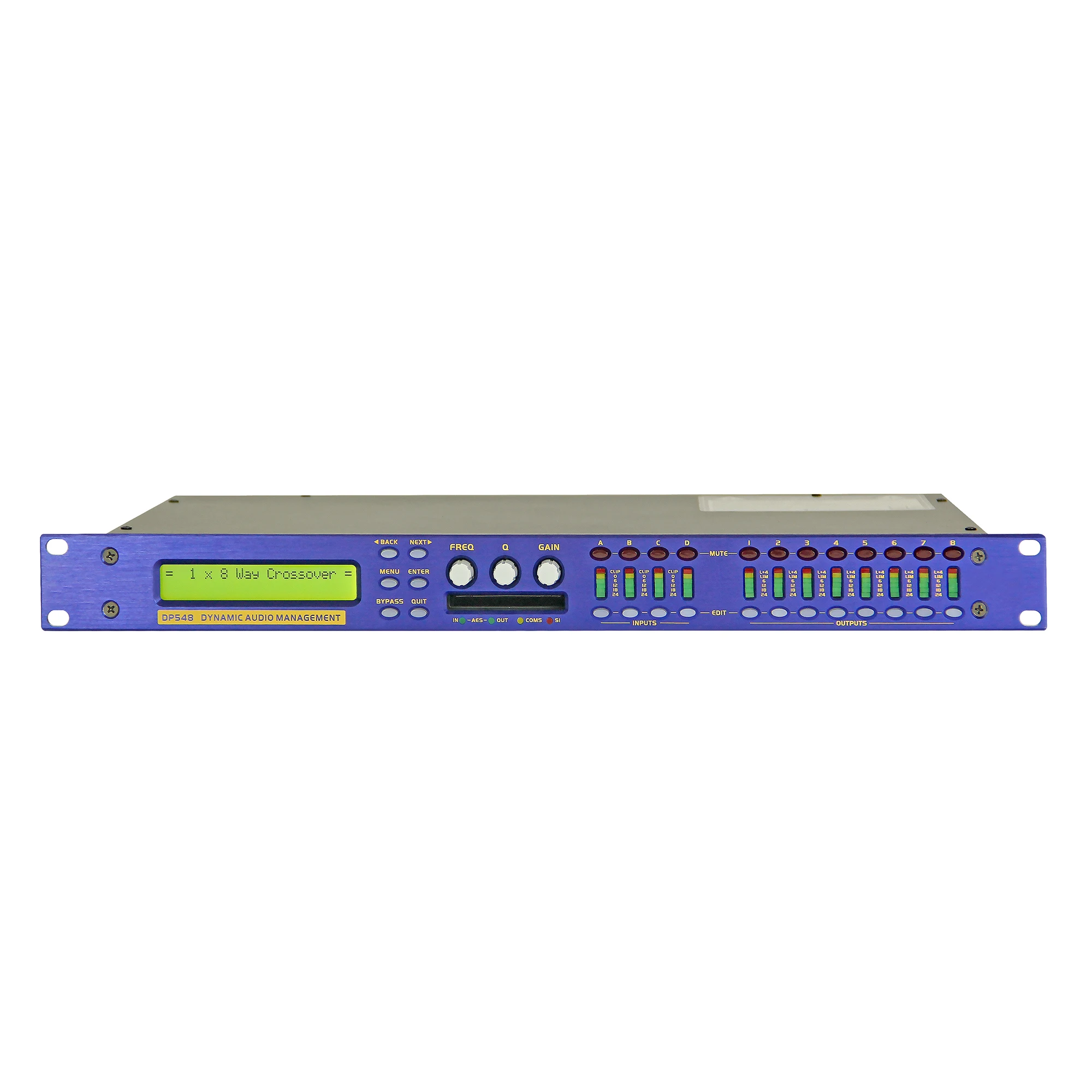

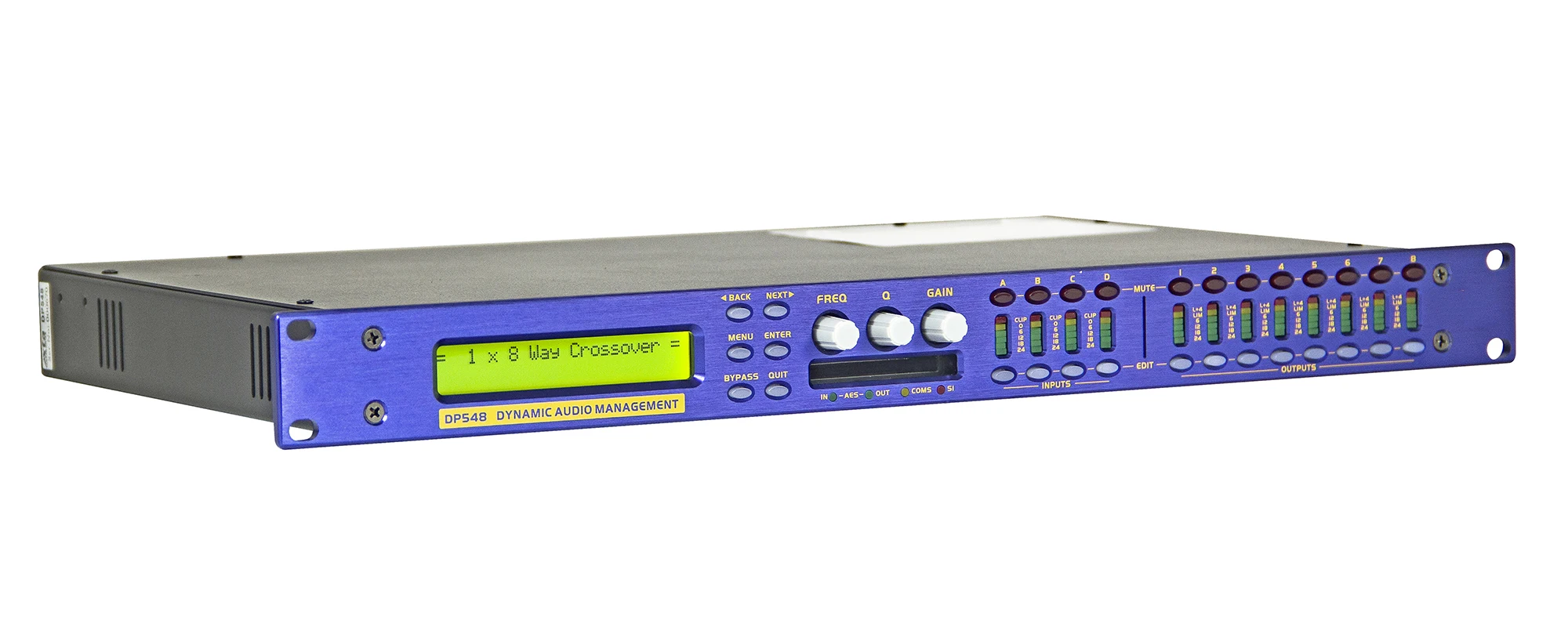

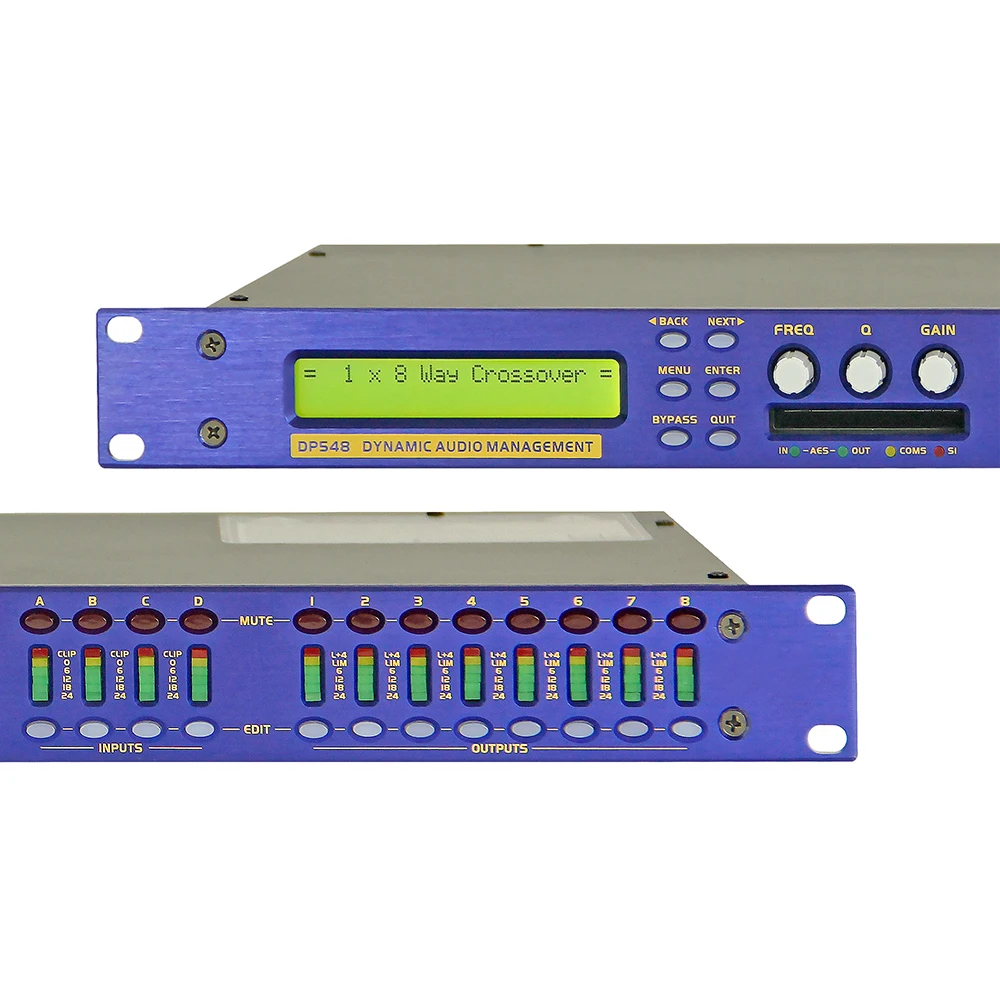

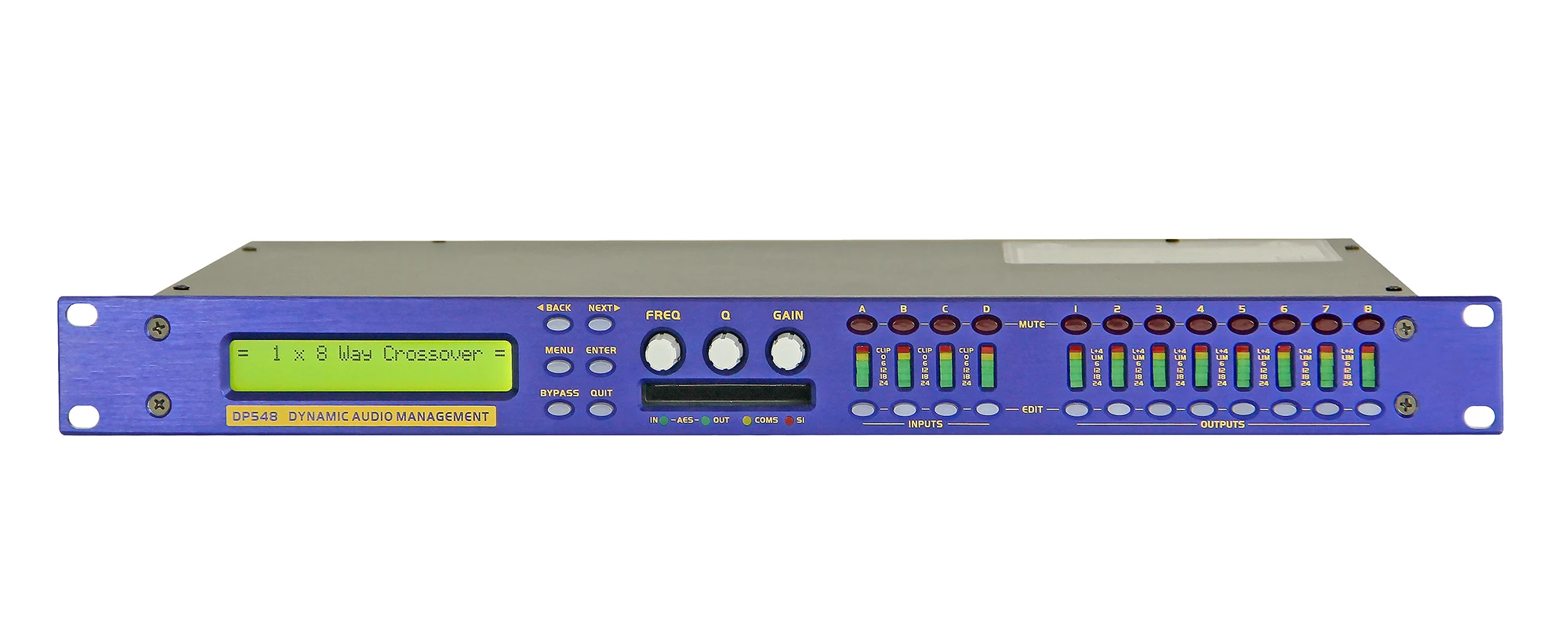

DP548 Original Software Professional digital audio processor DSP 4in 8out 4Series audio frequency division management system

The 4-series dynamic management function is not only the sum of its various parts, but also has the function of 4-series products, adds the function equivalent to four D2 dynamic equalizers at the input, adds C2 compression channel at each output, and adds a new matrix hybrid function mode.
By using two units (dp548 – 4 I / 8 output, and dp544 – 4 I / 4 output), you can use the updated DSP platform to retain and expand all the original functions and sound quality of the 4 series, which has never been before. Seeing the breakthrough features of audiocore, all these bring new dynamic combinations.

Two 5 series units are available:

Dp548 – 4 inputs 8 outputs
Dp544 – 4 inputs and 4 outputs

Each input has a 28 band graphic equalizer that can be configured to model our own gq600 or older inductor based designs (e.g. dn27).
There are also eight "traditional" parameter equalizers on each input.
All parameter parts can be reconfigured for many alternative filter characteristics, including familiar high and low-grade and notch filters, but band-pass, elliptical and variable "Q" shapes and phase adjustment can be in steps of 2 degrees.
Importantly, you may be used to this equalizer, a powerful dynamic equalizer. The three frequency bands of SIDD's dynamic EQ are available for each input and support all four operating modes (therefore, cut-off / enhancement above or below the threshold). Each frequency band will cover the entire range of 20-20K, with envelope (attack / release) control and setting the "strength" (dynamic ratio) that allows the gain adjustment amount and selects the effect.
Dynamic equalizer, graphic equalizer settings, all other input settings or all output settings and, if necessary, each combination of these settings can also be stored in its own memory.
Considering that this can be daunting and can still be edited through the front panel, audiocore turns on dynamic EQ editing in a very intuitive way.
Routing input to output is as flexible as before, any input or combination of inputs can switch to any output, and there are various useful templates to help you get started (and default intersections to help).
The 5 series also supports the full matrix hybrid mode, in which the input can be mixed with any output in any proportion, and four "sends" are provided on each output channel, not just on / off.
From the output part, the slope of the necessary frequency division filter ranges from 6dB / octave to 48dB / octave. Following more than nine parametric equalizer bands, we can then choose a dynamics useful for protection or creative use.
Before the limiter part, there is now a functional compressor with variable knees, which can change it from a safe corrective tool (with hard knees) to a soft (but still high ratio if necessary) effect. Its existence is gradually felt only with the increase of the threshold. Approach and surpass.
Each output also has a limiter combination - a limiter designed to prevent overheating of a single drive, and an additional lead "D-max" limiter to increase safety and prevent excessive drive movement.
With a completely flexible combination of all channels for time alignment, coupled with sub millimeter accuracy, it can be seen that the 5 series will be applicable in any case.

input

Electronic balance (optional transformer)
AES / EBU (optional), fully installed in all 5 Series Units
Impedance > 10K ohm
CMRR> 65dB 50Hz – 10kHz

output

All electronic balance (optional transformer) AES / EBU standard for all 5 Series Units
Source imp < 60ohms
Small load 600ohm
Level + 20dbm to
600ohm load sampling rate dp548 – internal 96KHz, can accept and convert 192Khz.
Frequency response ± 0.5dB 10Hz – 32kHz
Dynamic range > 116dB 20Hz - 20kHz. Unwtd
Distortion < 0.001% gt; Delay 650 Ms. (in steps of 0.325 μ s)
The output gain can be adjusted and muted in the range of + 15dB to - 40dB in 0.1 dB steps.

Equilibrium

Filter parameters - 8 per input / 9 per output
Figure of 28 frequency bands on each input of additional filter
Each parameter can be switched to bandpass, all pass, notch, variq, expansion frame and elliptical response
Phase filtering – 2 degree steps per input and output.

Frequency division filter

Bessel / Butterworth per octave
6 / 12 / 18 / 24 / 48dB and linkwitz Riley 12 / 24 / 48dB per octave.

Dynamic EQ

3 frequency bands per input
Parameter behavior – 19.7hz – 32kHz & 39; Q&＃39; 0.4 –128，
Gain automatic gain adjustment 18db
Ratio (switching in the above mode) 4:1
Ratio (in all other modes) 2:1
Attack 70us – 2.0 seconds
Release 11ms – 3.4 seconds.

Compressor

One per output
Scale 16:1
Variable inflection point – 12 steps + off (hard)
Attack 70us – 2.0 seconds
Release 11ms – 3.4 seconds
Mixed matrix mode
Input in steps of 0.1dB from - 40.0db to_ 15.0db continuously and variably sent to each output, plus off.

limiter

Threshold + 22dbu to - 10dbu
Attack time 0.3 to 90 milliseconds
The release time is 4, 8, 16, or 32 times the attack time
Clip / D-max limiter
Forward looking attack time, fast, medium or slow release time

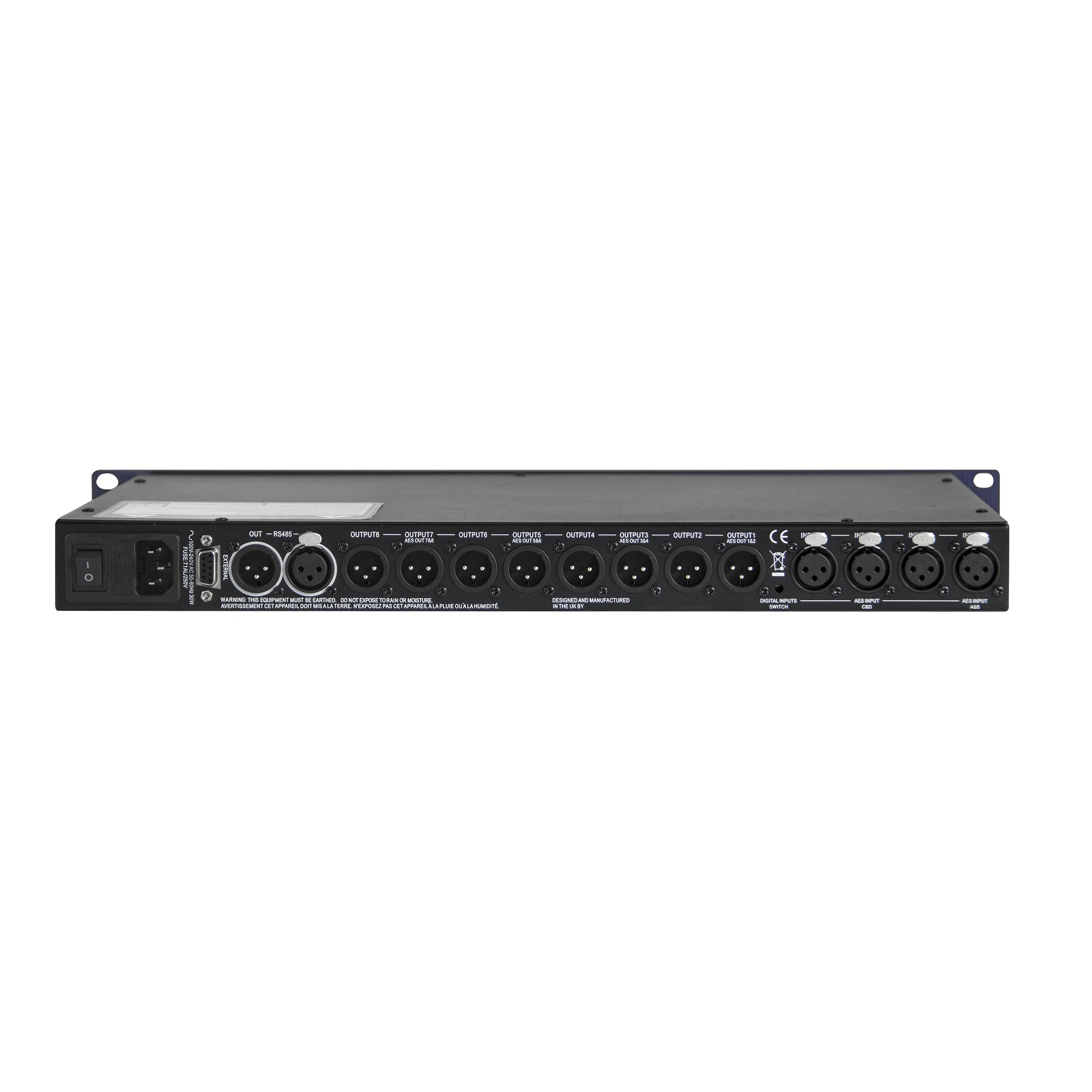

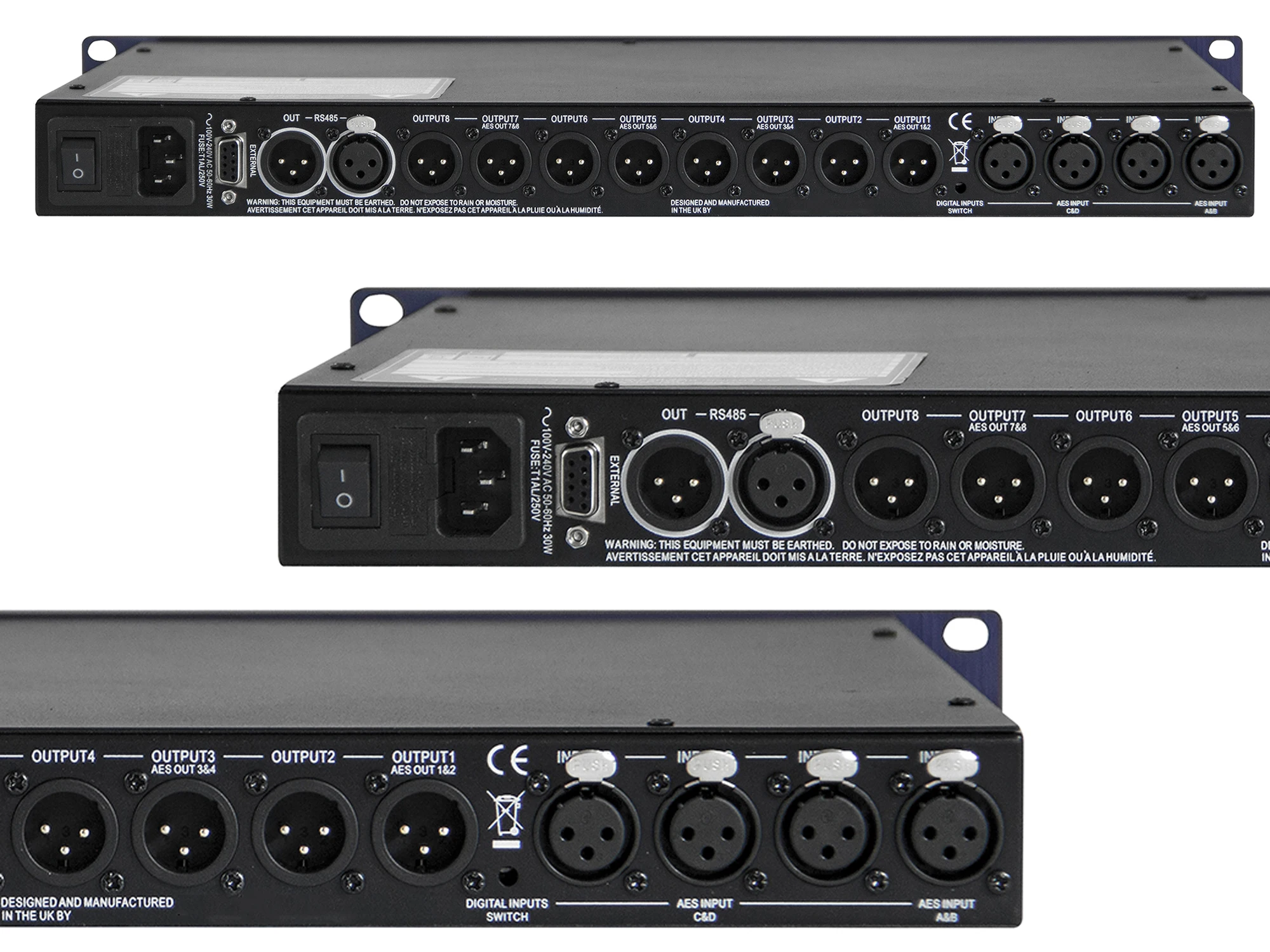

Connector

Input 3-pin female XLR
Output 3-pin male XLR
RS485 I / O XLR
RS232 9-pin (female) D connector

Power Supply

3-pin IEC
Power supply 60vac – 240VAC
Power consumption < 40W
Weight 3.5kg. Net weight (5kg. Freight)
Dimensions 1.75 inches (1U) x 19 inches x 12 inches (44 x 482 x 305 mm), excluding connectors.
