XHC 6 axis Wireless MPG with Emergency Button machine hand wheel industrial lathe handwheel hot sale

Product Description：

Model: ZTWGP-3

Application:

type

Wireless handwheel (instead of wired handwheel)

Number of axes

6

Applicable system

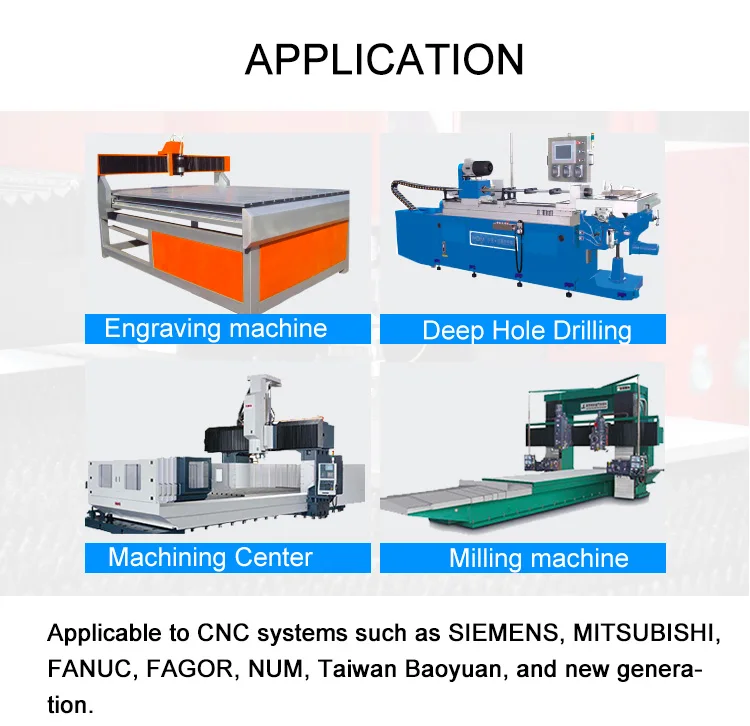

FANUC、Mitsubishi、Siemens、Higerman、Fagor，etc.If the system you use is not listed here, please refer to the table

Emergency stop button

Yes

Communication frequency

433MHZ

anti-interference

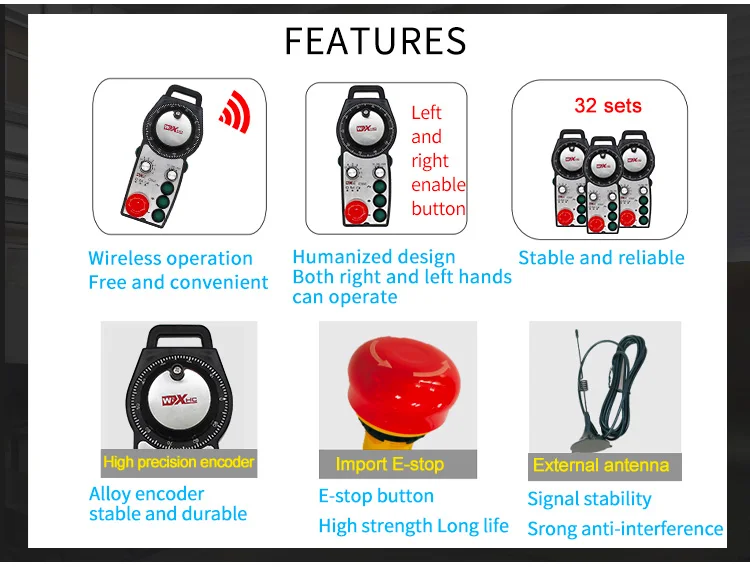

The same range supports 32 sets of equipment to operate stably at the same time

Pulse signal

Support differential and non differential, NPN, PNP and other signal types

relevant

Support point to point, binary code, gray code, etc. for axis selection and ratio signal

Parameters related to model selection

Please let us know your model number after selection

Signal transmission distance

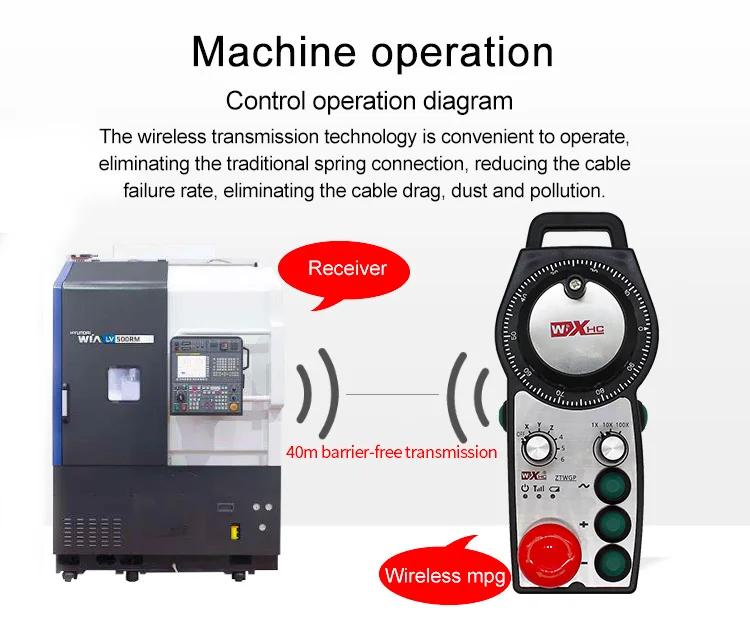

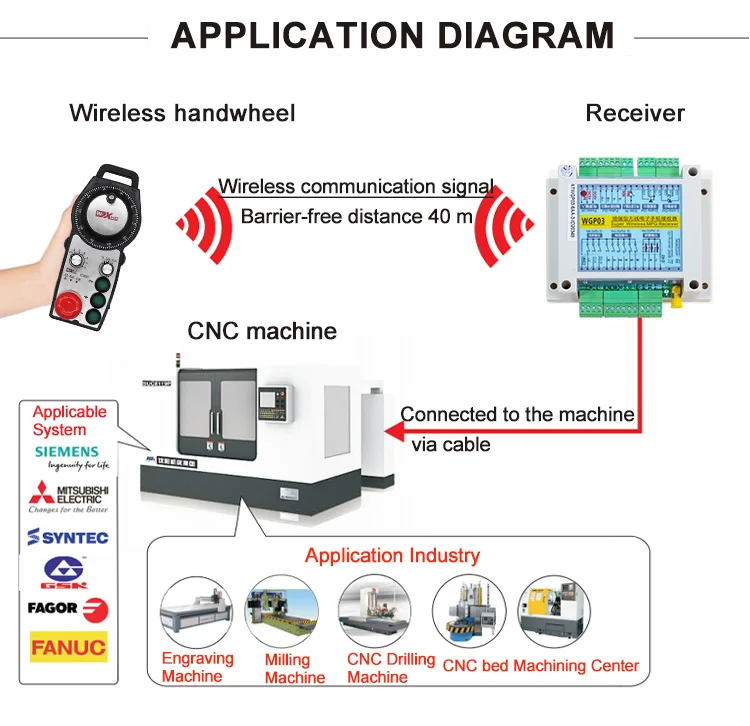

40 meters wireless operating distance

parameter

A pulse encoder, 100 pulses/turn

Model selection:

Selection parameters

1

Appearance of the product:

A /B/C/S/E represents the model of A/B/C/S/E .

2

TWGP: means with emergency stop button;

WGP: means without emergency stop button

3

Pulse signal standard:

01:Represents 5V, 25 mA; A, B pulse signal output: 100PPR

03:Represents 5V, differential signal; A, A-; B, B-; pulse signal output:100PPR

02:Represents 12V, 5 mA; A, B pulse signal output: 25PPR (suitable for Mitsubishi system)

04:Open circuit output; A, B pulse signal. Low level, NPN output. (suitable for PLC system)

05:Source output; A, B pulse signal, high level output, PNP output. (suitable for PLC system)

4

The number of axes supported by the handwheel:

5 means 5 axes;

6 means 6 axes;

7 means 7 axes

5

Handwheel axes selection output mode:

A means point-to-point output;

B means coded output (support binary, gray code, etc.)

6

Handwheel maglification output mode:

A means point-to-point output;

B means coded output (support binary, gray code, etc.)

7

Expansion buttons on the handwheel:

3 means supporting 3 expansion buttons;

X means that the magnification signal is a special output mode of pulse output, which is unique to Siemens systems.

No X means that the magnification signal is an ordinary signaloutput;

8

Indicates the working voltage of the wireless signal receiver:

05 means 5V power supply;

12 means 12V power supply; 24 means 24V power supply

Packaging :

Packaging: Neutral carton packaging

Accessories included: 1 *manual +1*receiver+1*control

Shipping:

A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)

B. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.

Company Information:

Chengdu XinHeCheng technology co.,ltd is located in Chengdu Sichuan China.Our company integrates the development,

production and sale as a whole and providing motion control and wireless transimission solutions

XHC has always dovoted itself to develop wireless data transmission products with excellent -performance,low-cost,low-power,

which is widely used in cnc machine,helping numerous manufactors. XHC focused on motion control devevopment with cost effective and specialize.

Provide perfect cnc product to custmomers .

Events

XHC released the china first wirleless handle for the engraving machine in year 2008.

XHC released the china first wirleless tool setting gaguge in year 2009.

XHC released the china first wirleless MPG in year 2010.

XHC released the china first wirleless welding malipultor&positioner and rotator controller in year 2011.

XHC released the MACH3 usb motion card in year 2013.

XHC released the china most stable the fourth generation MACH3 usb motion card in year 2015.

XHC released the fifth generation MACH3 usb motion card and mach3 Ethernet motion card in year 2016.

XHC have 4 Patents for utility modes; have 2 CE Certificates; have more than 20 prdoucts inlduing wireless MPG series,programmable mpg series,

welding controller series,motion card series.
