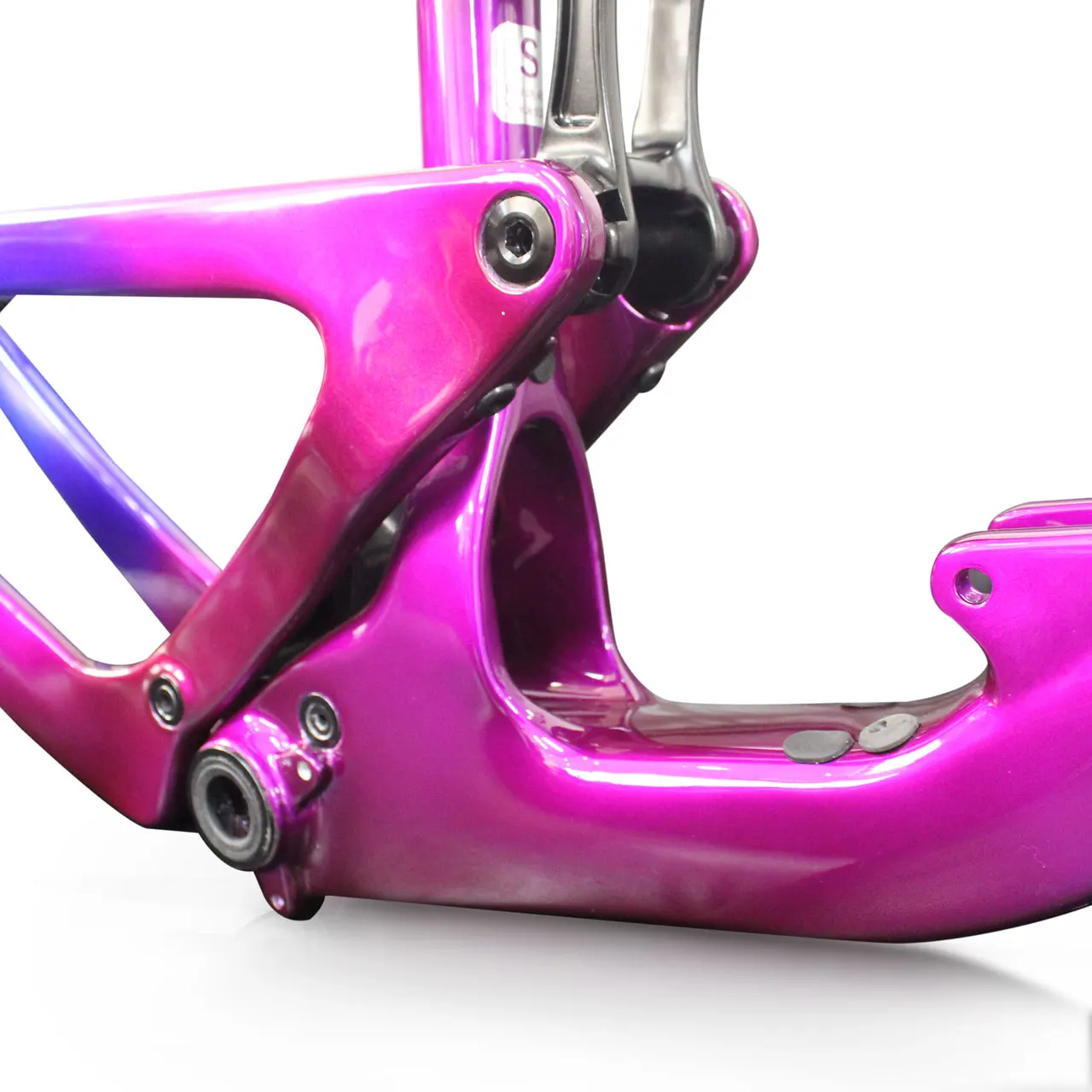

Дешевая новая модель полного подвеса AM All Mountain рама для велосипеда из углеродного волокна с осью Thru Axle и дисковым тормозом 29er.

Дешевая новая модель полного подвеса AM All Mountain рама для велосипеда из углеродного волокна с осью Thru Axle и дисковым тормозом 29er.

1.Product Description

Item

FS831 AM

Size

16",17.5",19",21"

Finished

UD Matt or Gloss

Type

29er All mountain frame

Material

High Modulus Toray T800 Carbon Fiber

Rear Shock

210*55mm

Rear wheels travel

150mm

Advise Fork Travel

160mm

Brake Type

Disc-brakes

Disc Rotor size

203mm

Warranty

2 years

Weight

2250g/+-45g (17”)

Bottom bracket type

BB92

Cable type

Internal cable

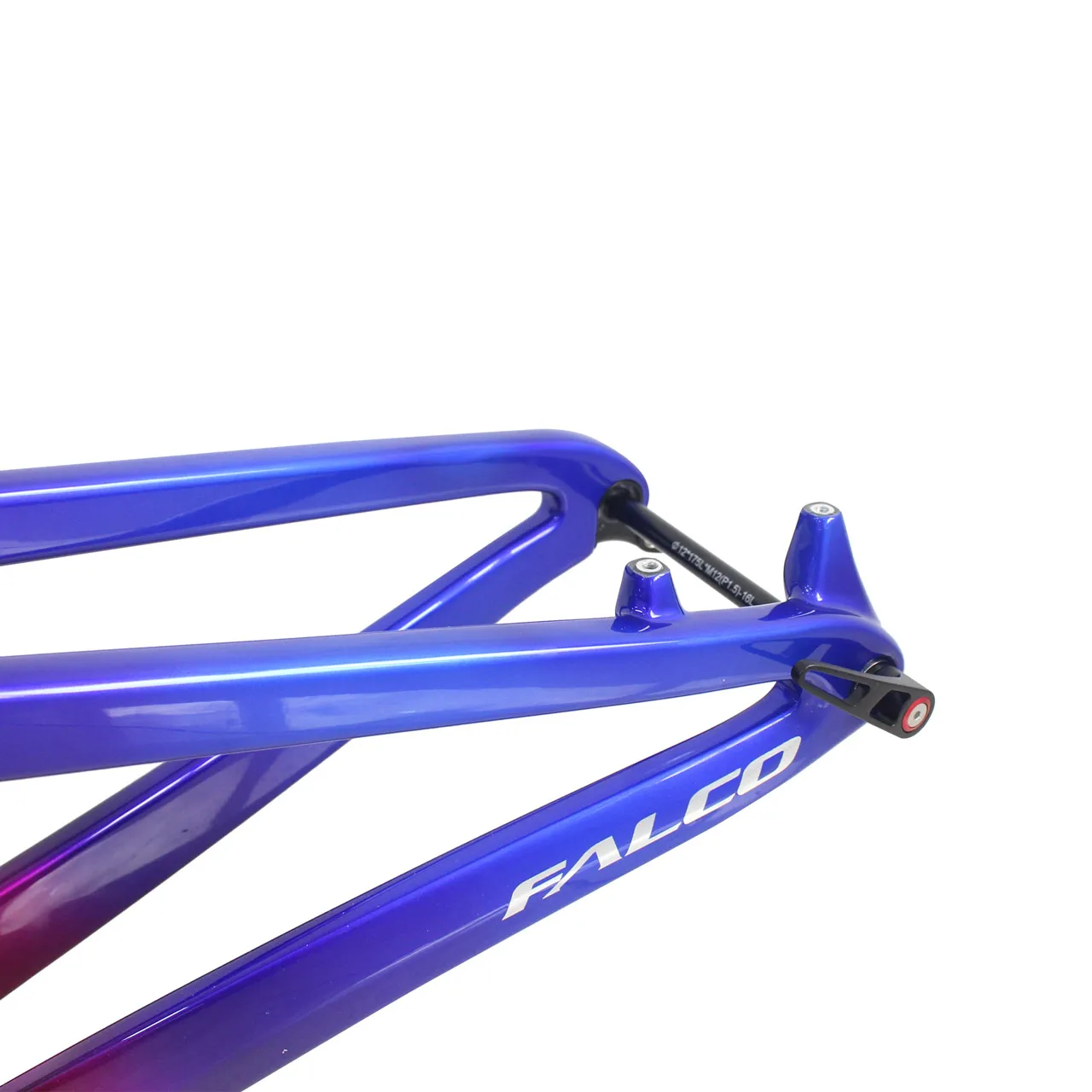

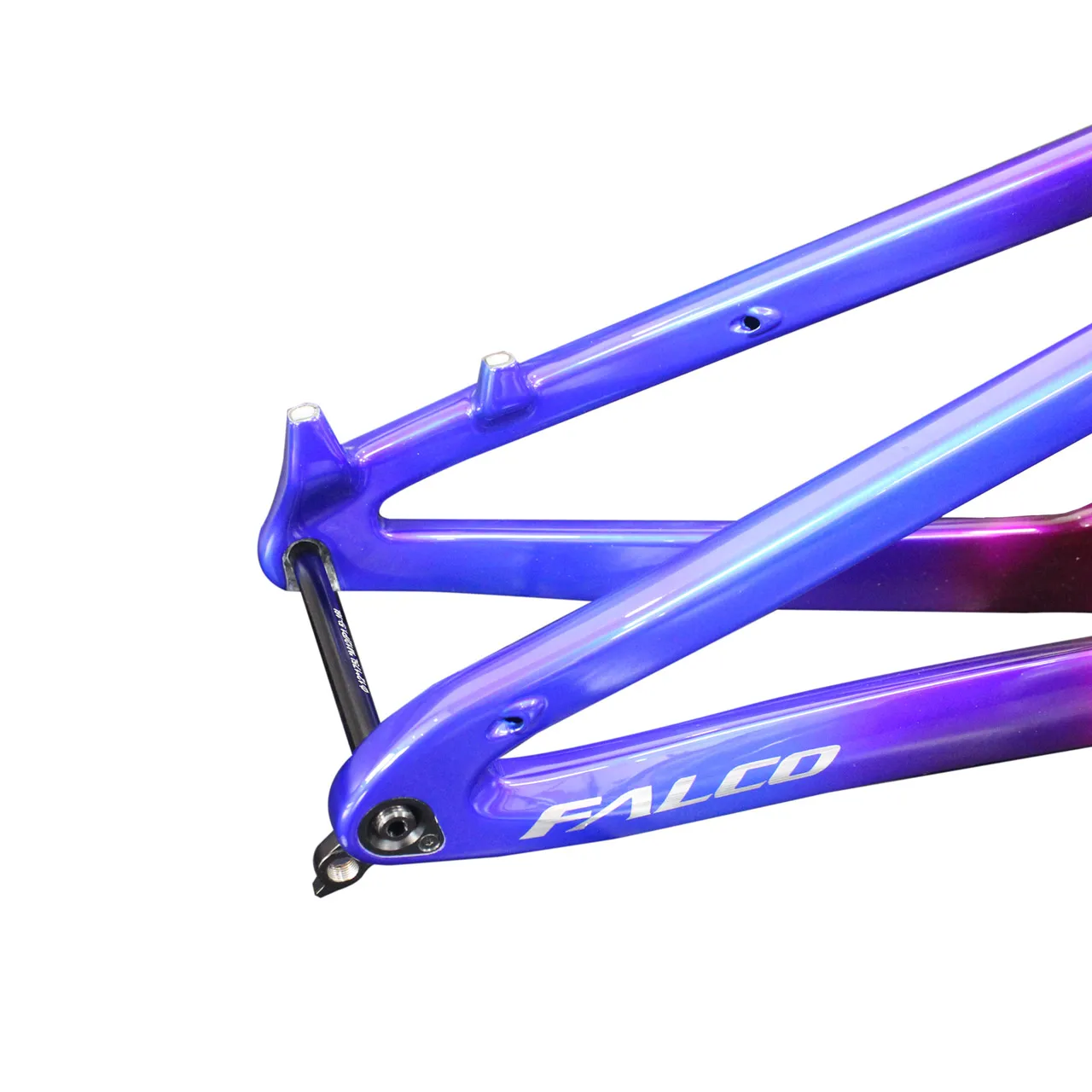

Rear space

12*148mm thru axle

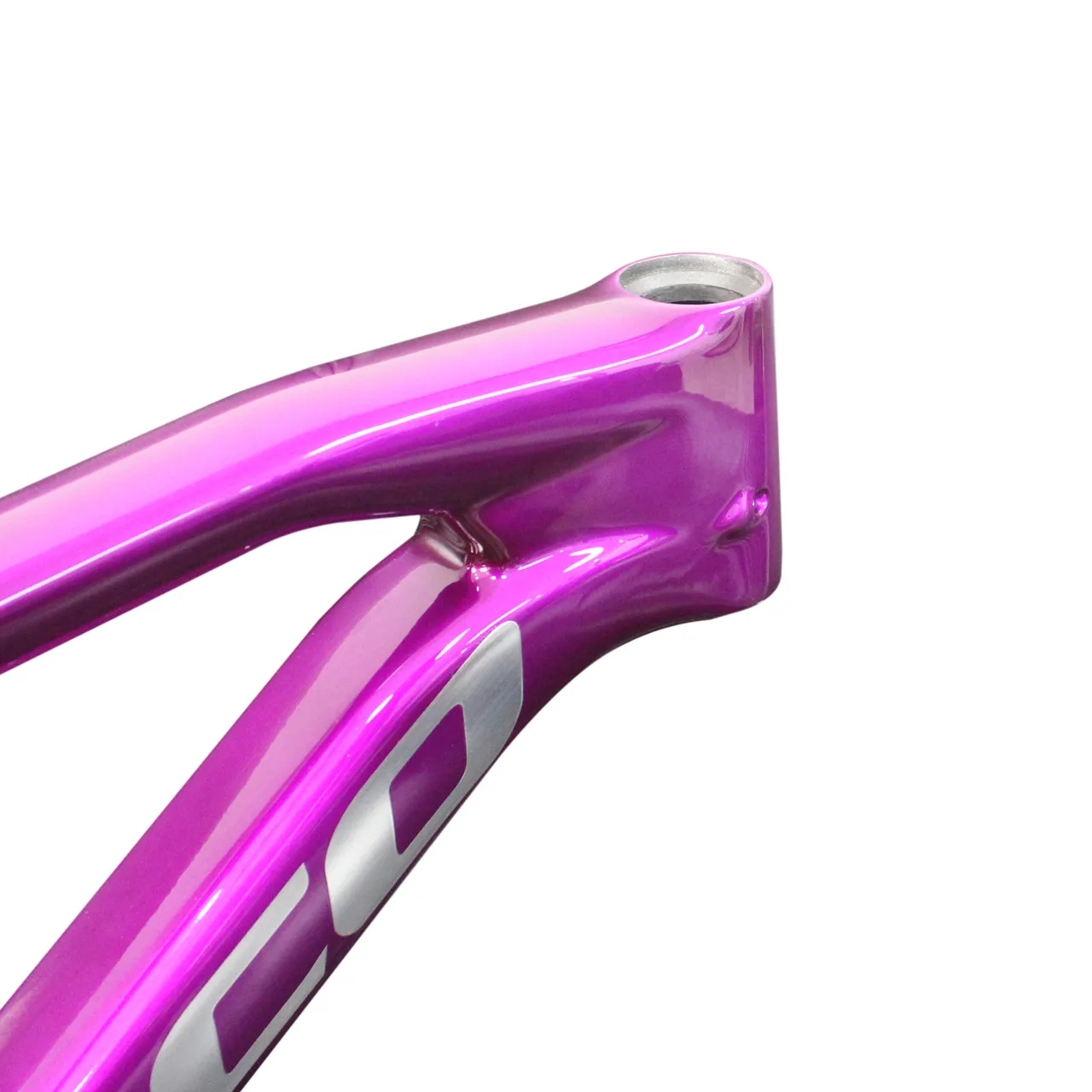

Head tube

1-1/8”,1-1/2” Taper full carbon

Seat tube

For 31.6mm diameter seat post

Max Tire size

29er*2.4 inch

Advise Laden weight

110KG

2.Why Choose Us

• We are one of the most professional manufacturers of carbon fiber bicycle parts in China.We have nearly 15 years of production experience

• We have an excellent design team to meet your OEM needs

• We have first-class production equipment and strict quality inspection

• The test standard for each product is 20% higher than ISO, and we only use Toray Carbon Fiber as the raw material

• We ensure that each product has an extremely long service life

• We have a perfect after-sales service guarantee system.

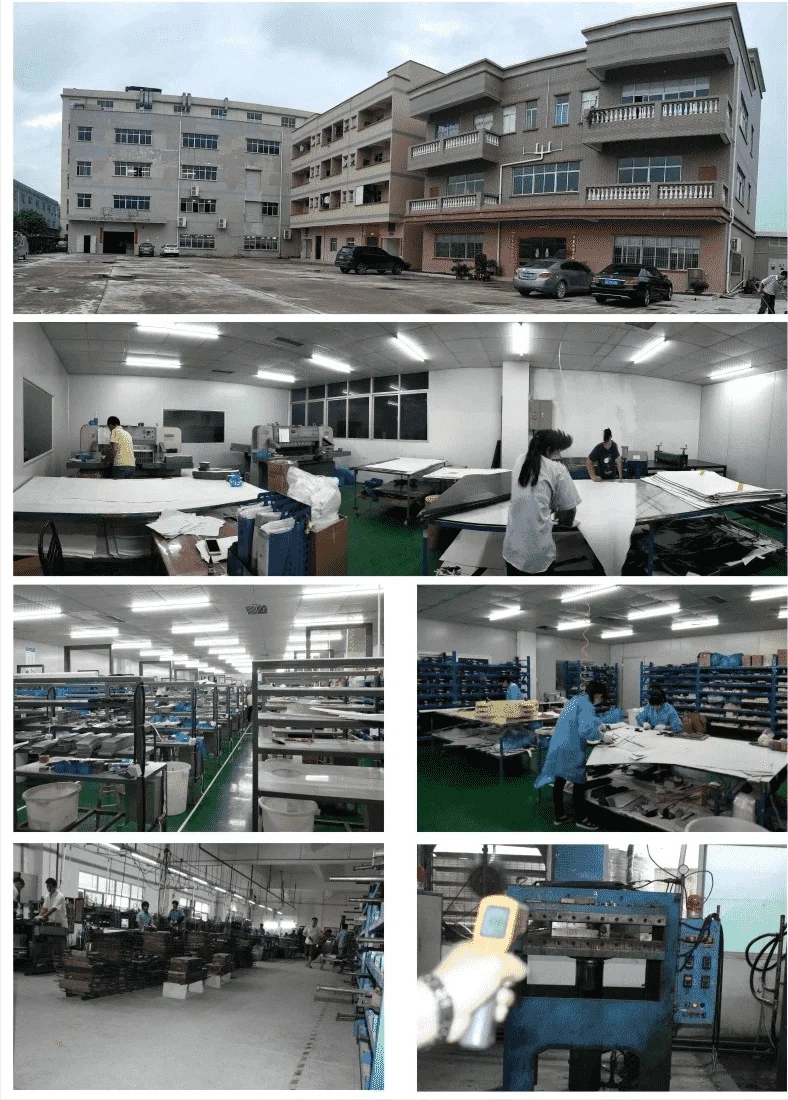

3.Miracle Factory

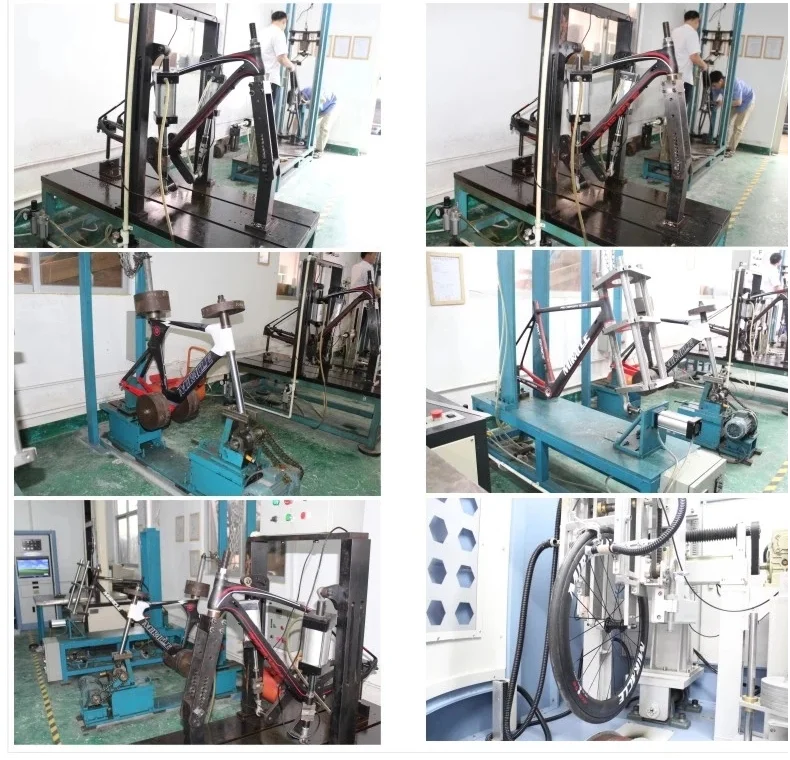

4.Test and Certifitates

5.Shipping/packing and Payment

FAQ

Q1. Which payment method I can pay while I order product?
A: There're many kinds payment method on AliExpress, general purpose are PayPal, Bank Transfer, Credit Card, etc. But it need tocharge 4.5% transaction fee if you pay via PayPal.

Q2. How to have my own paint design?
A: Please send your design or your idea to us, and tell me the color code you want to paint, then our designer do the sketch to you confirm. We'll begin to paint while you think it's okay.

Q3. Can I get an exclusive sales agency in my country?
A: Of course, if there is no agency in your country, we can communicate according to the actual situation.

Q4. Can I customize my own mold?
A:Yes, we have very professional designers, with over 12 years of experience on carbon fiber frame/cycling area.

Q5. If I order a sample which delivery company?
A: EMS, XDB, UPS, DHL, Fedex, etc.

Q6. What’s your MOQ?
A: For sample not ask MOQ, after sample MOQ is 10-30 unit.

Q7. What is delivery time for sample order or an order 100 unit?
A: For sample order, if you need to painting and decal the sample, we need 10 days to print decal and 7 days to painting and sticker decal, so sample delivery time about 3 weeks. For an order 100 unit, we need 40days for productions and 20 days for painting and decal.

Q8. How about the warranty?
A: Frame have 2 years warranty and wheelset have 1 year warranty since they are sold, if your product have any quality problem,please contact us, thanks.
