DFRobot ultra small size 15A Single DC Motor Driver IC-LM2575 chip with UVLO Under Voltage Latch-Out for Arduino room limited project

Introduction

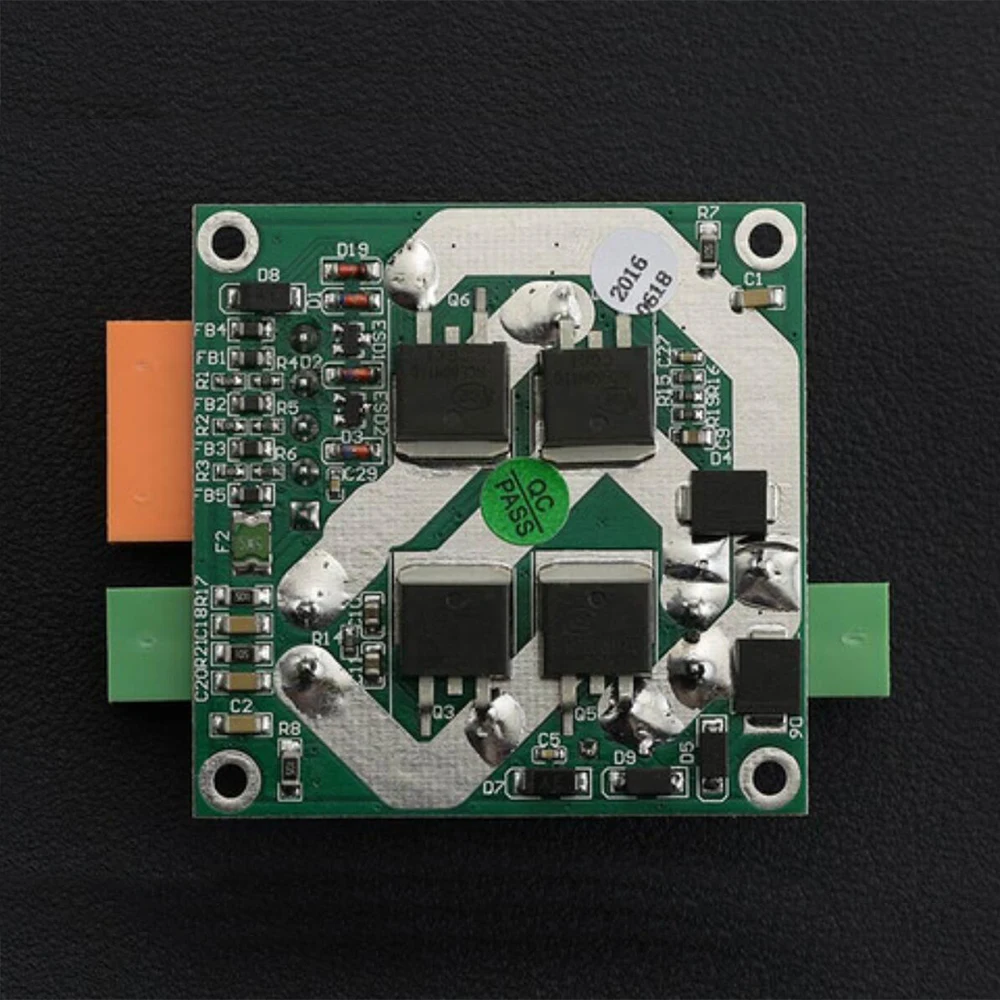

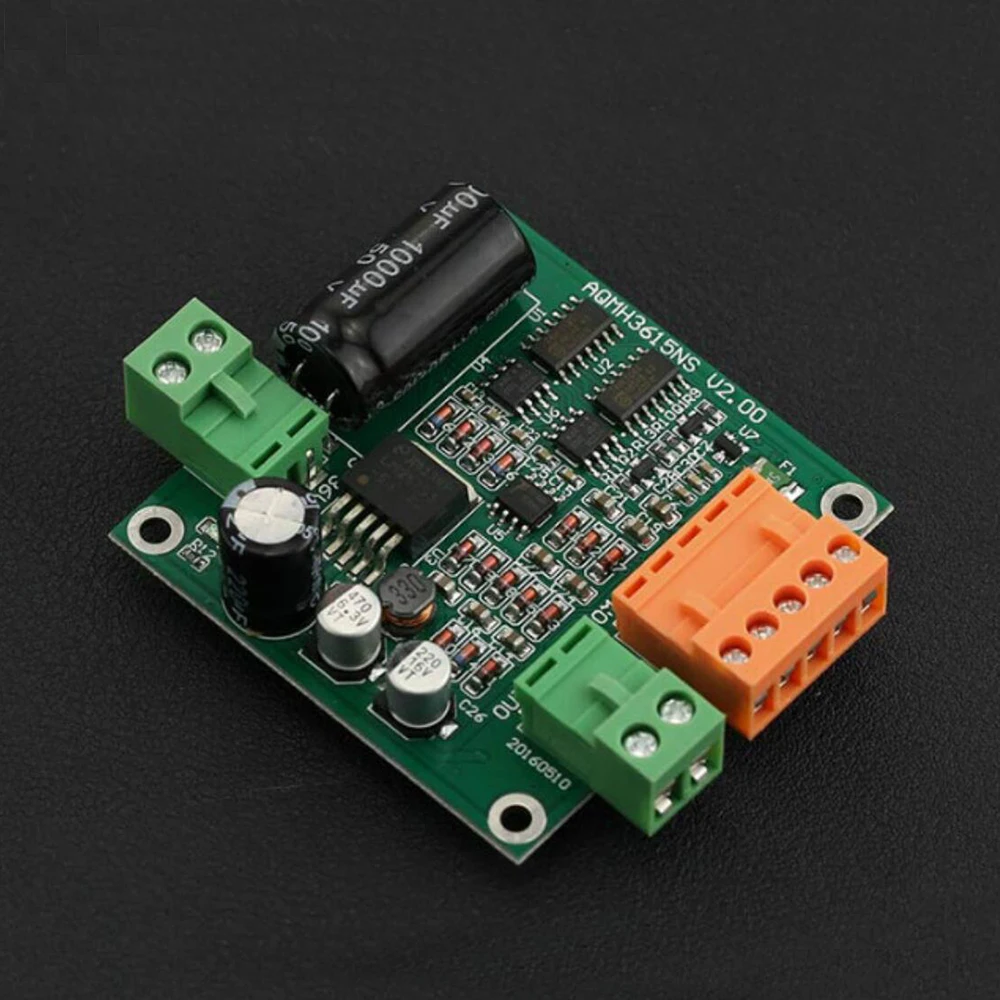

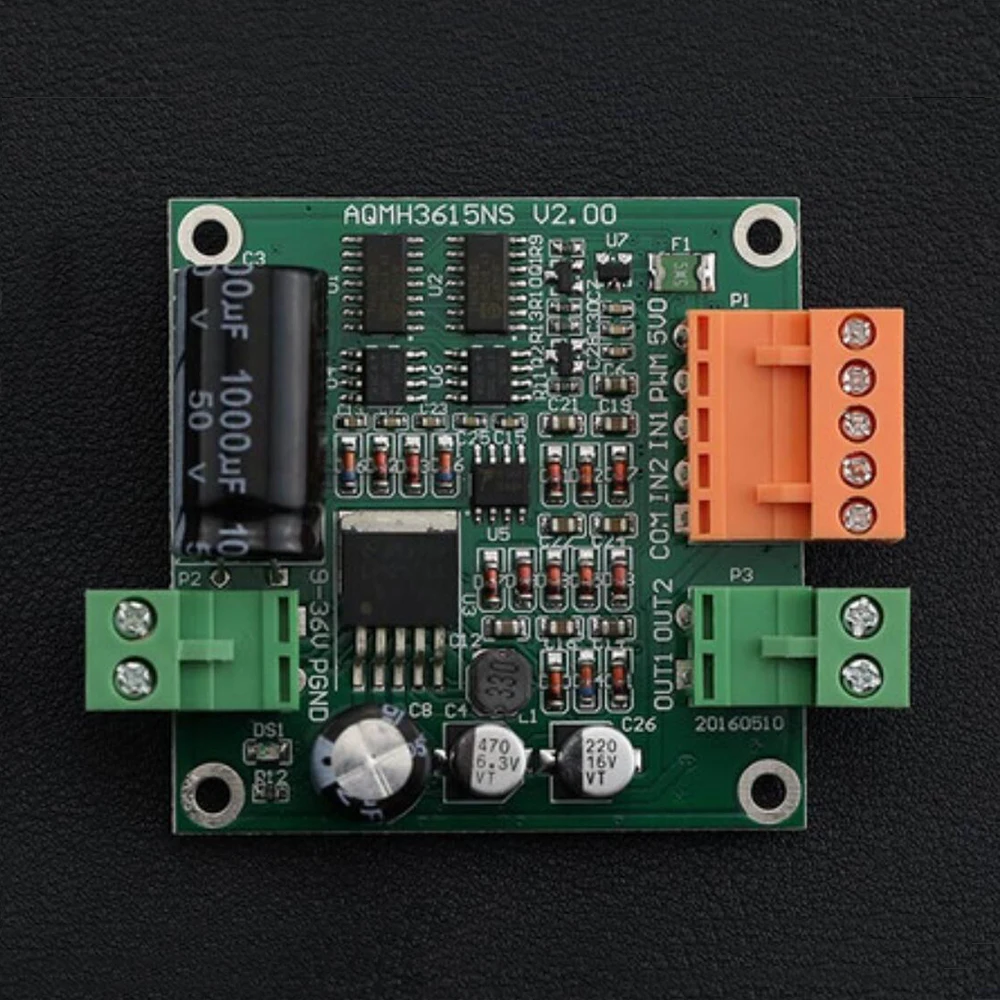

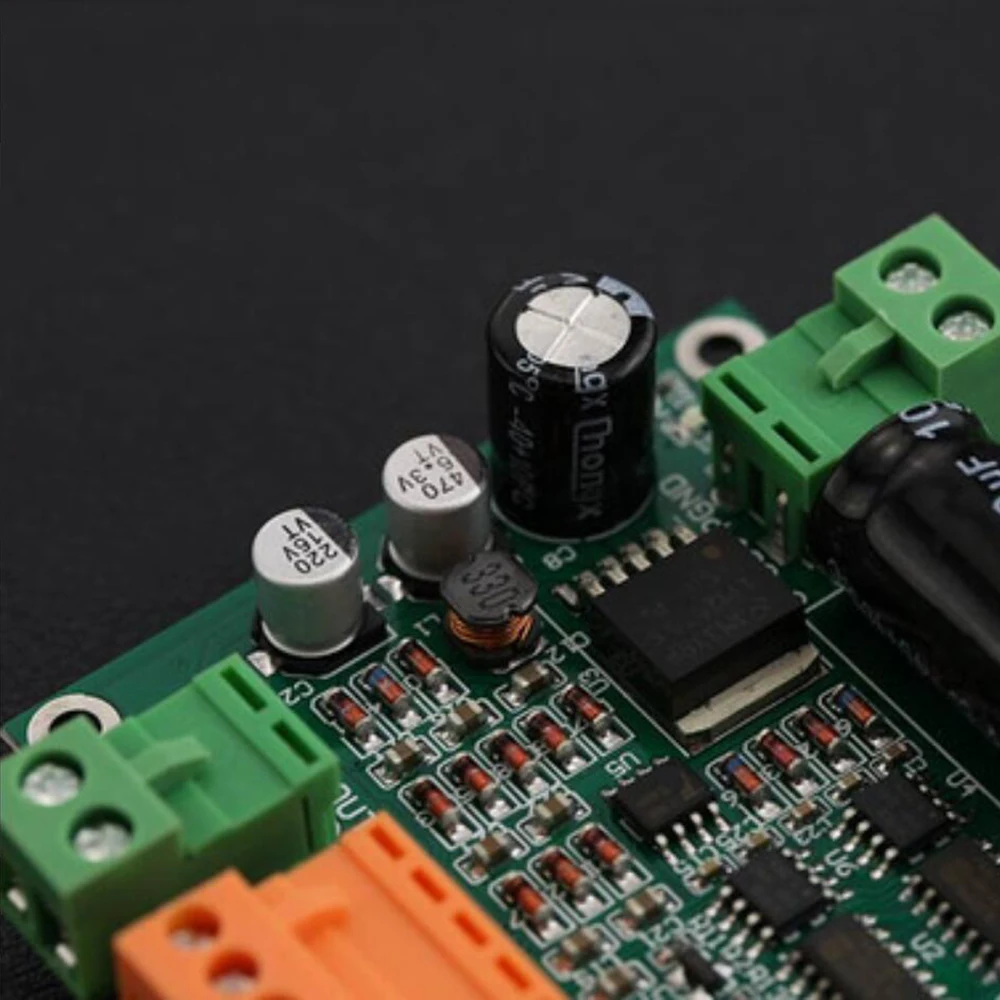

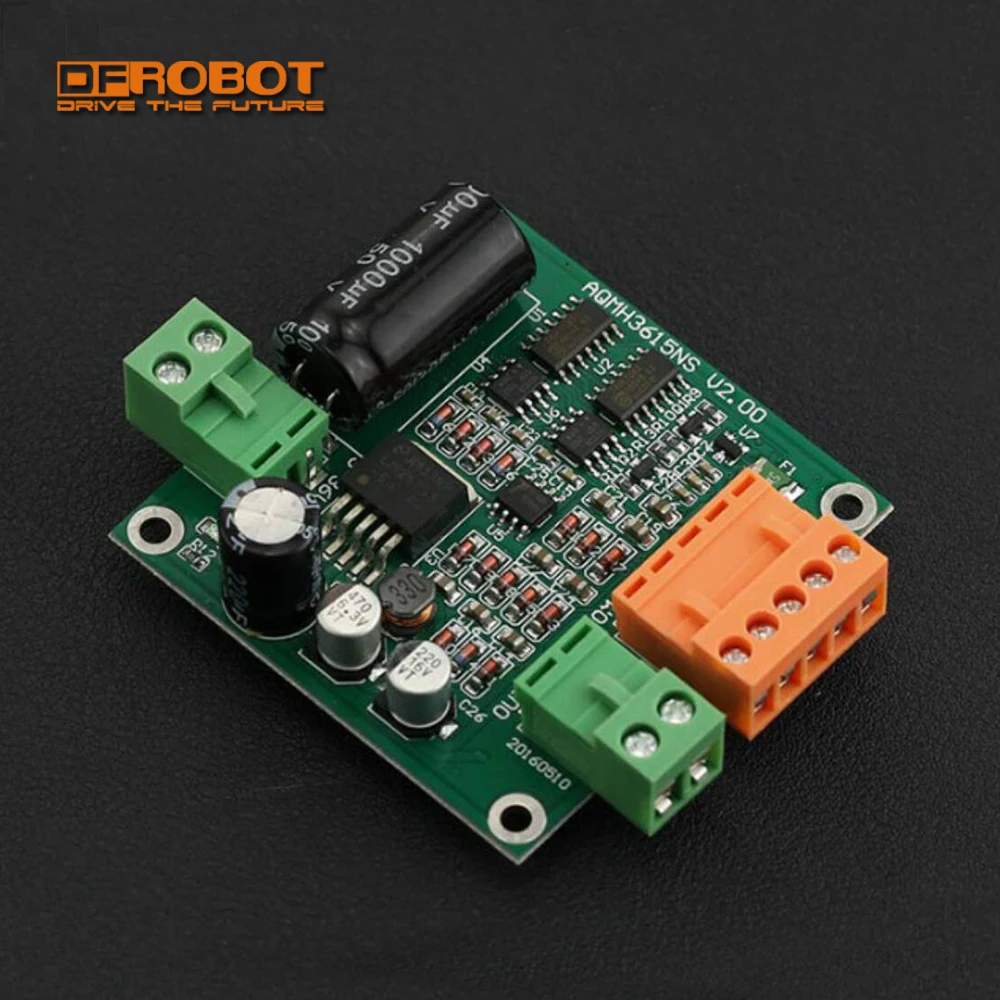

This is an ultra small size DC motor driver for room limited projects, while the impressive IC - LM2575 could provide a powerful way to drive 36V@15A motors. Also its UVLO (Under Voltage Latch-Out) feature provides a safe guard for your system. Besides all, it is very considerate to own an 5V output for Arduino or any other devices, and its interface is ESD (electro-static discharge) protection.

Photos

Specification

Voltage supply: DC 12 ~ 36 V
Voltage supply limit: 6.5 ~ 40 V
Control signal Level (Compatible 3.3V/5V)
High: DC 2.0 ~ 5.5 V
Low: DC0 ~ 0.8 V
Maximum continuous operating current:
12A (no heat sink)
15A (with simple heat sink)
20A (with Thick Heat Sink/ Cooling System)
Peak current: 110 A
Speed control: PWM
Minimum valid Pulse Width: 200 ns
Maximum Output Current @5V: 500 mA
Working Temperature: -25 ~ 85 °C
Mounting Hole: M3
Dimension (Length * Width * Height): 55 * 55 * 20 (mm)/ 2.165 * 2.165 * 0.787 (in)
