Аудио-модуль Codec Relay для стерео воспроизведения и записи с интерфейсом I2C и поддержкой декодера STM32 на плате WM8960 с возможностью переключения через Wifi.

Brand NameNoneOriginMainland ChinaCertificationNONEMeasurement unitpiece/piecesEach pack1

Unavailable in

Description body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; } On-board high-quality MEMS microphone, can record without headphones On-board standard 3.5mm four-segment
With microphone headphone jack, you can record or play music through external headphones
On-board dual-channel speaker interface, can directly drive speakers to support common audio sampling rates such as 8/11.025/22.05/44.1/48KHz
Support stereo, 3D surround sound output, etc.

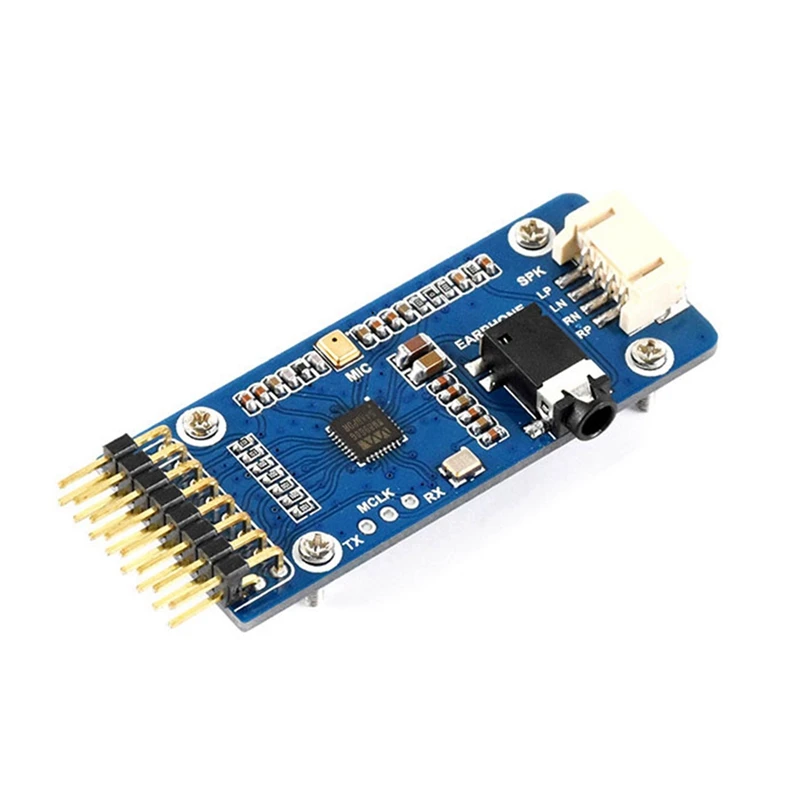

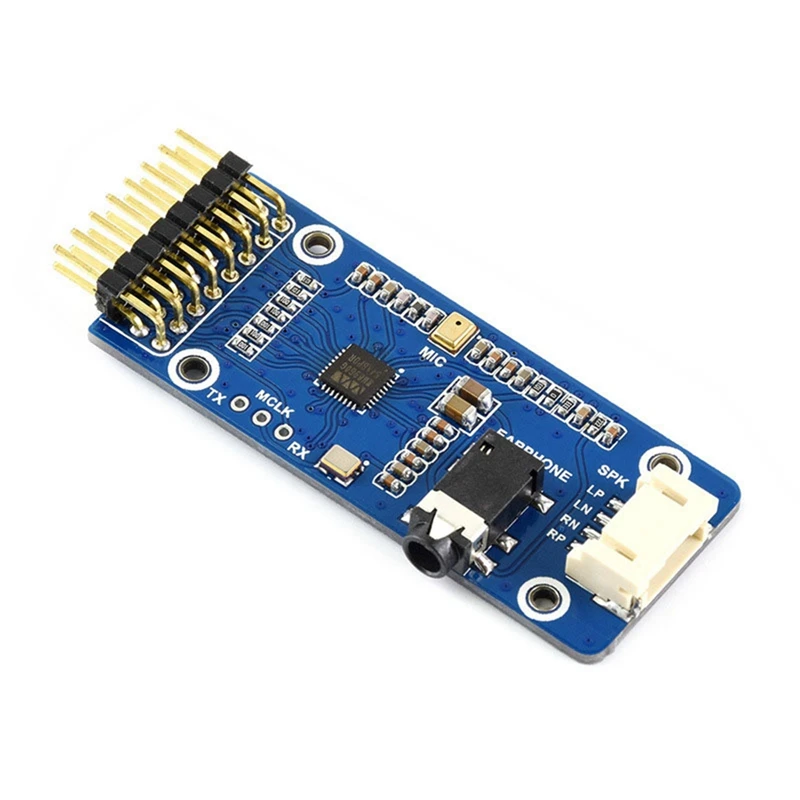

Audio codec chip: WM8960
Working voltage: 3.3V
Control interface: 12C
Audio interface: 12S
Audio format: WAV
DAC SNR: 98dB
ADC SNR: 94dB
Headphone driver: 40mW (16@3.3V)
Speaker driver: W per channel(8nBTL)
size:100x45x21 mm
Material:ABS+Metal
colour:blue

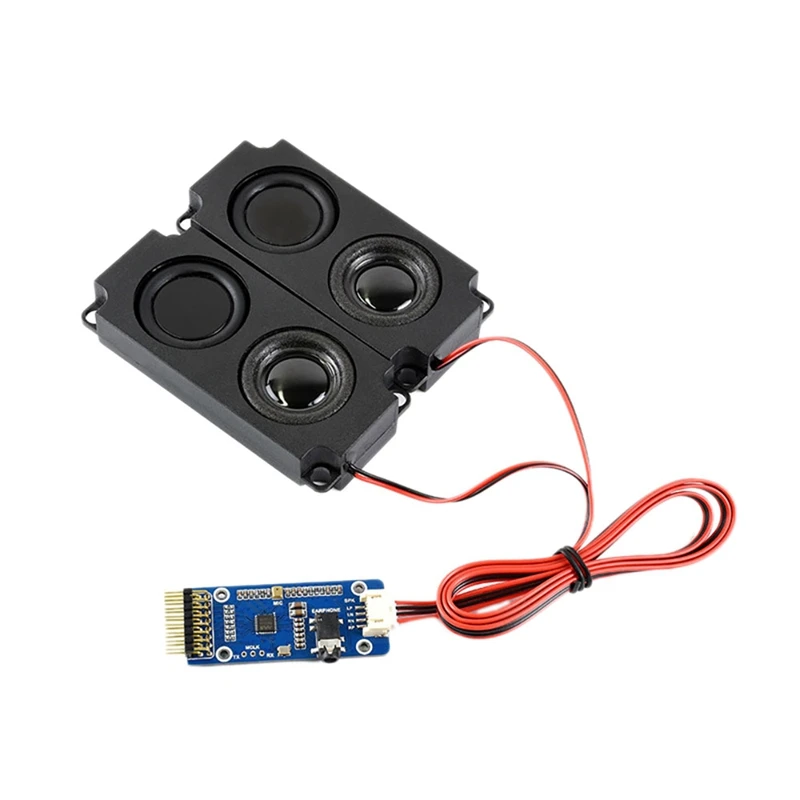

Package Contents:
1 * WM8960 Module

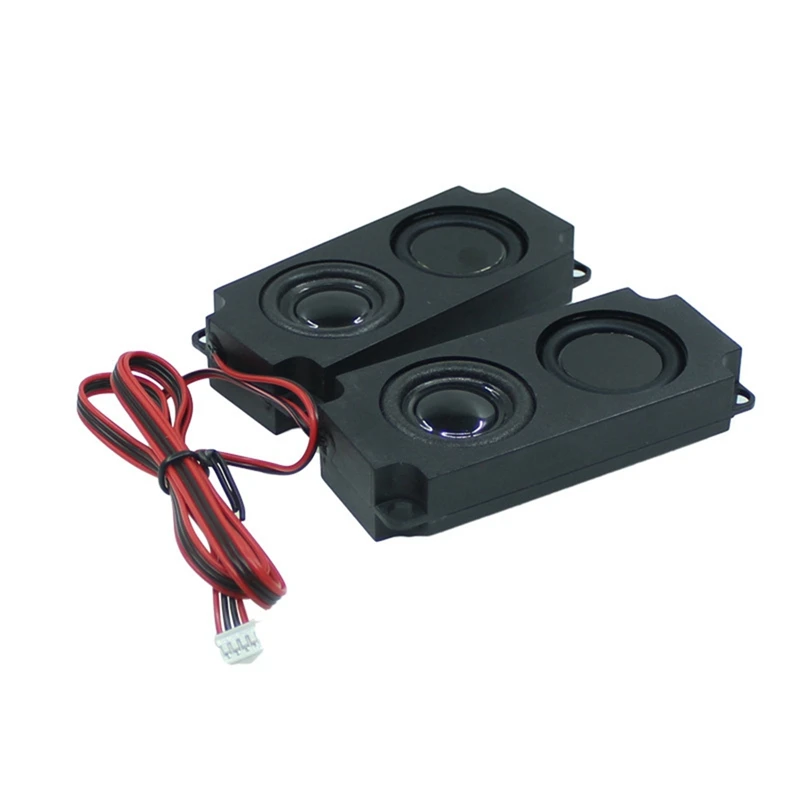

2 * trumpet

Only the above package content, other products are not included.
