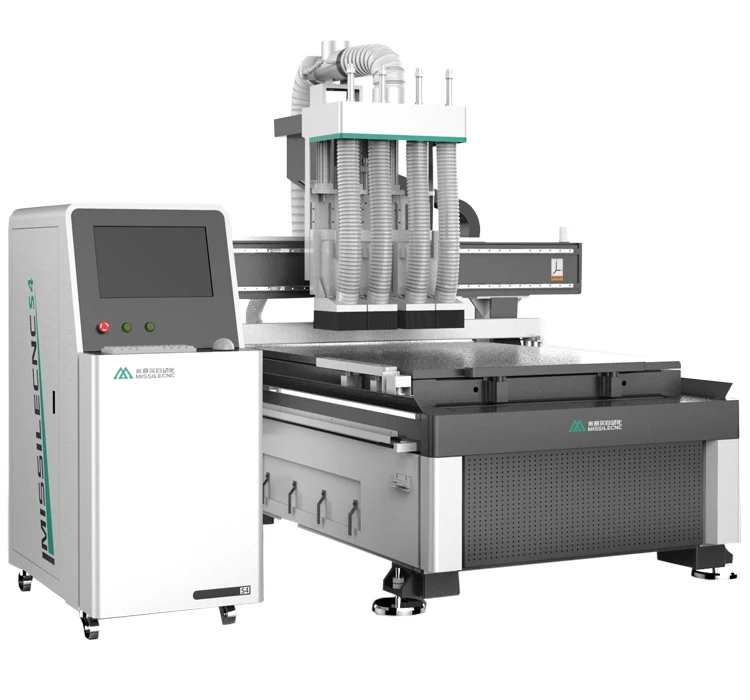

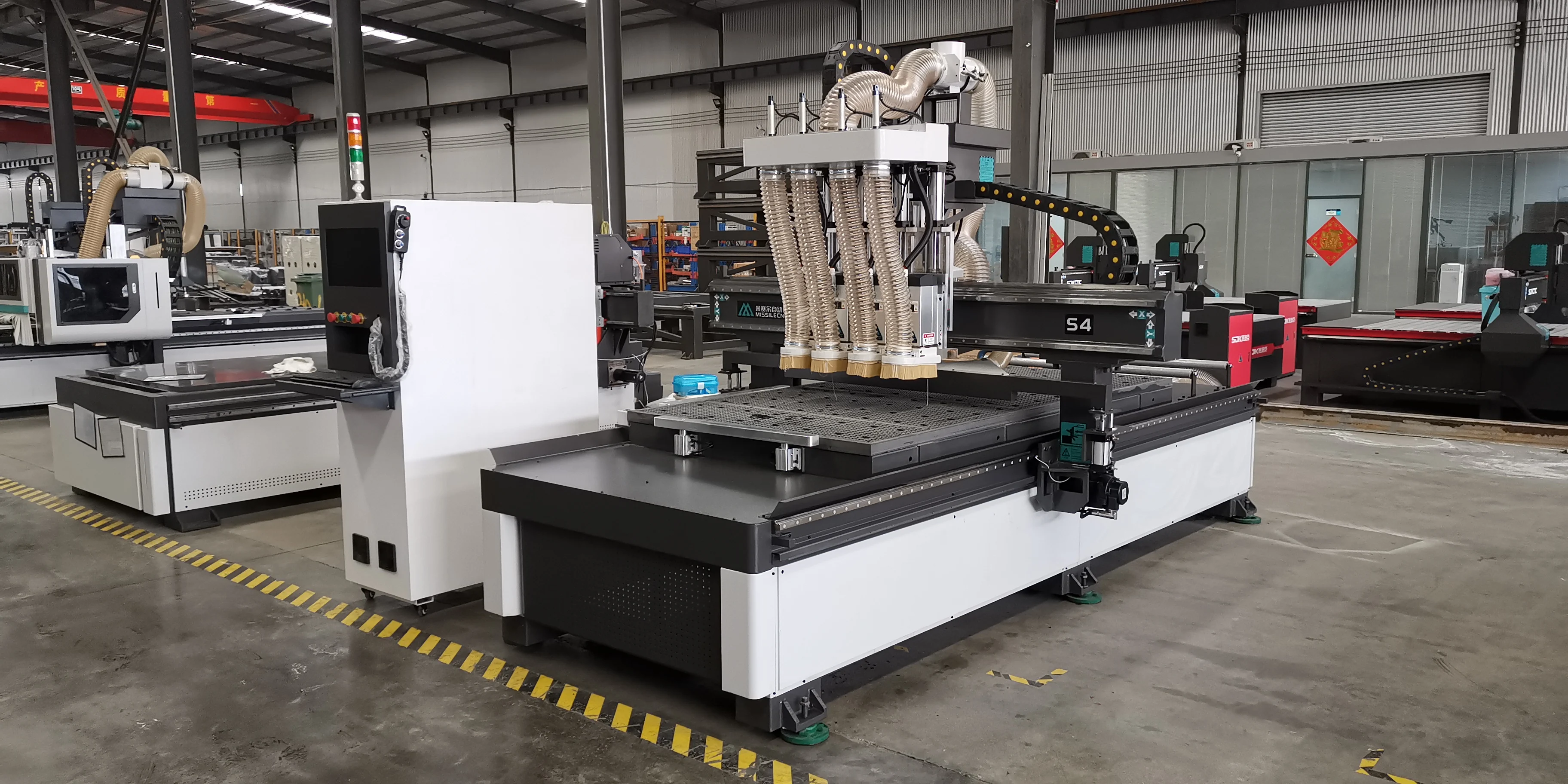

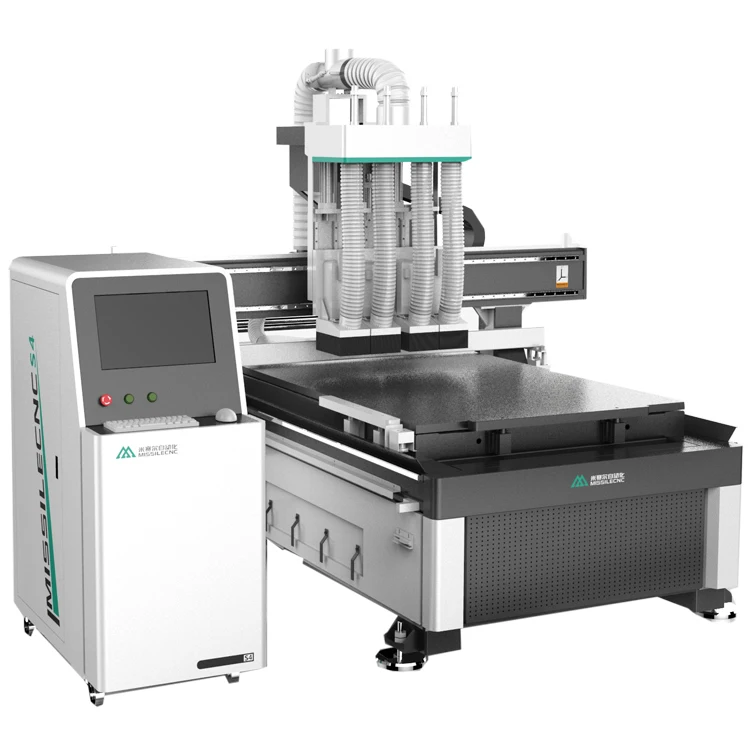

Cabinet door atc cnc router 1325 cnc nesting machine wood router for furniture industry price

Hotsale muti head wood cnc router machine is one type of cnc router for multi wood patterns engraving.multi heads atc cnc router has multi spindles can change automatically to carving the different patterns with high precision and can save much time.The spindle can be 2,3,4 etc.

Our company is a specialized manufacturer of engraving machine,it is a good quality pf product and our intergrity in home.

So i will introduce the atc cnc router,it's one of the most machines in our company.The atc cnc router can switch 2-4 separate spindles automatically to achieve 2-4 processing's work,it is designed with 3D embossment engraving particular for redwood, classical furniture,atc cnc router can satisfy any kinds of engraving work.

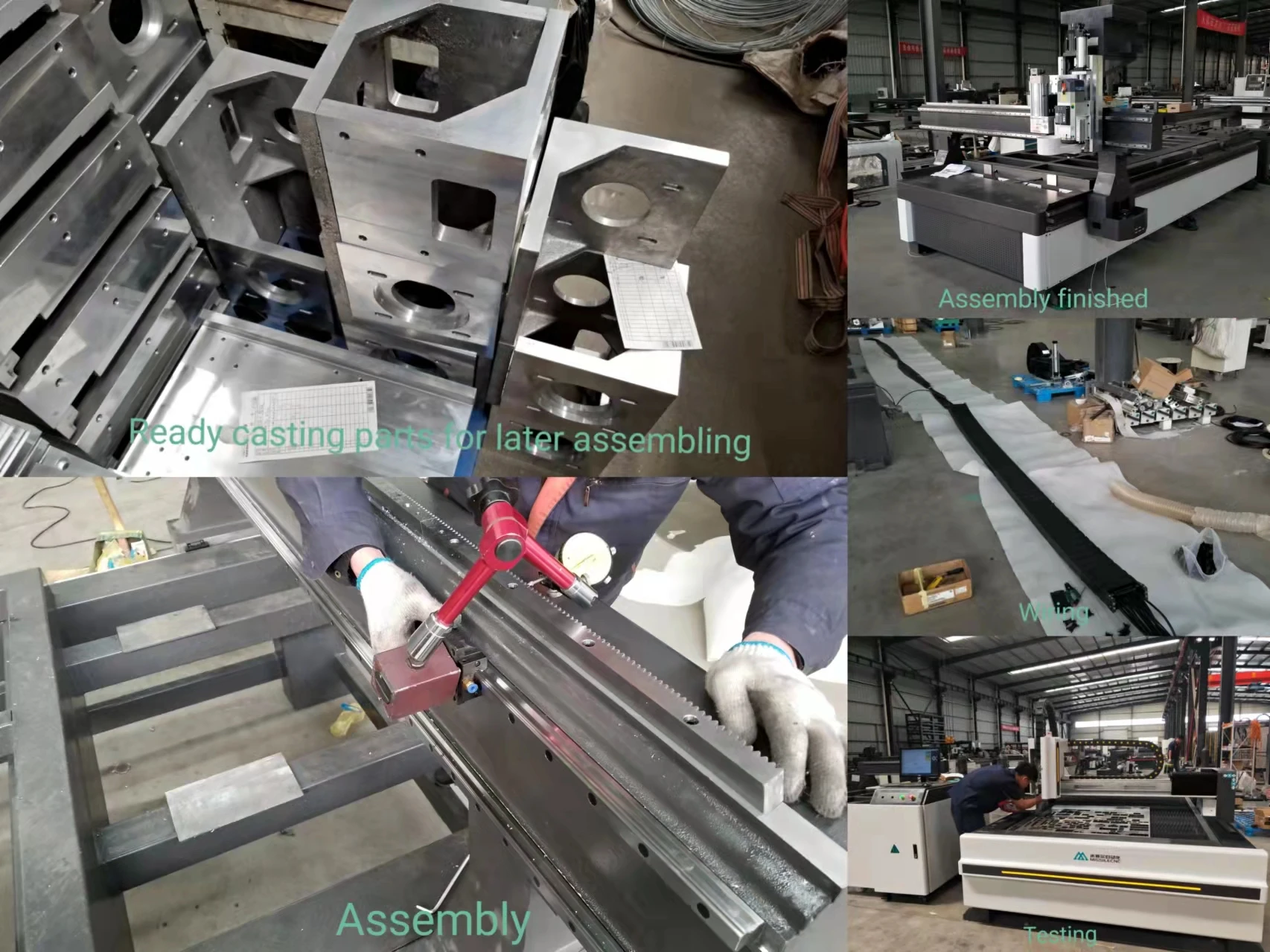

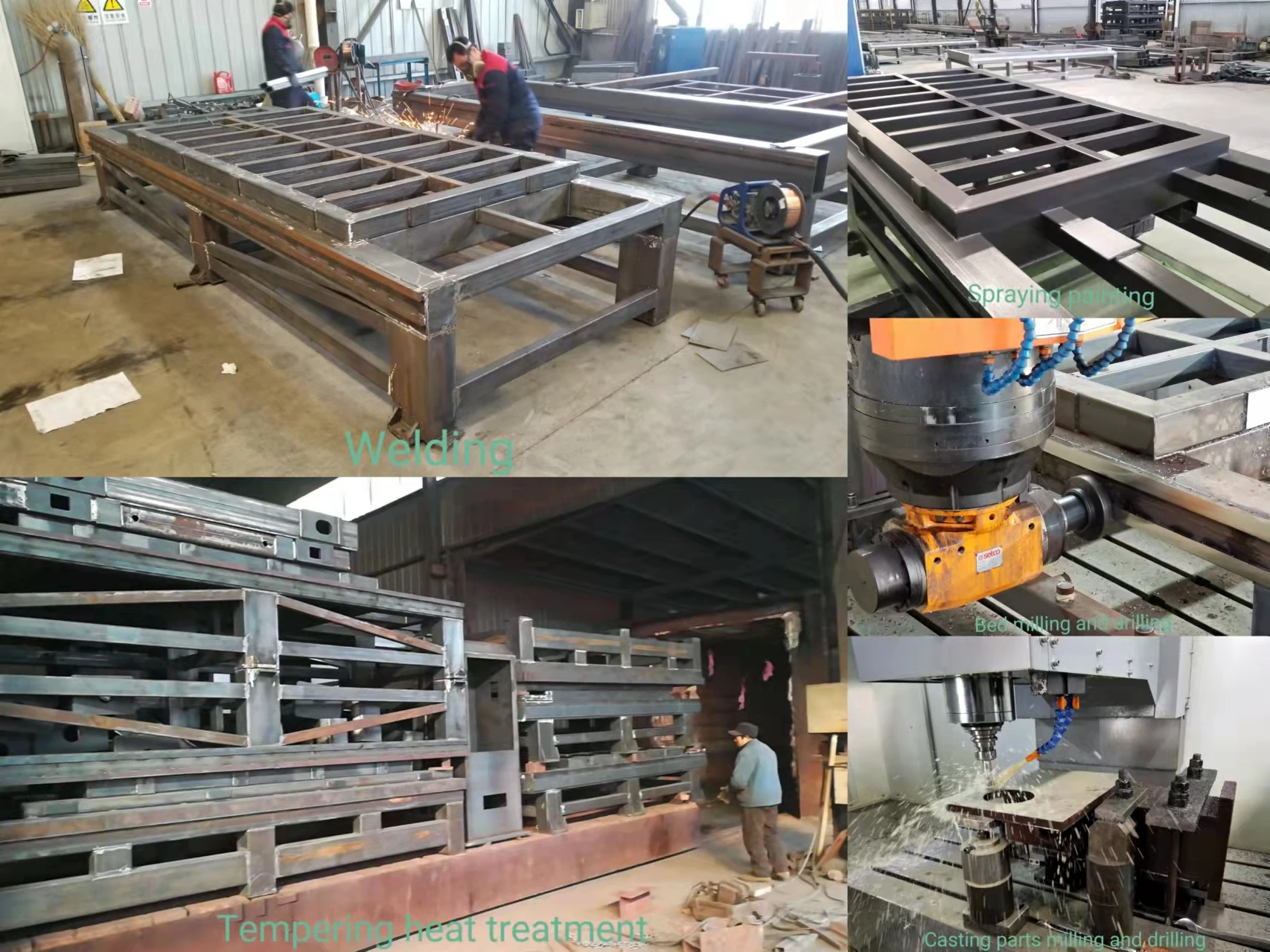

Product process

The Product Parameters

Product name

X,Y,Z Working Area

1300*2500*200mm

X,Y,Z Traveling Positioning Accuracy

±0.05mm

X,Y,Z Repositioning Accuracy

±0.05mm

Table Surface

Vacuum Table

Frame

Square pipe Welded Structure

X, Y axis transmission

Rack and Pinion gear

Z axis transmission

Ball Screw

Max. Traveling speed

25000mm/min

Max. Working speed

15000mm/min

Rail Configuration

20 square rail (opitioinal 25 square rail)

Spindle power

Air-cooling spindle 3.5KW*4

Spindle rotationg Speed

0-18000RPM

Drive Motors

Stepper System(Opitional servo)

Working Voltage

AC380V/50Hz/3PH

Operating System

Ncstudio system(Option: DSP)

Command Language

G code, u00, mmg, PLT, HPG

Software Compatibility

Type3 or Wentai(ArtCUT),or ArtCAM software

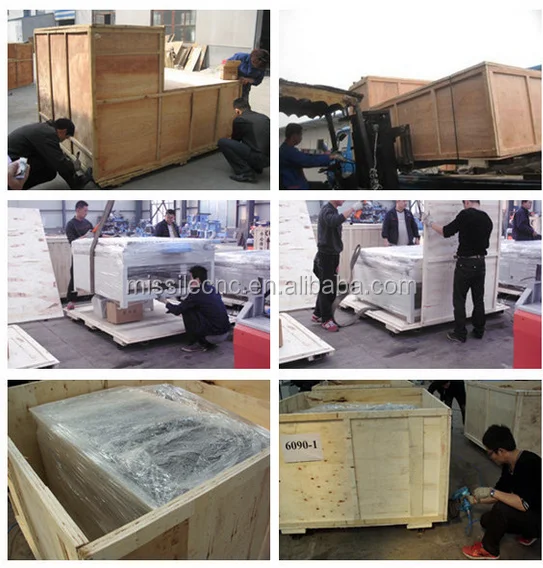

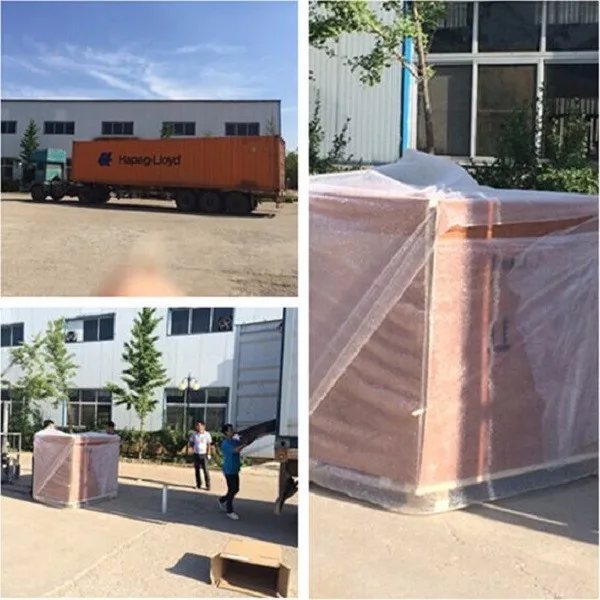

Packing

Wooden case

N.W.

1800Kg

Main features

1. Structure: thick square tube welded bed

2. Fixed table ,movable gantry design

3. Transmission:X.Y axis rack and pinion,Z axis ball screw

4. 25 square rail

5.Drive system: stepper driver and motor

6.Control system: original Ncstudio operating system

7.air-cooling spindle 3.5kw*4

8.5.5kw vacuum pump

9.dust-controller automatic switching and save time, suitable for two or three flower types carving work.

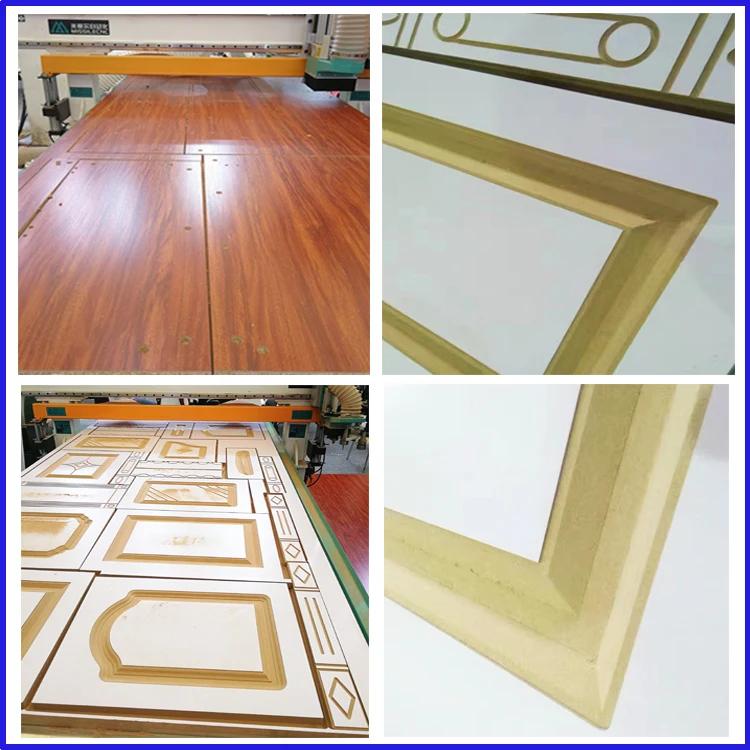

The Samples:

Our Advantage

1.We are professional manufacturer of cnc router.

2.We have professional technical team.

3.We have strictly inspection instrument,ensuring each machine qualified before leaving factory.

4.We have good after-sale service team,we will solve all problems within 24 hours on internet and tel.

5.We will free training to make sure us know how to operate cnc router.

Our Certificate

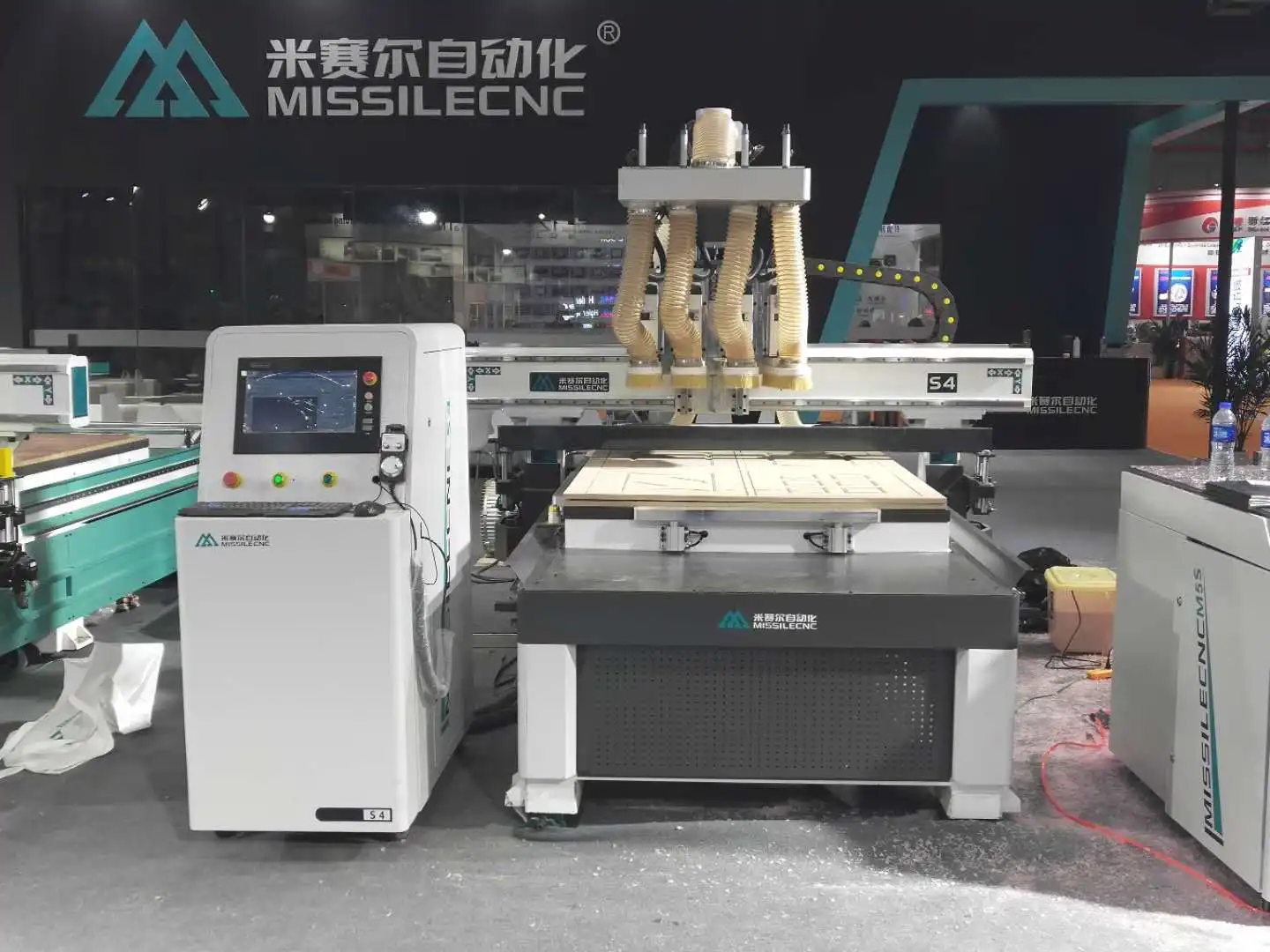

Our Exhibition& Our Clients

After sales services:

Normal CNC router is properly adjusted before dispatch.

You will be able to use the cnc router immediately.

You will be able to get free training advice towards our cnc router in our factory.

You will also get free suggestion and consulting, technical support and service by

email/fax/tel and lifetime technical support.

Q1.How to get the most suitable machine and best price.

Please tell us the material you want to working on ? How to working on it ? Engraving ? Cutting ? Or other ? What’s the MAX size of these material ?( length ? Width ? Thickness ?)

Q2.Do you have the manual of machine.

Yes,we have

Q3.If we donot know how to use the machine,can you teach us?

Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy ,we will have the special engineer to your country,but you need to bear some fee,like tickets, hotel and meal.

Q4.How about your after-sales service?

We offer you 24 hours service phone,skype or MSN.

Q5.How about your guarantee period?

One year .If you have any questions during this time,we will solve it for free.
